Brand: Graigar
Features:
- Leeb230 coating thickness gauge magnetic induction principle,test Non magnetic coatings on magnetic substrates (such as aluminum, chromium, copper, zinc, tin, rubber, paint on the steel, iron, alloy and magnetic steel）
- Operating temperature: 0℃~40℃; Dampness, 20%~90%
- Measuring range (µm): 0~1250μm
- Low range resolution (µm): 0.1μm
- Accuracy: ±[（1~3%)H+1]
Part Number: Leeb230
Details:
Application:
* Coating thickness gauge is mainly used for measuring hull, oil and gas pipeline, high pressure vessel and boiler wall thickness as well as a variety of plate thickness, can be measured material is a delegate with steel metal materials, can be plastic, nylon and other non-metallic materials.
Measuring Material:
* Non magnetic coatings on magnetic substrates (such as aluminum, chromium, copper, zinc, tin, rubber, paint on the steel, iron, alloy and magnetic steel)
Technical Specifications

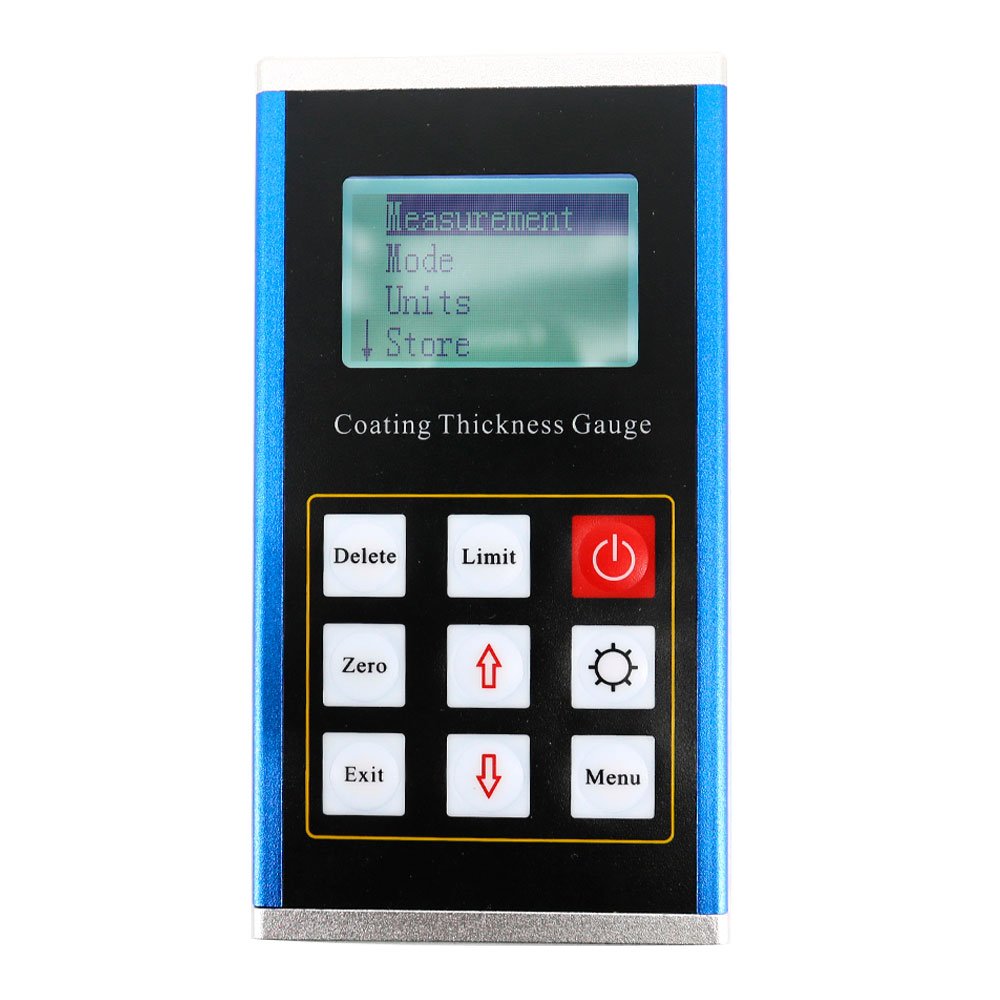

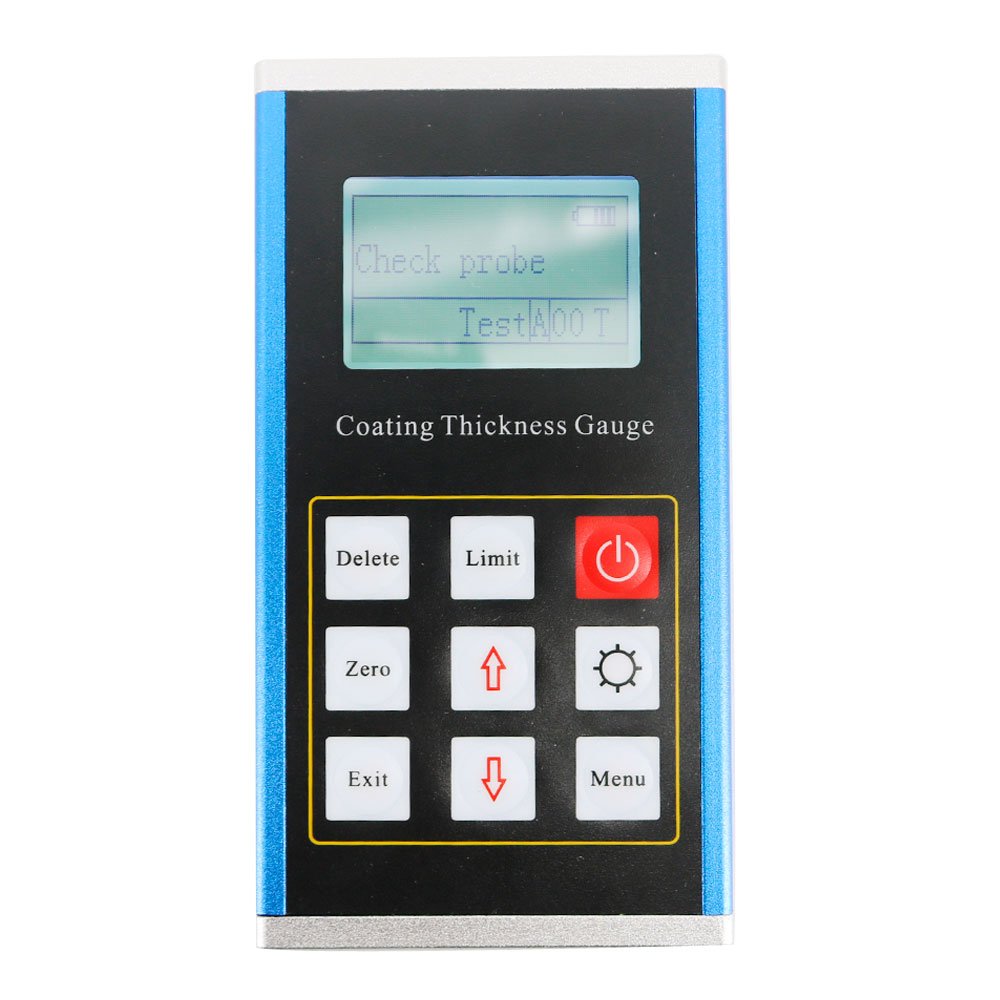

*Model: leeb230

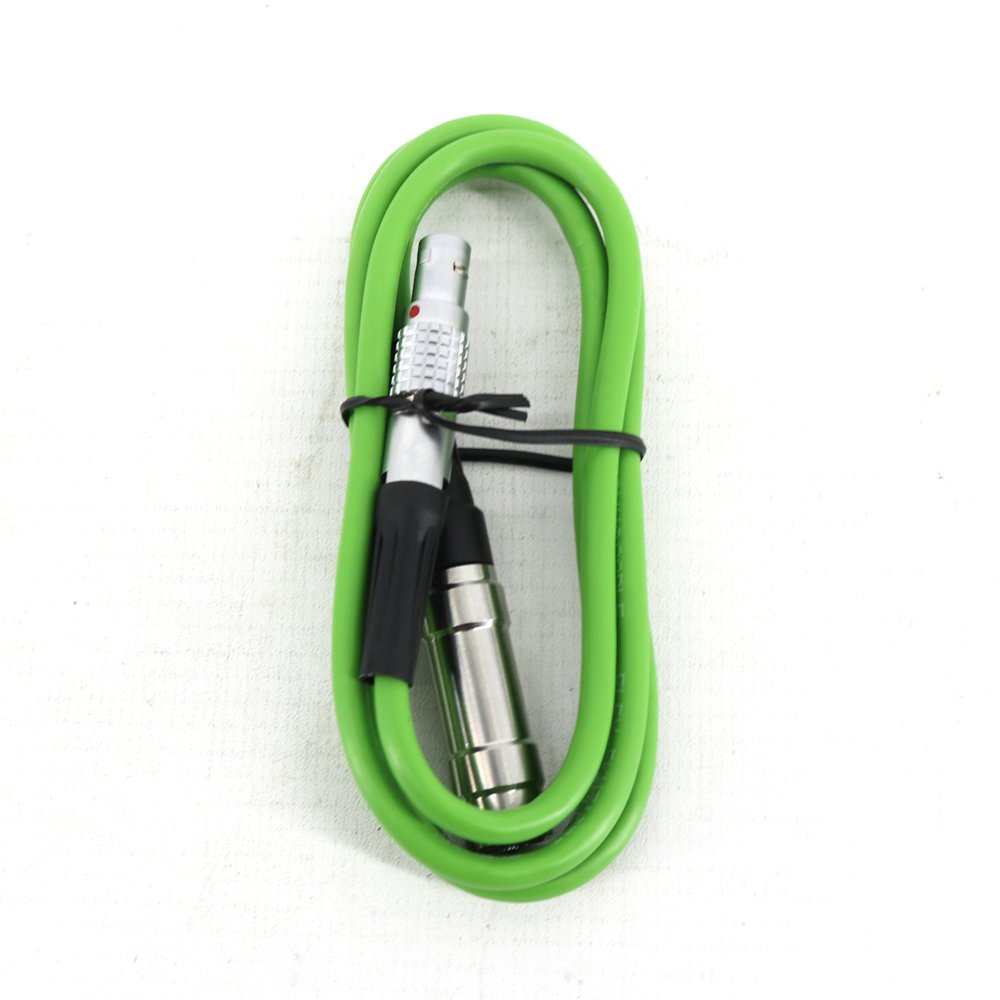

*Probe type: F1
*Operating principle: Magnetic induction
*Measuring range (µm): 0~1250μm
*Accuracy: ±[（1~3%)H+1]
*Low range resolution (µm): 0.1μm
*Min curvature of the min area (mm): Convex1.5; Concave9
*Diameter of the min area (mm): Φ7
*Critical thickness of substrate (mm): 0.5
*Operating temperature: 0C~40C; Dampness, 20%~90%
*Magnetic field: No strong magnetic field environment
*Shell: Metal
*Dimensions: 150x55.5x23mm

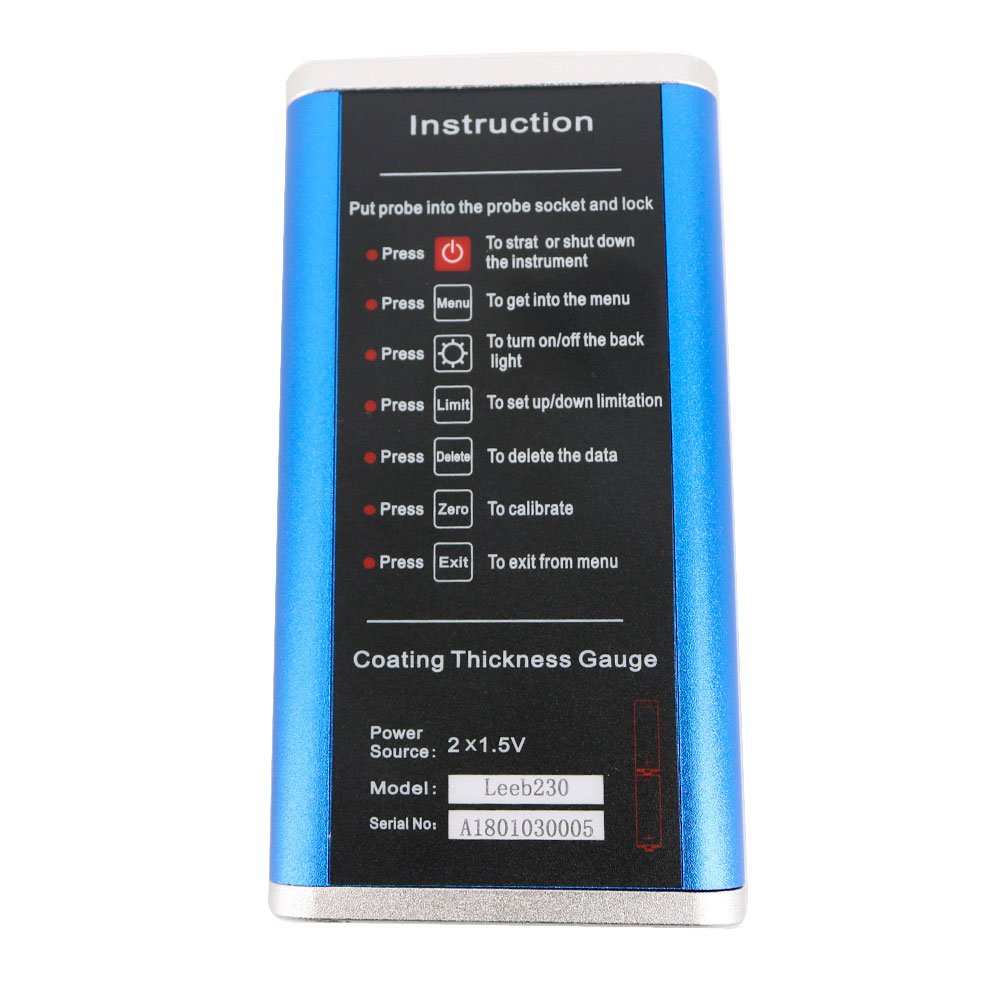

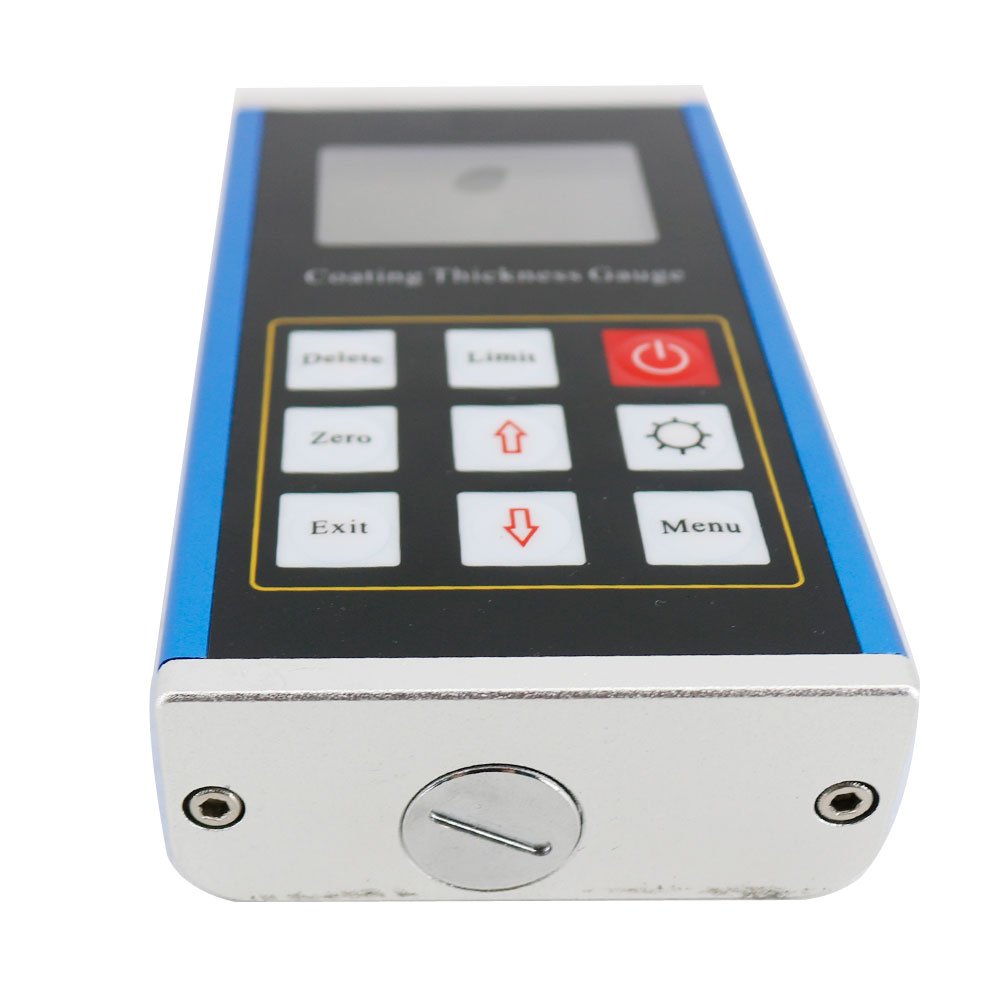

*Power supply: AAA Alkaline battery（Battery not included in the package）

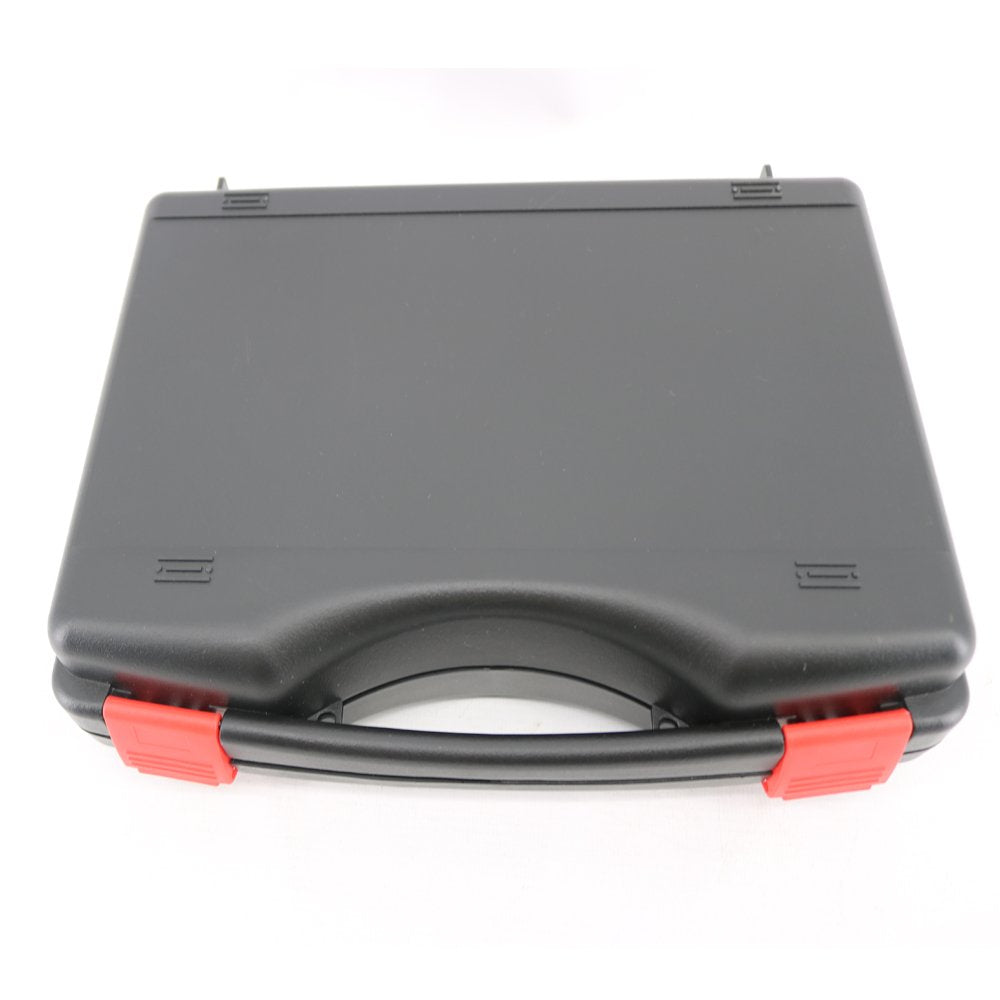

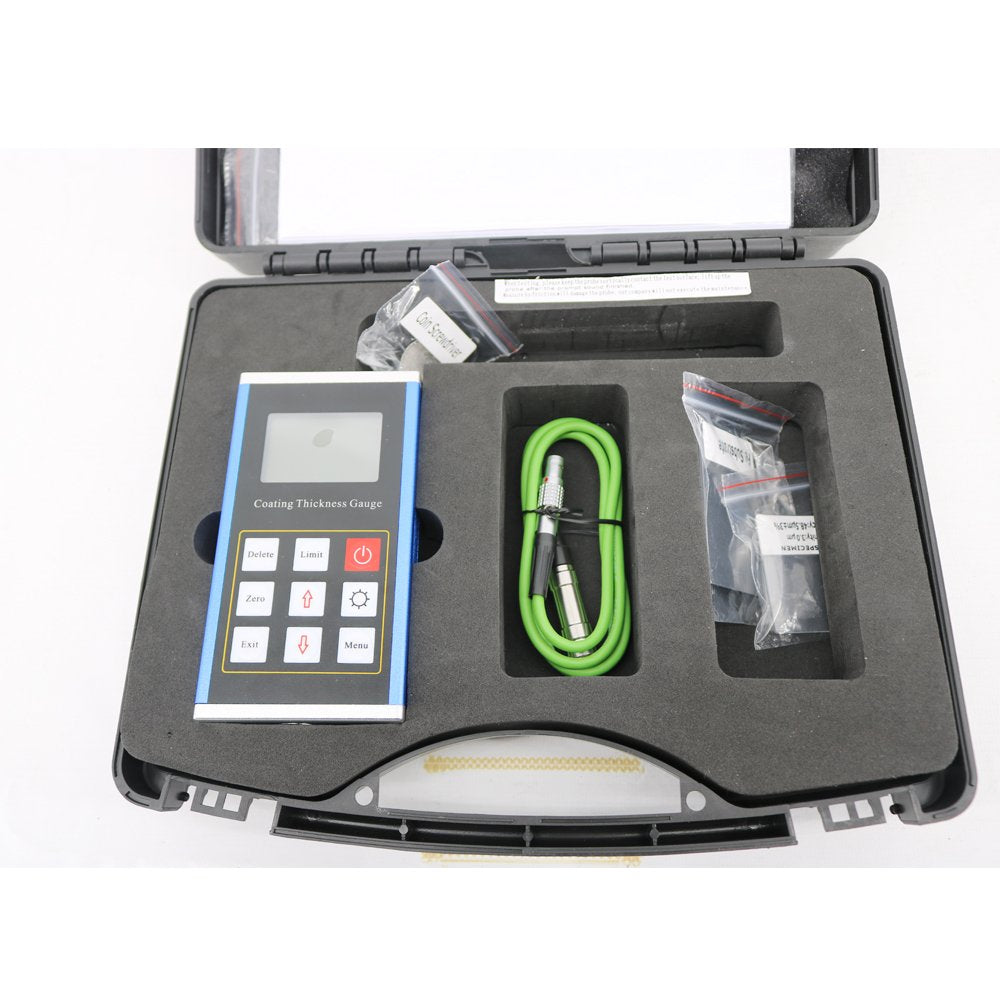

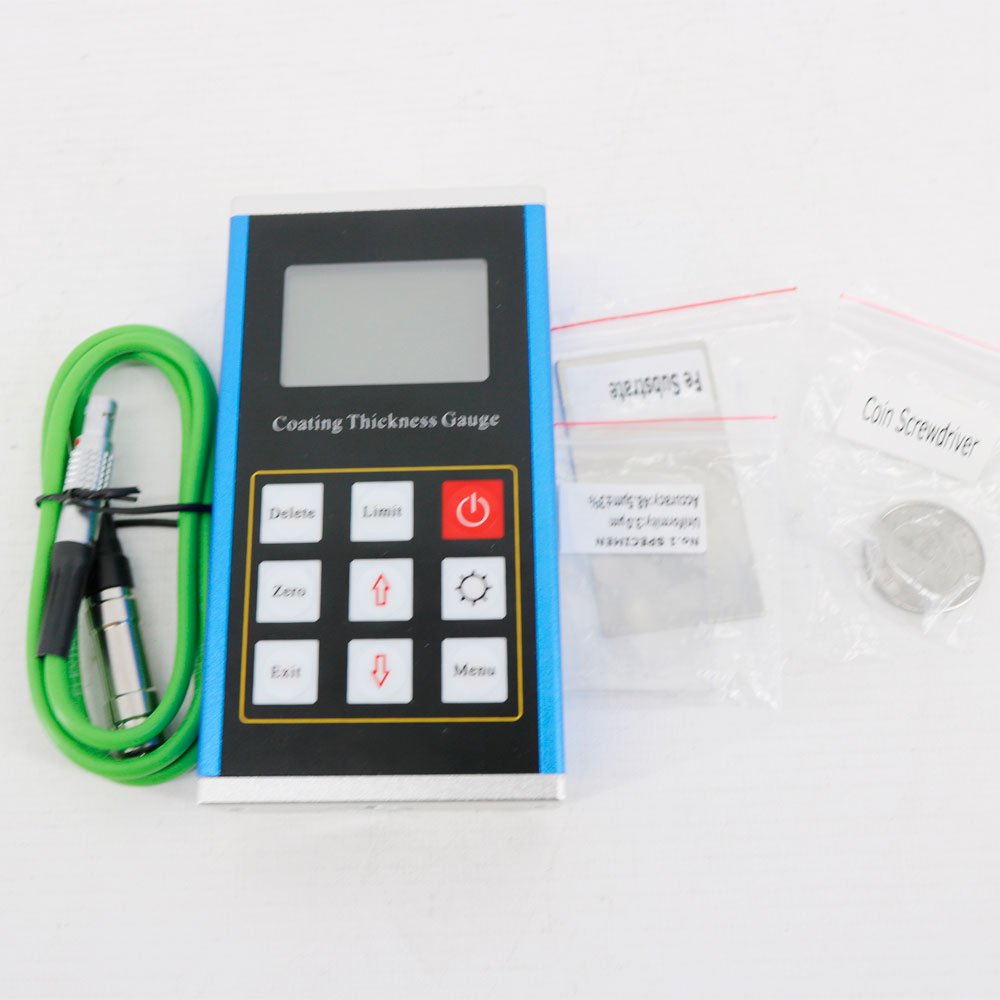

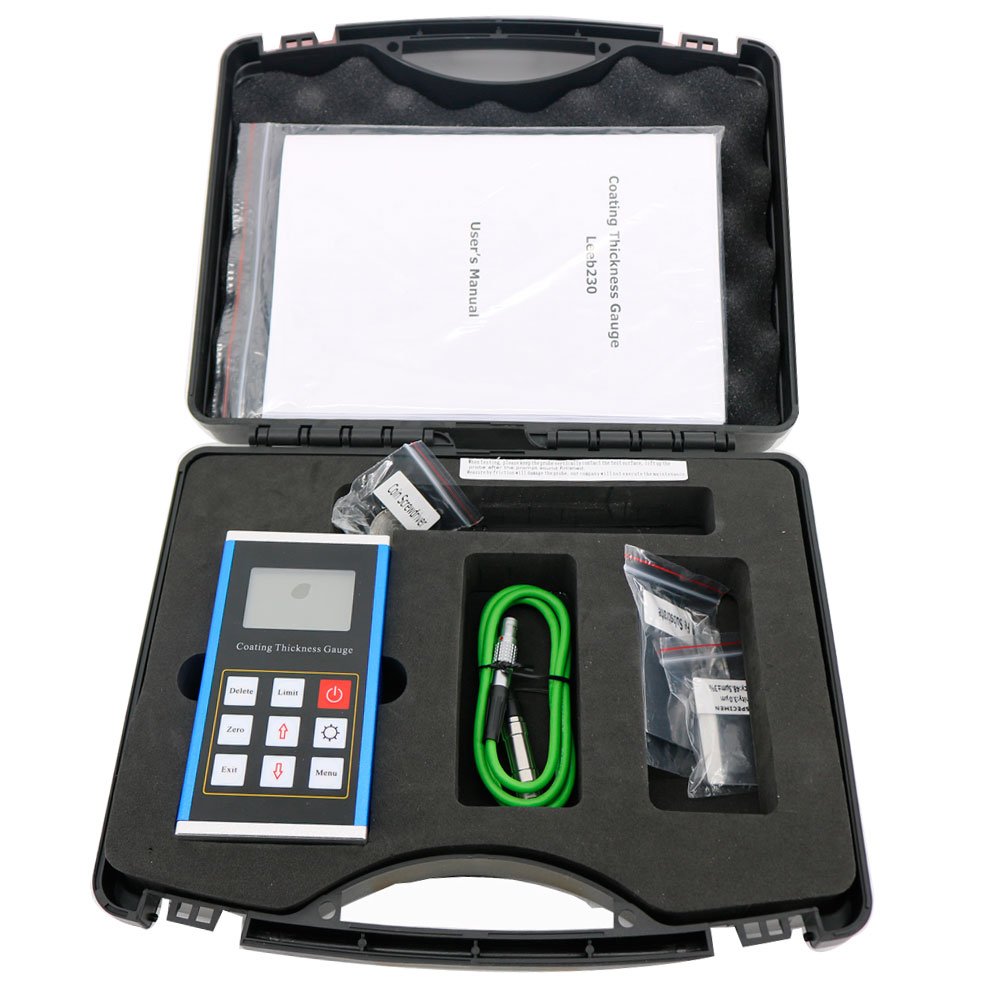

*Standard configuration : Main unit,probe,5 specimens (50µm, 100µm, 200 µm, 500µm, 1000µm),coin screwdriver,user manual,carrying case
EAN: 0725370414904
