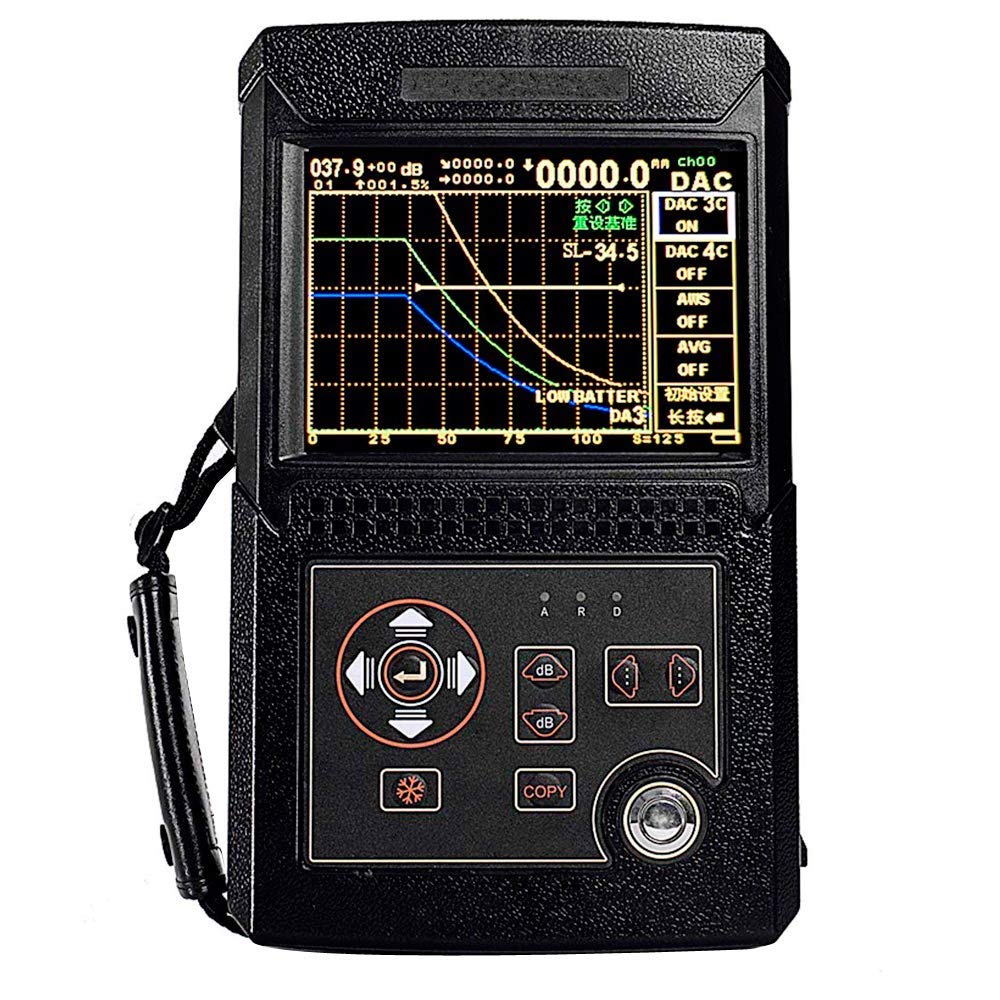

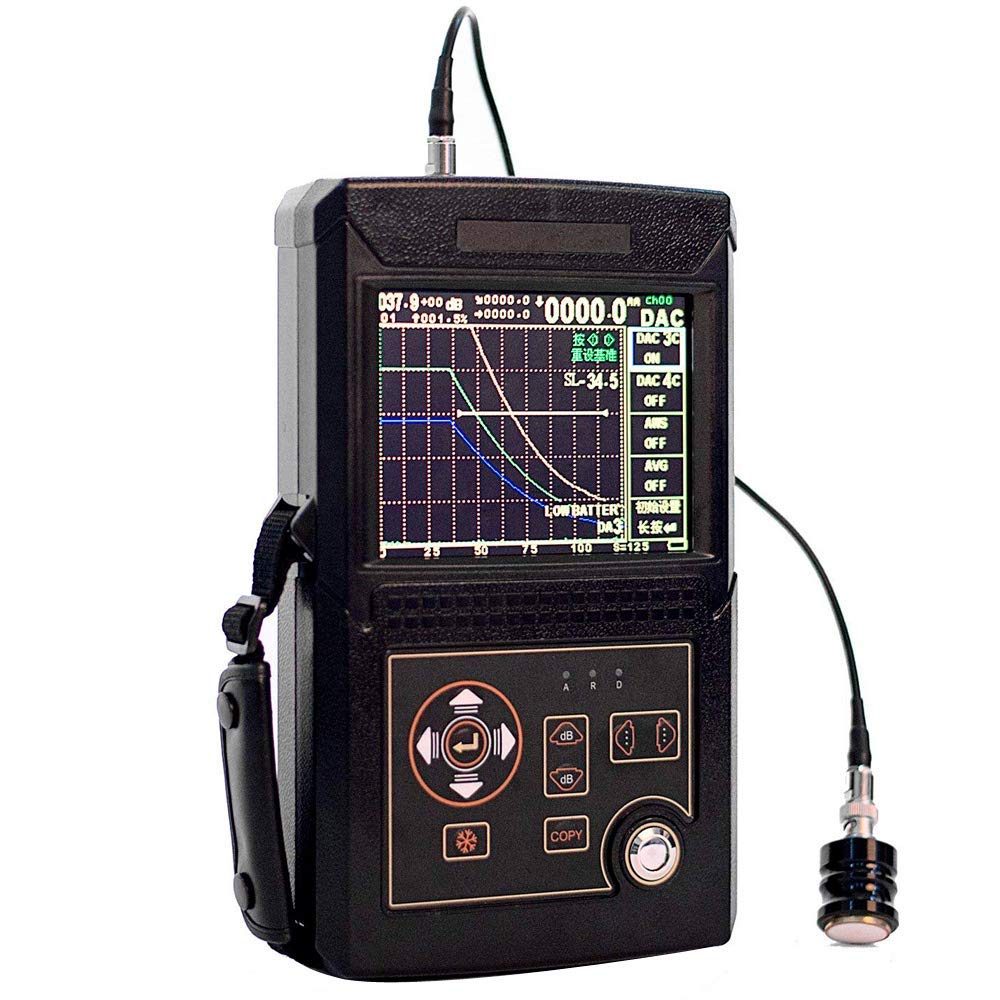

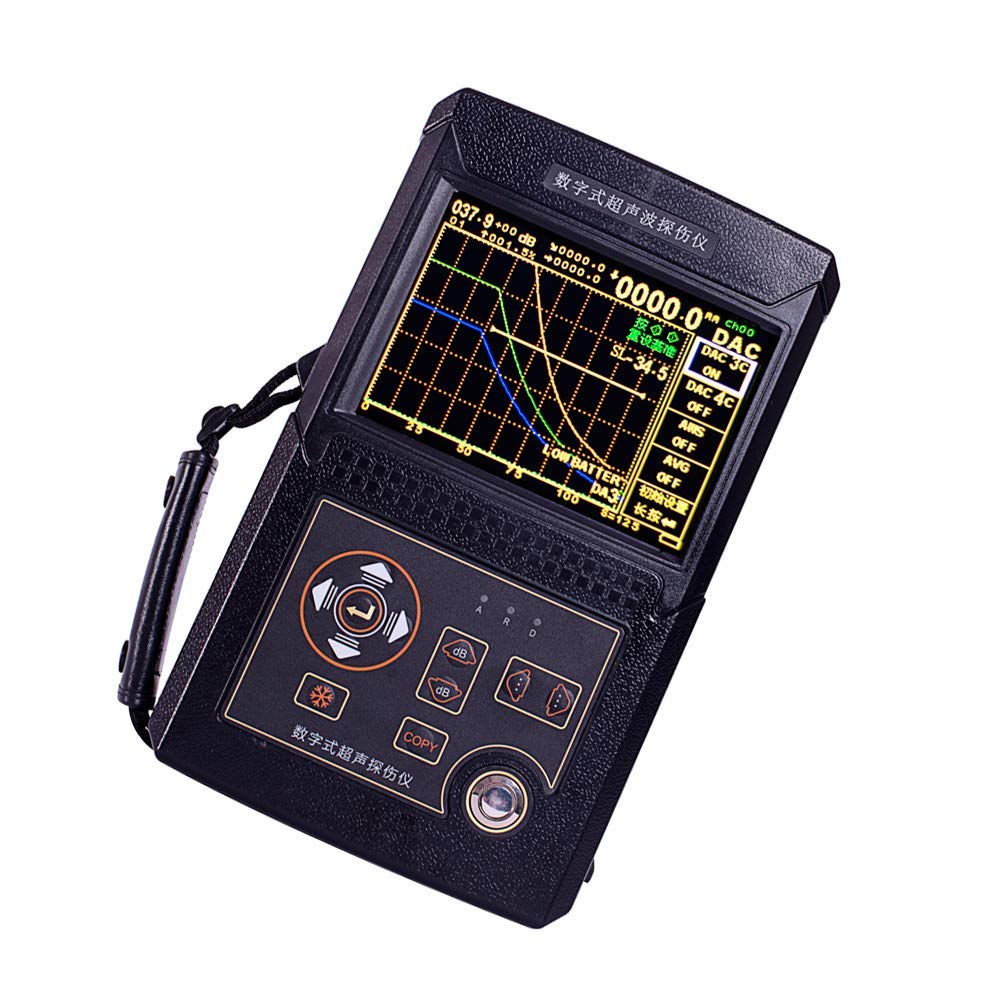

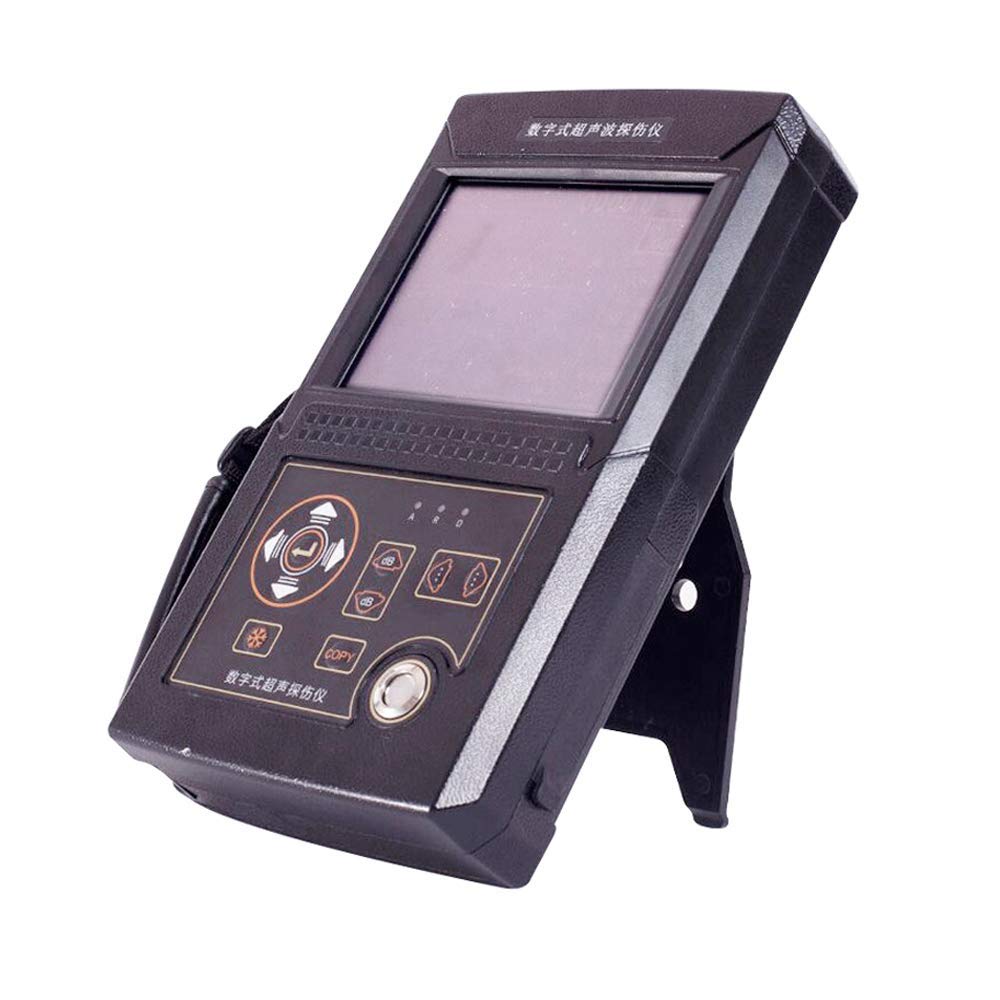

Graigar Leeb500 Digital Ultrasonic Flaw Detector Scanning Range 0 to 6000mm Velocity Range(m/s) 1000-9999 with Automatic Calibration Probe DAC AVG USB Interface
Leeb500 Digital Ultrasonic Flaw Detector has 16 independent detecting channels,can enter and store any industrial standards.
Leeb500 Ultrasonic Flaw Detector has automatic calibration of the probe without manual calculation.
Leeb500 Digital Ultrasonic Flaw Detector has USB interface, PC software is convenient for data exchange, statistical analysis and printing.
Leeb500 Digital Ultrasonic Flaw Detector has rechargeable Li-ion Battery, continuous working more than 15 hours. High quality case and shell: water, dust, and oil proof, good anti-jamming capability.

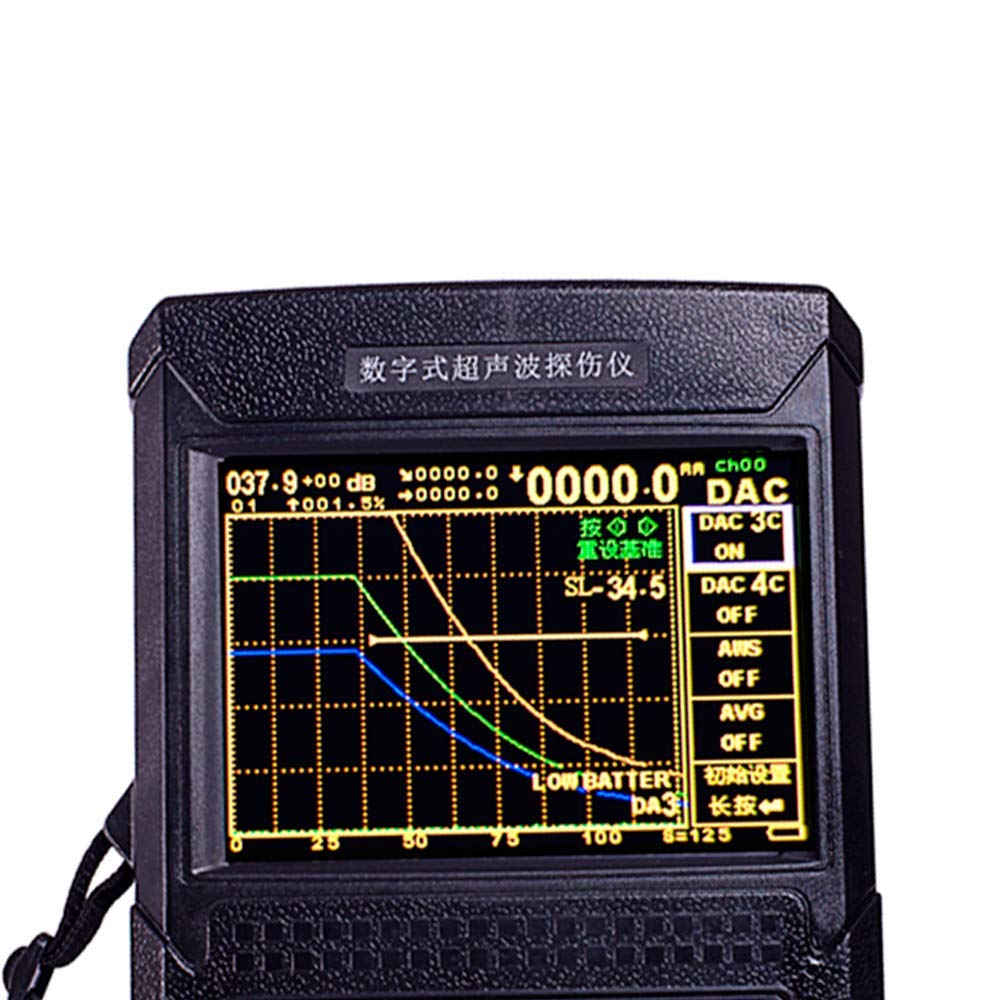

Leeb500 Digital Ultrasonic Flaw Detector has big bright LCD screen, convenient for detecting in dark or under the sunlight.
Part Number: Leeb500
Details: Features
New design, simple button and easy operation;
Rechargeable Li-ion Battery, continuous working more than 15 hours;
High quality case and shell: water, dust, and oil proof, good anti-jamming capability;
Big bright LCD screen, convenient for detecting in dark or under the sunlight
Specification
Scanning range (mm):0 ~ 6000
Vertical linearity error:≦ 4%
Horizontal linearity error:≦ 0.1%
Detection sensitivity margin:≧ 60dB (deep 200mmφ2 flat bottom hole)
Dynamic range:≧ 32dB
Resolution:≧ 34dB
Frequency range (MHz):0.5 ~ 20
Gain adjustment (dB):0 ~ 110
Material speed of sound (m / s):1000 ~ 9999
Echo suppression:0 ~ 80%
Operating temperature (℃):-27 ~ 70
Dimensions (mm):240 * 160 * 40
Weight (Kg):1.3
