Graigar LM330 Pen Type Digital Leeb Hardness Testers Durometer with OLED Display Multiple Hardness Scale Conversionof Range 200 to 960HLD Data Storage Function

Brand: Graigar

Color: Yellow

Features:

• LM330 Leeb Hardness Tester Display Type: 1.77 inch OLED with resolution 160x128 pixels; Measuring Direction: 360 degree
• Measuring range: HLD（200-960） HRC（19.8-68.5）HRB（13.5-100） HB（30-651） HV（80-976） HS（26.4-99.5）σb（375-2639）
• Hardness Scale: HL、 HB、 HRB、 HRC、HV、HS、σb; Resolution: 1HL,1HV,1HB,0.1HRB,0.1HRC,0.1HS
• Accuracy: ±6HLD (HLD=800),Repeatability: less than 6HLD (HLD=800); Impact device:D type impact device(Standard)
• Material: Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Macht metal, Copper-tin alloy, Brass, Forged Steel

Part Number: LM330

Details: Application:
Defecting fields such as Installed Machineary and Permanent Assembly Parts, Mould Cavity, Heavy Workpieces, Pressure Vessels, Turbine and other Equipments and Small test area.
Brief Introduction:

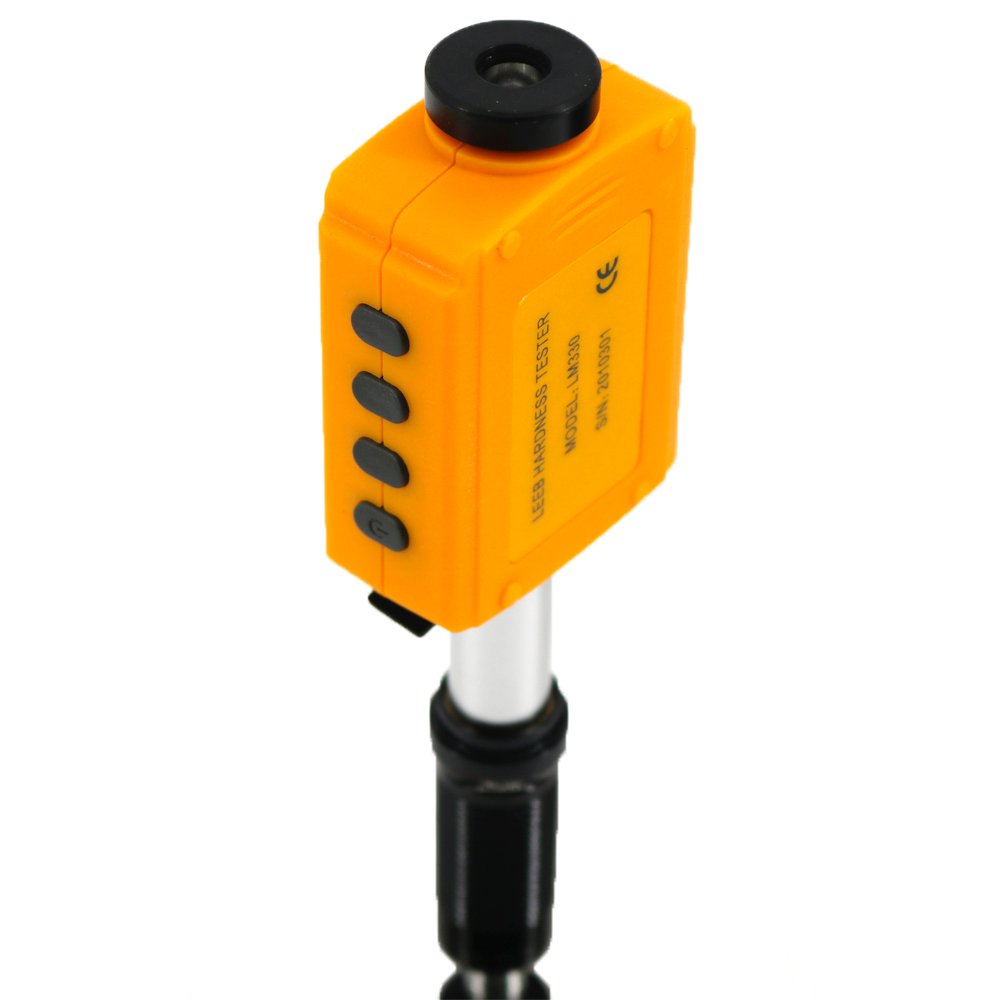

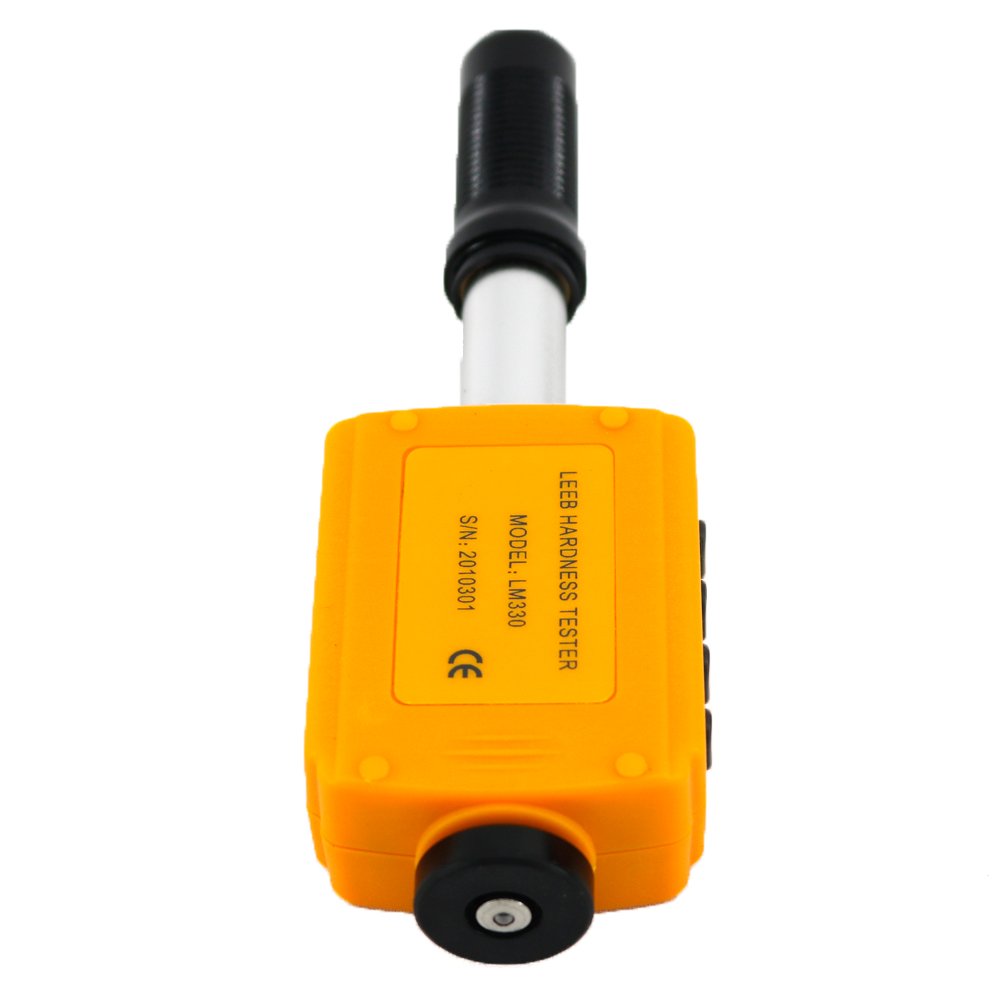

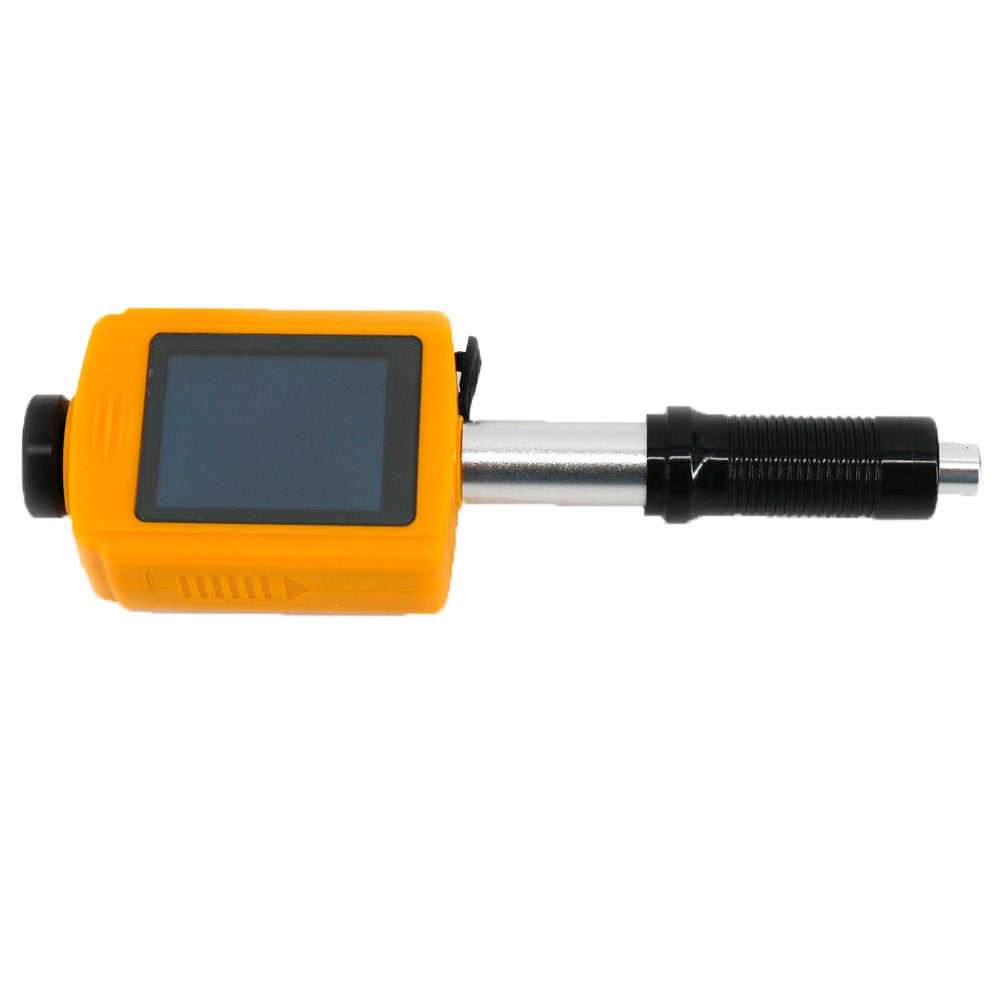

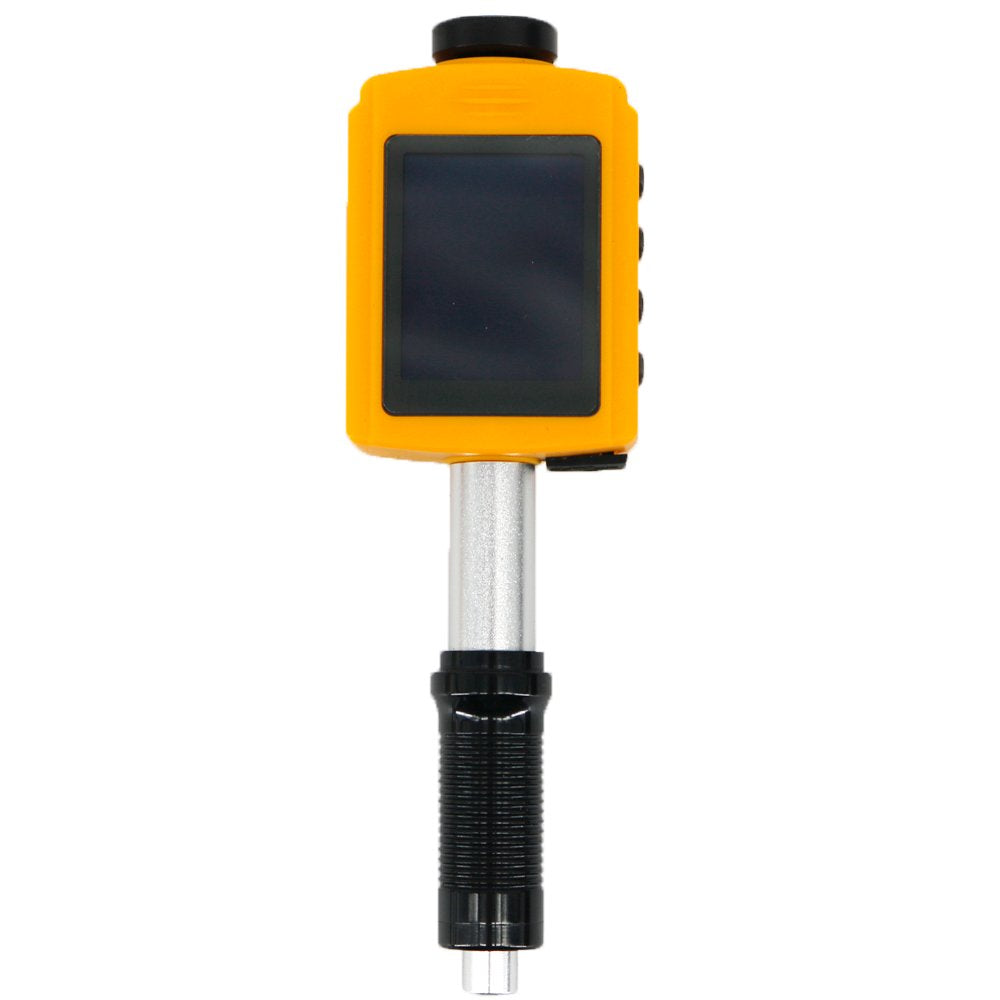

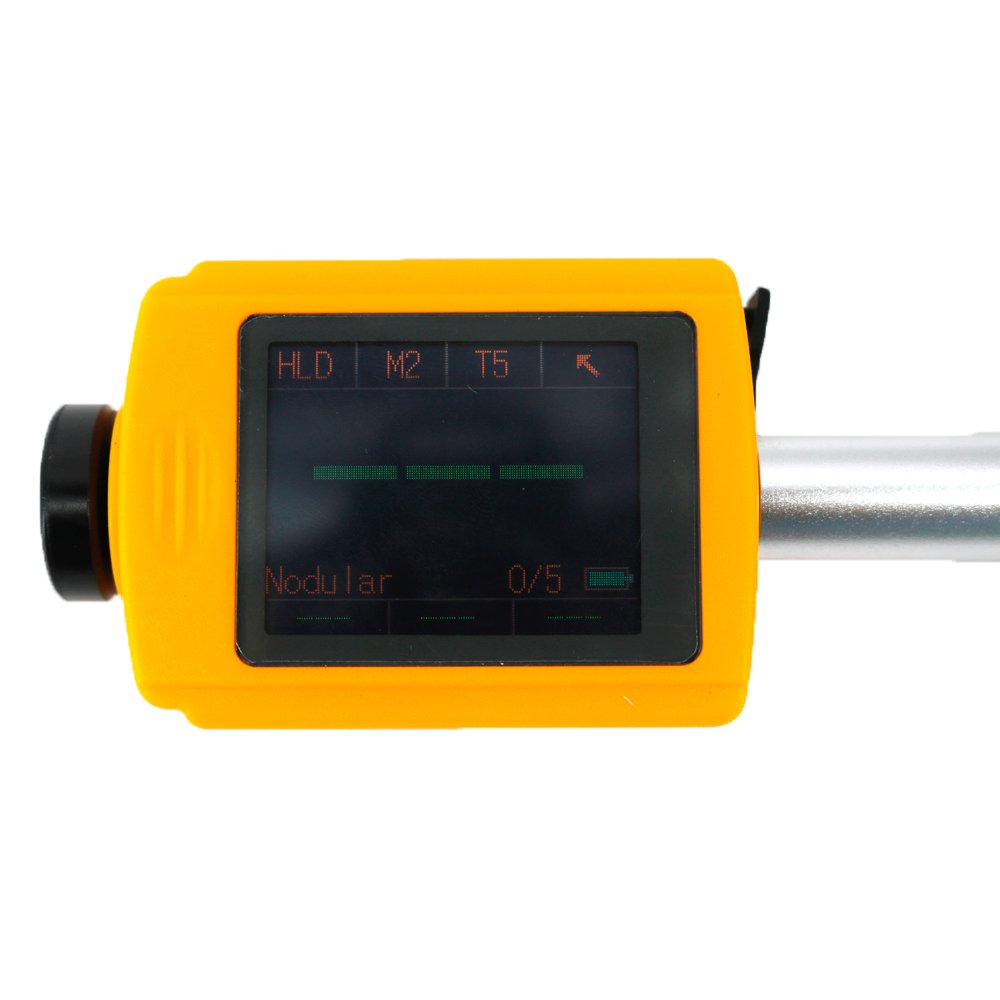

Portable Leeb Hardness Tester OLED Color Screen, Multifunctional and Integrated Hardness Testing Machine. Pen type design, no cable, the impact device and instrument body are integrated.
Technical Specifications
* Display Type: 1.77 inch OLED with resolution 160x128 pixels
* Hardness Scale: HL、 HB、 HRB、 HRC、HV、HS、σb
* Measuring range: HLD（200-960） HRC（19.8-68.5）HRB（13.5-100） HB（30-651） HV（80-976） HS（26.4-99.5）σb（375-2639）
* Impact device:D type impact device(Standard),DL probe (Optional)
* Accuracy: ±6HLD (HLD=800),Repeatability: less than 6HLD (HLD=800)
* Measuring Direction: 360 degree
* Material: Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Macht metal, Copper-tin alloy, Brass, Forged Steel
* Resolution: 1HL，1HV，1HB，0.1HRB，0.1HRC，0.1HS
* Storage: 1000 groups (each group includes 2-6 testing values and 1 average value)
* Application software: LmView software can manage, archive and print the measurement data (only LM330)
* Power supply: No. 7 polymer lithium battery, voltage 3.7V, capacity 900mAh
* Working temperature: -10 to+50℃
* Size: 150mmX46mmX23mm（H×W×D)(using D shock device)
* Weight: 110g with D type impact device

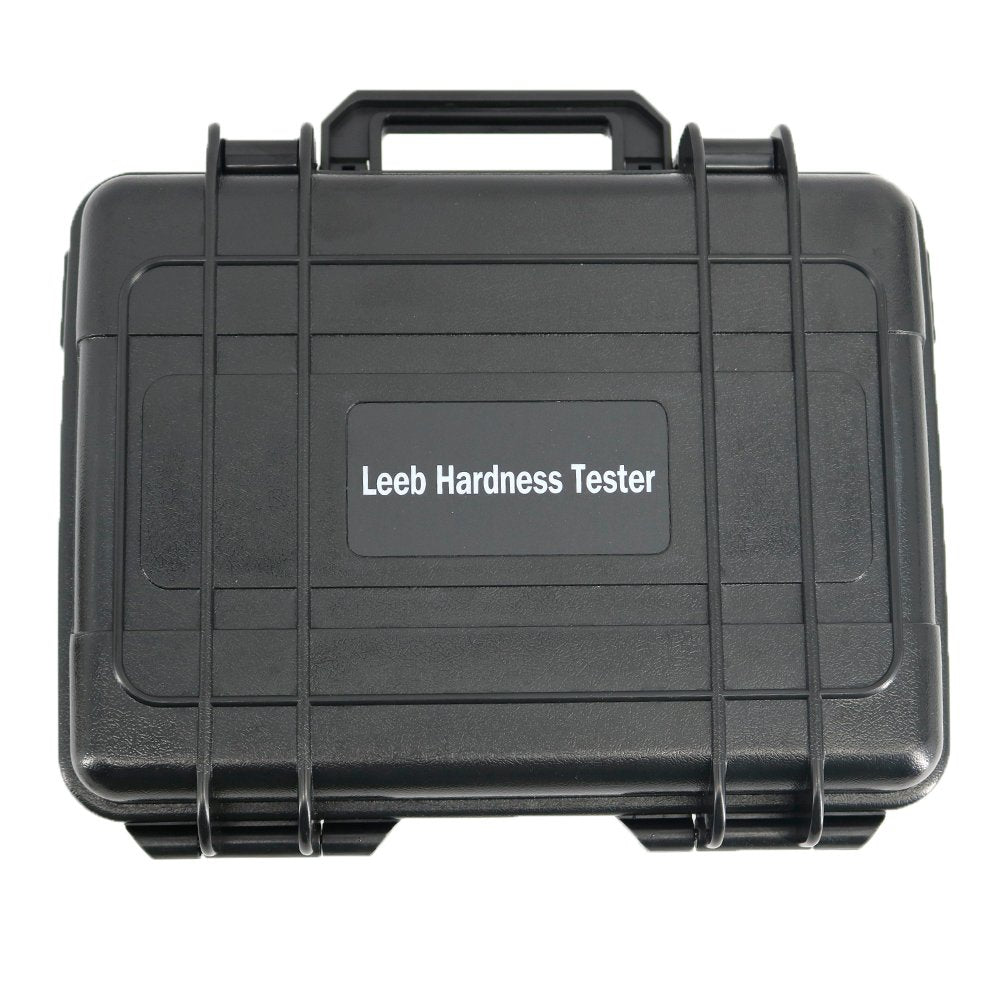

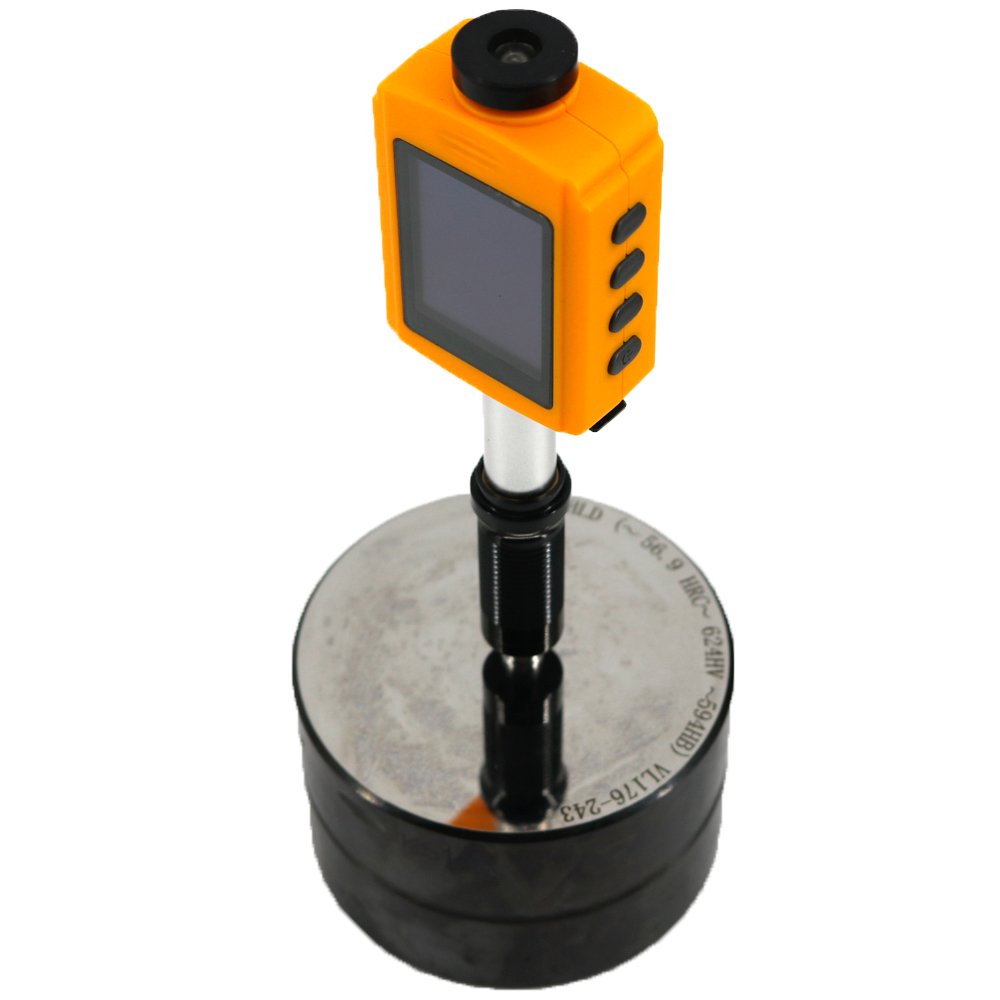

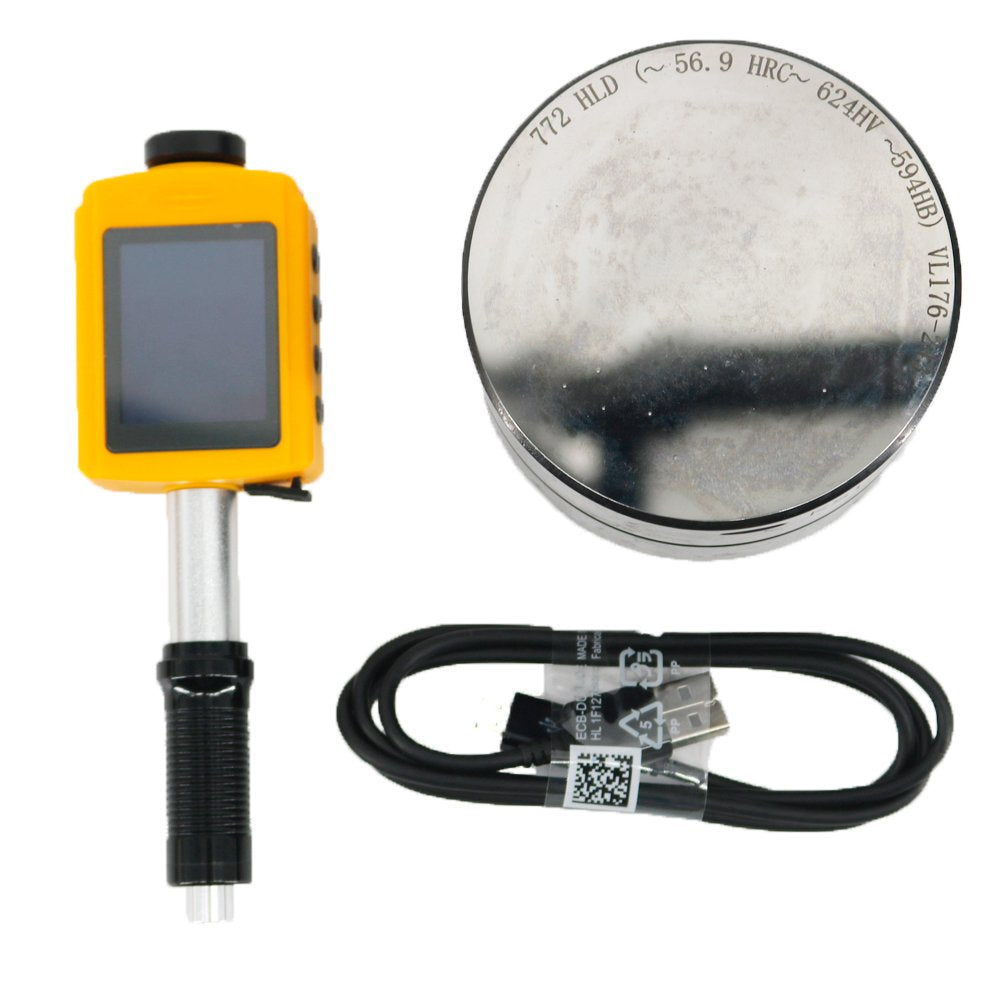

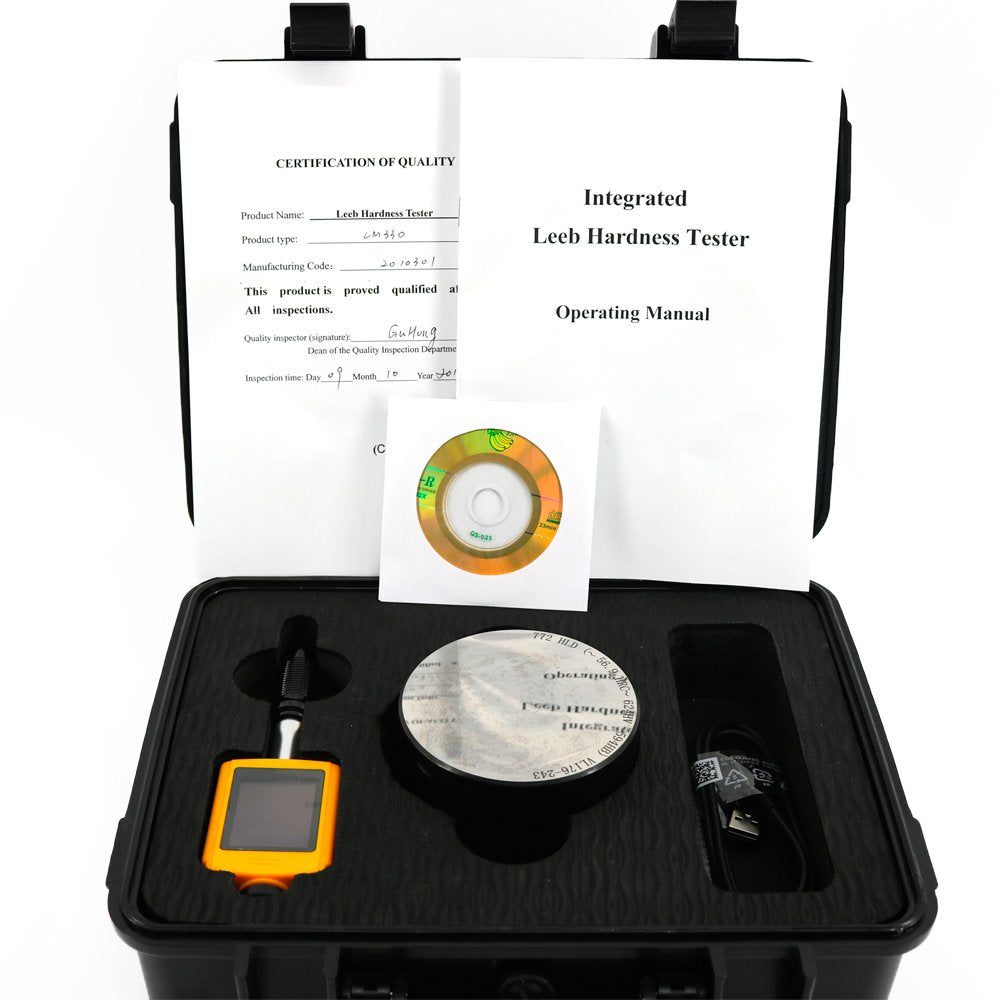

* Standard Configuration: LM330 Leeb Hardness Tester, Standard hardness Test block, DataView software, Support Ring, Cleaning Brush, Packing Files
* Optional Accessories: Hardness Test Blocks, Bluetooth Printer, Support Ring, DL Connector.

EAN: 0725370412856
