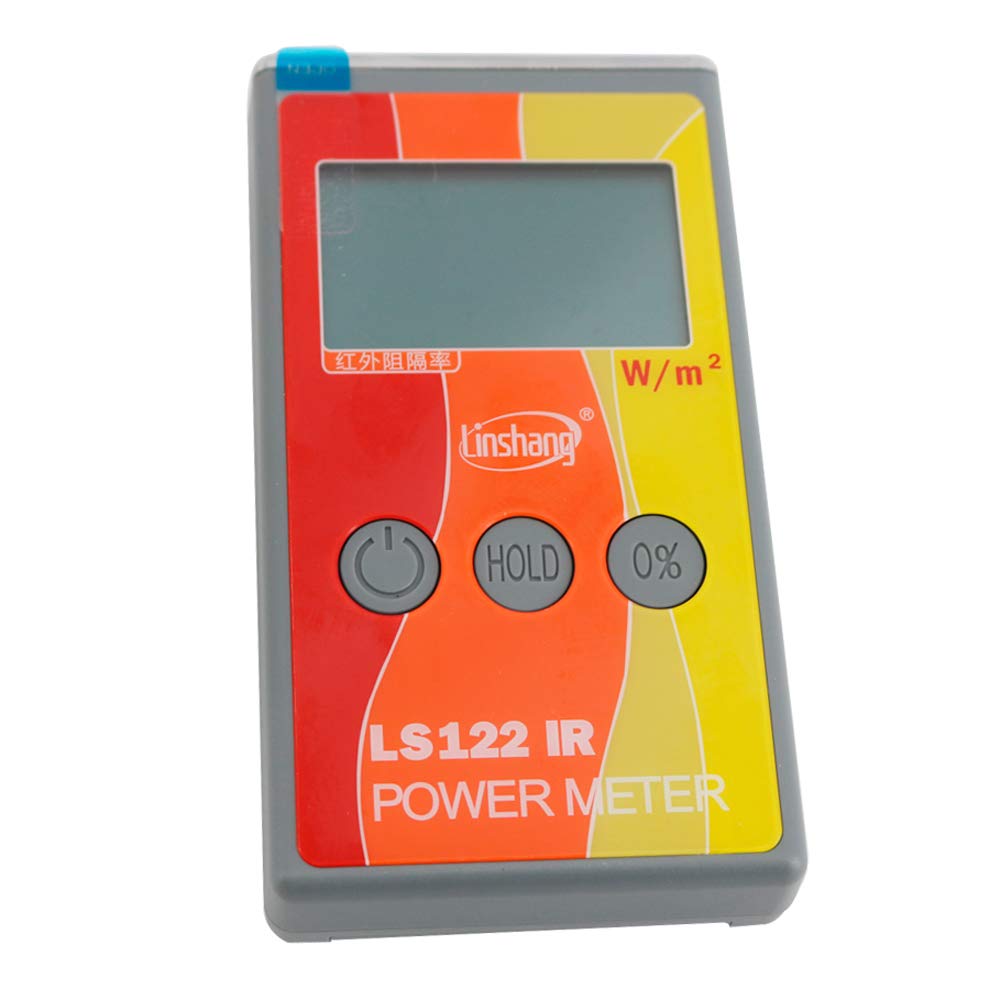

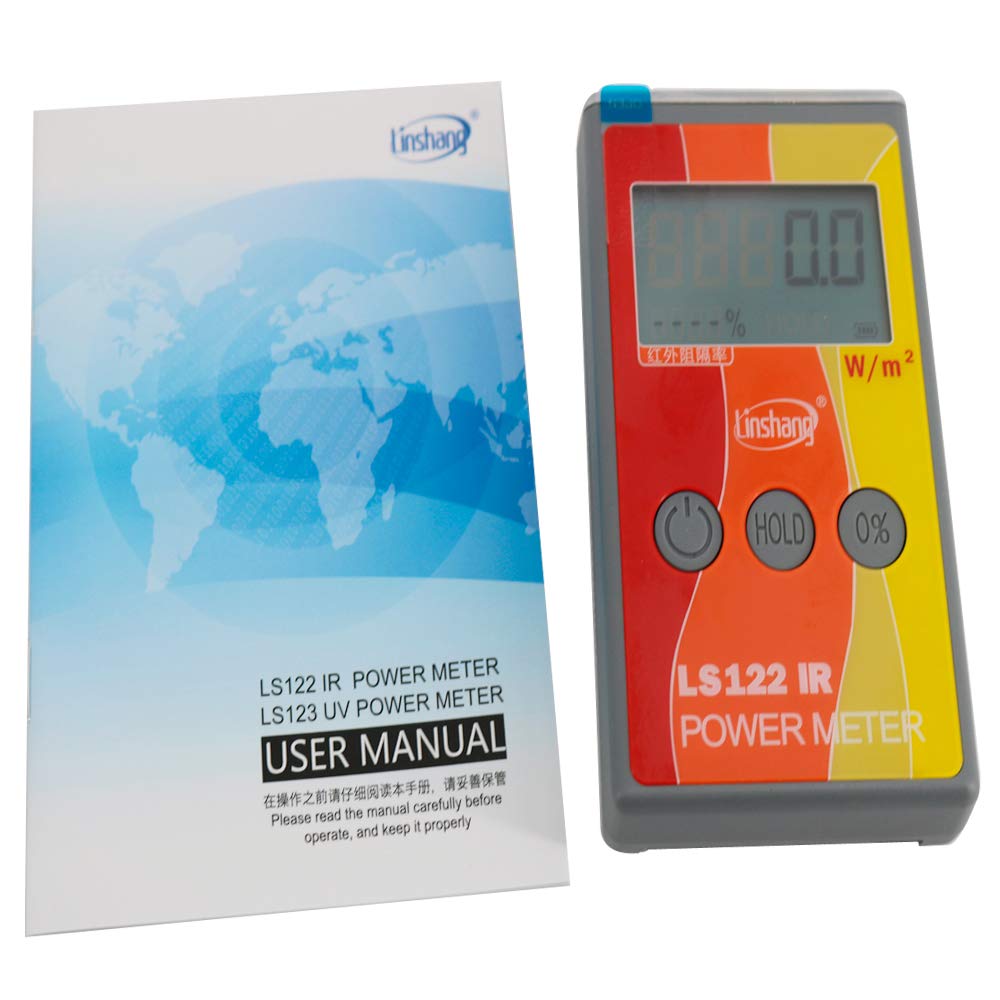

LS122 IR Power Meter Measuring optical power density of infrared ray, wavelength response (1000nm-1700nm), gives visual and reliable result
Evaluating heat-insulating property of the tint of windows, solar films, glass and other transparent materials
IR transmission meter, IR power meter, two function in ONE device
The LS122 Infrared Power meter is used for measuring the optical power density of infrared ray and automatically calculate the IR transmission value.
LS122 infrared power meter is an infrared powermeasuring instrument, which is used for measuring the infrared radiation luminance.
Part Number: LS122
Details: LS122 infrared power meter is an infrared powermeasuring instrument, which is used for measuring the infrared radiation luminance. Its unit is Watt persquare meter (W/m2). The instrument is also used for the infrared transmittance measurement.
The Structure and Parameters of LS122
1. Irradiance measuring range: 0 -40000 W / m2
2. Accuracy: ± 10%
3. Relative intensity: 0 - 9999%
4. Spectral range: λ (1000-1700 nm); λp = 1400 nm

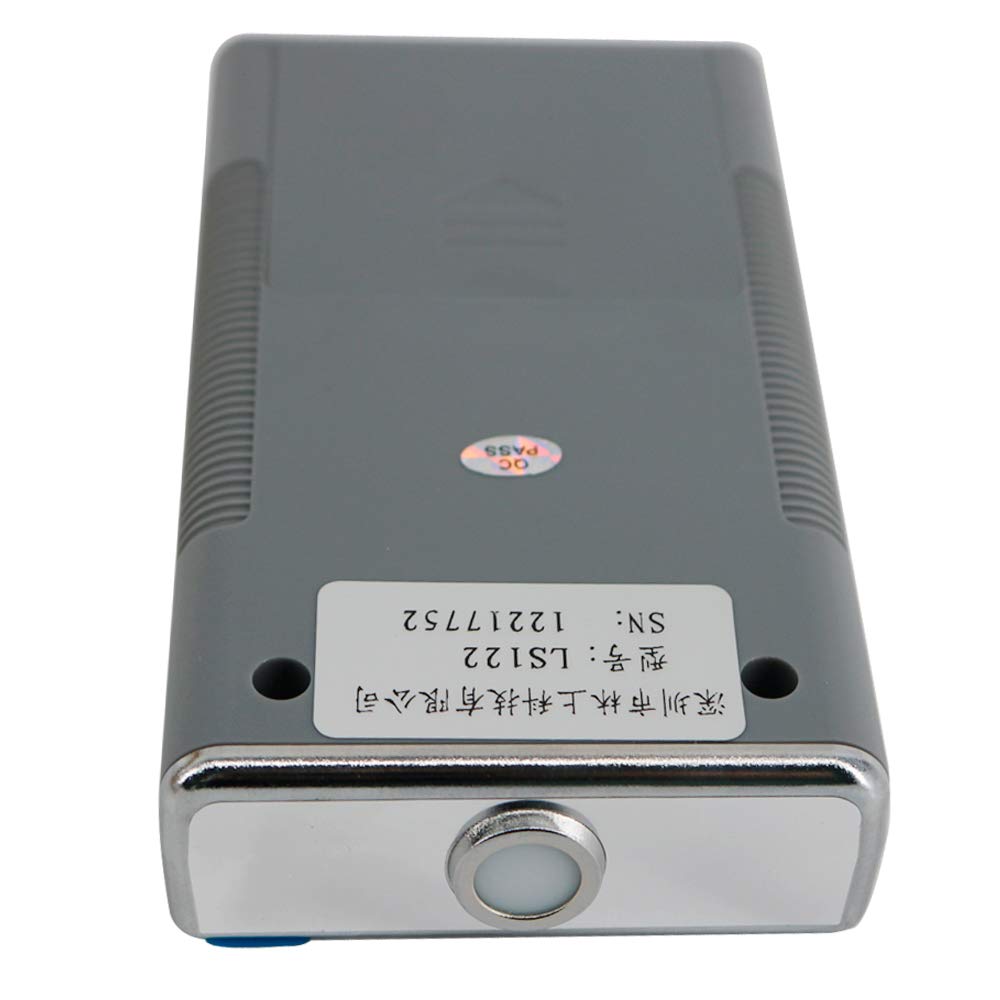

5. Detector Diameter: 10mm
6. Dimensions: 125mm × 69mm × 24.5mm (L× W × H)
7. Weight: around 140 grams (includingbattery)
8. Operating temperature: -20 ° C --- +70 ° C
9. Power supply: 4 pieces of AAAalkaline batteries (not included)
