applicable to general rubber, synthetic rubber, vulcanized rubber, soft rubber, leather, wax, etc.
The scale value: 0-100HA
Scope of pressure needle route:0-2.5 millimeters.
Needle stroke is 2.5 mm.
Recommended range of measurement is 10~90HA.

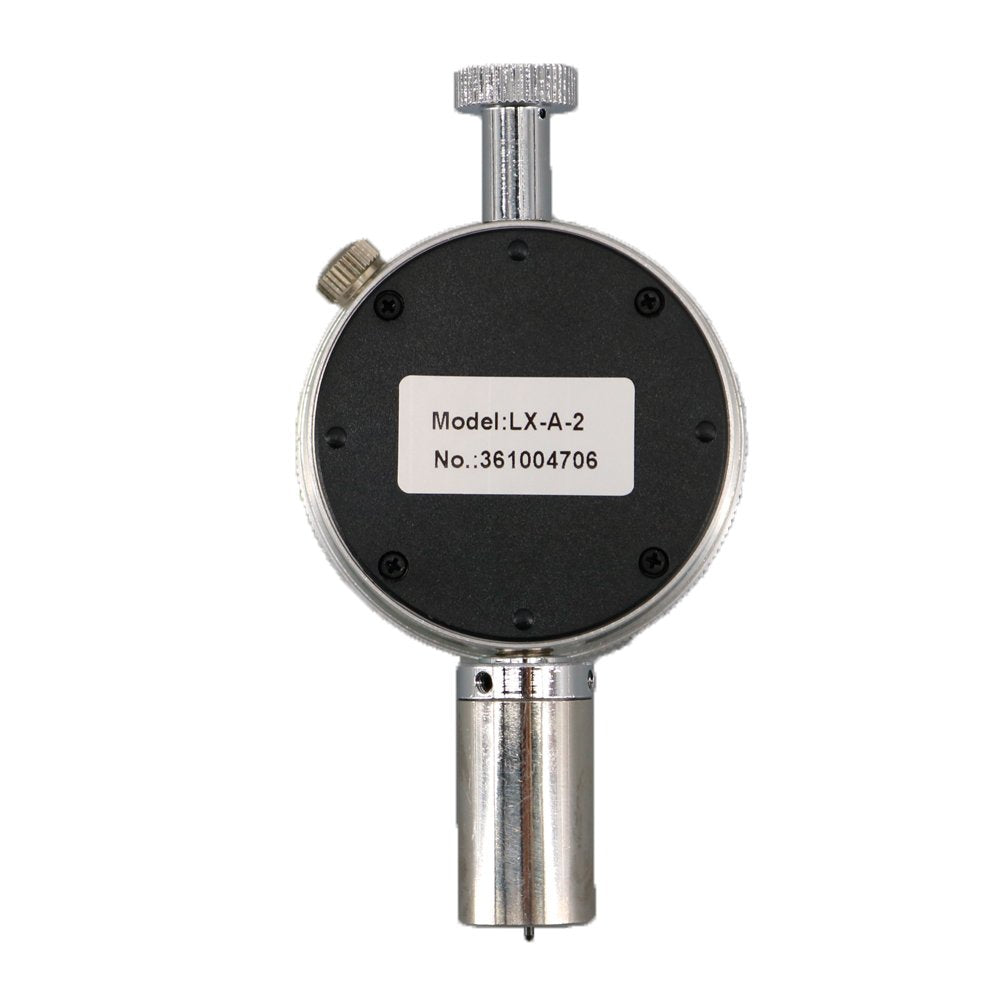

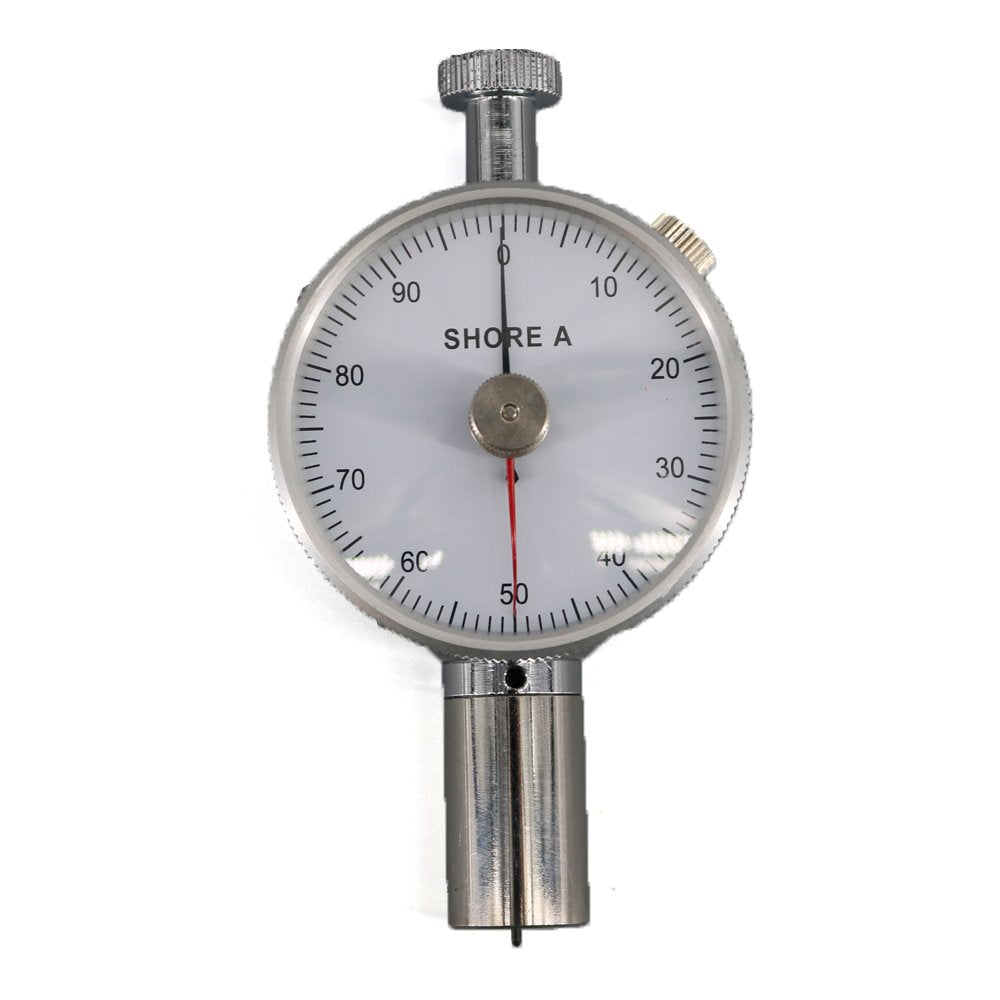

model number: LX-A-2
Part Number: LX-A-2
Details: FunctionType A: applicable to general rubber, synthetic rubber, vulcanized rubber, soft rubber, leather, wax, etc. Type C: applicable to the hardness test of rubber microporous material.Type D: applicable to hard rubber, hard resin, acrylic, glass, cushiony plastic cement, printing plates, fiber, etc. Major performances Shaw rubber hardness gauge is an apparatus to measure vulcanized rubber and plastic products. This apparatus has three models of Type A, Type C and Type D, and each model is subdivided into two types of single pointer and double pointer.Type A and D respectively are applicable to the testing of low and medium hardness, and high-hardness materials. Type C applies to the testing of microporous material which is used to make shoes, with compression rate 50 percent, stress 0.049 MPa or above, and this kind of material is made of rubber plastic and has blister in plastic.Technical ParameterModel: Type A Dual Needle (LX-A-2)Test Range:10-90HACalibration Value:0-100 HAPressure Head Size:0.79mmPressure Needle Range:0-2.5 mmApparatus Weight 0.3 kg
