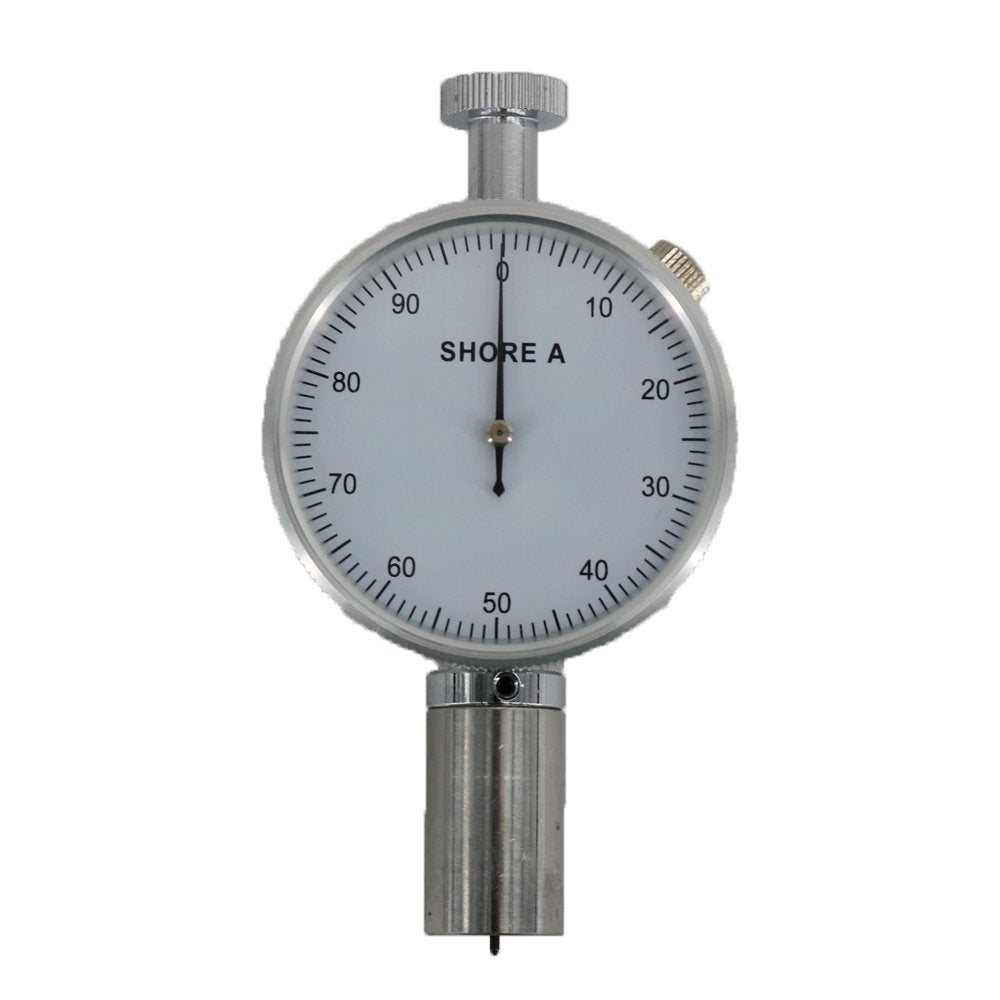

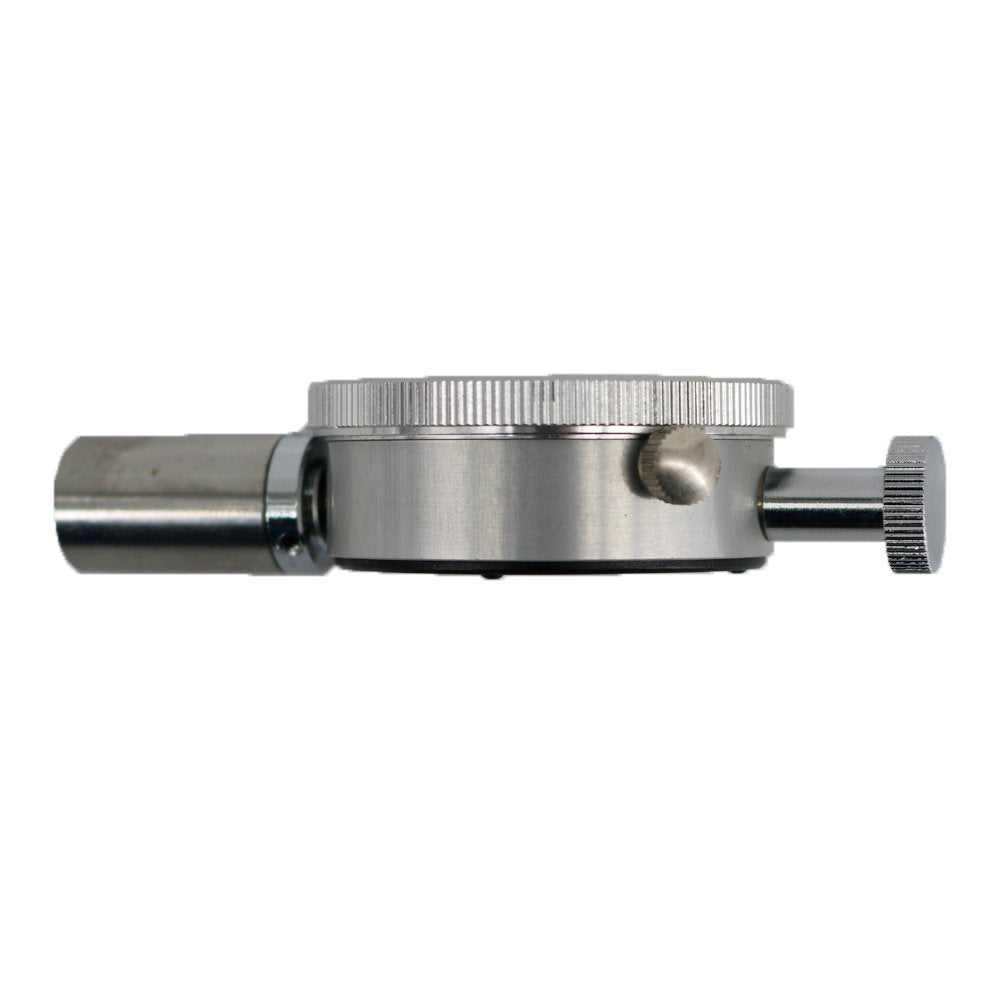

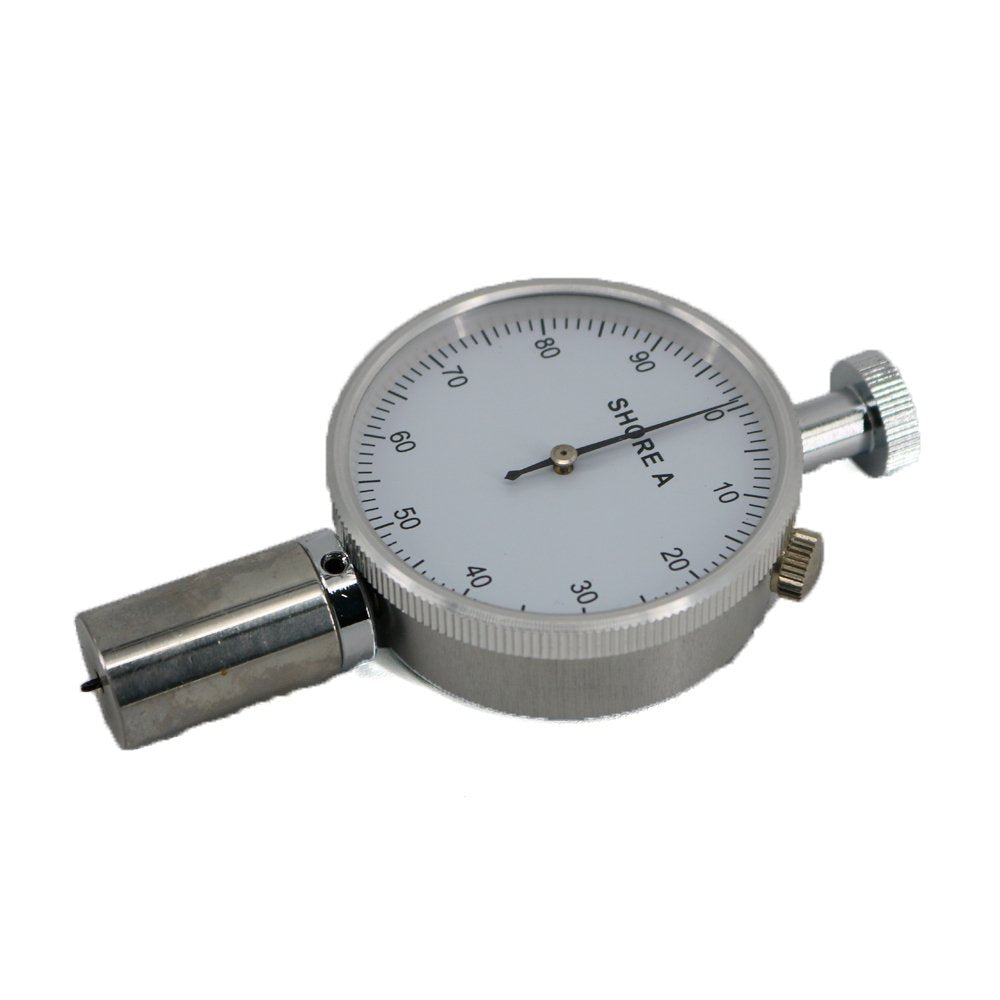

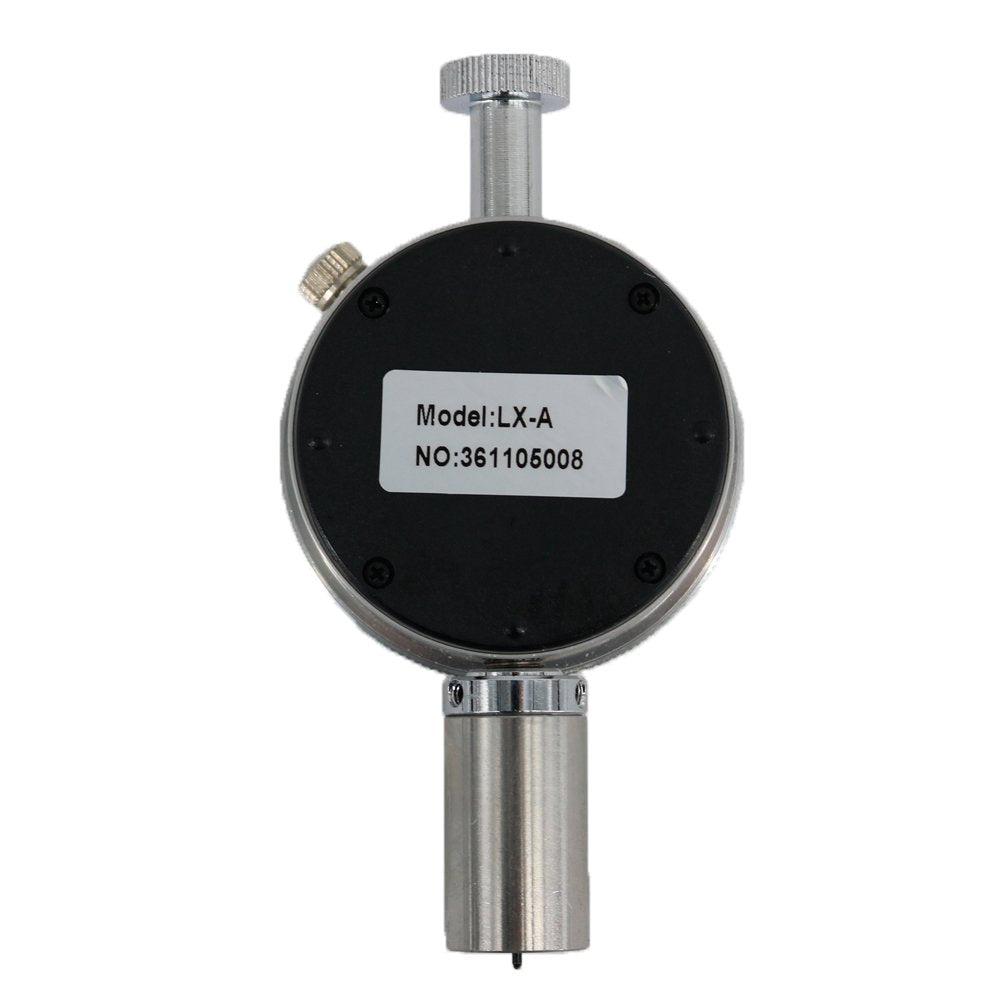

Graigar LX-A Shore A Hardness Tester Durometer 0~100HA to Testing of Rubber, Multidimensional Fat, Leather, Wax

Brand: Graigar

Features:

• LX-A shore a hardness tester scope of pressure needle route:0-2.5 millimeters.
• The scale value: 0-100HA
• Recommend measuring range is 10 ~ 90 ha
• Pressure of the needle size is 0.79 mm
• Hardness tester for tablet

model number: LX-A

Part Number: LX-A

Details: Description

Shaw rubber hardness gauge is an apparatus to measure vulcanized rubber and plastic products. Type A are applicable to the testing of low and medium hardness materials. all kinds of rubber, multidimensional fat, leather, wax etc. The product refers to ISO868 and the ISO7619 international standard production,conforms to GB/T531,JB6148 and the JJG304 standard.

Parameters

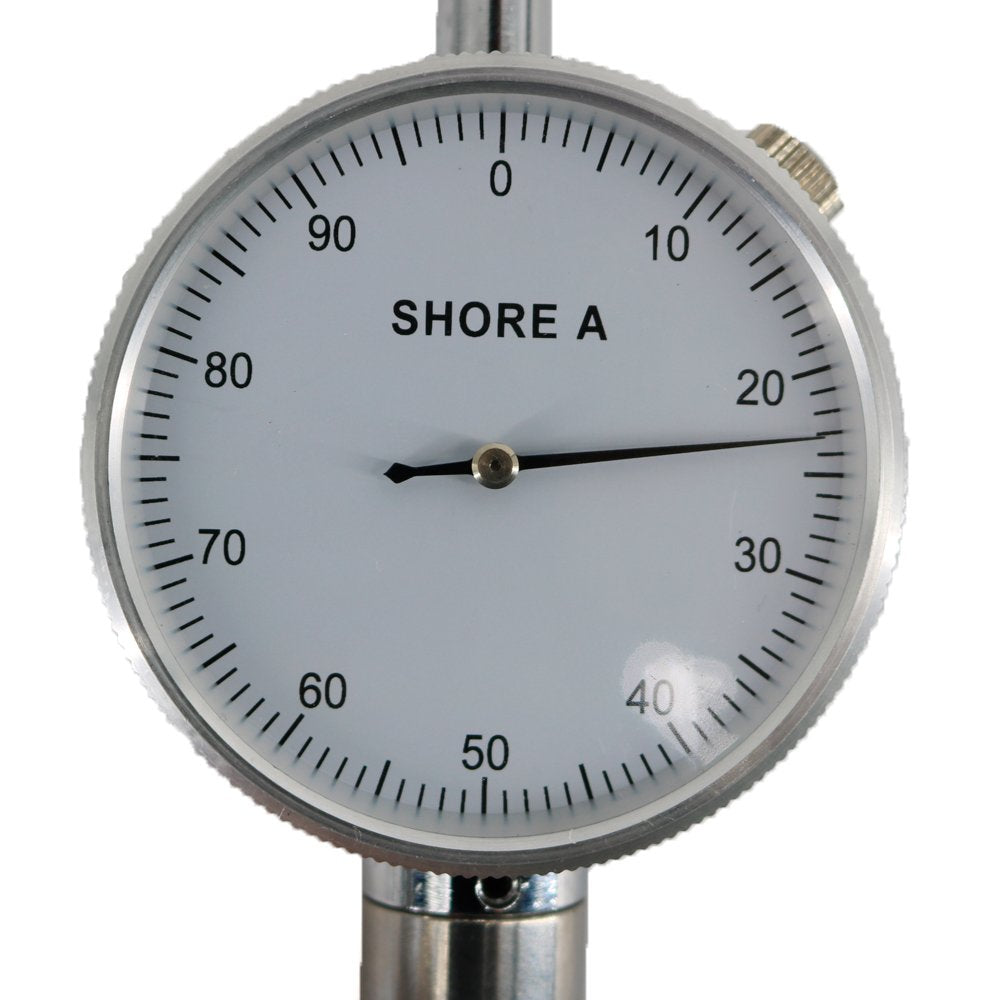

1. Dial value: 0 ~100HA

2. Needle stroke: 2.5 mm(0.098in)

3. Measure range: 10 ~90HA

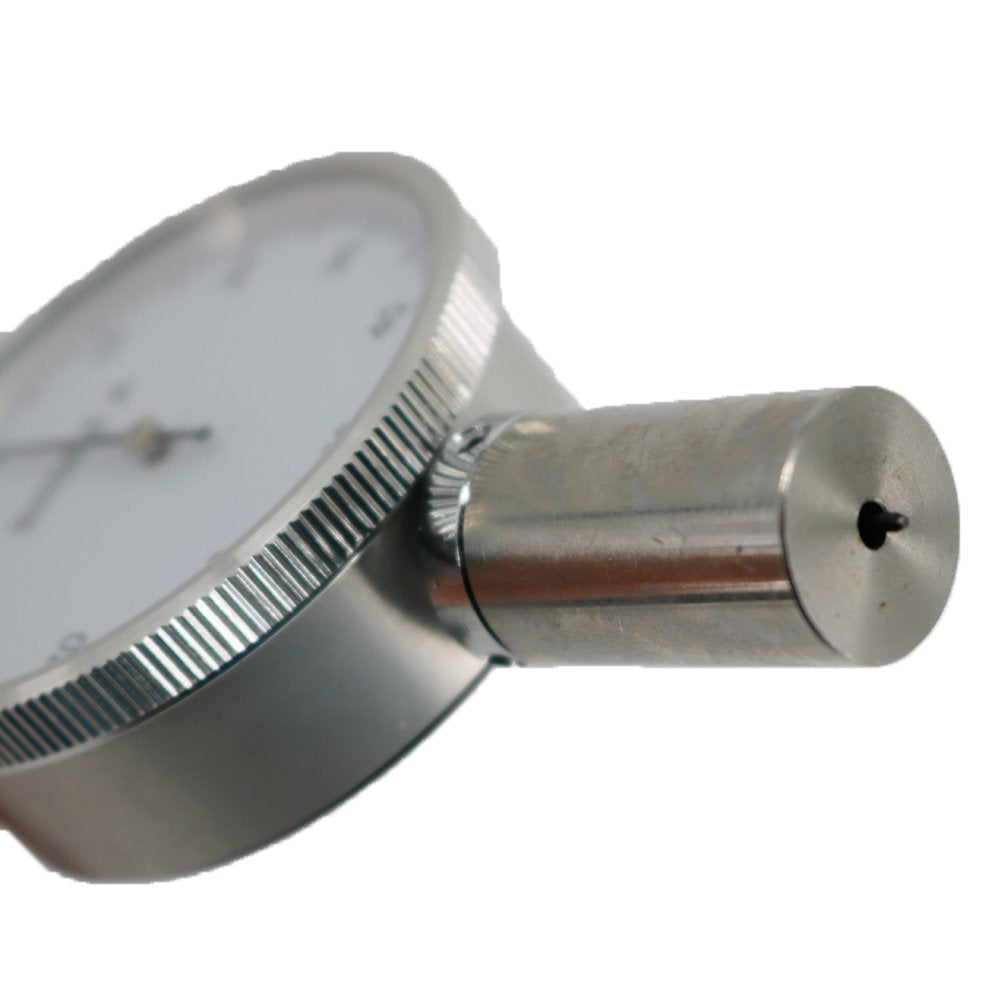

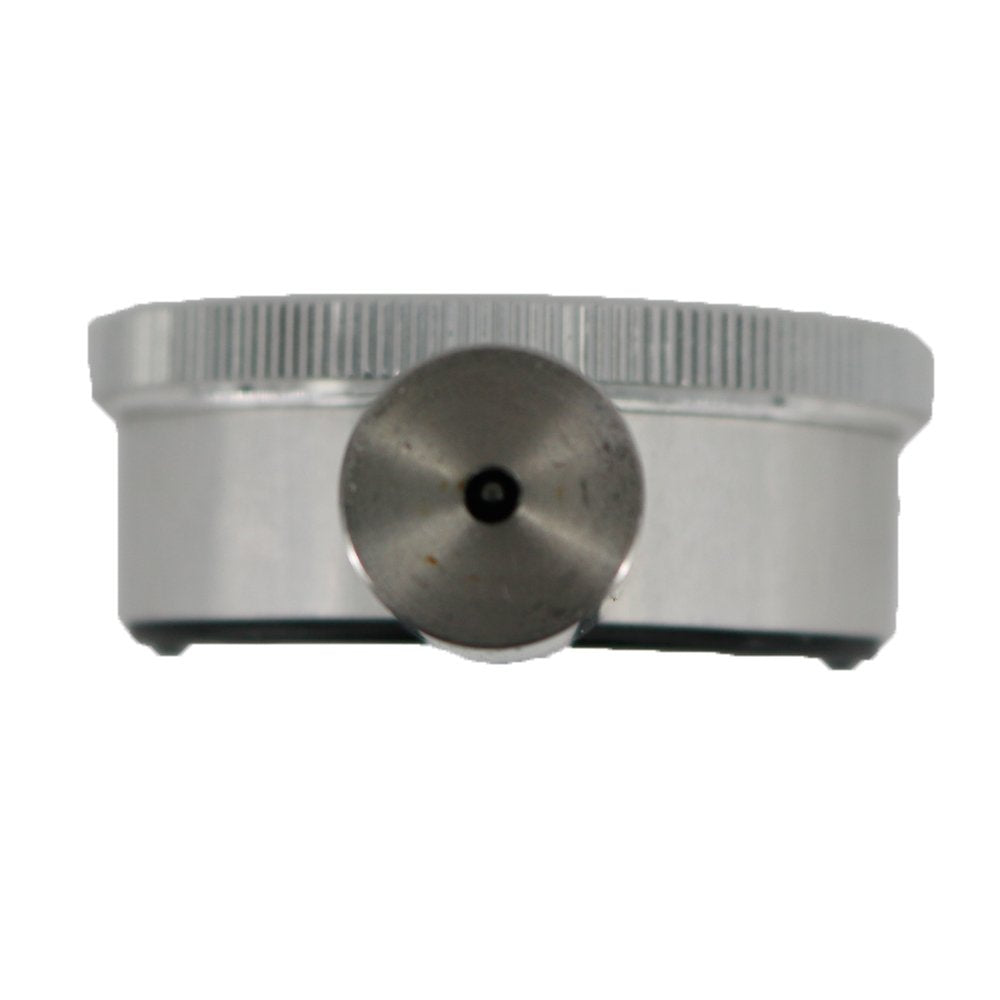

4. Needlepoint size: 0.79 mm(0.03in)

5. Dimension:113×60×24mm(4.4*2.4*0.9in)

6. Weight: 0.2 kg(0.44lb)

EAN: 0725370410302
