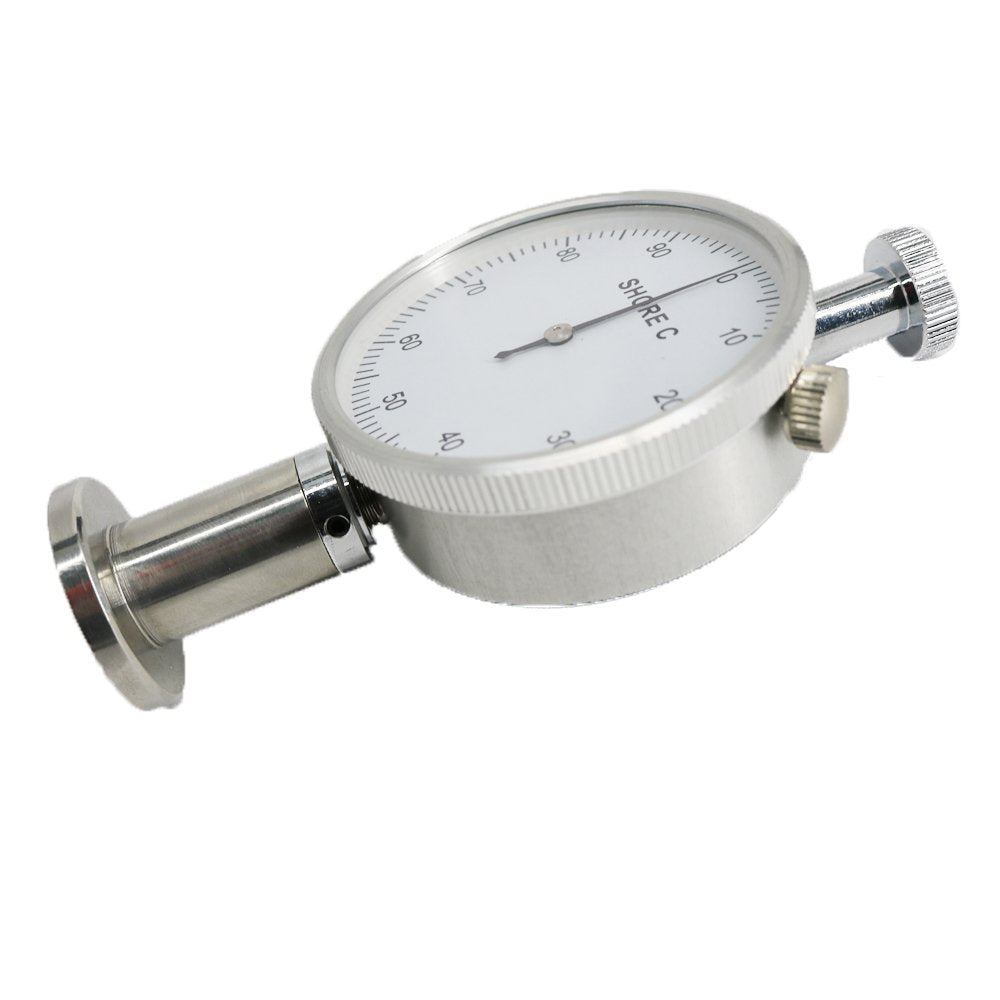

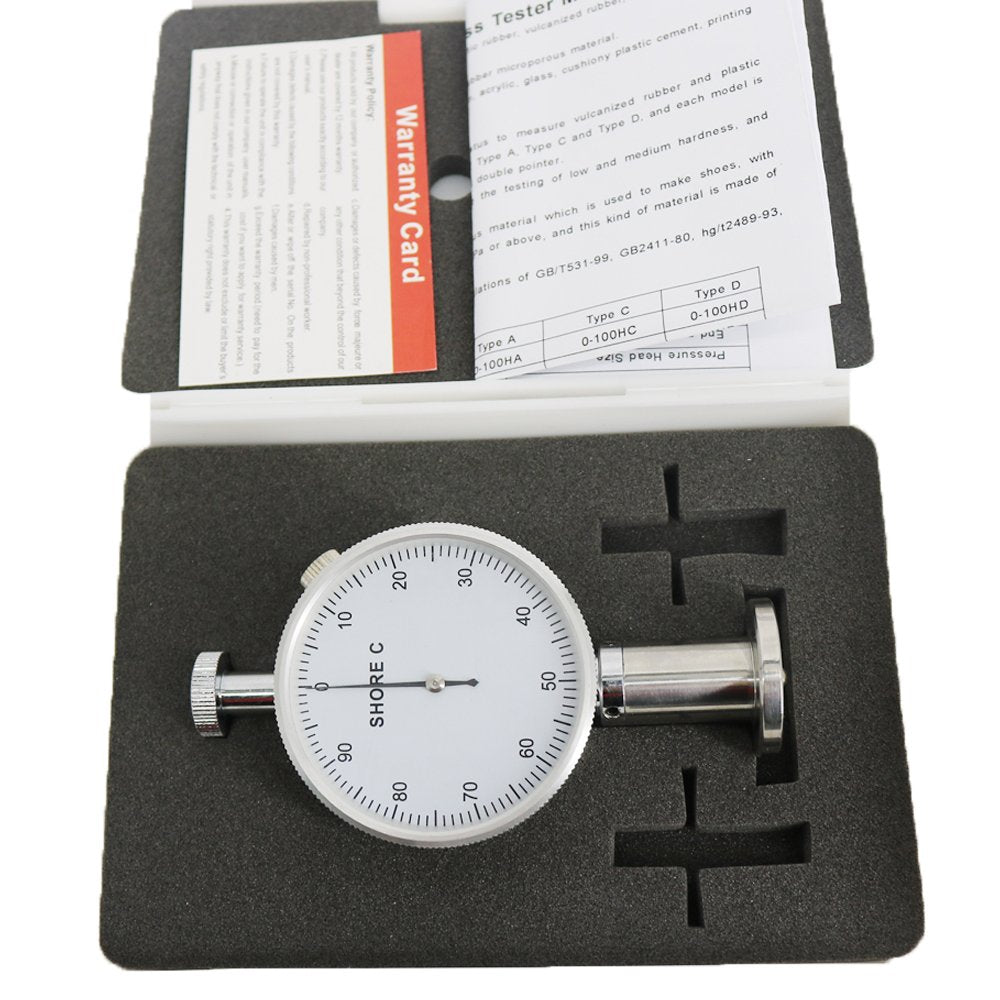

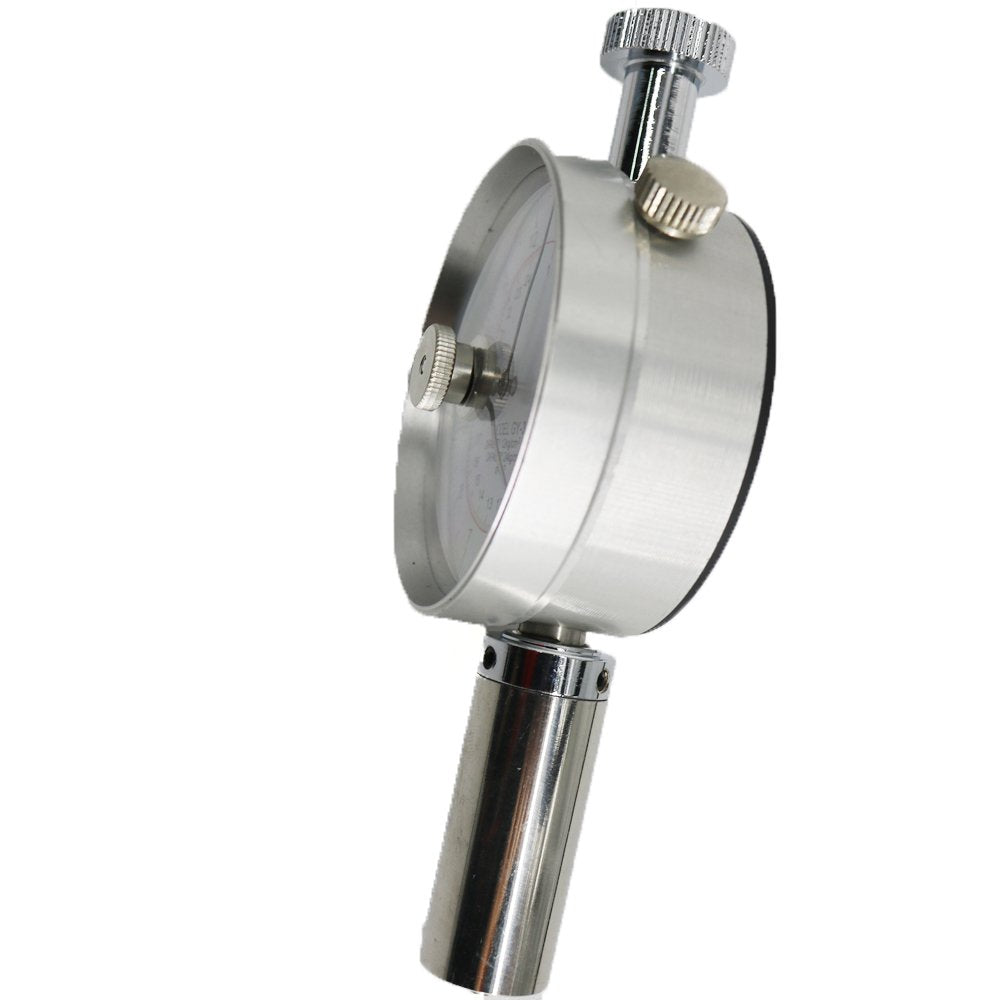

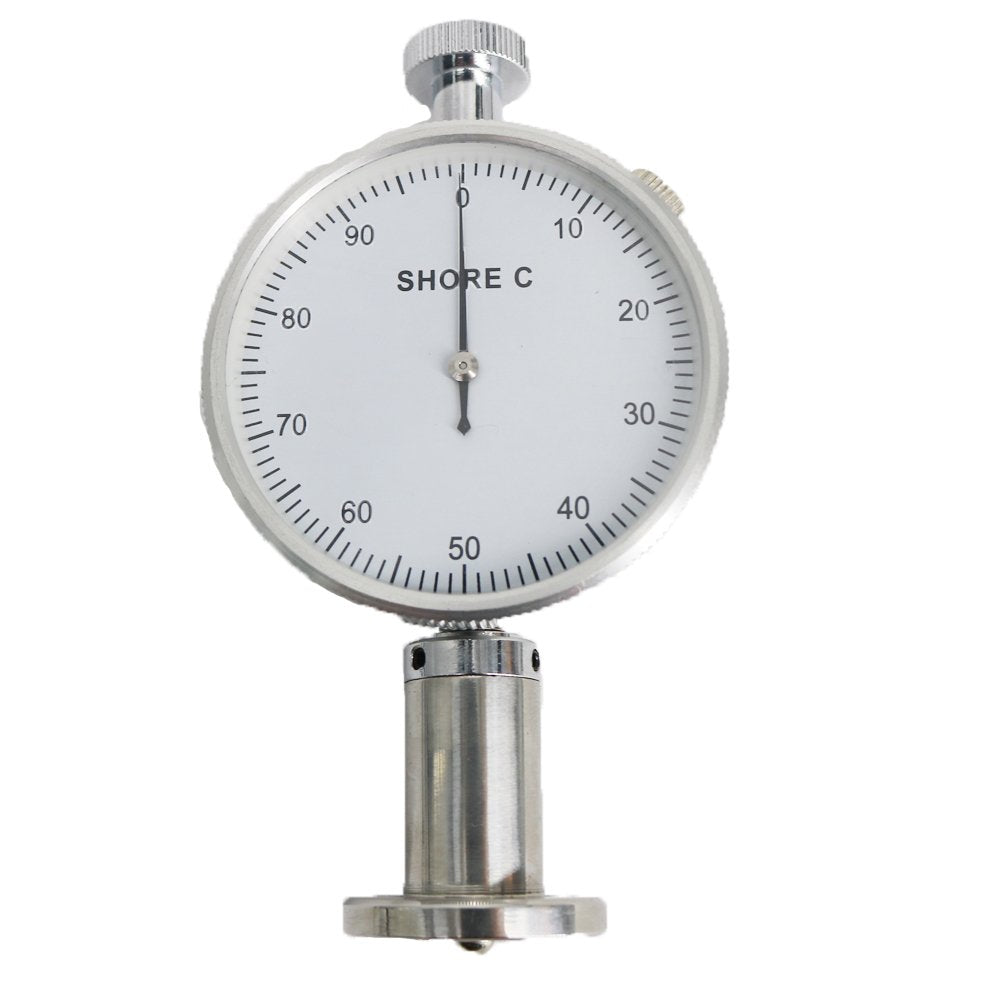

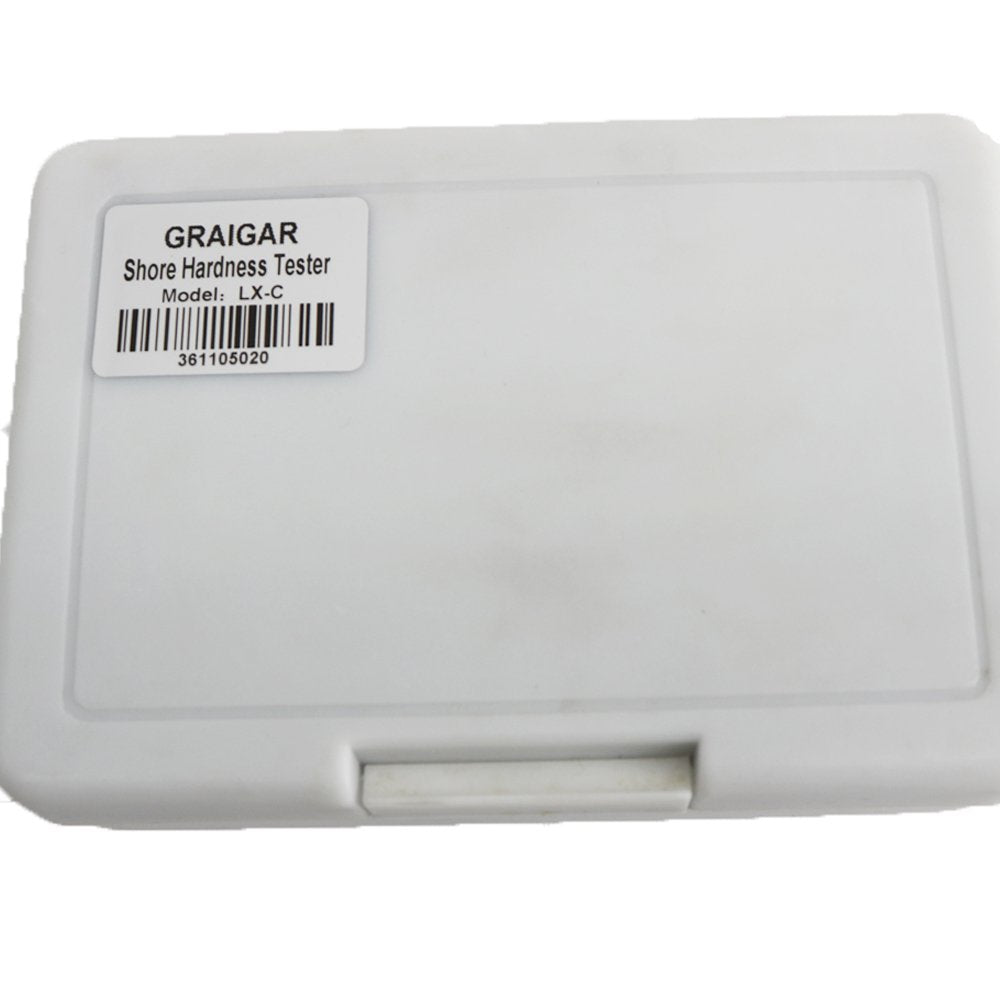

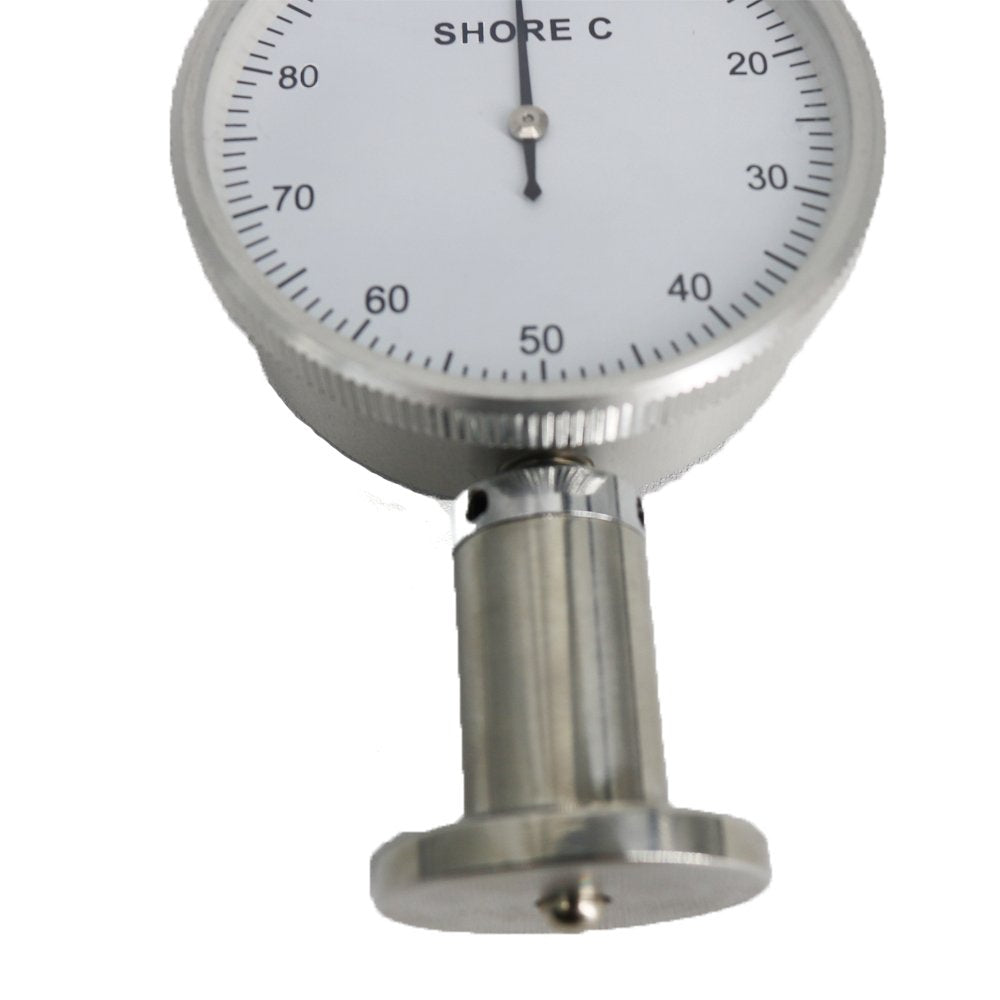

Graigar LX-C Shore Hardness Tester 0~100HC(HW) to Testing of Rubber, Foam, Sponge, Shoe Materials, Porous Materials with Low Hardness

Brand: Graigar

Features:

• The scale value: 0-100HC(HW)
• RESOLUTION: 0.5HC
• ACCURACY: ±1HC

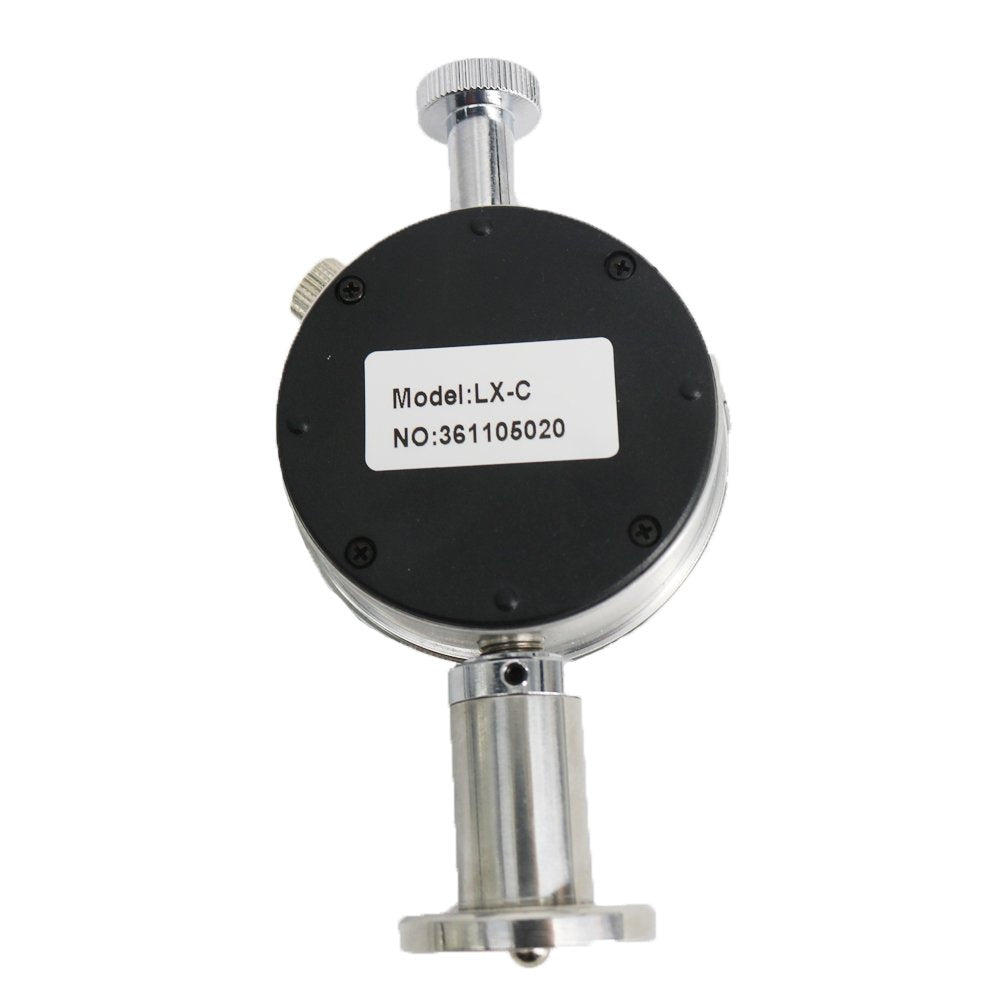

Part Number: LX-C

Details: Description

Shaw rubber hardness gauge is an apparatus to measure vulcanized rubber and plastic products. LX-C Micropore Material Durometer, designed for testing the hardness of foam, sponge, shoe microporous material,etc. The product is in accordance with HG/T2489-93.

Parameters

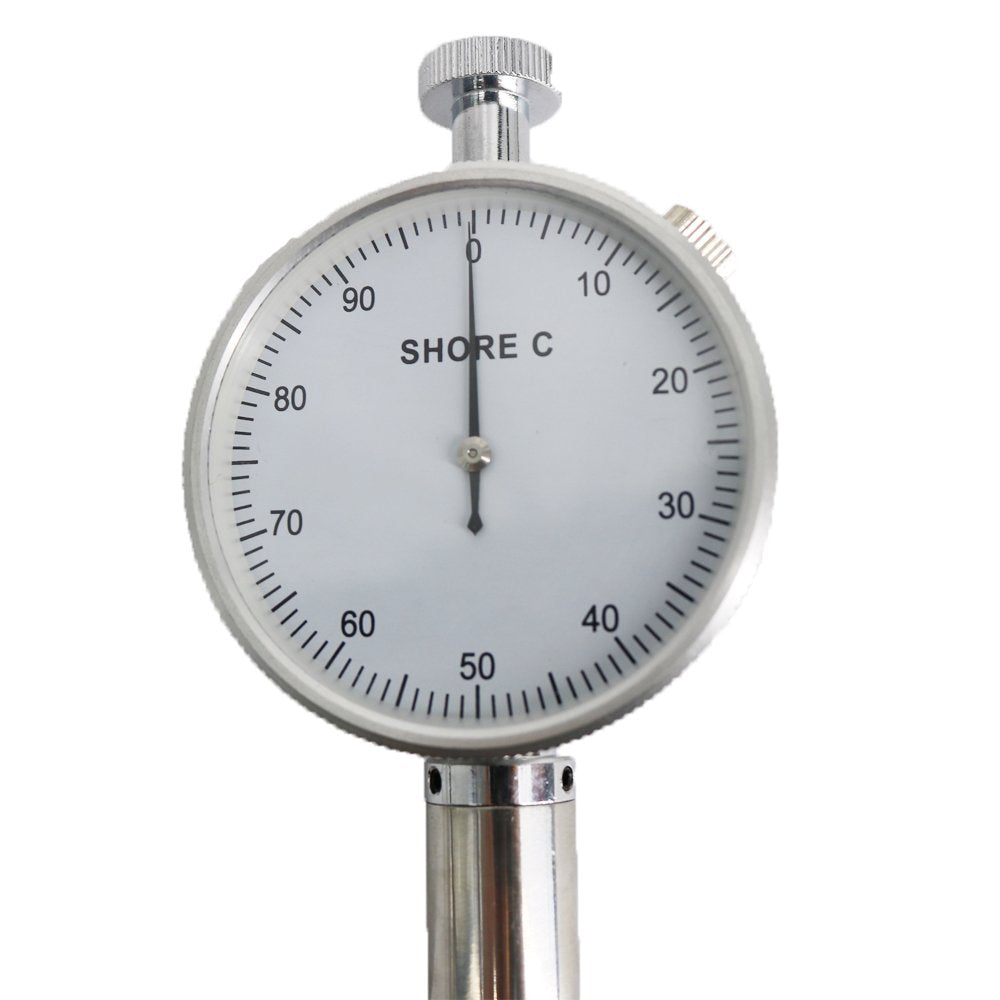

1. Dial value: 0 ~100HC(HW)

2. Needle stroke: 2.5 mm(0.098in)

3. Measure range: 10 ~90HC(HW)

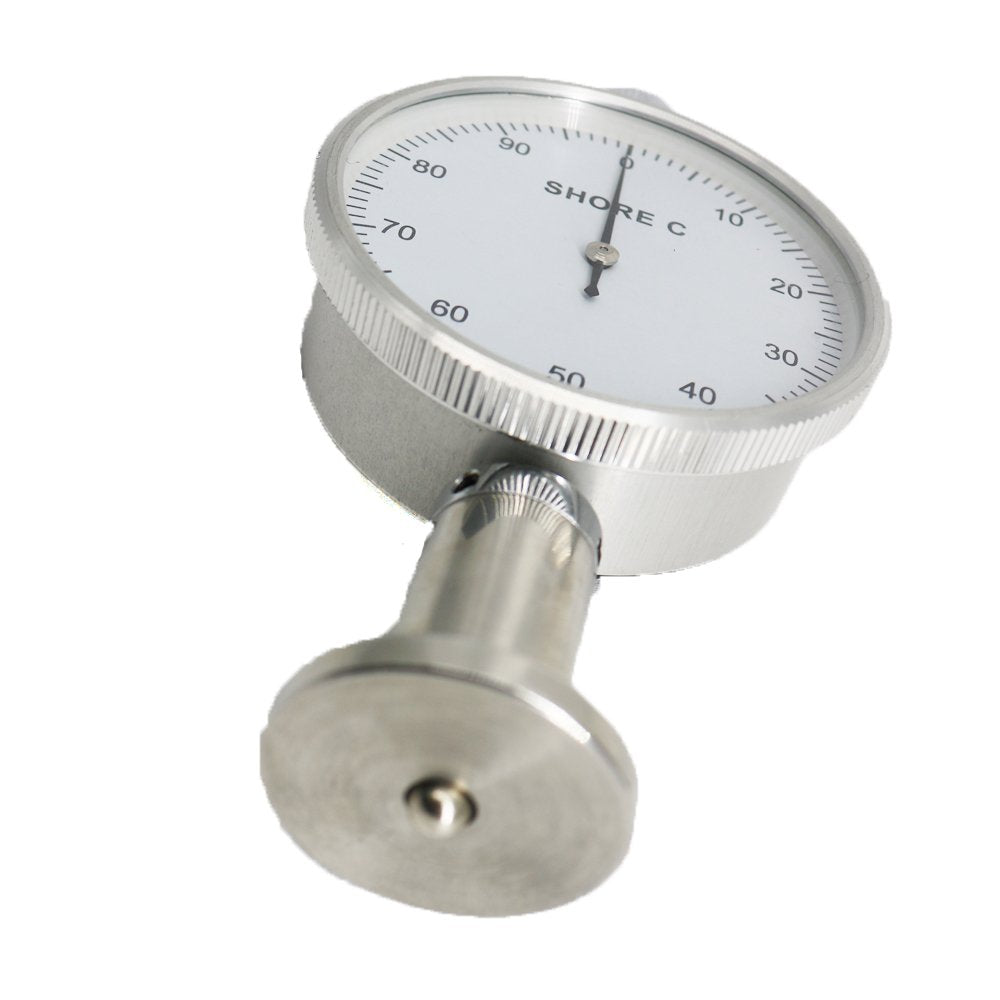

4. Tip dimension:SR2.5mm(0.098in)

5. Dimension:115×60×25mm(4.4*2.4*0.9in)

6. Weight: 0.5 kg(1.1lb)

EAN: 0725370410760
