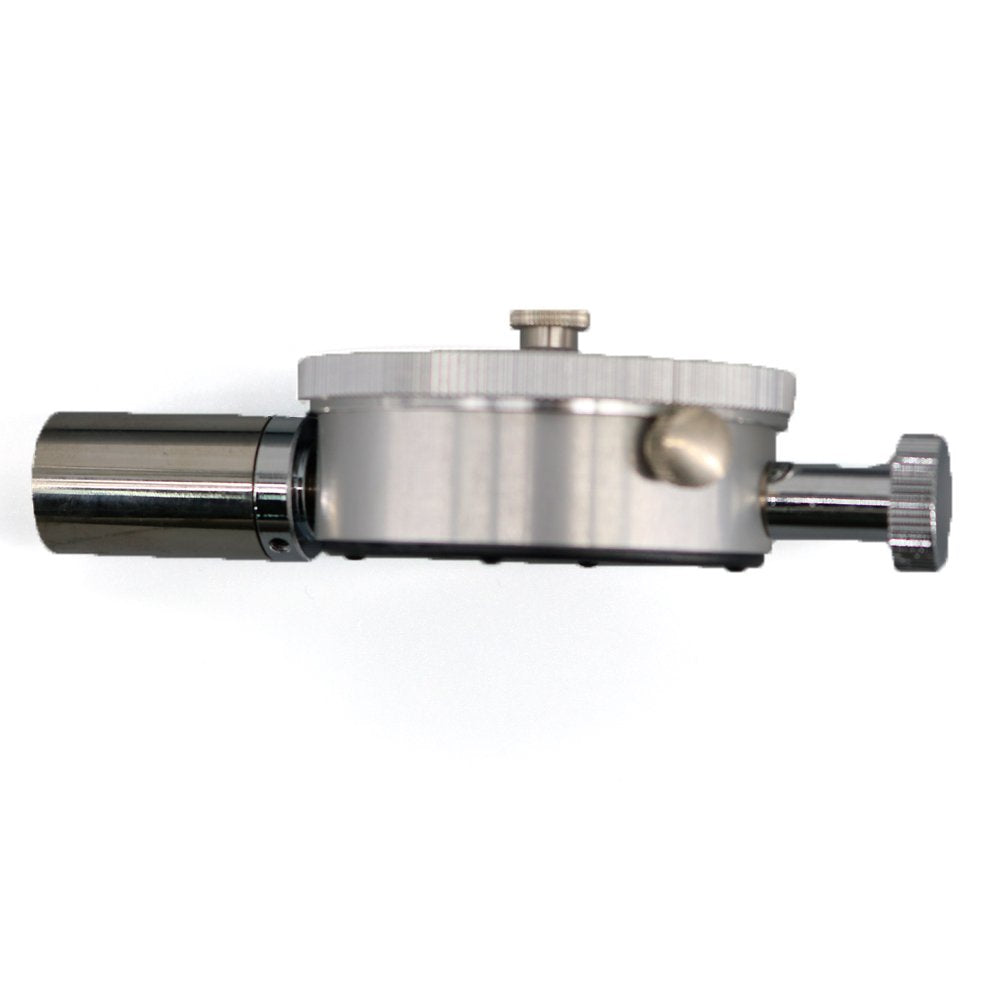

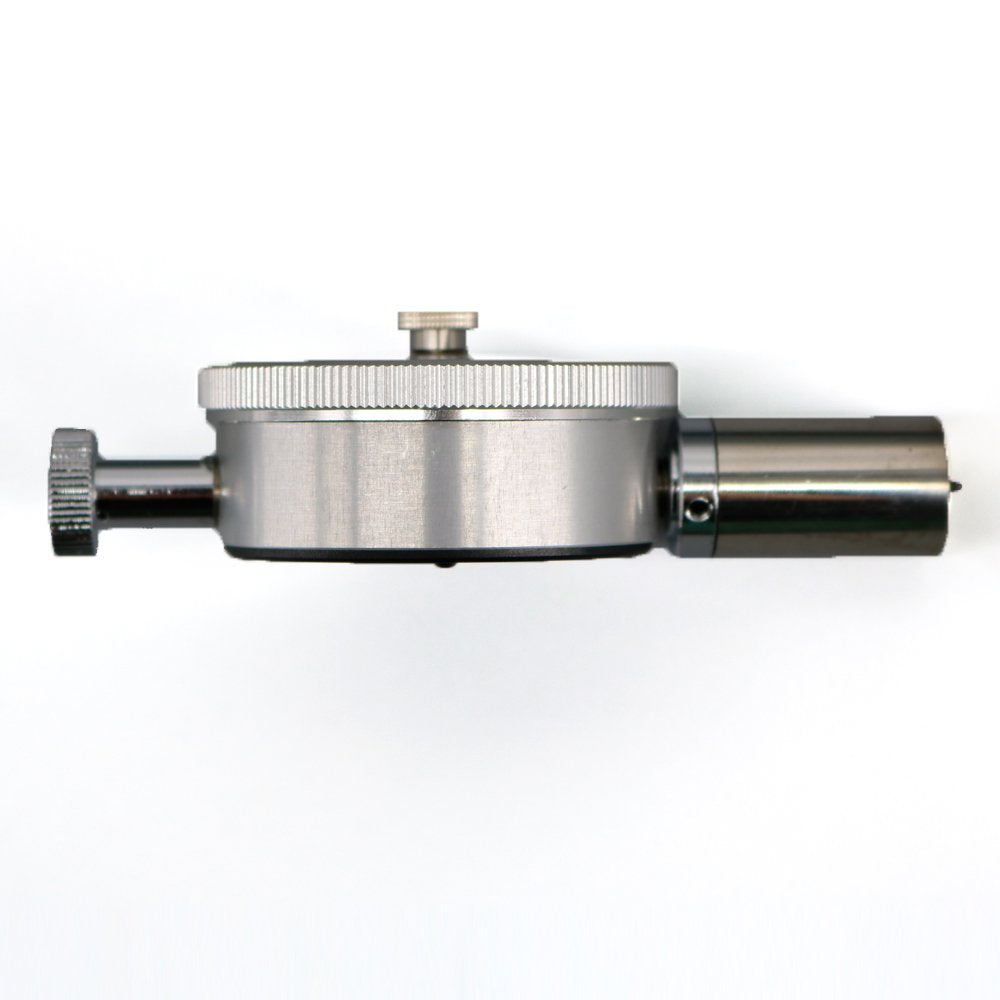

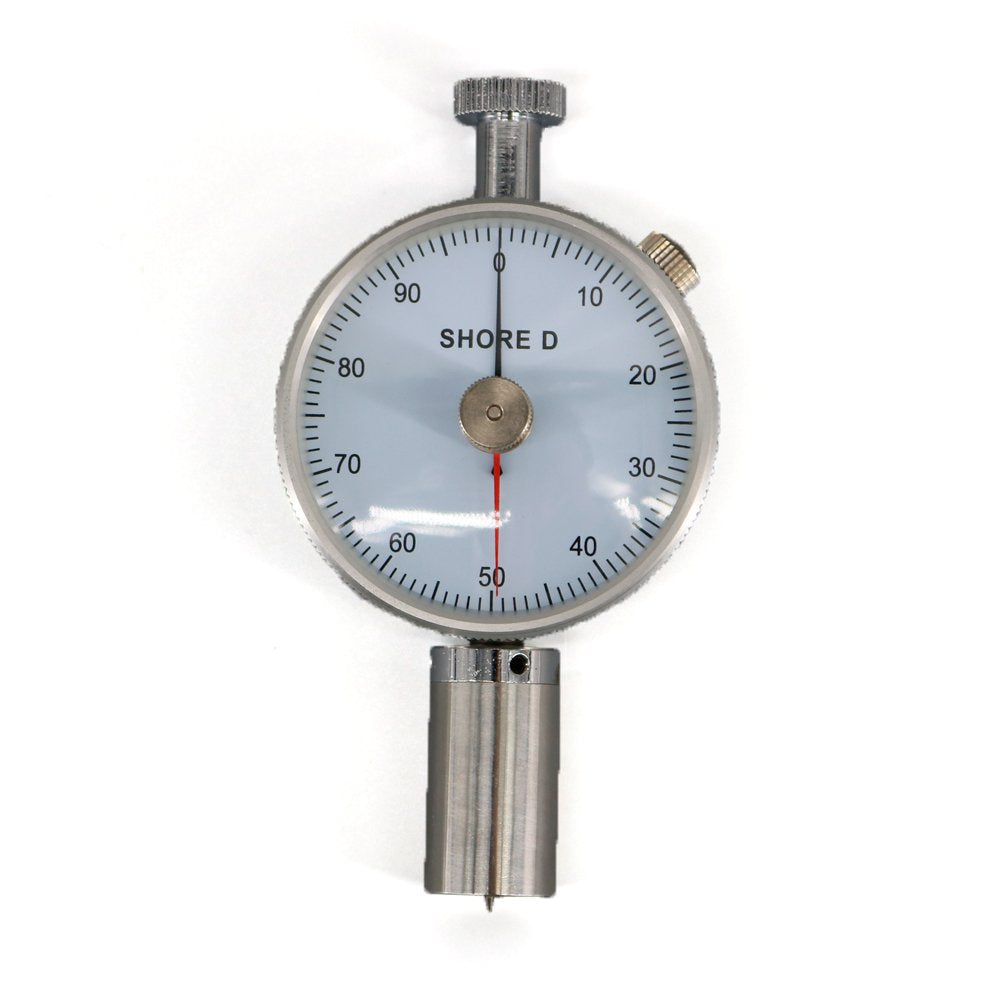

Graigar LX-D-2 Dual Needle Shore D Hardness Tester Shore D Durometer 0~100HD to Testing of Resin, Acryl, Plexiglas, Thermos Plastic Rubber, Printing Plate, Fibred

Brand: Graigar

Features:

• Dual needle shoe d durometer measure range: 20 ～ 90HD Handhold design, carry conveniently, handhold measure, also can be installed with match test stand
• The scale value: 0-100HD

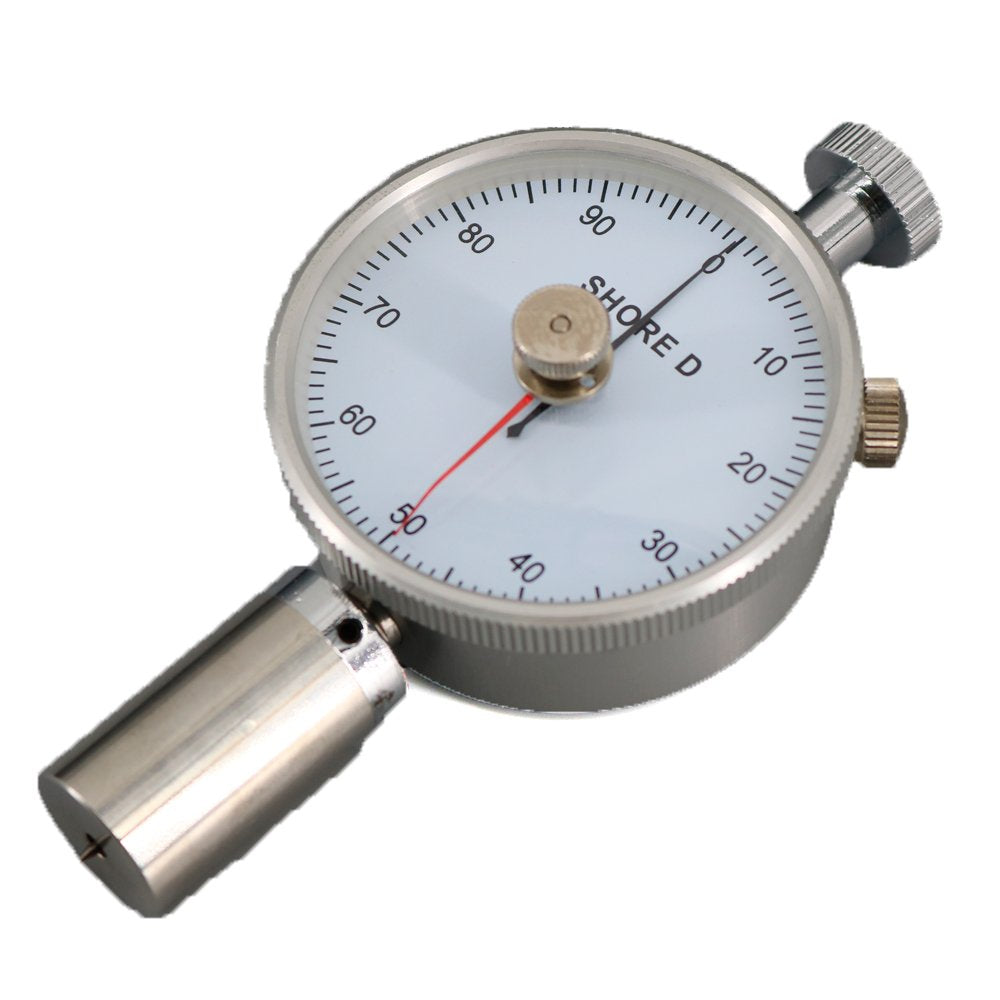

• Dual needle, after test the top value, the driven needle will stop move, convenience the user to read

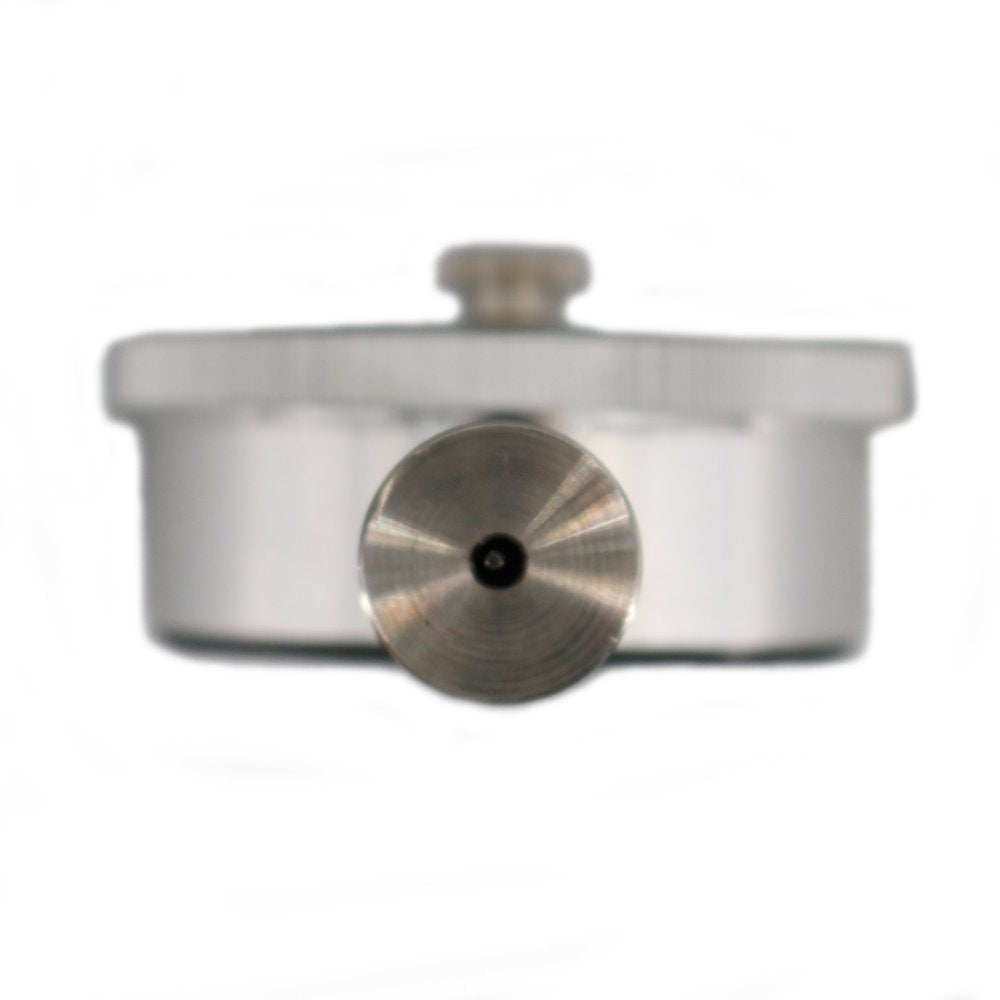

• Needlepoint size: SR 0.1 mm Needle indicates, easy to read, high accuracy
• Needle stroke: 2.5 mm

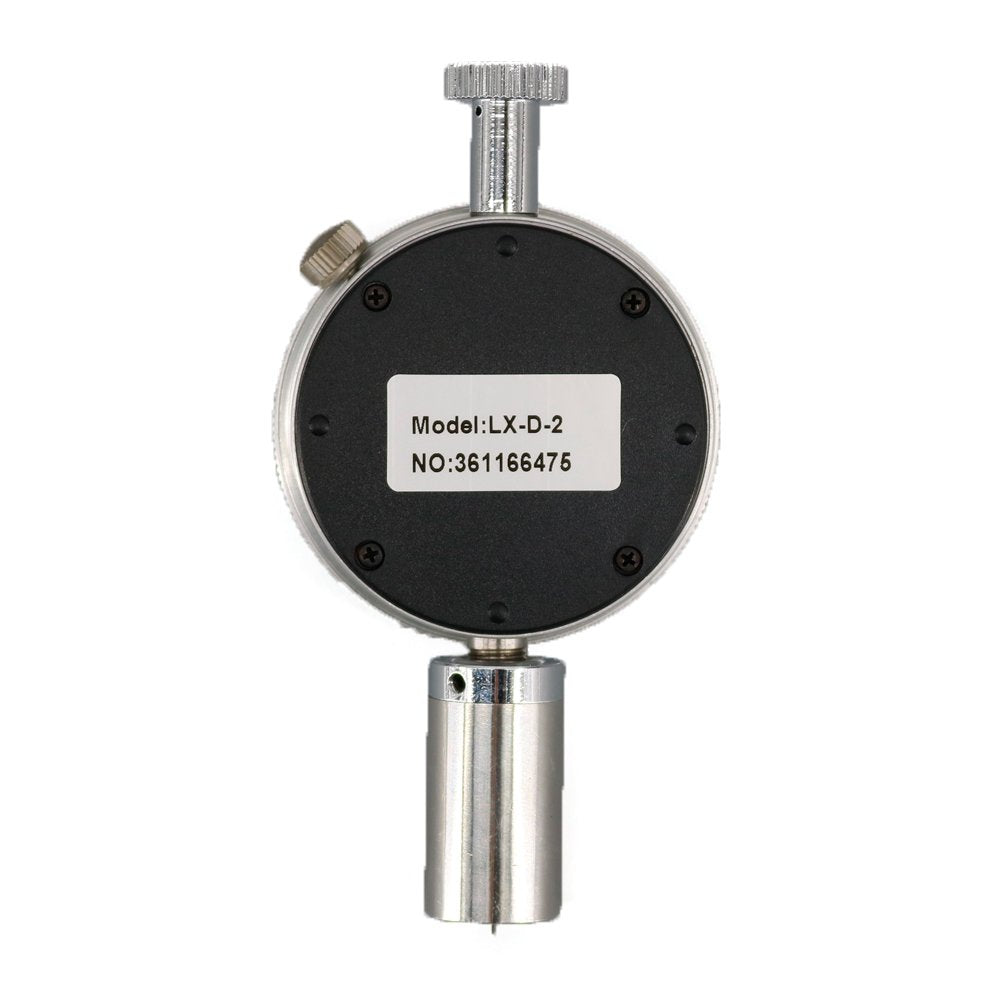

model number: LX-D-2

Part Number: LX-D-2

Details: Description

LX-D-2 hardness tester is suitable for hardness test of high degree of hardness material, such as common hard rubber, hardened resin, acryl, Plexiglas, thermos plastic rubber, printing plate, fibred. This hardness gauge conforms to the regulations of GB/T531-99, GB2411-80, hg/t2489-93, JJG304-2003.

Parameters

Dial value: 0 ~ 100HD

Recommended Measure range: 20 ~ 90HD

Resolution; 1HD

Needle stroke; 2.5 mm(0.1in)

Needlepoint size; SR 0.1 mm(0.004in)

End pressure of Pressure Head; 0-44.5N

Dimension; 115*60*25mm(4.5*2.36*0.98in)

Weight; 0.3kg(0.66lb)

EAN: 0725370412566
