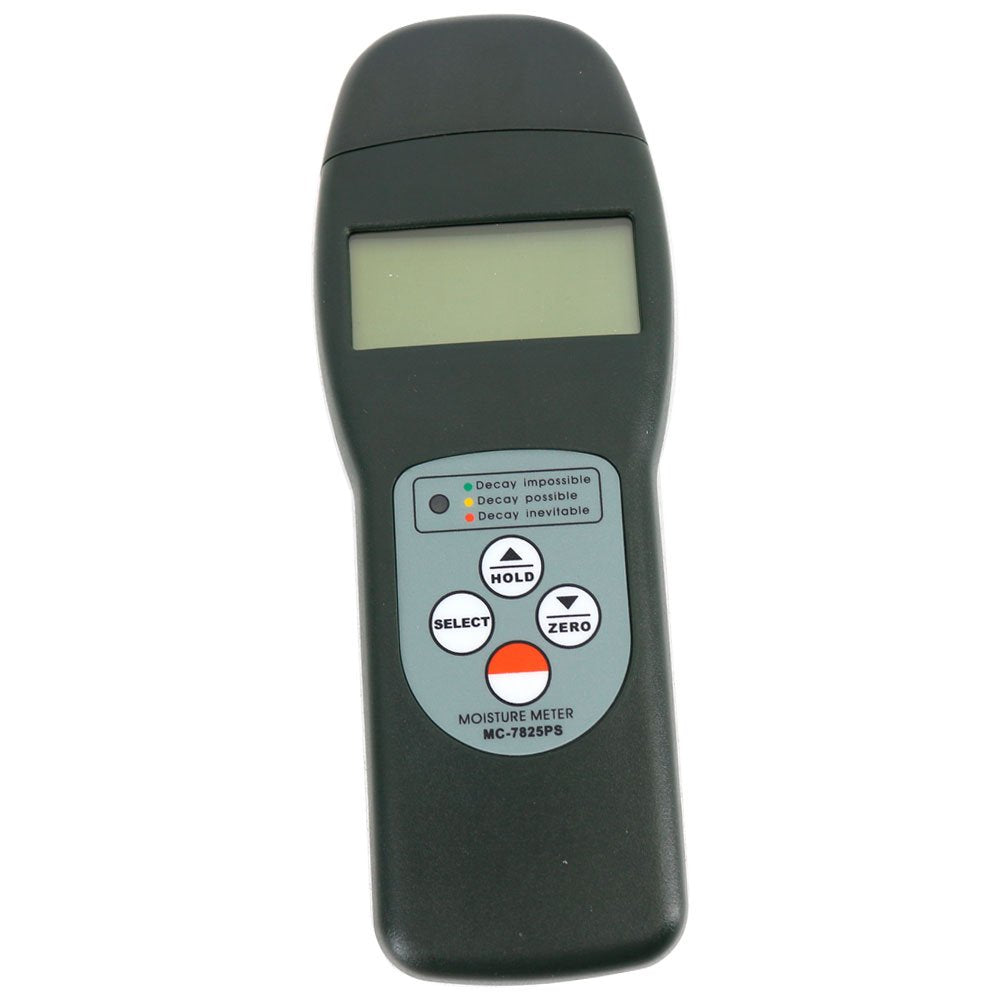

MC-7825PS moisture meter Pin Type Moisture Meter test the moisture of sample by testing the conductivity between two pin probes
Search Type Moisture Meter adopt non-invasive measuring method
Use USB/RS-232 data output to connect with PC (Optional)
Provide Bluetooth data output choice (Optional)
Measuring Range: 0~80 %
Part Number: MC-7825PS
Details: Specification
Meaning: Pin & Search Type
Specifications : Wood Up to 150 Species, Chiboard, Leather, Slag, Kerosene, Alcohol, Polyethylene, Soft coal, etc.
Measuring Range :
Pin Type: 0~80 %
Search Type: 0~70 %
Accuracy : ±（0.5%n+0.5）
Resolution : 0.1
Display : LCD, With Color Coded LED Indicator
LED Indicator :
Green LED represents a safe, air-dry state
Yellow LED represents a borderline state
Red LED represents a damp state
Calibration : Automatic
Battery Indicator : Low Battery Indicator
Data Output : USB, RS-232, Bluetooth ( Optional )
Operating Conditions : Temperature: 0~50 %°C, Humidity: <90 %RH
Power Supply : 4 x 1.5 AAA Size (UM-4) Battery
Dimensions : Main Unit 165 x 62 x 26 mm
Measuring Pin : 71 x 65 x 22 mm
Weight : 119 g (Not Including Batteries)
Standard Accessories
Main Unit,
Operation Manual
Probe(P25)
Carrying Case
Measuring Hammer
Optional Accessories
RS-232C Data Cable with Software,Bluetooth Data Adapter with Software
