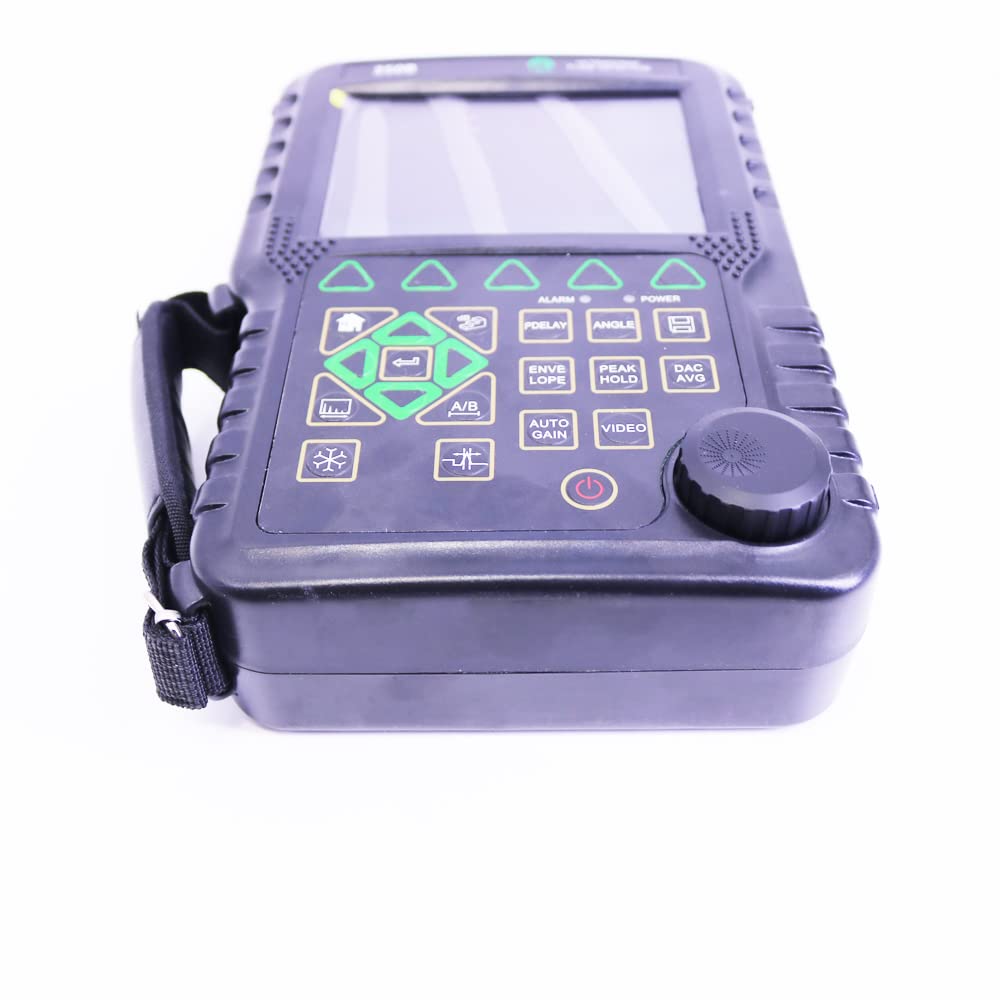

Graigar MFD350B Digital Ultrasonic Flaw Detector 0~6000mm Range 0.5~10 MHz NDT Flaw Meter

Brand: Graigar

Features:

• MFD350B Ultrasonic Flaw Detector With English display, master-slave menu, shortcut key and digital swiftly knob, it's designed with leading technology and can be used very conveniently.

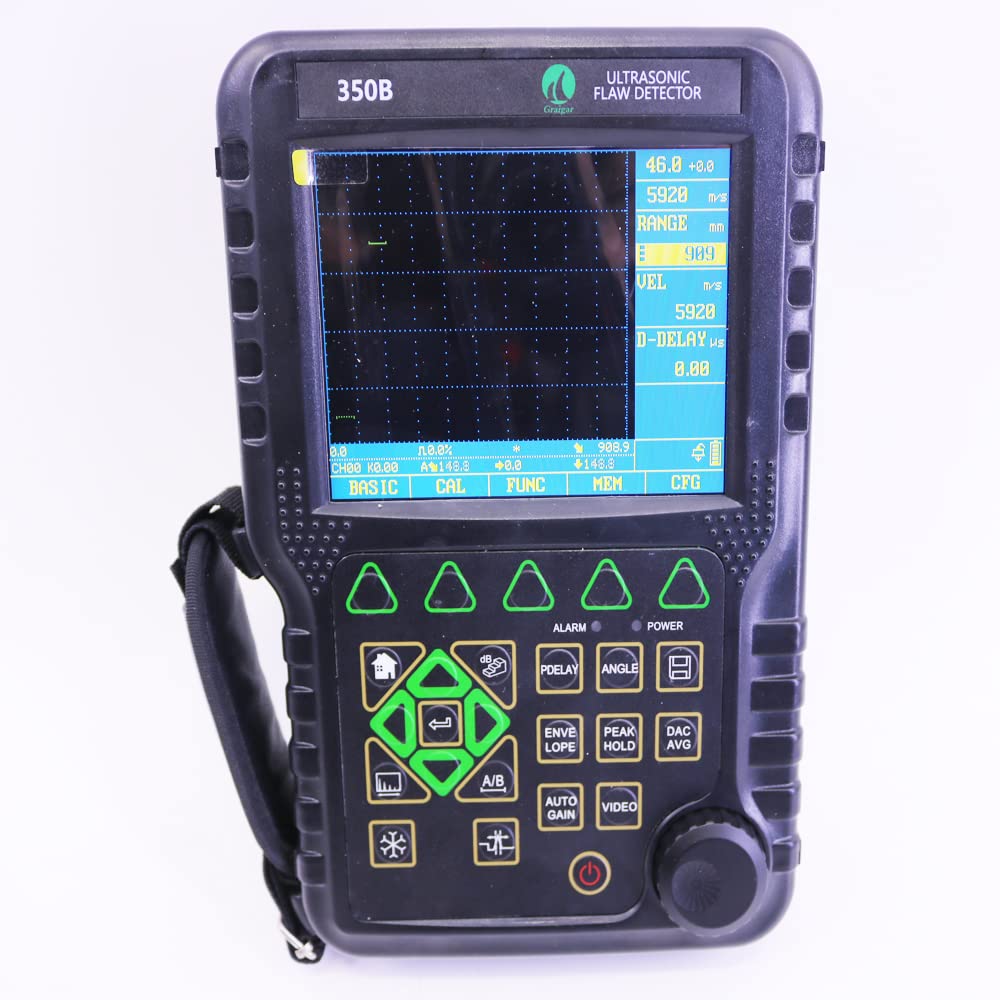

• With digital color TFT LCD display, it can choose the background color and wave color according to the environment. And the LCD brightness also can be set freely by yourself.

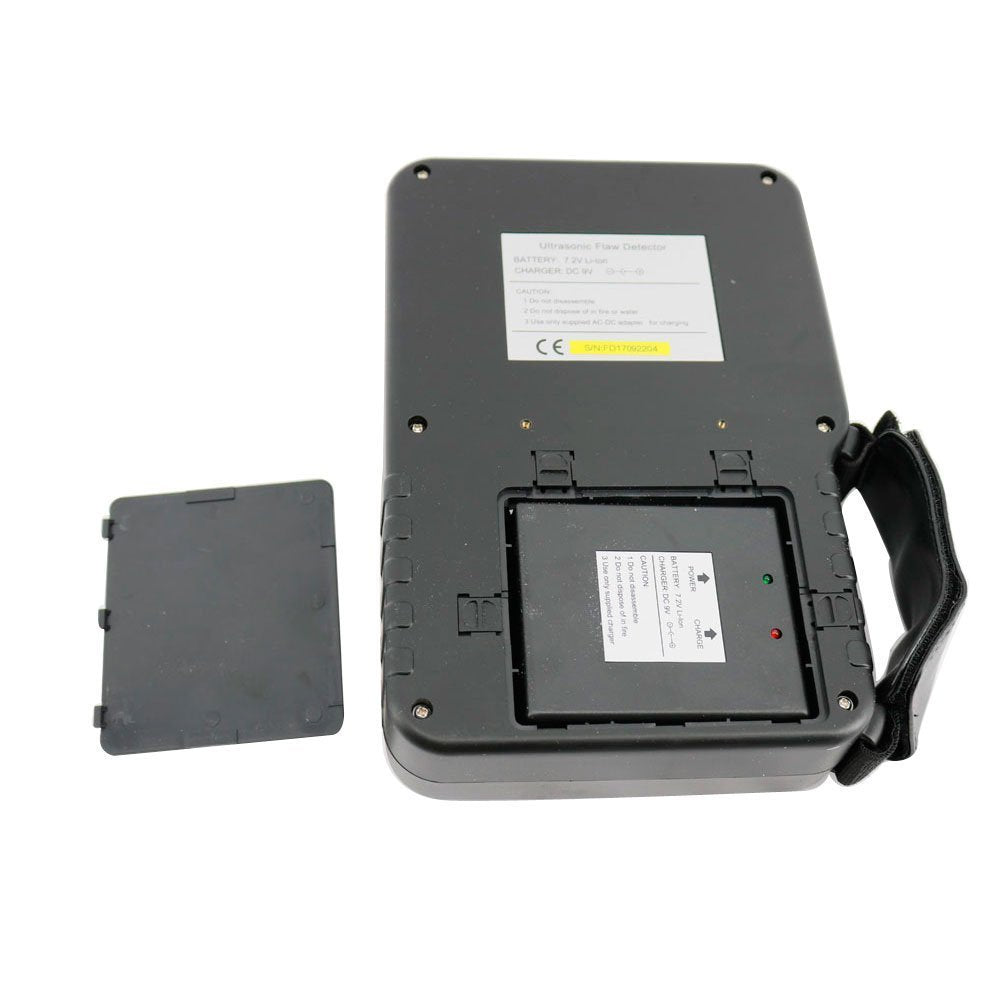

• Designed with high performance security-guarantee battery module, it's easy for disassembly and assembly. And it can charge independent with offline.
• And the large capacity and high performance Lithium ion battery module make the instrument' continuously working time to above 8 hours.
• With small size and light weight, the instrument can be hold by one hand. It's durable in use and lead industry trend.

Part Number: MFD350B

Details: Specification

Range: 0 to 6000 mm, at steel velocity
Material Velocity: 300 to 15000m/s
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Sensitivity Leavings: >60dB (flat-bottomed deep hole 200mm2)
Resolution : >40dB (5P14)
Noise Level: ≤ 8%
Test Modes: Pulse echo, dual element and thru-transmission
Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz
Pulse Energy: Low, Medium and High spike pulse.
Damping: 100, 200, 400 ohms
Bandwidth (amplifier bandpass ): 0.2 to 15 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Rectification: Positive halfwave, negative halfwave, fullwave, RF
System Linear Deviation:Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.
Reject (suppression): 0 to 80% full screen height
Units: Inch or millimeter

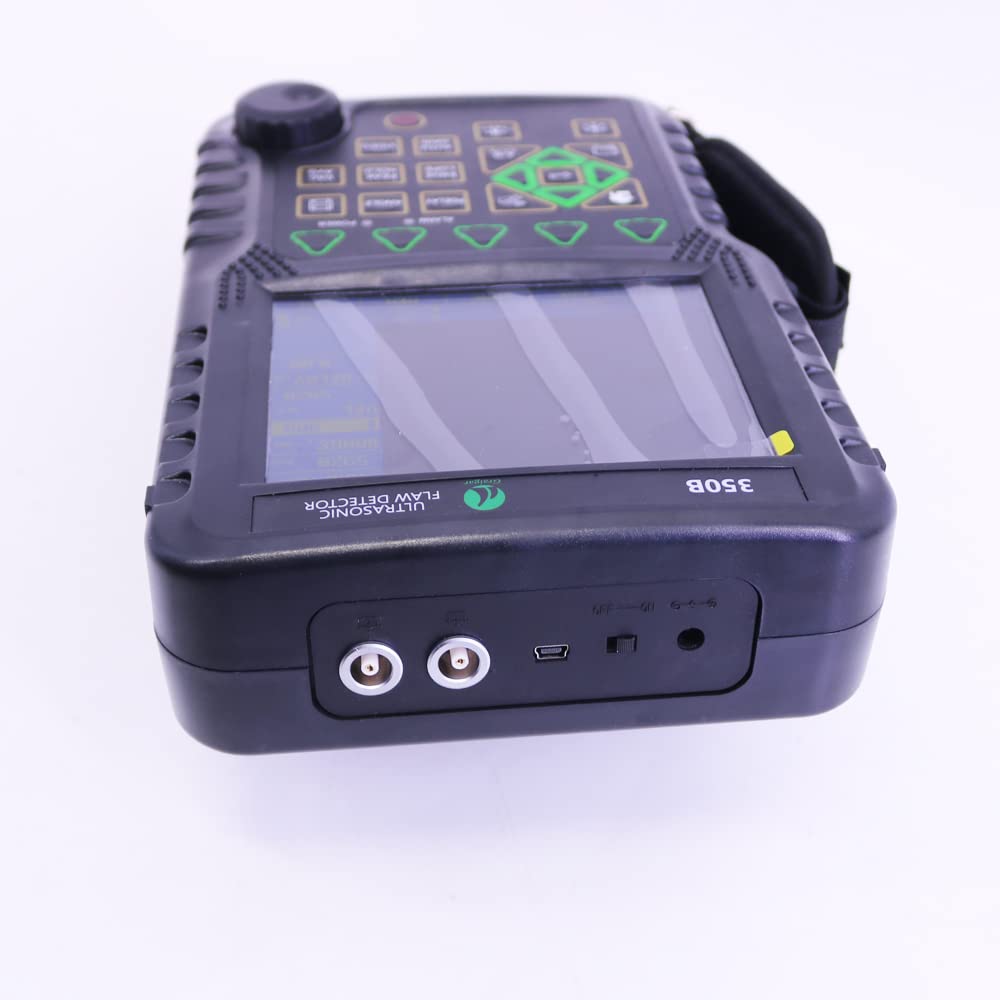

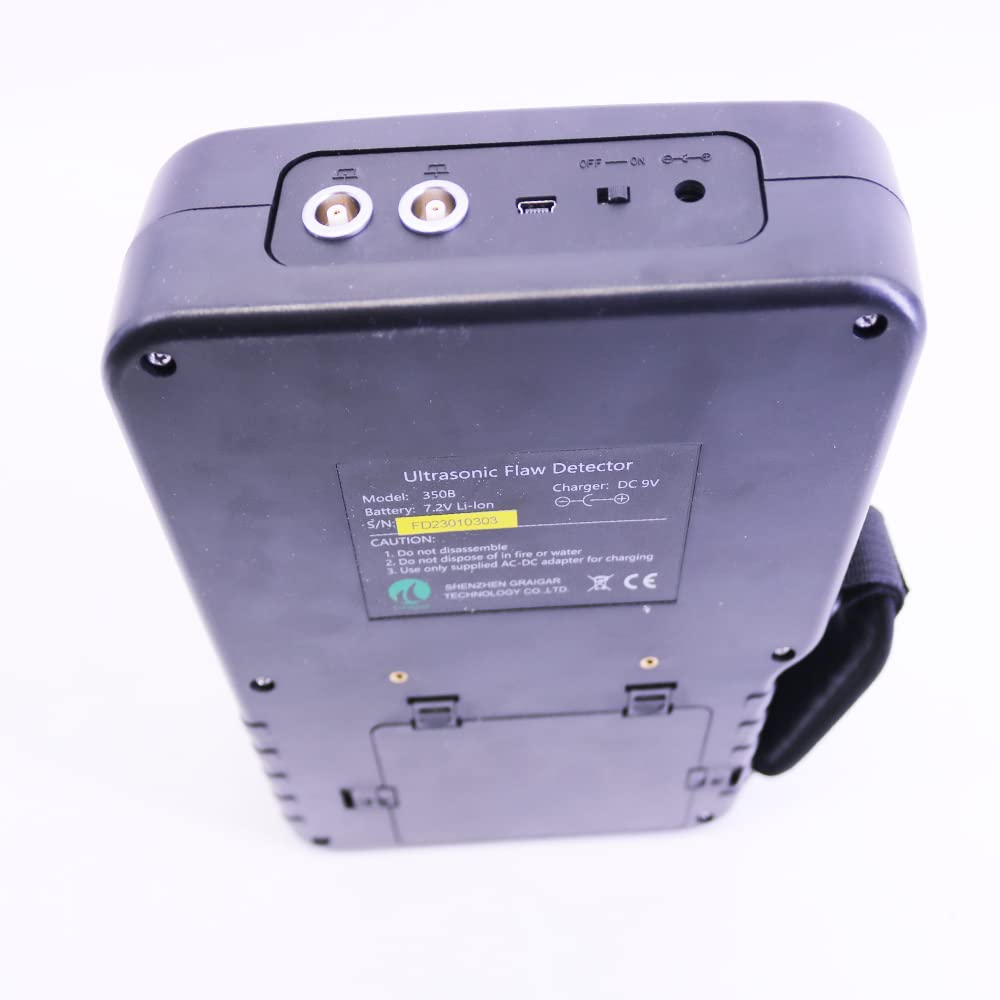

Transducer Connections: BNC or LEMO
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Overall Dimensions: 10.35×6.7×2.4 in
Relative Humidity: (20 ~ 95)% RH
Power Supply: DC 9V
Operating Temperature: -10℃ to 50℃
Storage Temperature: -30℃ to 50℃

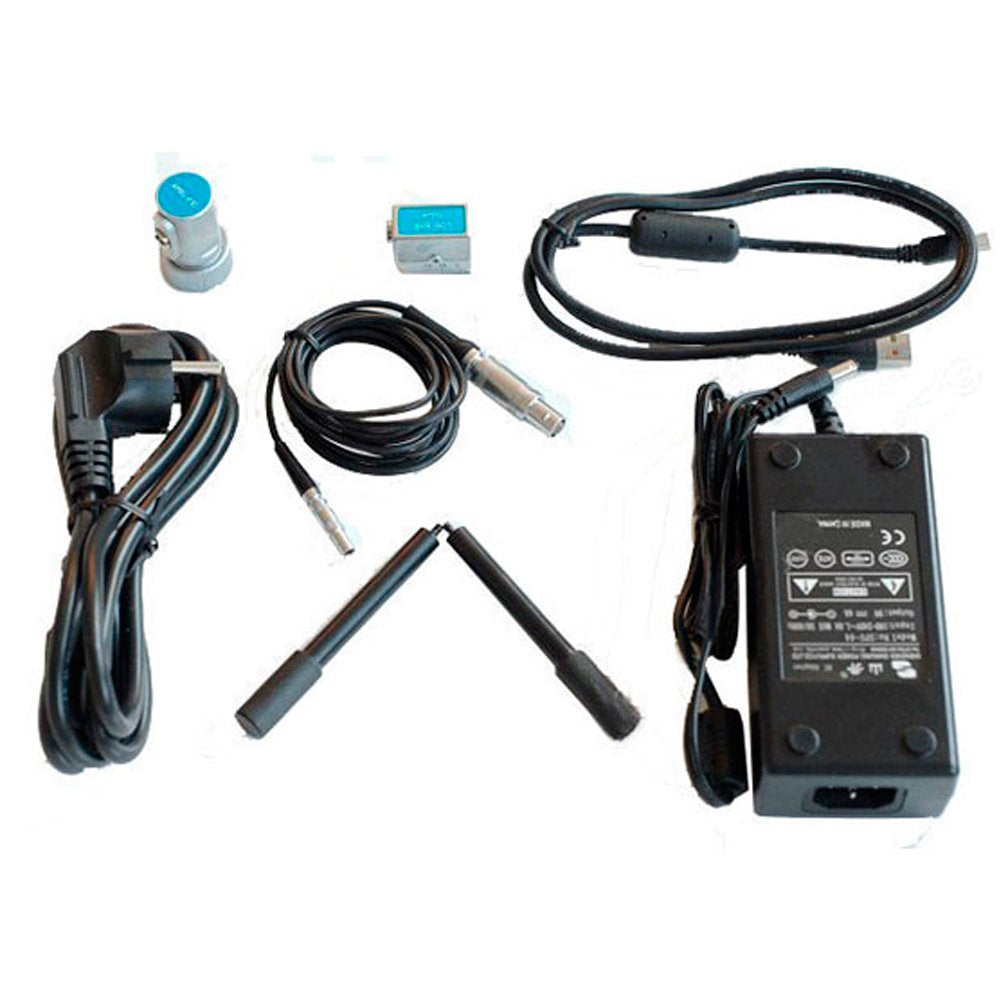

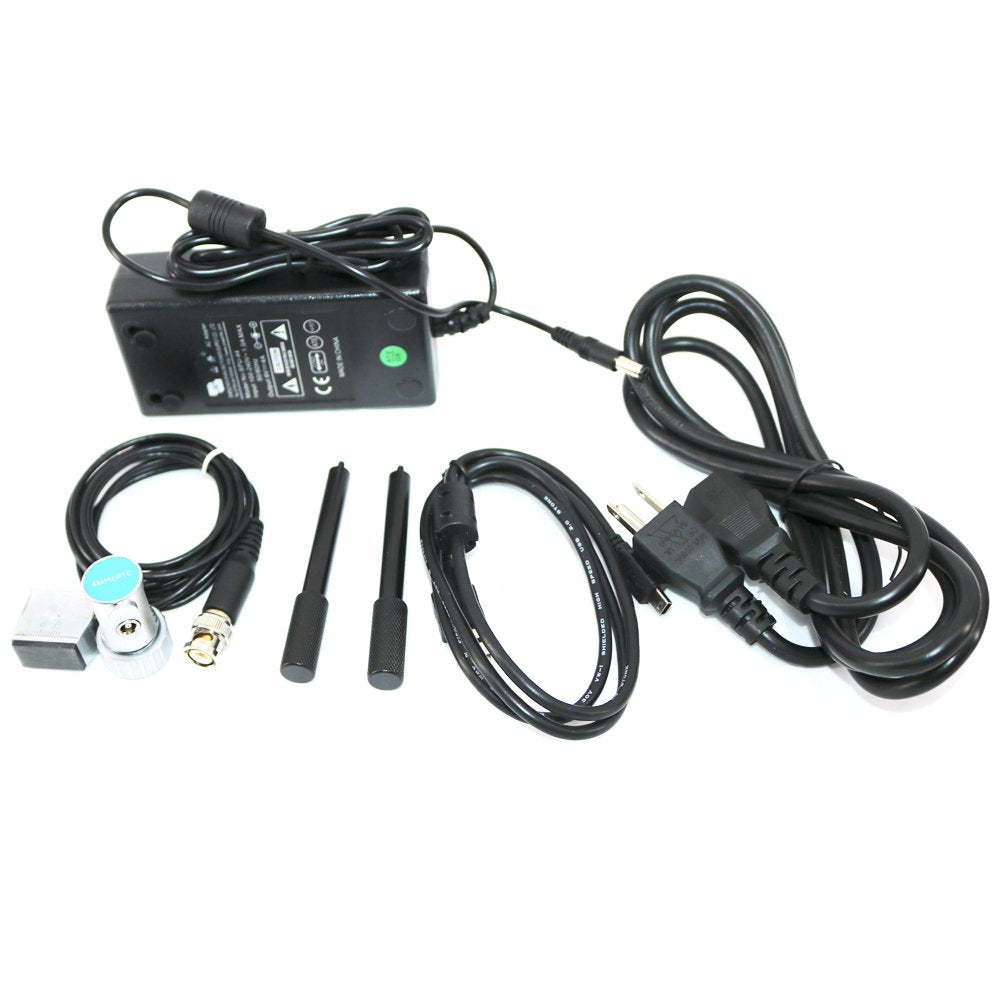

MFD350B Standard Configuration

Main Body x 1
Straight Beam Probe x 1
Angle Probe x 1
Machine-probe Cable (Q9-Q9) x 1
Battery Module x 1
Power Adapter (Charger) x 1
Support Pillar x 1
English Manual x 1

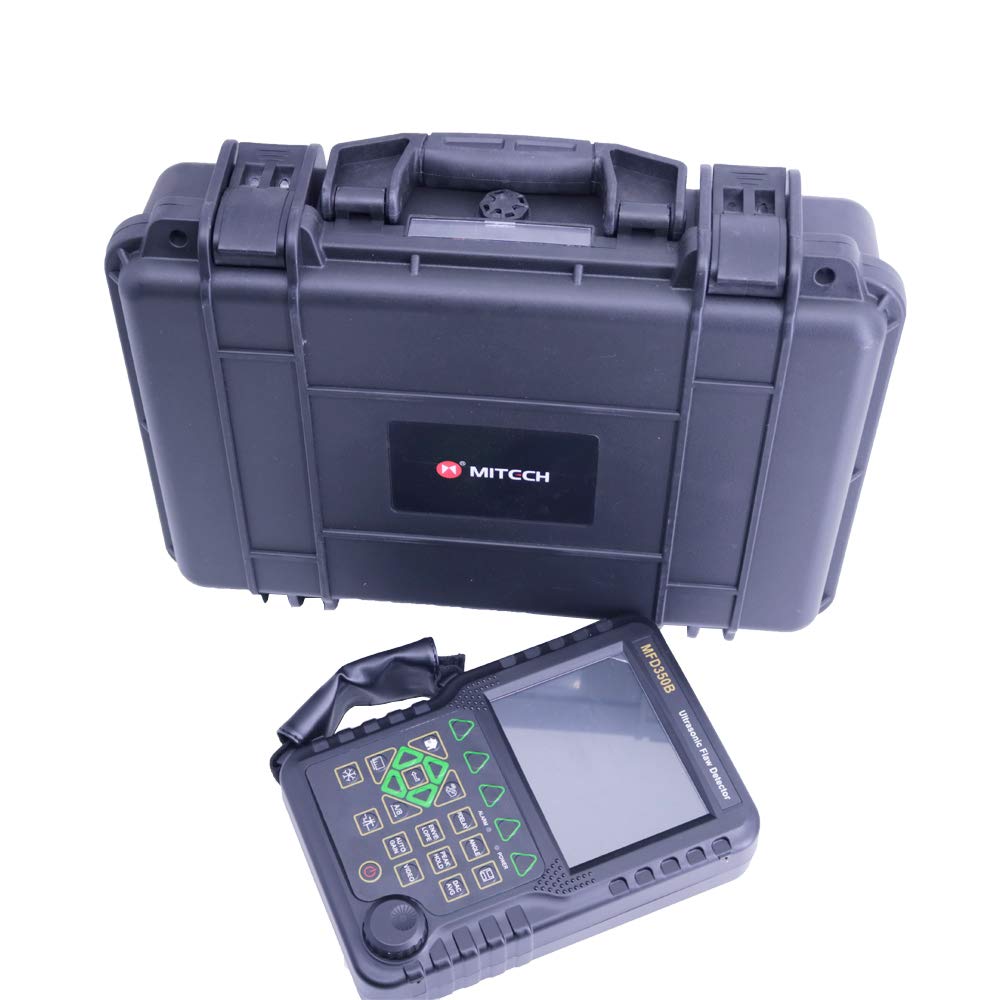

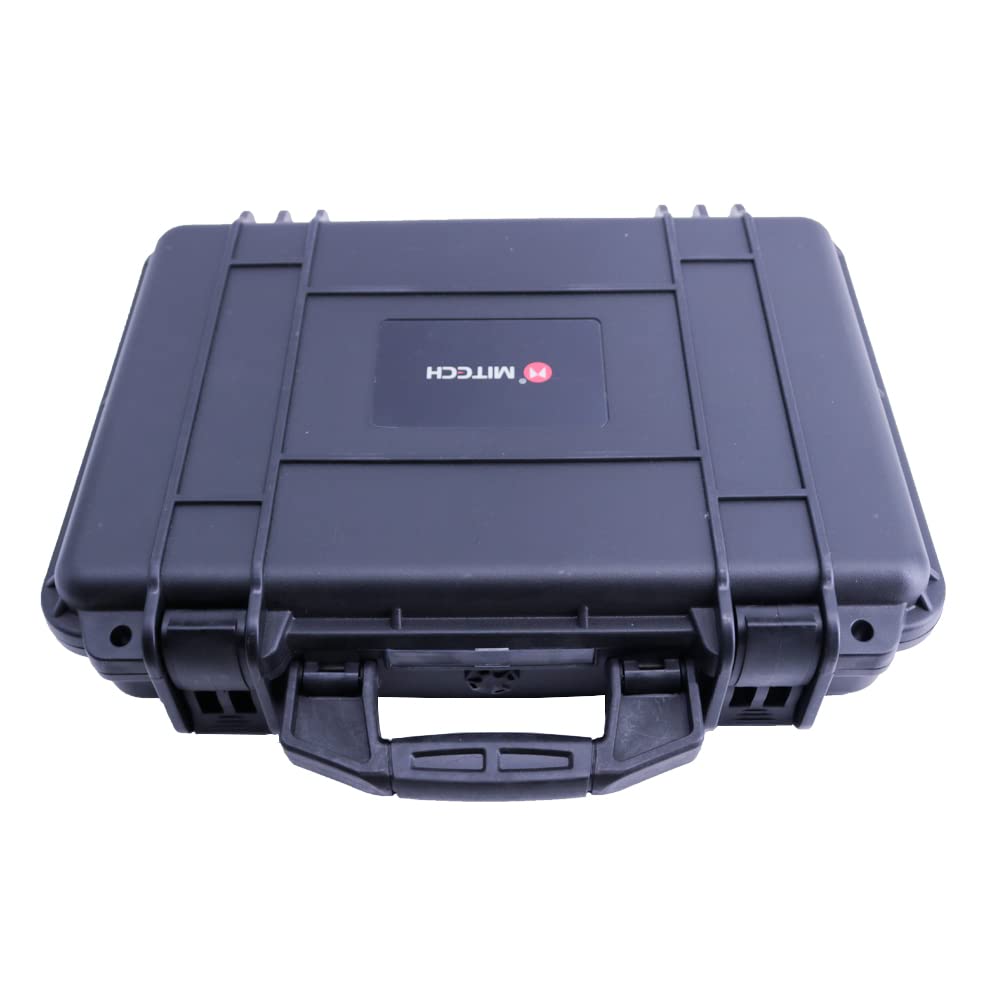

Instrument Case x 1
Data proceeding Software x 1
USB communication Cable x 1

EAN: 0725370414102

Package Dimensions: 17.7 x 15.4 x 6.7 inches
