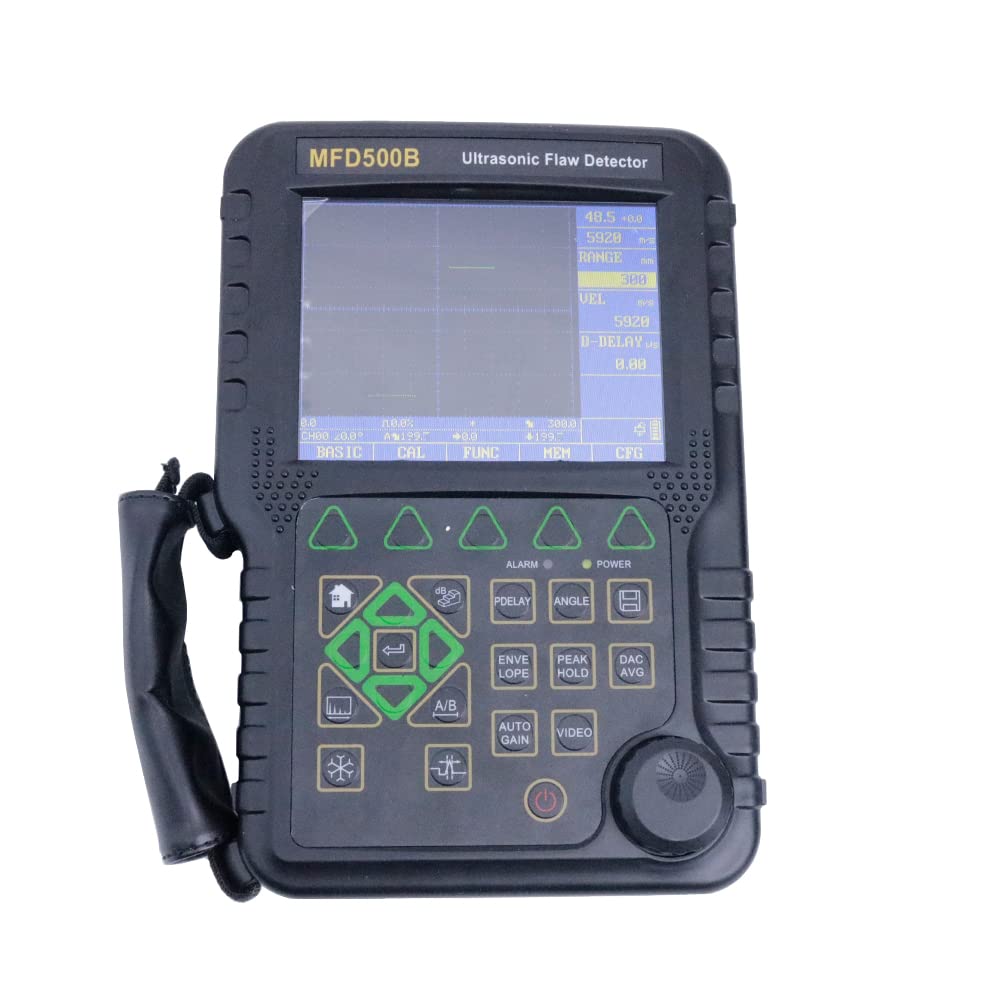

Graigar MFD500B Portable Digital Ultrasonic Flaw Detector with Measurement Range 0 to 9999 mm

Brand: Graigar

Features:

• Gate position, gate width and gate height can be adjustable at will. The B gate can chose to set wave-getting alarm or wave-losing alarm. The beep in gate and LED light can be alarmed or closed (the LED light alarm is very effective under the noise environment).
• It supports 100 groups of flaw detecting parameters channels. It can save 10000 pictures of detecting echo signals and parameters.
• The instrument supports for saving the inspection process as video file and save it to the internal storage card. Video file can be replayed through the instrument. The instrument can support 2 minutes video.
• With USB2.0 high speed communication interface, it also can use special software to upload and download data through the USB port.
• The instrument supports for saving the inspection process as video file and save it to the internal storage card. Video file can be replayed through the instrument. The instrument can support 2 minutes video.

model number: MFD500B

Part Number: MFD500B

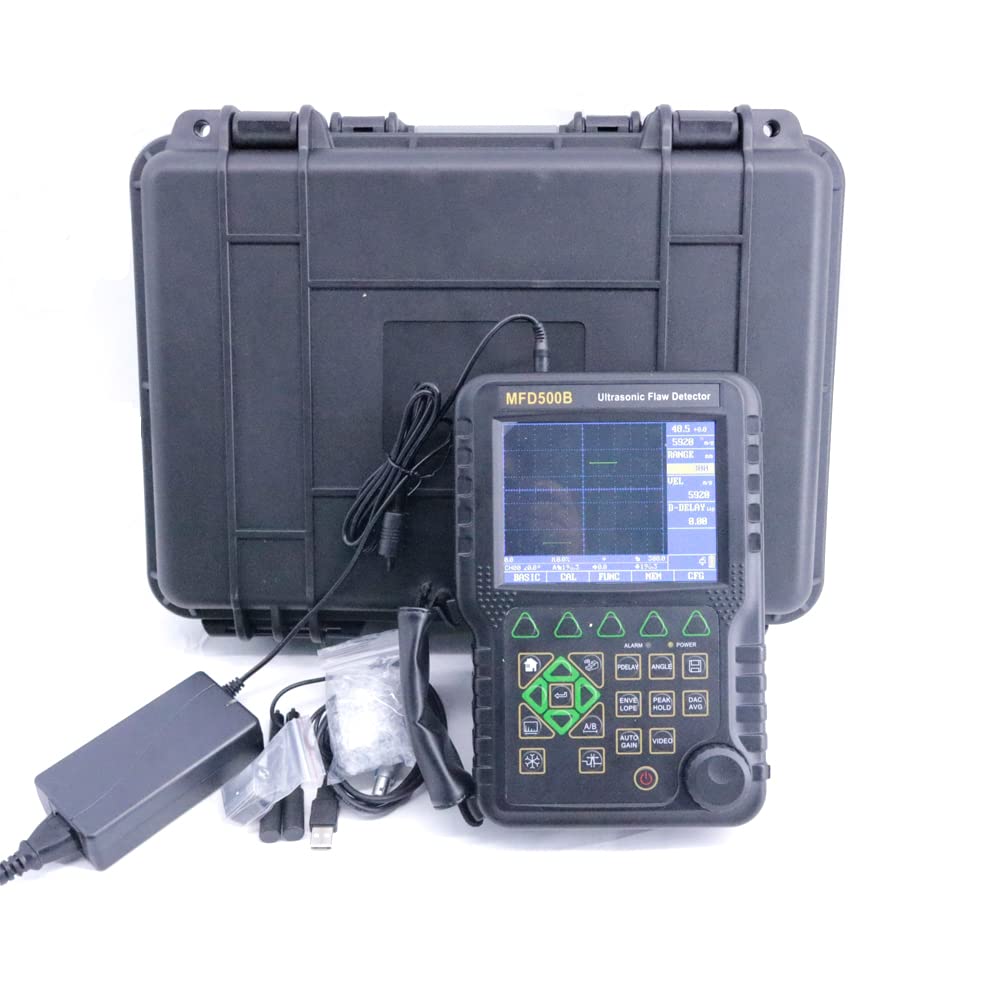

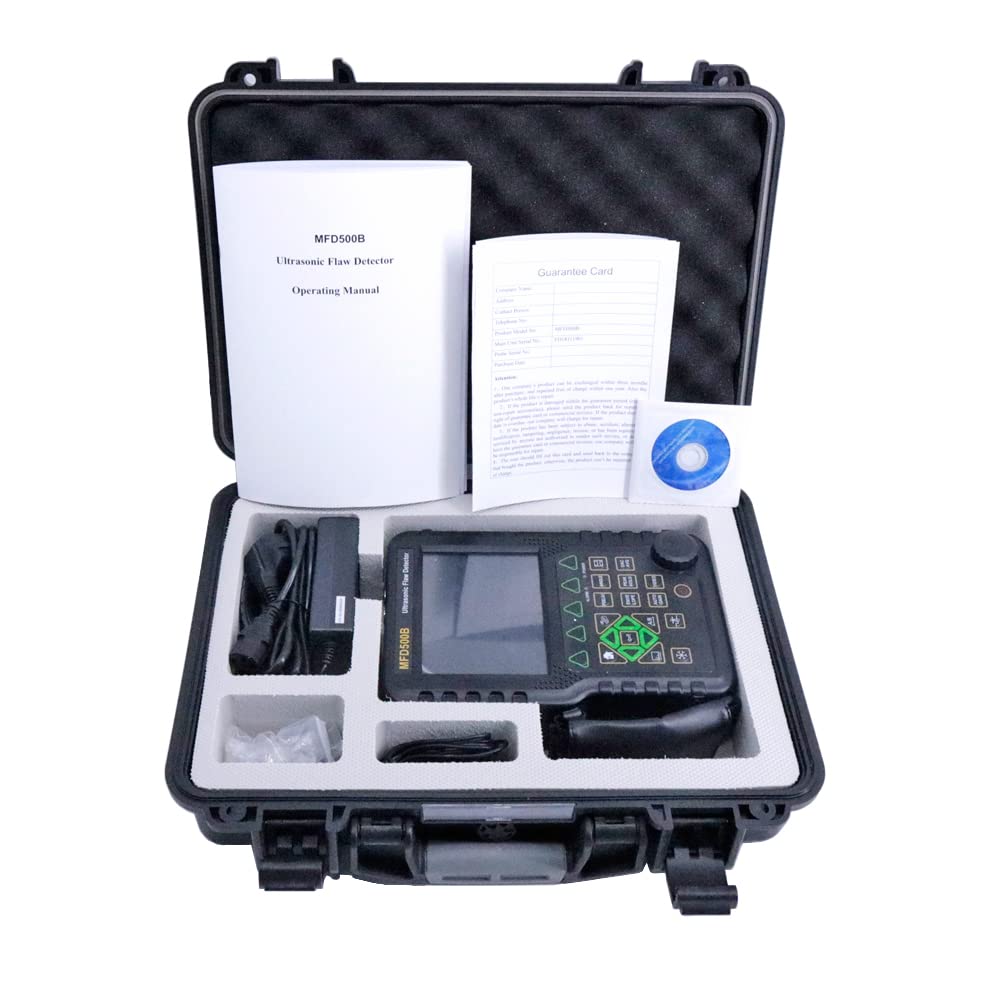

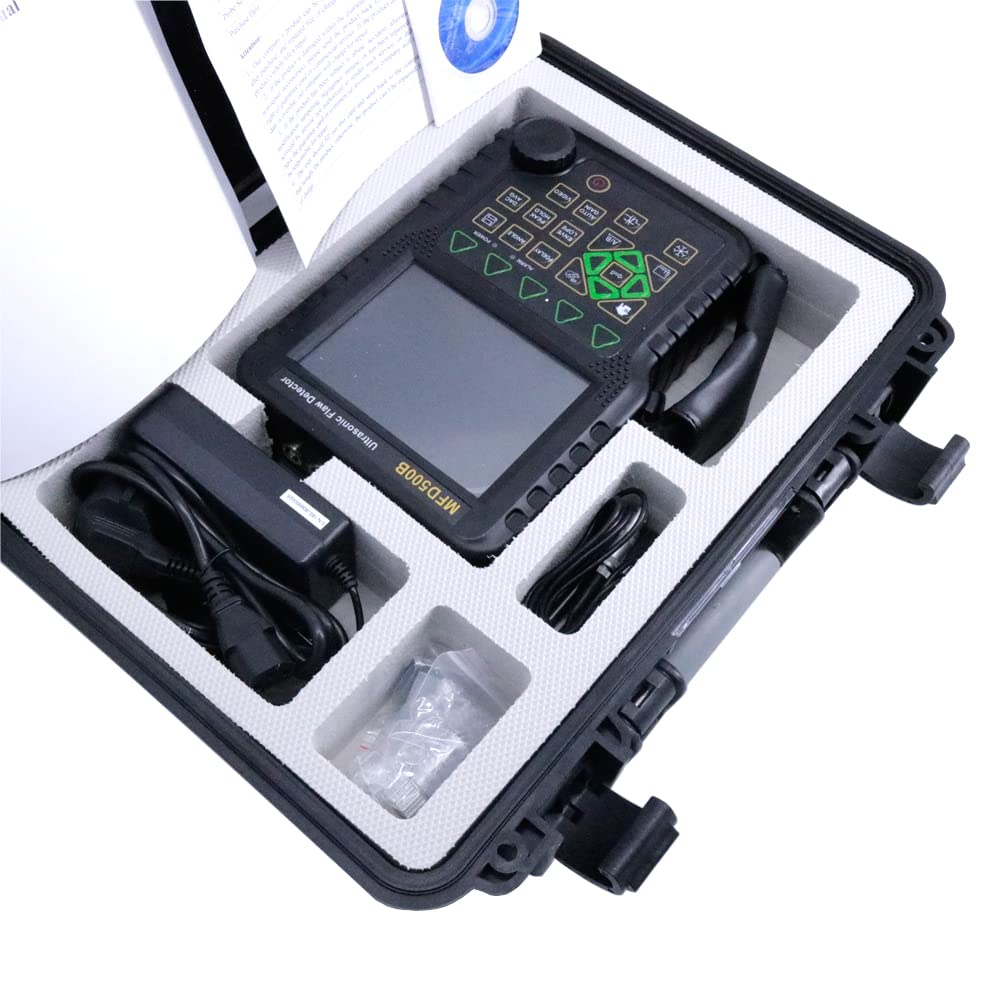

Details: Specifications Range: 0 to 9999 mm, at steel velocity Material Velocity: 1000 to 9999m/s Display Delay: -20 to 3400 µs Probe Delay/Zero Offset : 0 to 99.99µs Sensitivity: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked. Test Modes: Pulse echo, dual element and thru-transmission Pulser: Tunable Square Wave Pulser Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz Pulse Energy: Low, Medium and High Damping: 100, 200, 400 ohms Bandwidth (amplifier bandpass ): 0.5 to 15 MHz Gate Monitors: Two independent gates controllable over entire sweep range Rectification: Positive halfwave, negative halfwave, fullwave, RF System Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB. Reject (suppression): 0 to 80% full screen height Units: Inch or millimeter Transducer Connections: BNC or LEMO Power Requirements: AC Mains 100-240 VAC, 50-60 Hz Dimensions: 263x170x61 mm (10.4x6.7x2.4 inch)Operating Temperature: -10 to 50 Storage Temperature: -30 to 50MFD500B Standard ConfigurationMain Body x 1Straight Beam Probe x 1Angle Probe x 1Machine-probe Cable (Q9-Q9) x 1Battery Module x 1Power Adapter (Charger) x 1Support Pillar x 1English Manual x 1Instrument Case x 1Data proceeding Software x 1USB communication Cable x 1

EAN: 0725370412870

Package Dimensions: 17.7 x 15.4 x 6.7 inches
