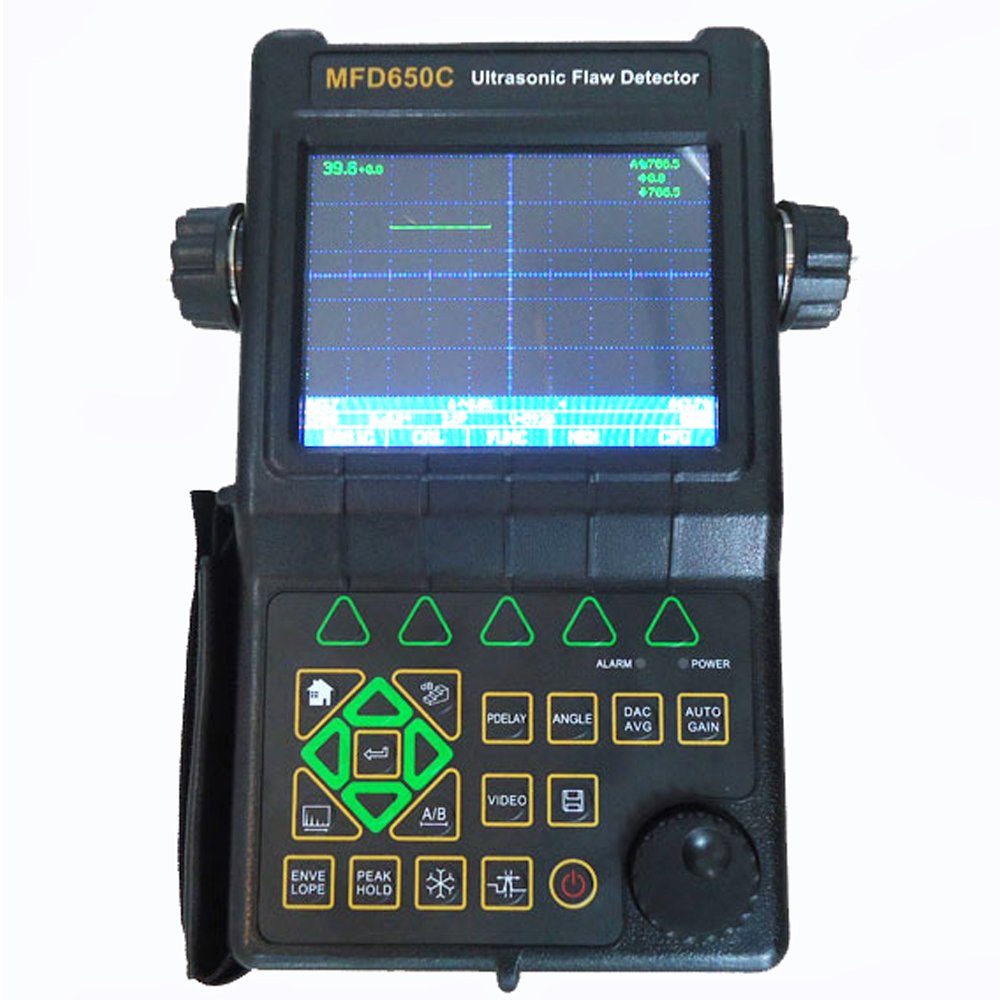

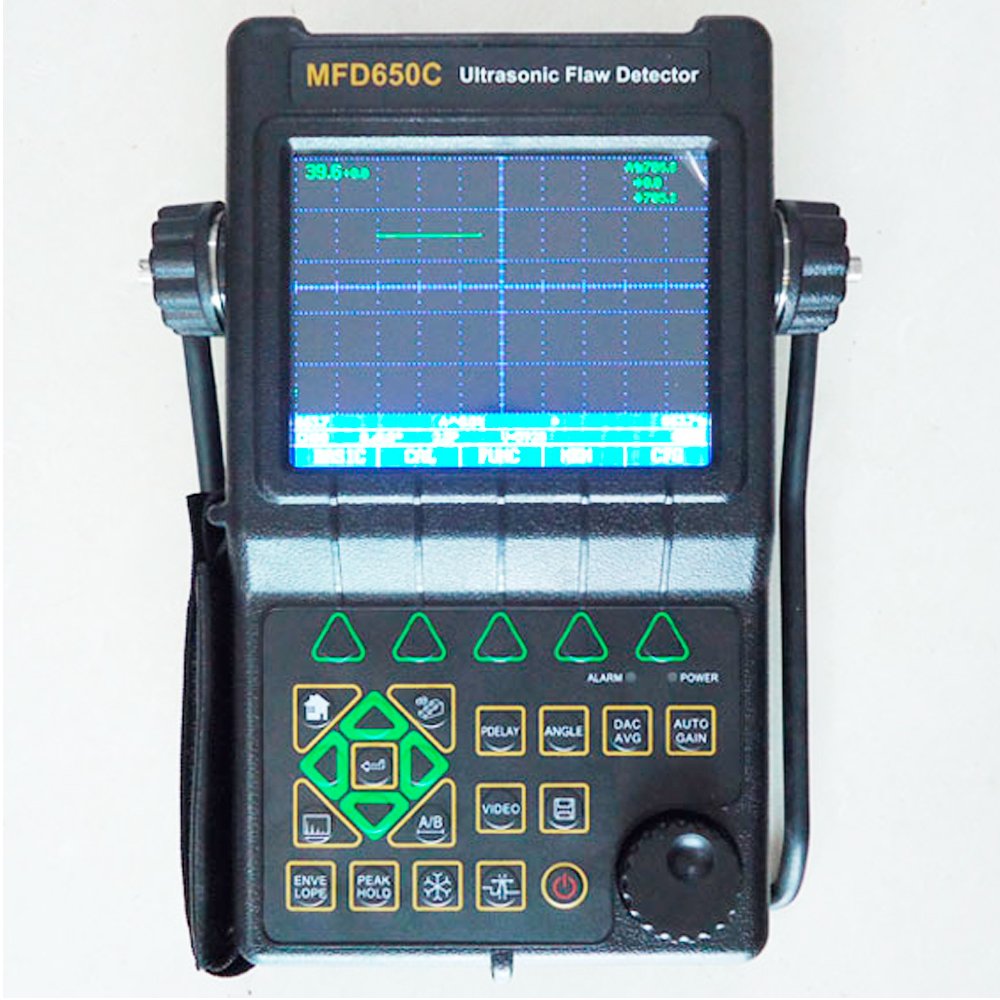

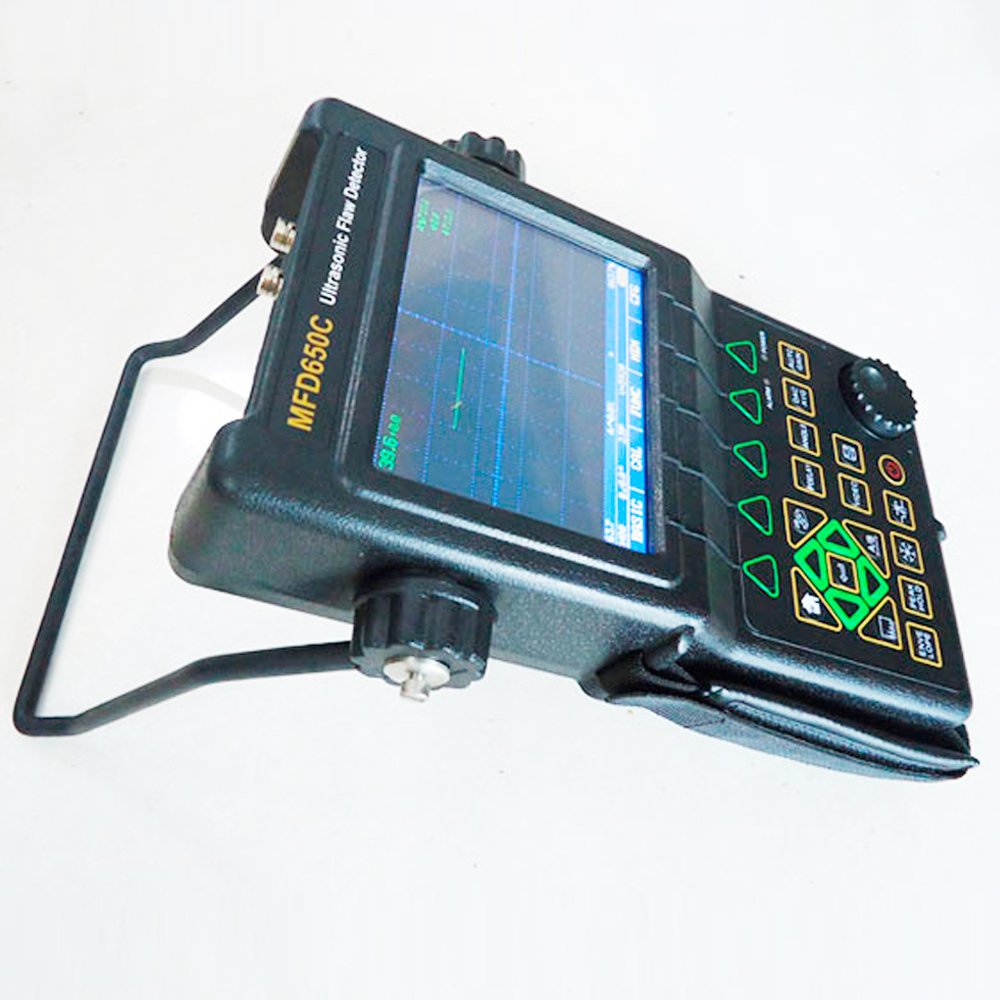

MFD650C Portable Ultrasonic Flaw Detector with hi-resolution color TFT LCD display.
The background color and the wave color can be selectable according to the environment.

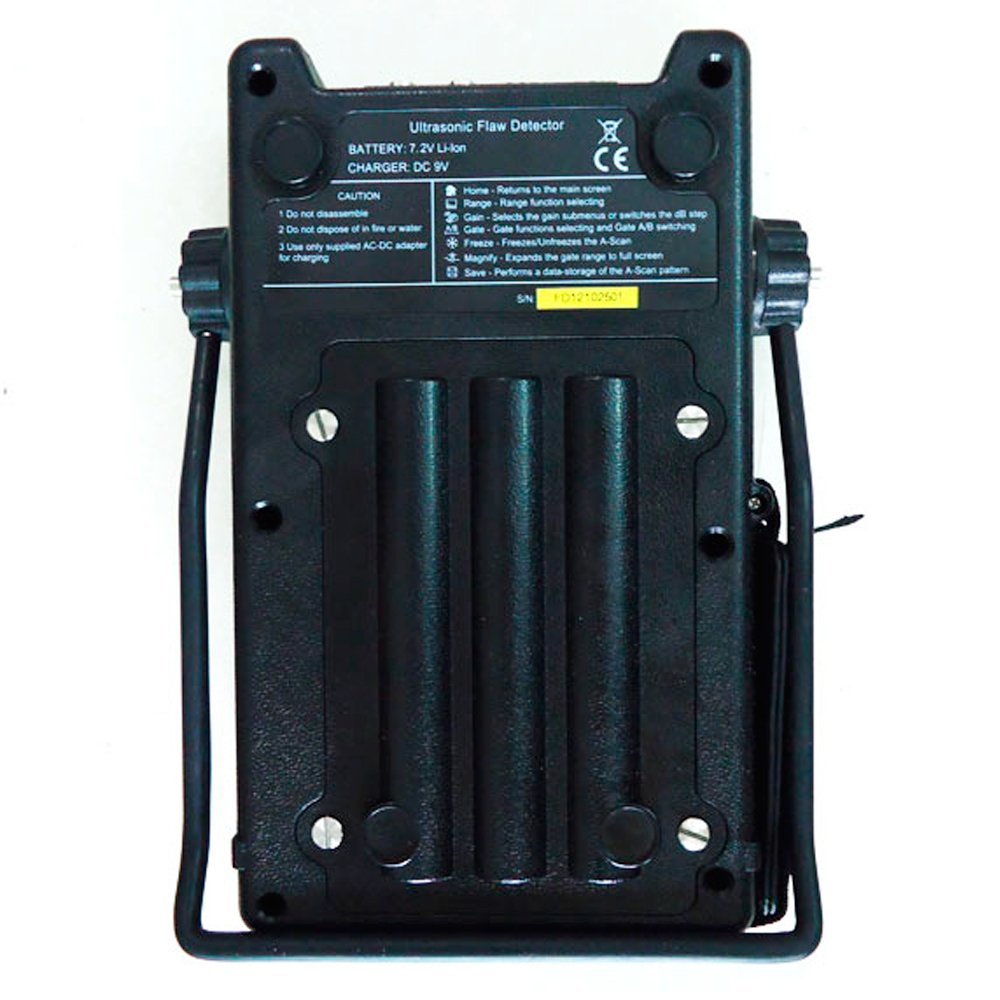

LCD brightness can be manually set. Continue working over 8 hours with high performance lithium-ion battery module (with large capacity lithium-ion battery option), easy to be dismantled and the battery module can be charged independently offline.
It is light and portable, easily to be taken by one hand; easy operation; superior reliability makes it long life.
Range 0~ 9999mm (at steel velocity); range selectable in fixed steps or continuously variable.
model number: MFD650C
Part Number: MFD650C
Details:Specification
Channels: 100 channels Range: (0 ~ 9999) mm Bandwidth: (0.2 ~ 20) MHz Material Velocity: (300 ~ 15000) m / s Dynamic Range: ≥ 36dB Vertical linear error: ≤ 2.5% Horizontal linear error: ≤ 0.1% Resolution:> 40dB (5P14) Sensitivity Leavings: 65dB (flat-bottomed deep hole 200mm 2) Rejection: (0 to 80)% Linear Noise level: ≤ 8% Power supply: DC 9V; lithium batteries work for 8 hours or more Ambient temperature: (-20 ~ 50) °C Relative Humidity: (20 ~ 95)% RH Overall dimensions: 263 × 170 × 61 (mm)
MFD650C Standard Configuration

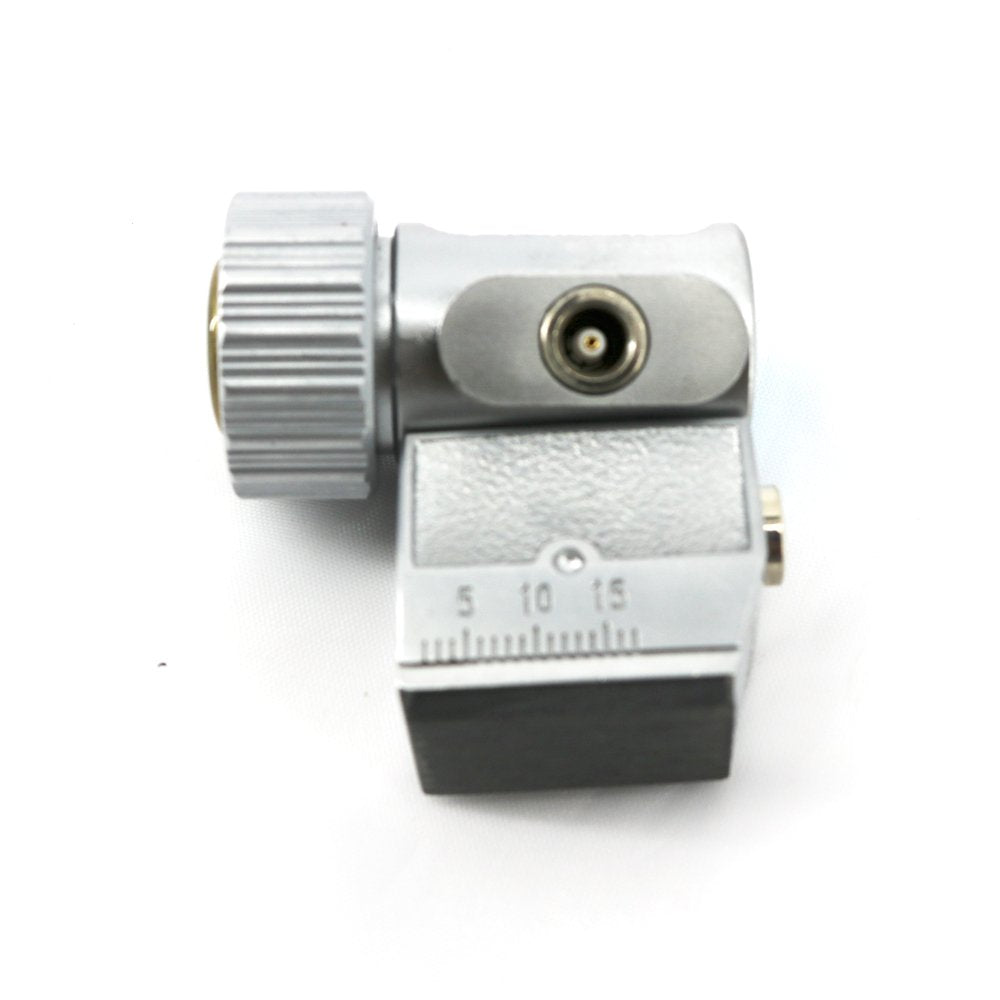

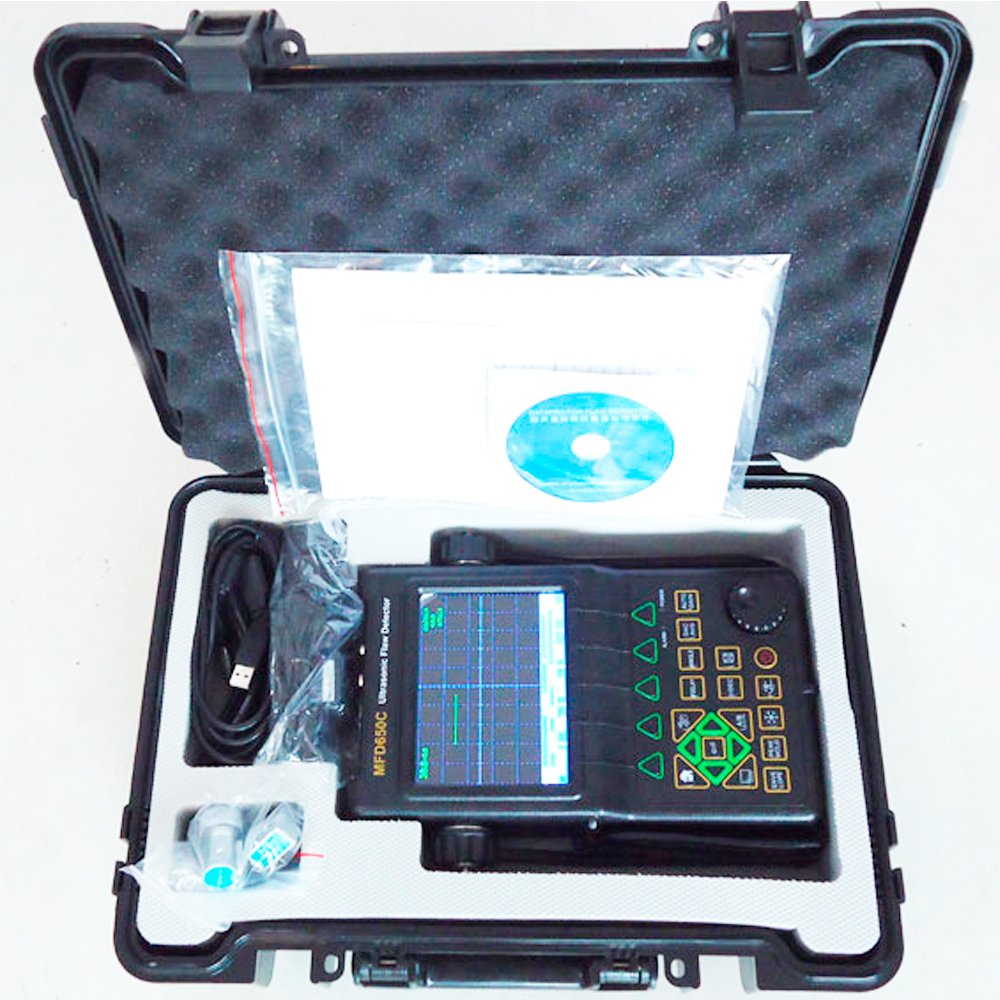

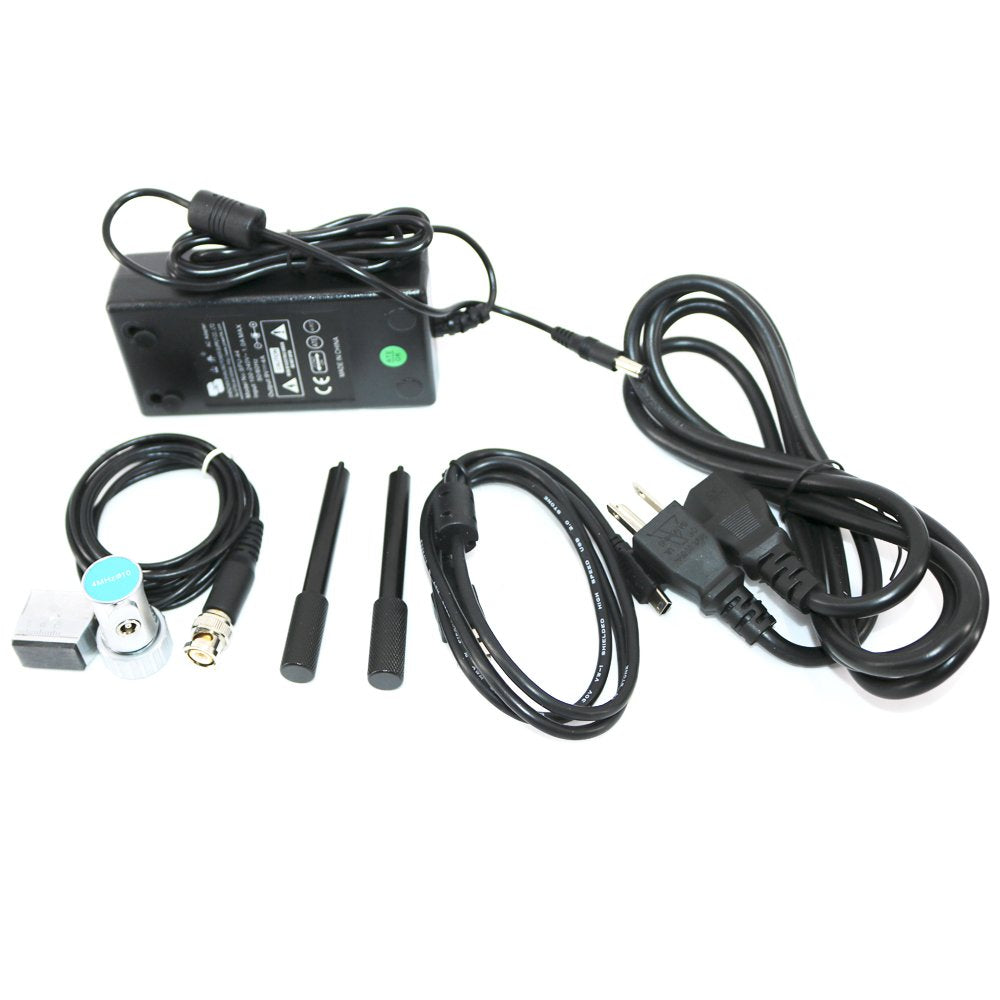

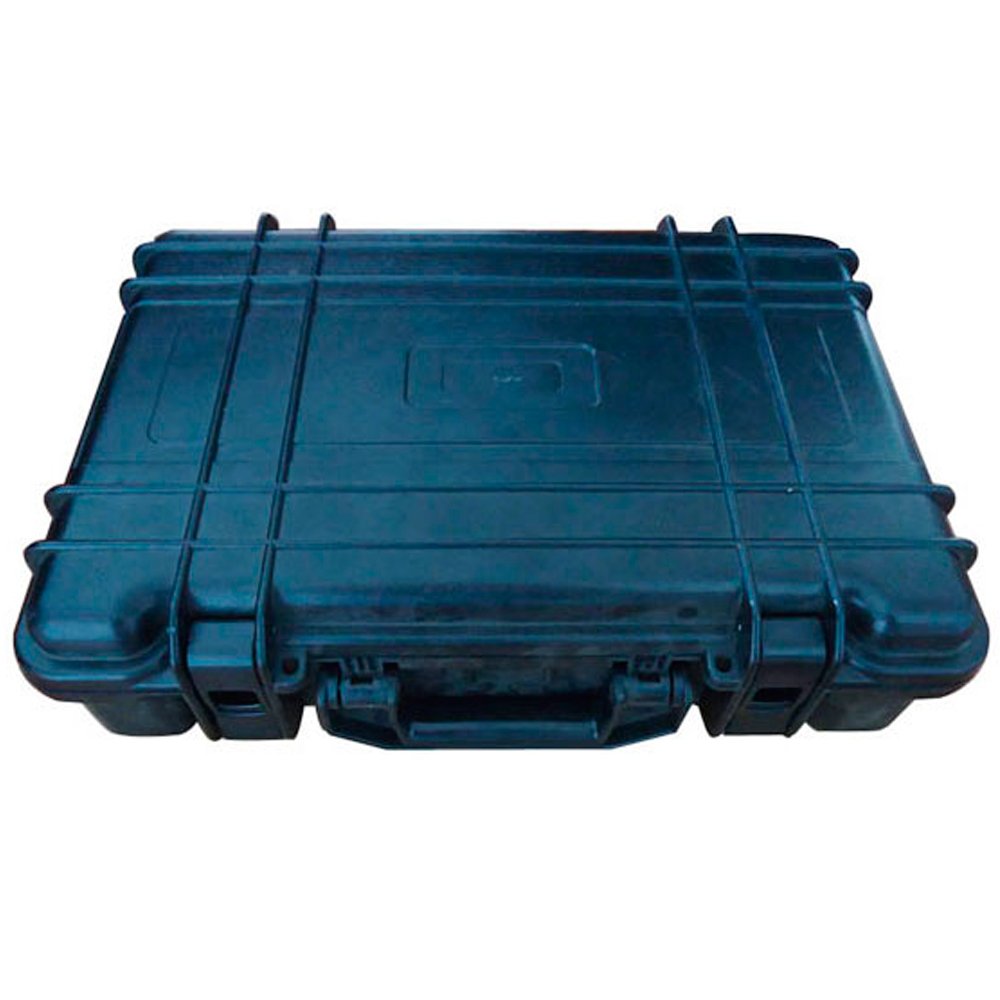

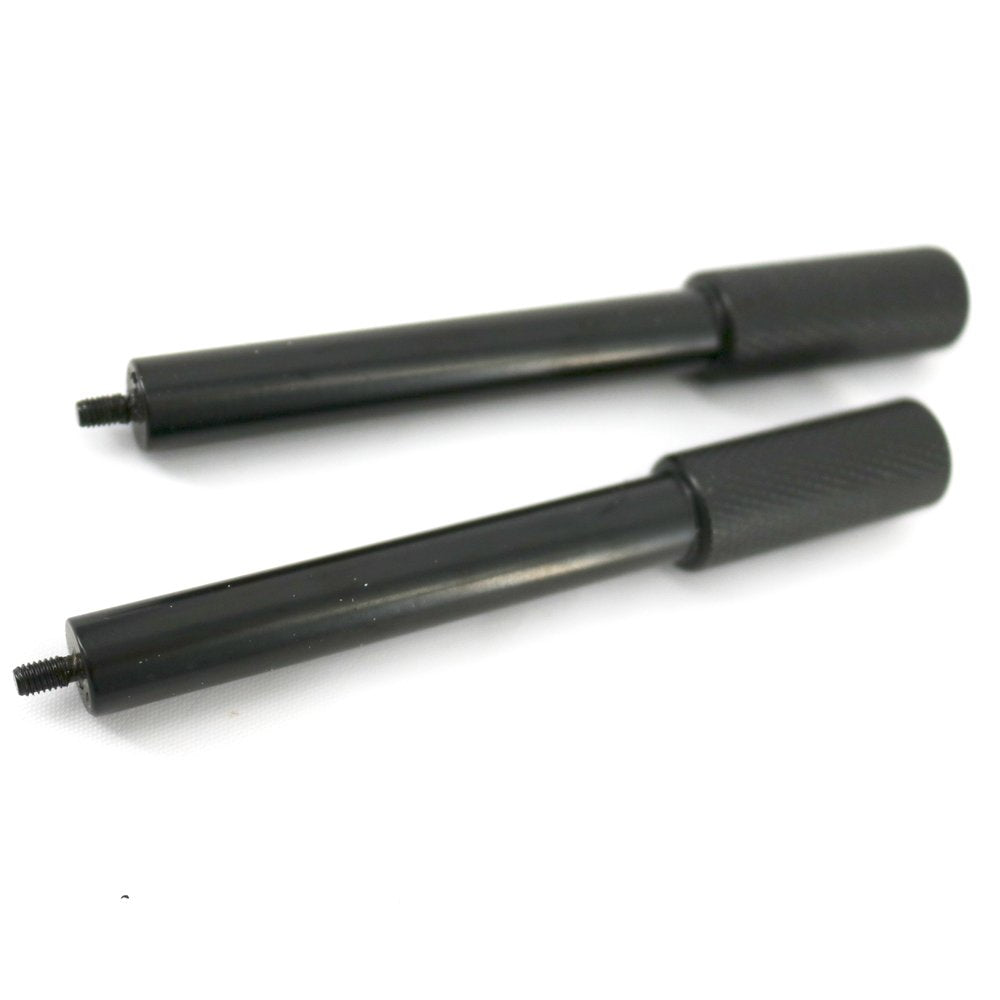

Main Body with full digital TFT LCD Display x 1 Straight Beam Probe 4 MHz, Φ10 x 1 Angle Probe 4 MHz, 8 mm×9 mm, 60° x 1 Machine-probe Cable (BNC-LEMO00 or LEMO01-LEMO00) x 1 Battery Module 8.8 amp hour (MB-03) x 1 Power Adapter (Charger) x 1 Support Pillar x 1 English Manual x 1 Instrument Case x 1 Data proceeding Software x 1 USB communication Cable MUSB01 x 1
