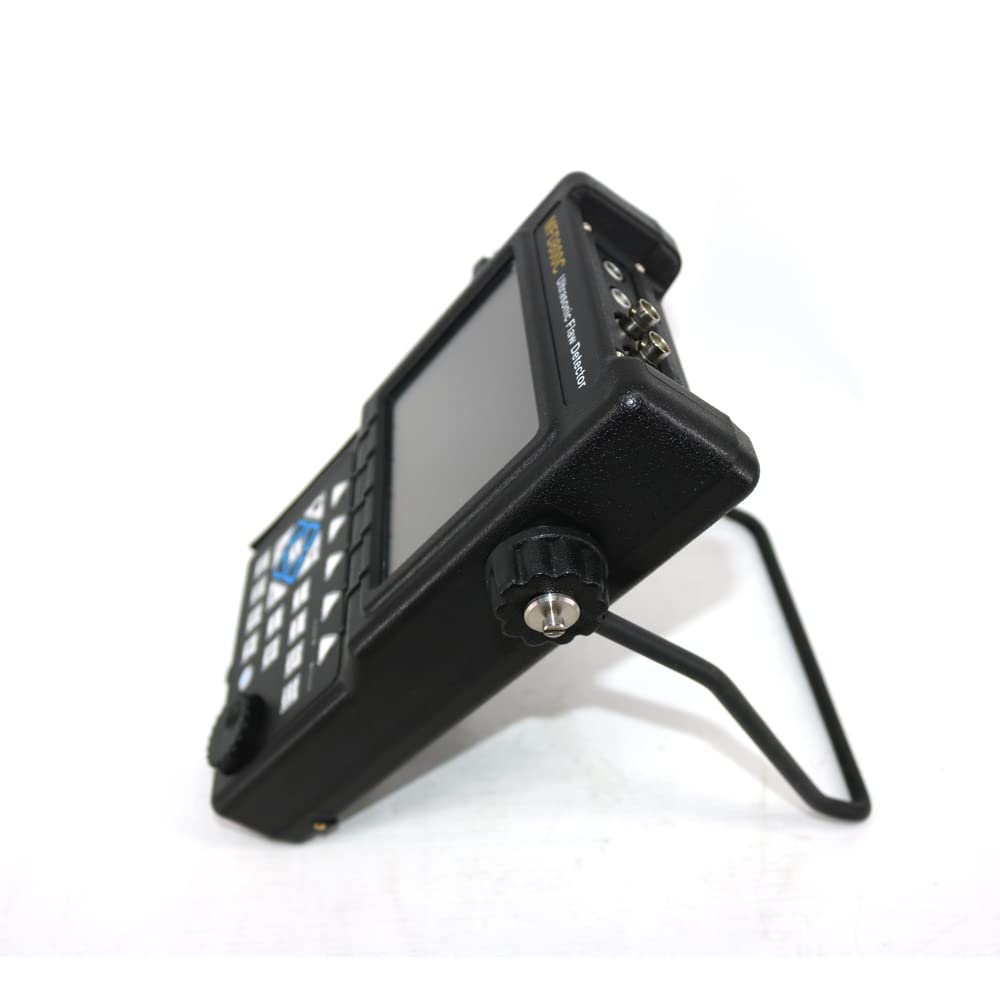

Graigar MFD800C Digital Ultrasonic Flaw Detector 0-9999mm Range DAC AVG AWS D1.1

Brand: Graigar

Color: Black

Features:

• MFD800C is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements.
• MFD800C combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port.
• MFD800C incorporates many advanced signal processing features including a 15MHz RF bandwidth to permit testing of thin materials, narrowband filters to improve signal to noise in high gain applications, a spike pulser for applications requiring higher frequencies, and a tunable square wave pulser to optimize penetration on thick or highly attenuating materials.
• MFD800C can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.
• Up to 9999 mm in steel; range selectable in fixed steps or continuously variable.

Part Number: MFD800C

Details: Specification

Range: 0 to 9999 mm, at steel velocity
Material Velocity: 1000to 15000m/s
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Sensitivity Leavings: >62dB (flat-bottomed deep hole 200mm2)
Resolution : >40dB (5P14)
Noise Level: ≤8%
Test Modes: straight ,angle, dual element and thru-transmission
Pulse: Tunable Square Wave Pulse
Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz
Pulse Energy: 200V, 300V, 400V, 500V, 600V selectable
Bandwidth (amplifier bandpass ): 0.2 to 20 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Rectification: Positive half wave, negative half wave, full wave, RF
System Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.
Reject (suppression): 0 to 80% full screen height
Units: Inch or millimeter

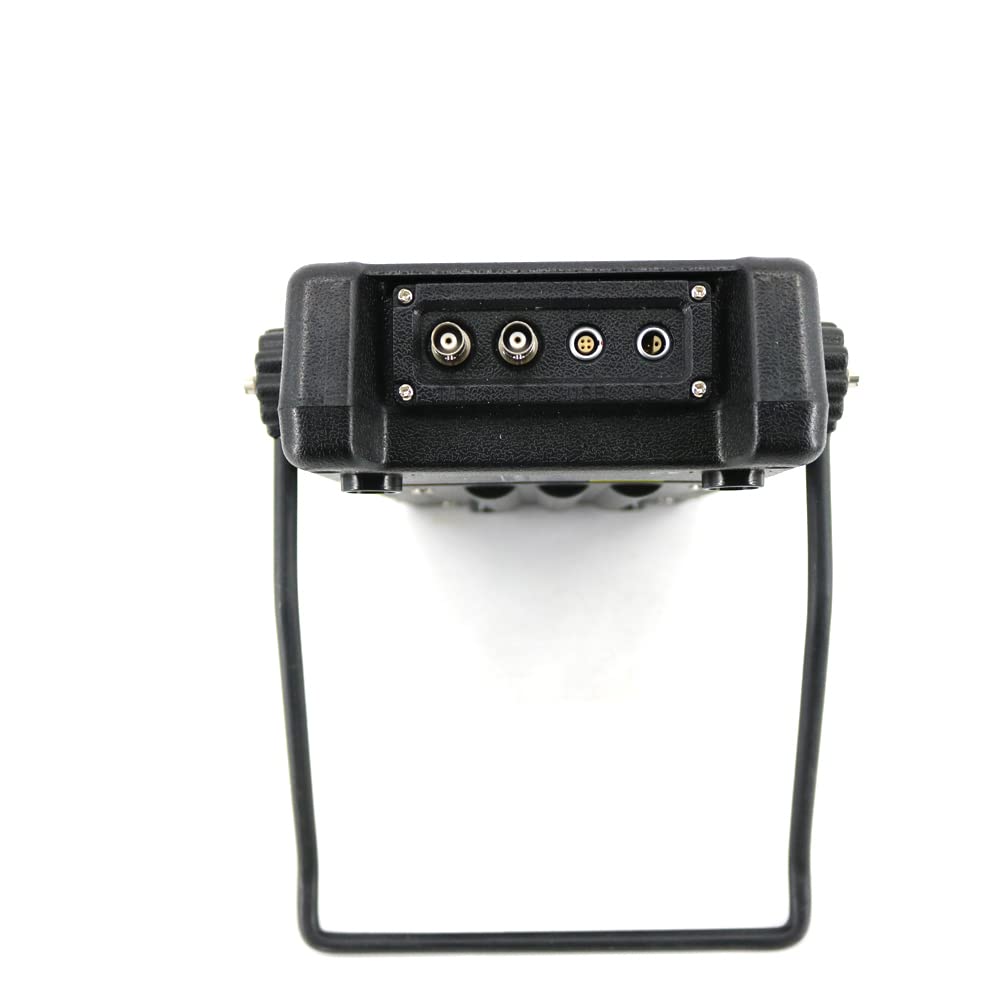

Transducer Connections: BNC or LEMO
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Overall Dimensions:280H×220W×70D mm
Relative Humidity:(20 ~ 95)% RH
Power Supply:DC 9V
Operating Temperature: -10℃ to 50℃
Storage Temperature: -30℃ to 50℃

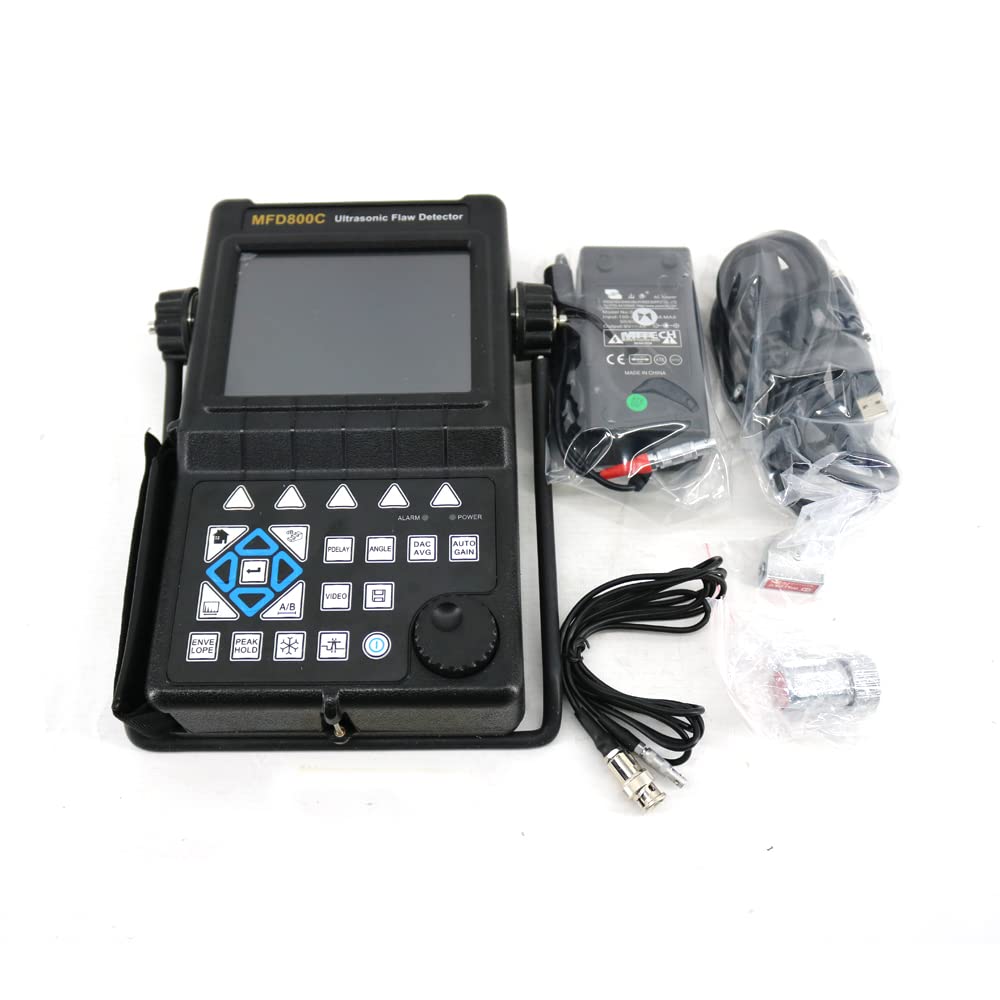

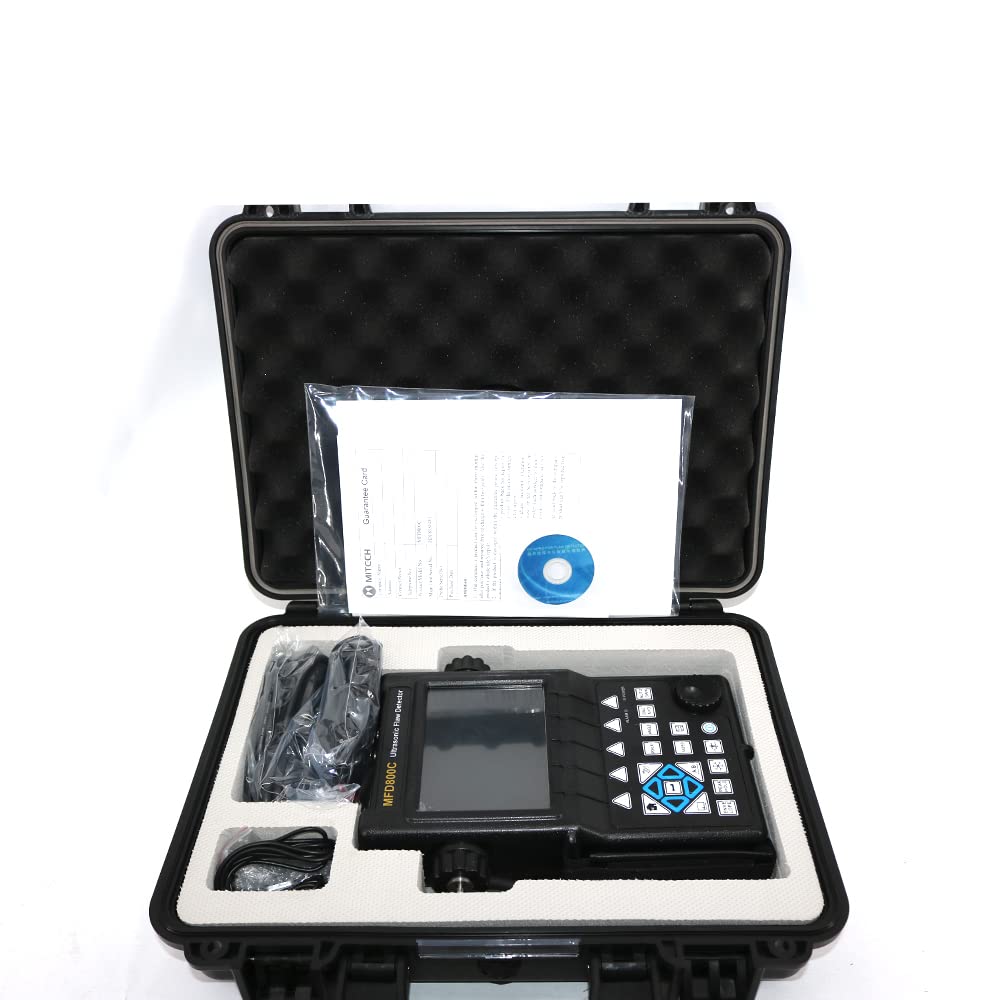

MFD800C Standard Configuration

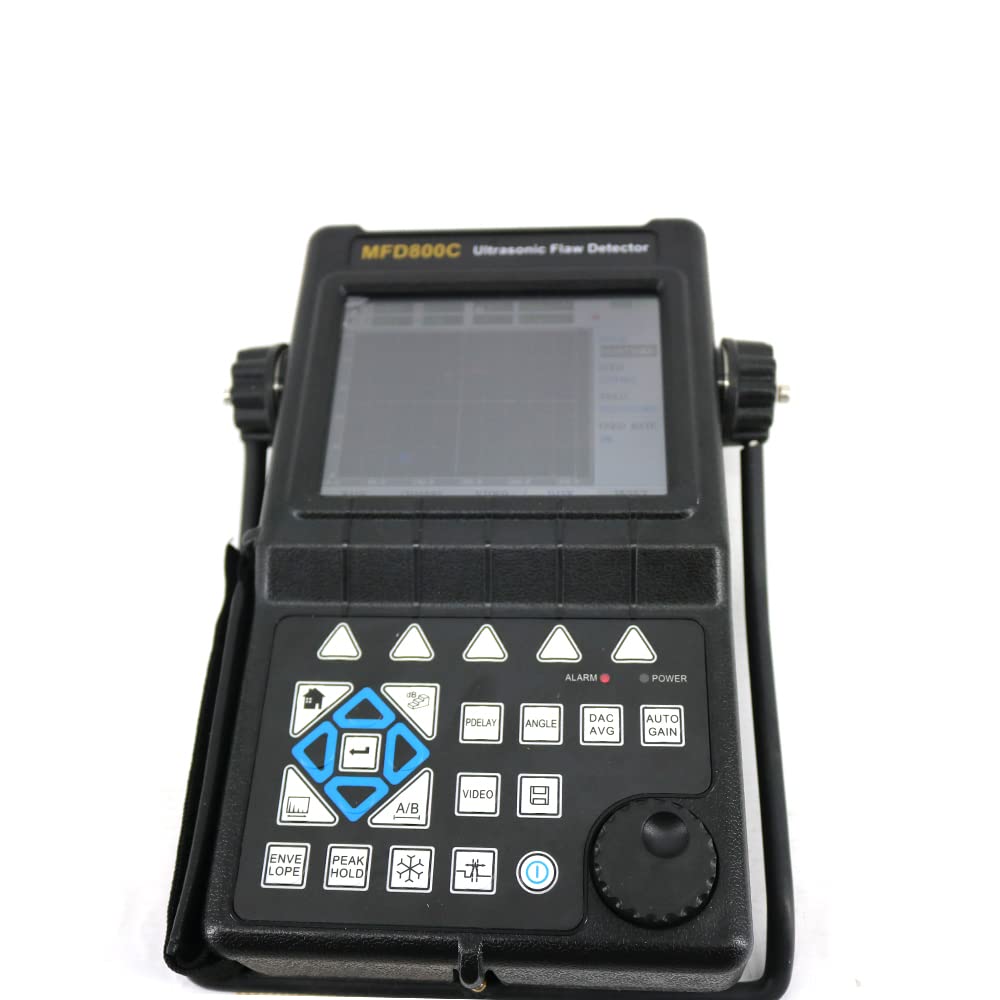

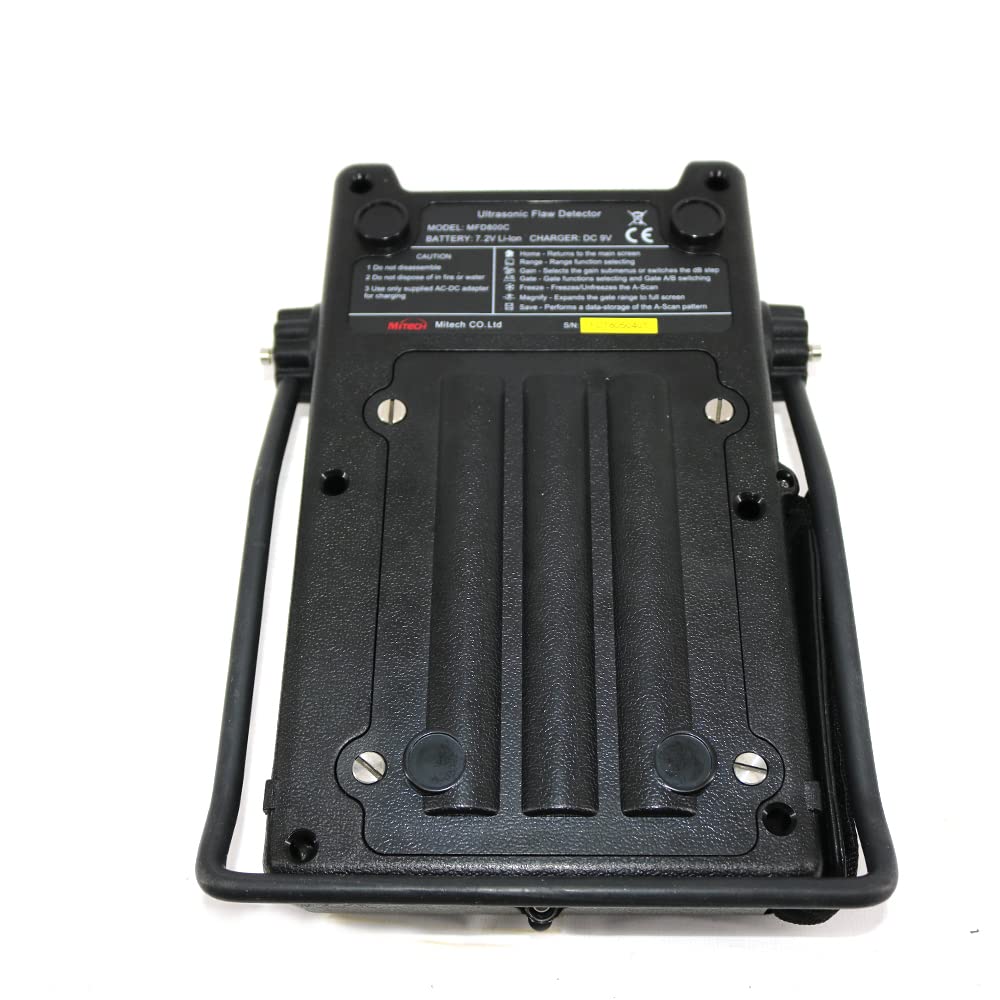

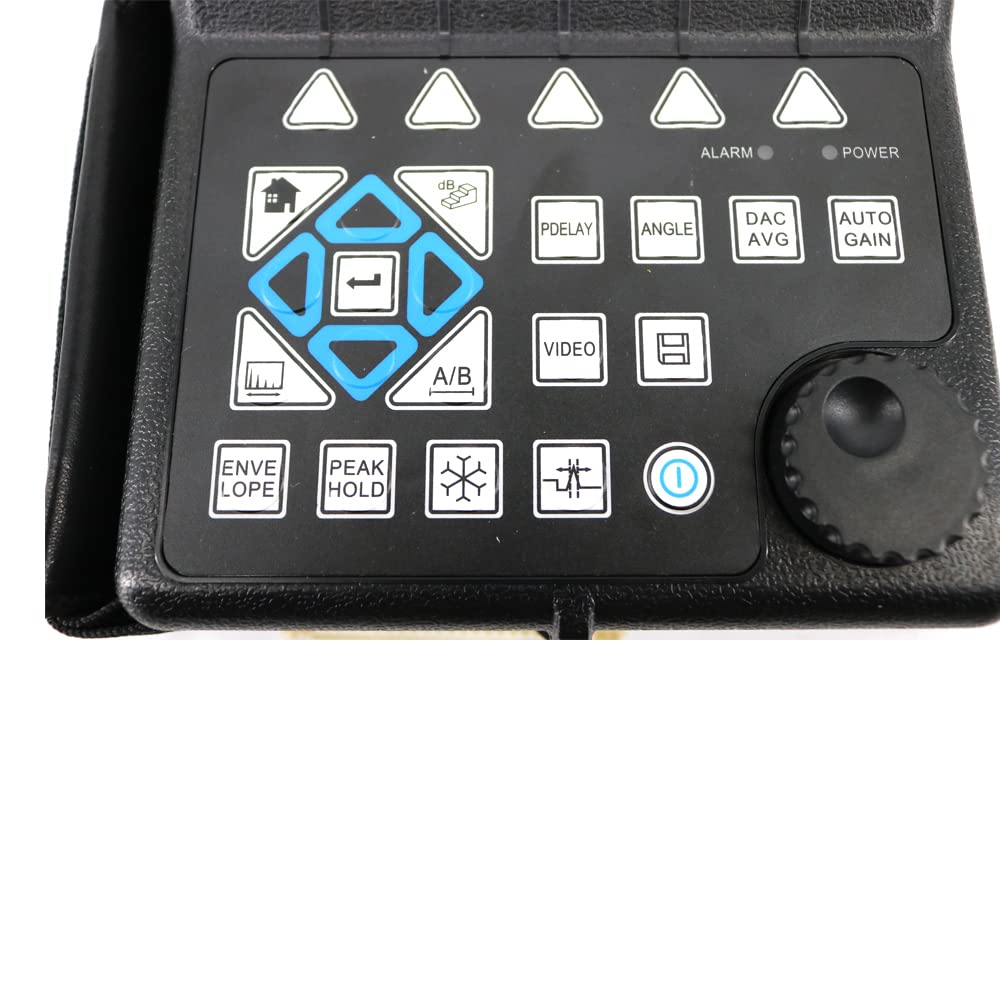

Main Body with full digital TFT LCD Display x 1
Straight Beam Probe 4 MHz, Φ10 x 1
Angle Probe 4 MHz, 8 mm×9 mm, 60° x 1
Machine-probe Cable Q9-C5,or optional C9- C5 x 1
Battery Module 8.8 amp hour (MB-03) x 1
Power Adapter (Charger) x 1
Support Pillar x 1
English Manual x 1

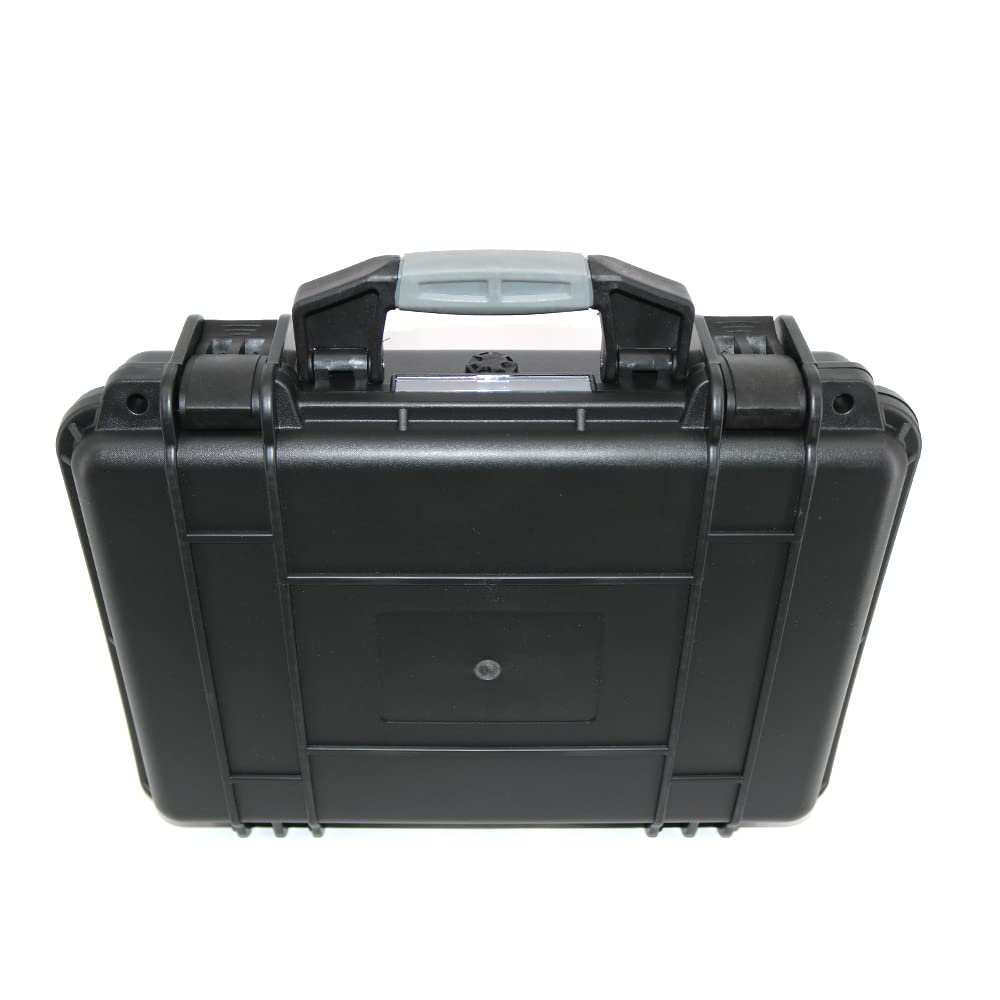

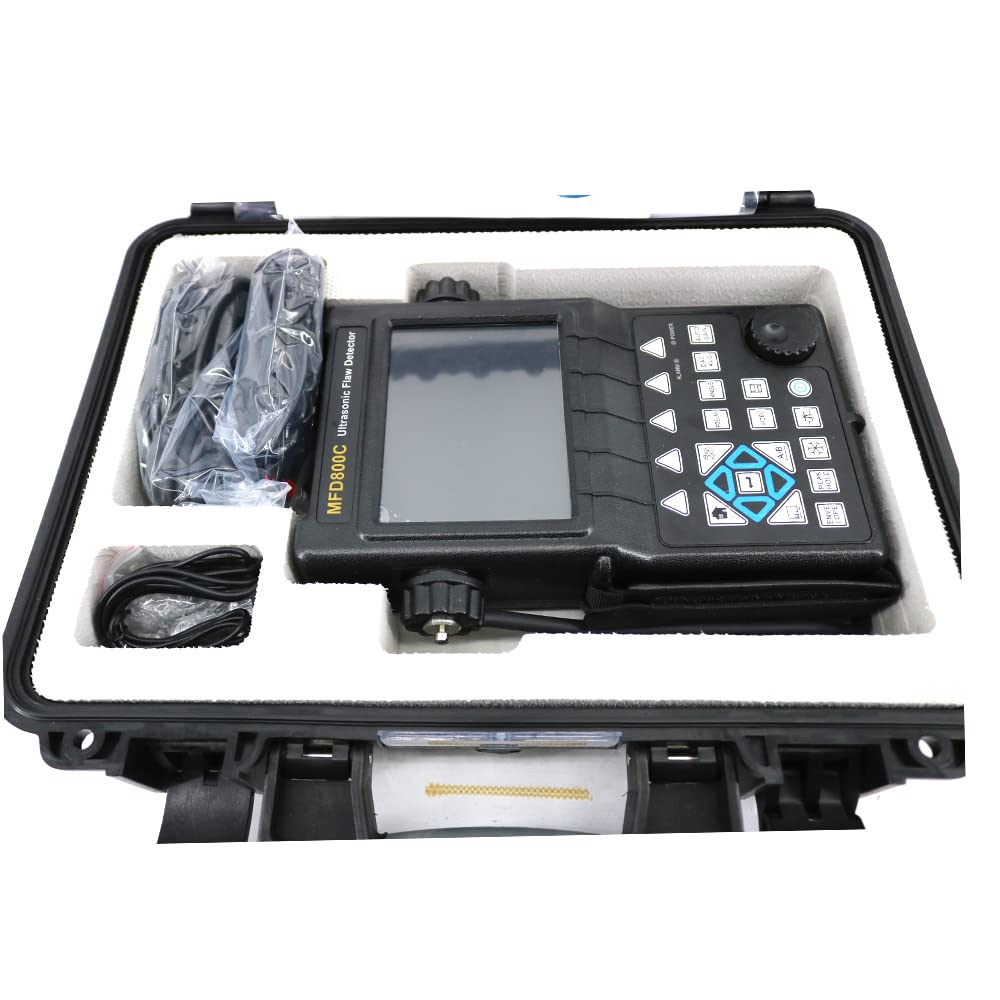

Instrument Case x 1
Data proceeding Software x 1
USB communication Cable MUSB01 x 1

EAN: 0725370414119
