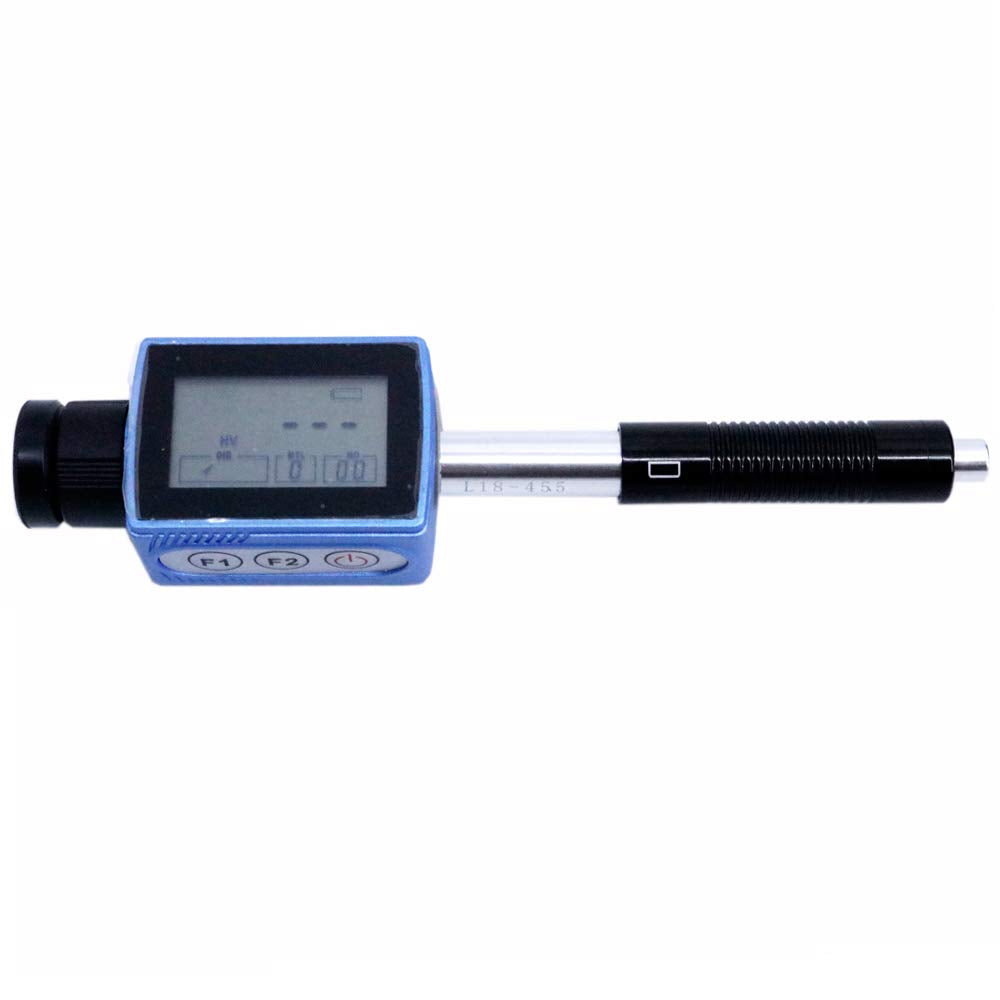

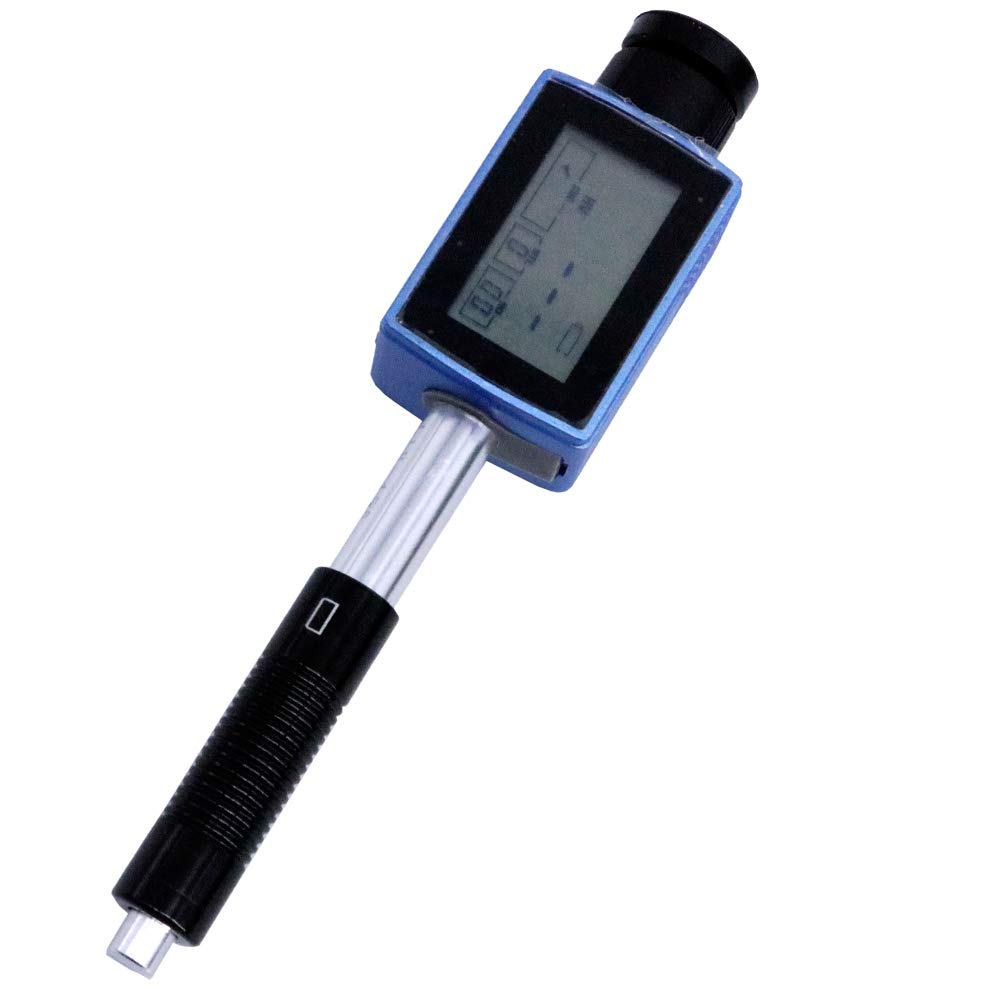

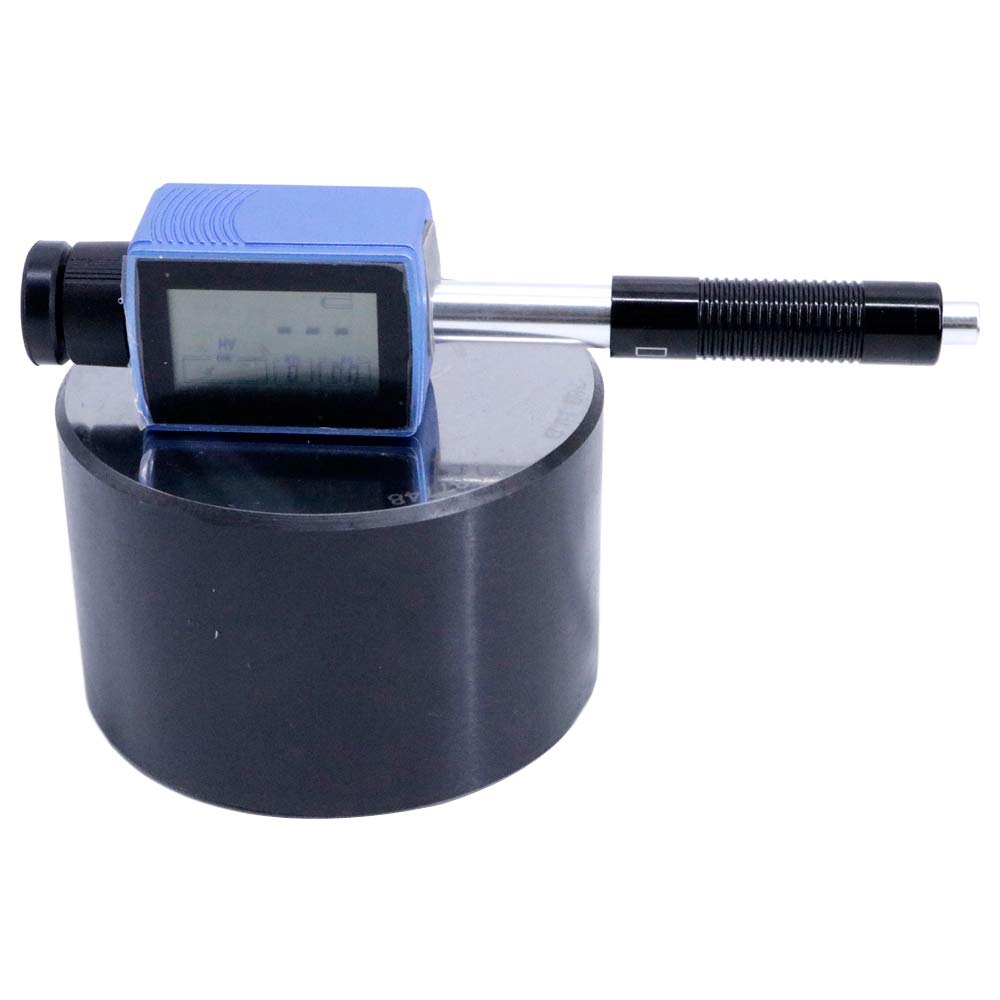

Graigar MH100 Portable Leeb Hardness Tester 170～960HLD Pen Type Hardness Tester

Brand: Graigar

Color: Blue

Features:

• MH100 pocket leeb hardness tester, also known as pen type hardness tester, based on Leeb hardness measuring principle, quick and easy on site test the hardness of series metal materials
• It support free conversion between Leek, Brine , Rockwell hardness scale and others,integrated compact design, small size, portable, high y integrated, stable and reliable performance,supporting data transfer and storage printing function
• Widely used in failure analysis of metal processing and manufacturing special equipment, permanent assembly, inspection and other fields.
• Particularly suitable for large parts and non-removable part of the site hardness testing.
• It is professional precision Instrument to improve the pass rate of production and cost savings.

Part Number: MH100

Details: Overview
With the Leeb hardness measuring principle, the pen-type hardness tester MH100 is easily and quickly to test various metallic material. It can show the hardness measuring value immediately and can switch to other scales freely.

Specification
1.Measuring Range: (170-960)HLD, (17-68.5)HRC, (19-651)HB, (80-976)HV, (30-100)HS, (59-85)HRA, (13 -100)HRB
2.Measuring Direction :Supprt 0~360
3.Hardness Scales:HL,HB,HRB,HRC,HRA,HV,HS
4.Display:HD dox matrix LCD and LED backlight
5.Data Memory:Max. 500 groups(relative to impact device 32~1)
6.Working Power:3.6V(Integrated Lithium battery and rechargable circuit
7.Continous Working Period:about 200 hours (without using backlight)
8.Communciation Interface:USB1.1 port

Applicable Materials

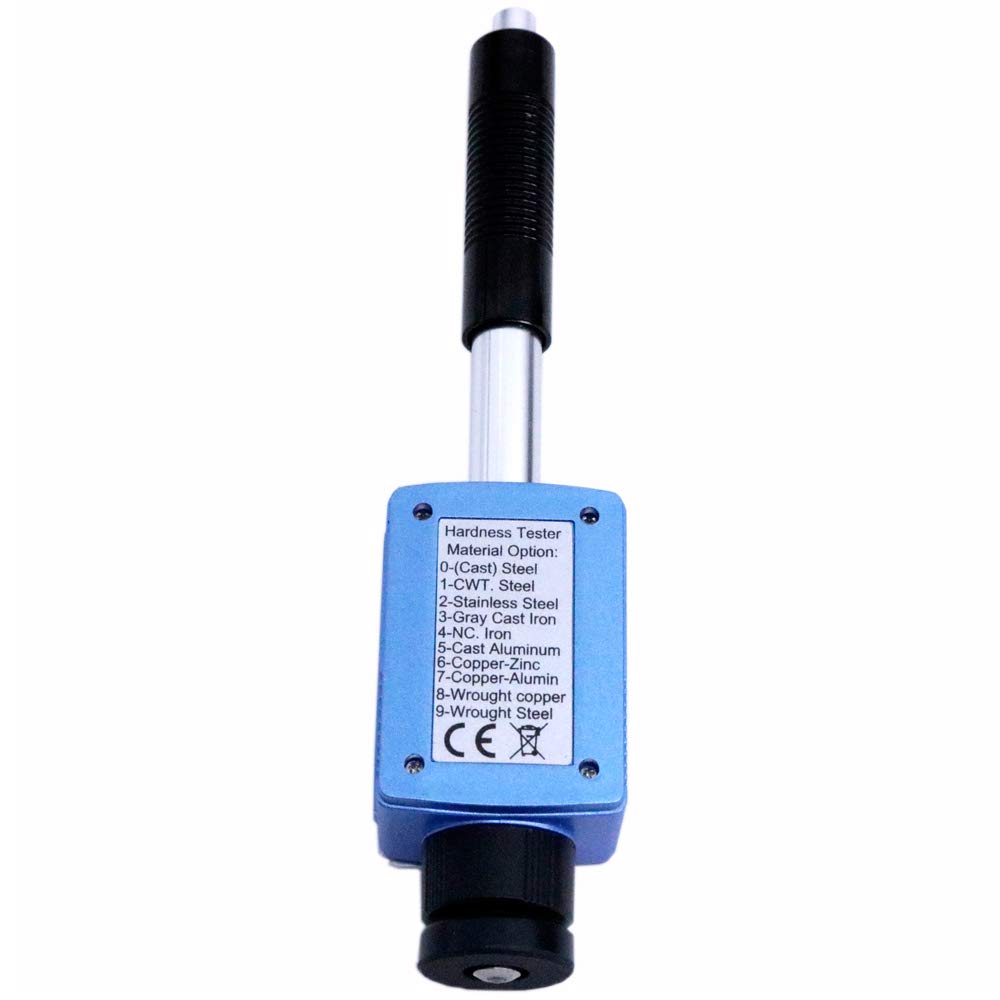

Applicable materials: steel and cast steel, cold work tool steel, stainess stee;. Grey cast iron, nodular cast iron, cast aluminum alloys,BRASS (copper-zinc alloys), BRONZE(copper-aluminum/tin alloys), pure copper and forged steel

Working Conditions
Operating temperature :-20~+60;
Storage temperature:-30~+60
Relative humidity: ?90%;
The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

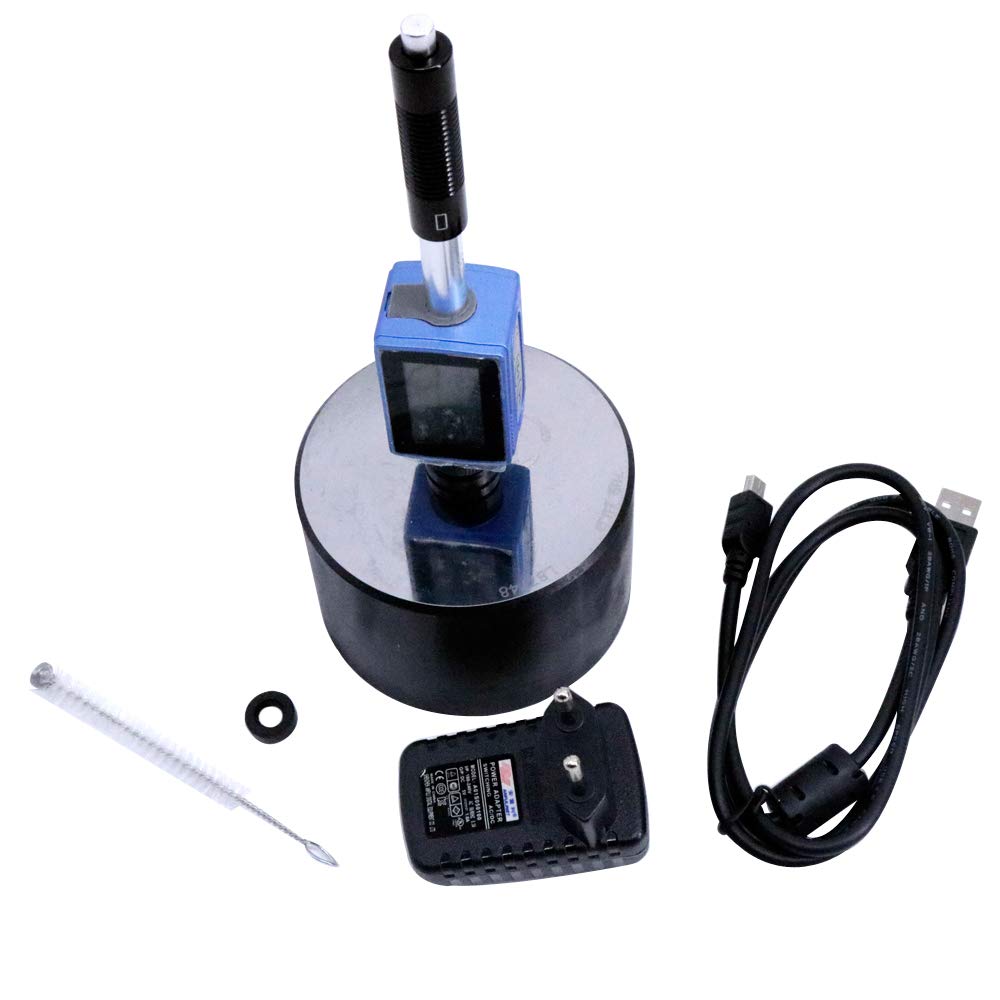

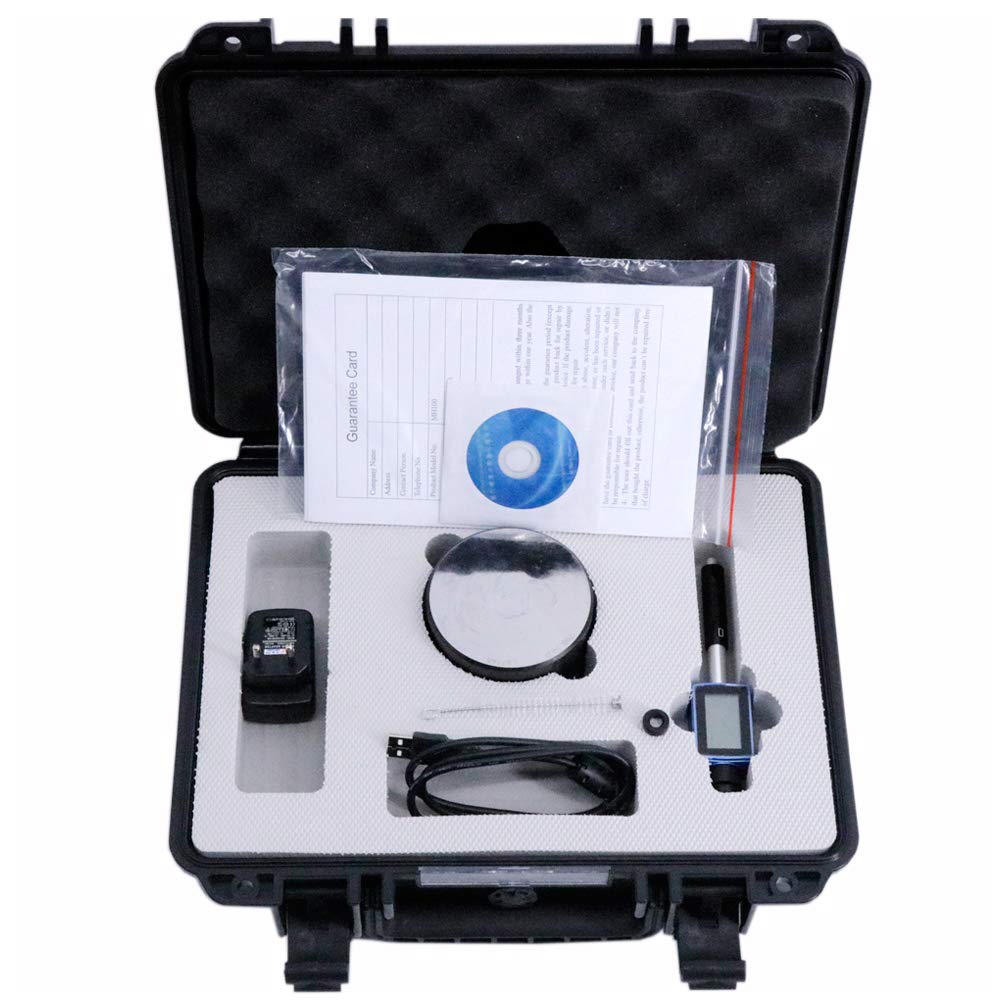

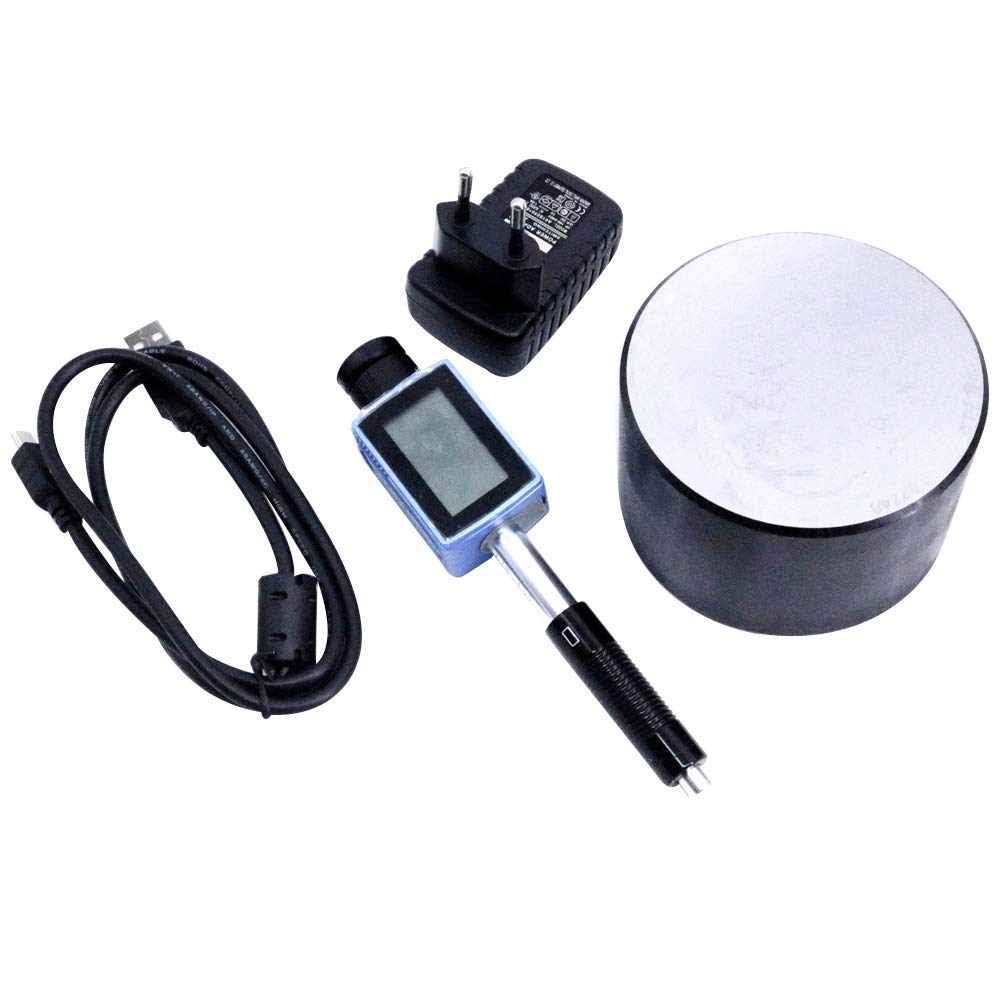

Standard Configurations
1.Main Unit : 1
2.Cleaning brush : 1
3.Small support ring :1

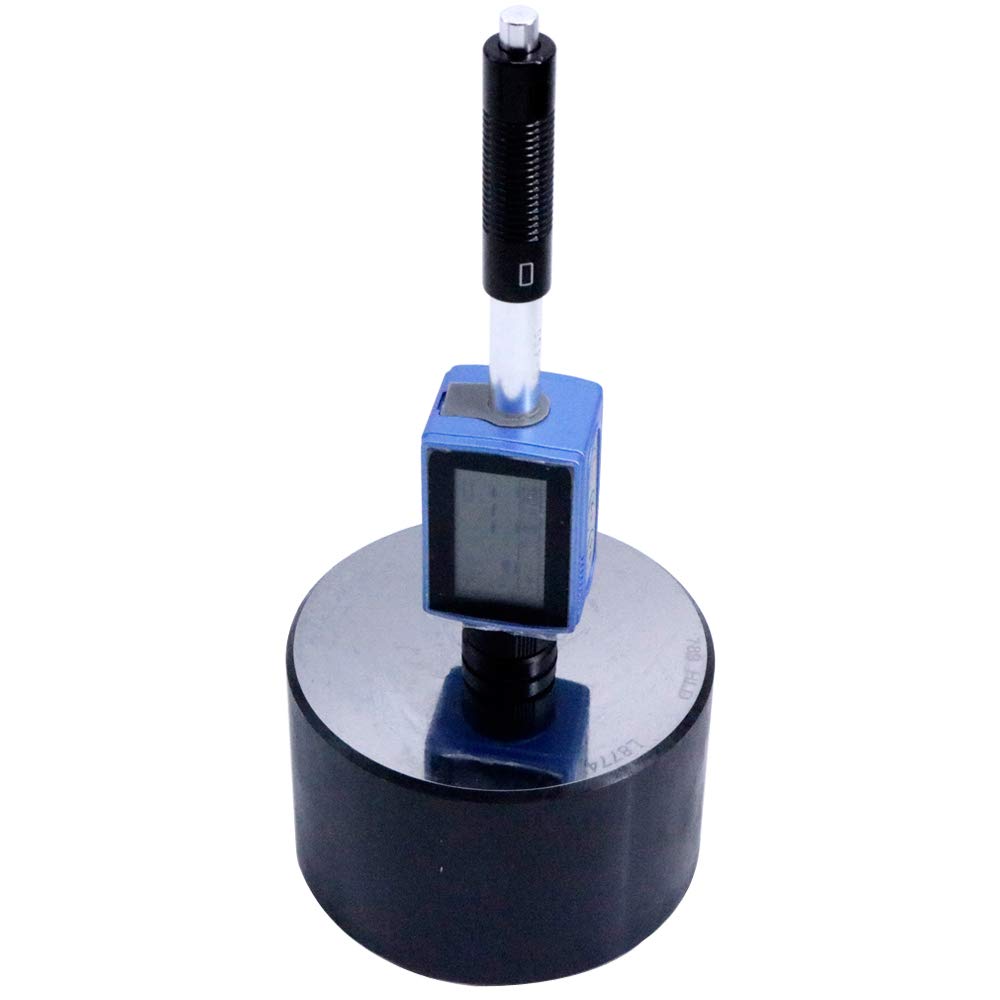

4. Standard block : 1
5. Dataproceeding Soatware with cable: 1
6.Accompany documents (including manual, quality certifcate, warranty card and packing list ) : 1 set

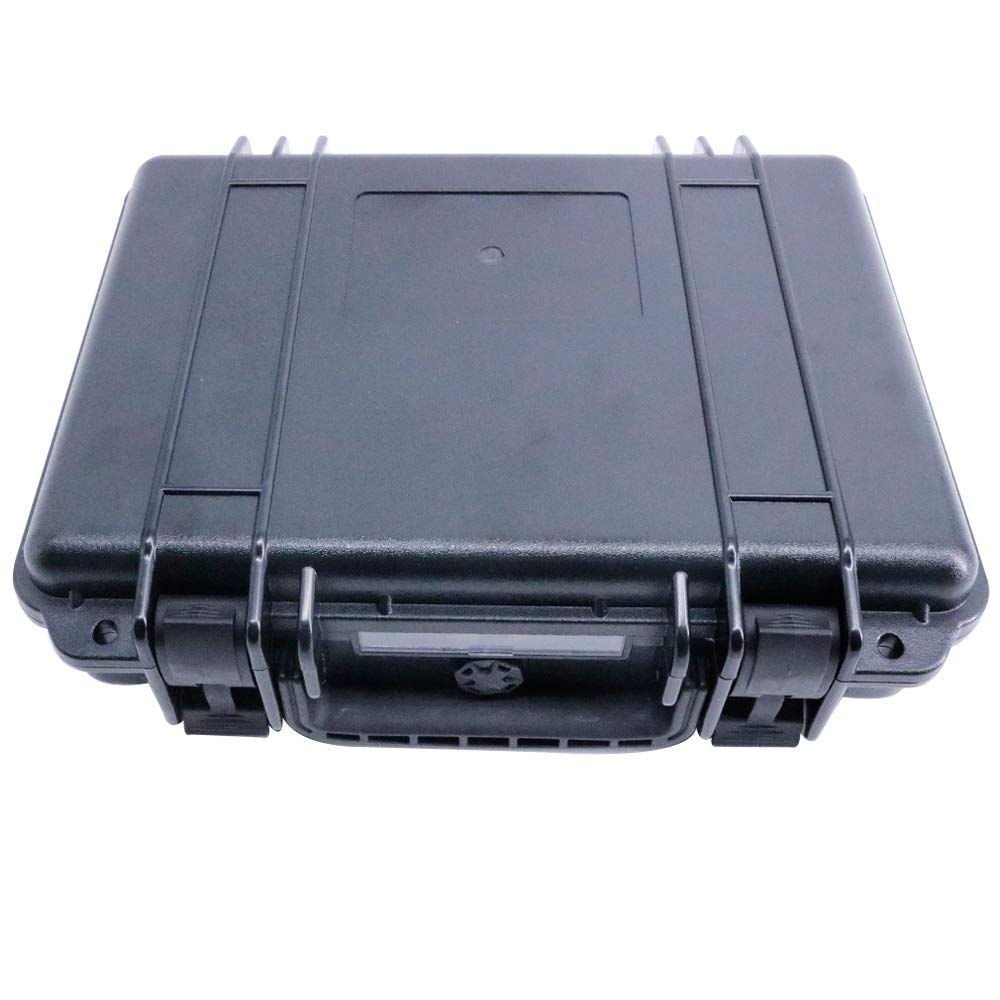

7.ABS instrument case: 1

EAN: 0799649266600
