Graigar MH180 Portable Digital Rebound Leeb Hardness Tester Meter Gauge with Large Storge Capacity

Brand: Graigar

Color: Black

Features:

• Compact plastic case,,suitable for use under poor working conditions. Test at any angle, even upside down.
• Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

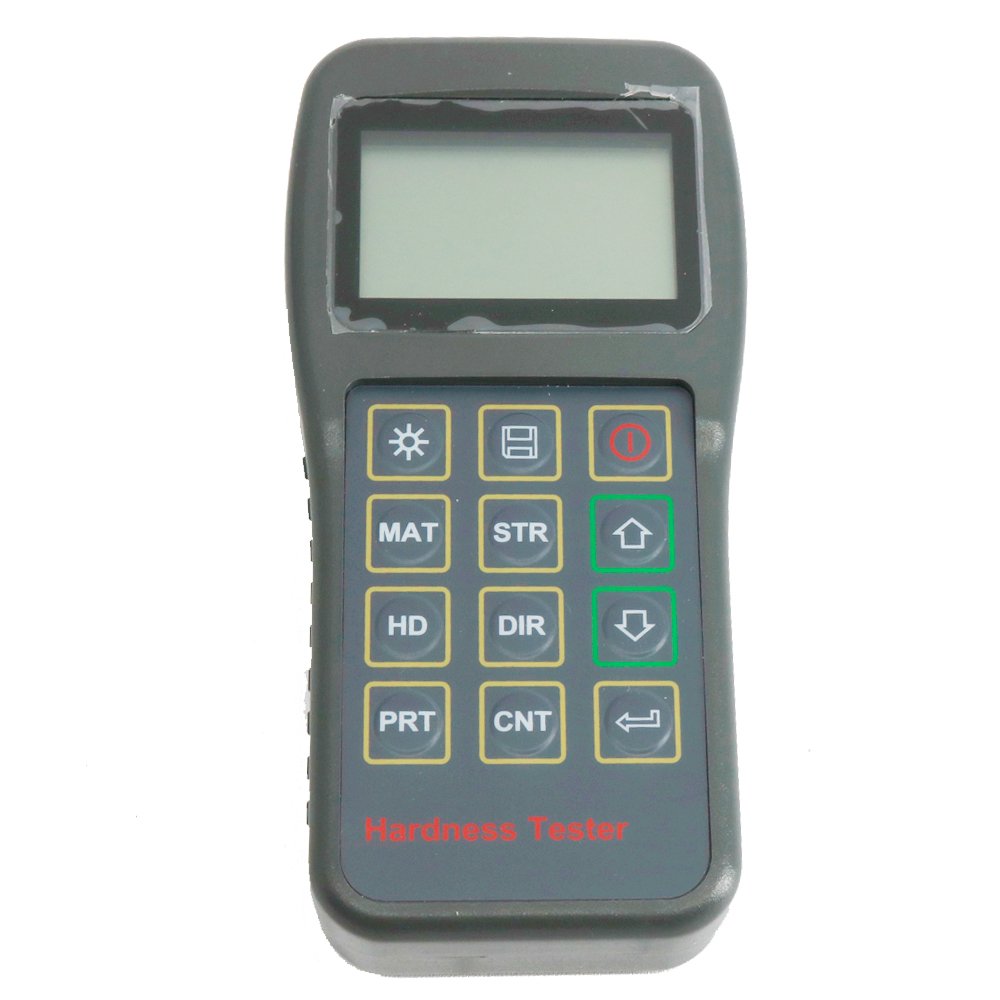

• Large screen (segment LCD), showing all functions and parameters. With EL background light.
• Large capacity memory could store 100 groups information.
• Datapro Software to connect with PC via RS232 port. Micro printer support

model number: MH180

Part Number: MH180

Details: MH180 portable Leeb hardness tester, based on Leeb hardness measuring principle, quick and easy,on-site test the hardness of series metal materials, support free conversion between Leeb, Brinell, Rockwell hardness scale and others,It is widely used in failure analysis of metal processing and manufacturing, special equipment, permanent assembly, inspection and other fields
Technical Specifications
*Measuring range：（170～960）HLD
*Resolution Accuracy：±6HLD
*Communication storage：100 measurement series.(Relative to average times 32～1) US
*Working time：about 100 hours（with default brightness）
*Main unit weight：245g
*Dimensions：150mm×74mm×32 mm
*Power supply: two AA size alkaline batteries （Battery not included in the package） Working Conditions
*Working temperature：-10℃～＋50℃
*Storage temperature：-30℃～＋60℃
*Relative humidity: ≤90％
*There is no strong vibration, no strong magnetic field, no corrosive medium and heavy dust in the surrounding environment
Function & application
*Die cavity of molds
*Bearings and other parts
*Failure analysis of pressure vessel, steam generator and other equipment
*Heavy work piece
*The installed machinery and permanently assembled parts.
*Testing surface of a small hollow space
*Requirements of formal original record for test results
*Material identification in the warehouse of metallic materials
*Rapid testing in large range and multi-measuring areas for large-scale work piece

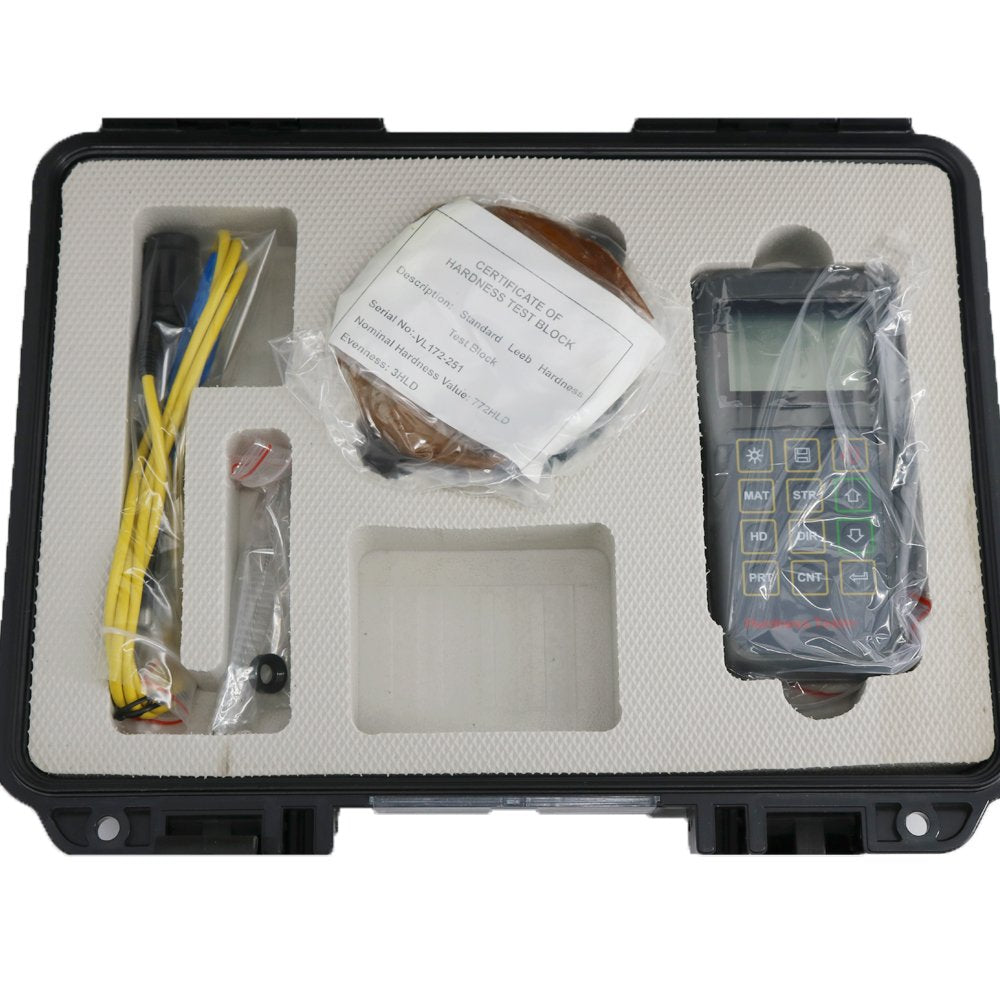

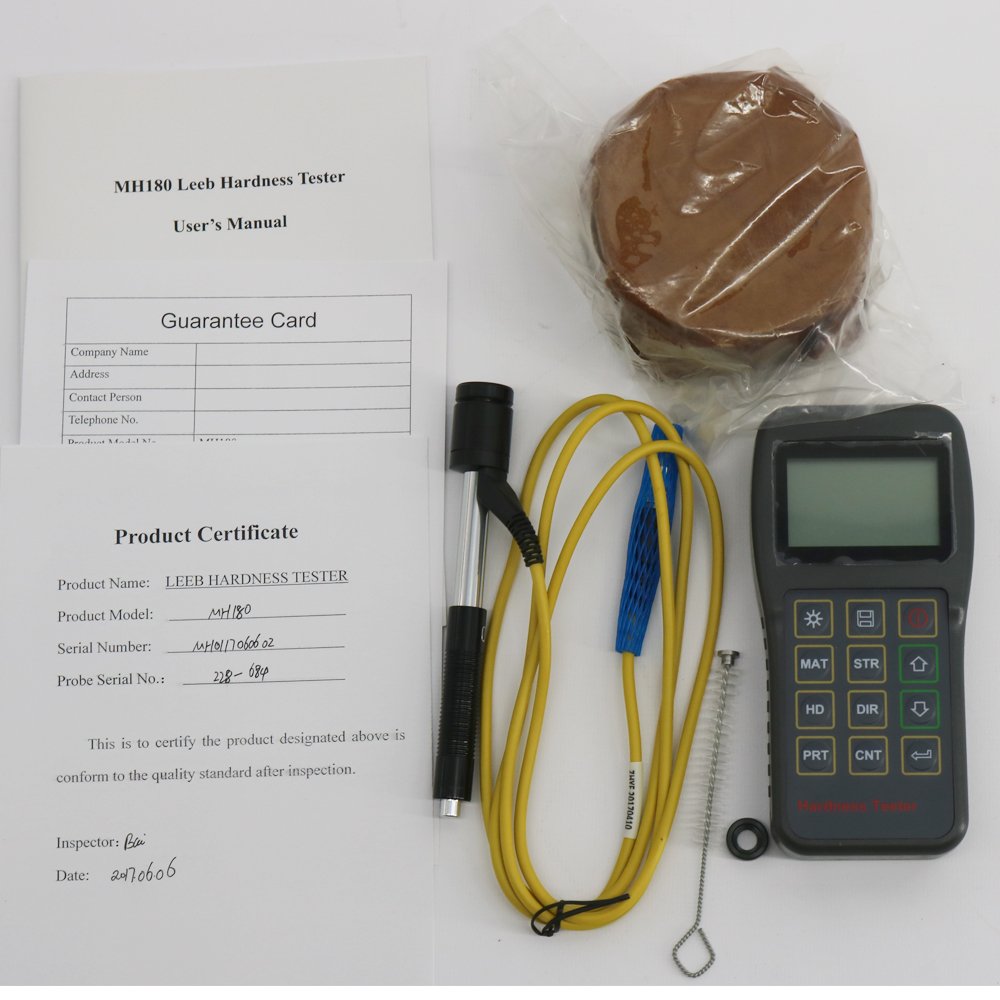

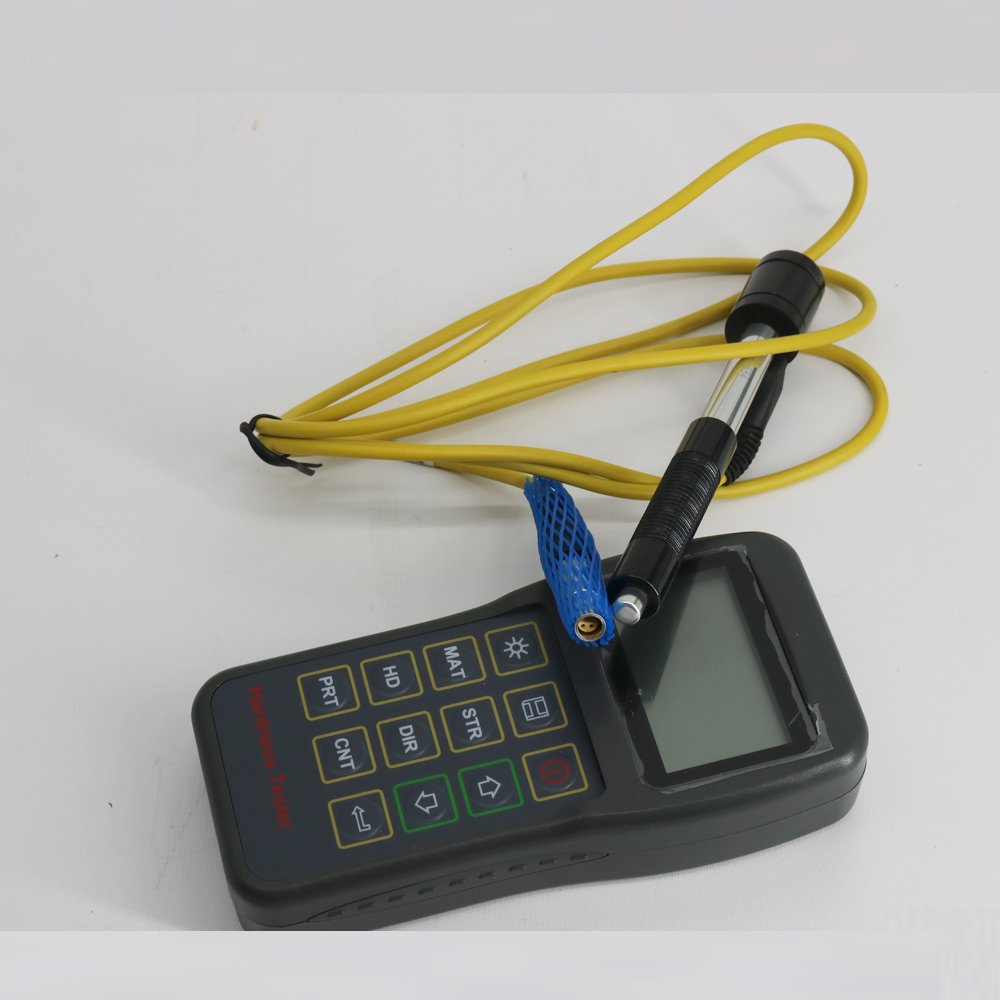

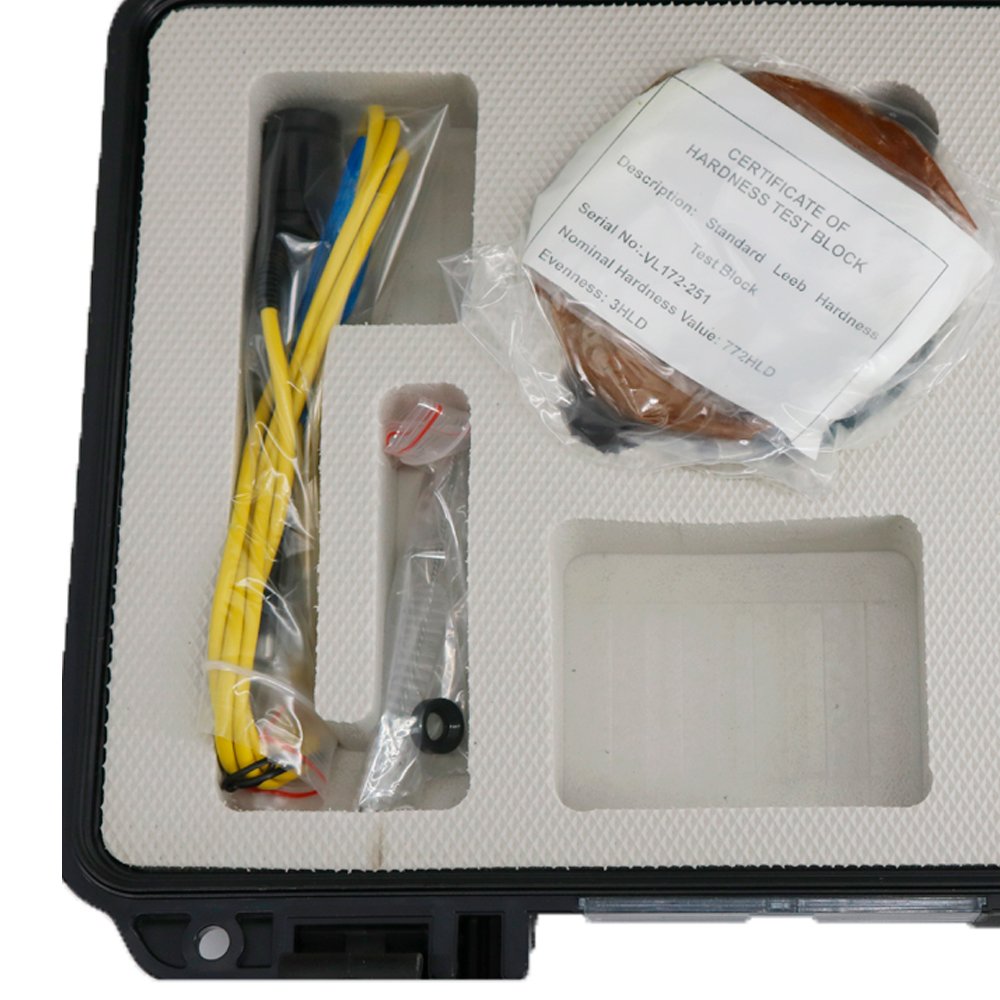

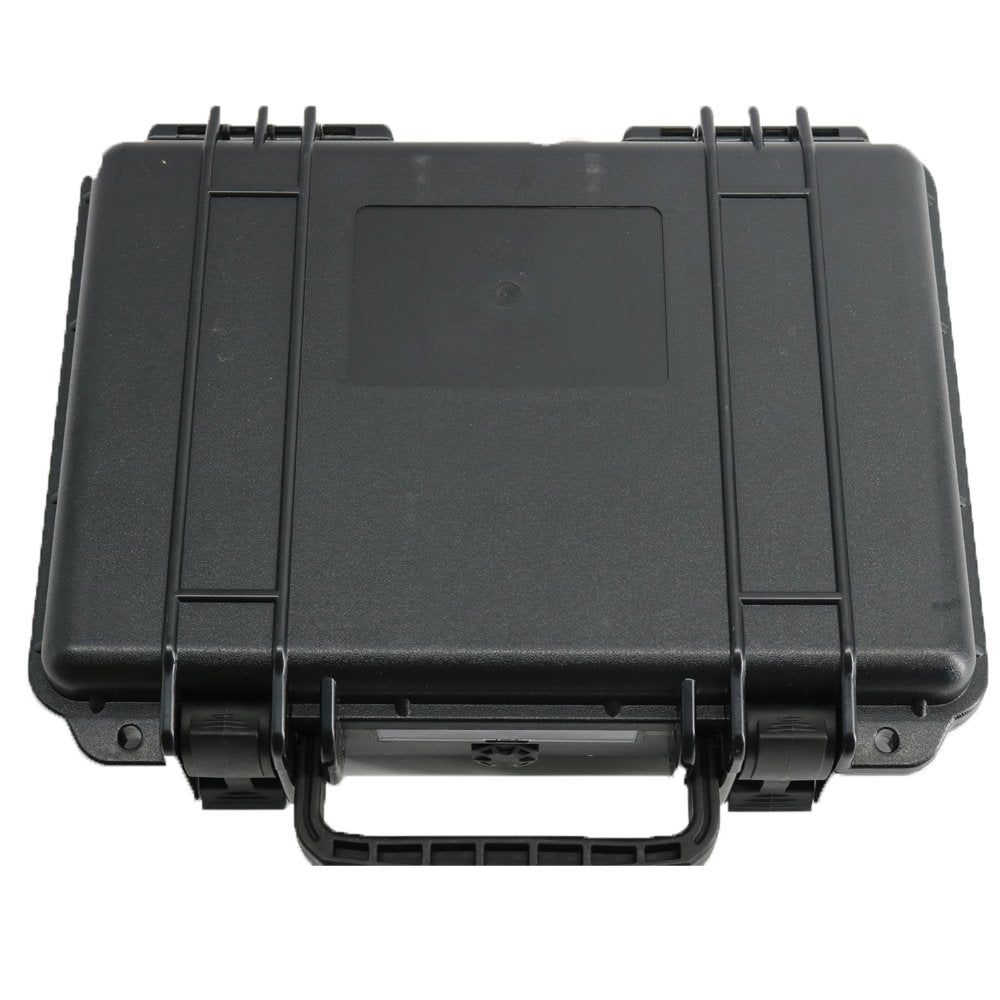

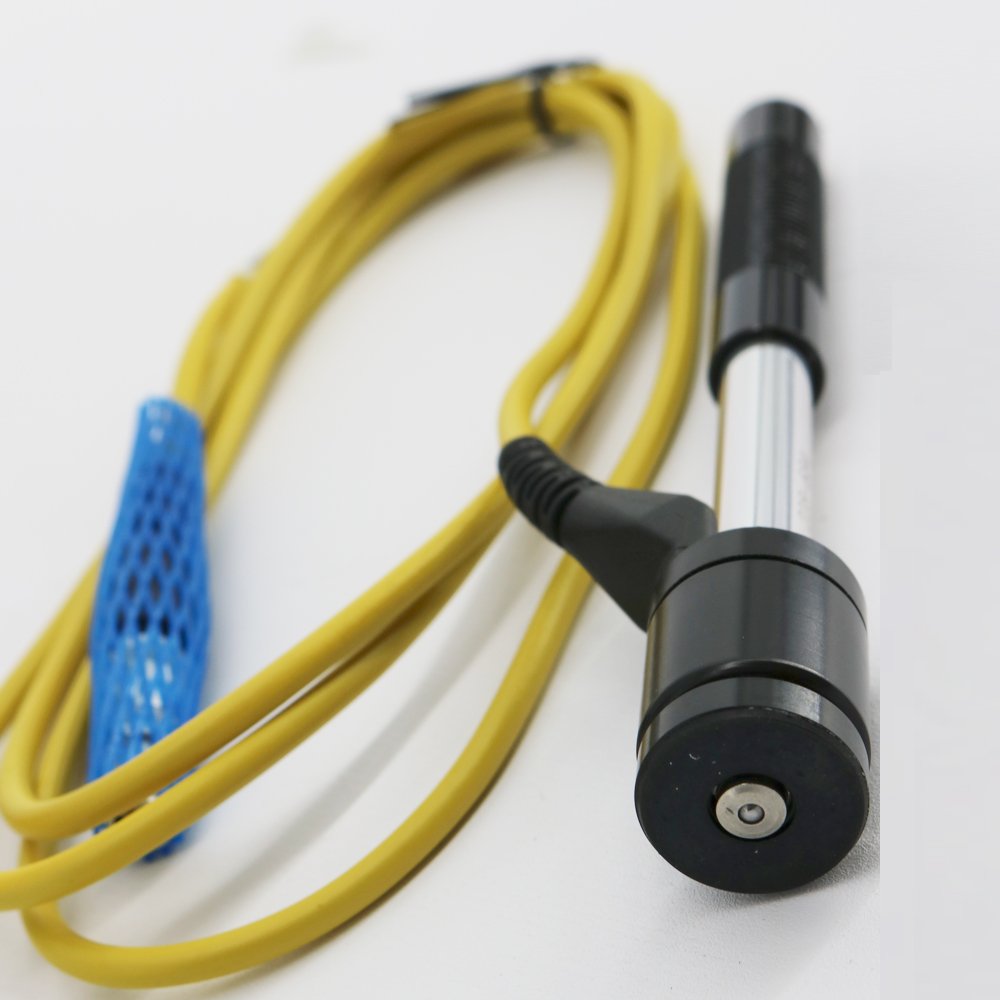

*Standard Accessories : Main Unit, D Type Standard Hardness Block, D type impact device,Nylon brush (A), Small support ring, ABS Instrument Case, Attached files
*Optional Accessories: DataPro software, USB communication cable

EAN: 0725370412429
