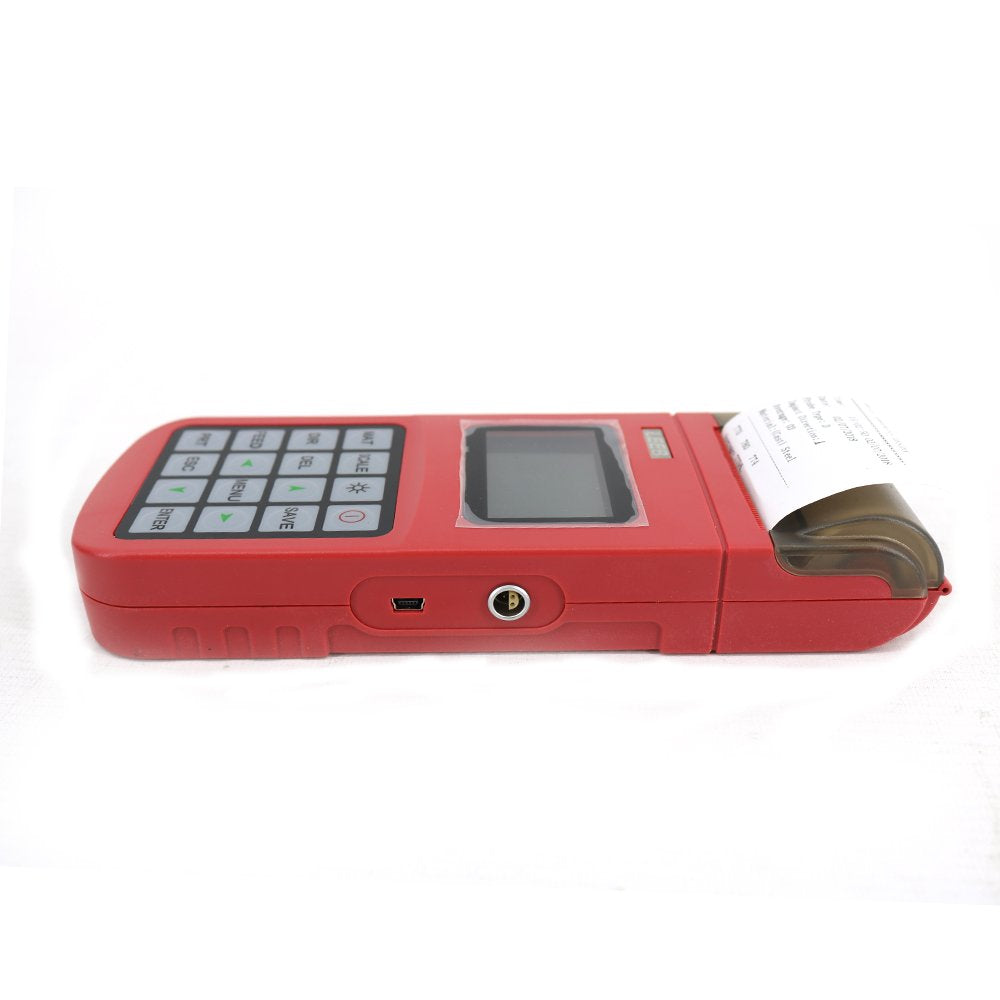

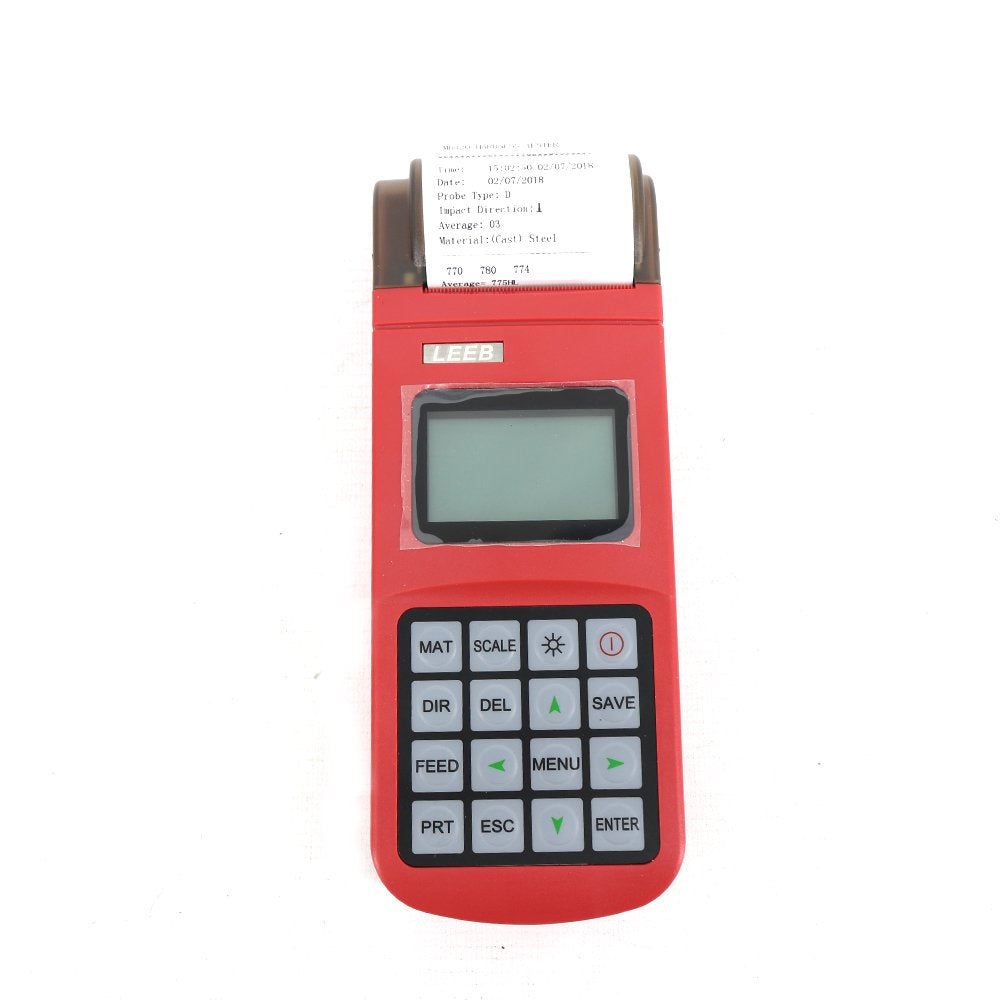

Graigar MH320 Leeb Hardness Tester Meter Gauge with 170 to 960 HLD HL HB HRB HRC HRA HV HS Hardness Scale High Brightness Durometer D type Hardness Block

Brand: Graigar

Color: Red

Features:

• MH320 Leeb hardness tester with automatic sleep and shutdown and other power-saving features
• Based on the principle of Leeb hardness testing theory. It can measure many metallic material
• High brightness EL back-light display for easy use in dimly environment.
• Small size, portable, , stable and reliable performance, suitable for harsh environment field operations, prevent from vibration, shock and electromagnetic interference.
• Real-time display the remaining battery power, charging progress is displayed while charging.

Part Number: MH320

Details: MH320 portable Leeb hardness tester is the enhanced model of MH310, based on Leeb hardness measurement principle, it can be quickly and easily used for on-site testing hardness of metallic materials and support free conversion between Leeb, Brinell, Rockwell hardness and other scales

Technical Specifications
*Measuring range：（170～960）HLD
*Resolution Accuracy：±6HLD
*Communication storage: 500 measurement series.(Relative to average times 32～1) USB
*Working time: about 150 hours（with default brightness）
*Main unit weight：370g
*Dimensions：212mm×80mm×32mm

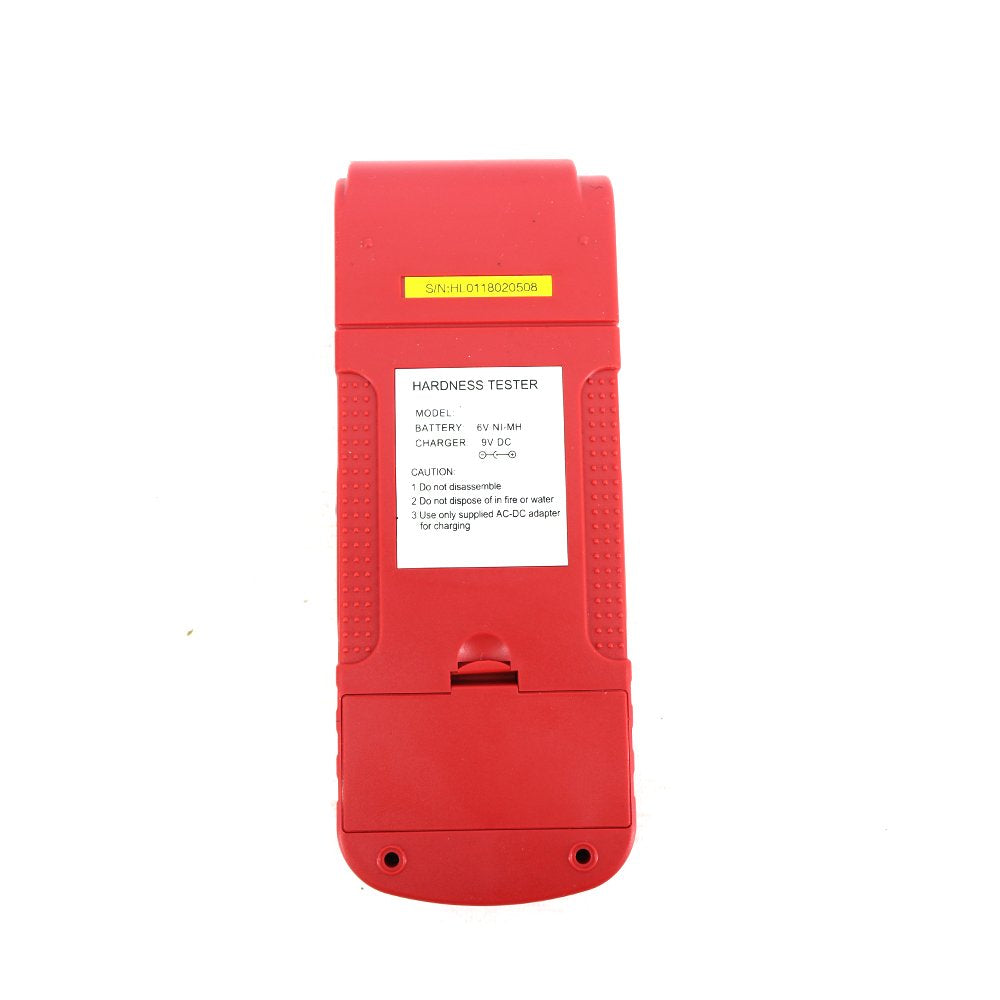

*Battery: 6V( Ni-MH battery pack) Power supply:9V/500mA
Working Conditions
*Working temperature：-10℃～＋50℃
*Storage temperature：-30℃～＋60℃
*Relative humidity: ≤90％
*There is no strong vibration, no strong magnetic field, no corrosive medium and heavy dust in the surrounding environment

Function & application
*Die cavity of molds
*Bearings and other parts
*Failure analysis of pressure vessel, steam generator and other equipment
*Heavy work piece
*The installed machinery and permanently assembled parts.
*Testing surface of a small hollow space
*Requirements of formal original record for test results
*Material identification in the warehouse of metallic materials
*Rapid testing in large range and multi-measuring areas for large-scale work piece

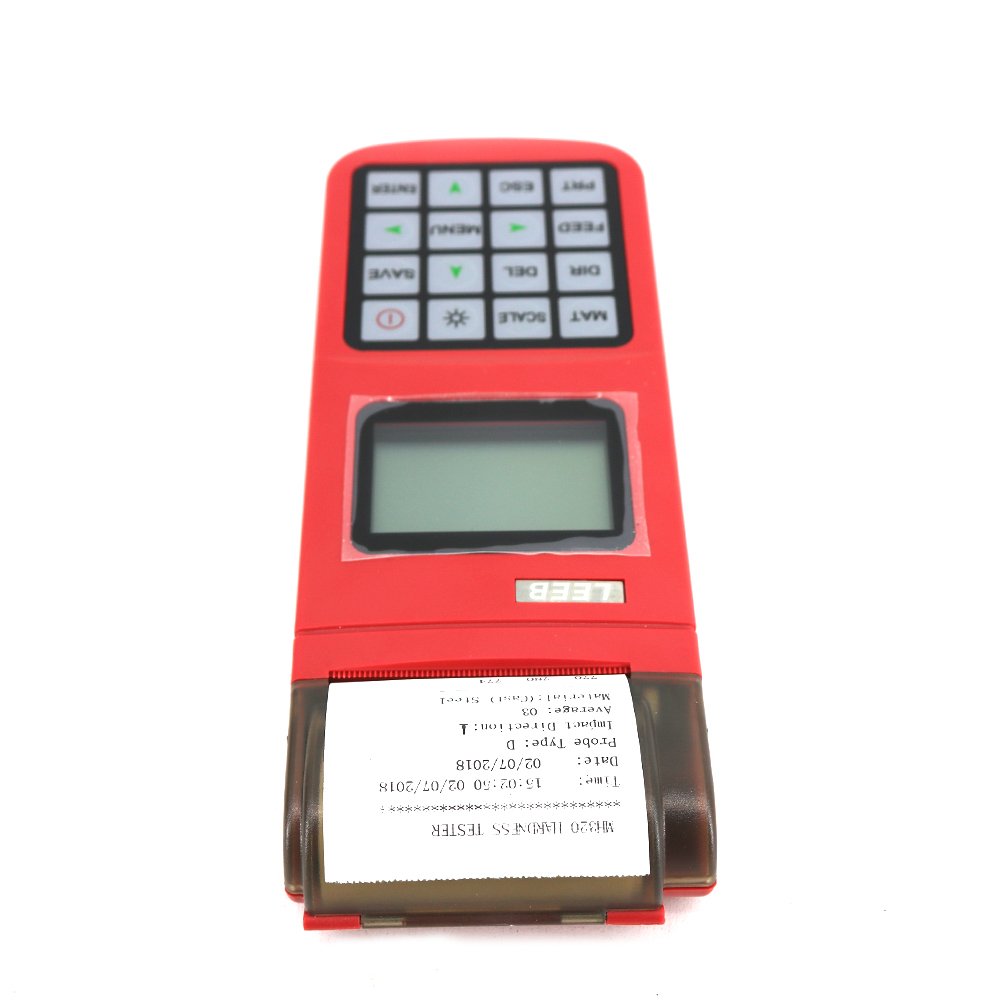

*Integrated thermal printer with the instrument as a whole, and quiet operation, fast print speeds, you can print the test report on-site.

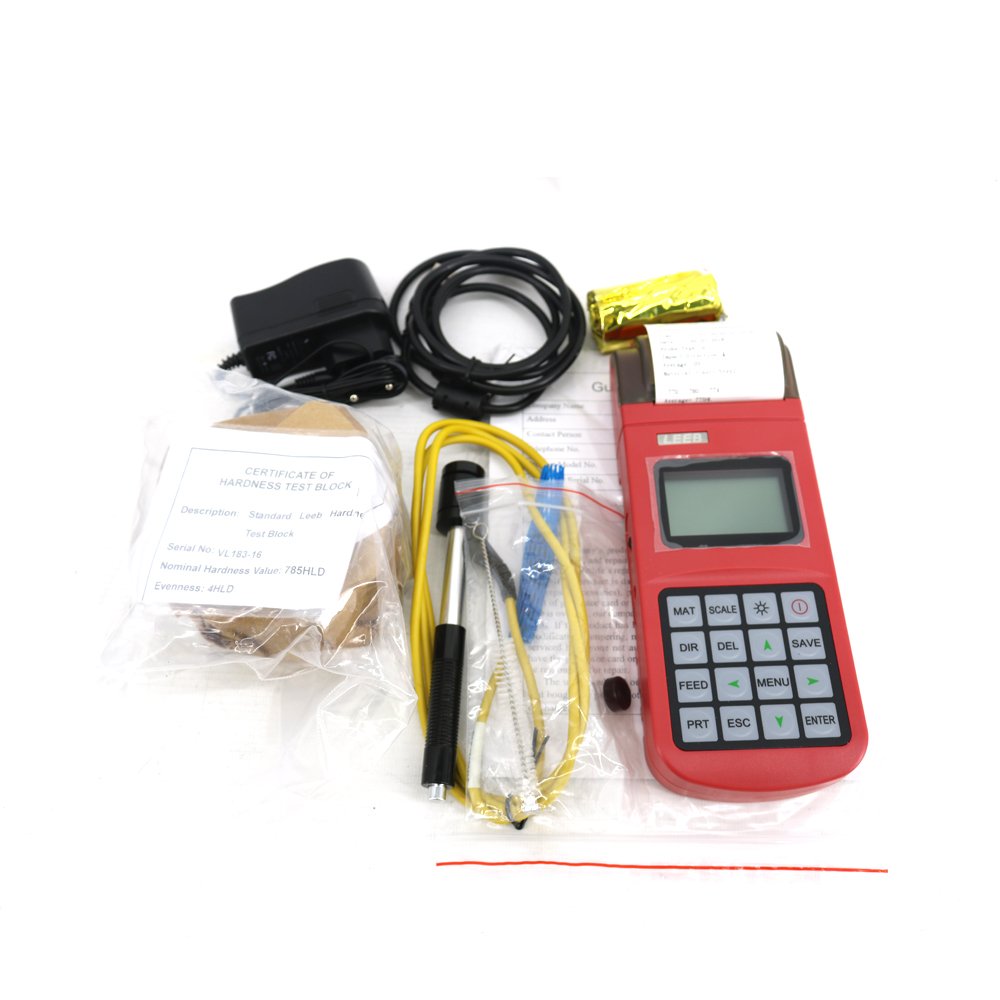

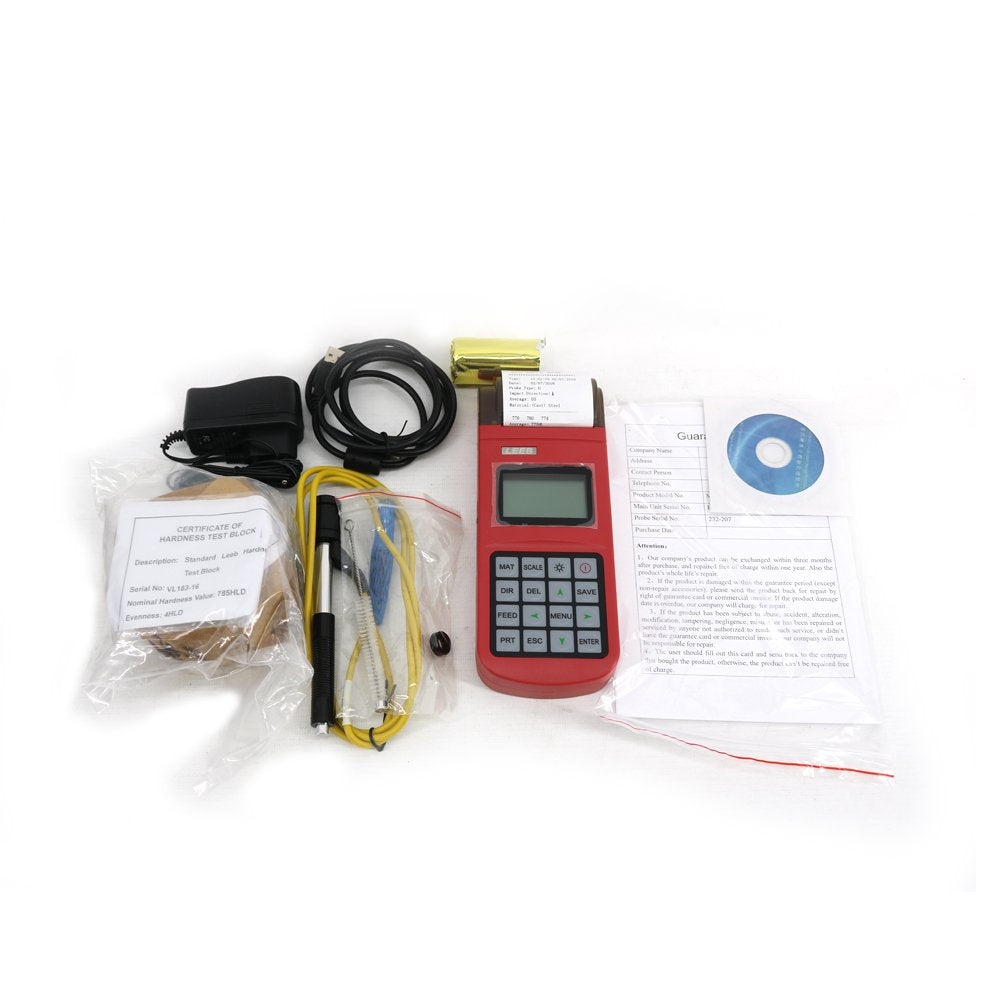

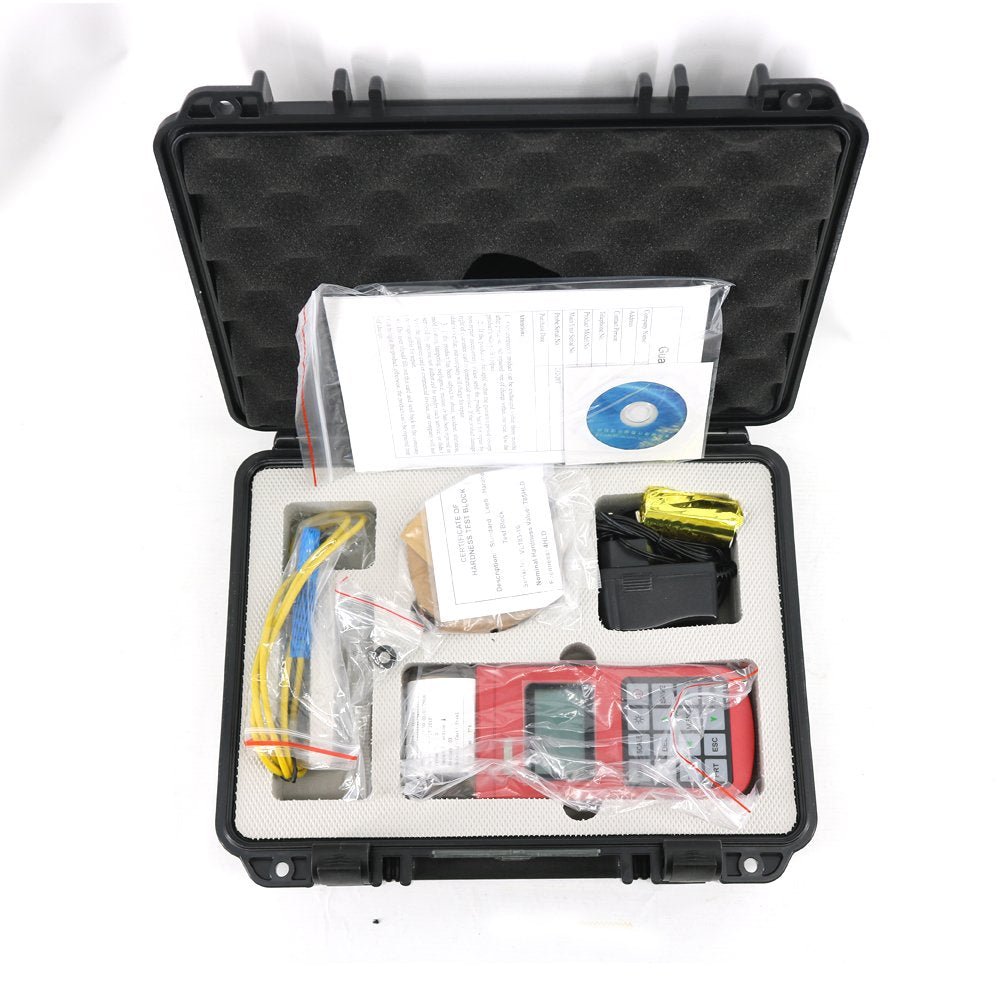

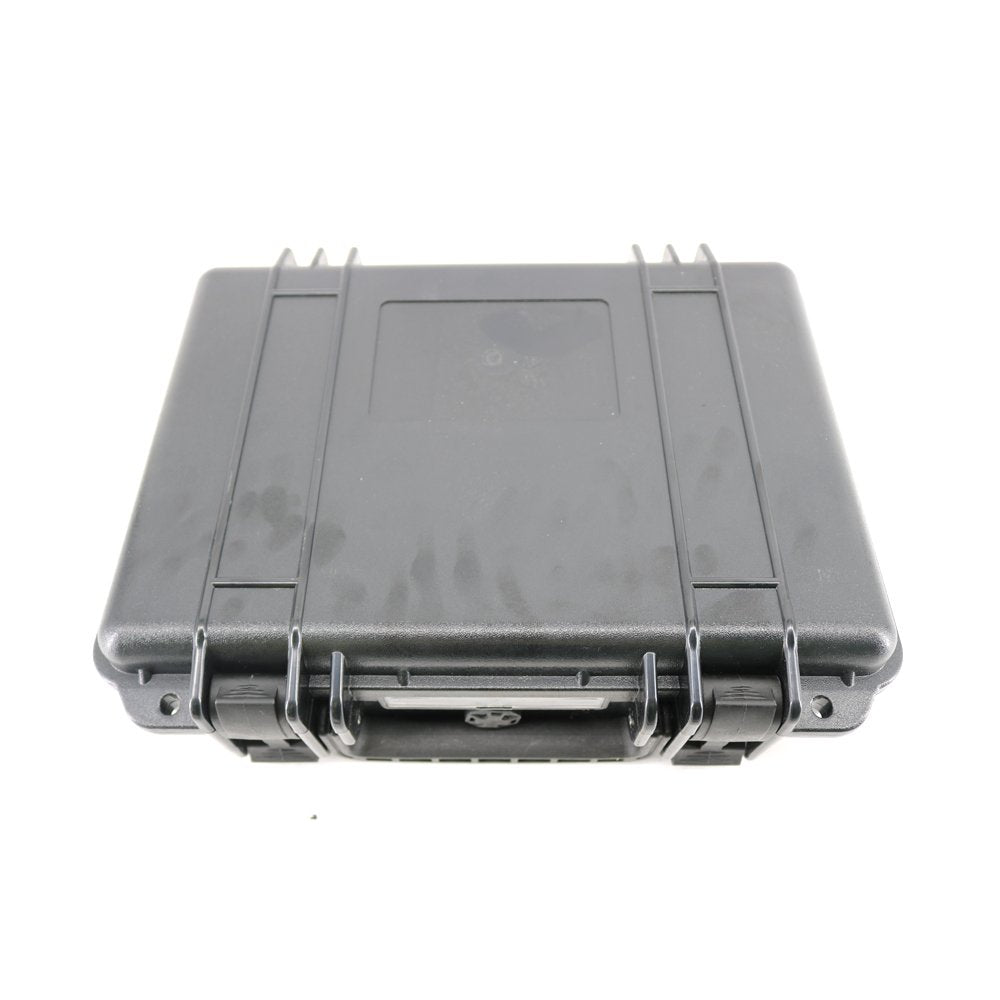

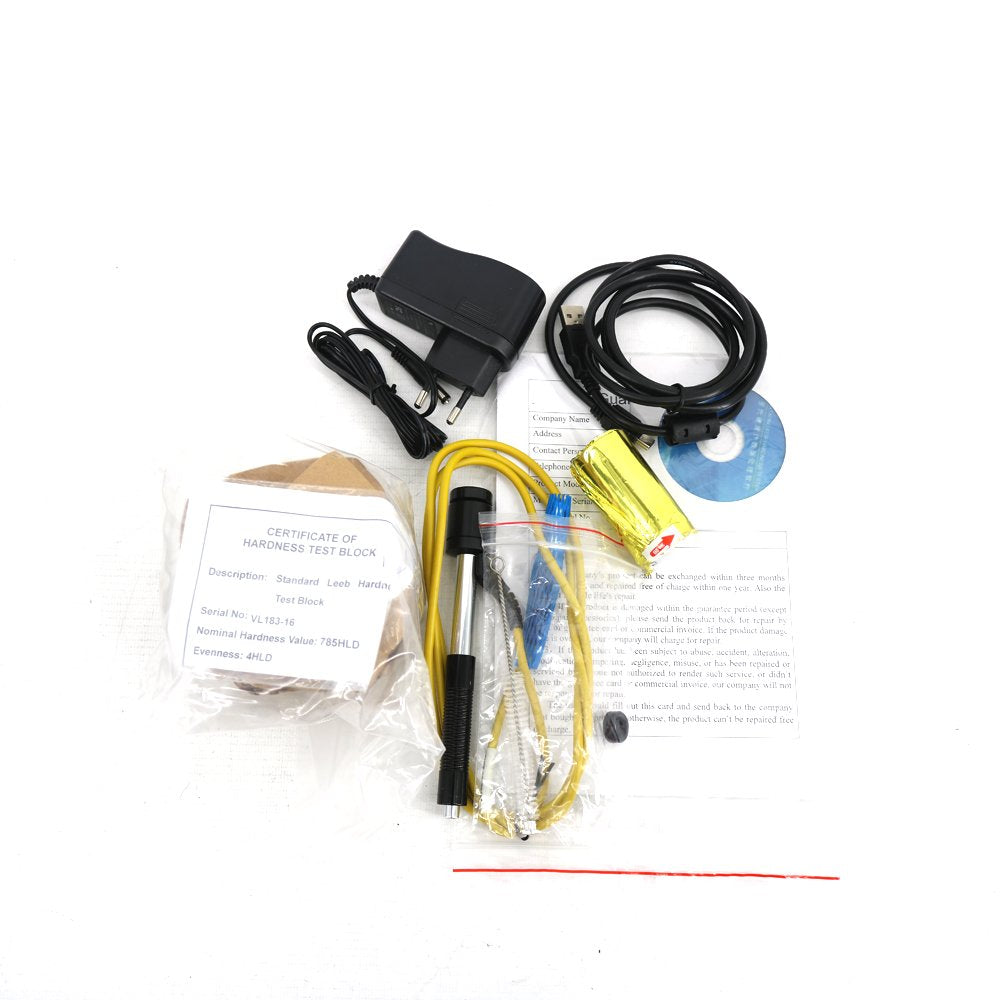

*Standard Accessories : Main Unit, D Type Standard Hardness Block, D type impact device, Battery charger, Printing paper, Small support ring, Nylon brush (A), Attached files, ABS Instrument Case

*Optional Accessories: DataPro software, USB communication cable

EAN: 0725370414898
