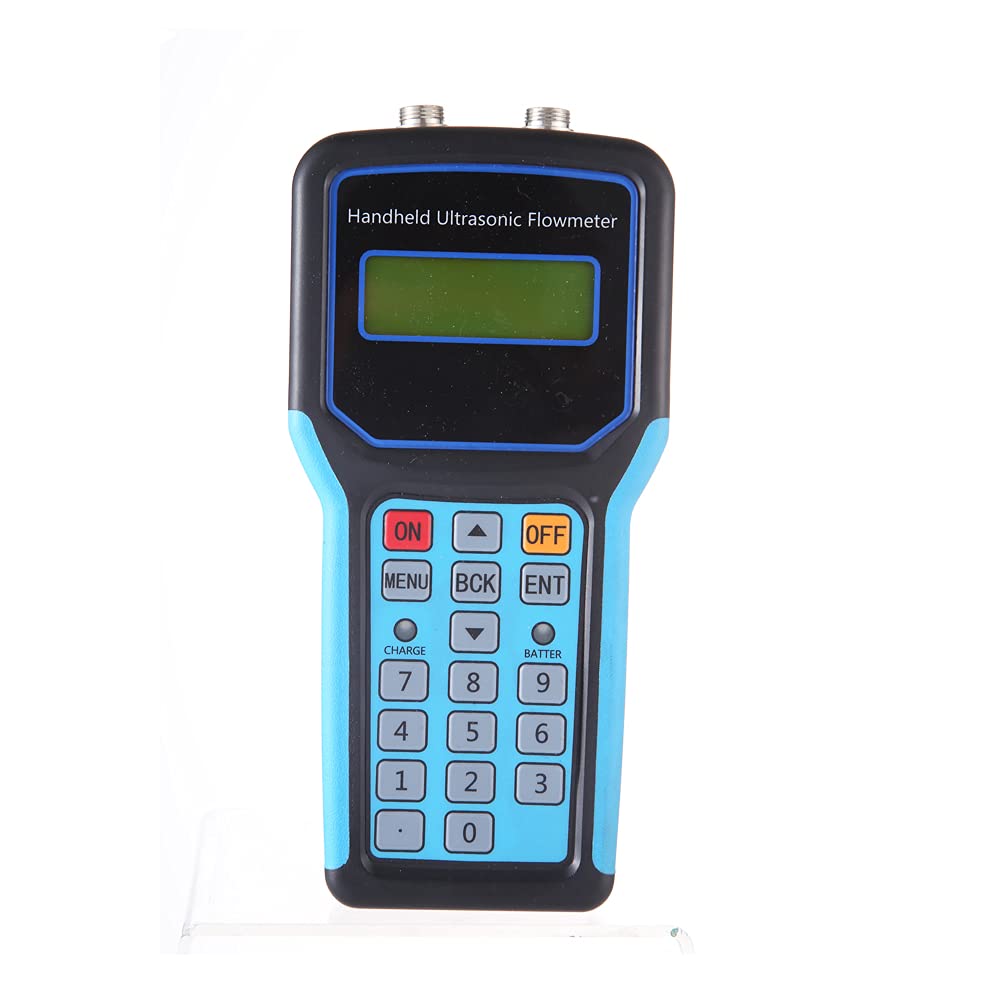

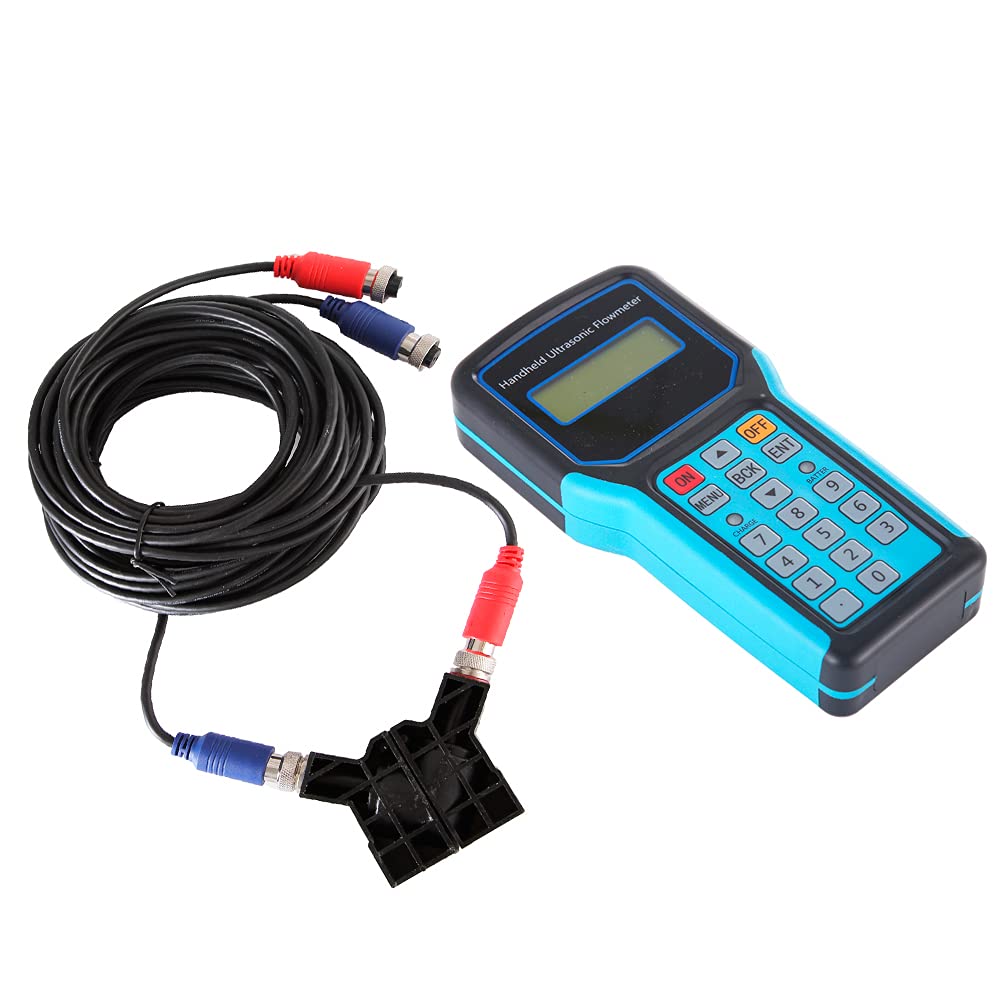

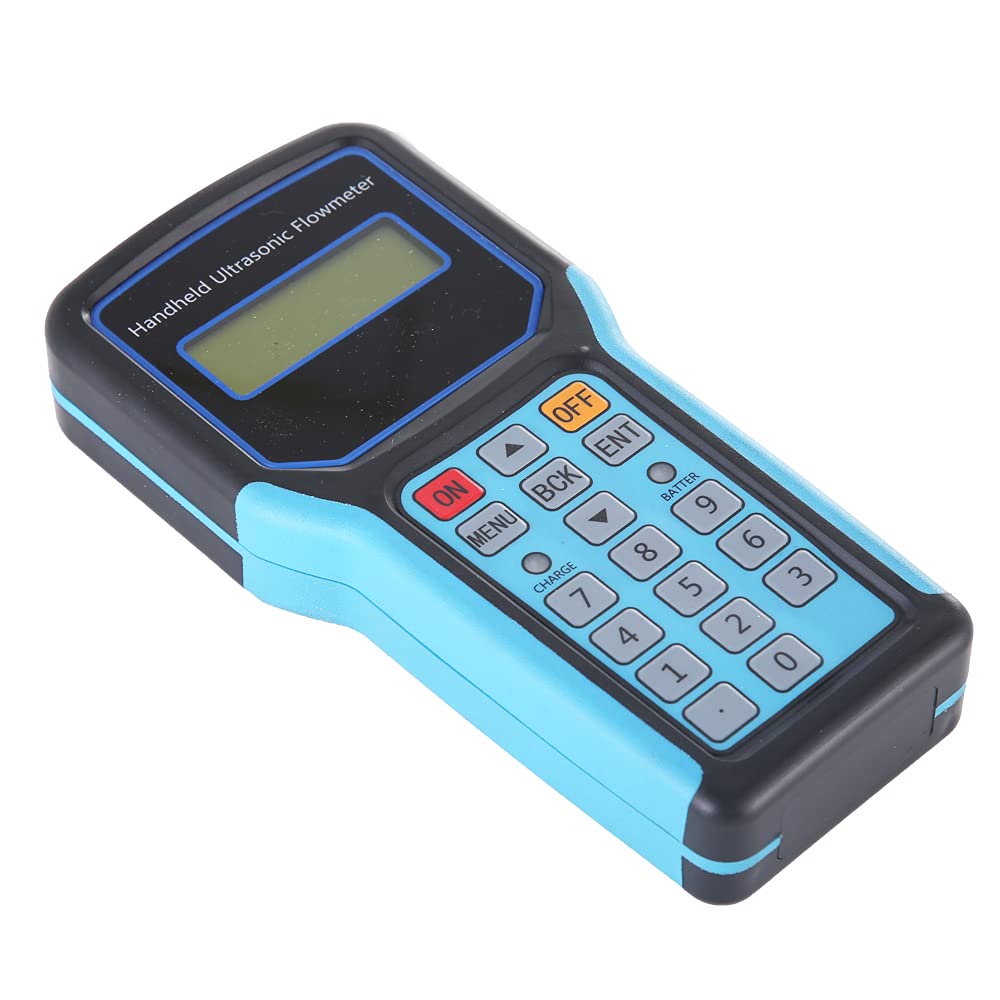

Introduction:
Hand-held ultrasonic flowmeter is designed to improve the convenience of flow measurement, small size, light weight, simply install the sensor in the pipe wall to complete the flow measurement, plus data storage SD card, to facilitate future upload data , Statistics, analysis and so on
Features:
small size, light weight: the volume is only 231 * 118 * 95mm
support multi-language menu: support, English, Italian and other languages
non-contact measurement: with a magnetic ultrasonic flowmeter sensor adsorption in the pipe wall, you can complete the flow measurement
wide range of measurement: the use of different types of sensors, can achieve caliber DN15 ~ DN6000mm pipe flow measurement
data recorded: external SD card data memory, can be set in advance of up to 20 more than the measurement results stored in the SD card
powerful: can be upgraded to ultrasonic energy meter, to achieve heat / cold detection
Parameter:
| Category | performance parameters | |
| Host | Principle | Ultrasonic time difference principle, 4 bytes IEEE754 floating point operation |
| Accuracy | better than ± 1% | |
| Display | Can be connected to 2 × 10 backlit characters or 2 × 20 character LCD display, support in the English, Italian three in that language | |
| Data storage | external SD card data memory, mass storage, upload data and analysis, mapping, etc. | |
| Pipe | Pipe material | Steel, stainless steel, cast iron, cement pipes, copper, PVC, aluminum, glass and other all-dense pipe, allowing a lining |
| Pipe diameter | 15 ~ 6000mm | |
| Measuring medium | Type | Water, sea water, industrial sewage, acid and alkali, alcohol, beer, all kinds of oil can carry a single uniform ultrasonic liquid |
| Temperature | (-30--180) ℃ ultra-high temperature to be customized | |
| Turbidity | 10000ppm and the bubble content is small | |
| Flow rate | 0 ~ ± 10m / s | |
| Working environment | Temperature | Host: -20 ~ 60 ℃; Flow sensor: -30 ~ 180 ℃ |
| Humidity | Host: 85% RH; Flow sensor: can be flooded work, water depth ≤ 2m (Note: after the sensor filling) | |
| Power supply | Built-in capacity of 2000mA charge Ni-MH battery, each time the full charge for more than 15 hours, the use of power adapter, can achieve uninterrupted measurement | |

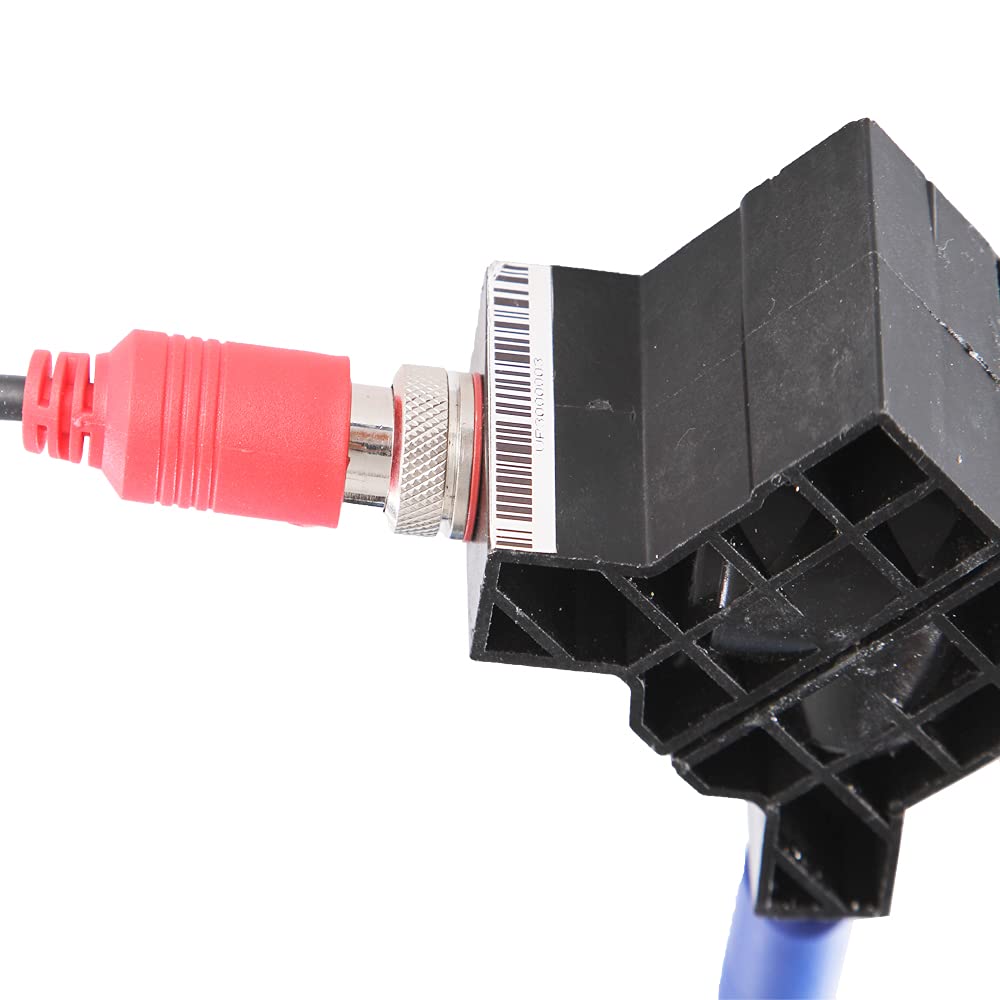

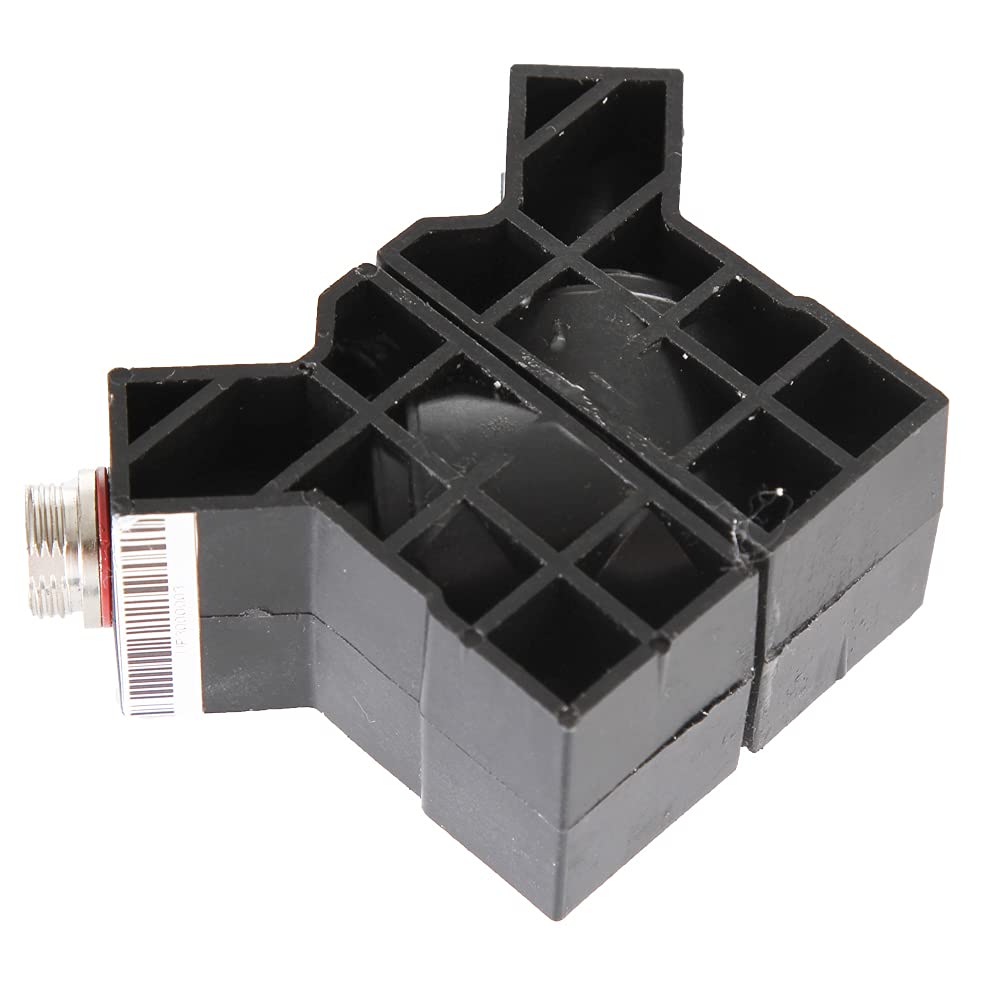

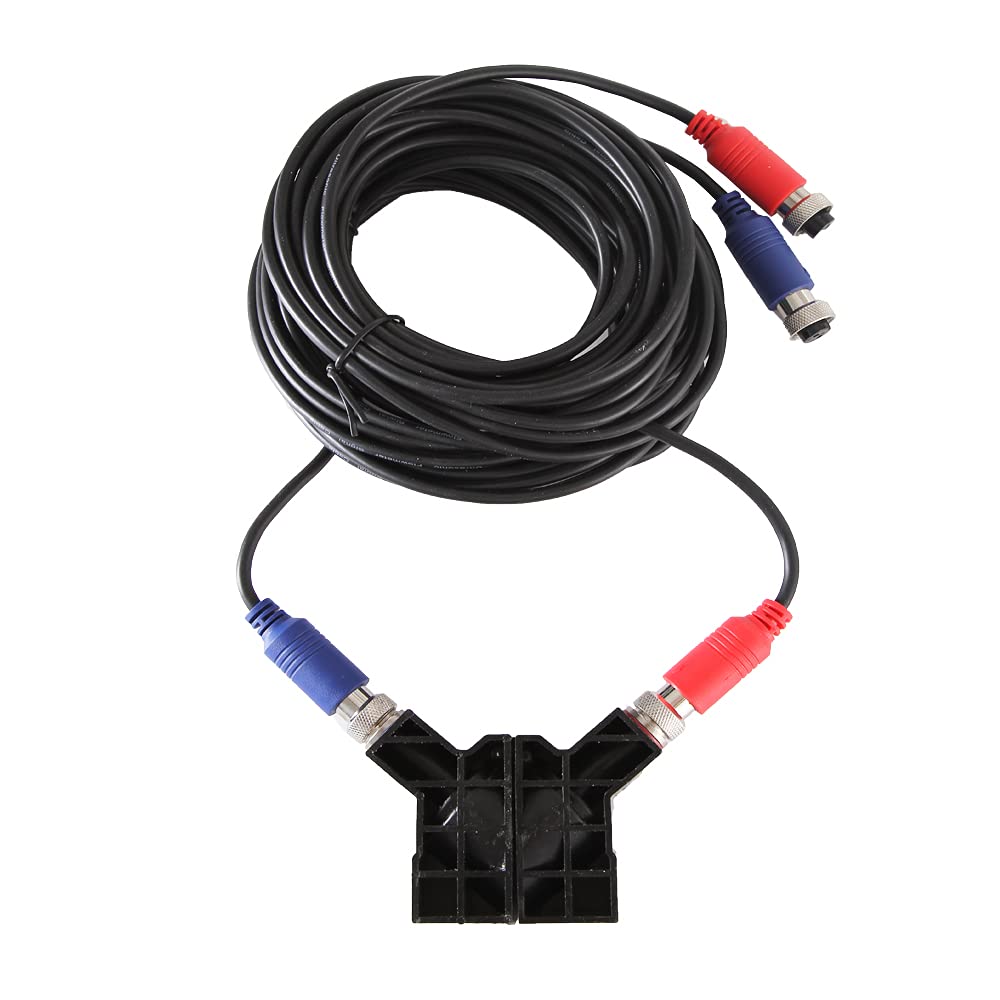

Optional Sensors:
Outer clip type sensor---the installation of the sensor will be directly tied to the outer wall of the pipe under test, no need to cut off, no need to stop production, with a simple installation, no pressure loss.
Bracket type sensor---the fixtures and chutes are made of aluminum, lightweight, and rugged. They come with a metric scale to improve installation accuracy and convenience.
lizzy
Package Dimensions: 7.5 x 5.9 x 3.9 inches
