Large display and simple, quick-click interface for easy one-handed operation.
mA accuracy of 0.025%, superior to other loop calibrators in this price range.
Simultaneous mA and % readout for quick, easy interpretation of readings.
1 µA resolution for mA Source, Simulate and Measure.

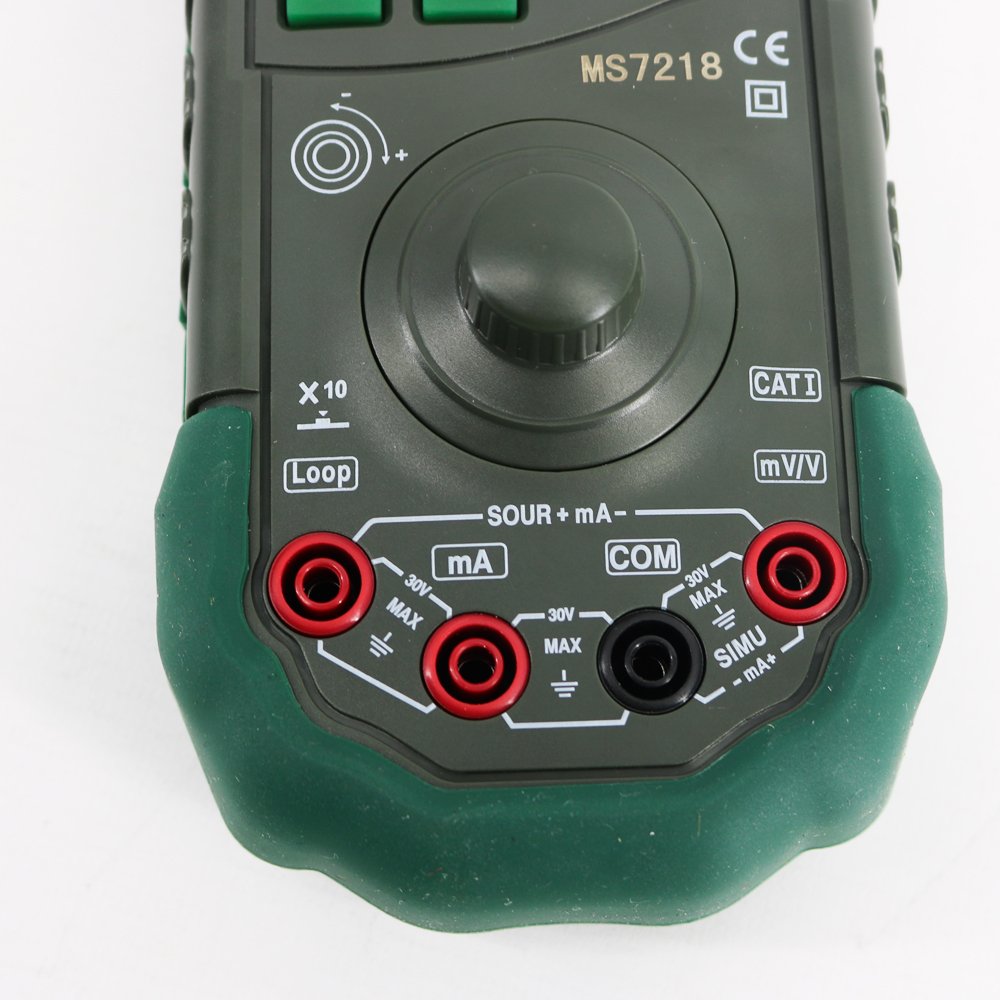

Innovative output adjustment dial with 1 µA and 100 µA resolution.

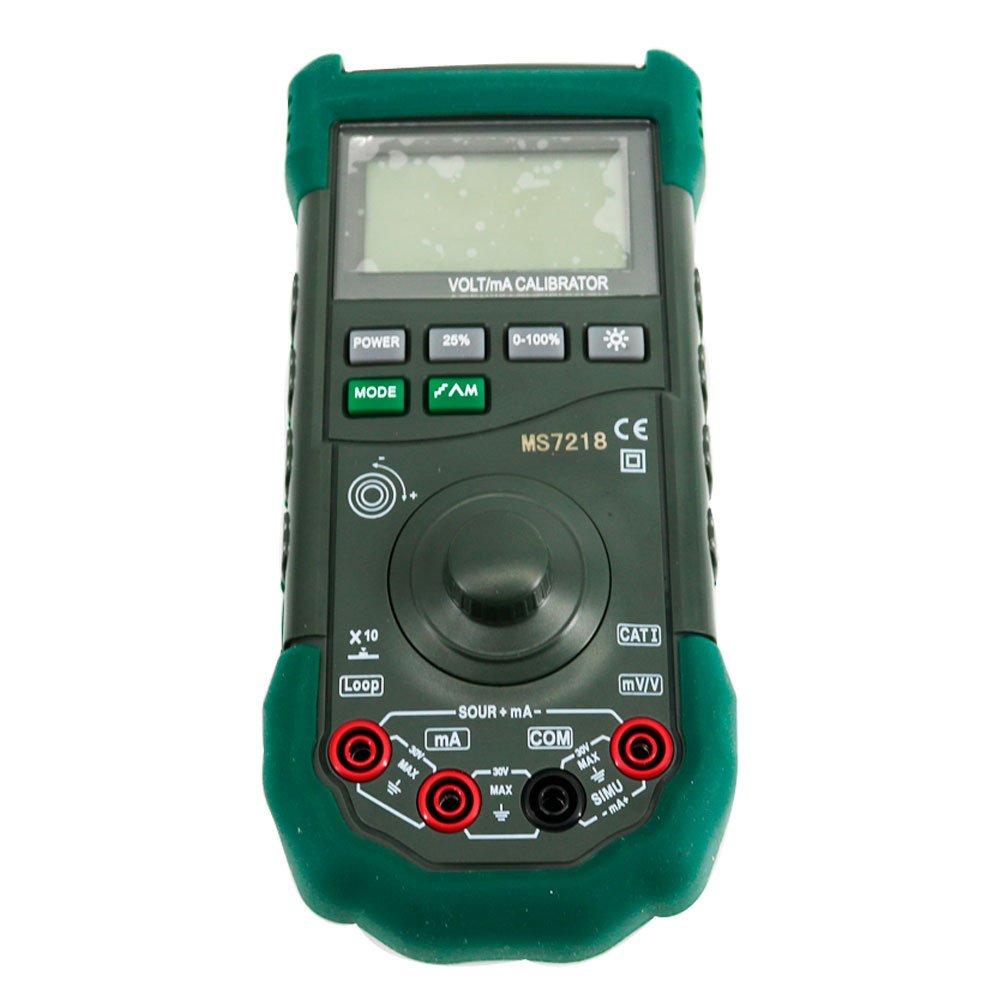

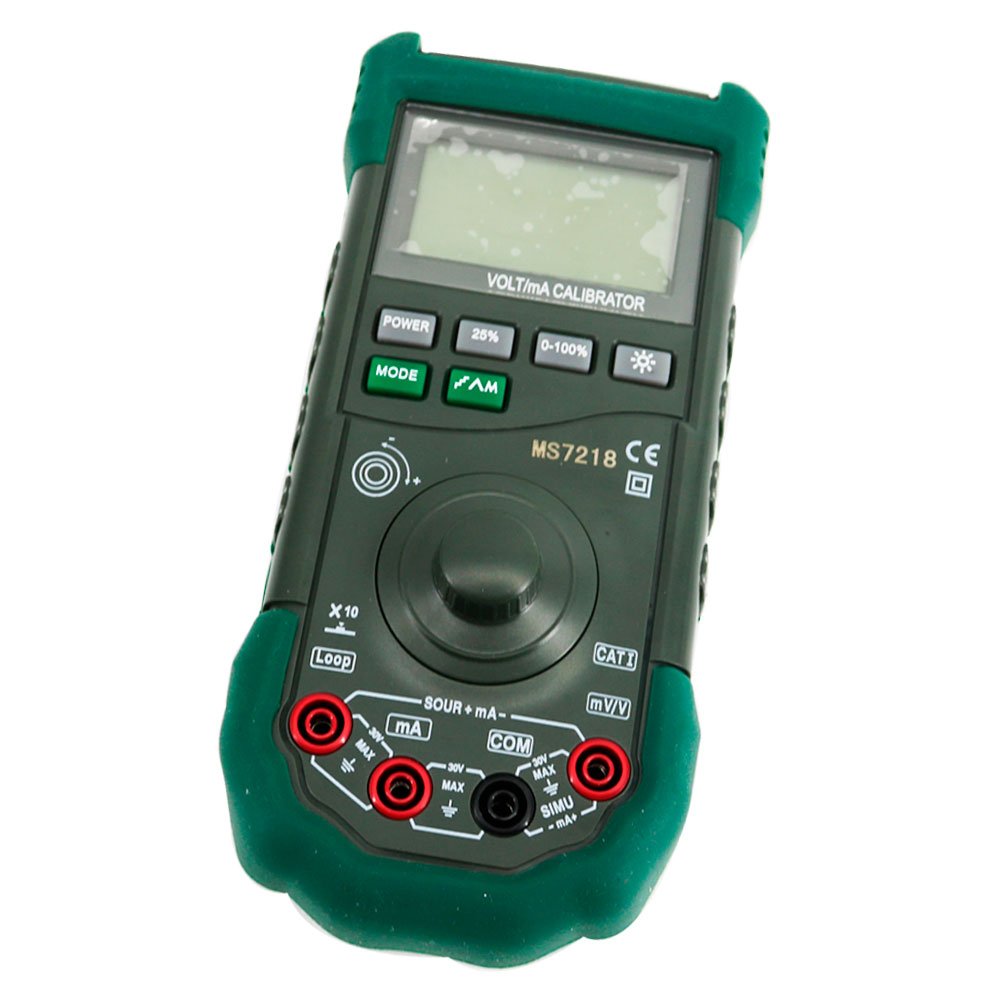

Part Number: MS7218
Details: The fast, one-handed tool for loop checks.
This feature-rich solution combines the best features push-button and knob-base loop calibrator and offers:
· Large display and simple, quick-click interface for easy one-handed operation.
· Simultaneous mA and % readout for quick, easy interpretation of readings.
· mA accuracy of 0.025%, superior to other loop calibrators in this price range.
· 1 µA resolution for mA Source, Simulate and Measure.
· Innovative output adjustment dial with 1 µA and 100 µA resolution.
· 0-100% “Span Check” for fast switch between zero and full scale point.
· Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests. (Auto-Ramp Function provide single step(25%),slow or fast ramp output )
· 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
· Measures 0-10V DC & 0-100mV DC with accuracy 0.02%
· Output 0-10V DC & 0-100mV DC with accuracy 0.02%
· 4 - 20 mA or 0- 20 mA output range could be set manually.

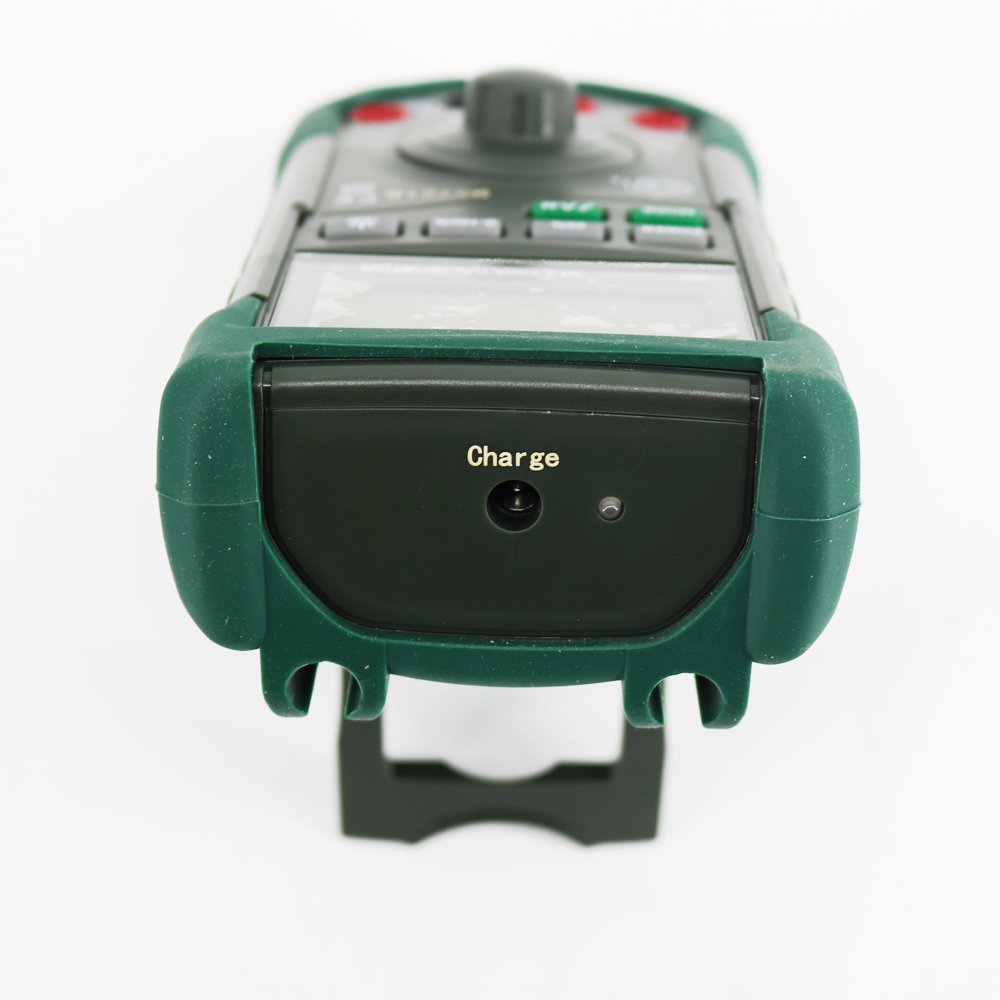

· Rechargeable lithium ion battery pack.
· Push button 25% steps for fast, easy linearity checks.
