Calibrate linear TC transmitter with mV source function
Selectable °F or °C
Part Number: MS7220

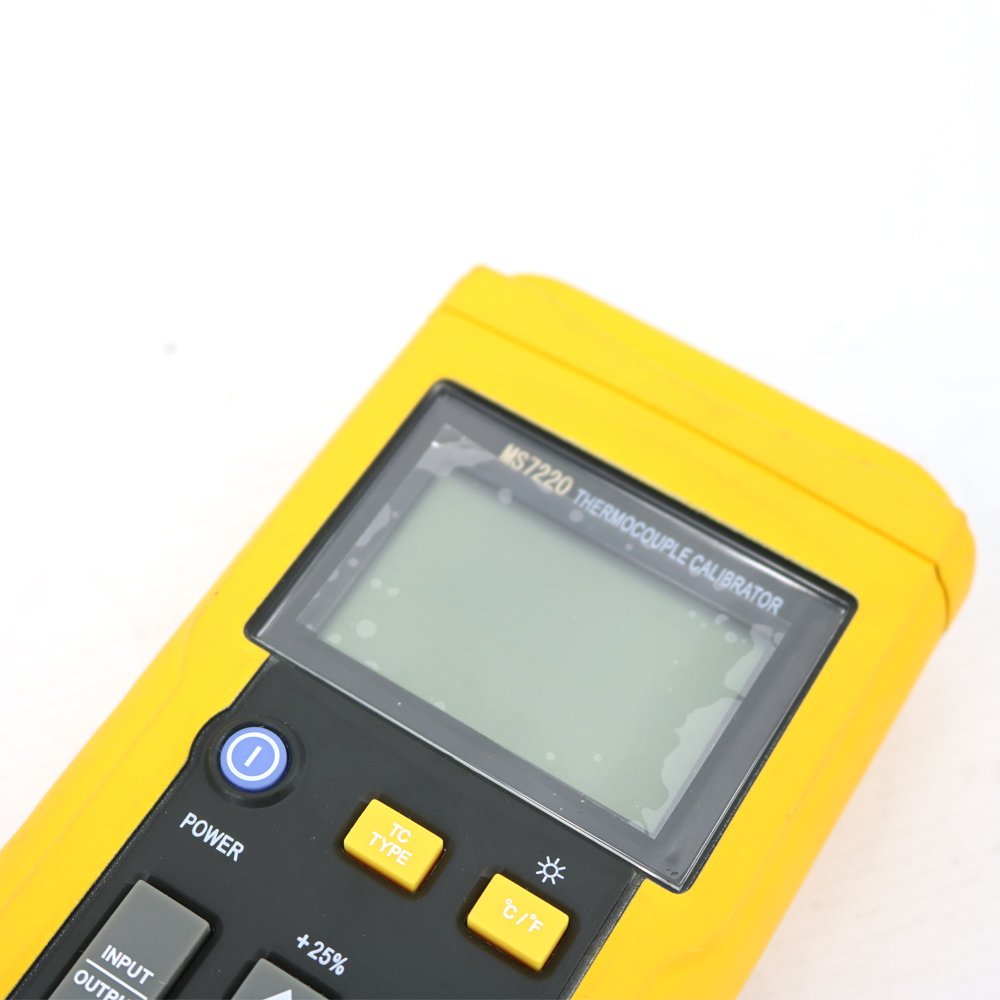

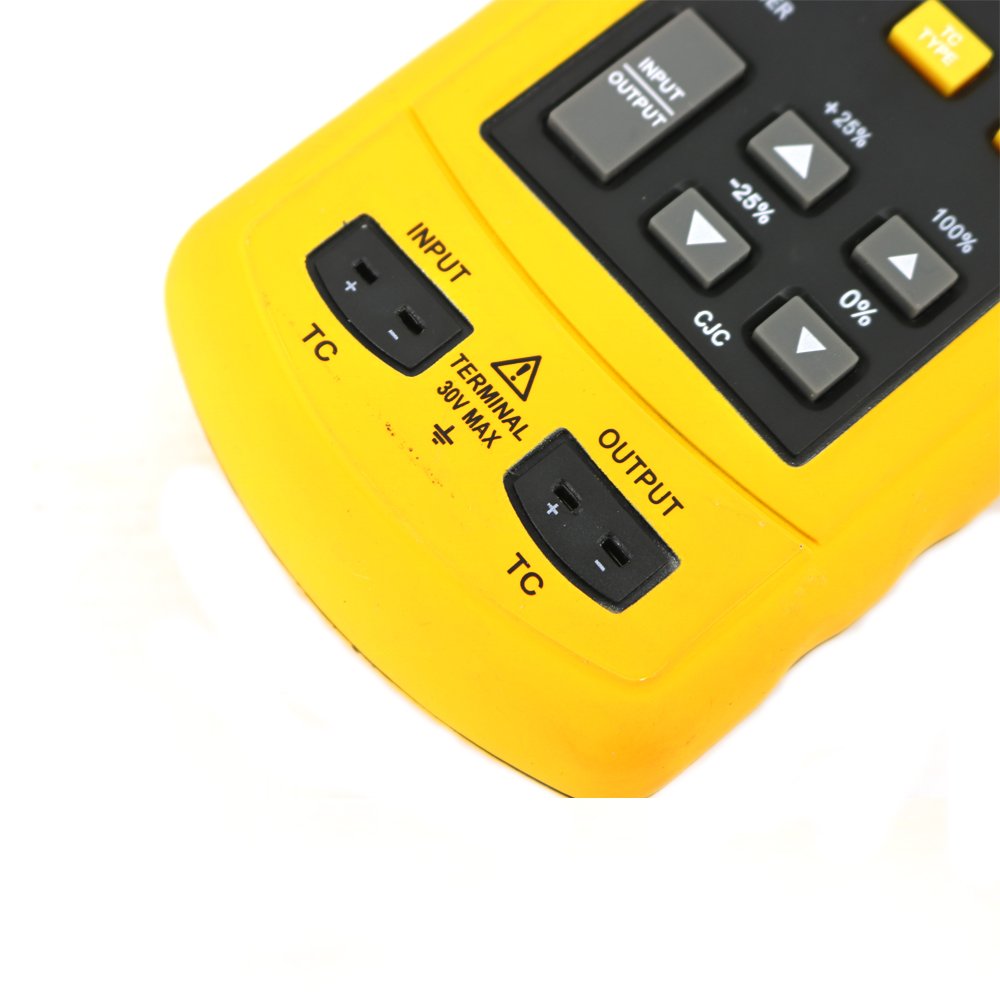

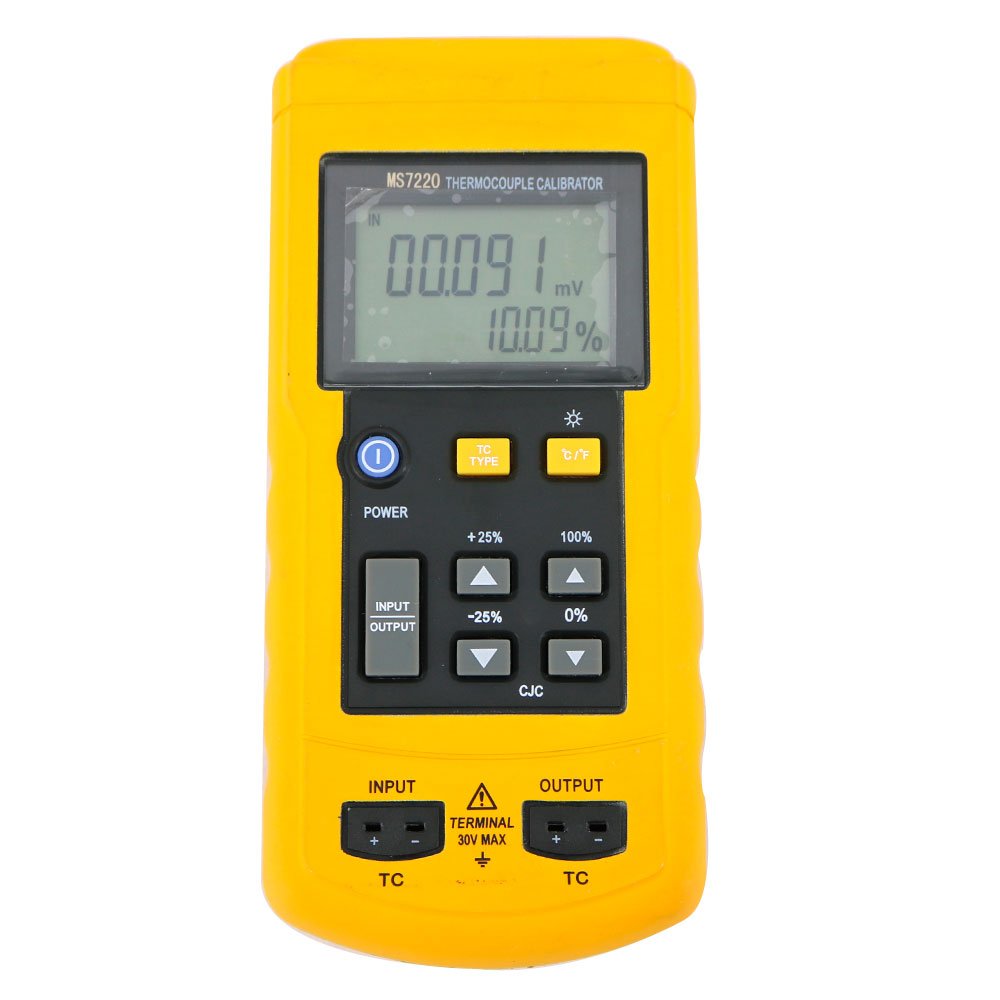

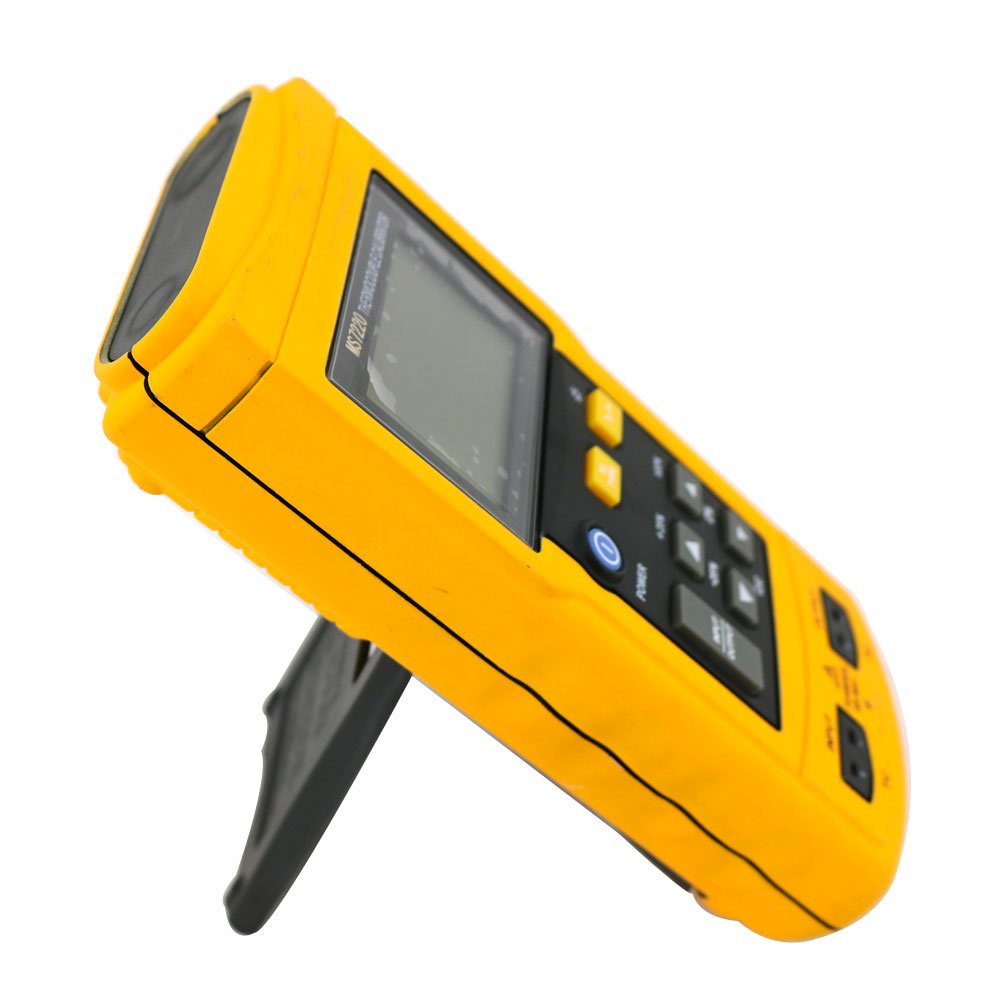

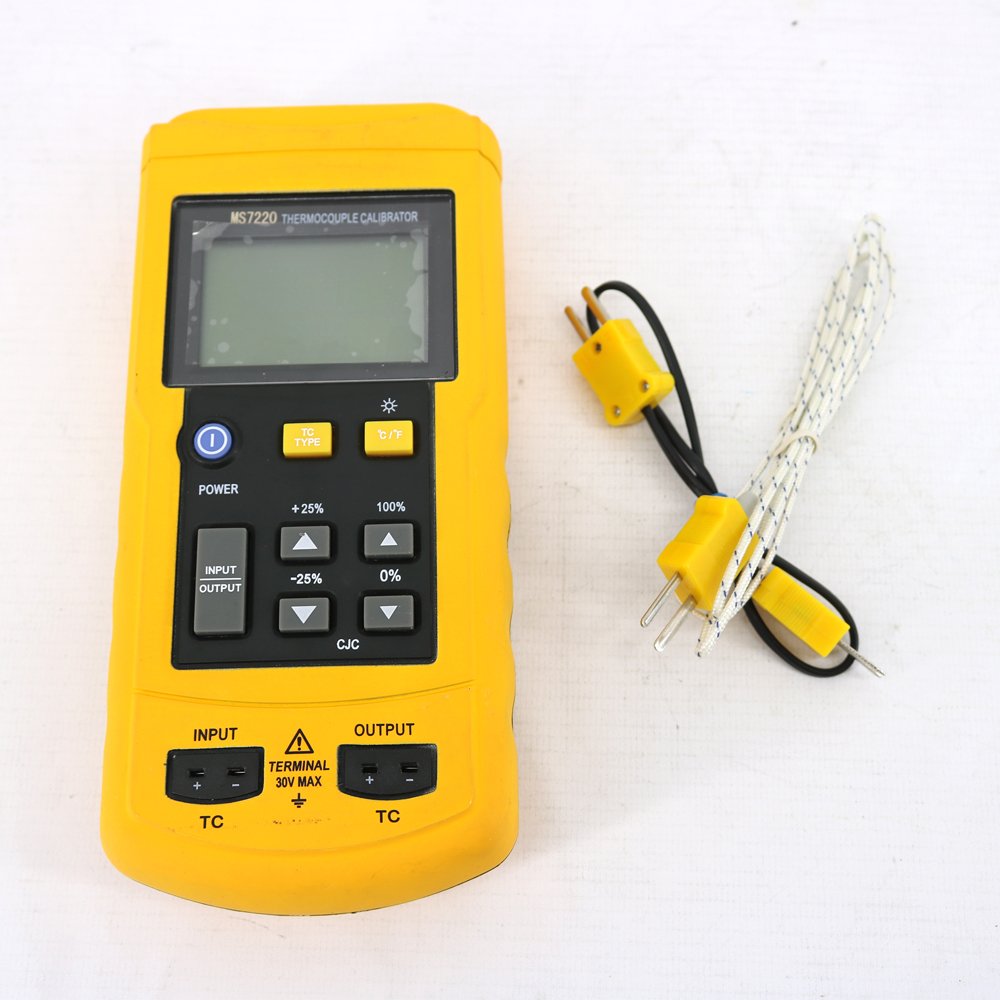

Details: MS7220 Thermocouple Calibrator is a precise source and measurement tool for calibrating thermocouple instruments through a thermocouple mini jack. The calibrator can be indicated in units of C, F, or mV.
Features:
Professional & accurate calibrating thermocouple instruments.
Measure temperature from TC output.
Simulate TC output.
Operable with 8 types of thermocouples.
Calibrate linear TC transmitter with mV source function.
Selectable F or C.

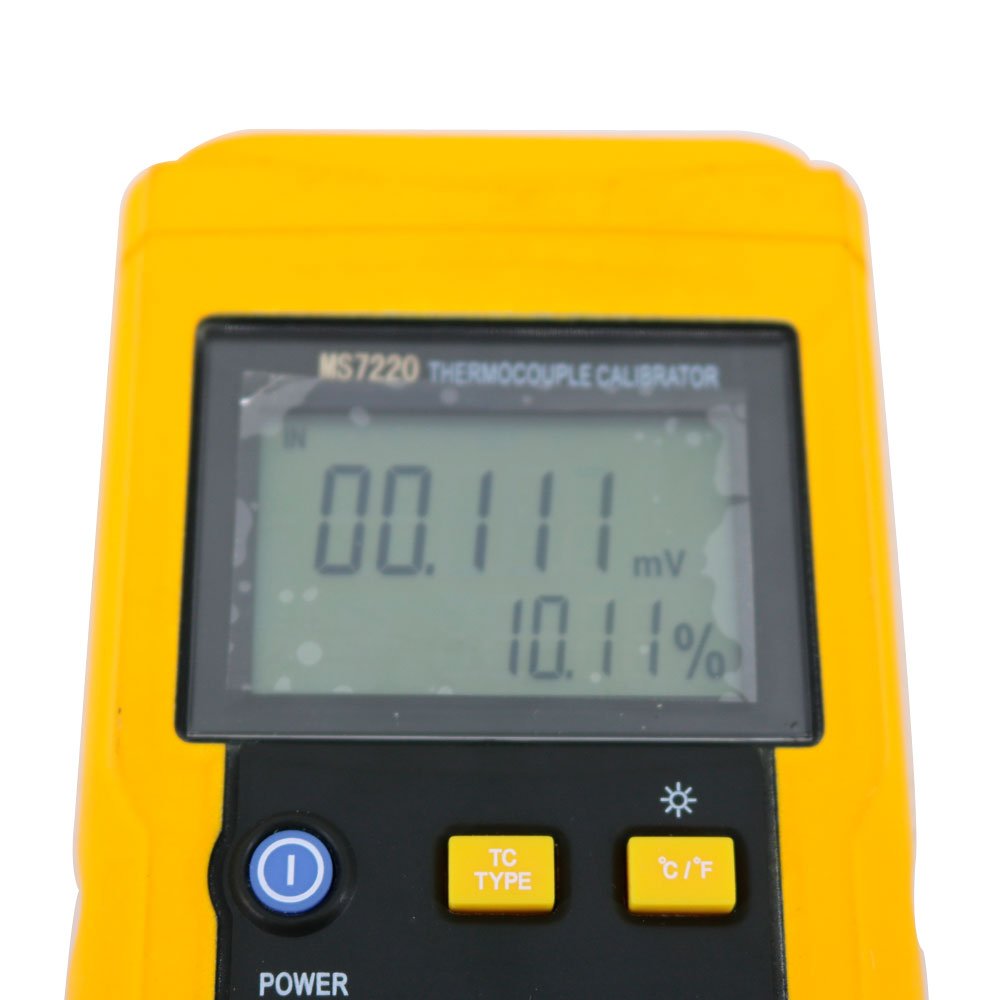

Display is 88888 counts.
Specifications:
Measure/simulate thermocouple range: -200 to 1800C, depending on type
Measure/simulate mV range: -10 to 75mV
Measure/ simulate thermocouple resolution: 0.1C
Measure/ simulate mV resolution: 0.01mV
Measure/ simulate thermocouple accuracy: +-(0.3C+10uV)
Measure/ simulate mV accuracy: +-0.02%
Note: 8 TC types; J K T E N R S B per NIST 175 and ITS-90
Power: 9V 6F22 battery ( not include)
Item size: 19 * 8.5 * 4.5cm
Item weight: 410g
Package size: 26.5 * 19.2 * 9cm
Package weight: 1171g

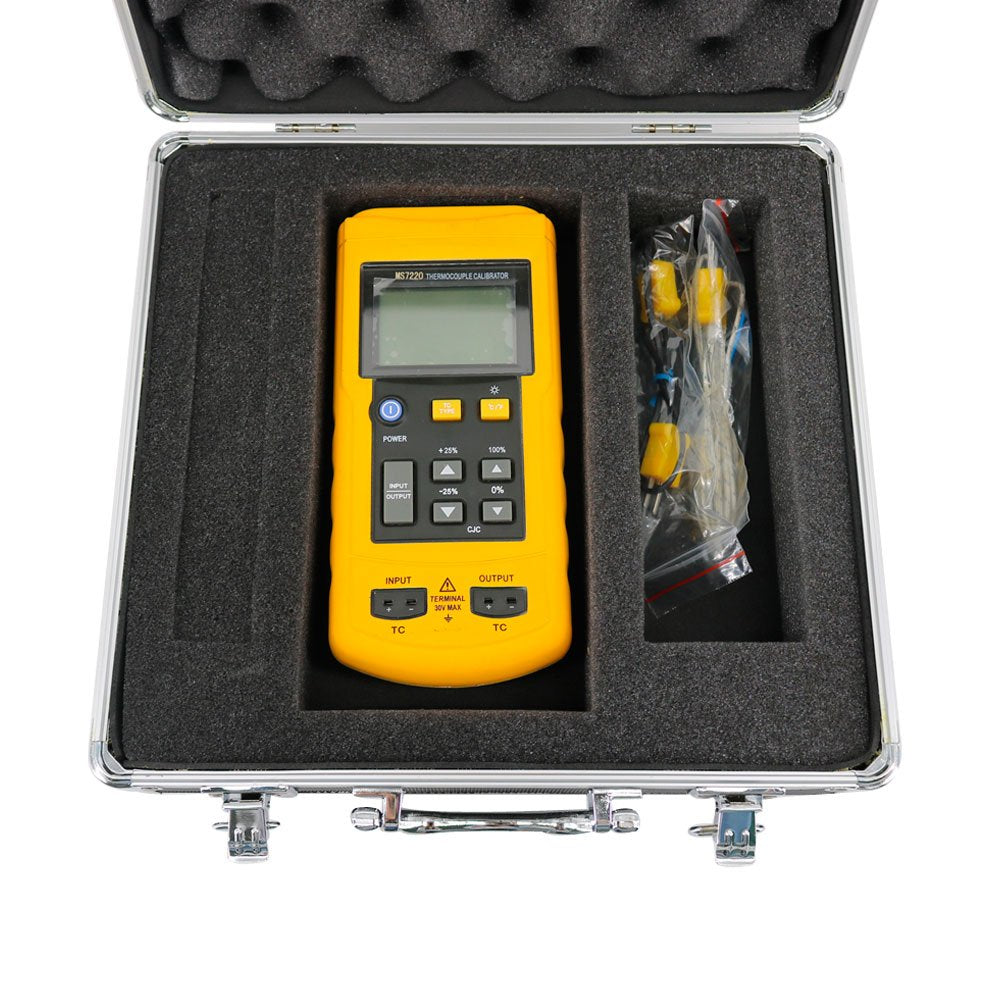

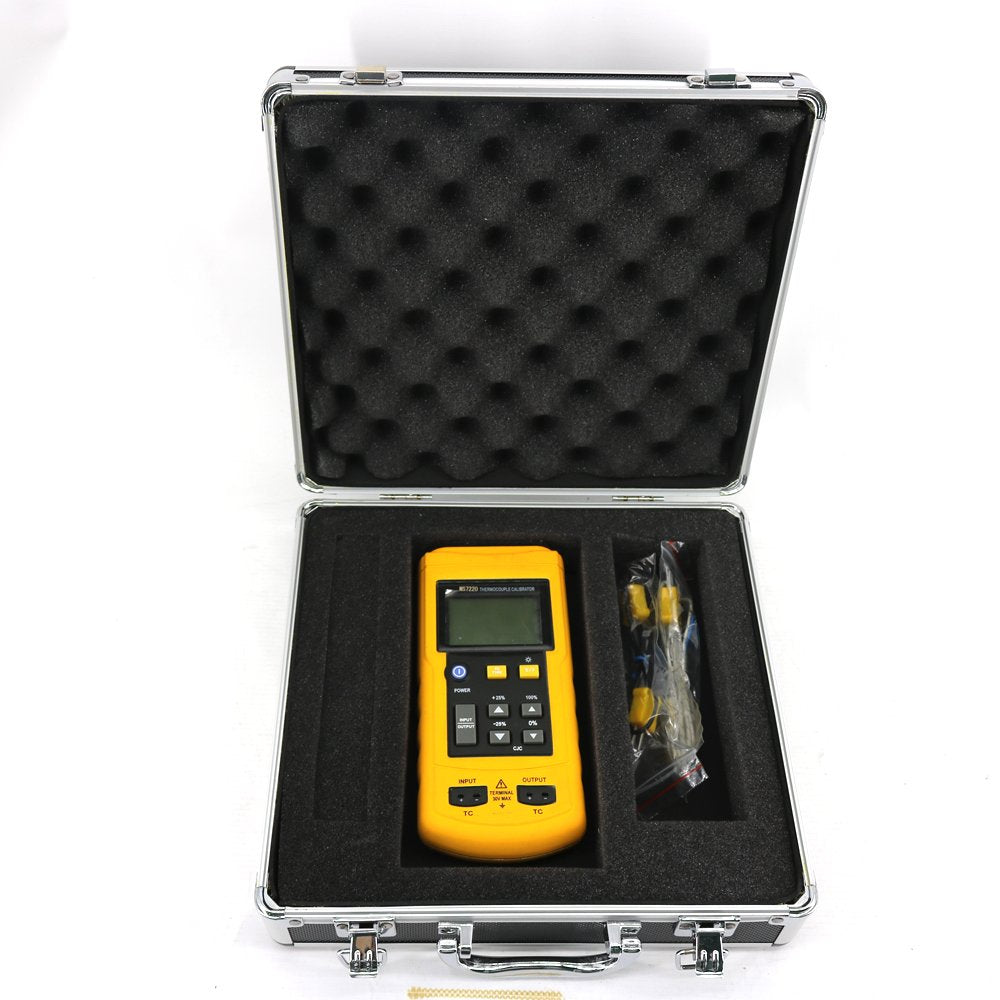

Package including:
1 * Thermocouple Simulator Calibrator
1 * Test Lead

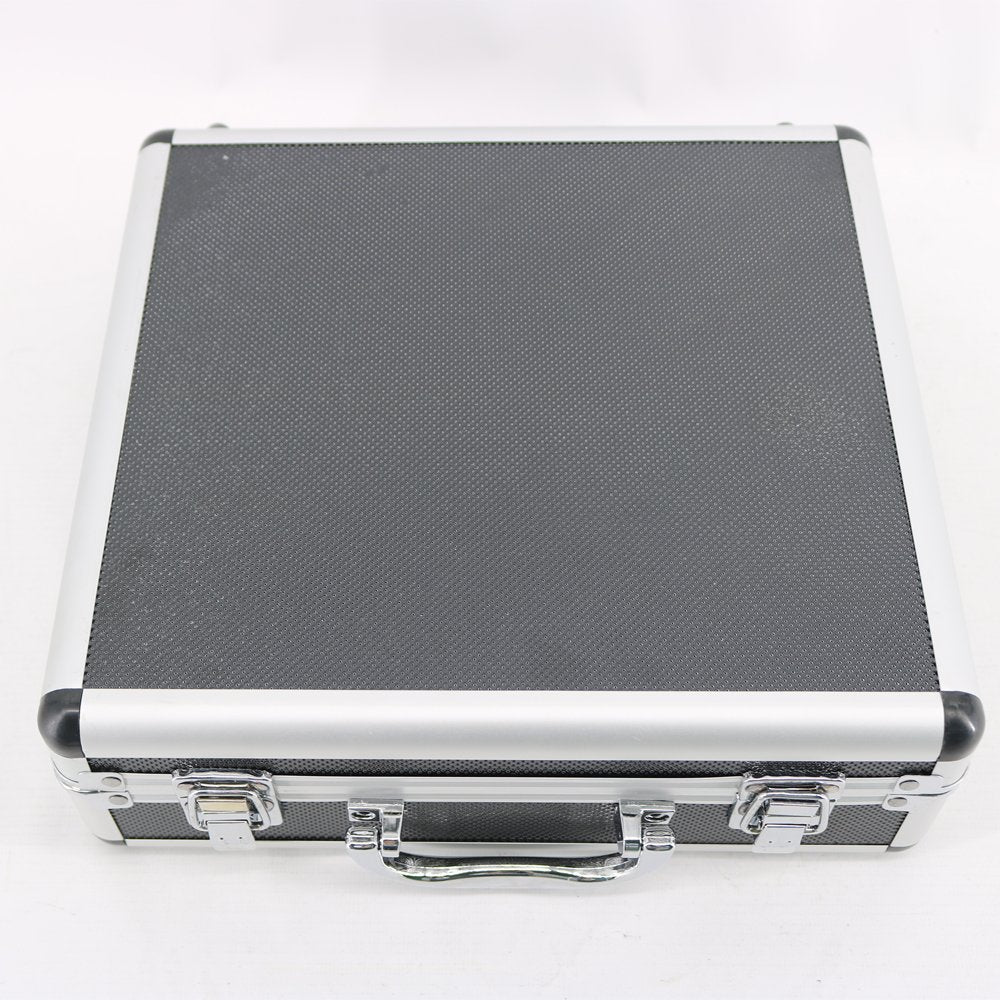

1 * Carry Case
