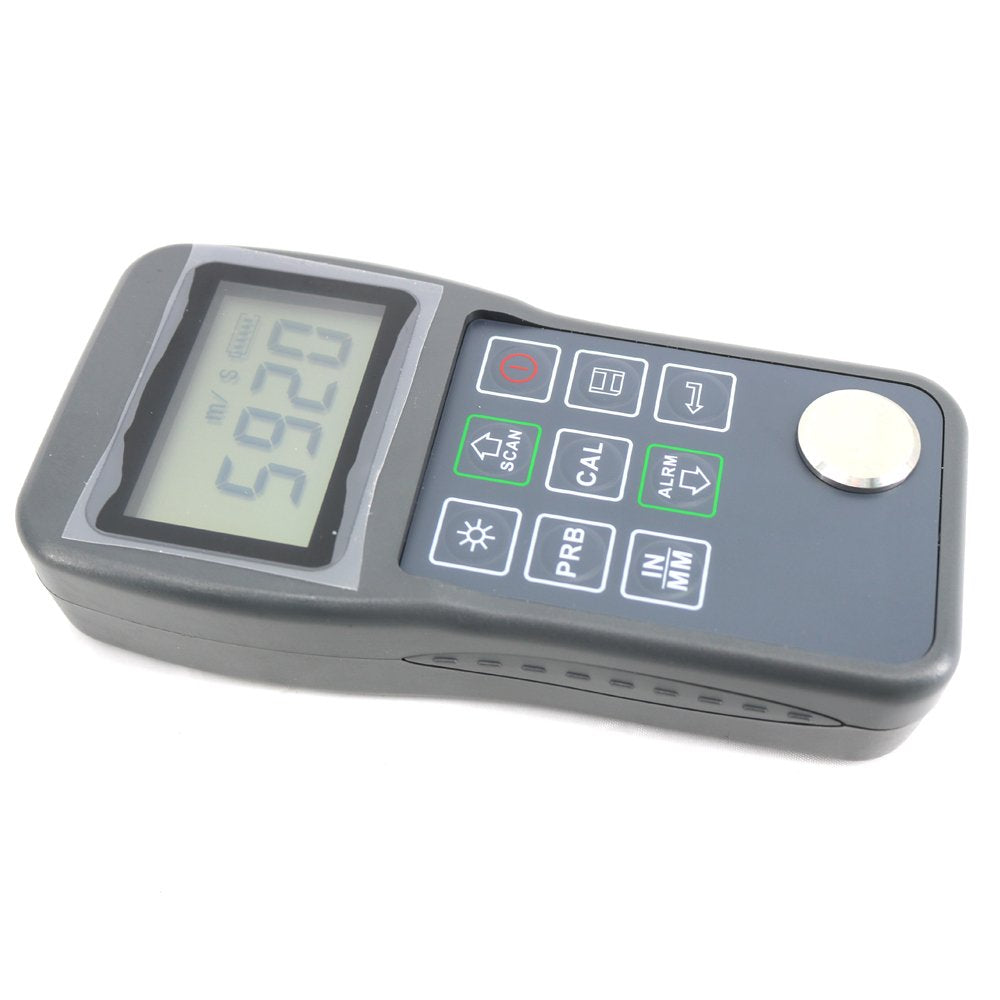

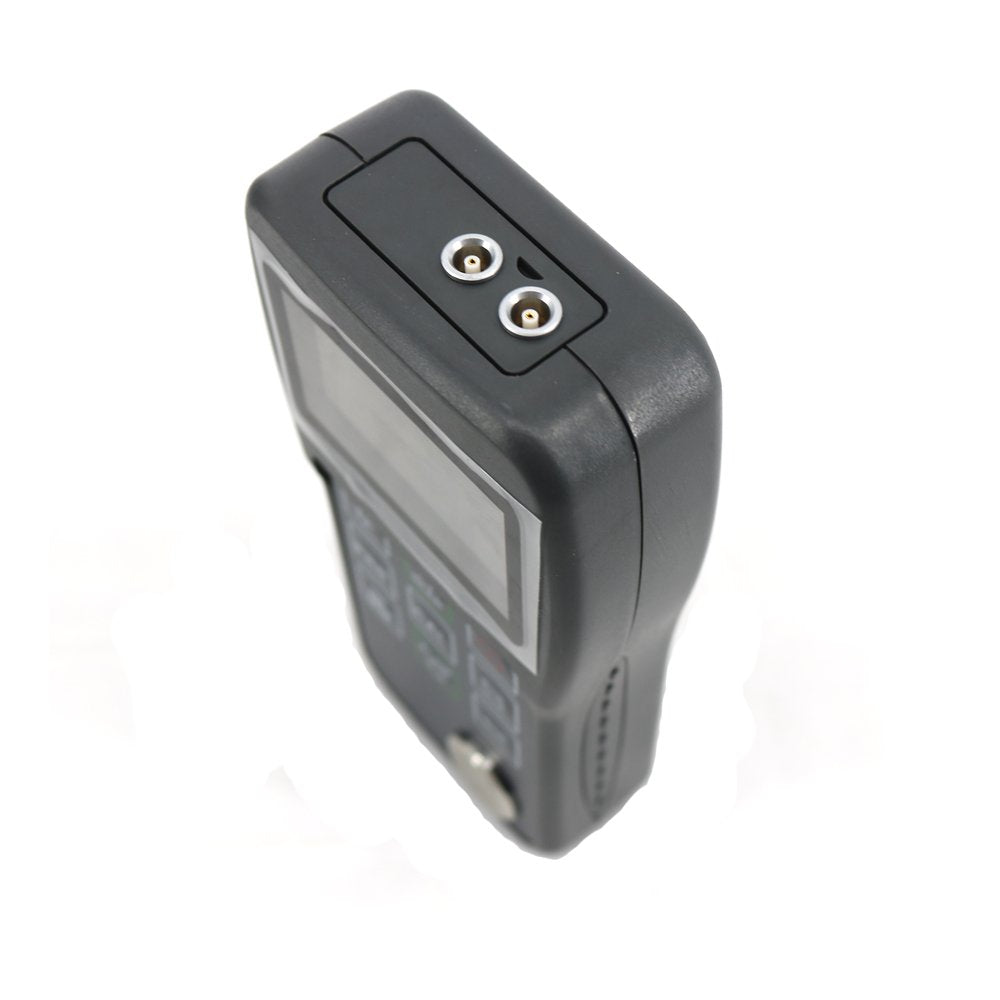

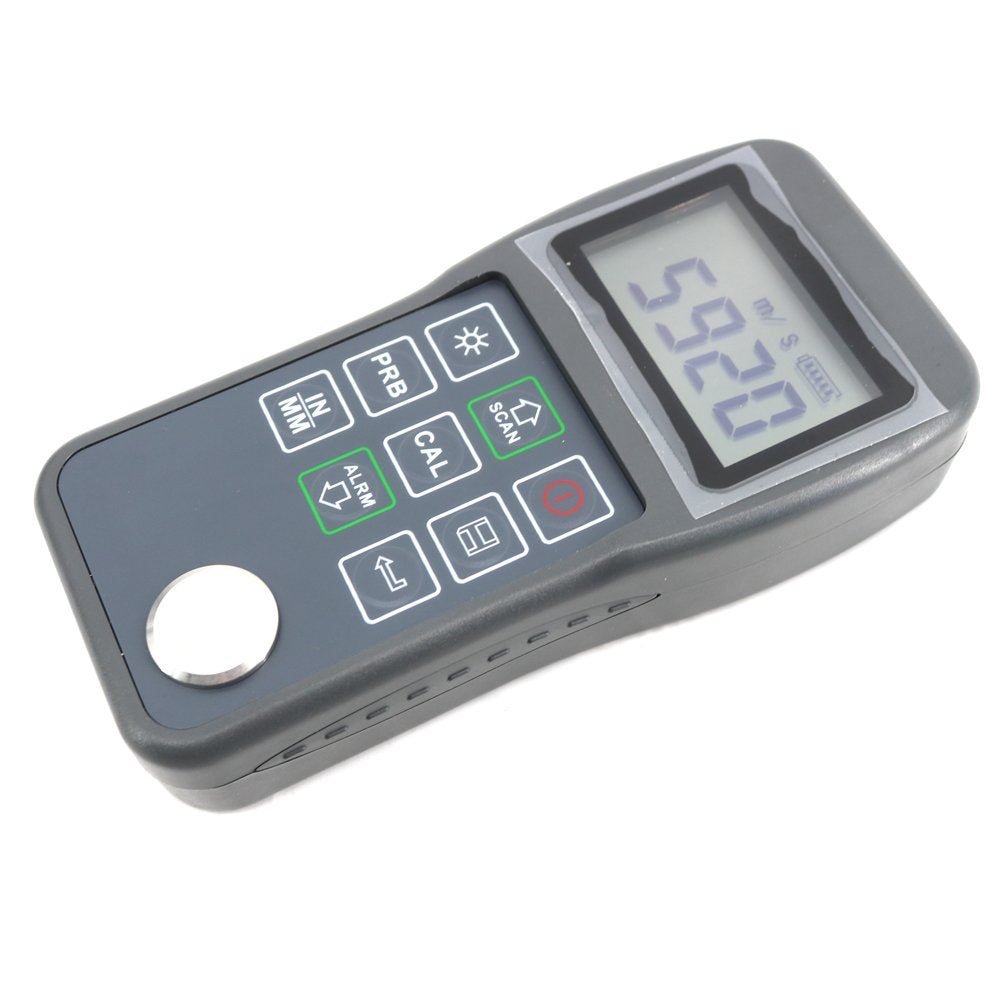

Graigar MT150 Ultrasonic Thickness Meter Gauge Tester Measuring Range 0.75mm-300mm with LCD Backlight Display Resolution 0.1mm

Brand: Graigar

Color: Gray

Features:

• Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
• Transducer models are available for special application, including for coarse grain material and high temperature applications.
• Two work modes: Single point mode and Scan mode.
• Coupling status indicator showing the coupling status.
• Auto sleep and auto power off function to conserve battery life.

model number: MT150

Part Number: MT150

Details: Introduction
Ultrasonic Thickness Gauges are designed to improve safety and ensure reliability of material subject to corrosion or erosion.Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications..Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.).




Technical Specifications
Measuring Range: 0.75-300mm (Depends on probes)
Working Frequency: (2.5-7）MHZ
Probe Diameter: Standard N05 is10MM
Min. Pipe Diameter: Φ15mm×2.0mm
Resolution: 0.1mm
Accuracy: ±（0.5%Thickness+0.04）mm,depends on probes
Display: 4.5 digits LCD with EL backlight
Single /Scan Mode: Four measurements readings per second for single point measurement, and ten per second for Scan Mode
Probe Calibration: Zero Calibration, Two-Point Calibration
Velocity Range : 1000-9999m/s
Unit:Metric/Imperial unit selectable; Language, English
Memory: up to 20 files (up to 99 values for each file) of stored values
Power supply:Two “AA” size, 1.5 Volt alkaline batteries（Battery not included in the package）
Working Hours: 100h (EL backlight off).Lower Power Comsumption
Operating Temperature: －20℃～＋60℃; Relative Huminity≤90％
Outline dimensions: 150mm×74mm×32 mm; Appearance: ABS Plastic
The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

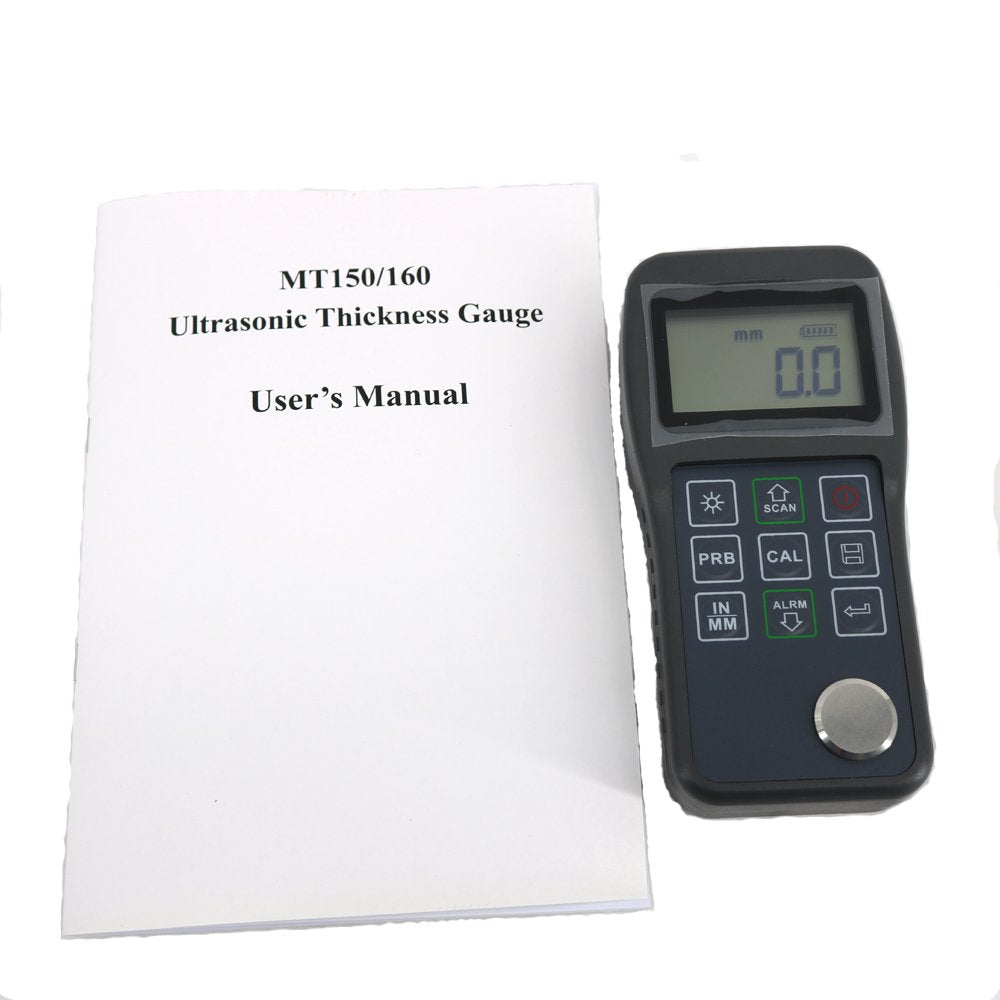

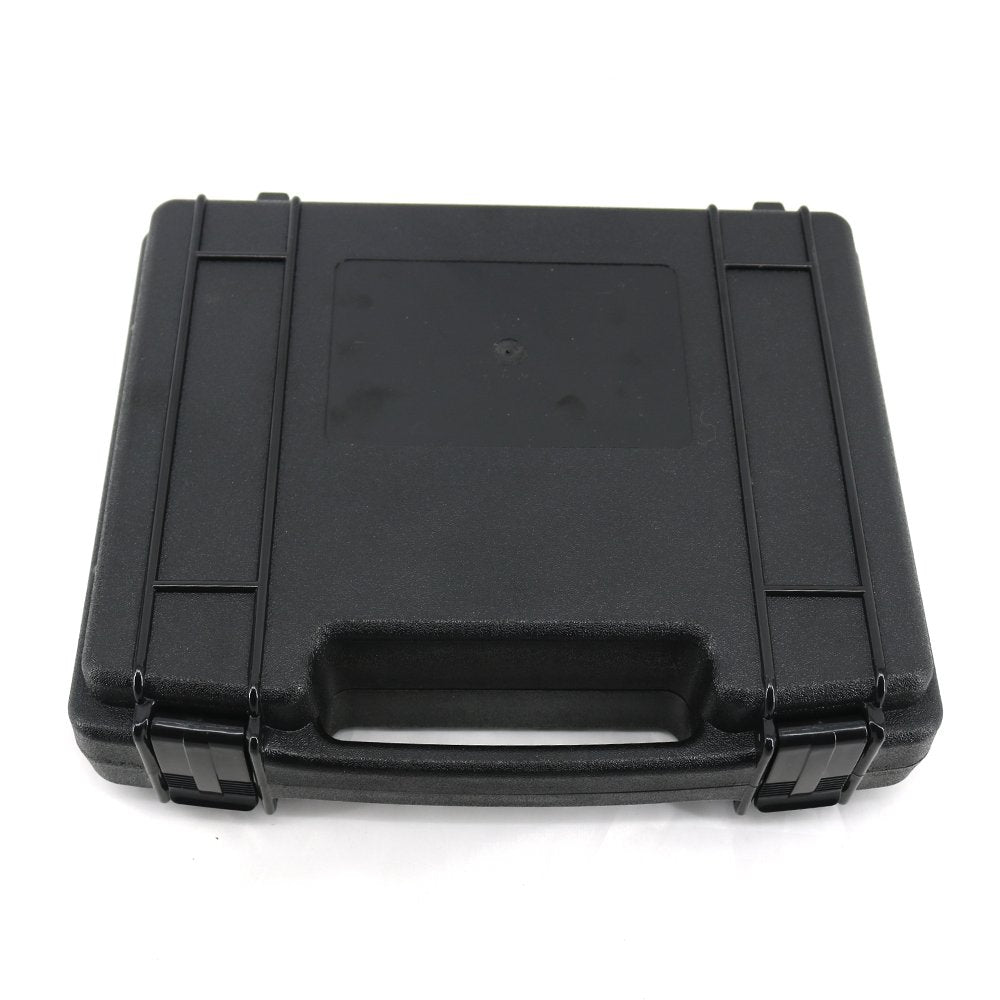

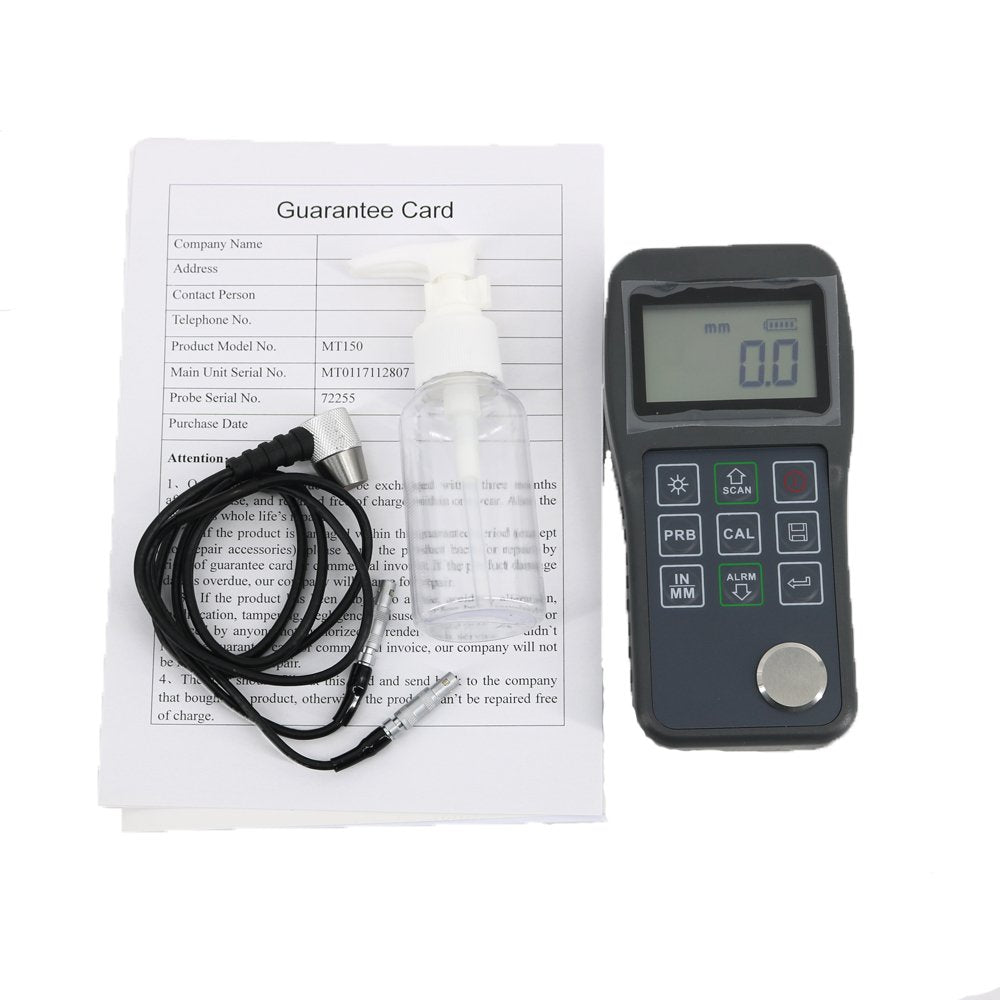

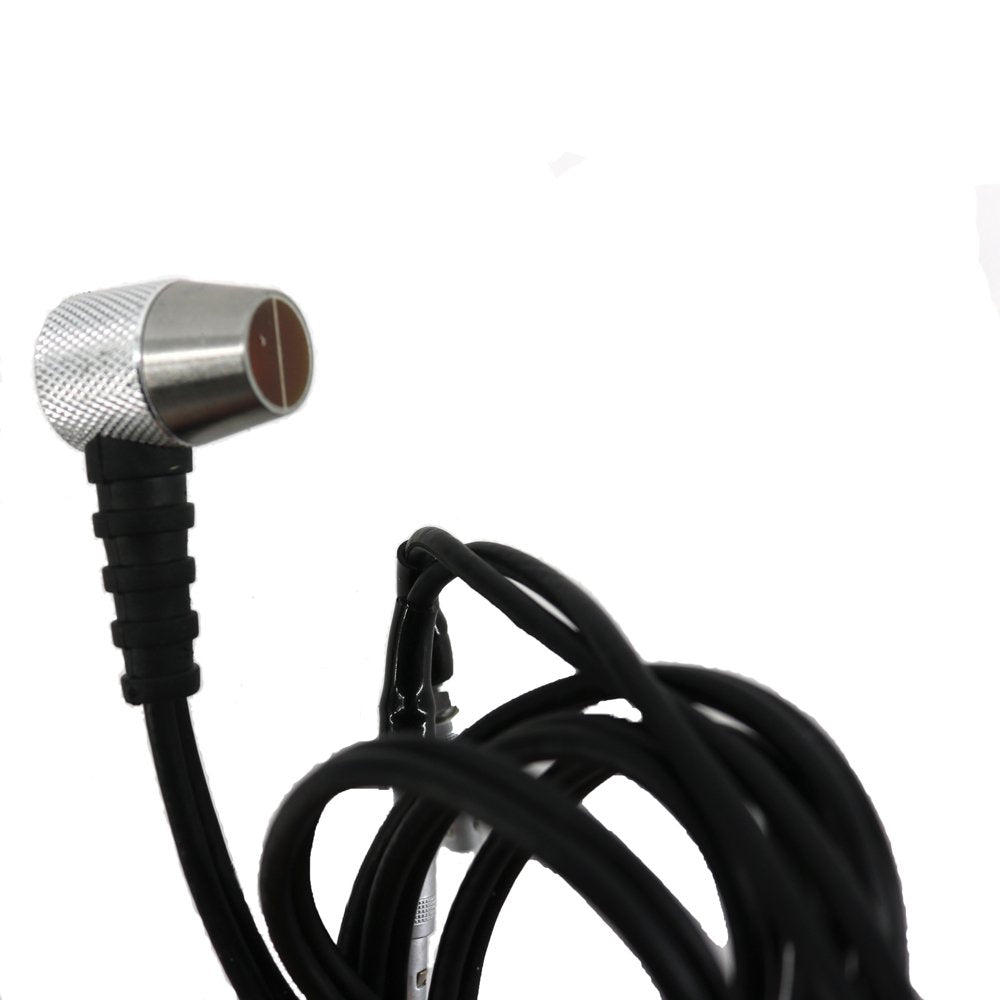

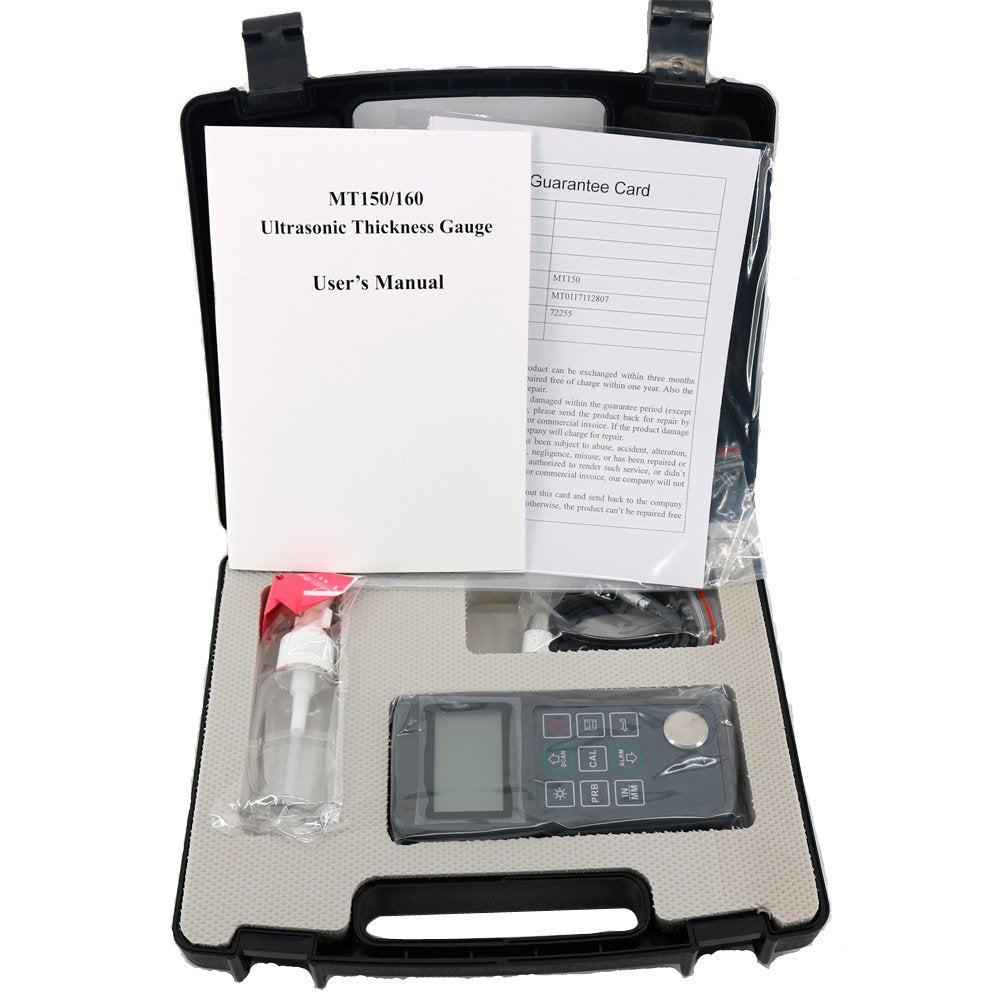

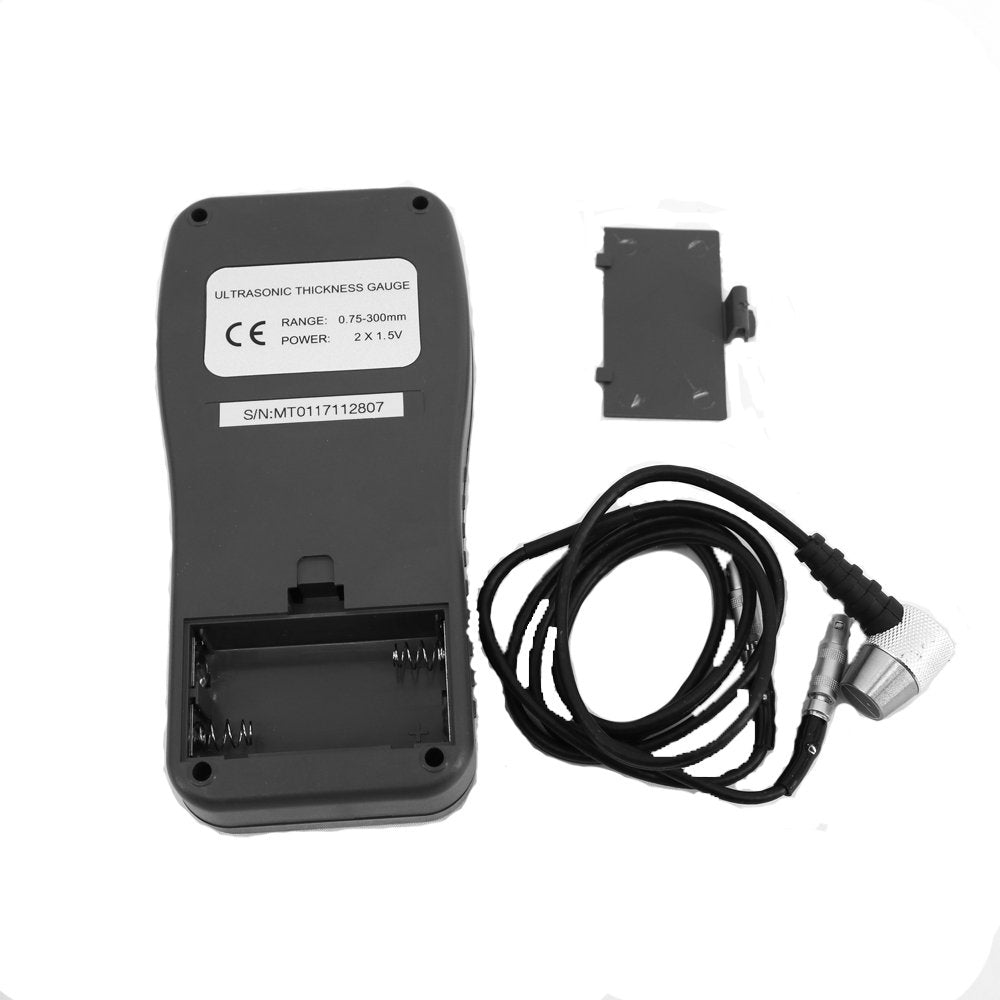

Standard Accessories : Host, Standard ultrasonic thickness probe N05, ABS instrument case, Attached files
Optional Accessories: Probe N07 is 6MM、Probe HT5 is12MM、Probe N02 is12MM

EAN: 0725370412436
