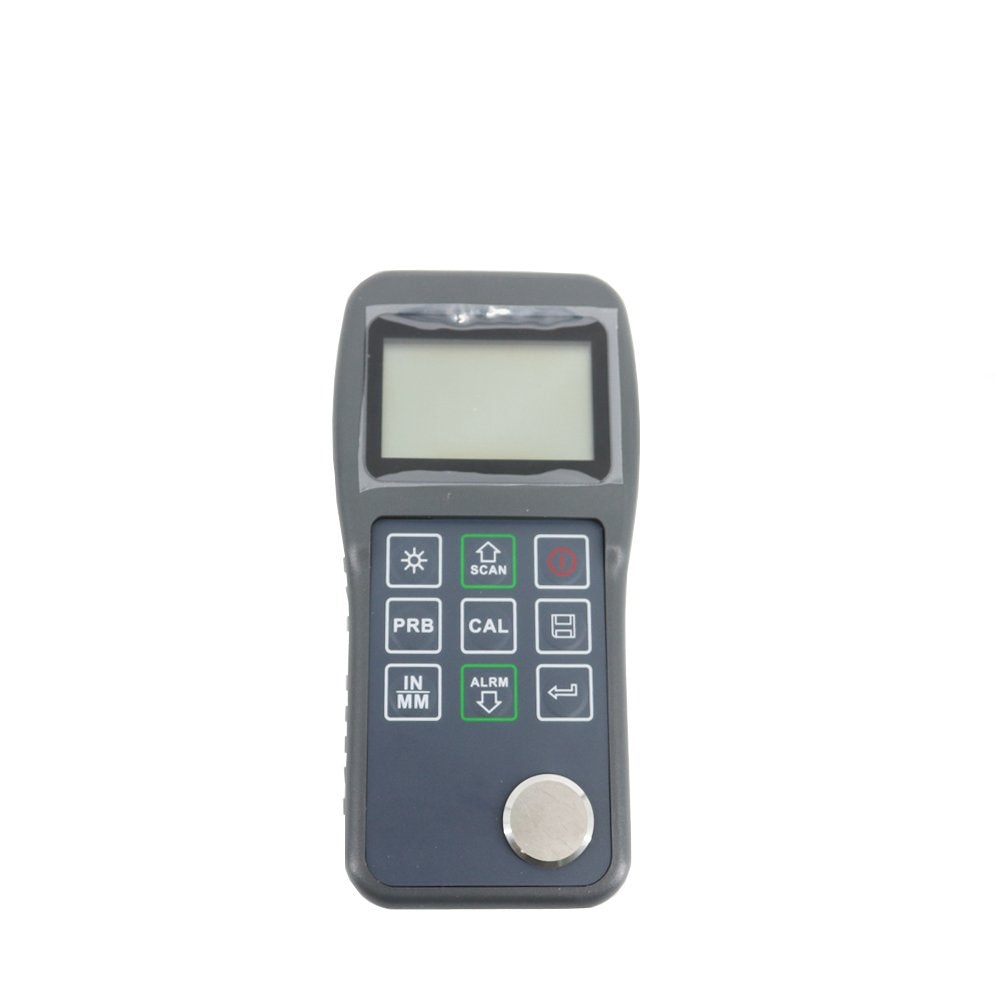

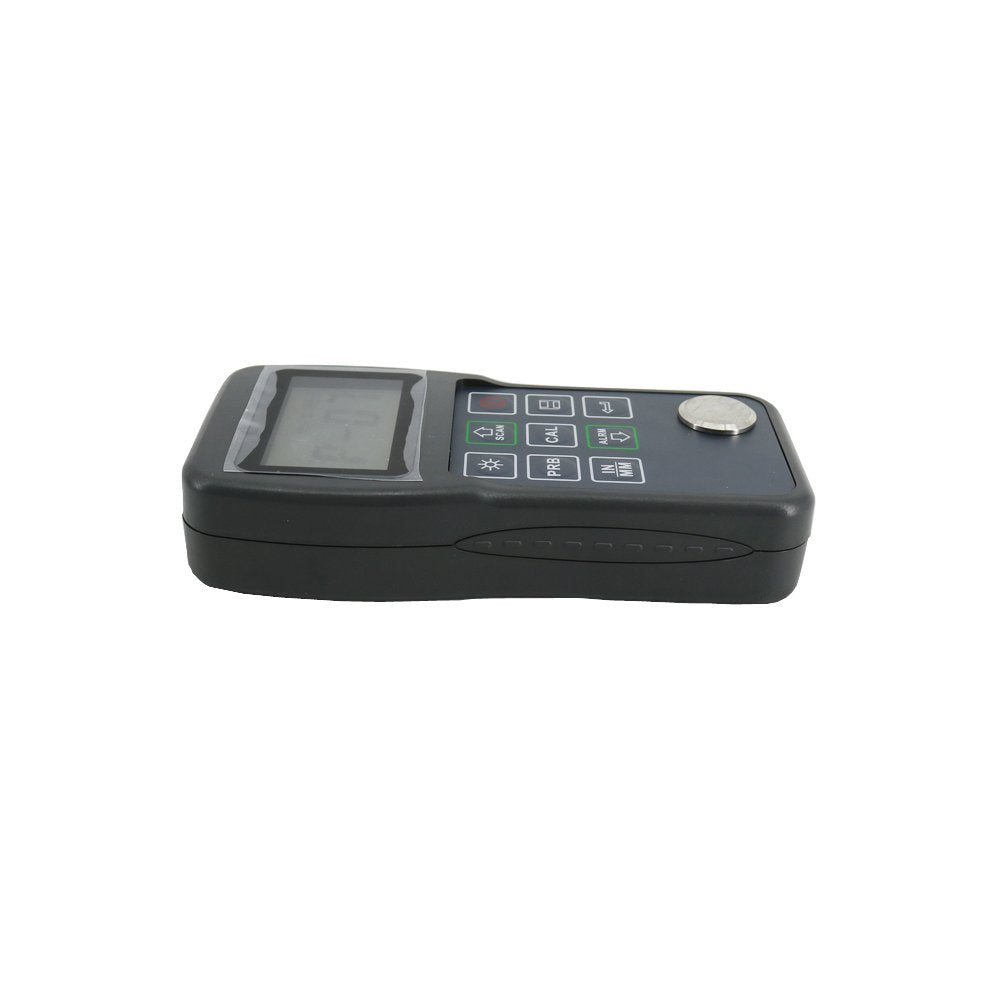

MT160 Ultrasonic thickness Gauge is capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

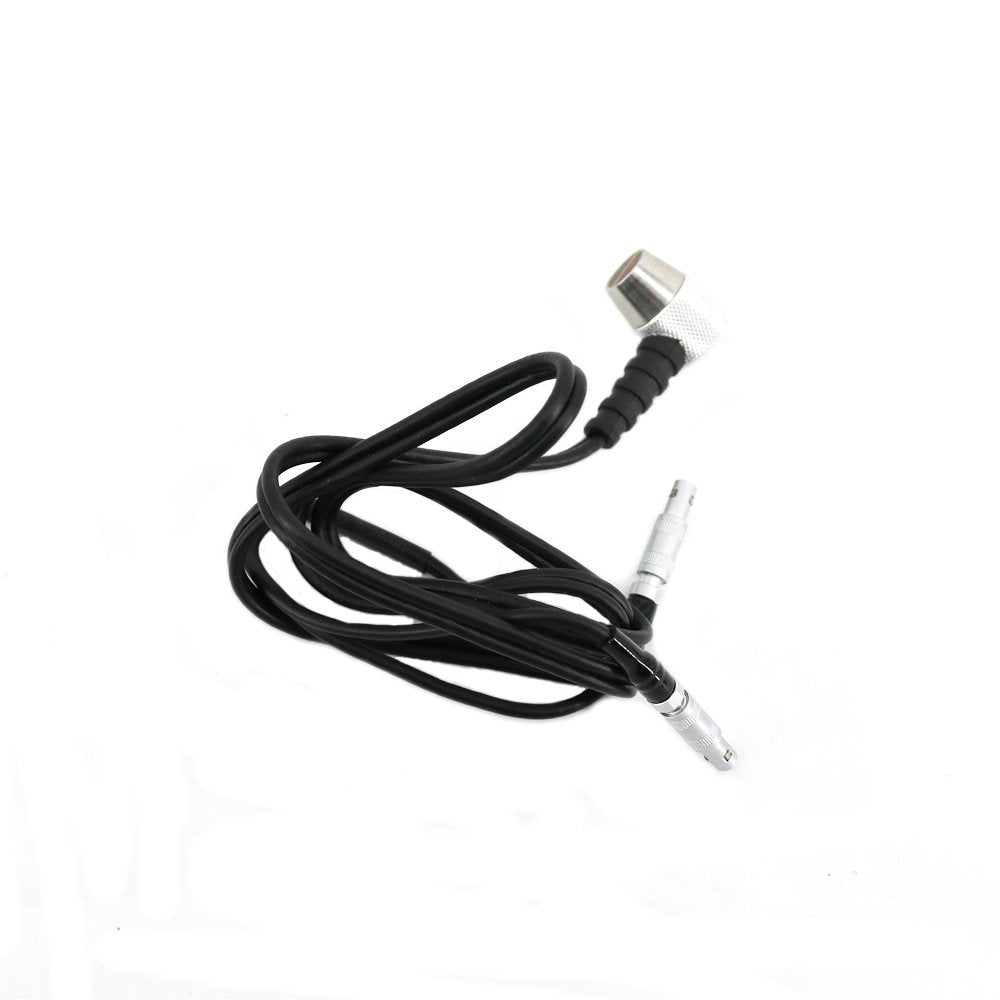

Transducer models are available for special application, including for coarse grain material and high temperature applications.
Two work modes: Single point mode and Scan mode.
Coupling status indicator showing the coupling status.
Auto sleep and auto power off function to conserve battery life.

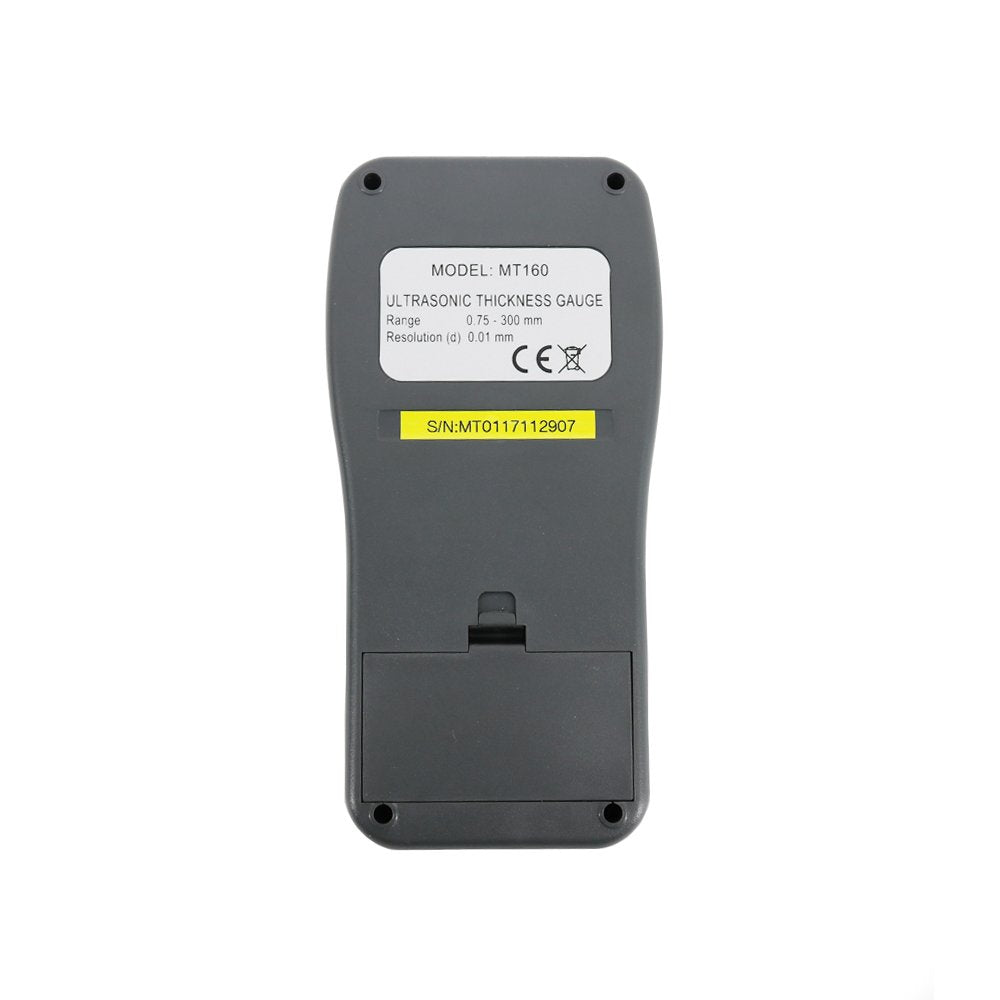

model number: MT160
Part Number: MT160
Details: Introduction
Ultrasonic Thickness Gauges are designed to improve safety and ensure reliability of material subject to corrosion or erosion.
Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications..
Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.).
Specification

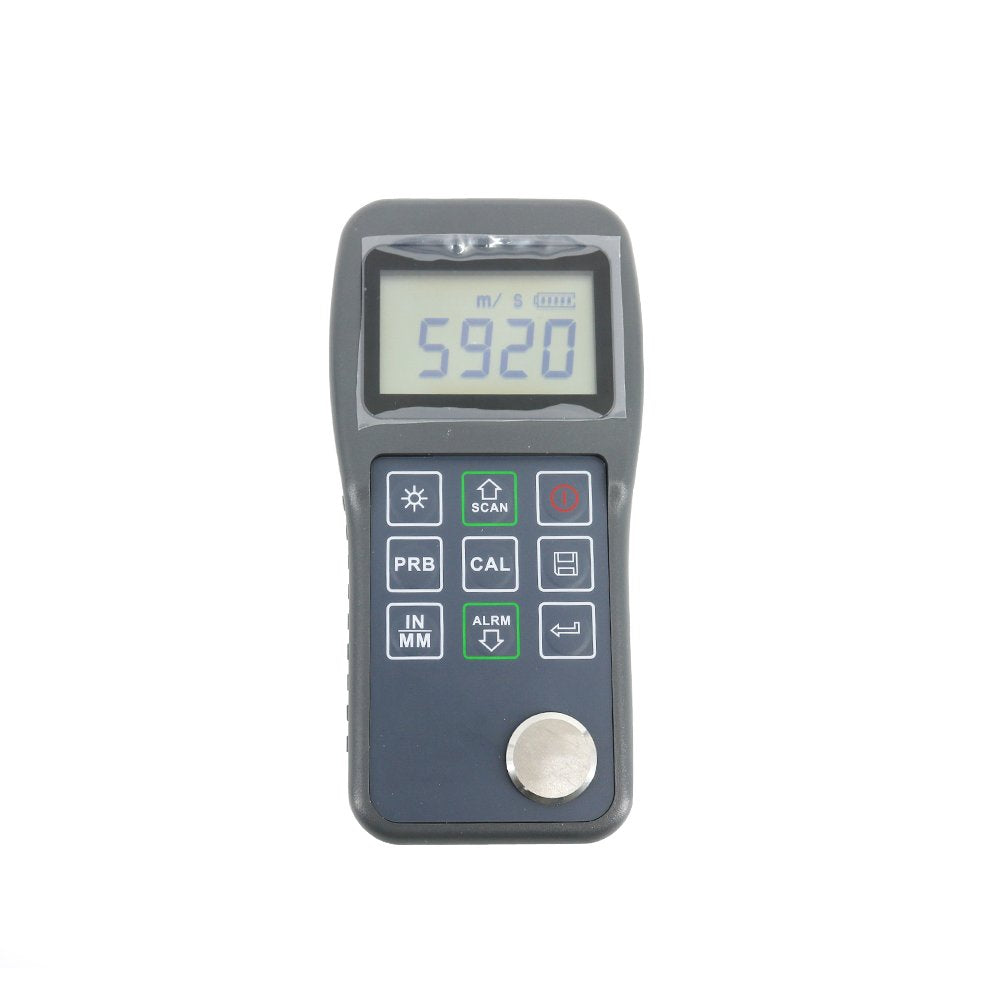

Display:4.5 digits LCD with EL backlight.
Measuring Range:0.75~300mm (in Steel).
Sound Velocity Range: 1000~9999 m/s.
MT160: 0.1/0.01mm
Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions
Units: Metric/Imperial unit selectable.
Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
Memory for up to 20 files (up to 99 values for each file) of stored values.
Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).

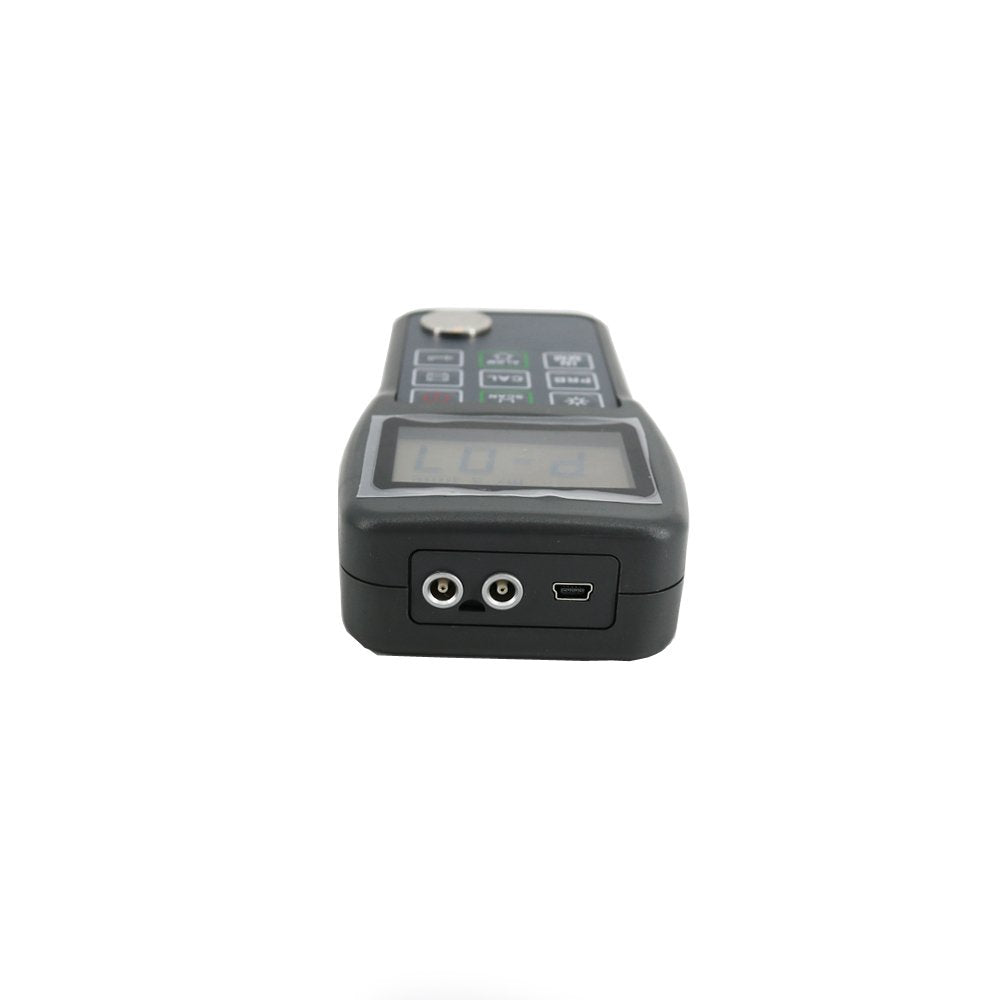

Communication:RS232 serial port.
Outline dimensions:150×74×32 mm. Weight:245g
