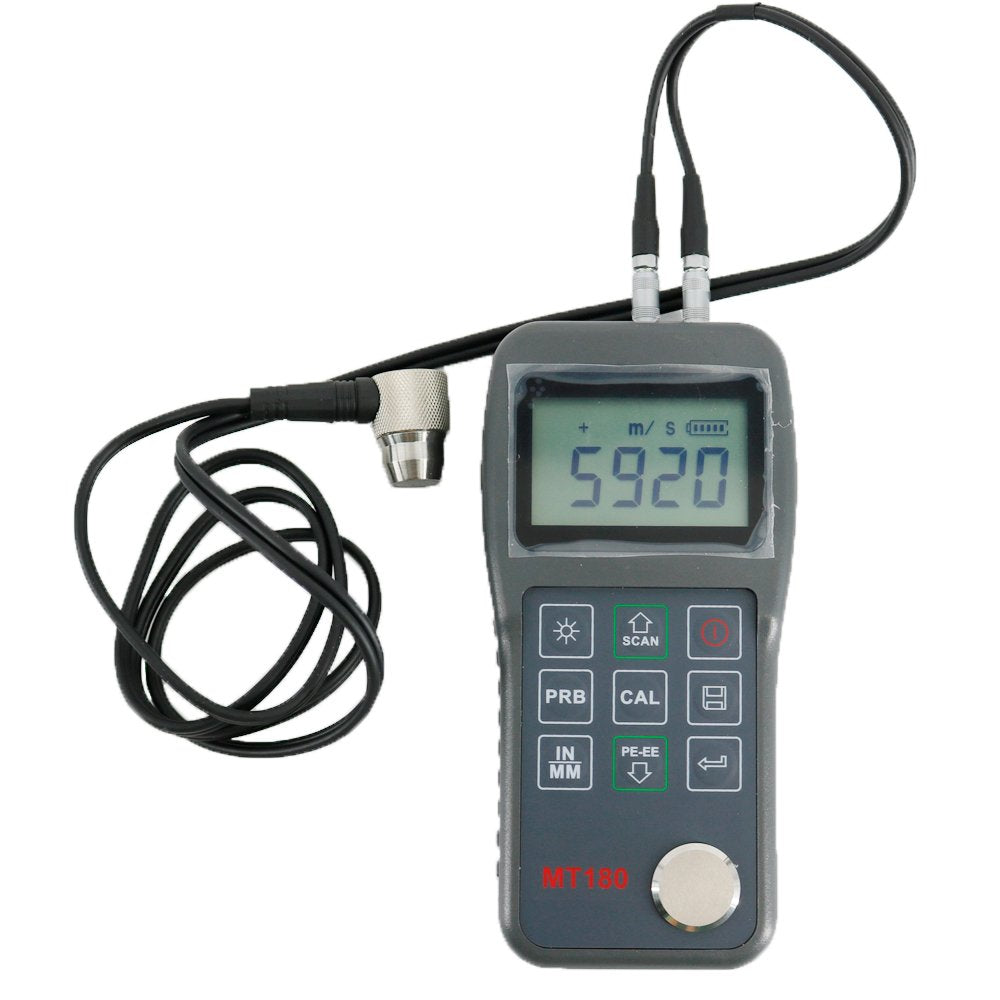

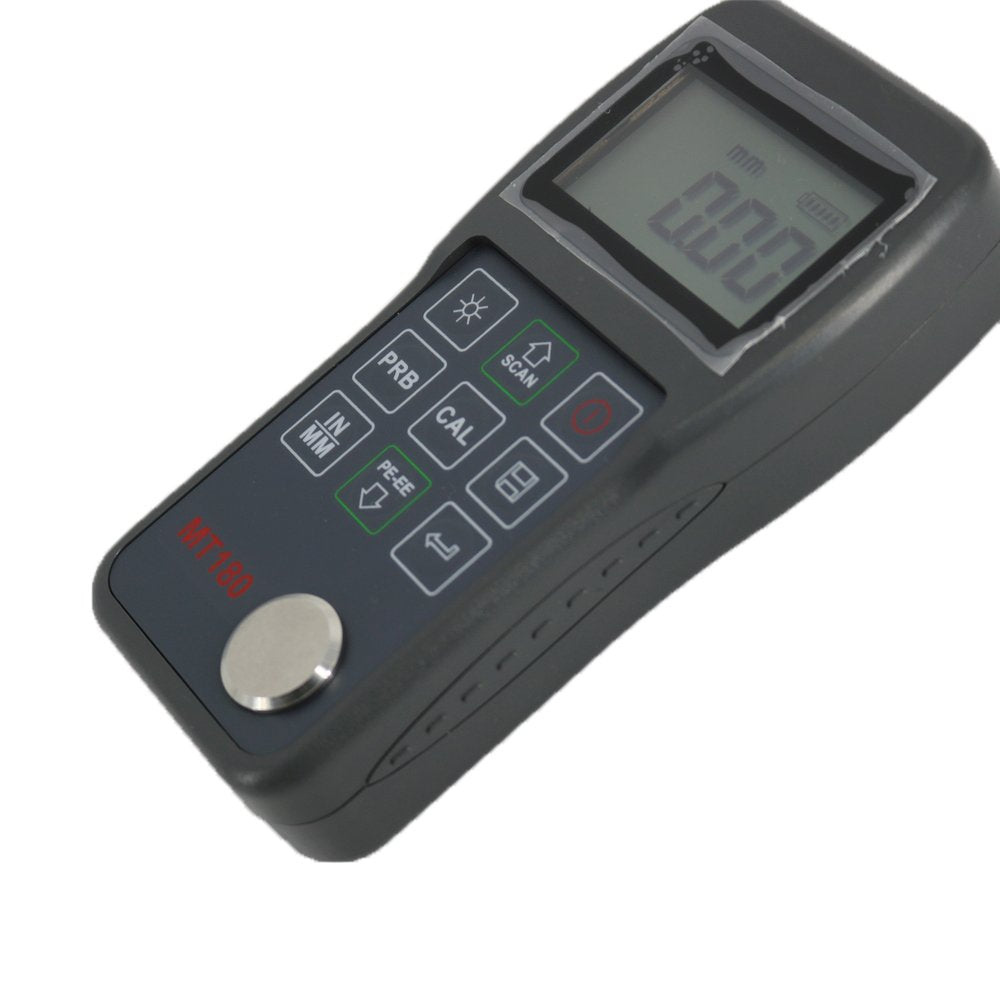

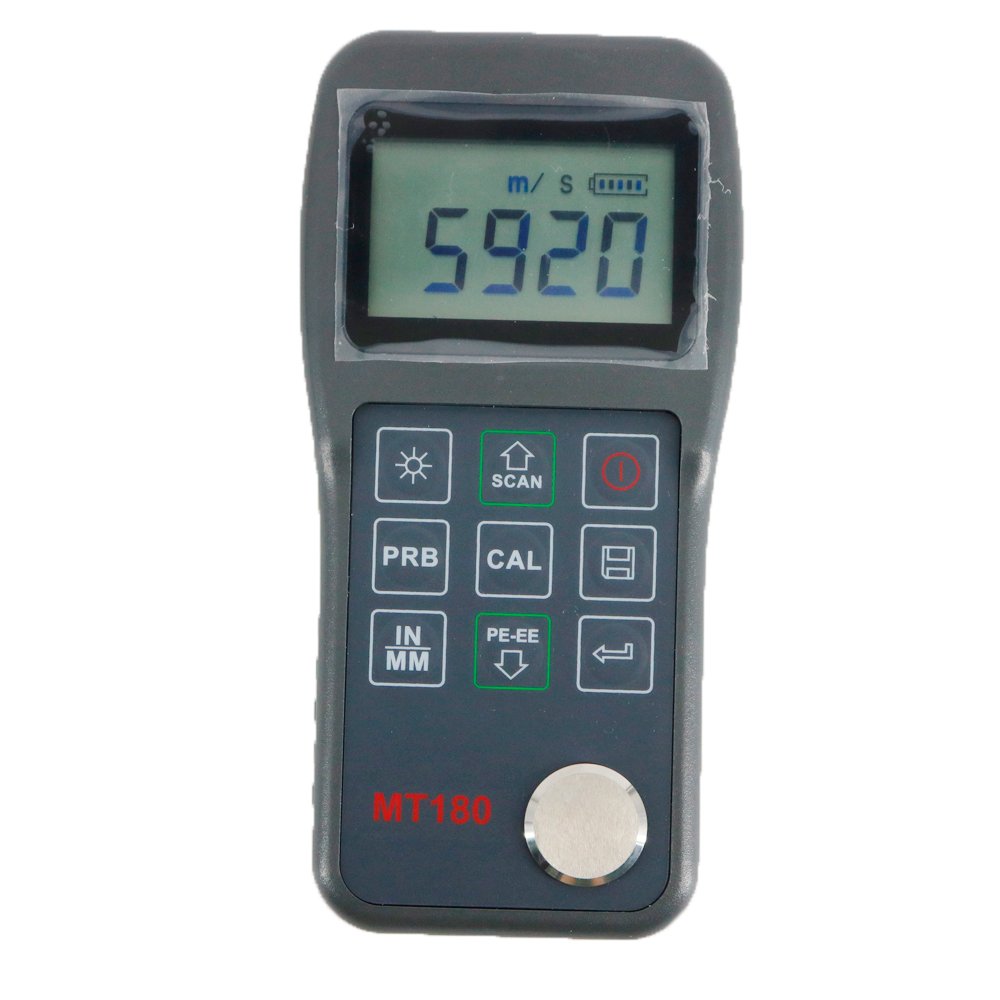

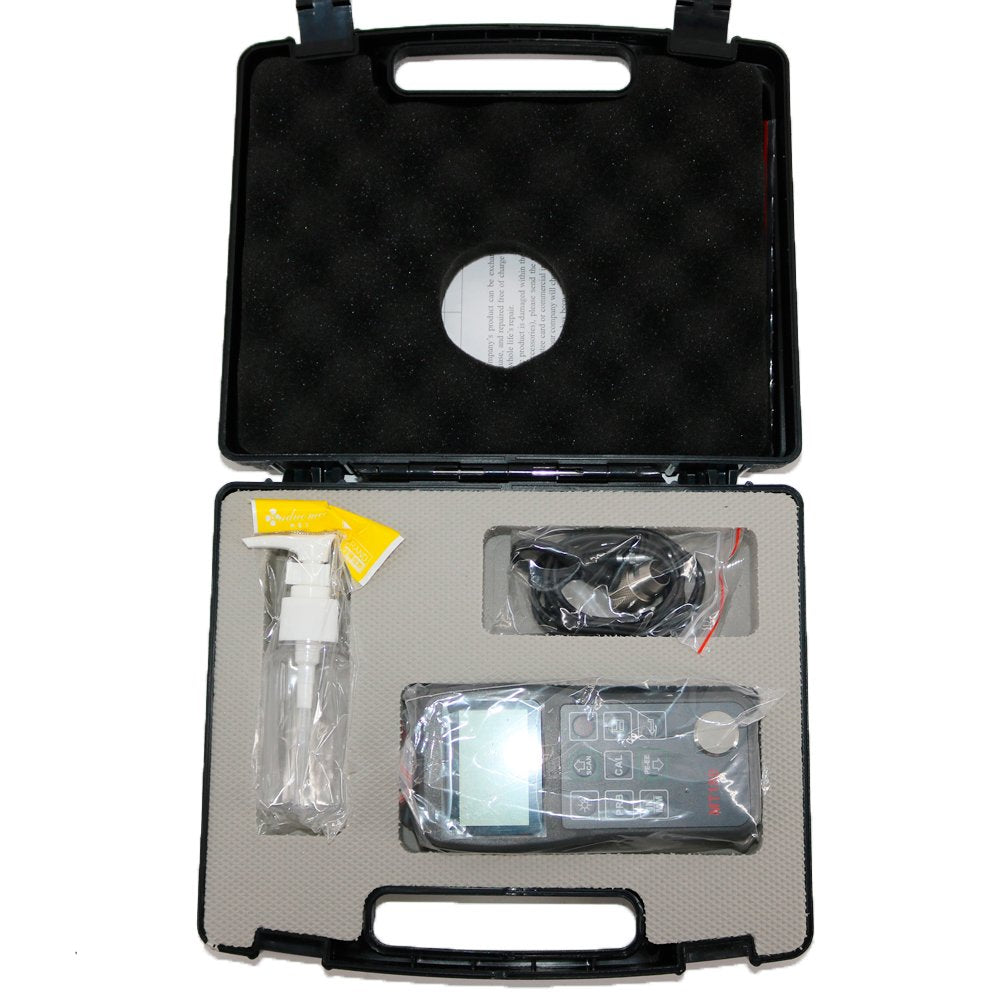

Graigar MT180 Ultrasonic Thickness Meter Gauge PE EE Multi-mode Thickness Tester

Brand: Graigar

Color: Gray

Features:

• MT180 ultrasonic thickness gauge is capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

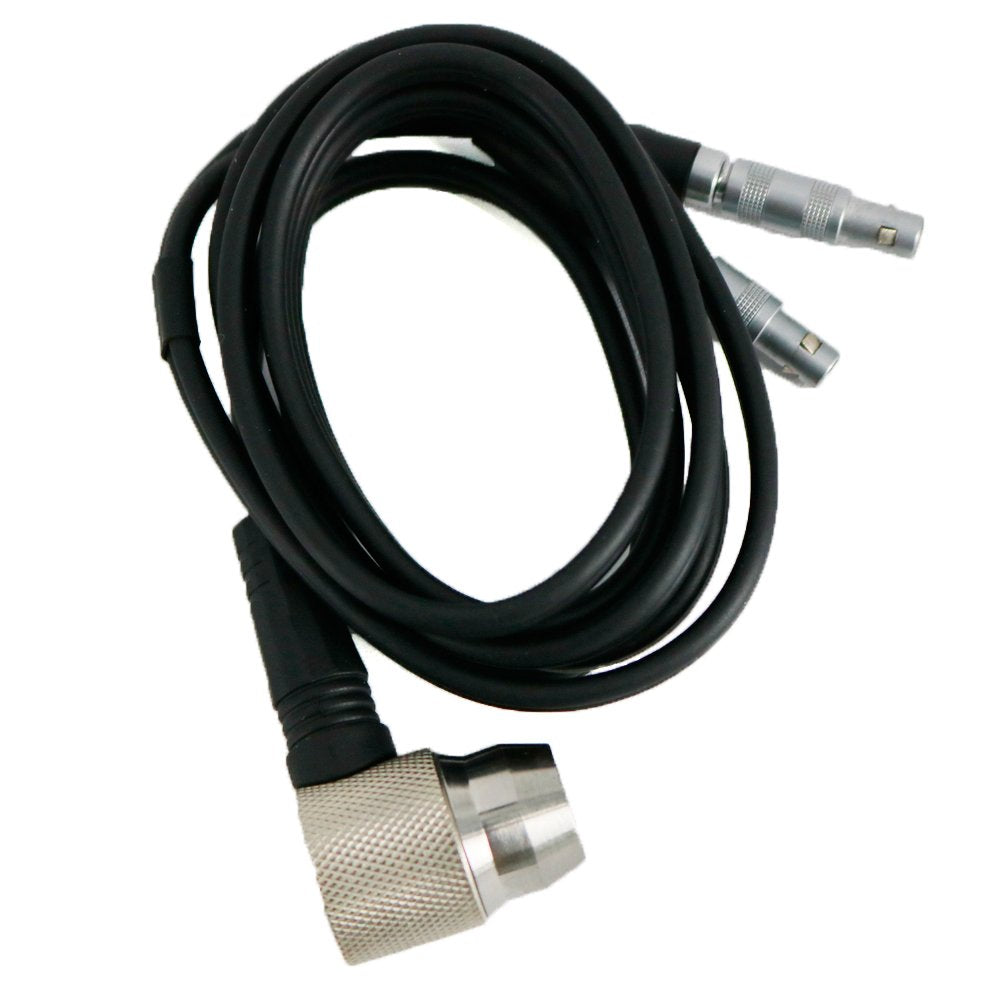

• Transducer models are available for special application, including for coarse grain material and high temperature applications.
• Two work modes: Single point mode and Scan mode.
• Coupling status indicator showing the coupling status.
• Auto sleep and auto power off function to conserve battery life.

model number: MT180

Part Number: MT180

Details: Introduction
The model MT180/MT190 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. The multi-mode feature of the gauge allows the user to toggle between pulse-echo mode (flaw and pit detection), and echo-echo mode(eliminate paint or coating thickness).

Main Function

Multi-mode: Pulse-Echo mode and Echo-Echo mode.
Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
Transducer models are available for special application, including for coarse grain material and high temperature applications.
Probe-Zero function, Sound-Velocity-Calibration function
Two-Point Calibration function.
Single point mode and Scan mode. Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode.
Coupling status indicator showing the coupling status.
Units: Metric/Imperial unit selectable.
Battery information indicates the rest capacity of the battery.
Auto sleep and auto power off function to conserve battery life.
Optional software to process the memory data on the PC.

Product Specifications

Display:4.5 digits LCD with EL backlight.
Range:Pulse-Echo mode: (0.65--600)mm (in Steel).
Echo-Echo mode: (3--30)mm for MT180,
(3-60)mm for MT190.
Sound Velocity Range: (1000~9999) m/s.
Resolution: 0.1mm/0.01mm
Accuracy: ±(0.5%Thickness+0.01)mm, depends on materials and conditions
Memory for up to 20 files (up to 99 values for each file) of stored values.

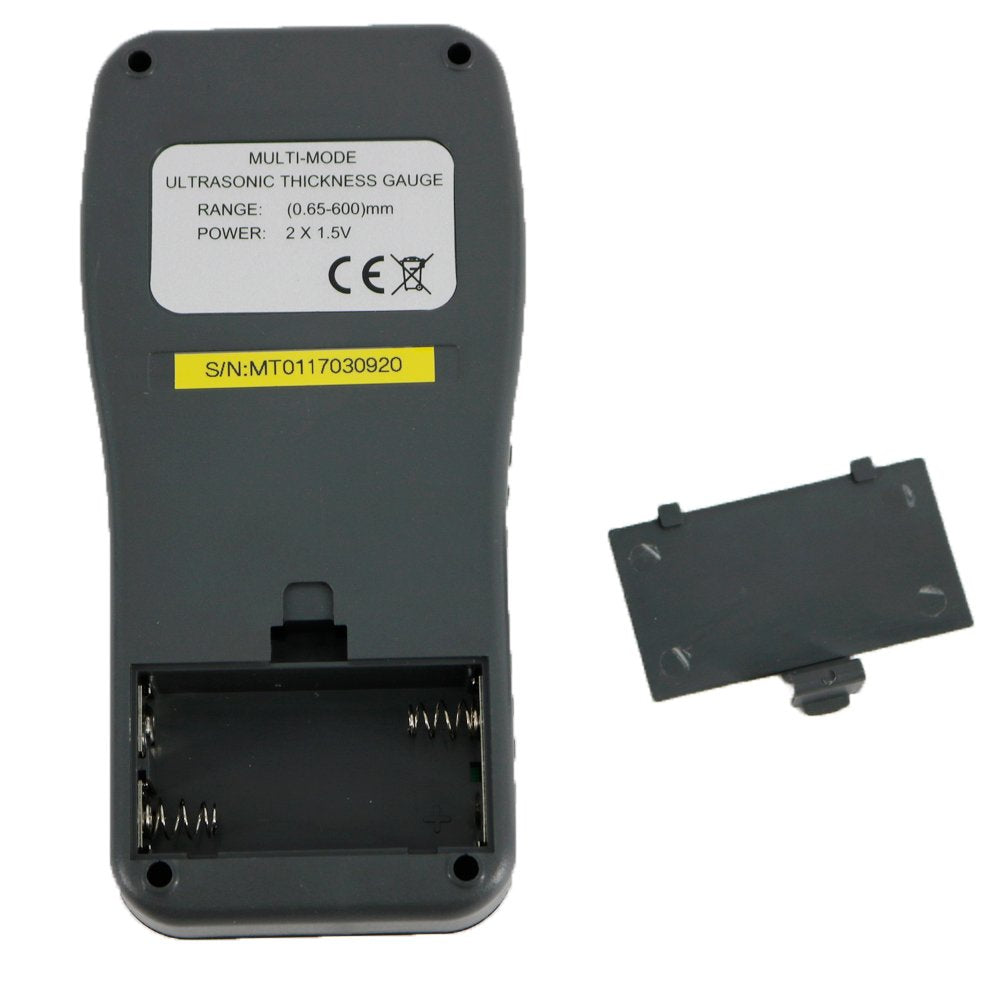

Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).

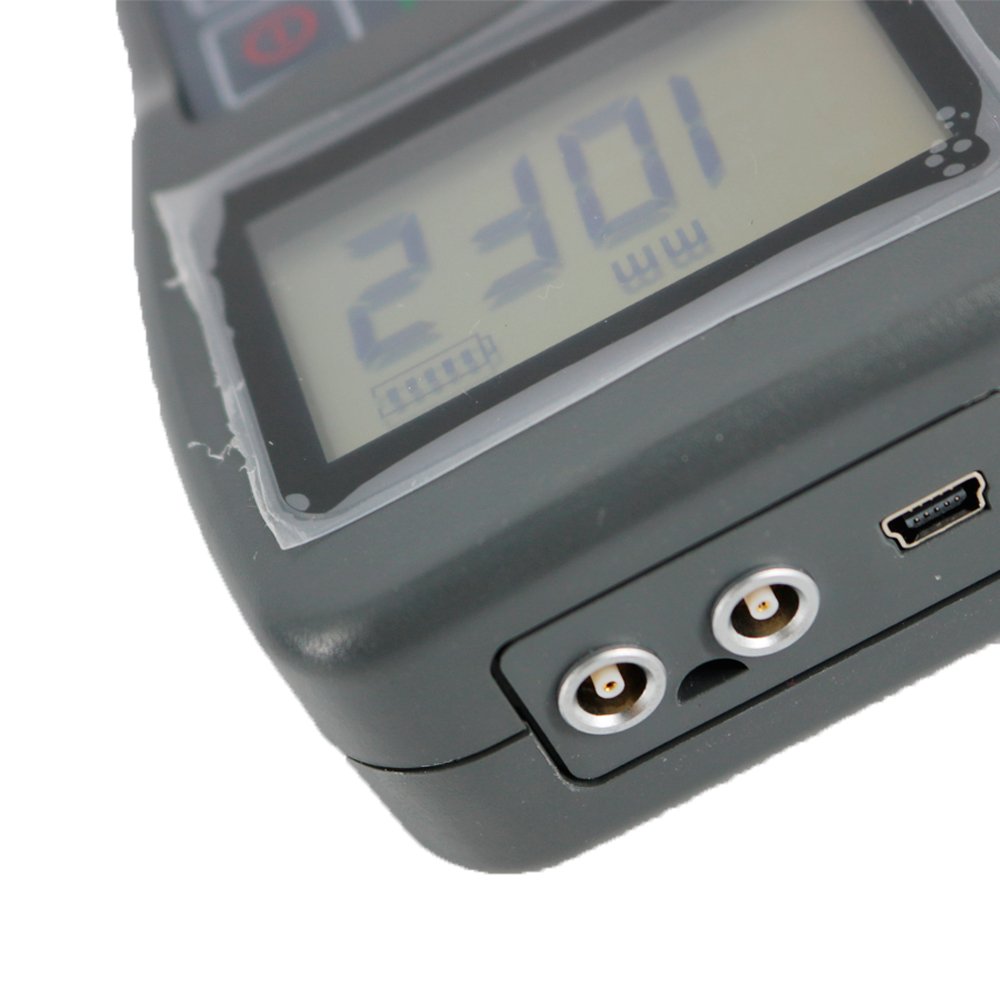

Communication:USB1.1.
Outline dimensions:150mm×74mm×32 mm.
Weight:245g

EAN: 0725370412917
