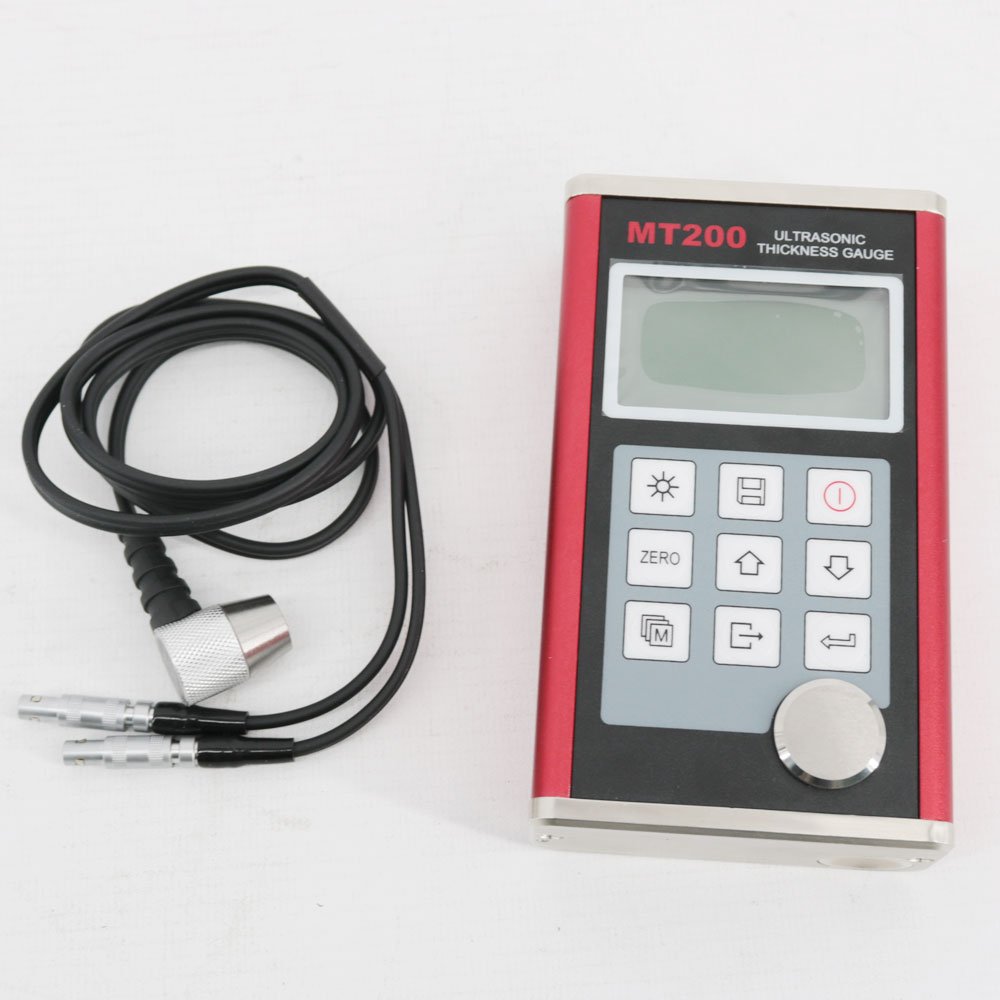

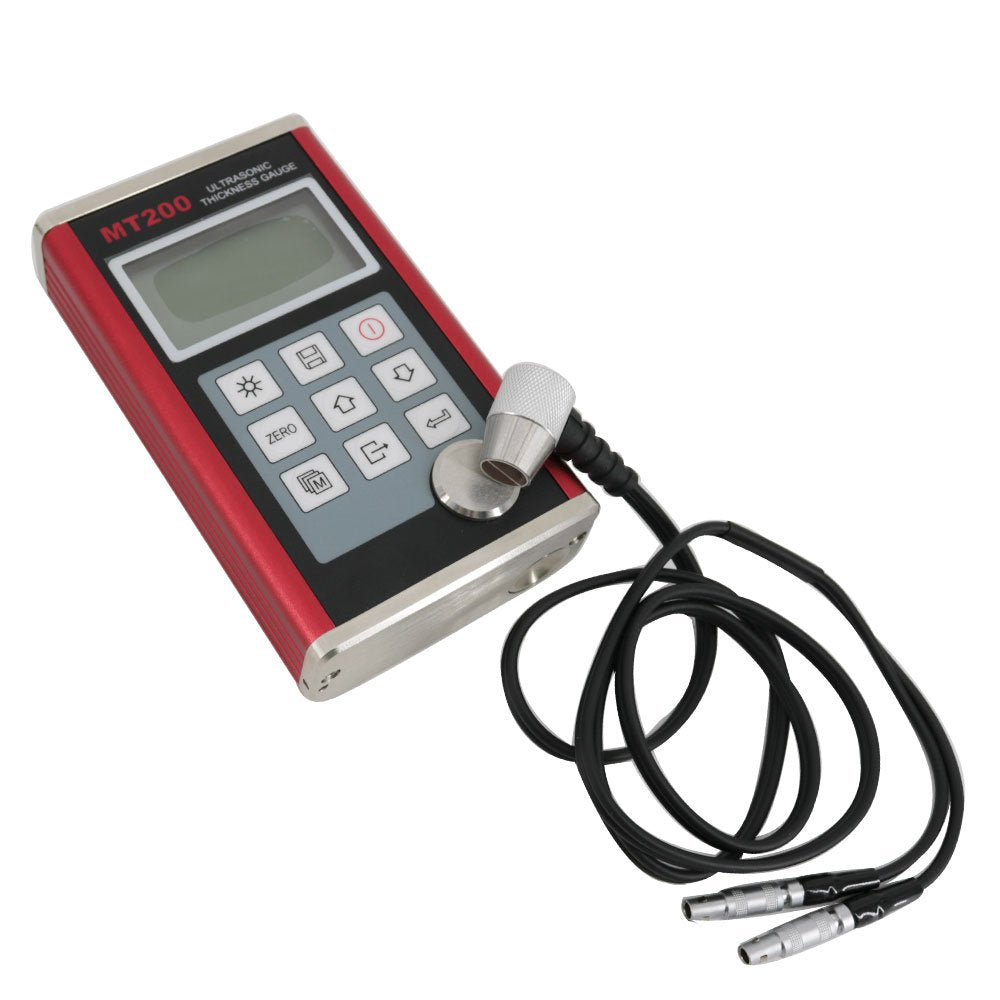

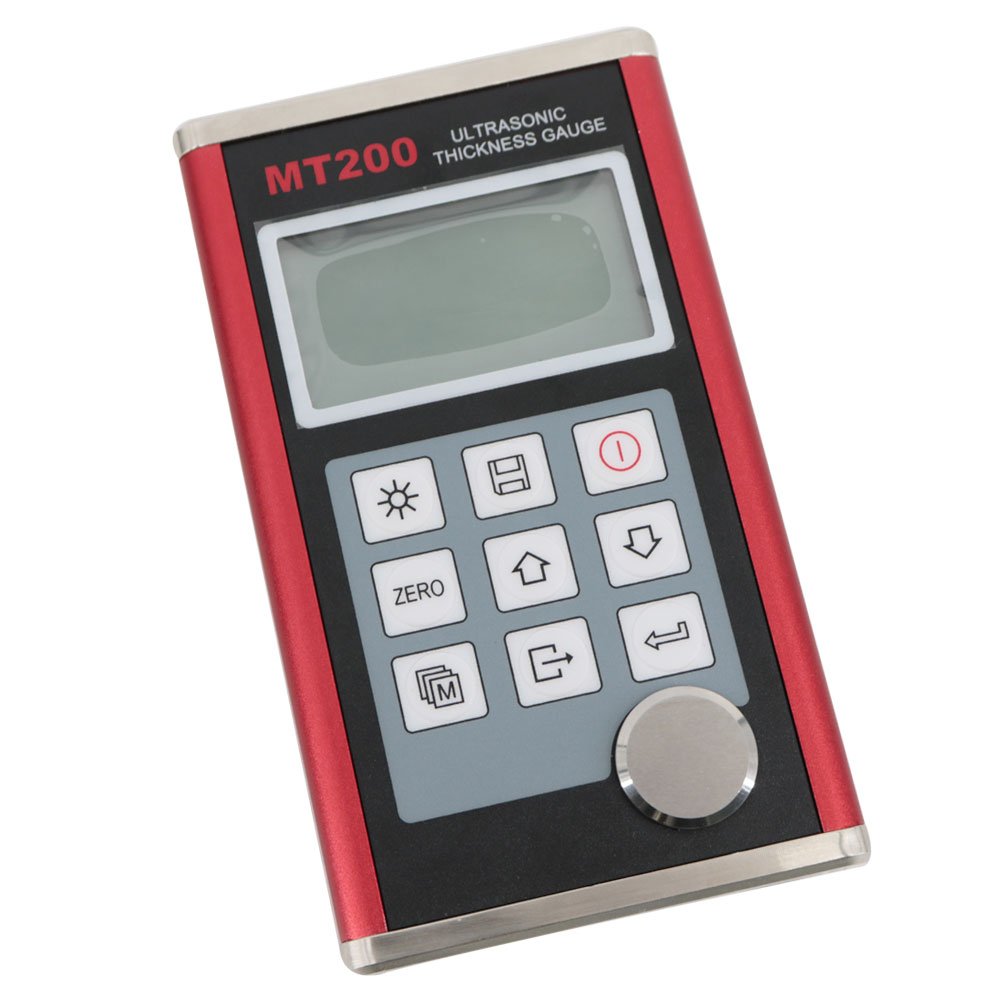

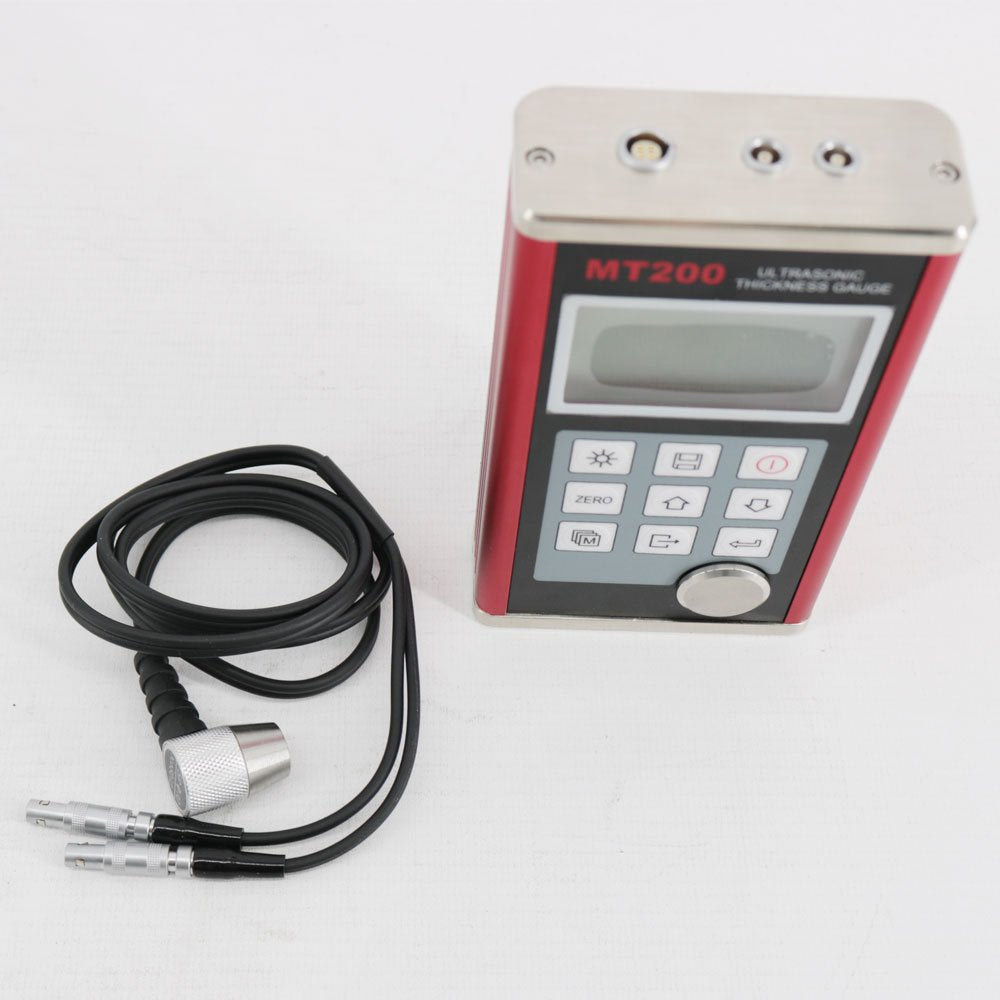

Graigar MT200 Digital Ultrasonic Thickness Gauge Meter Tester 0.75-300mm (in Steel) 0.1/0.01mm

Brand: Graigar

Color: Black & Red

Features:

• MT200 ultrasonic thickness gauge has the function of indicating the remaining quantity of electricity, and can display the residual power of the battery in real time, and has the functions of automatic sleep, automatic shutdown, etc.
• It has the function of probe zero calibration and two point calibration, and can correct the system error automatically
• The upper and lower limits of the thickness value can be set in advance, and the automatic alarm is out of range
• The sealed metal housing is compact, portable and reliable, suitable for harsh operating conditions, against vibration, shock and electromagnetic drying
• There are two thickness measuring modes of single point thickness measurement and scanning thickness measurement

Part Number: MT200

Details: The model MT200 is a digital ultrasonic thickness gauge. Based on the same operating principles as SONAR, the MT200 is capable of measuring the thickness of various materials with accuracy as high as 0.01 millimeters, or 0.001inches. It is widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields of production equipment, but also can be used for accurate measurement of various materials and various kinds of machining parts.
Function & Application
Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications.
Technical Specifications
*Measuring range: 0.75-300mm (Depends on probes)
*Resolution:0.1/0.01mm
*Accuracy:±0.05mm(?10mm);(±0.5%H+0.01)mm(>10mm); H refer to the thickness of workpiece
*Communication storage:RS232 (USB communication cable is Optional Accessories)
*Working time:100h (EL backlight off).
*Sound Velocity:1000~9999 m/s
*Main unit weight:345g
*Dimensions:132mm × 76mm× 32mm
*Power supply: two 5 (AA size) alkaline batteries(Battery not included in the package)
Working Conditions
*Operating Temperature:-20℃～＋50℃
*Storage Temperature:30℃～＋70℃
*Relative Humidity:≤90％
*The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

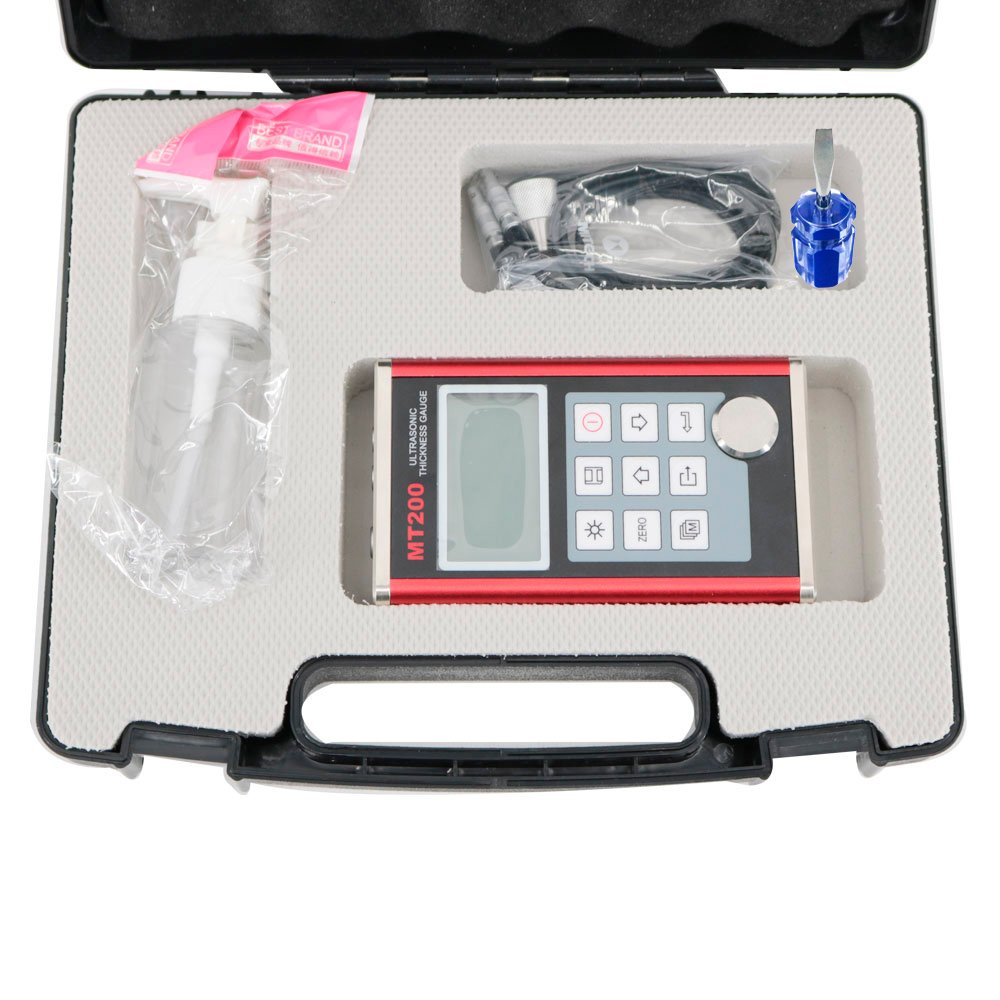

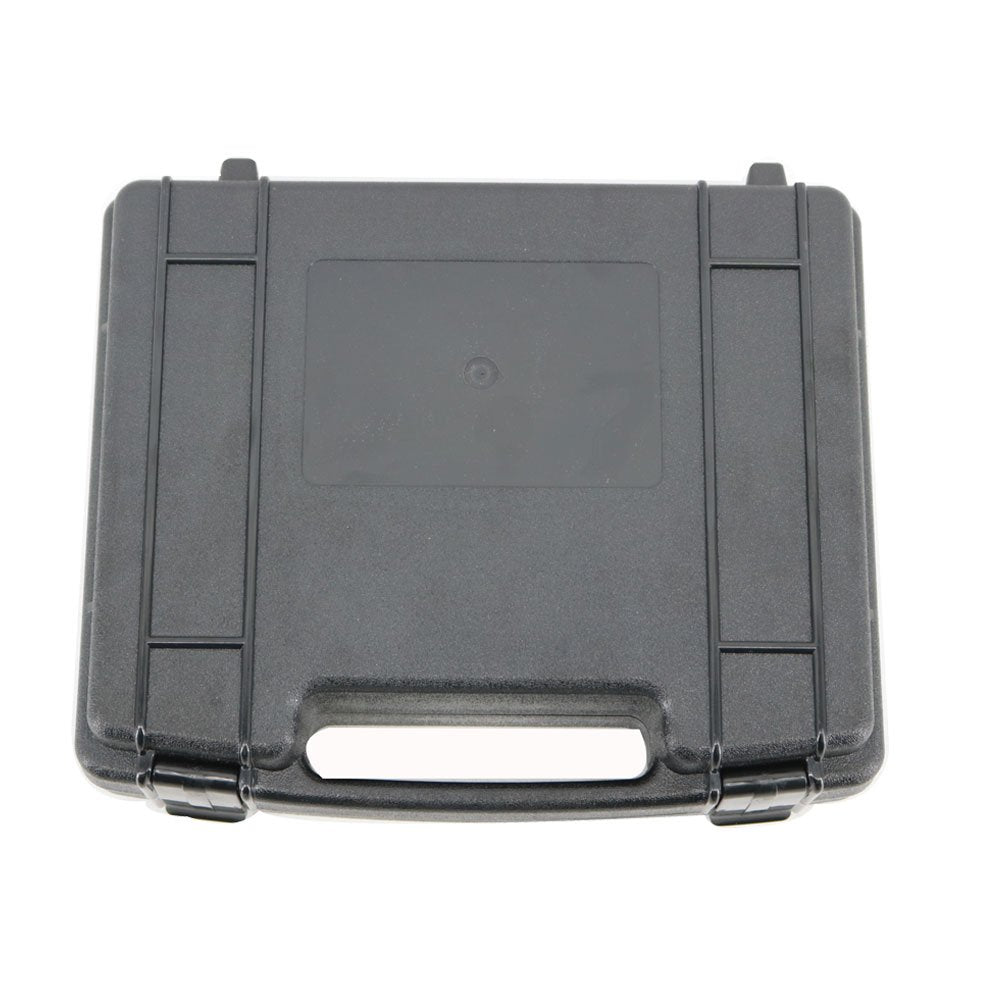

*Standard Accessories: Main Unit, Standard ultrasonic thickness probe N05, Screwdriver, ABS instrument case,Attached files

EAN: 0725370414881
