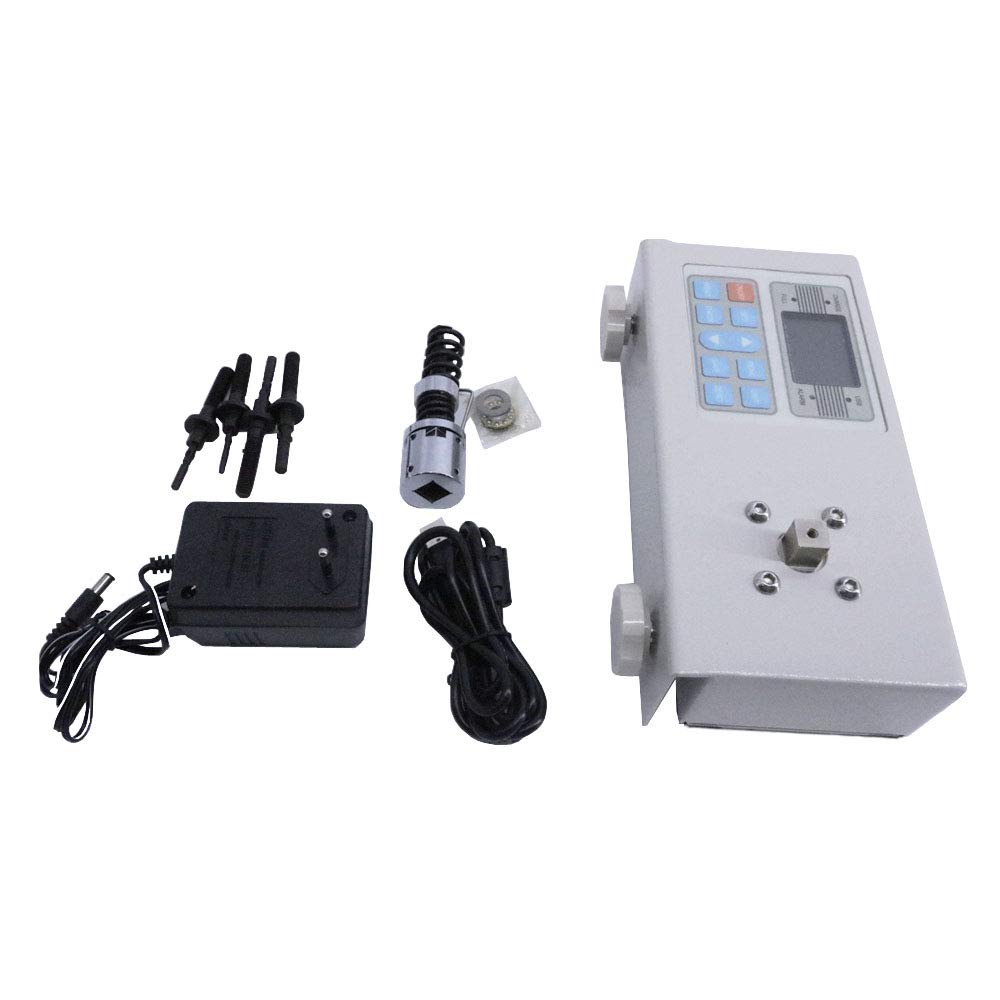

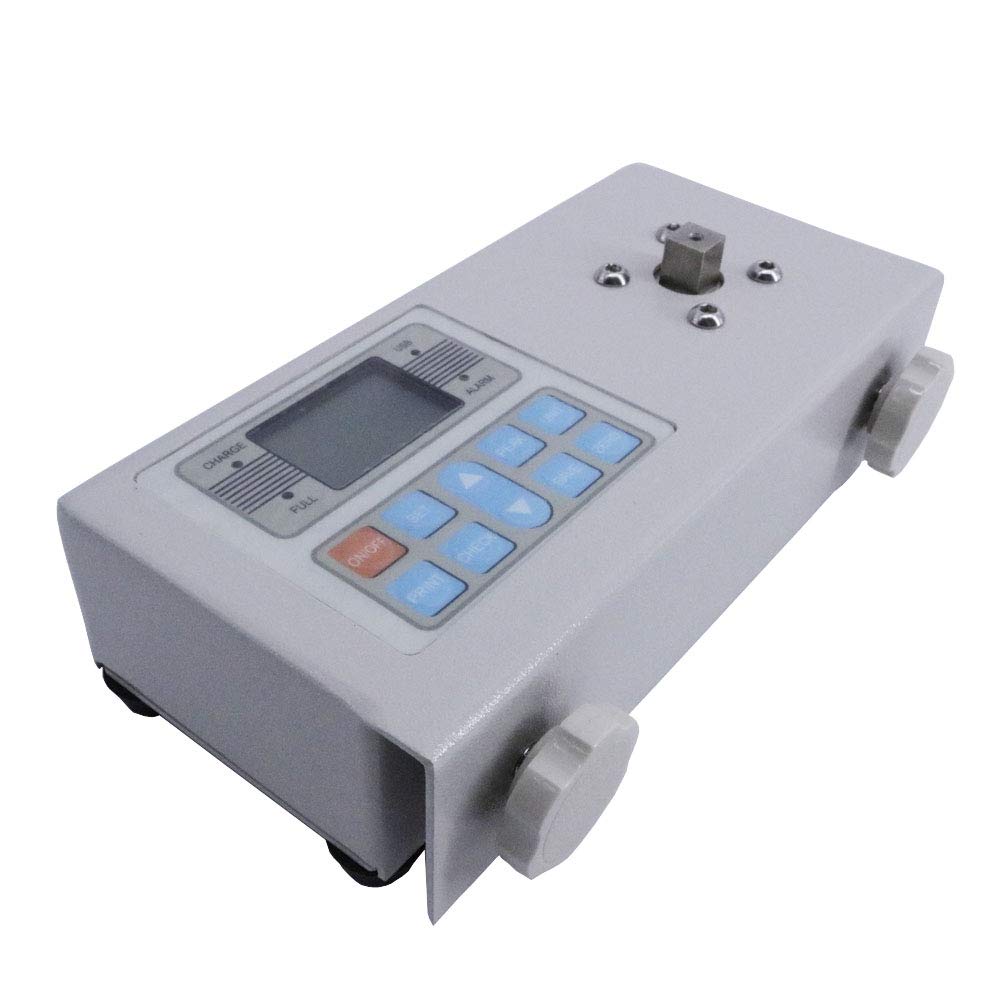

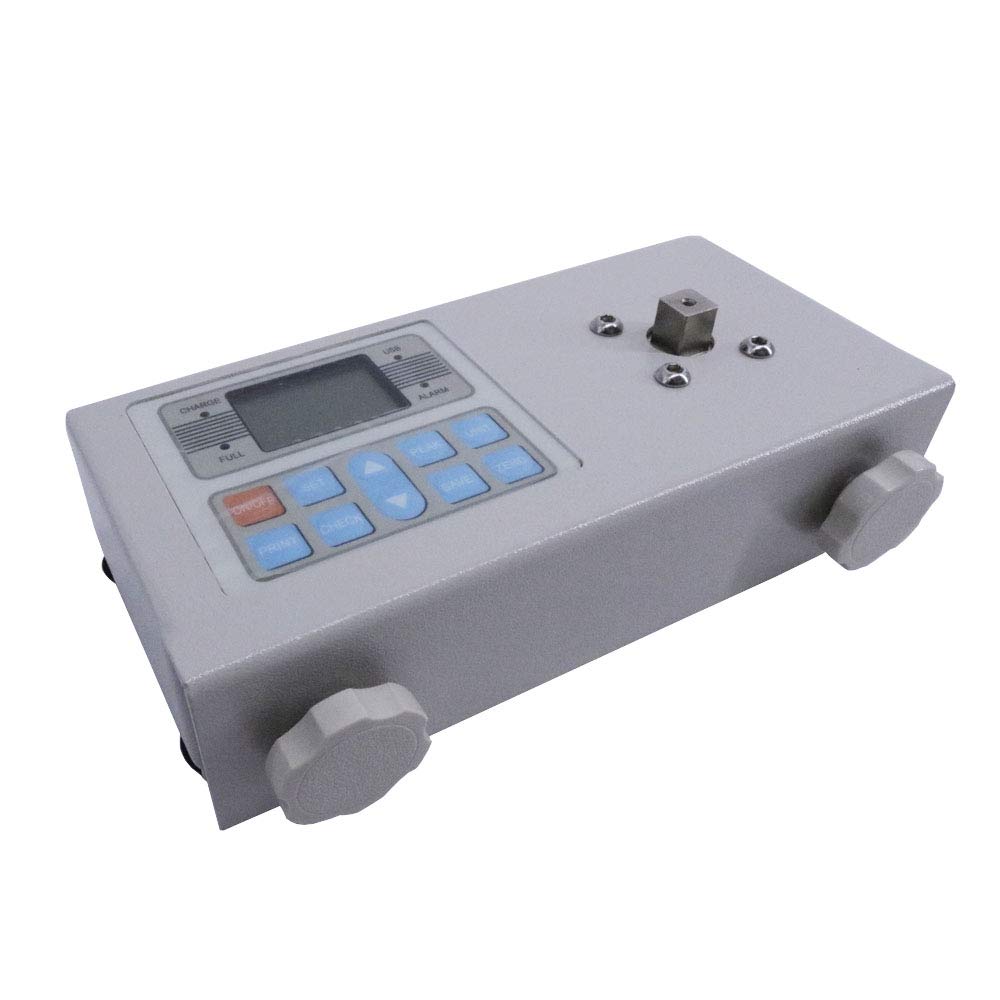

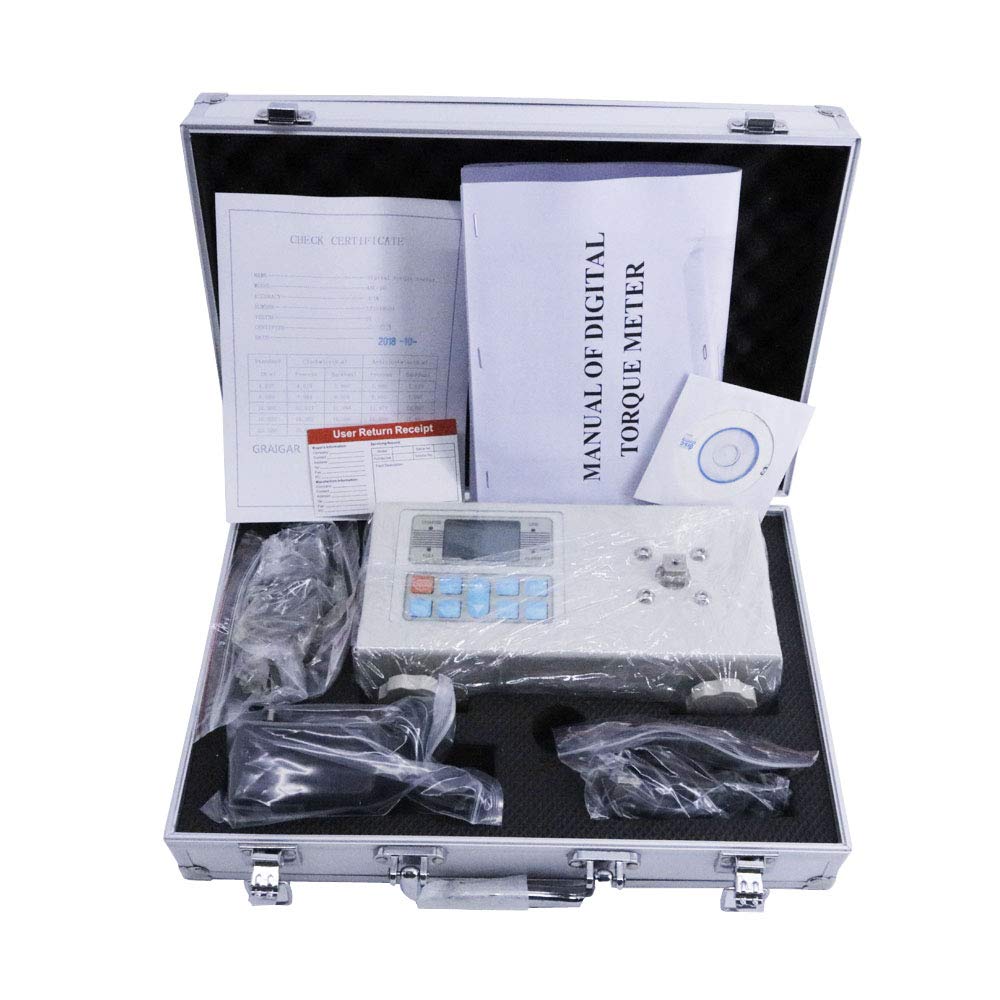

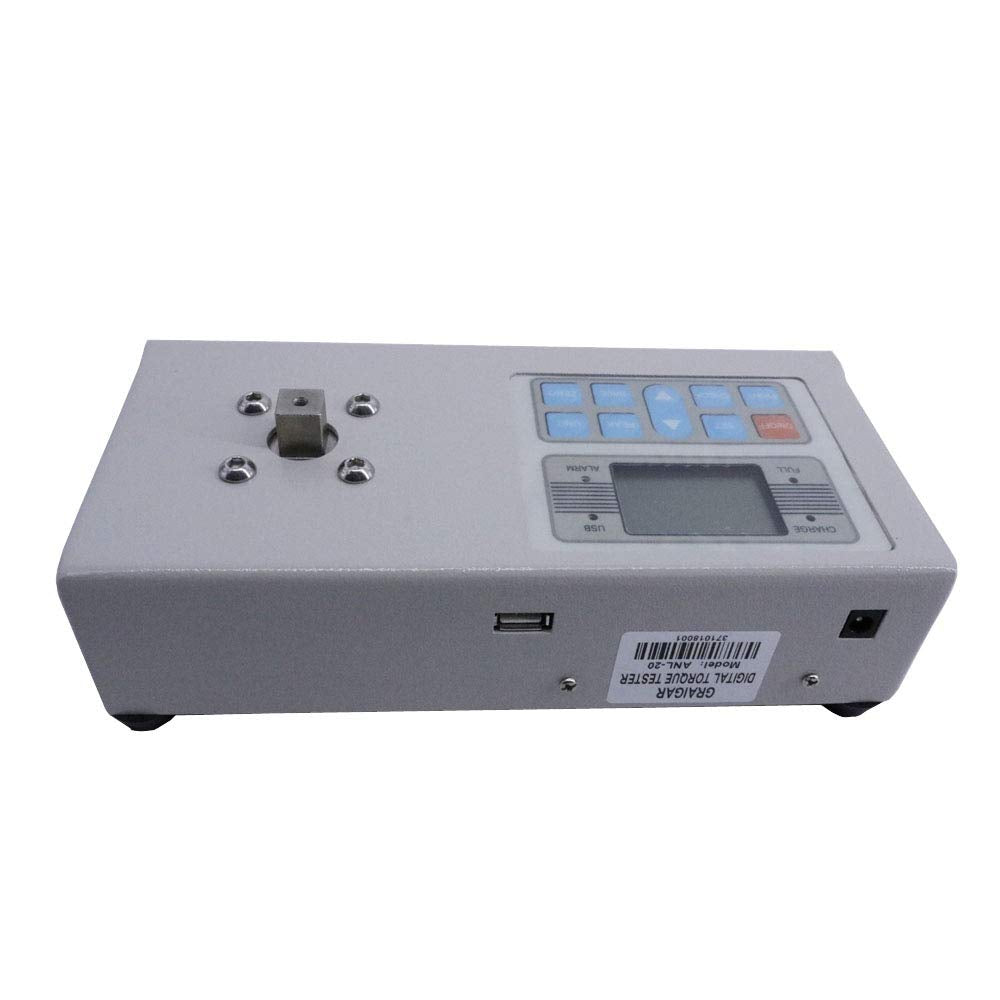

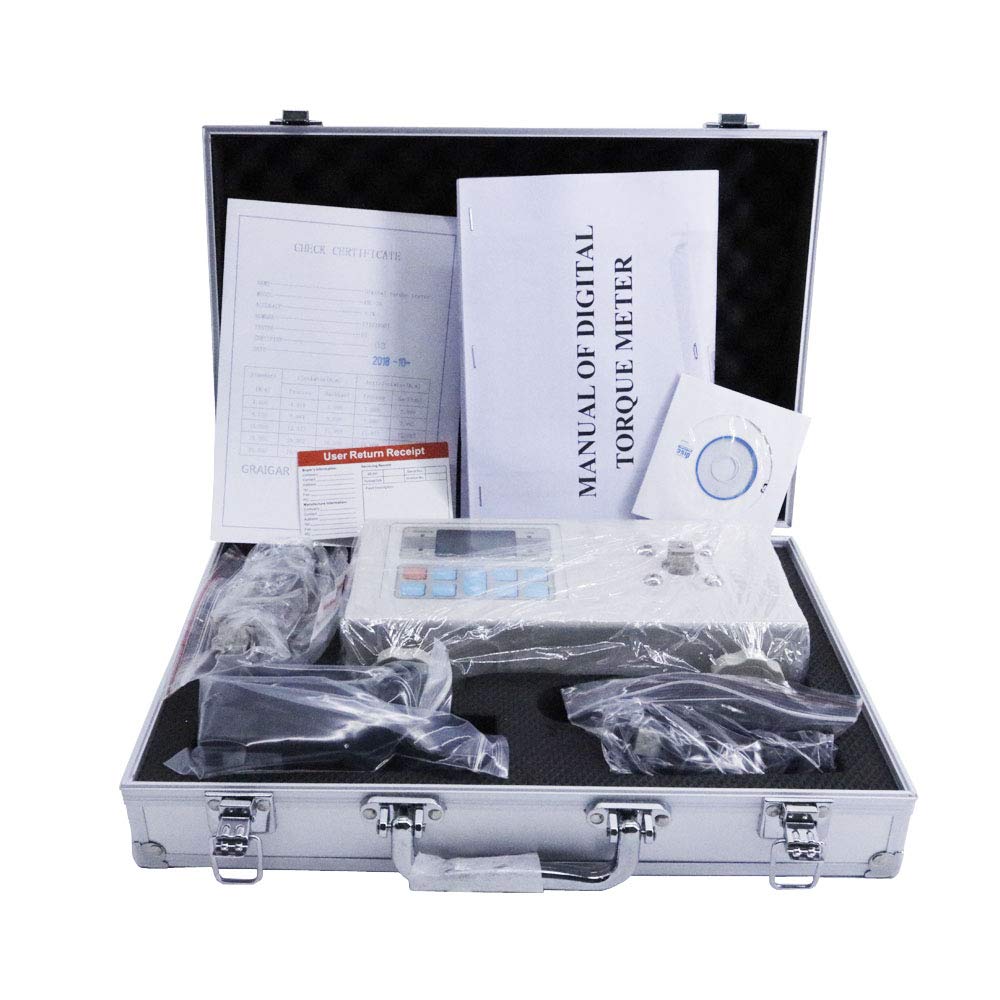

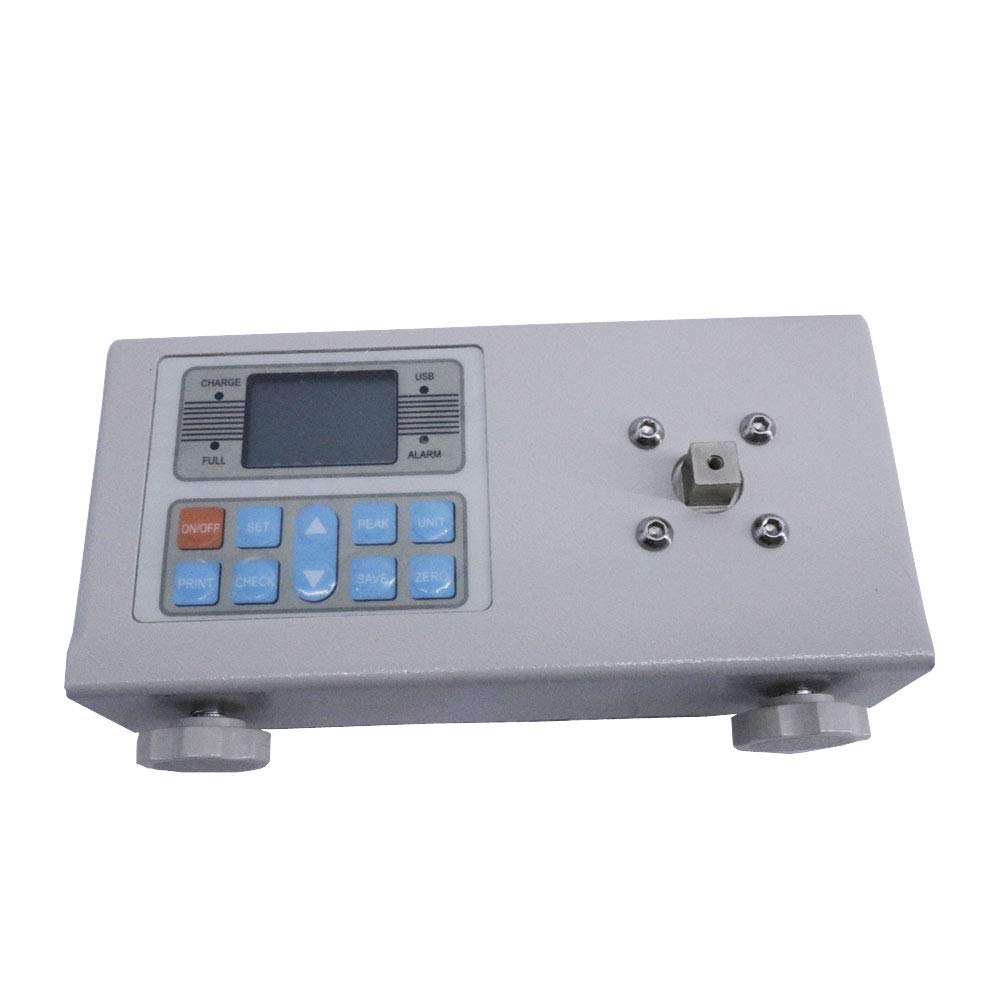

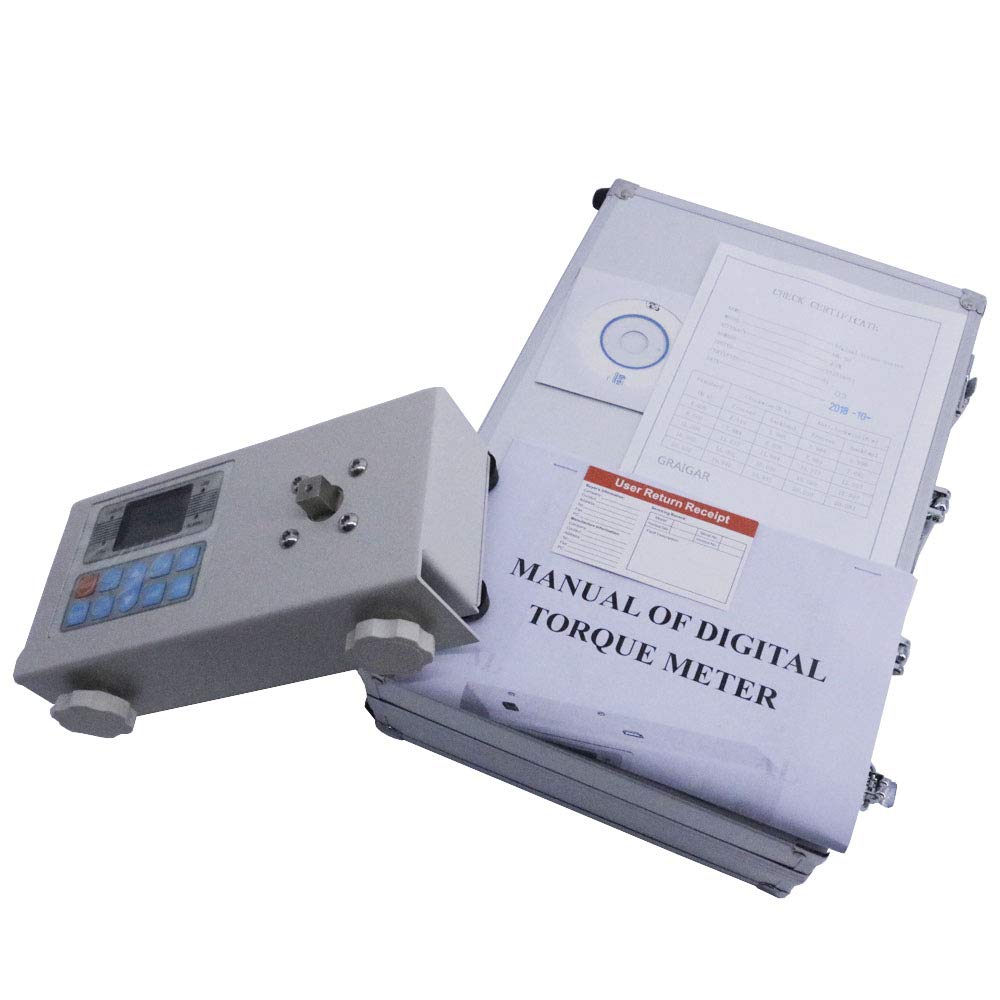

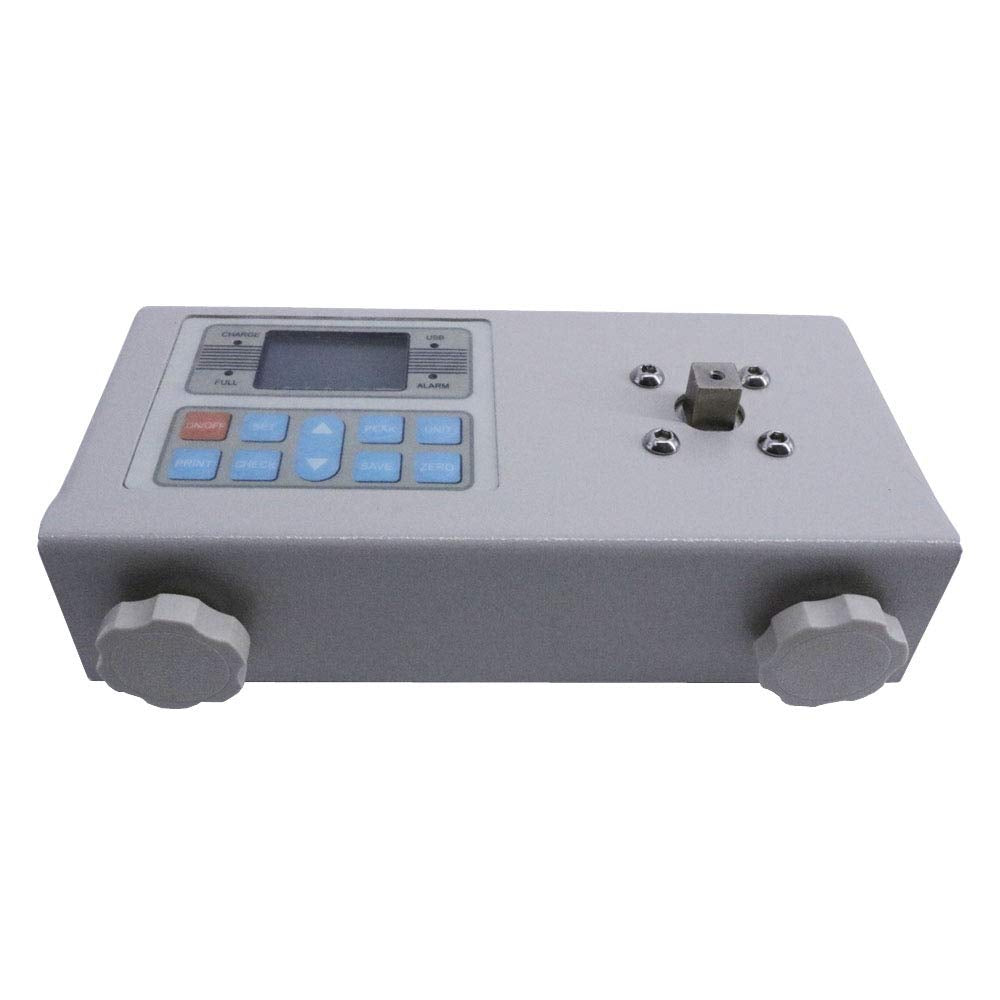

ANL-20 Digital Torque Meter Torque Wrench Tester Screwdriver Torque Meter Measuring Range 20Nm Without Printer

ANL-20 Digital Torque Meter Torque Wrench Tester Screwdriver Torque Meter Measuring Range 20Nm Without Printer

Regular price $593.00 USD
Regular price Sale price $593.00 USD
Sale Sold out

Features:

The ANL digital torque meter is specially designed for measuring all kinds of torque.

It is suitable for all kinds of torque measurement and adjust components reverse destructive test and so on.

This product Mainly used in measuring all kinds of electric and air torque, bottle opener, screwdriver, torque wrench,

tighten torque instrument and product, widely applies in the electrical manufacture, the machine manufacture,

the automobile light industry and the specialized scientific research and industry.

1:High accuracy, high resolution, and stability. The sampling speed can be set.

2:Fluctuate limiting value set, has the acousto-optic alarm device.

3:Lattice type LCD, the back light can be set.

4:Torque directions identify.

5:Three kind of unit: N · m, kg · cm, lb · in automatic conversion.

6:Many kinds of front values maintain.

7:Power source shows and low power prompt.

8:No-operation close automatically, can set the close time.

9:Saves and prints 100 test data, can clean out at will.

10Uses the USB connect to the PC, examine real-time, survey curve, and carries on processing to the data:



Type With printer ANL-1P ANL-2P ANL-3P ANL-5P ANL-10P ANL-20P
No printer ANL-1 ANL-2 ANL-3 ANL-5 ANL-10 ANL-20
Measuring range / Division value N·m

1.0000/

0.0001

2.0000/

0.0001

3.0000/

0.0001

5.0000/

0.0001

10.000/

0.001

20.000/

0.001

Kg·cm

10.210/

0.001

20.421/

0.001

30.631/

0.001

51.052/

0.001

102.10/

0.01

204.21/

0.01

Ib·in

8.862/

0.001

17.724/

0.001

26.586/

0.001

44.311/

0.001

88.62/

0.01

177.24/

0.01

Precision ±0.5%
Peak Value Sampling Frequency 2000HZ
Power 8.4V  1.2VX7 Ni-MH Battery group
Charging Time 4~6 Hours
Continuous using time of battery About 10 Hours
Battery life ≥300 times
Size With printer: 230 mm x 95 mm x 180 mm
No printer: 230 mm x 70 mm x 125 mm
Net Weight With printer: 4 KG     No printer: 2 KG
Power adapter Input: Optional, Output: DC 10 V 300 mA
