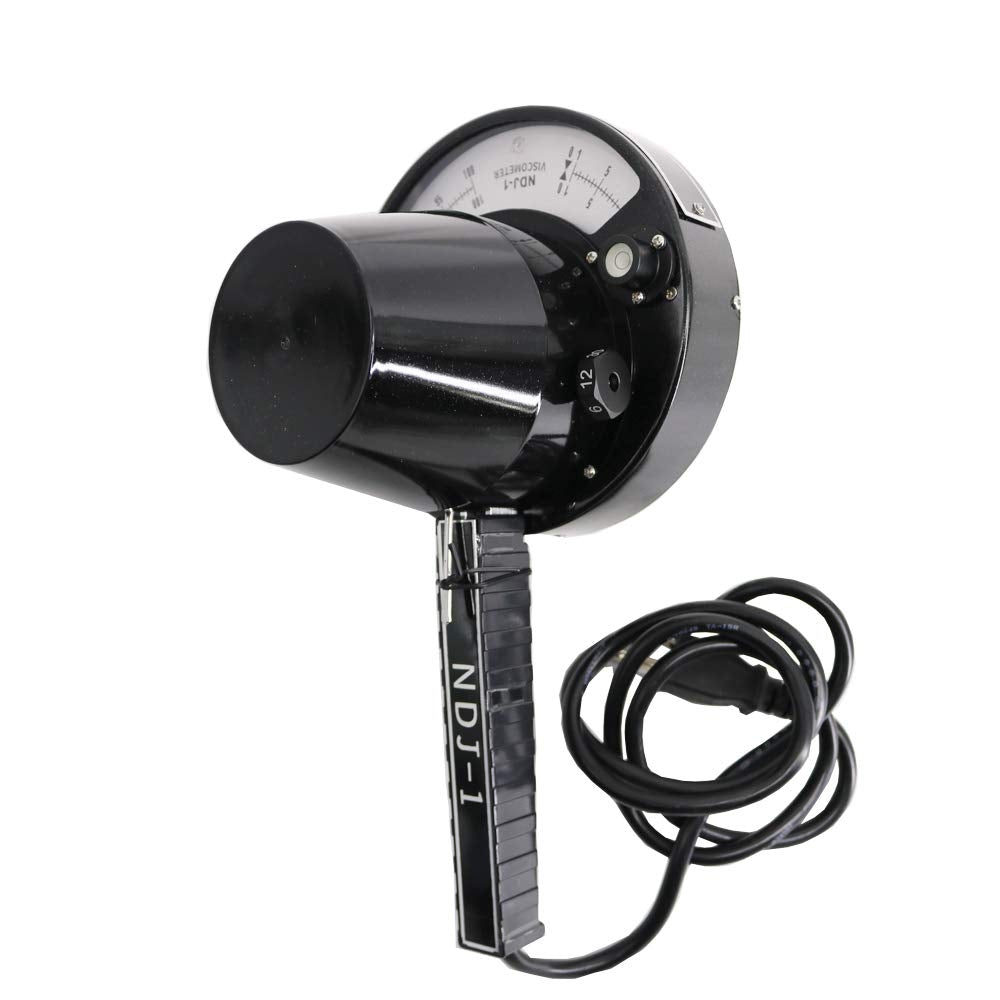

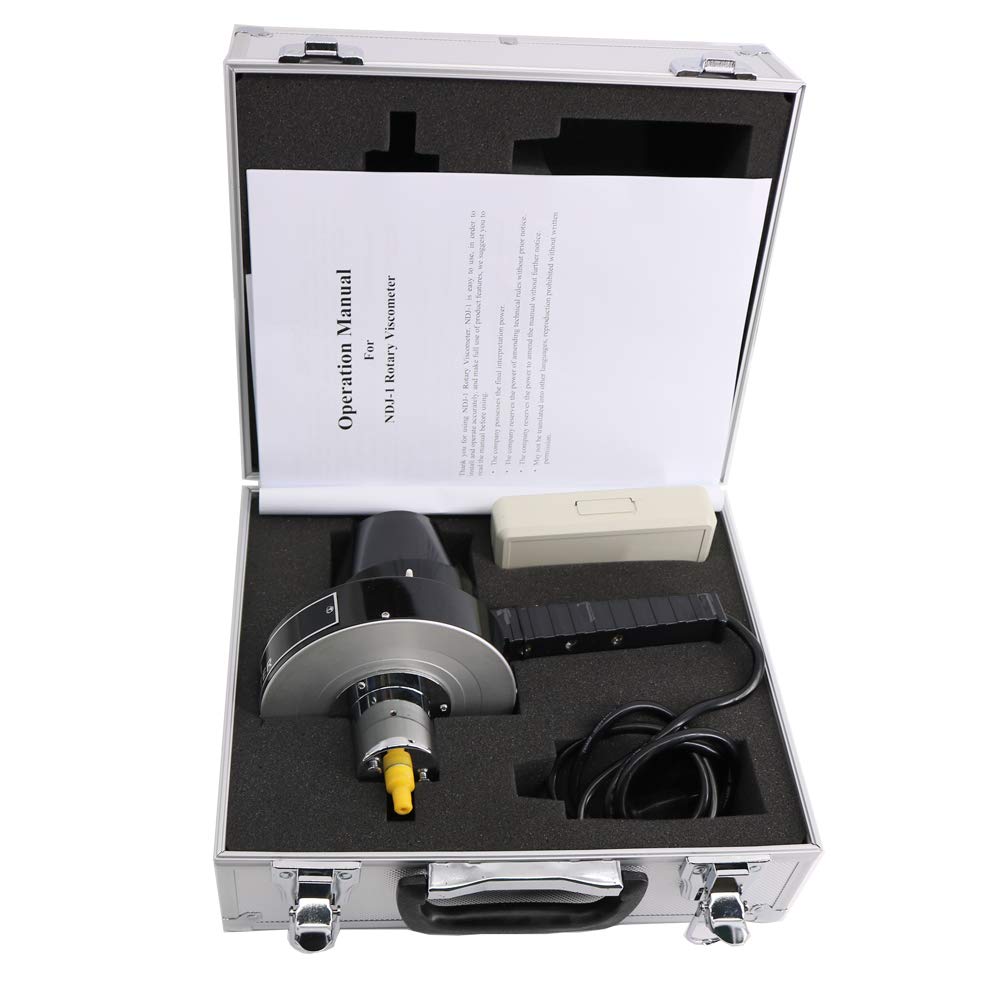

Graigar NDJ-1 Rotational Rotary Viscometer Viscosity Tester Meter Fluidimeter Measurement Range 10-100.000 mPa.s

Brand: Graigar

Color: Black

Features:

• NDJ-1 Rotary Viscometer is a new instrument used for determining the liquid viscose capacity and the absolute viscosity. Measuring range: 10-100,000mPa·s.
• NDJ-1 Rotational Rotary Viscometer has been widely used to determine and measure the liquid viscosity in many application such as grease, painting, plastic, pharmacy and adhesives.

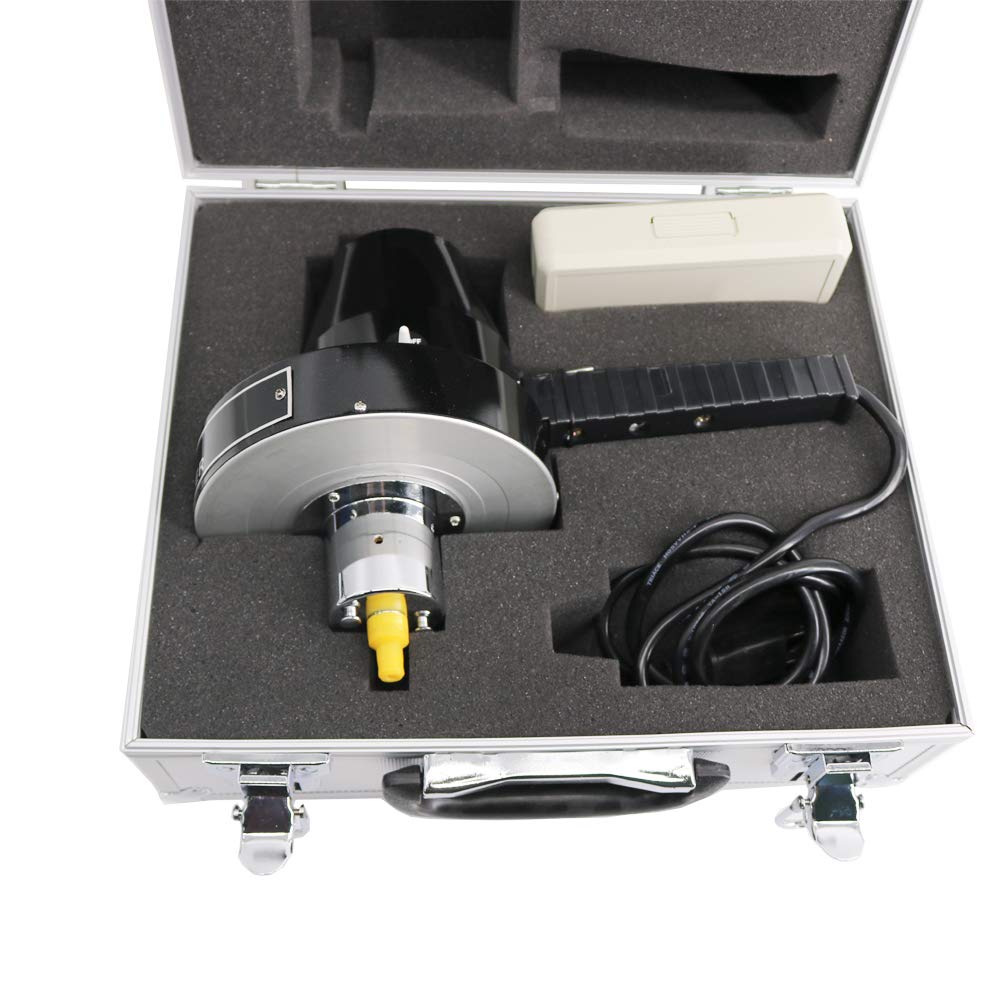

• NDJ-1 Viscosity Tester Meter Fluidimeter is a precison instrument to monitor and control the stable quality of products in the manufacturing.The whole set of instrument has good quakeproof packing to ensure the precision of instrument.

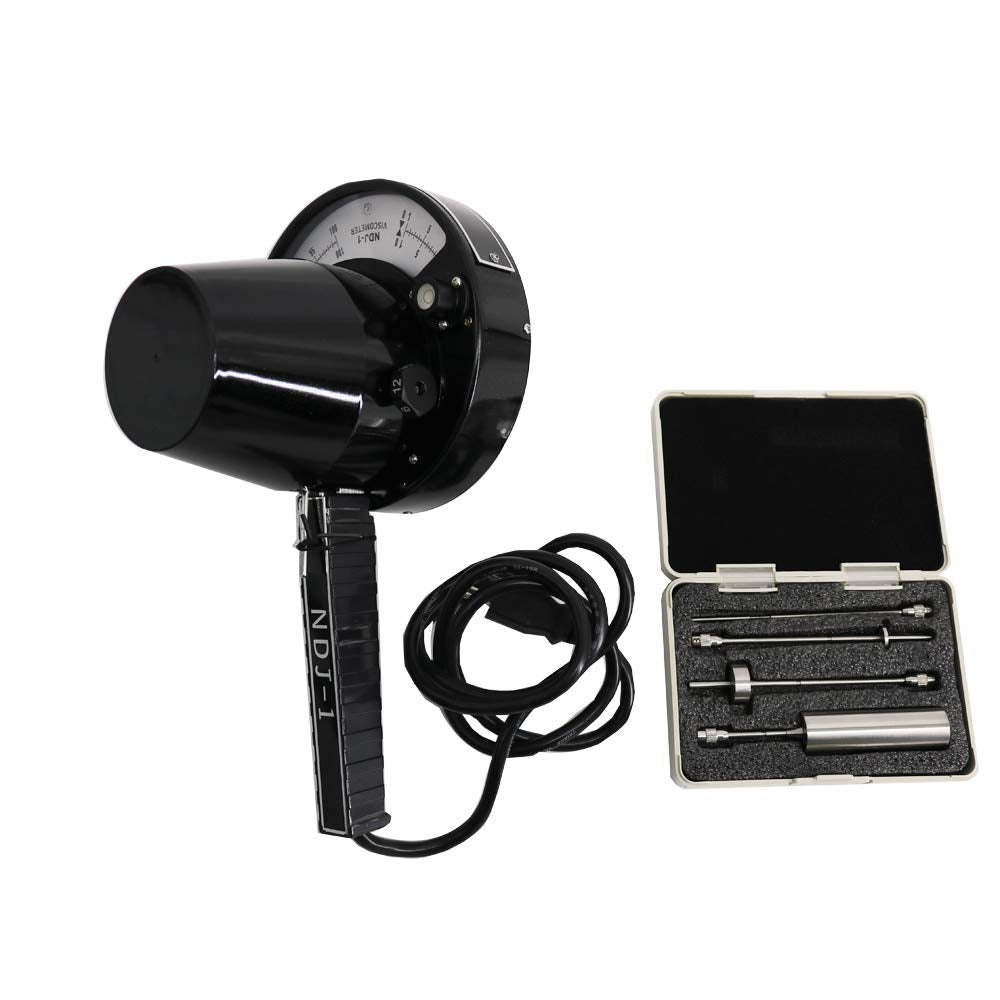

• According to different equipments, different rotors ( 1,2,3,4 ) will be attached, it can be select with the velocity according to the viscosity of the liquid.
• PRINCIPLE: Synchronous motor rotates with stable rate, connect scale disk, through hairspring and rotating shaft, drives rotors to rotate.the rotors will subject to a torque moment proportional to liquid viscosity because of the liquid viscose hysteresis.The torque moment will be measured by the sensors and processed into the viscosity and shown on the display.

Part Number: NDJ-1

Details: Working principle:
NDJ-type 1 rotating viscometer is applicable to various kinds of liquid and determination of the absolute semiliquids viscosity and include determination of grease, paint, food, medicine, cosmetic, glue, etc. Various kinds of fluid viscosity. Is the new product development, product quality control testing is used in the analysis of one of the most precise instrument.
I company of production NDJ-type 1 rotating viscometer has the following features:

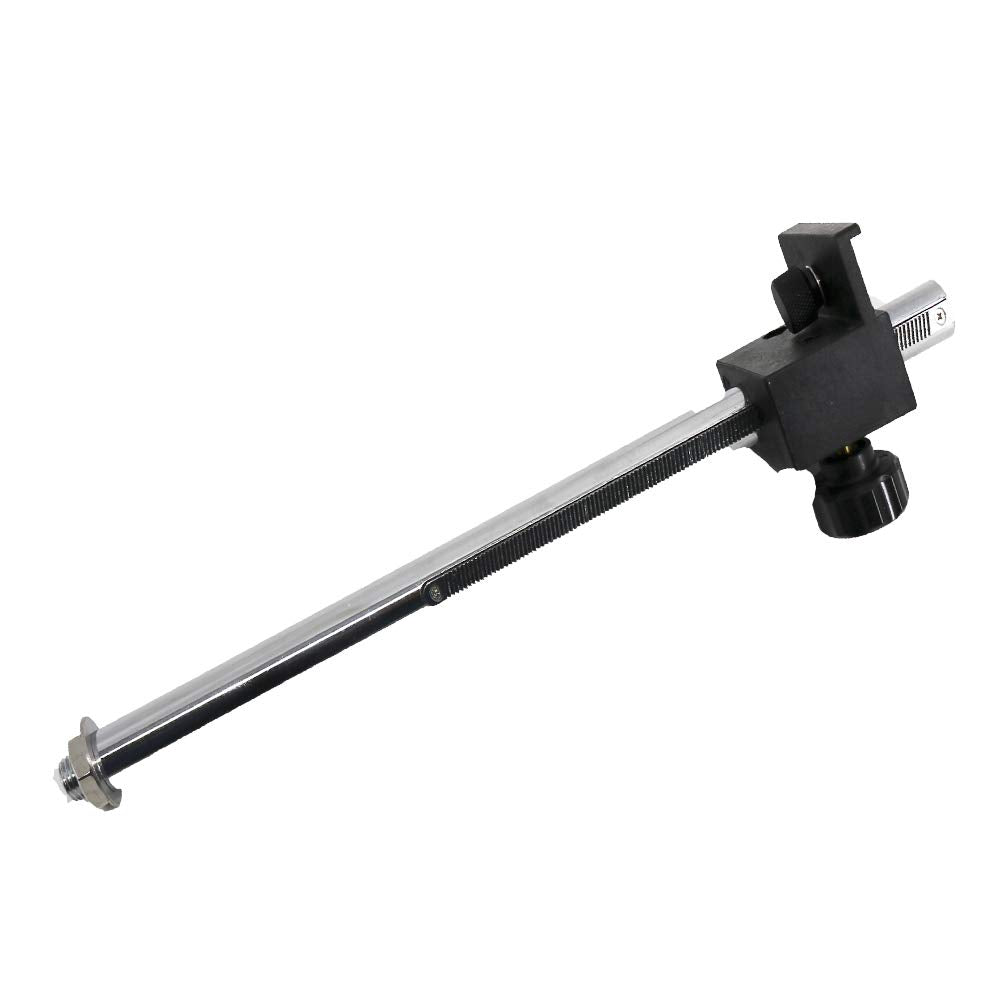

1. The lifting system USES inclined rack/inclined gear way:
Domestic other factory rotation viscometer by the straight rack/gear straight way, rack and gear at work, only a tooth contact, if easily adjusted upward; Will the downward slide, such as avoid the slippery, upward adjustment will be difficult. Face the rotation of the factory is inclined gear viscometer by way of inclined rack and inclined gear a job, with three tooth contact, overcome straight rack/straight gear shortcomings, move convenient, easy, and not since the slippery. (oblique rack/inclined gear in the way of the cost of processing requirements than straight rack/gear way much more difficult)
Specification:
Determining range
1 ~ 1 x 105 mPa
Rotor specifications
1, 2, 3, 4, 4 kinds of rotor (0 th rotor is option, measurable low viscosity to 0.1 mPa. S)
Instrument speed
6/12/30/60 turn/points
Measurement error
Plus or minus 5% (Newton liquid)
Electricity source
220 V ± 10 V; Frequency 50 Hz
Net weight
5.5 kg
Shape dimension
400 x 370 x 150 mm

EAN: 0761272049547
