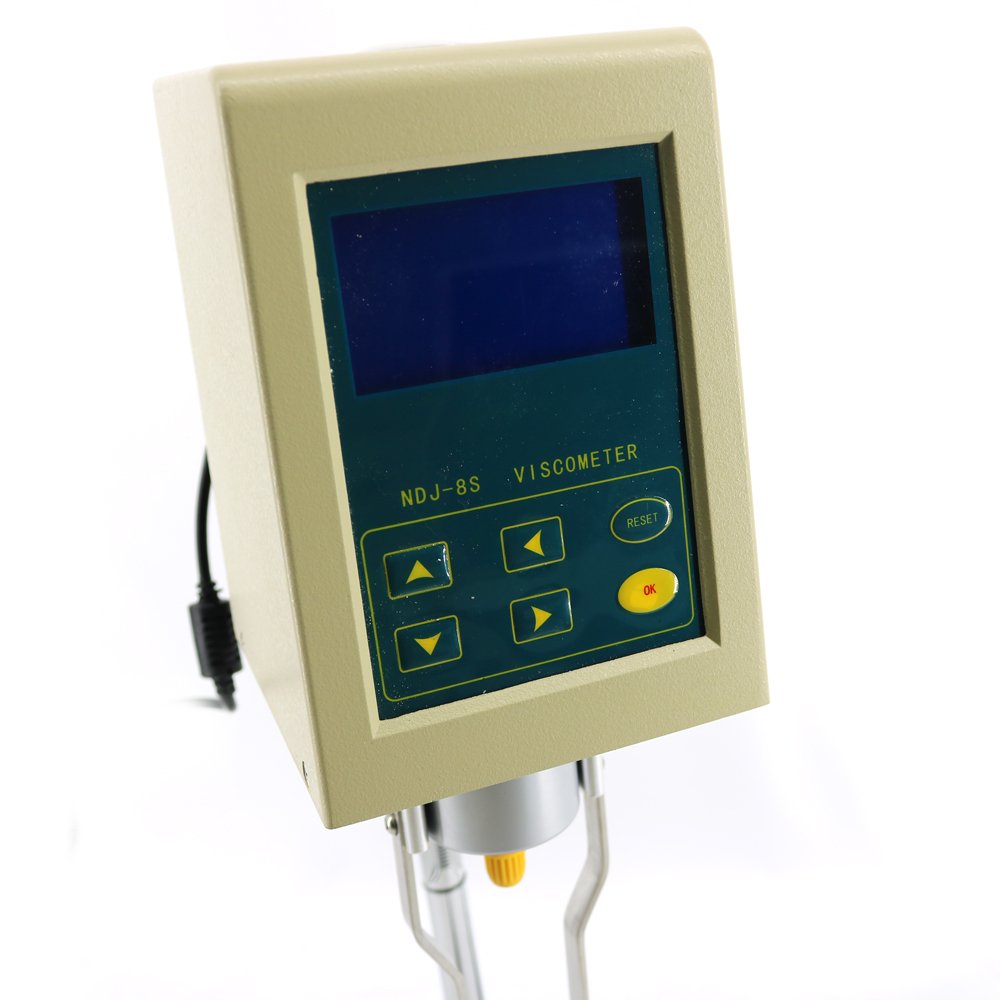

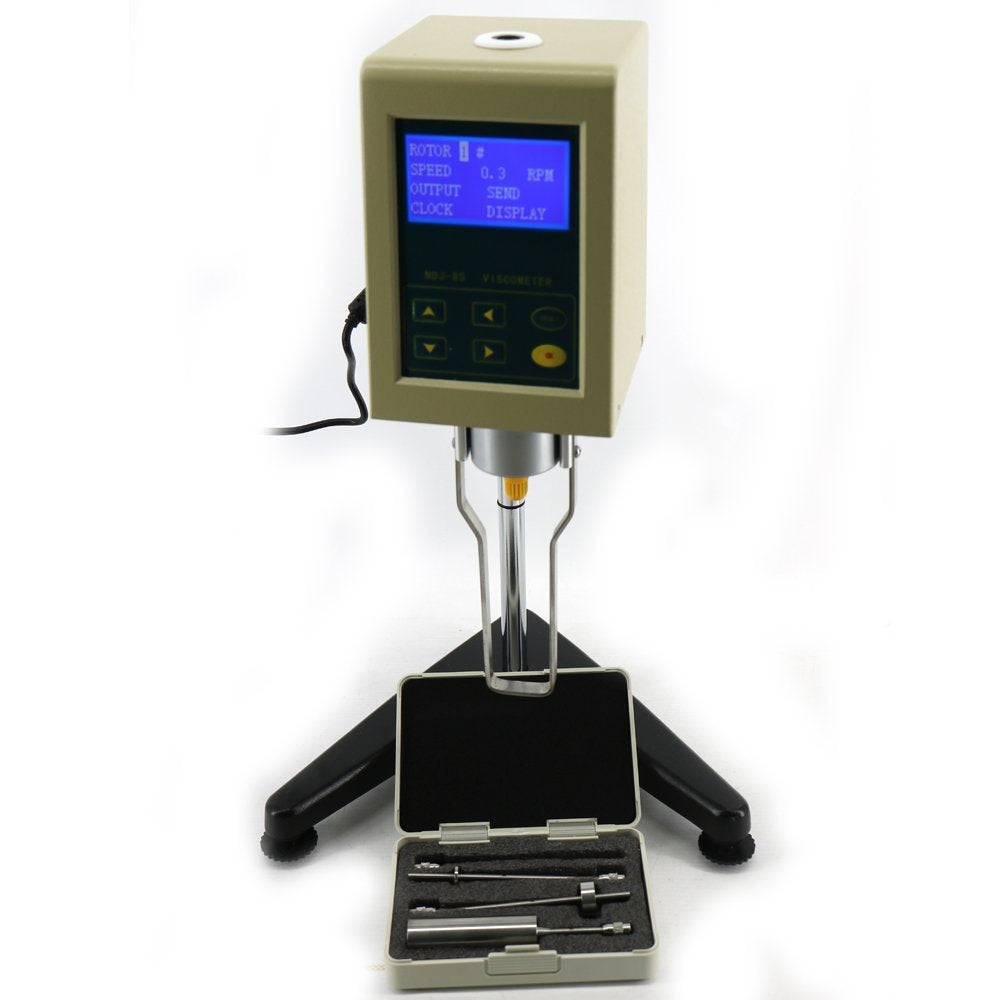

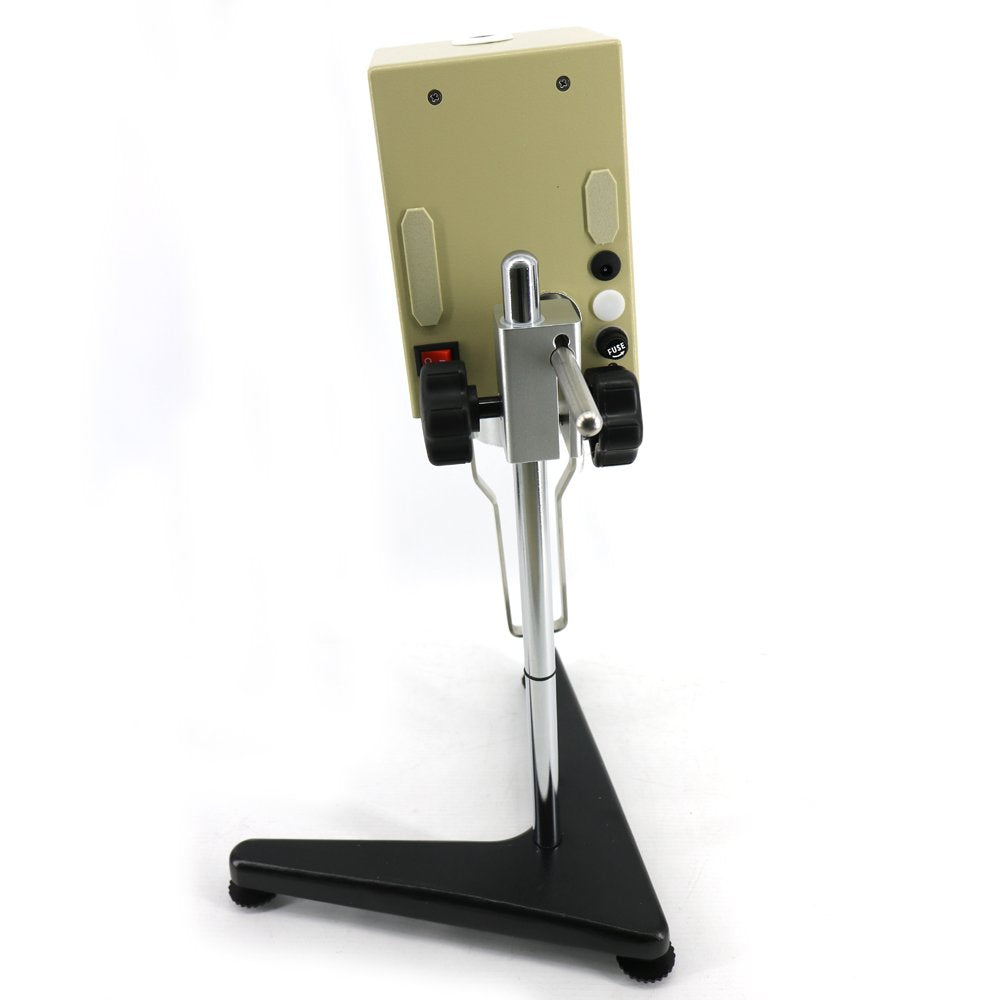

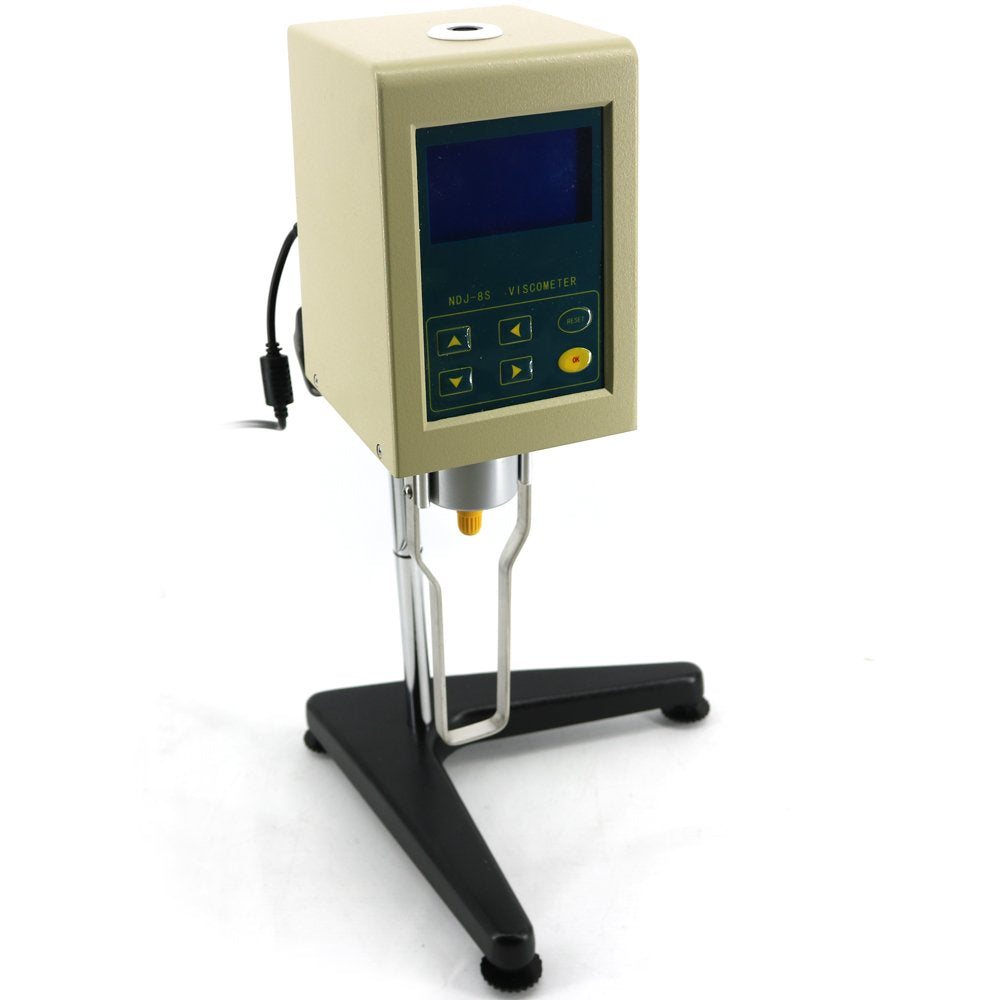

Graigar NDJ-8S Digital Display Viscosity Meter Rotary Viscometer 1~2 x 1000000 mPa·s Viscosimeter 110V or 220V

Brand: Graigar

Color: Gray

Features:

• NDJ-8S Digital Rotary Viscometer can be widely used in the field of grease, painting, plastic, pharmacy, jewelry accessory, detergent, lab etc.
• Working Principle: This instrument is a rotary viscometer, rotor could be rotated constantly by the variable speed motor. Rotate the standard rotor, the rotors will subject to a torque moment proportional to liquid viscosity because of the liquid viscose hysteresis. The torque moment will be measured by the sensors and processed into the viscosity and shown on the display
• Micro-computer control, auto test viscosity; Auto or manual select rotor number & speed
• Rotor Type: 1#, 2#, 3#, 4#; Rotor Speed: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60rpm(automatic)
• Screen: LCD(with Back Light);Working Voltage: 110 V±10%; Frequency: 50Hz±10%; Measuring Range: 10-2000000mpa.s

Part Number: NDJ-8S

Details: NDJ-8S is a upgraded professional digital rotary viscometer with reliable test result. It is used to measure the absolute viscosity of Newton typed liquid and apparent viscosity of non-newton liquid. This instrument provides quick, correct data, with ±2% accuracy. Easy to operate and anti-interference. NDJ-8S has wide measuring range: 10-2000000mpa.s, equipped 4 rotors(1/2/3/4) with 0.3/0.6/1.5/3/6/12/30/60rpm speed. It adopts micro-computer technology, can easily manual set or auto adjust rotor number & speed range before testing. Also can process data from sensor and display liquid viscosity value, full range percentage value on big LCD screen.

Feature
Equipped with four rotors: 1#,2#,3#,4# for different kinds of liquid.
Easy operation and read-out.
Powered by 110V AC current, with US plug.

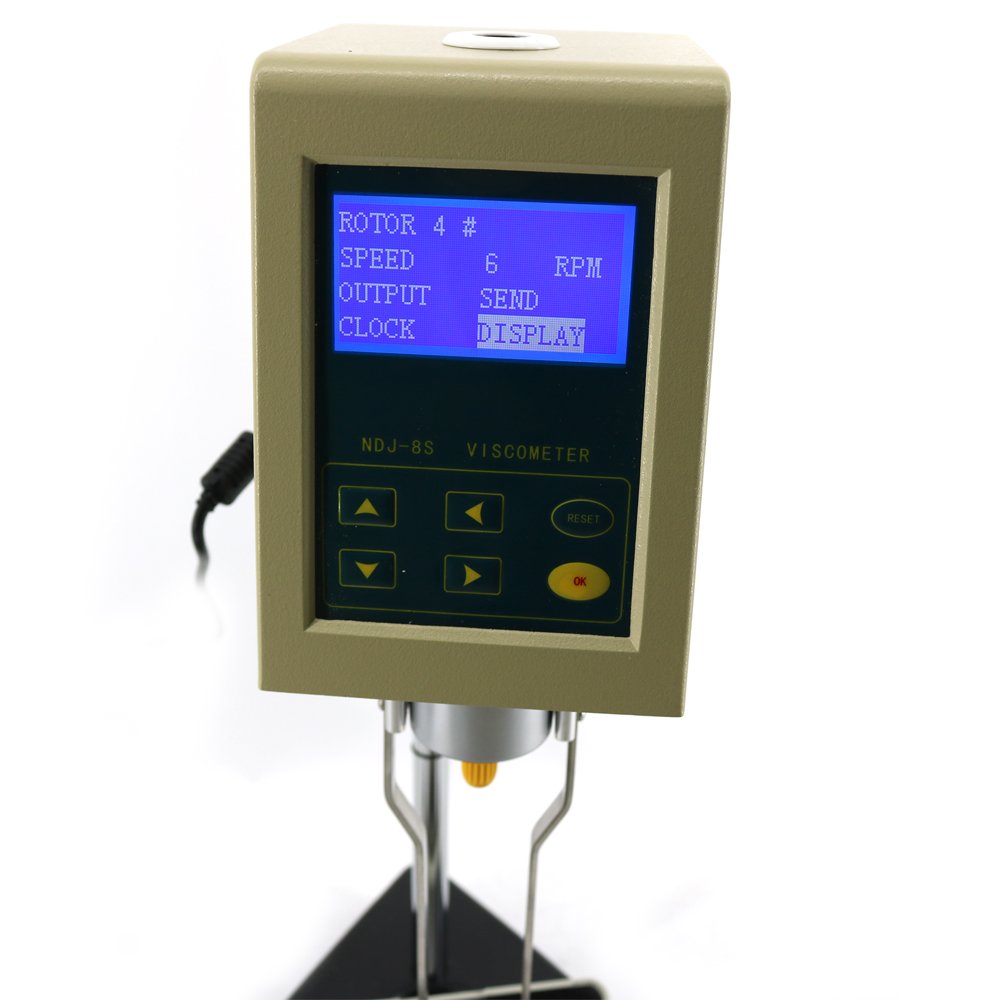

LCD display with blue back light, high brightness.

Specifications
Auto Select Rotor & Speed: Support
Measuring Accuracy: +/-2%(Newton Liquid)
Working Condition: Temperature: 5-35℃; Humidity: ≤80%

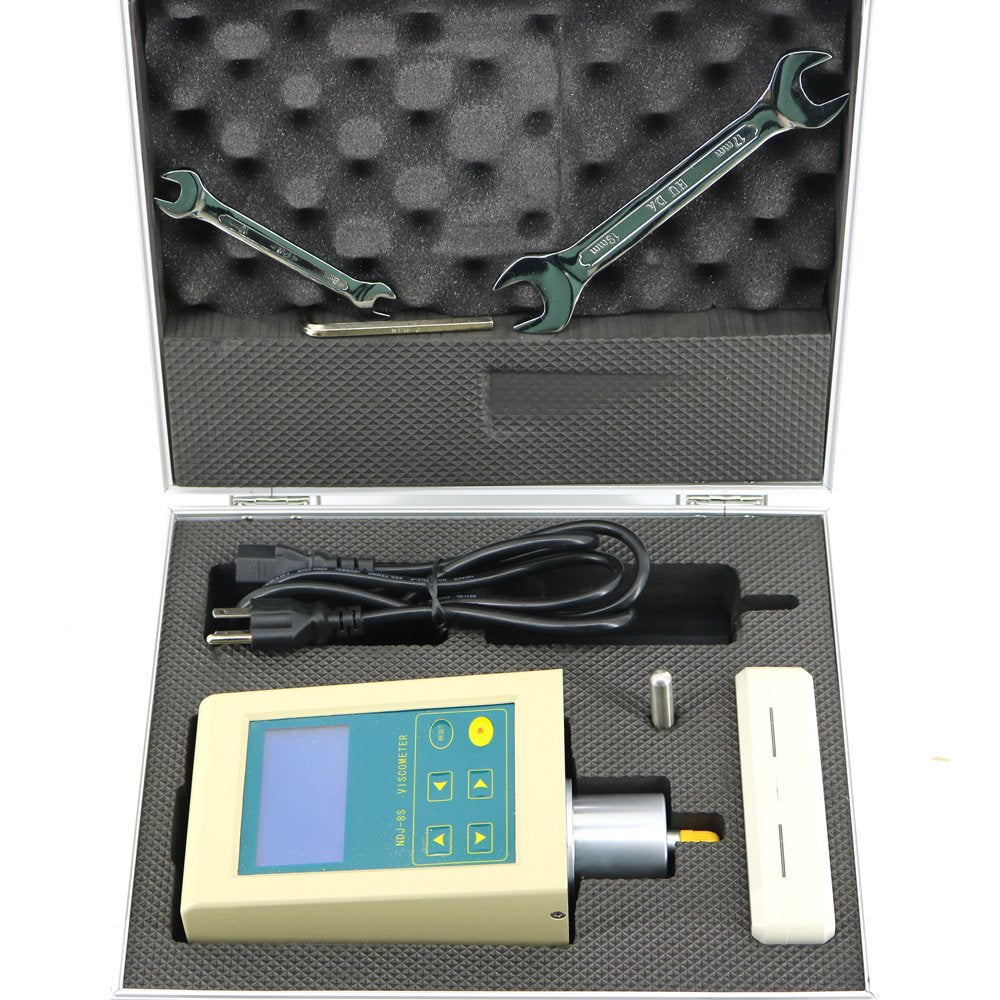

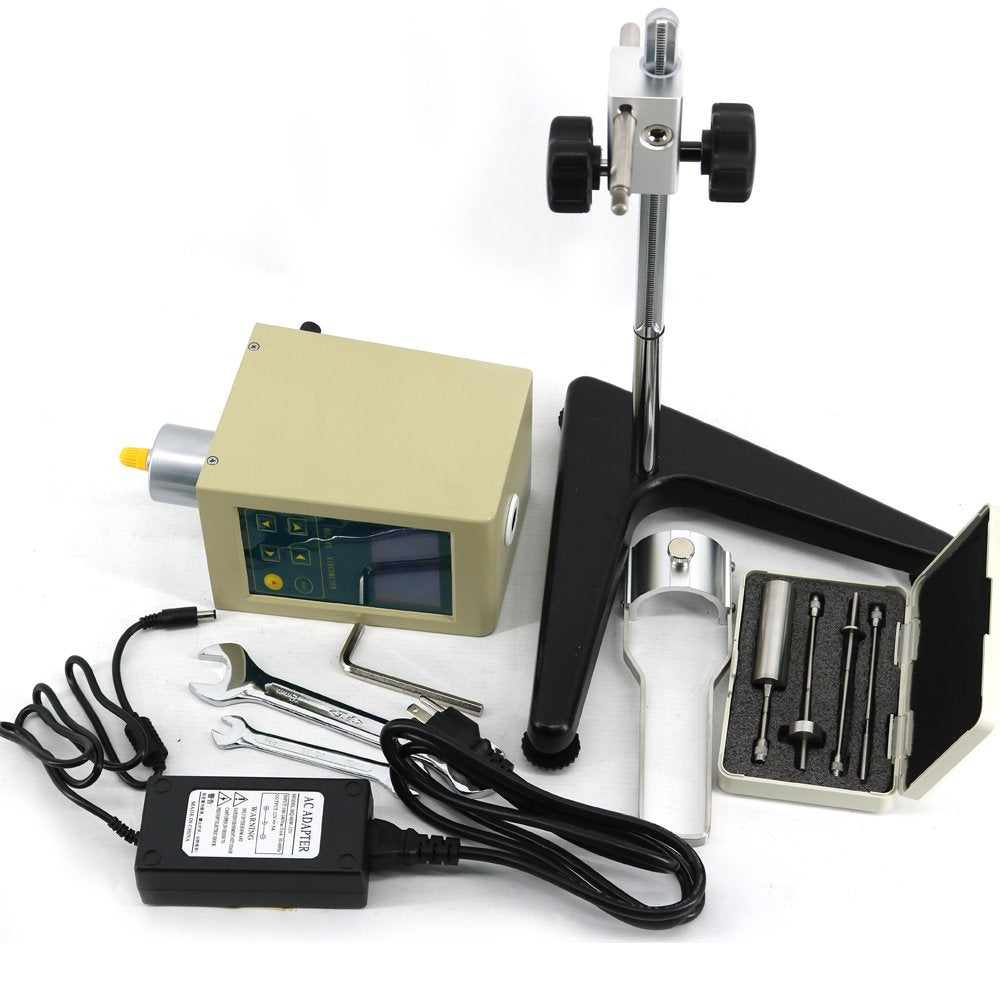

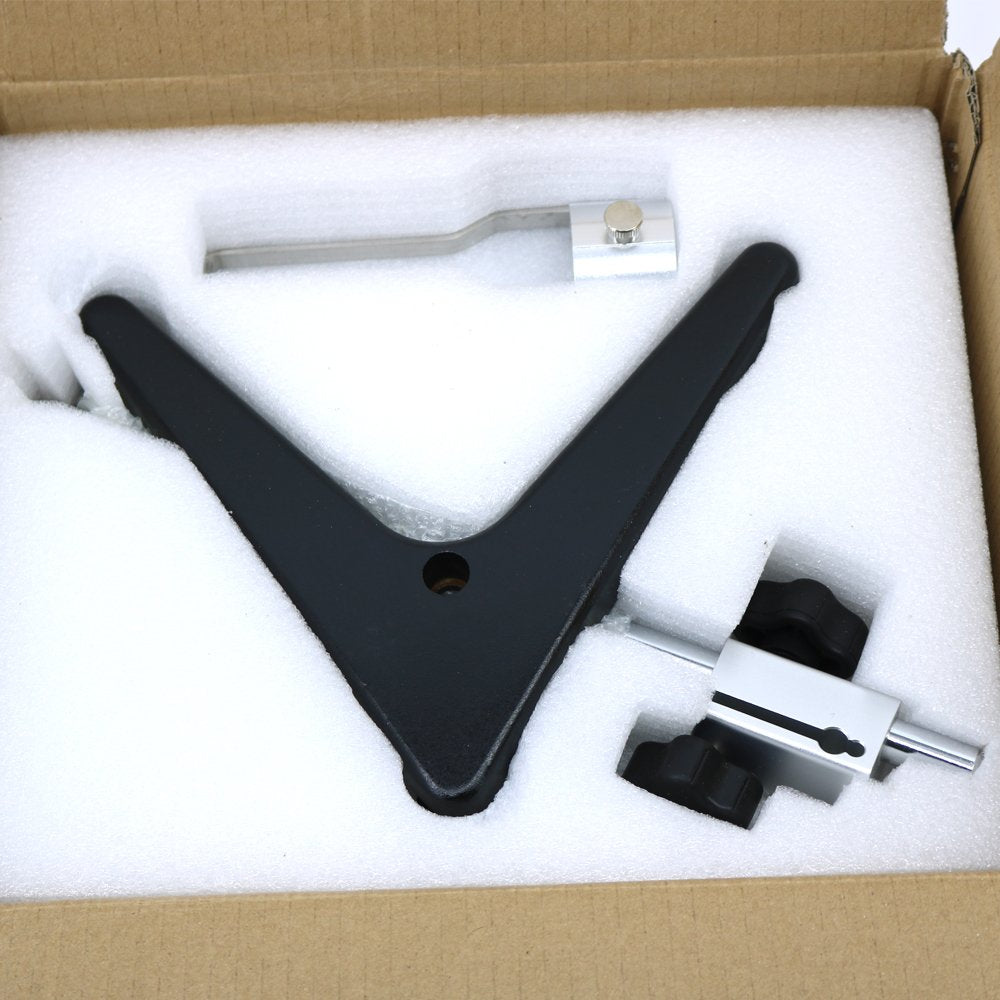

Package Content
1 X Digital Rotary Viscometer
1 X Rotors, 1#,2#,3#and 4# (1 Qt.of each)
1 X Power Adapter
1 X Protection Bracket
1 X Base
1 X Lifting Assembly
1 X Operational Manual

EAN: 0725370412924
