Introduction:

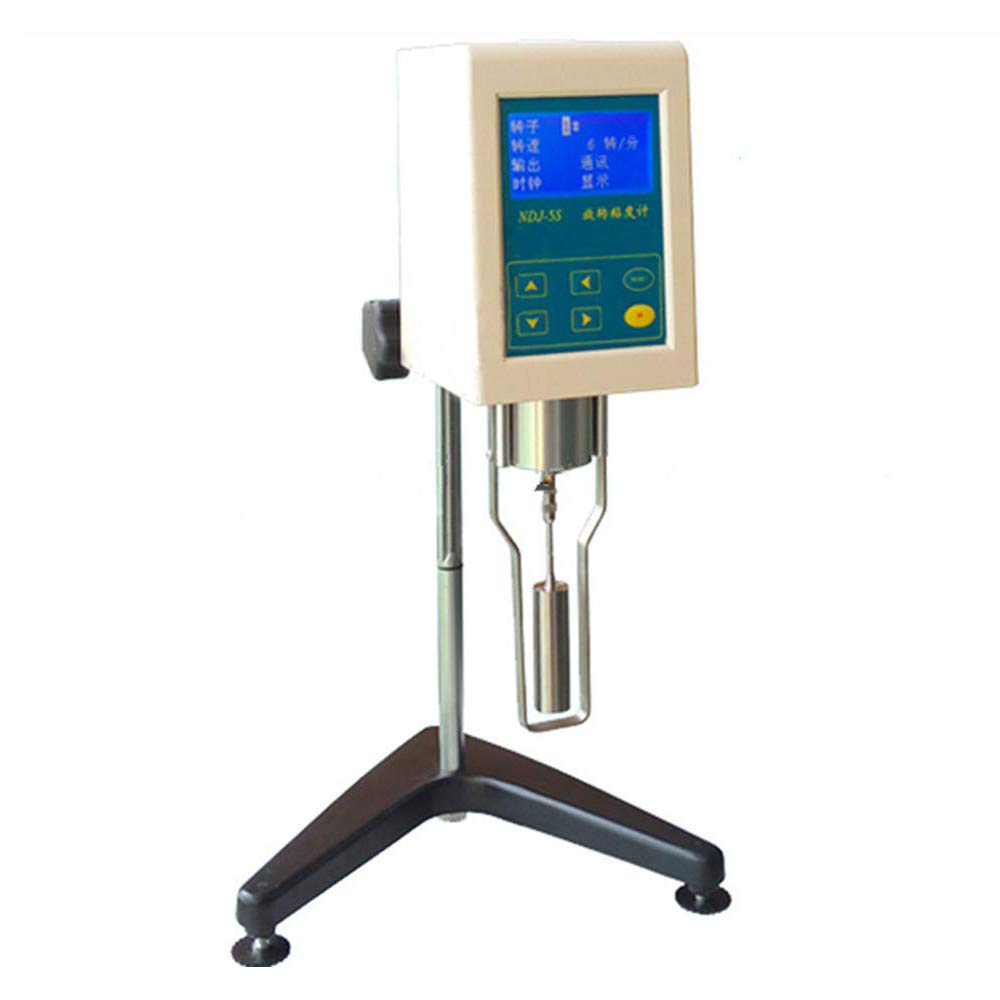

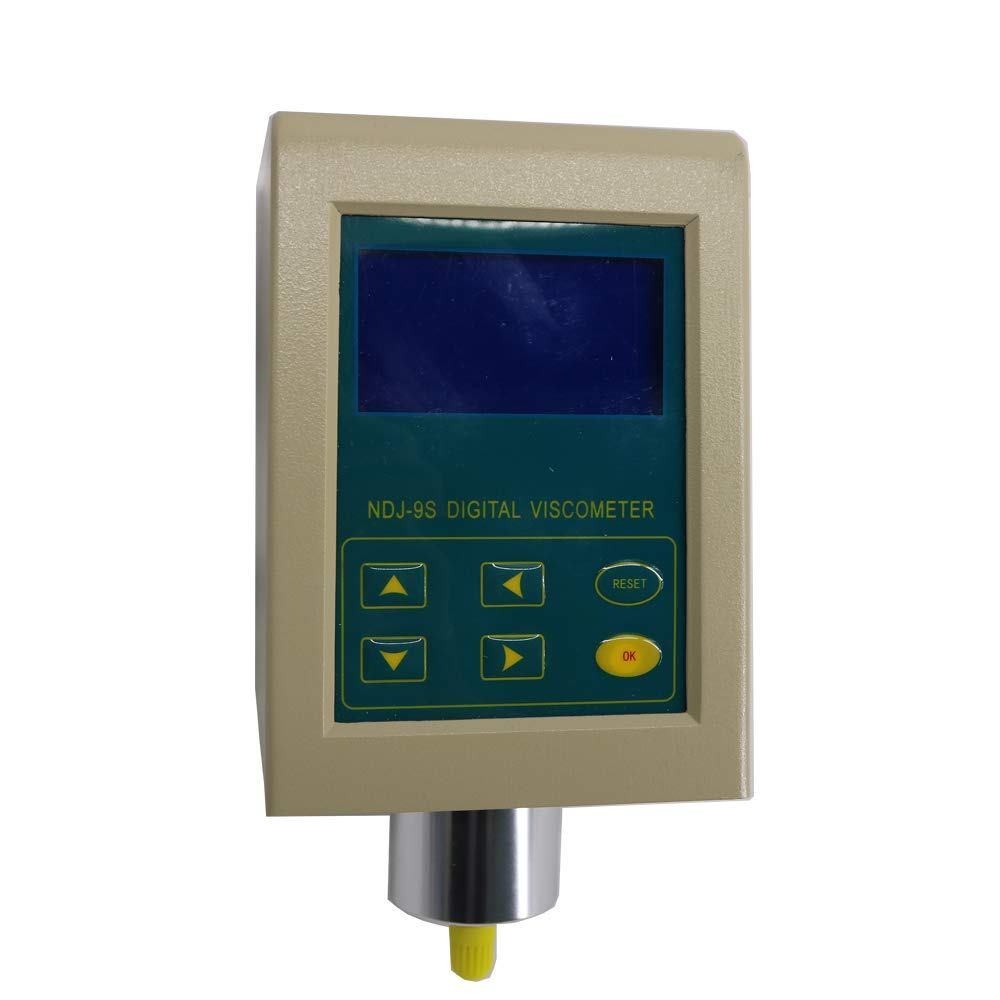

NDJ-9S is a Digital rotary viscometer which has been upgraded. This viscometer adopts advanced mechanical design technology, manufacturing process and micro computer control technology, make the data acquisition correct and the display adopts LCD with blue backlight and high brightness, make the displayed data clear.
NDJ-9S Digital rotary viscometer is used for determining the liquid viscose capacity and the absolute viscosity.
NDJ-9S has been widely used to determine and measure the liquid viscosity in many applications such as grease, painting, pharmacy and adhesives.
Technical Specifications
* Measurement Range: 1 ~ 1x 100000 mPa·s
* Rotor types: 1#, 2#, 3# and 4# rotors; (You can determine viscosity as low as 0.1mPa.s with 0# rotor.)
* Rotor velocity: 6 rpm, 12 rpm, 30 rpm, and 60 rpm(automatic)
*Measurement error: ±5% (Newton liquid)
* Since the move files Can automatically choose the right number and rotor speed
* Readings stable cursor: ShuTiao square full case show when reading the basic stability
* Measurement accuracy: ±2% (Newton liquid)
* Temperature display: Yes
* Temperature accuracy: 0.1°C
* Power supplies: 220 V ±10%, 50 Hz ±10%
* Shape dimension: 370 x 325 x 280 mm
|

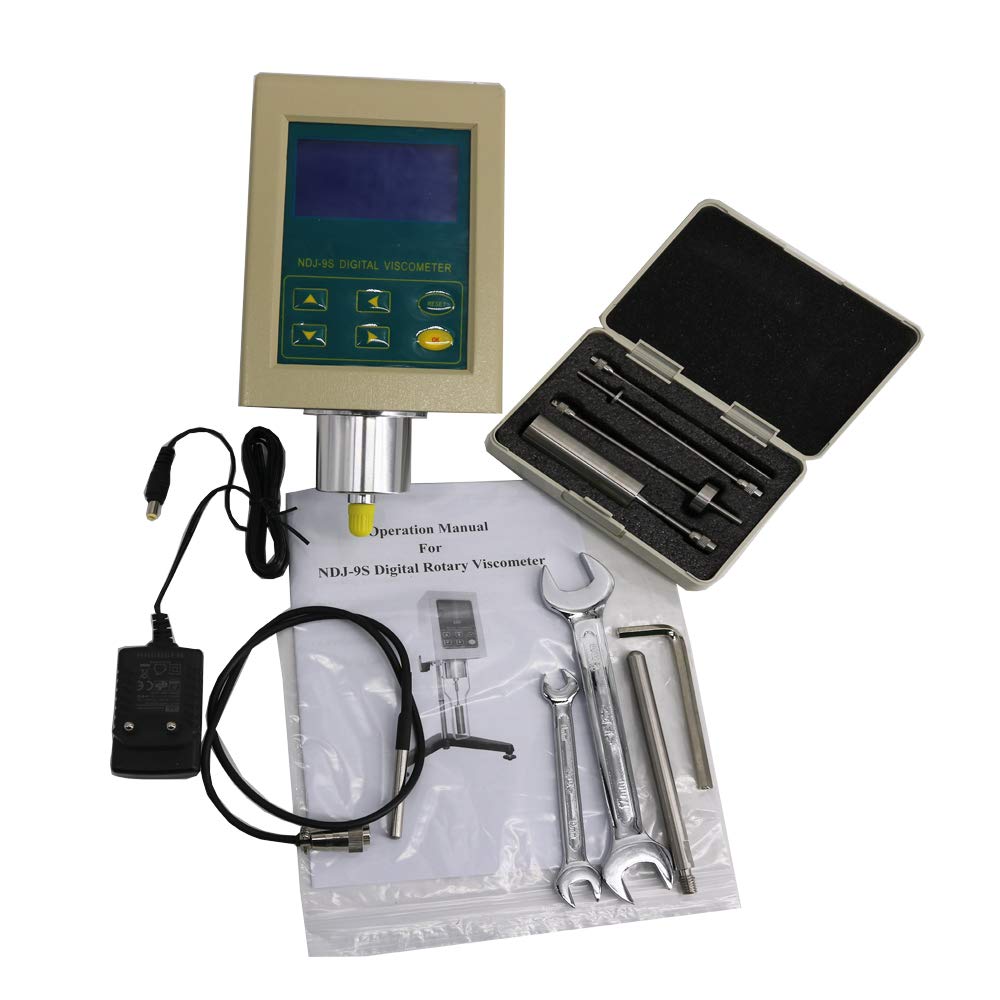

NO.
|
Name
|
Quantity
|
|
1
|
NDJ-9S Digital Rotary Viscometer
|
1 Qt.
|
|
2
|

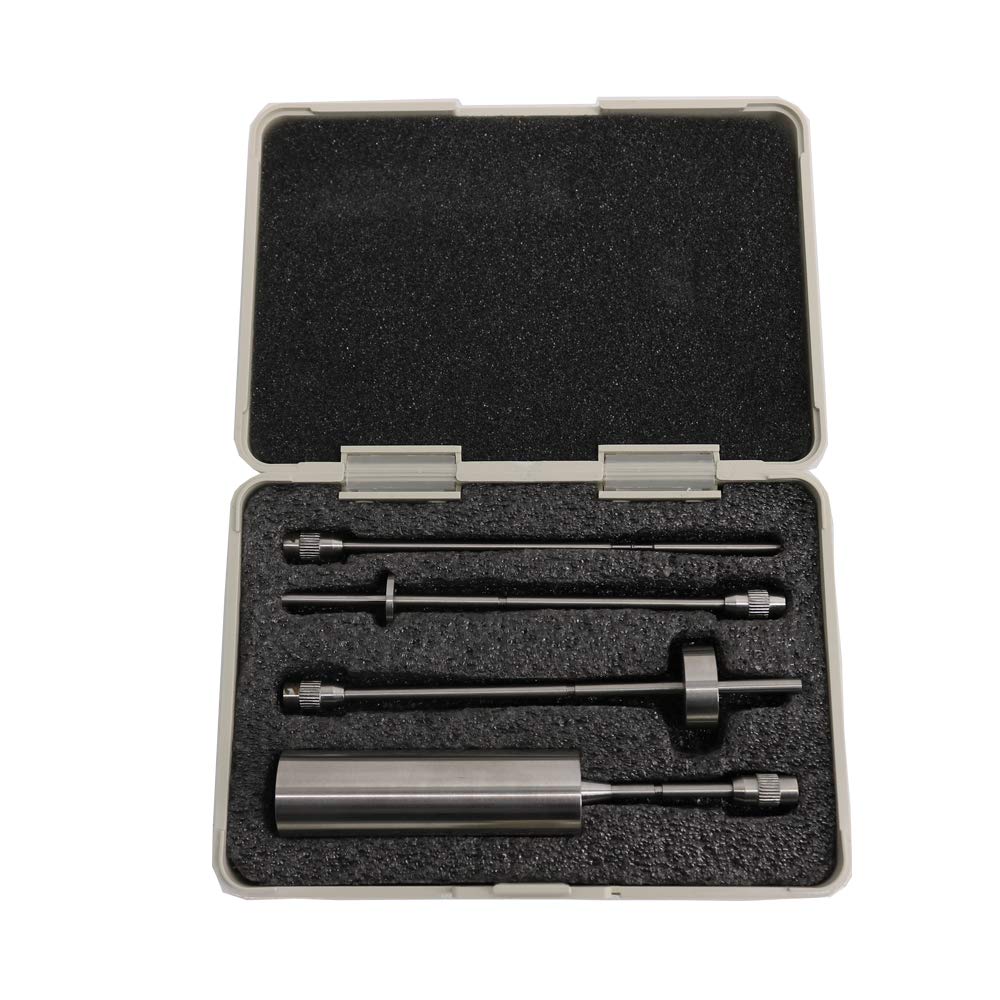

Rotor, 1#, 2#, 3# and 4#
|
1 Qt of each
|
|
3
|
Power Adapter
|
1 Set
|
|
4
|

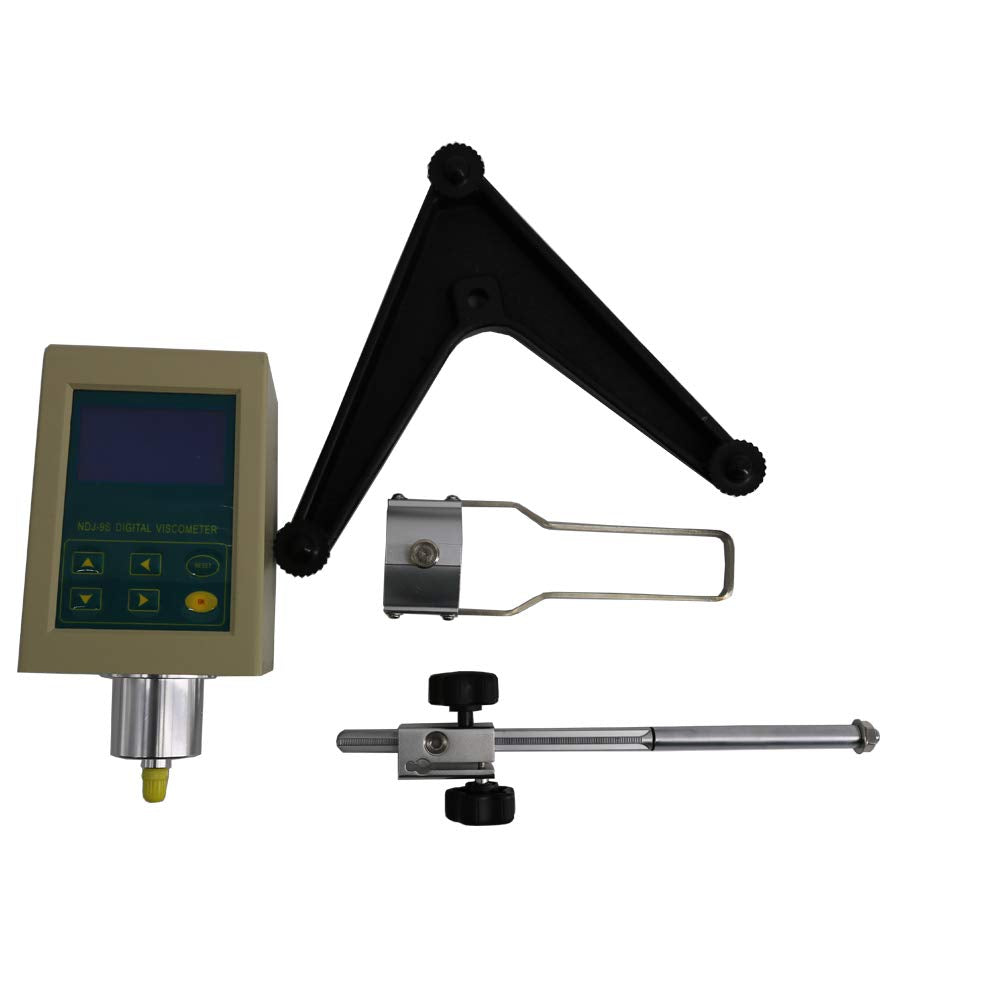

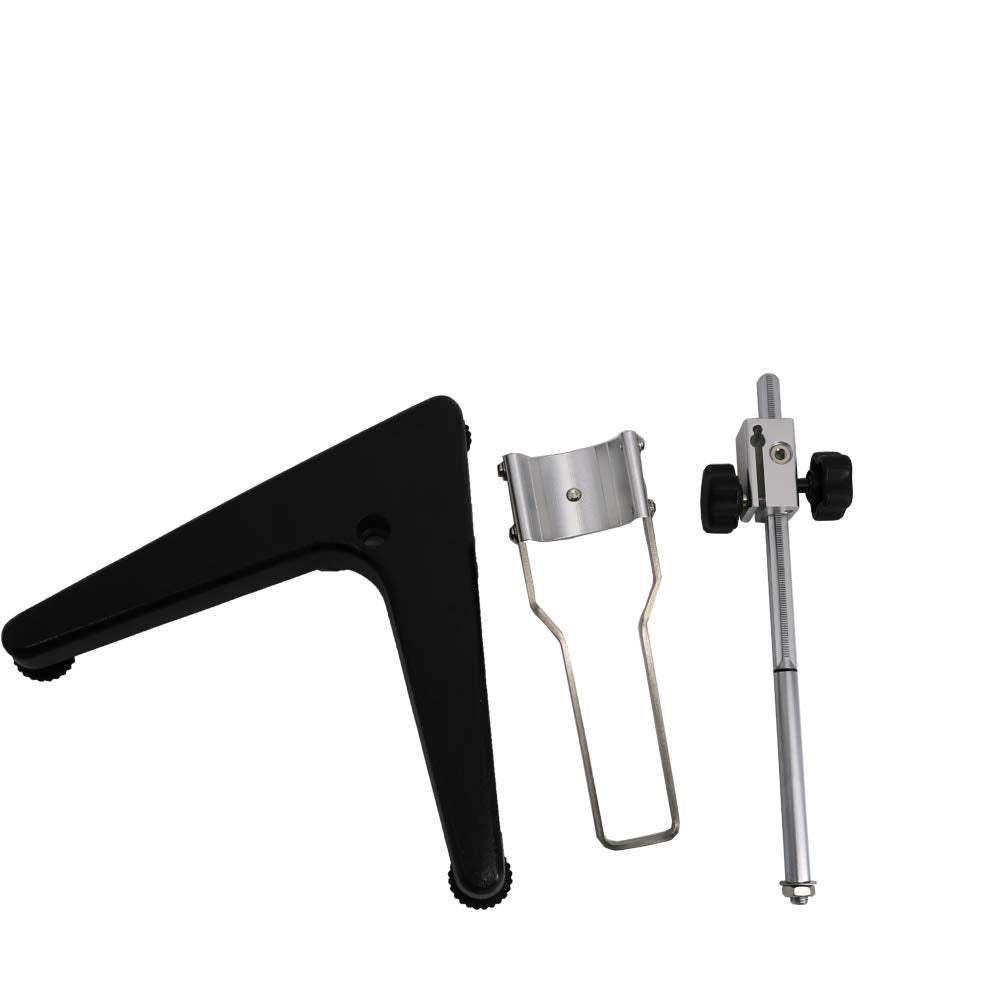

Protection Bracket
|
1 Qt.
|
|
5
|
Base
|
1 Qt.
|
|
6
|
Lifting Assembly
|
1 Set
|
|
7
|

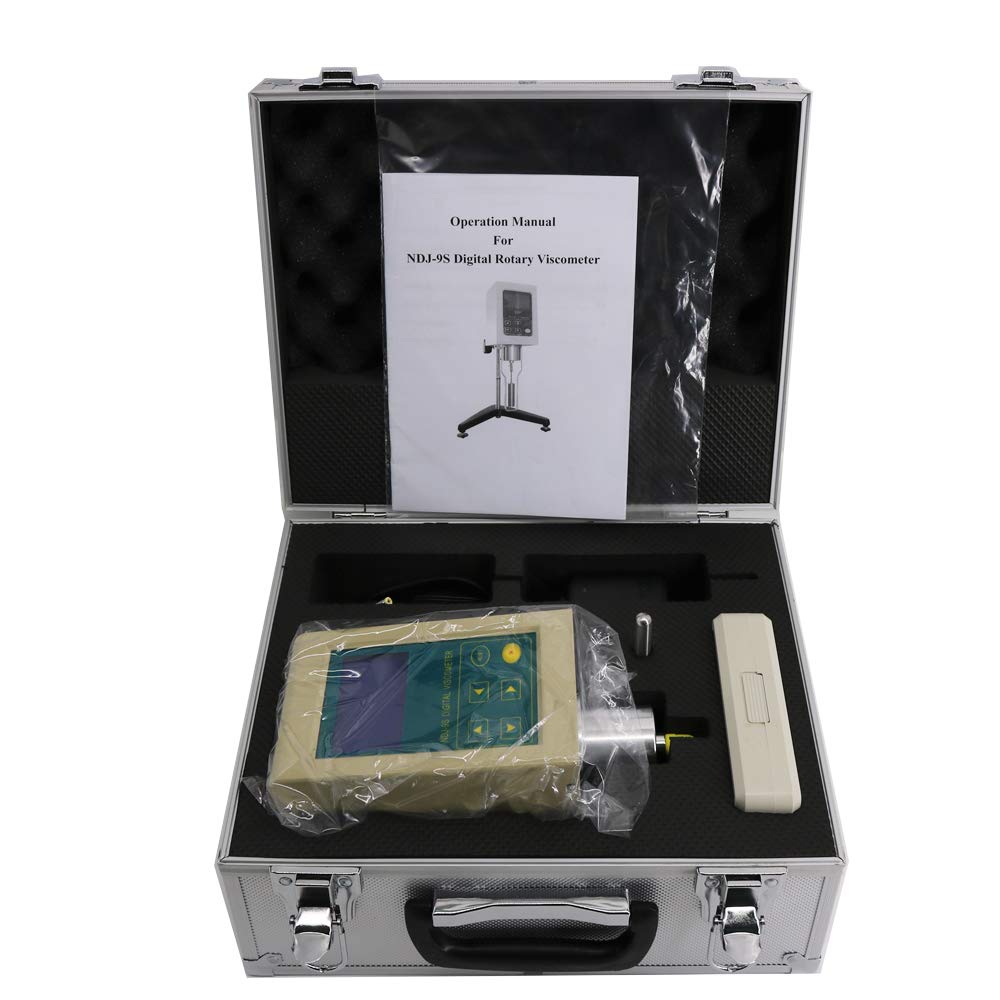

Operation Manual
|
1 Qt.
|
|
8
|
License
|
1 Qt.
|
|
9
|
Quality Certificate
|
1 Qt.
|
