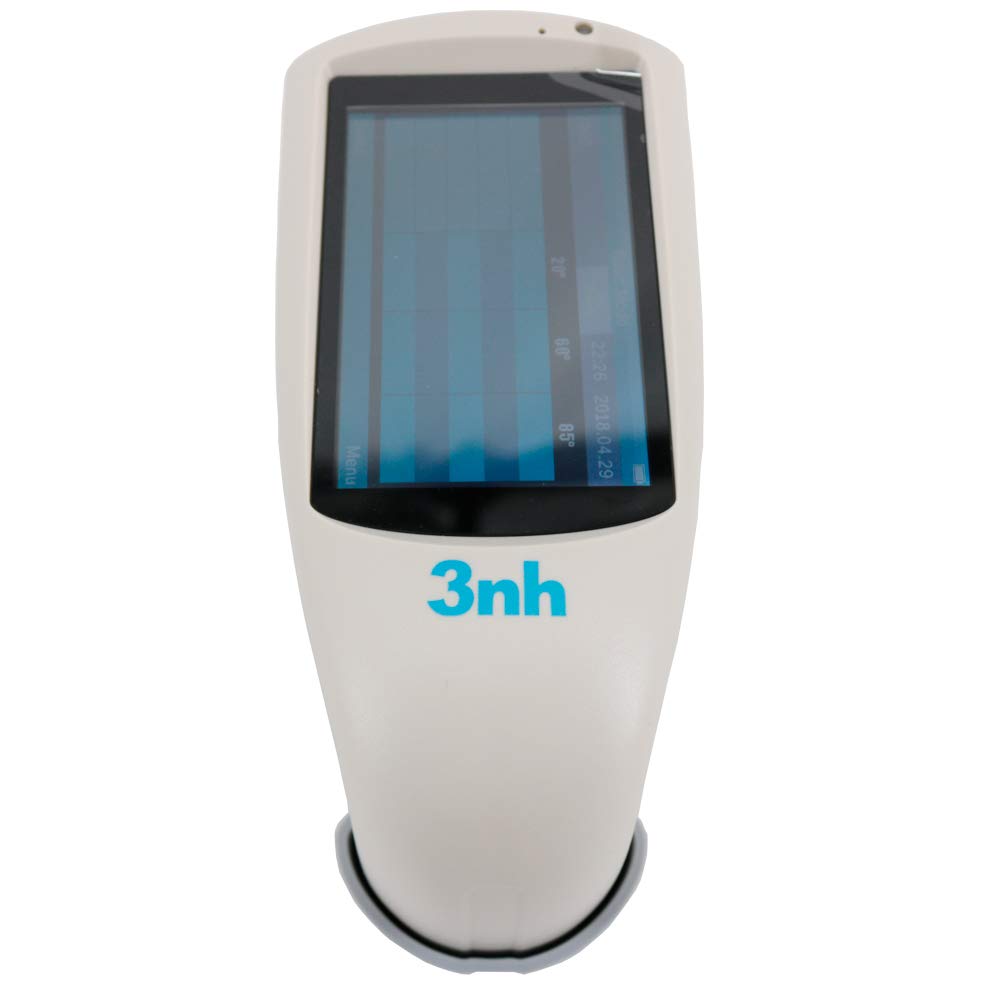

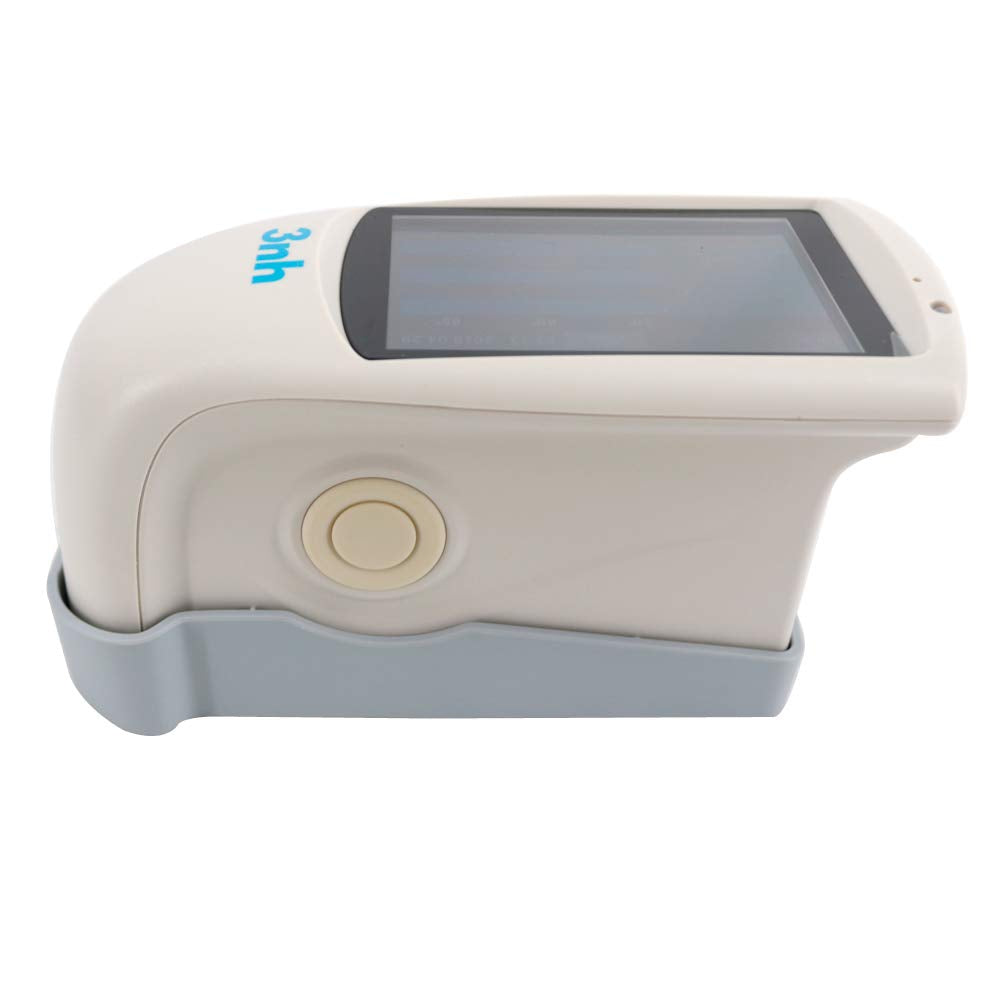

NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754
It is designed and manufactured with reference to the national standard ISO2813 and the Chinese national standard GB/T9754
It is a full touch screen operation large screen display gloss meter, equipped with high-end quality management software
Easy to use performance stability measurement precision characteristics
It is a full touch screen operation large screen display gloss meter, equipped with high-end quality management software
Part Number: NHG268
Details: Introduction
1.20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
2.One button for all angles measurement at the same location
3.Display 5 sets of measurement data, good for comparison
4.Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software)
5.Continuous mode to check uniformity over large areas
6.Connect to PC, more extend functions
7.Input gloss value manually

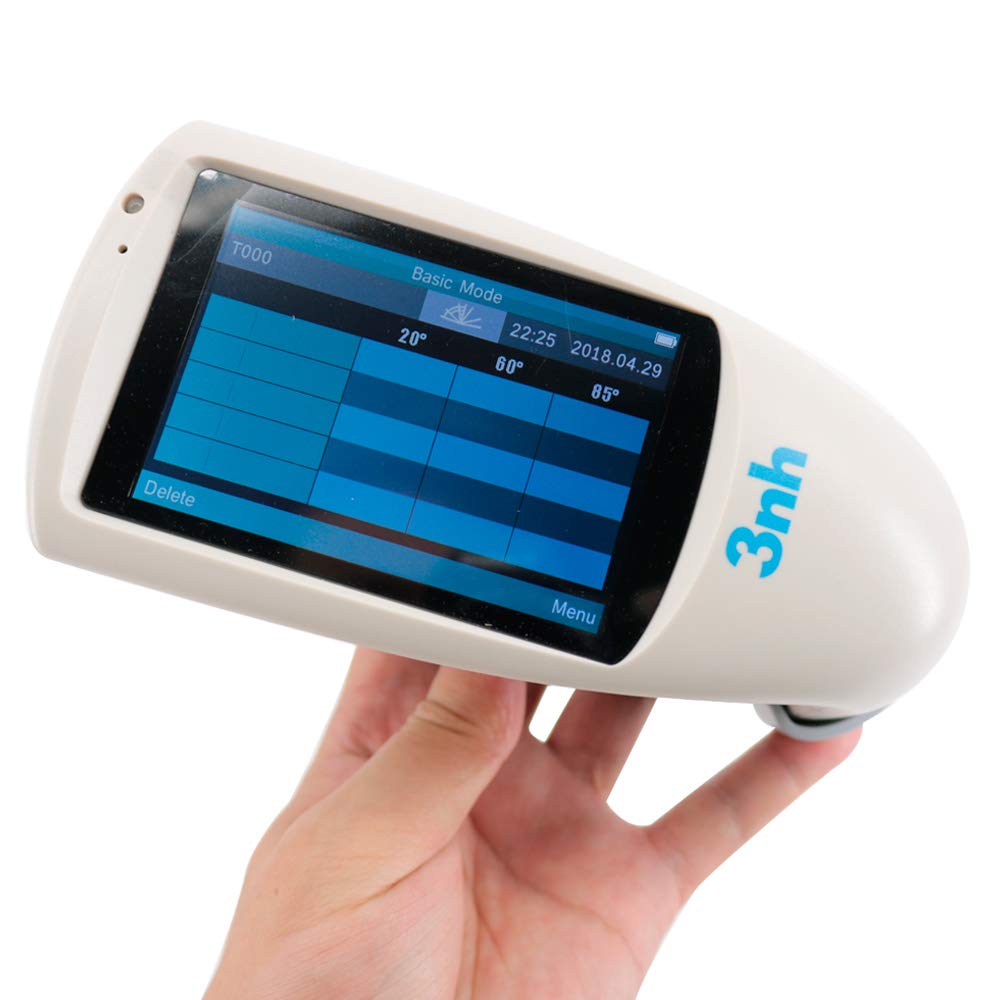

8.Large touch screen operation, easy to use
9.Beauty appearance, good man-machine communication interface
10.Powerful functions to meet many different requirements
11.Large storage to save over 5000 data
12.Built-in lithium ion rechargeable battery
Specification
Brand Name:3nh
Model Number:NHG268
Measure Angle:20/60/85
Measuring Area (mm):20: 10x10, 60: 9x15,85: 5x36
Division Value :0.1GU
Type:Gloss Meter
Measuring Time :1.0s
Viewing Screen :TFT 3.5 inch, capacitive touch screen

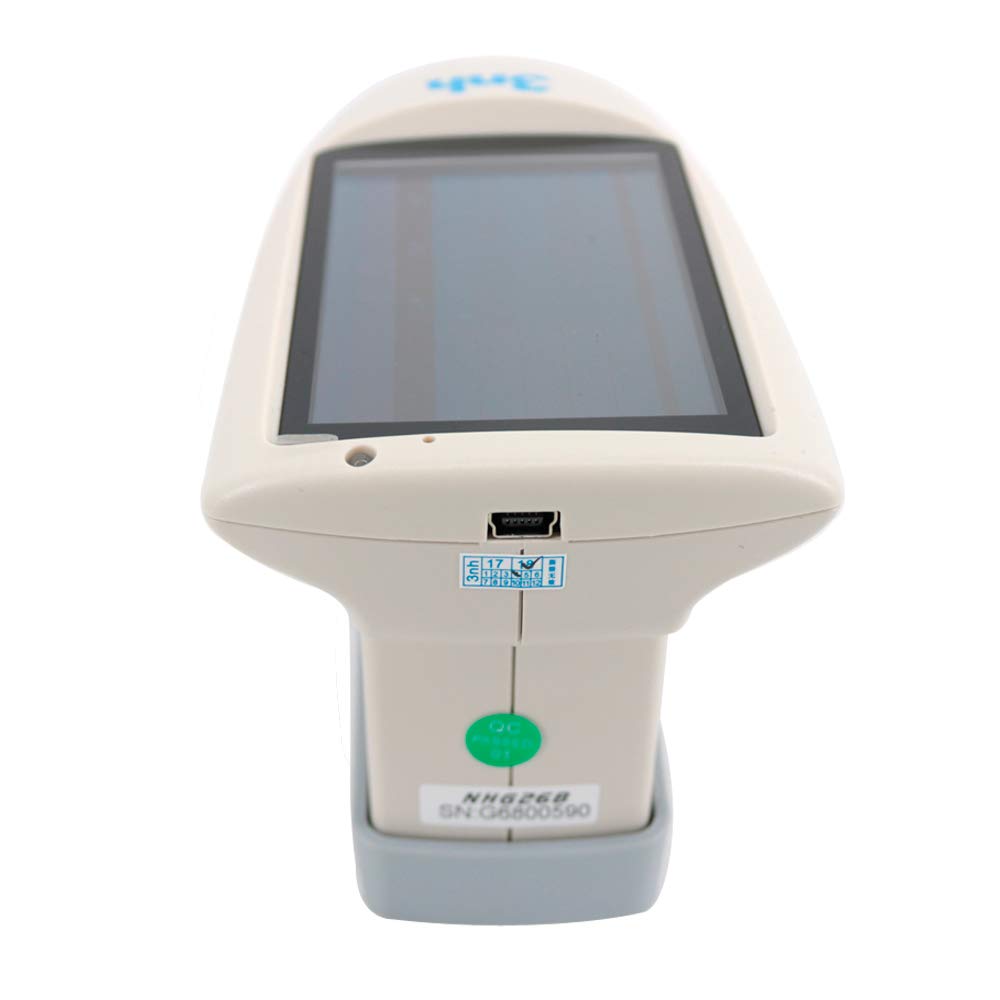

Interface:USB/RS-232
Battery:3200mAh lithium battery, more than 5000 times in 8 hours
Operation Temperature:0~40℃（32~104°F）
Storage Temperature:-20~50℃（-4~122°F)
