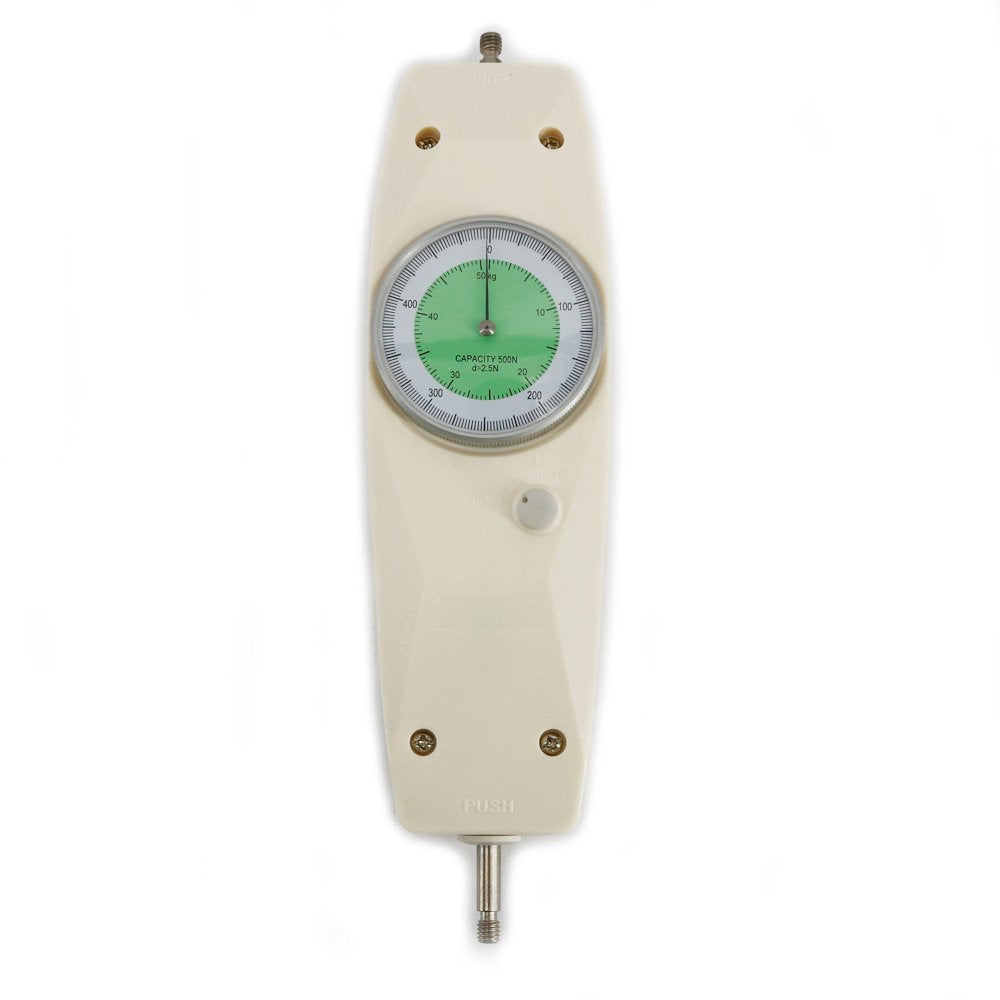

Graigar NK-500 Analog Push Pull Force Gauge 500N/50KG/110LB with Peak-Hold Function

Brand: Graigar

Color: White

Features:

• Peak holding function and continuous.
• With easy operate and can be installed with all kinds of test stand and clamp.

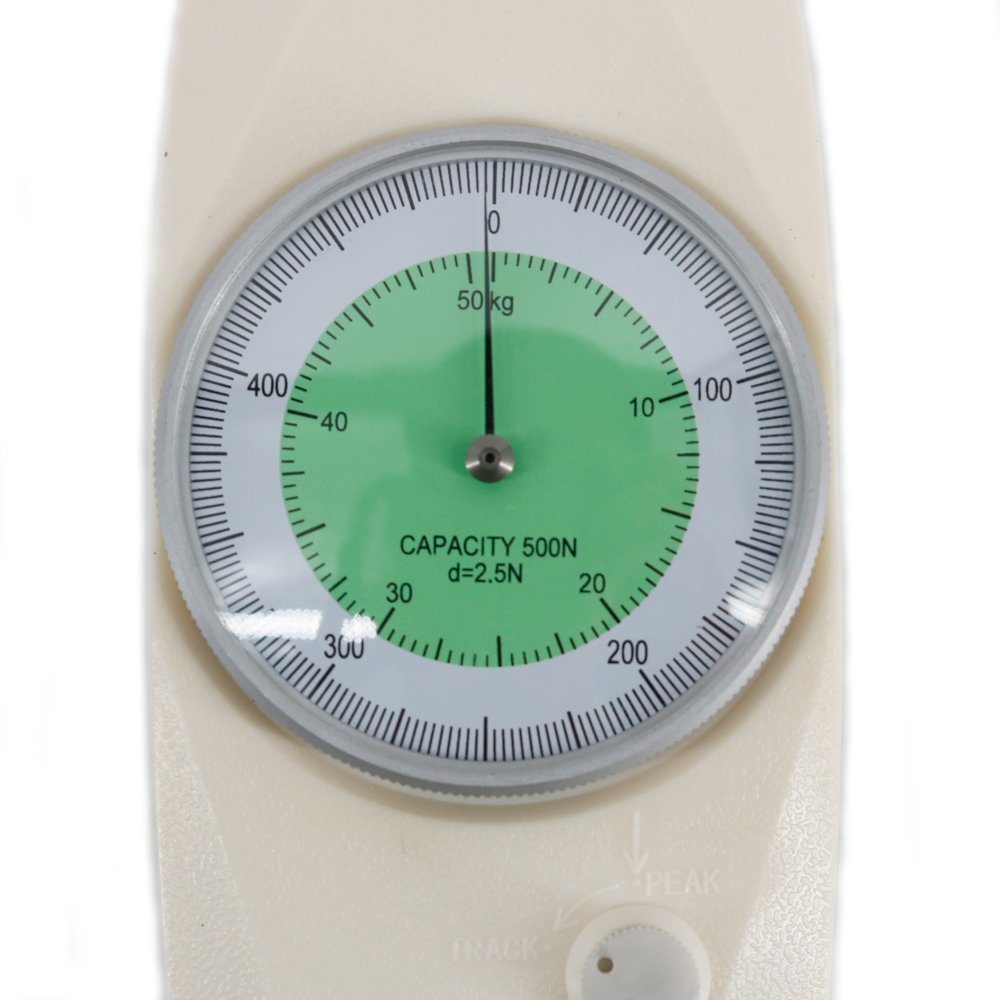

• NK-500 mechanical force gauge with two kind of unit dual show at the same time,don't need unit conversion.
• Needle indicates, easy to read, high accuracy
• Simultaneous display of two scales without any shift of measurement conversion.

Part Number: NK-500

Details: NK-500 Analog Push and Pull Force Gauge N/Kg Units 500N/50KG/110LB with Peak-hold Function Application:

The NK, NLB, ALB series are analog force gauge with compact size and high accuracy.
They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials, electric wire and cable, auto part, power generator, scientific research institute to do the push pull force insertion force and destructive experiment.

Specification:

Max load:500N/50KG/110LB

Min load:50N/5KG/11LB

Load graduation value:2.5N/500G/1.1LB

Work temperature:20°C+/-10°C

Carry temperature:-27°C~+70°C

Relative humidity:15%~80%RH

Work environment:No vibrancy and no cautery

EAN: 0725370407777
