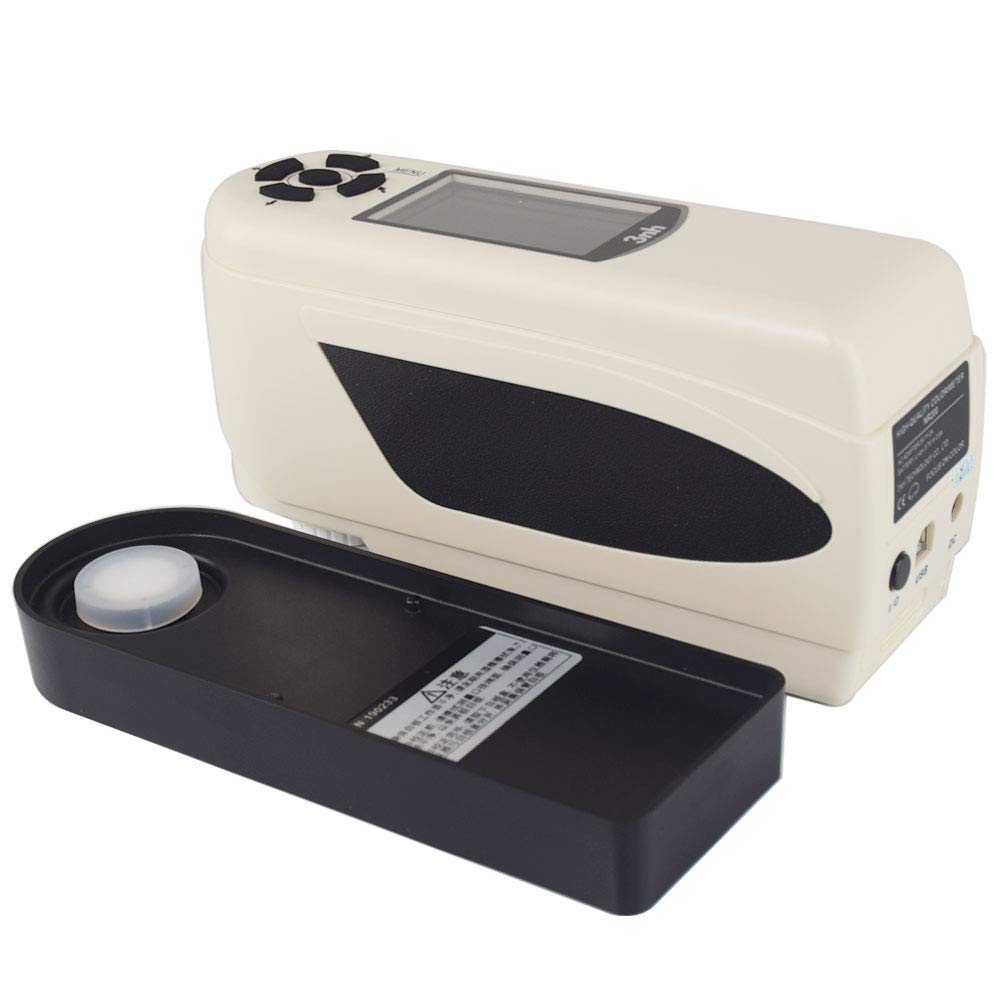

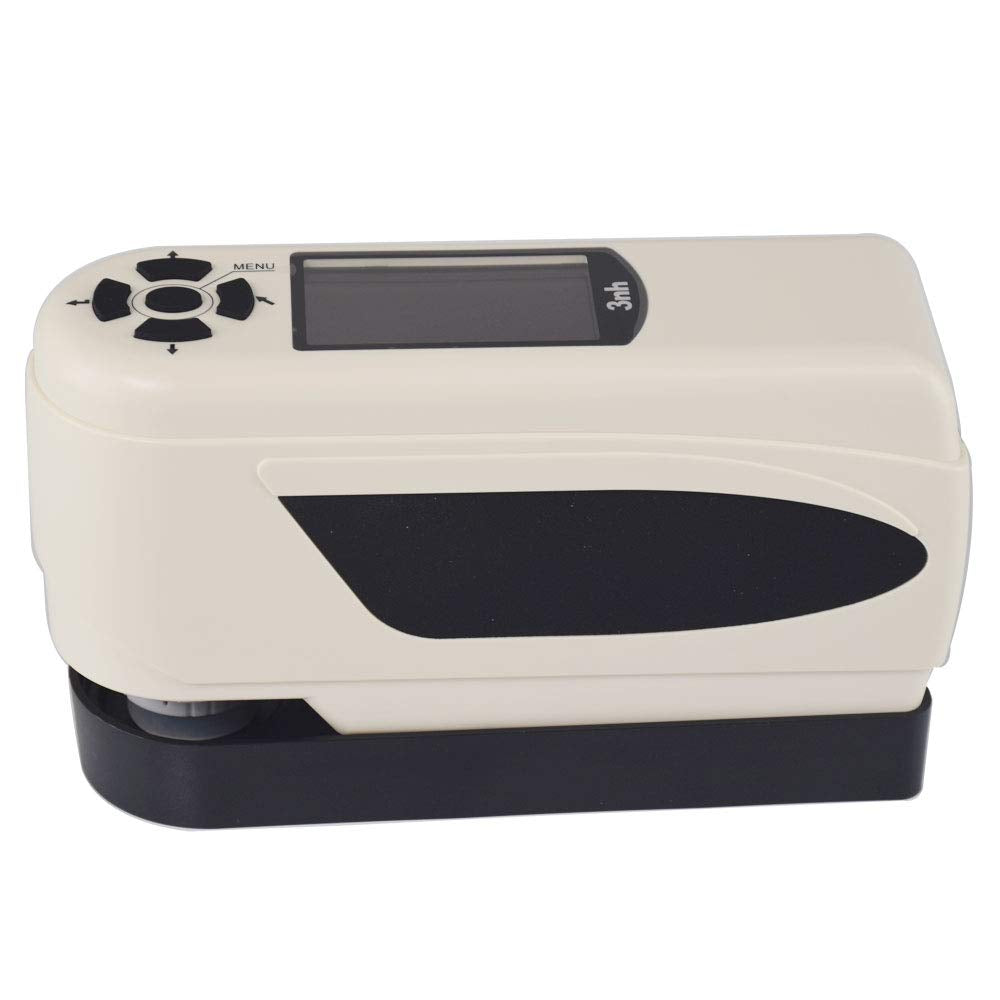

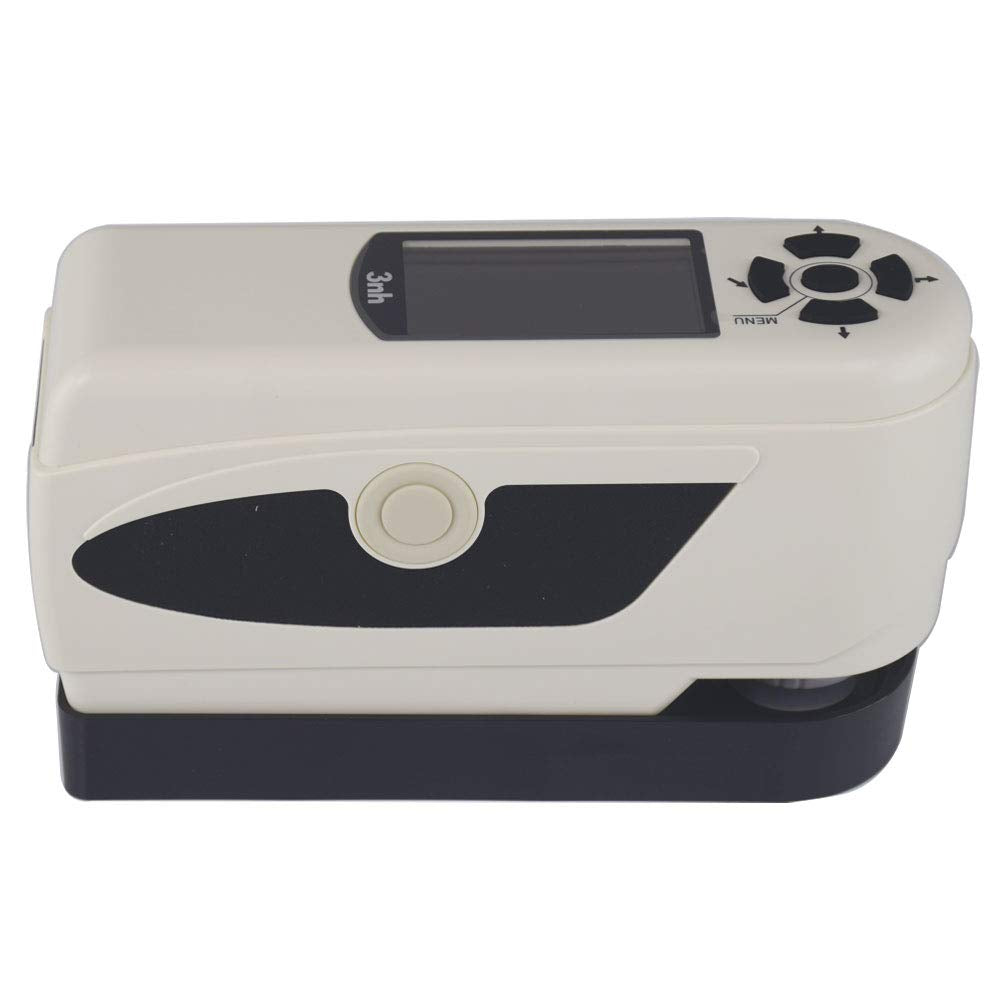

NR200 Color Meter Stable Measurement Performance: The repeatability △E is 0.08; Portable structure design which is more conductive to keeping the instrument stable when using.
Leading Humanity Design and Convenient Operation: One-touch access to measurement interface; Structure design in line with ergonomics; East-to-use operating interface
PC Software-Realize More Function Expansion: 3nh has the intellectual property of PC software. The corresponding software serial number and password protection are configured in 3nh colorimeter.
Convenient and Fast Locating: Illumination locating is a fast, simple and convenient locating which created by 3nh.
Advanced Power Management Design
Part Number: NR200
Details: Product Description
Injection colors matched and quality control in production process
Color-difference detection and color-difference control or printing process
The color-difference analysis of spray paint and electroplate surface
Color-difference of different area of the metal treating surface
Color quality inspection of batch products outdoors
On-line monitoring of color difference in production process
Technical Datas
Model name :NR200
Measurement diameter:8mm
Light Source:D65
Positioning mode: light positioning
Light source device: LED blue light excitation
Detection Sensor: Silicon photodiode array
Measurement geometry:8°/d
Storage: 100 standard 20 000 samples
Color space:CIEL*a*b* CIEL*a*b* C*H* CIEXYZ
Color difference formula:?E*ab ?L*a*b ?E*C*h
The difference between the instrument station:?0.50?E*ab
Repeatability:?0.08?E*ab Measuring 30 times the average of the white standard version
Power supply:Rechargeable lithium-ion battery 3.7V@3200mAh
Charge time:8 hour
Size(mm):205×70×100
Net Weight:500g
Operate Temperature Range:-10 to 40?;0 to 85% moisture
Storage Temperature Range:-20 to 50?;0 to 85% moisture
