Graigar NR20XE Precise Color Meter Tester Colorimeter Reader 45°/0 °D65 CIELabCh CIELab; CIEXYZ Color Management Software 20mm Large Aperture for Strip Textured Uneven and Wet Sample

Brand: Graigar

Color: White

Features:

• NR20XE Colorimeter with 20mm extended aperture and stable end face, can measure surface grain and damp products
• NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors
• The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes

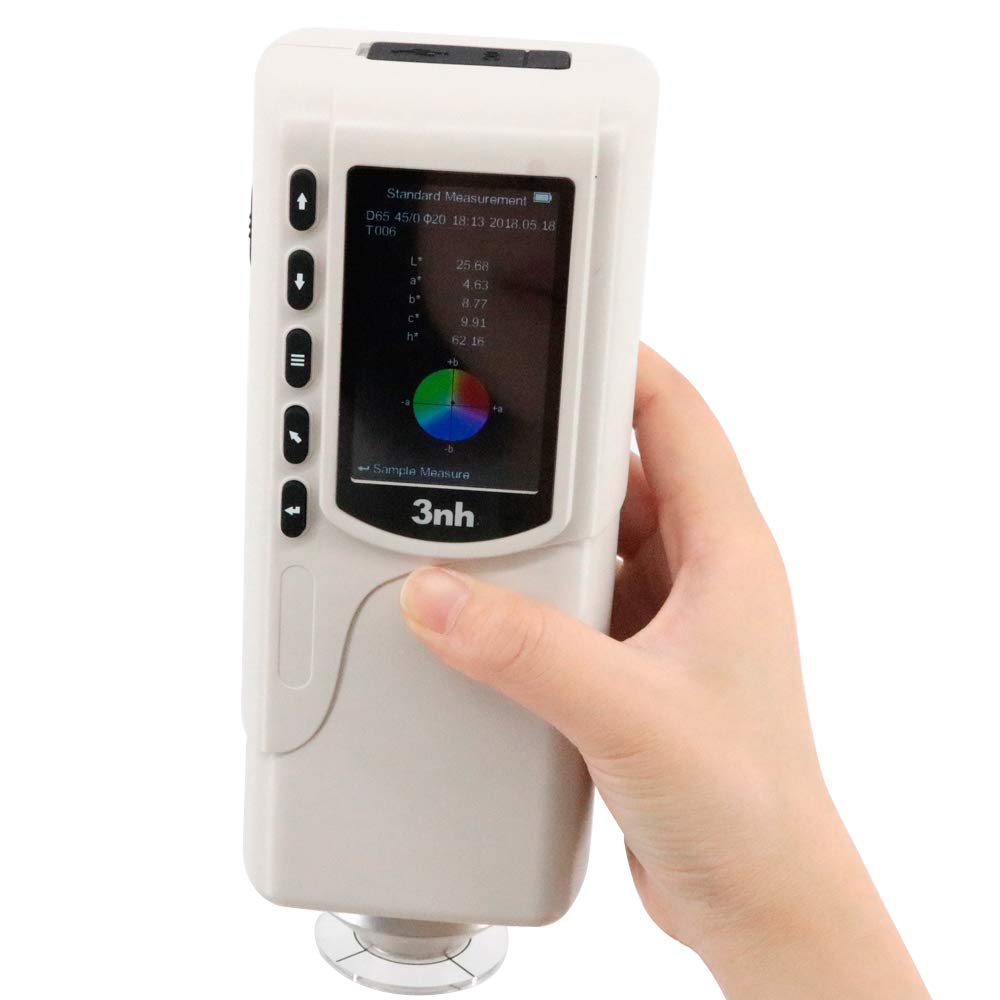

• 3nh NR20XE is a handheld colorimeter based on 45°/0° optical geometry
• Configuring CQCS3 software -- connect PC computer to realize more functions

Part Number: NR20XE

Details: Colorimeter is used to measures one standard color Lab, then measures another sample color Lab, finally it will quickly calculate color difference value (delta E) between standard and sample color.

It is a convenient tool to detect which color is qualified or failed.
Introduction

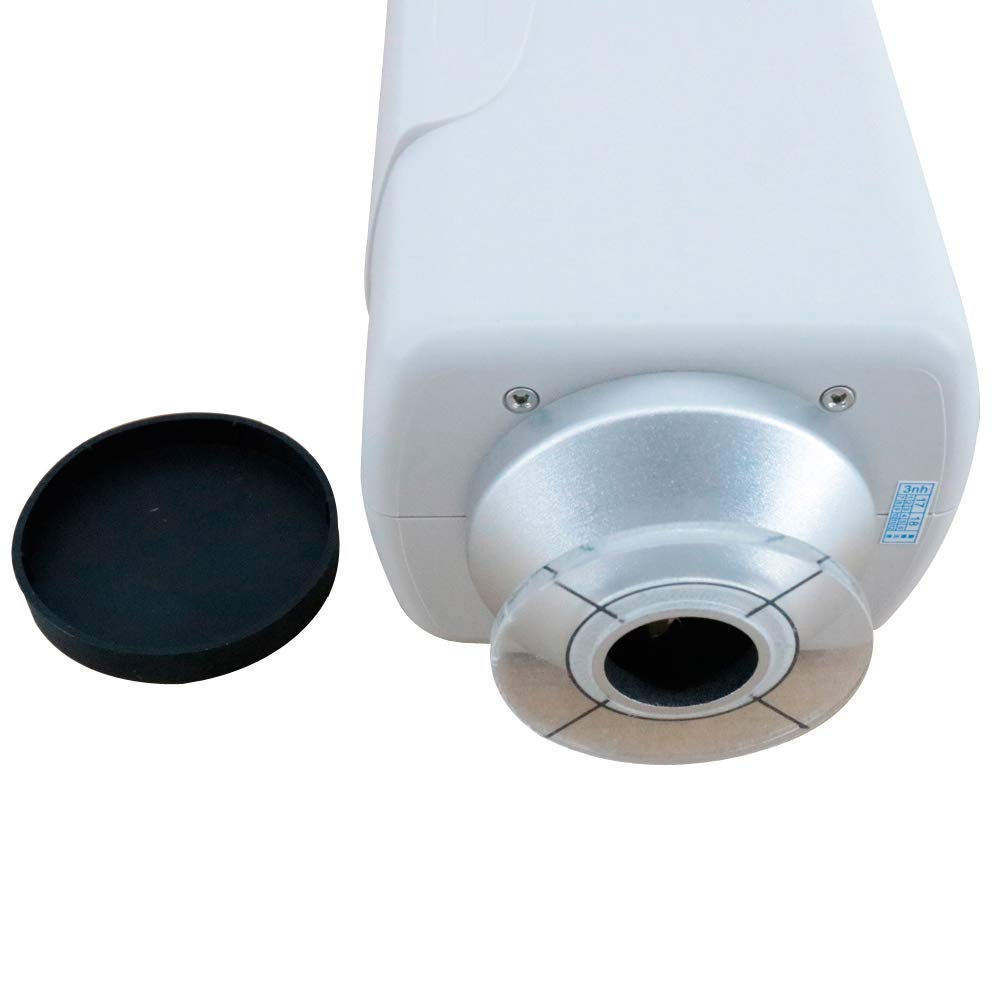

NR20XE precise colorimeter with φ20mm extended aperture and stable end face can test surface stripe and wet products. Large aperture can cover more sample surface, data will be more stable and accurate.

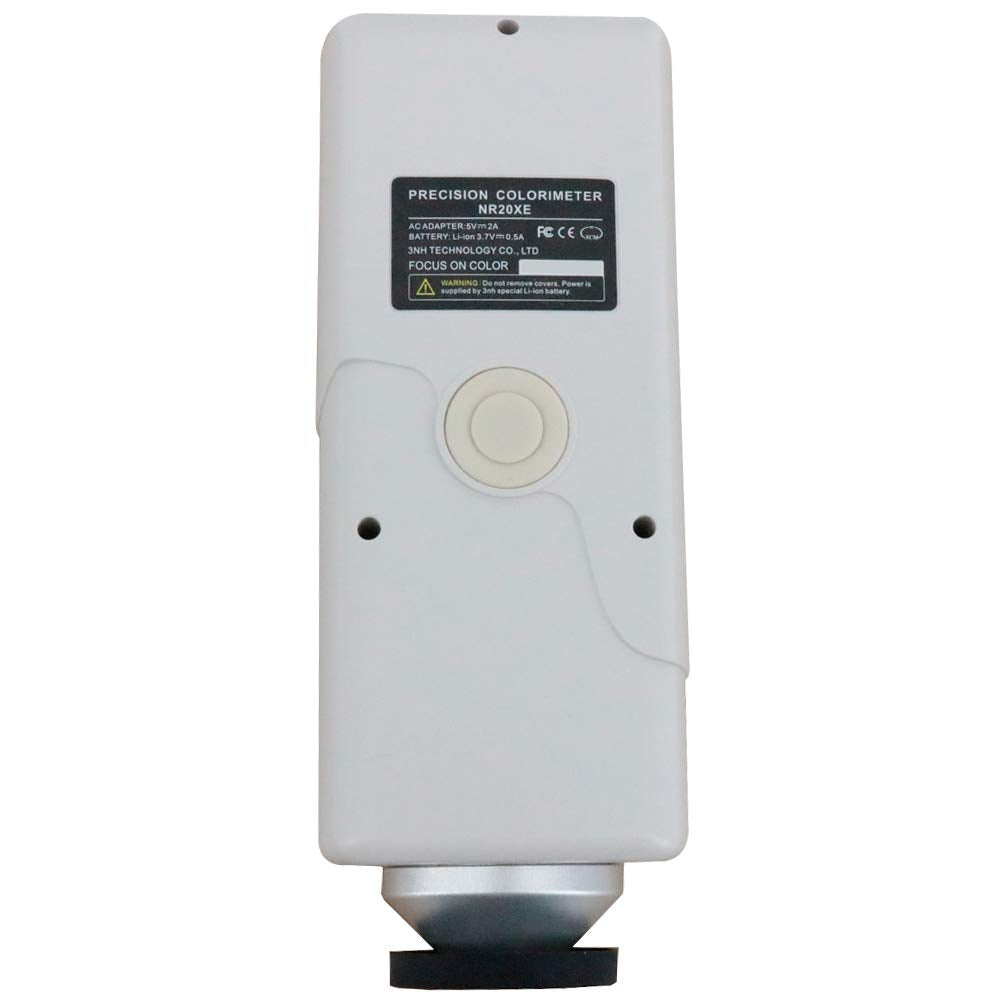

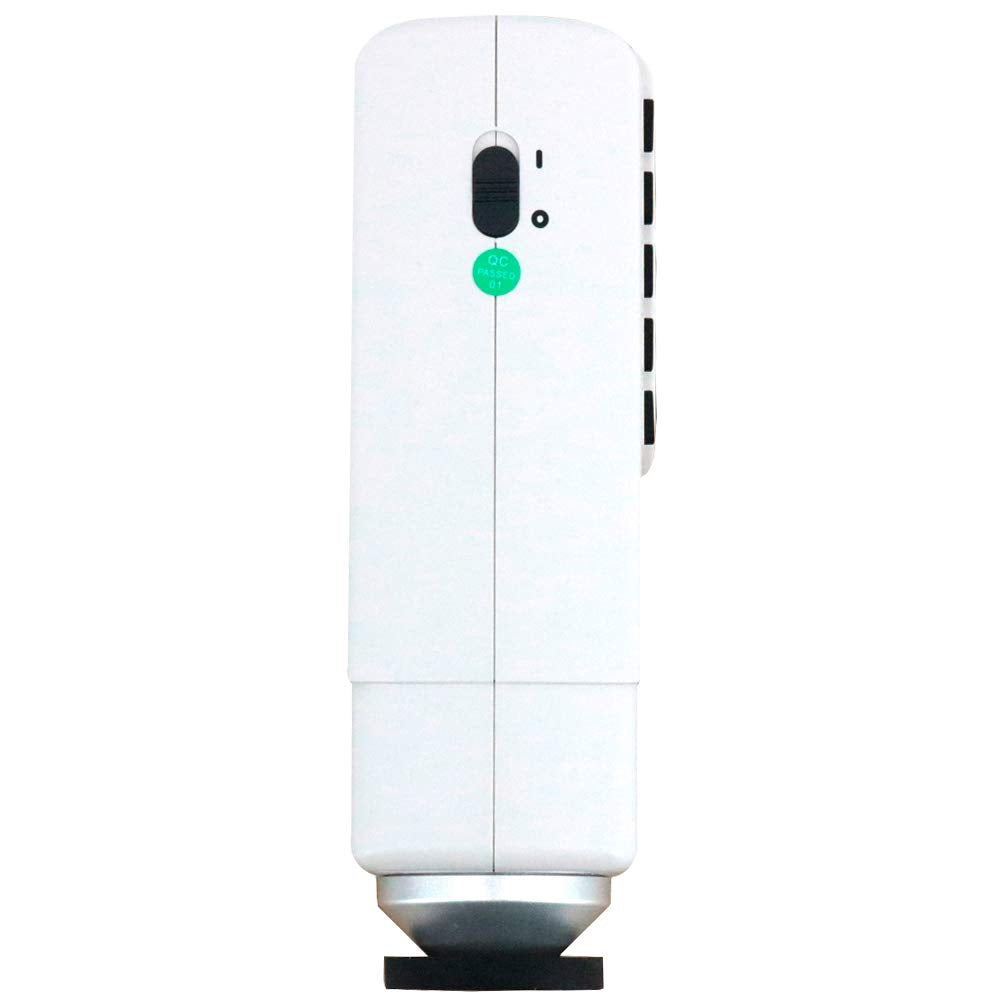

NR20XE precise colorimeter is a vertical structure, it can make sure only the aperture touches the object which will not stain the instrument body.
NR20XE 45°/0 °optical geometry structures can reflect interactive effect more effectively than 8°/d colorimeter.
NR20XE is widely used in food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.

Specifications
Model: NR20XE
Viewing Geometry: 45°/0°
Aperture: Φ20mm
Detector: Silicon photoelectric diode
Color Space: CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ
Color Difference Formula: △E*ab; △L*a*b*; △E*C*h*
Light Source: D65
Light Source Device: LED blue light excitation
Storage: 100pcs standards 20000pcs samples
Repeatability: Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate

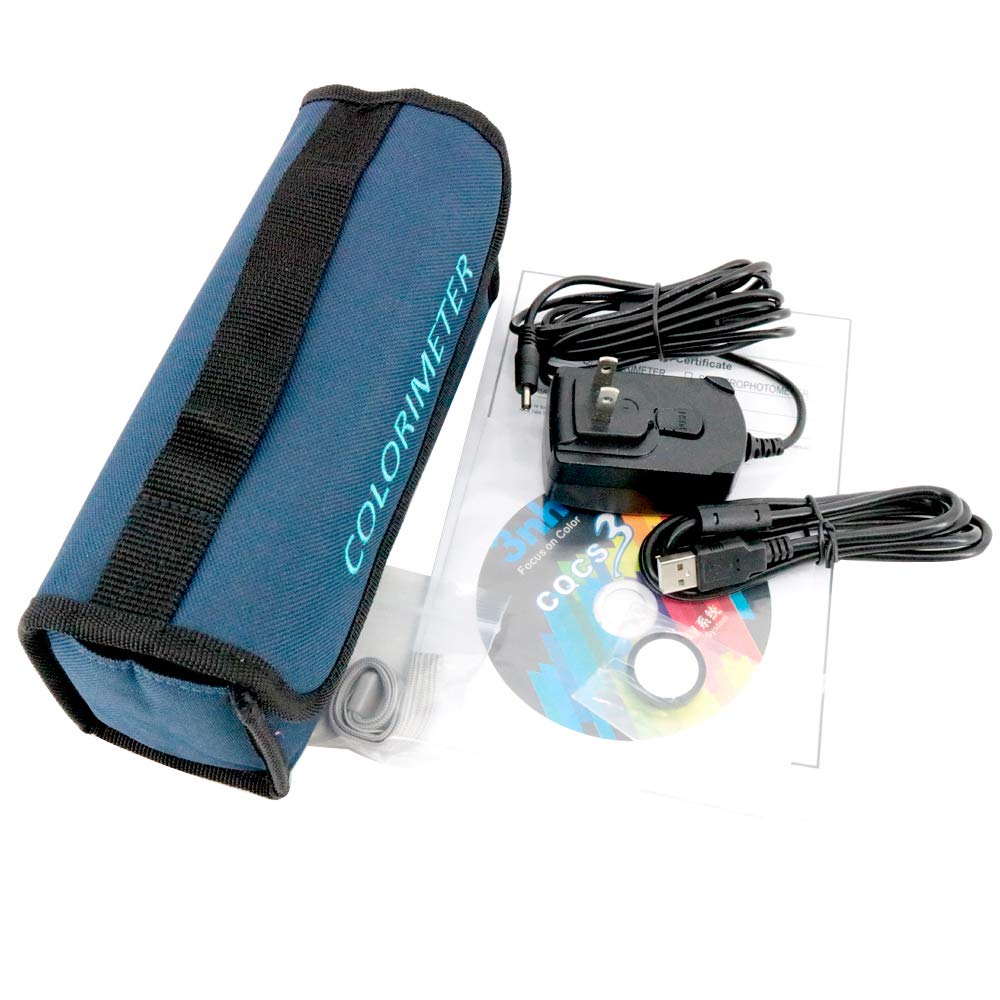

PC Software: CQCS3 Software
Power source: Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life: 5 years, more than 1.6 million measurements
Charging Time: 8 hours
Weight: 500g
Dimension: 205×67×80mm
Printer (optional): Miniature thermal printer

EAN: 0799649265436
