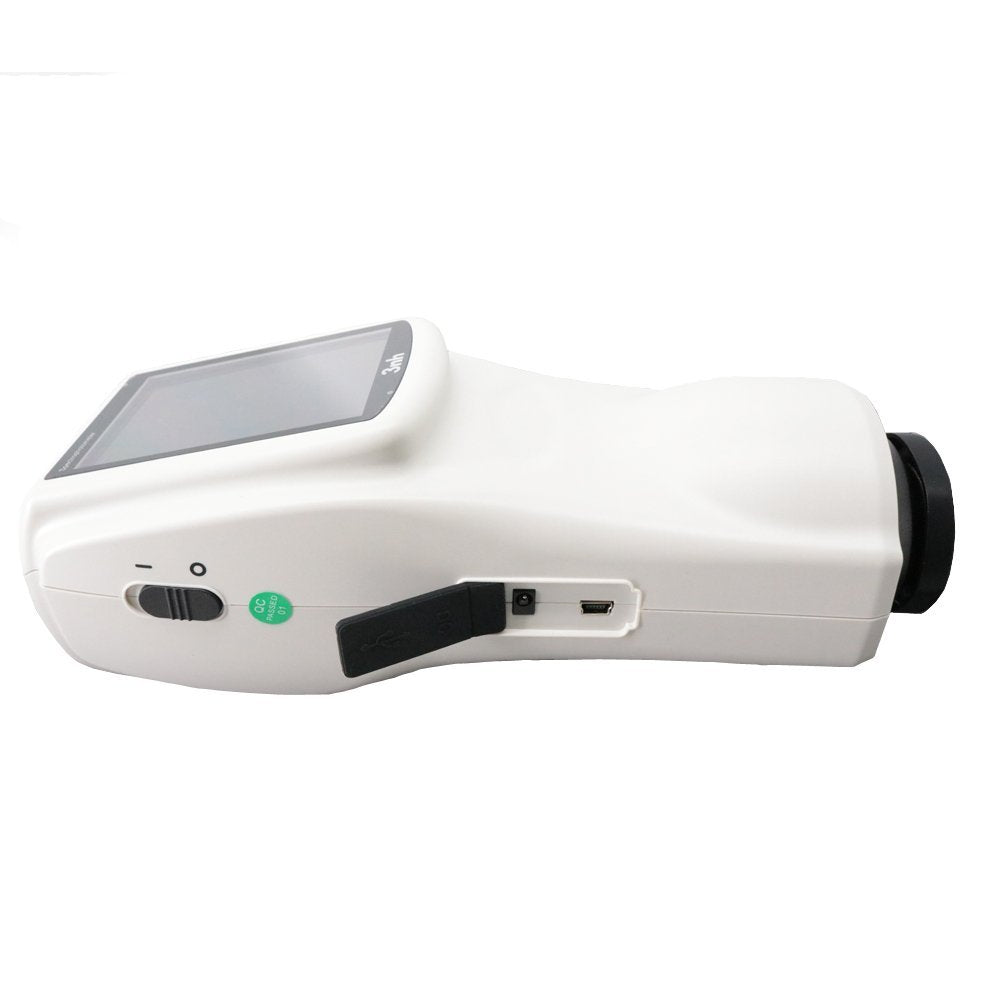

Graigar NS800 Professional High Precise Portable Handheld Spectrophotometer 45°/0° Colorimeter Color Matching

Brand: Graigar

Color: White

Features:

• NS800 spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitivity analysis
• The NS800 spectrometer adopts the principle of combining LED precision
• Realize the color matching function and calculate the real parameters of various color difference meter formulas
• The parameters are fully integrated with international standards and are fully compatible with the international market
• The spectrometer has a higher precision and is sensitive to any color

Part Number: NS800

Details: Product Features:
1. Aesthetic design perfectly combined with ergonomics structure.

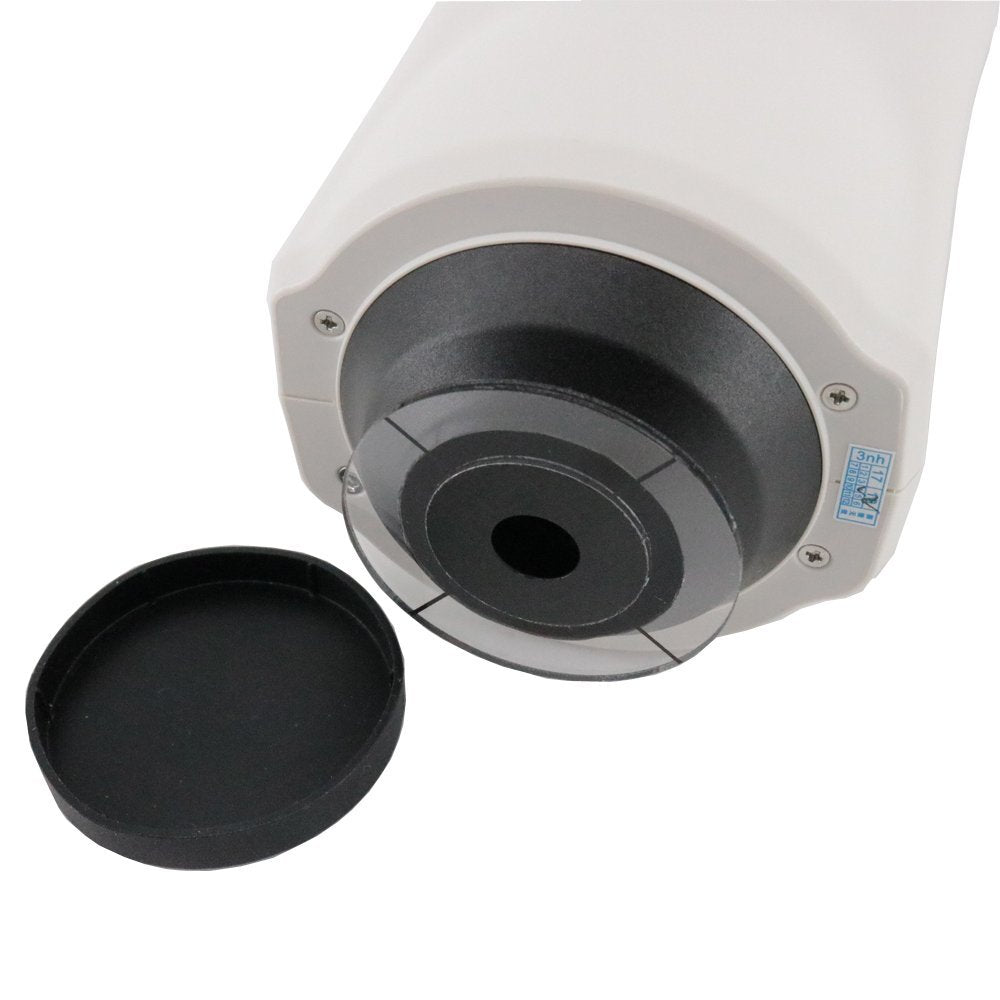

2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.

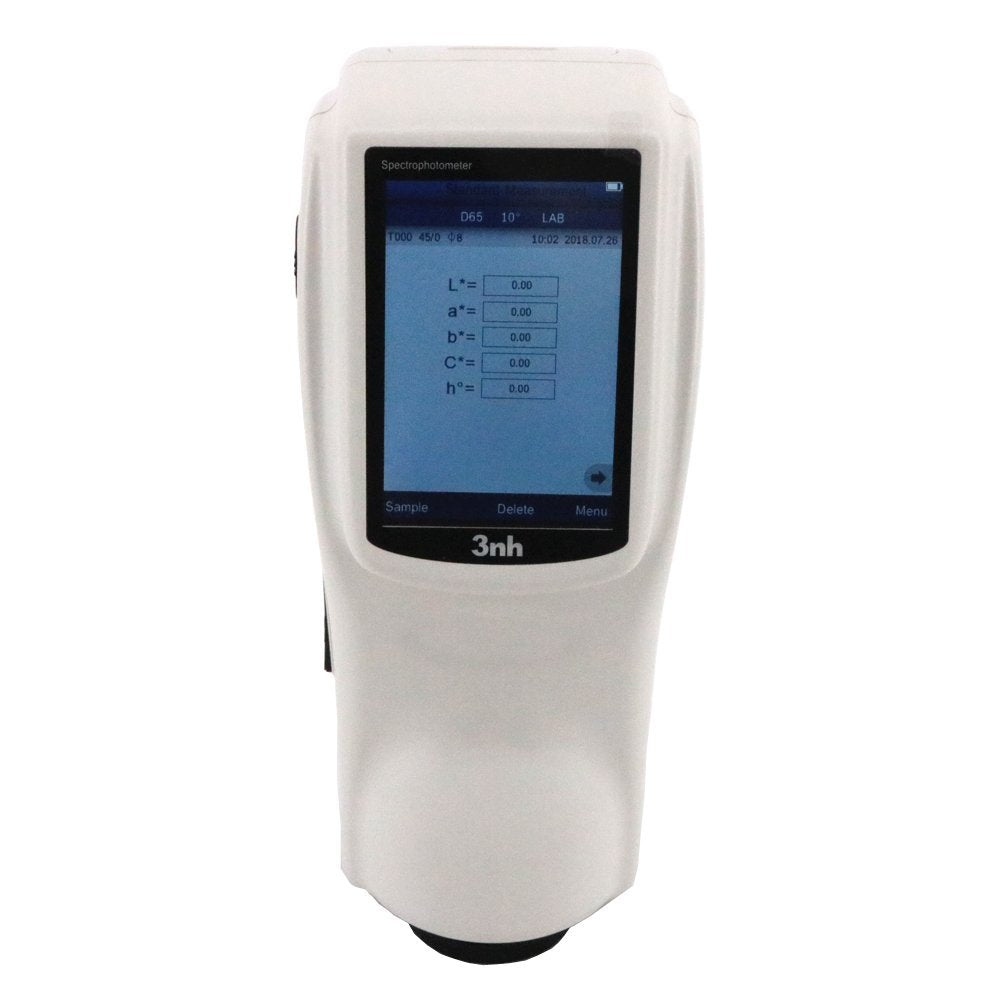

3. 3.5 inch large capacitive touch screen.
4. Two standard observer perspectives, multiple light sources modes, a variety of color systems.
5. The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
6. Large capacity storage, can save more than 10000 data.
7. PC software with powerful extension functions.
8. High hardware configuration with a number of innovative technologies.
9. Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
10. 15° oblique angle screen, more in line with the human eye observation.

Specifications:
Model: NS800
Integrating sphere Size: Φ58mm
Sensor: Silicon photodiode array
Wavelength range: 400~700nm
Wavelength interval: 10nm
Reflectance range: 0~200%
Measurement Time: 1.5s
Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Dimension: L*W*H=90*77*230mm
Weight: 600g

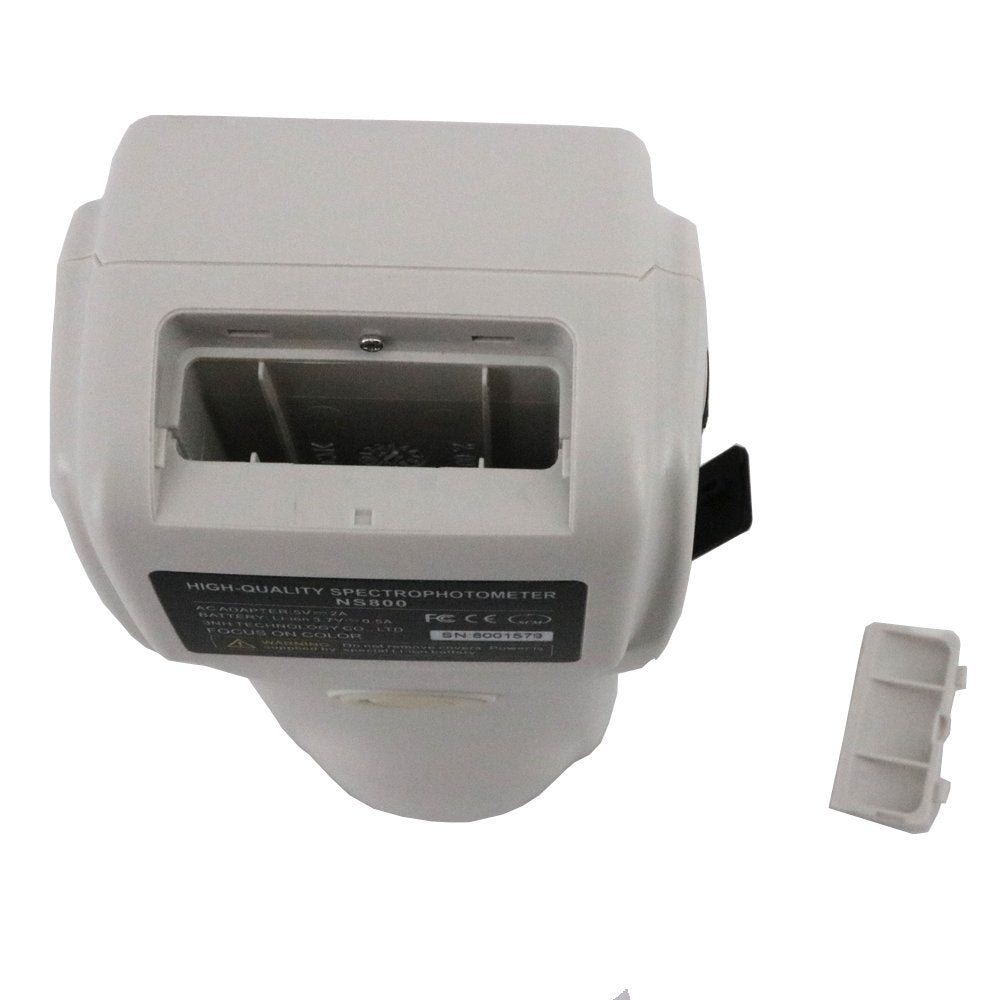

Battery: Li-ion battery. 5000 times within 8 hours
Lamp Life: 5 years, more than 1.6 million measurements
Interface: USB/RS-232
Operating Temperature: 0~40℃(32~104°F)
Storage temperature: -20~50℃(-4~122°F)

EAN: 0705419446585
