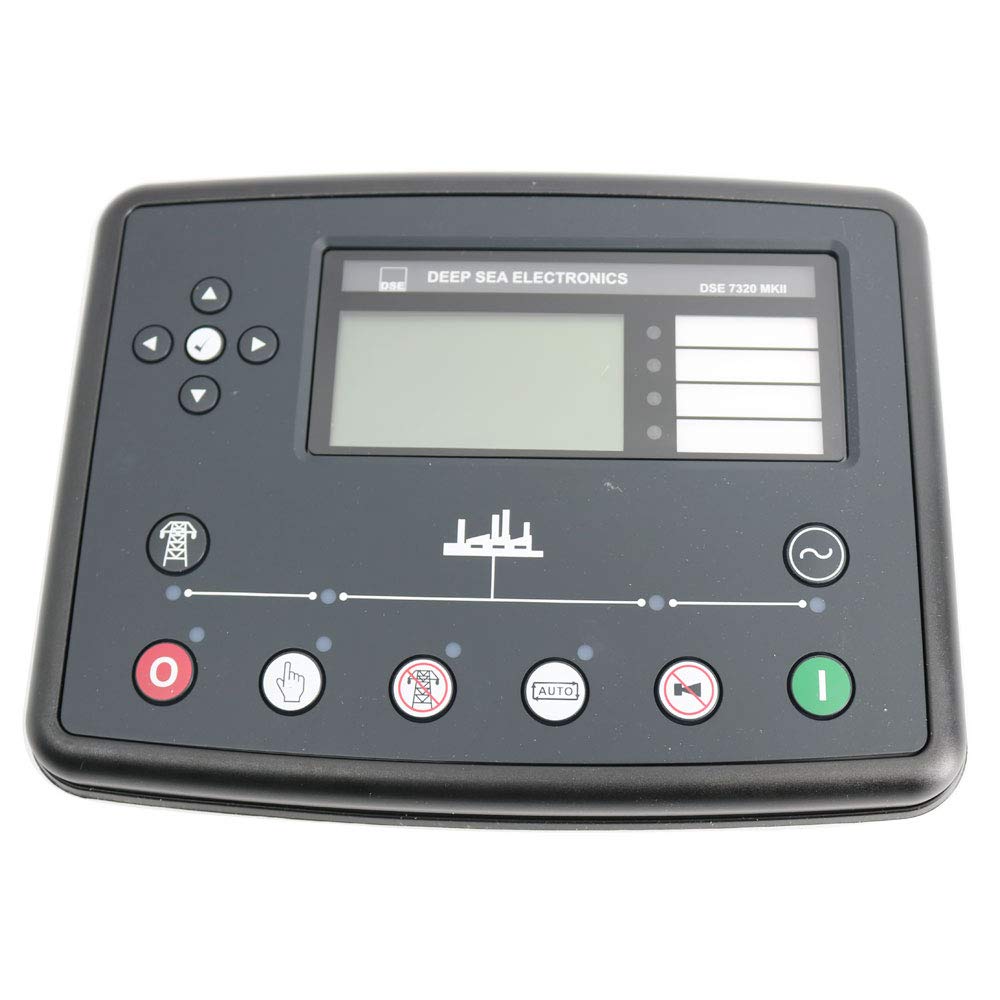

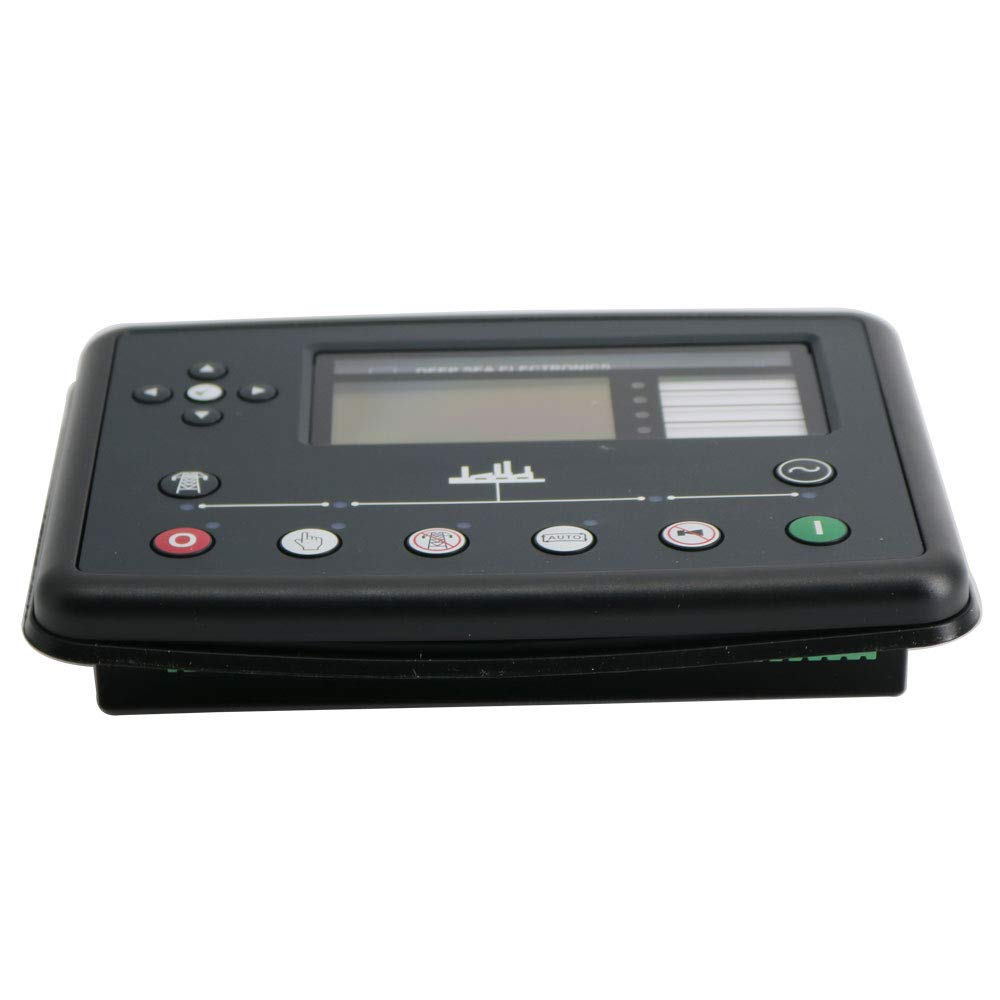

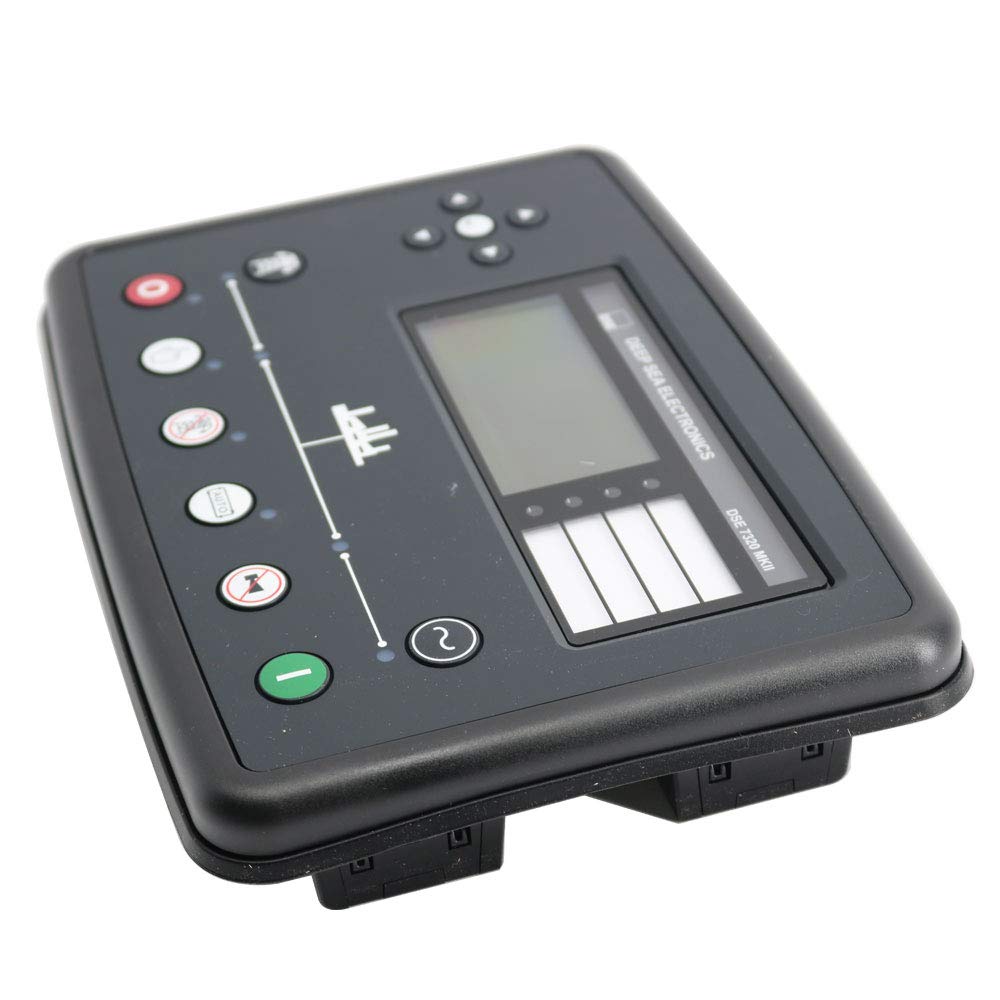

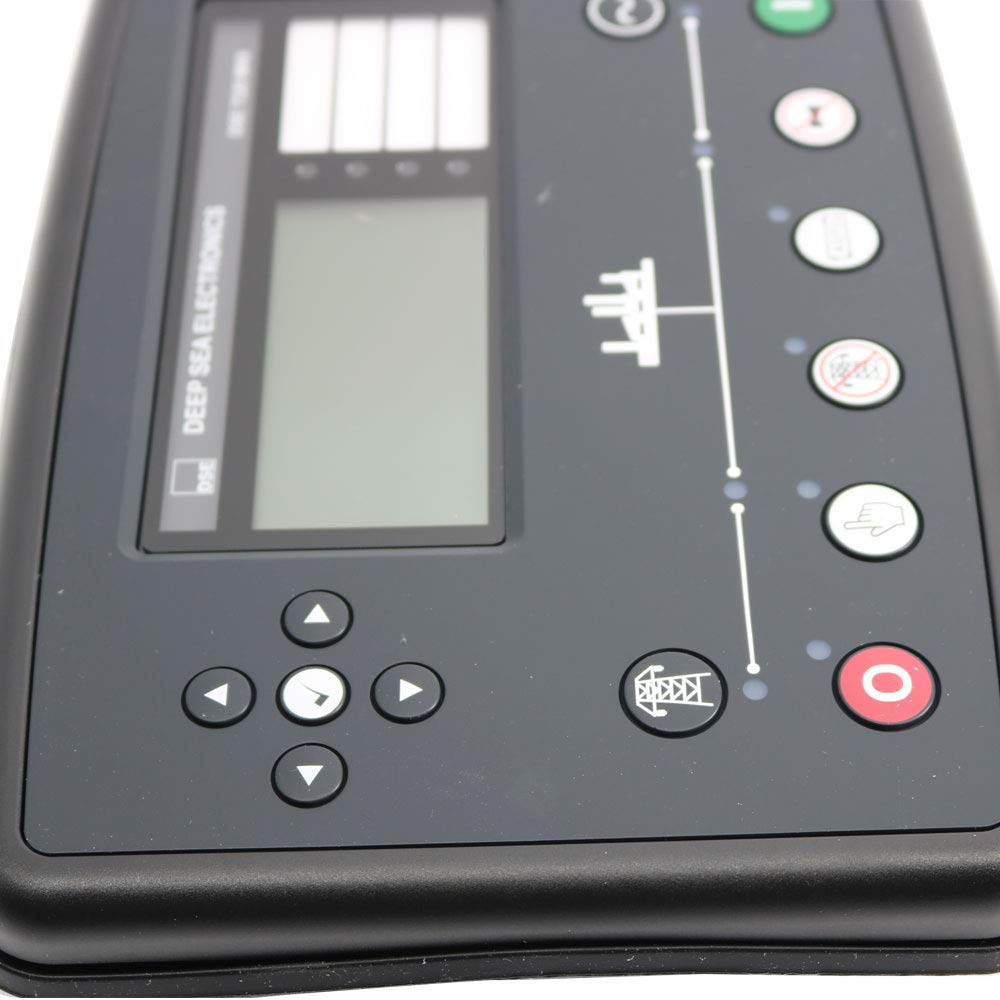

The DSE7320 MKII is a powerful, new generation Auto Mains (Utility) Failure genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format.
Provides comprehensive and clear indication of operation and parameters.
Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection.
Can be configured for use as a remote display module.
model number: DSE7320 MKII
Part Number: DSE7320
Details: The DSE7320 MKII is a powerful, new generation Auto Mains Failure genset control module with a highly sophisticated level of new features and
functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications.
Featuring a new Dual Core main processor and extended memory, the module provides faster and more powerful processing power, returning faster
operational responses on intensive applications and increased functionality, with data logging facility.
Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen,
illuminated LED's, remote PC's and via SMS text alerts (with external communication device).
Read More
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
PRODUCT VARIANTS
7320-03 - 7320 MKII Auto Mains Failure Control Module
