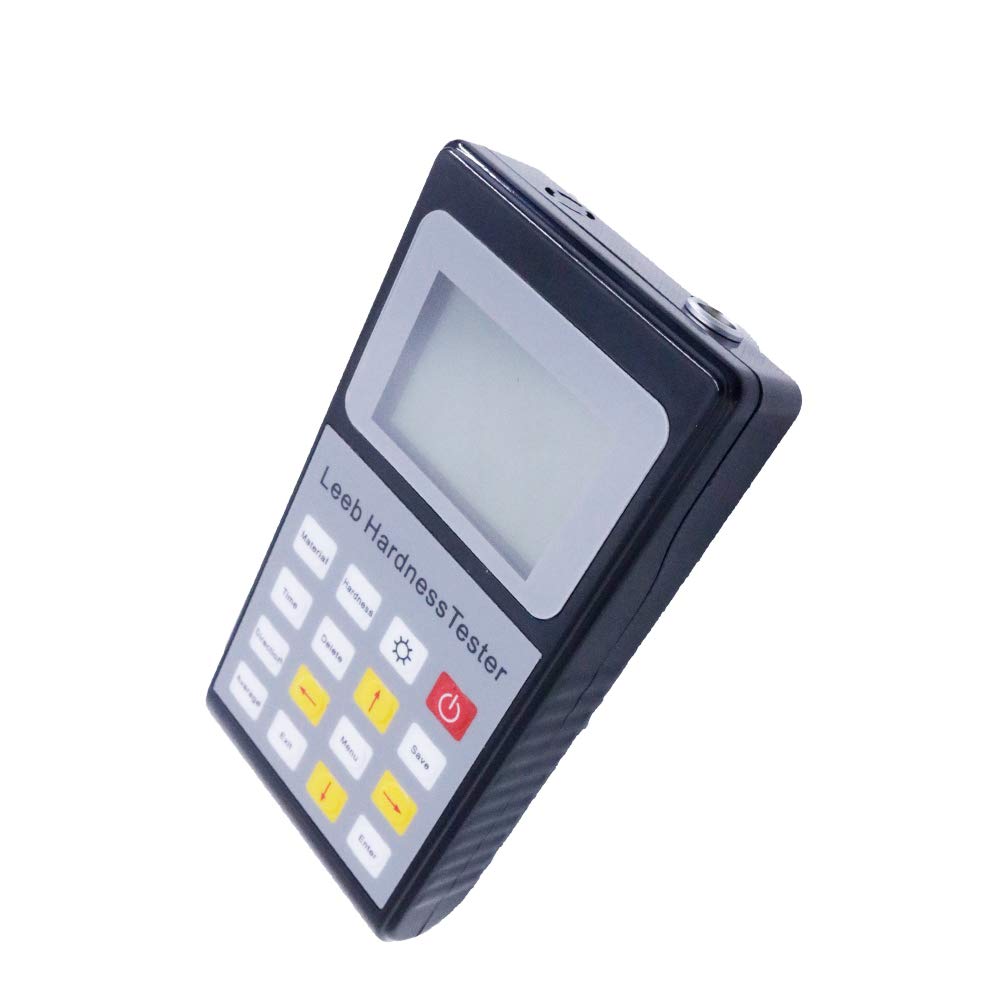

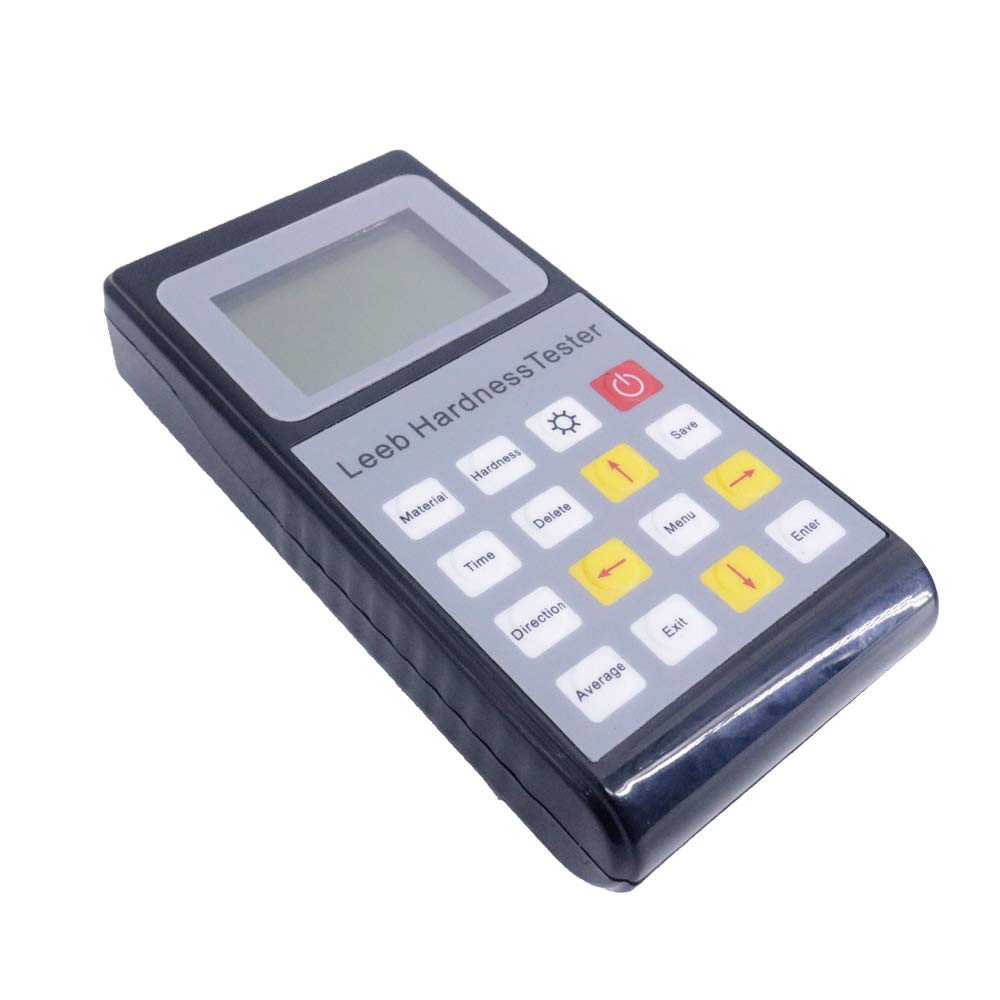

Graigar Portable Digital Leeb Hardness Tester Leeb120 Hardness Meter HL, HRC,HRB, HS,HB,HV

Brand: Graigar

Color: Black

Features:

• Leeb120 Leeb hardness tester Hardness parameter: HL, HRC,HRB, HS,HB,HV.
• Accuracy: Within±0.5%(HLD=800).
• Large screen LCD display with brightness LED back-light, convenient operation in the dark.
• Standard Impact Device Type: Impact Device type D.
• Measuring Range: (170-960)HLD, (17.9-69.5)HRC, (19-683)HB, (80-1042)HV, (30.6-102.6)HS, (59.1-88)HR.

Part Number: Leeb120

Details: Application Fields:

* The bearings and other parts, heavy workpiece, metal material, pressure vessel, failure analysis of turbine generator unit and equipment

* Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results

* Large workpiece within a wide range of more rapid test measurement site

Measuring Materials:

* Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel

Features:

* Small, portable, and accurate. Suitable for harsh operating environment, anti vibration, shock and electromagnetic interference.

* English menu, convenient and easy for operation.

* Low power consumption: Auto sleep, automatic shutdown function of saving energy

* Hardness standards HL,HRB,HRC,HB,HV,HS can be used, free conversion between different standards

Technical Specifications:

*Model: leeb120

*Measuring Range: (170-960)HLD, (17.9-69.5)HRC, (19-683)HB, (80-1042)HV, (30.6-102.6)HS, (59.1-88)HR

*Hardness parameter: HL, HRC,HRB, HS,HB,HV

*Accuracy: Within±0.5%(HLD=800)

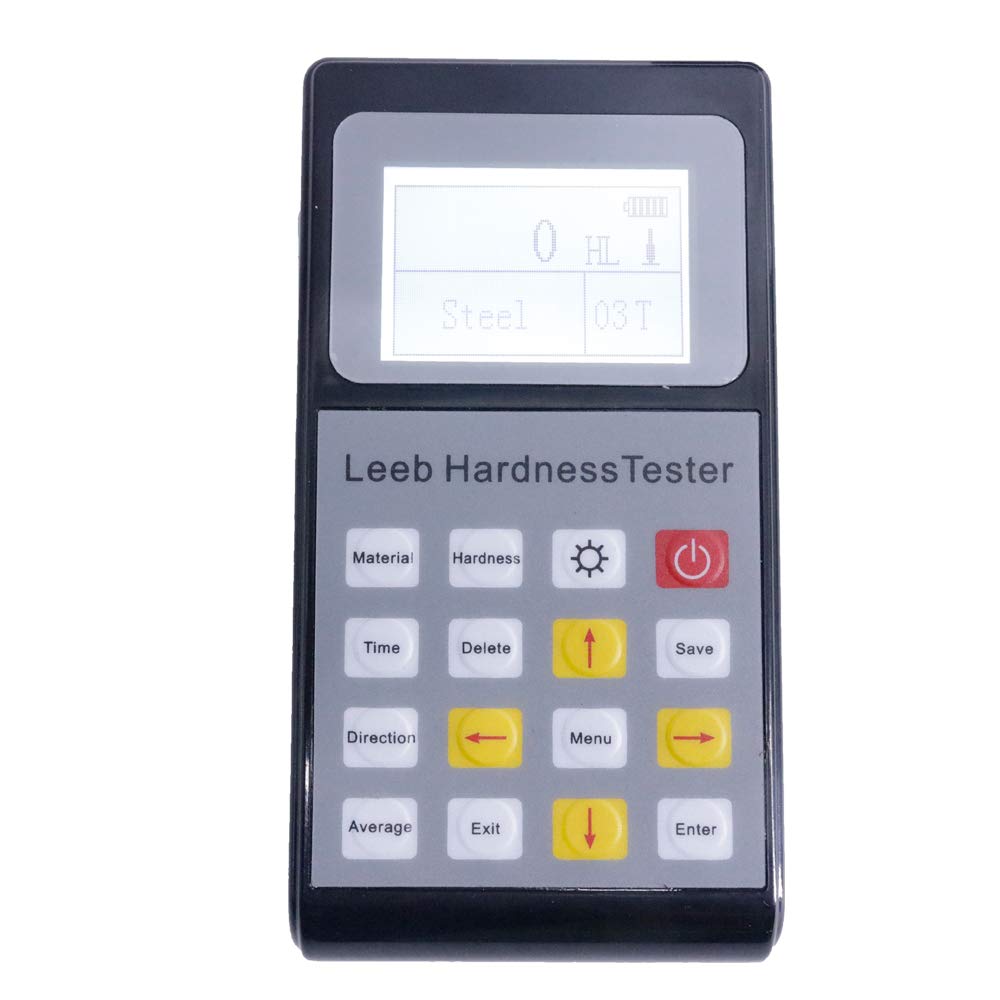

*Display: LCD with back-light

*Memory: 1250 groups

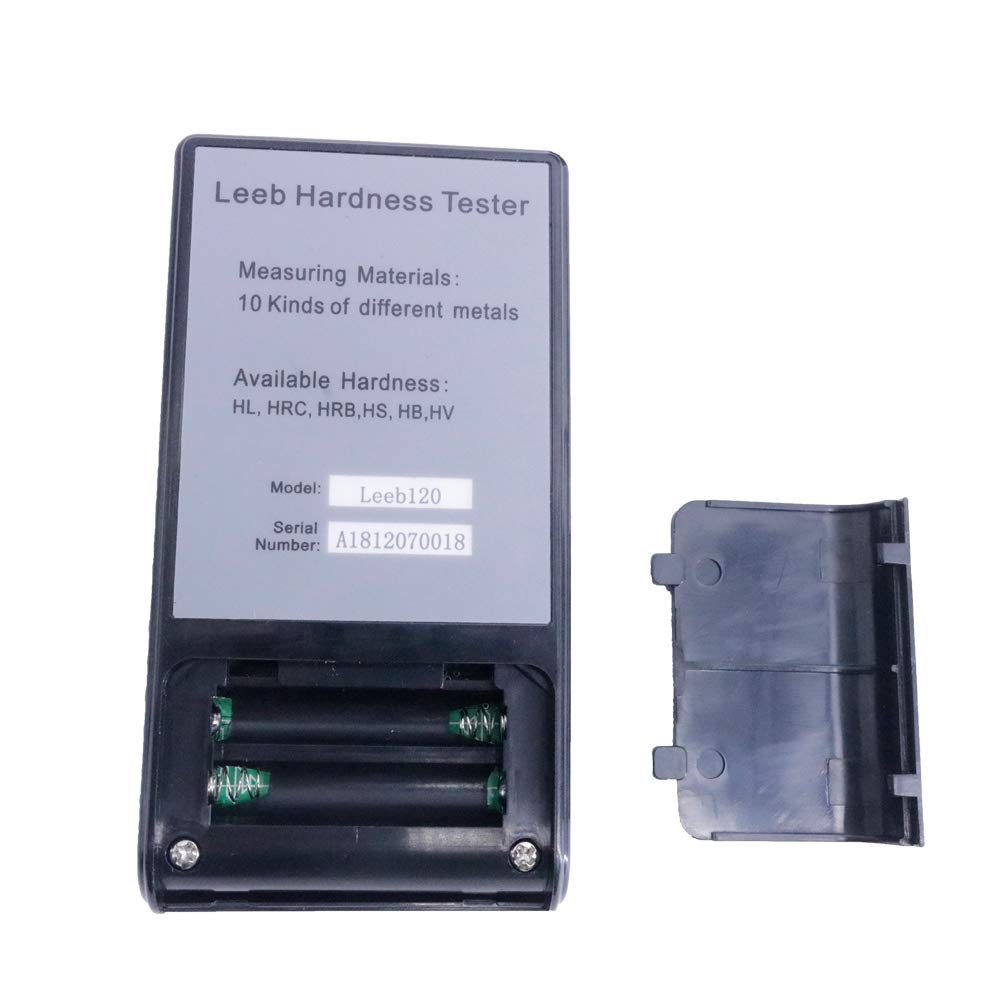

*Battery : 2 AAA（Not included）

*Operating Temperature: -20℃~+60℃

*Dimensions: 129×68×25mm

*Shell: Plastic

*Impact Device Type: Impact Device type D

Weight: 240g

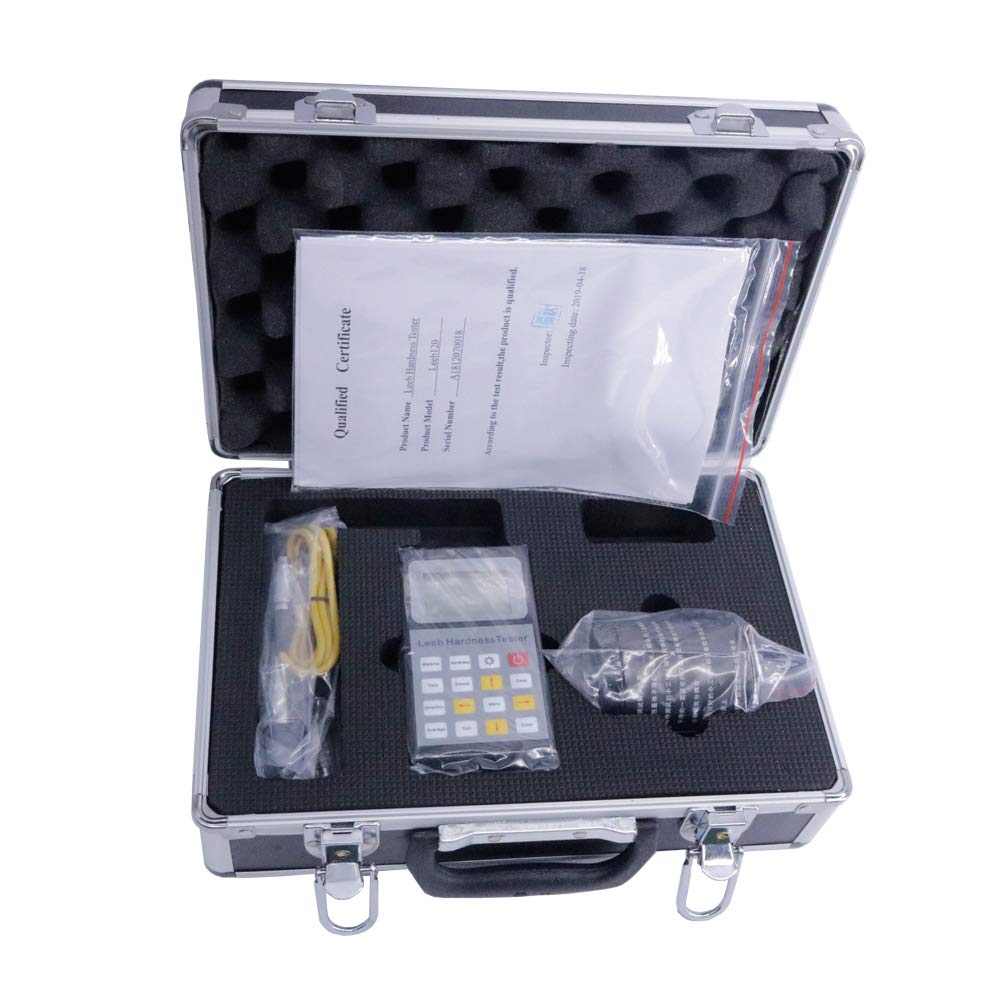

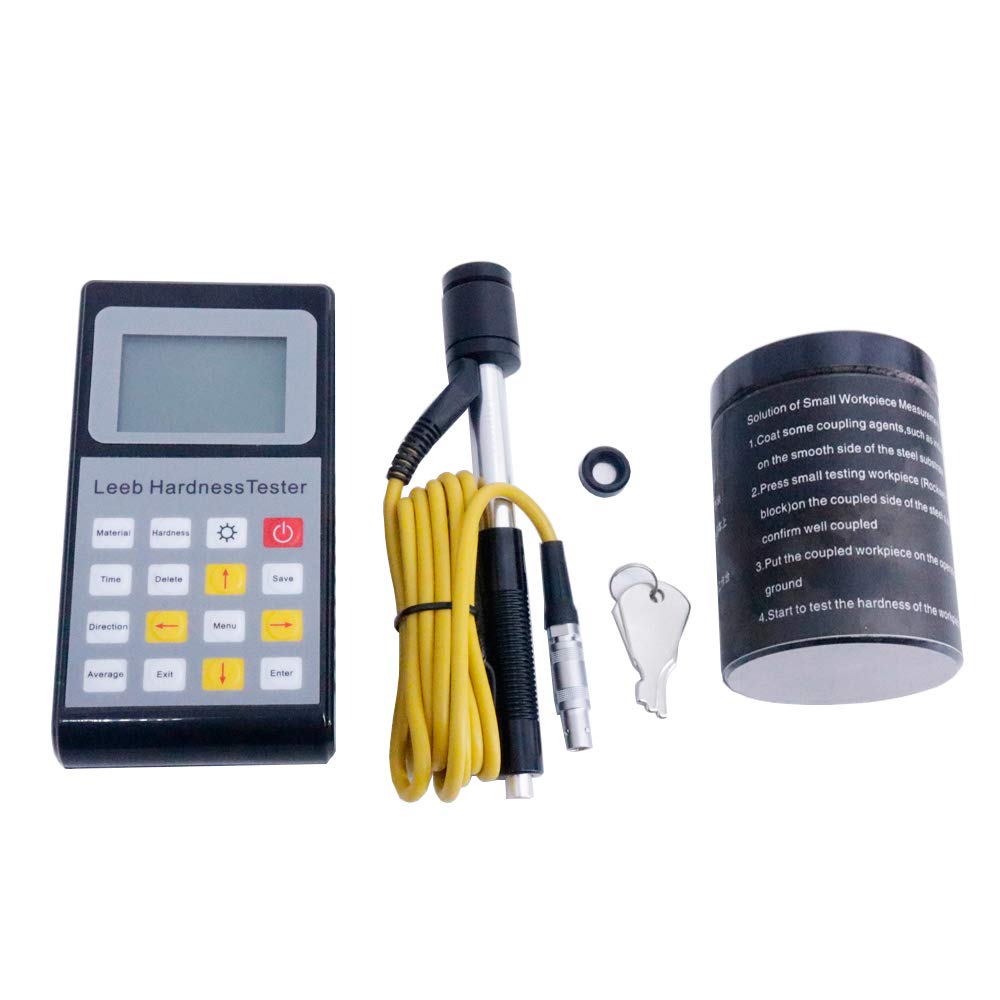

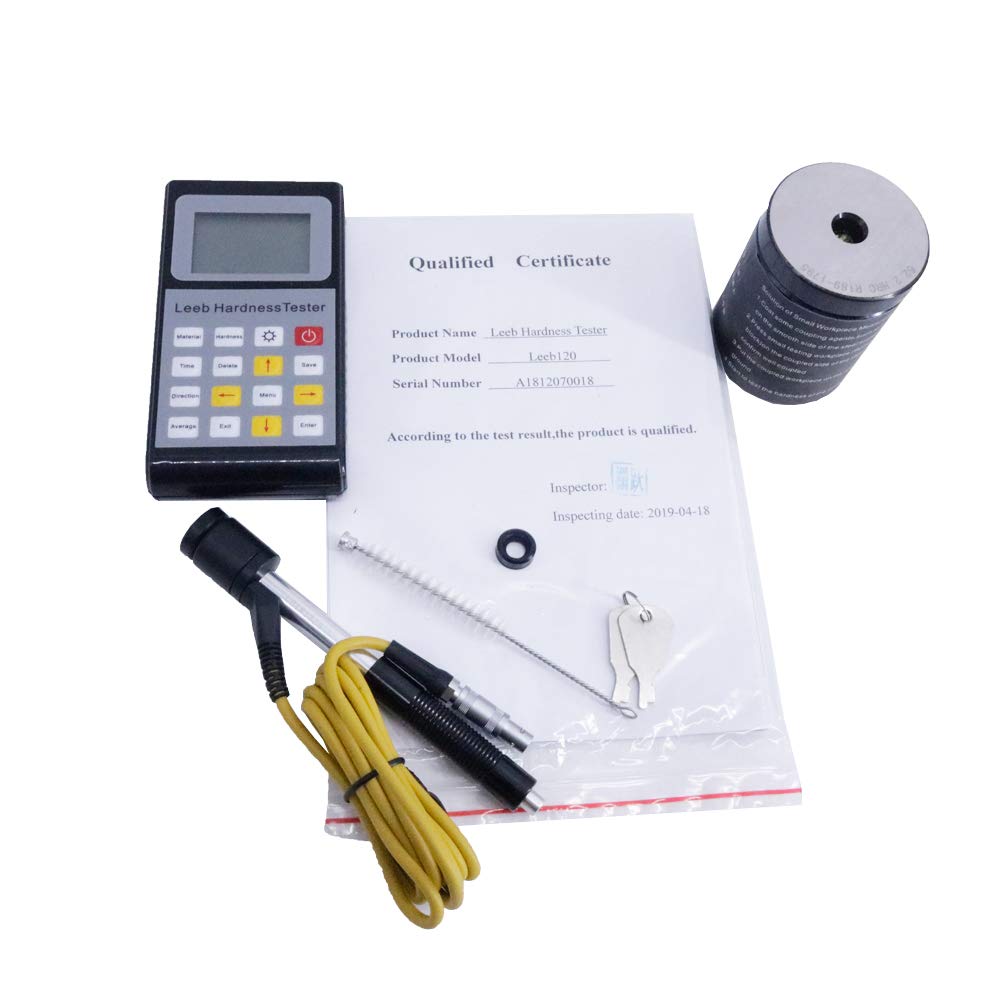

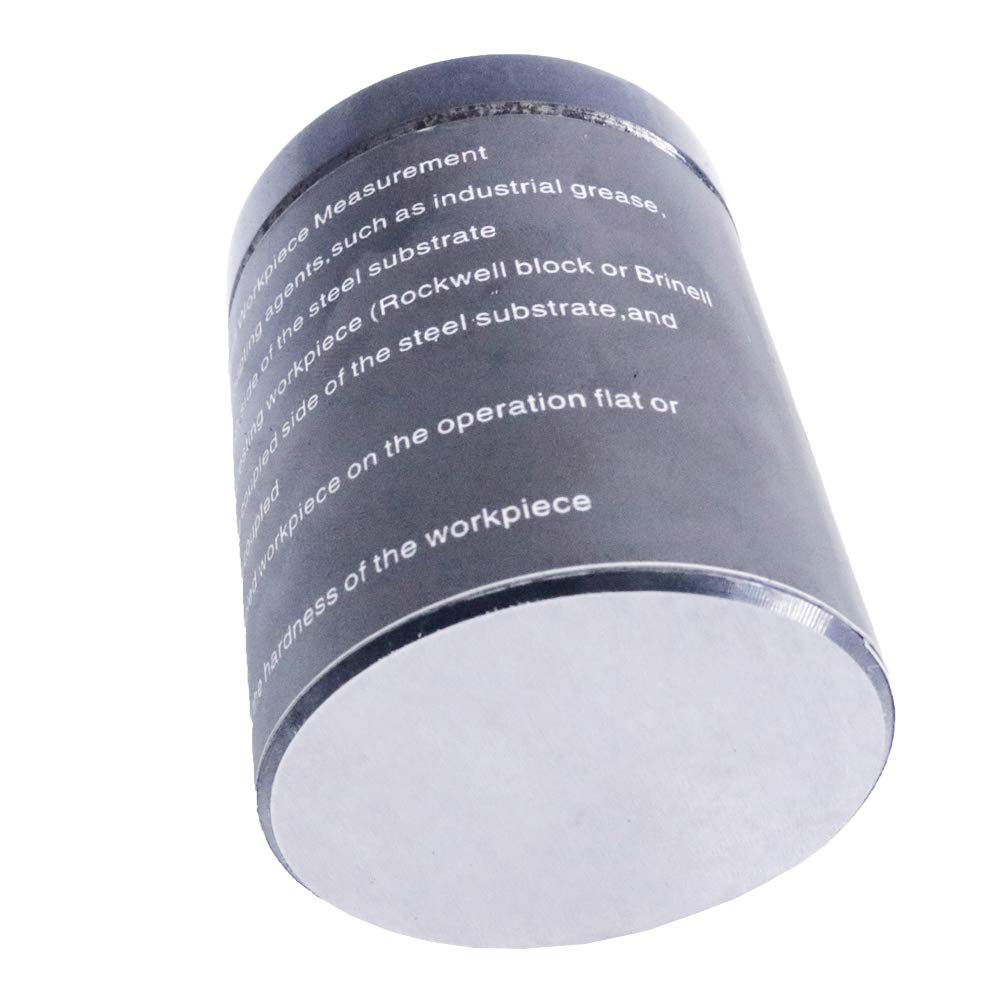

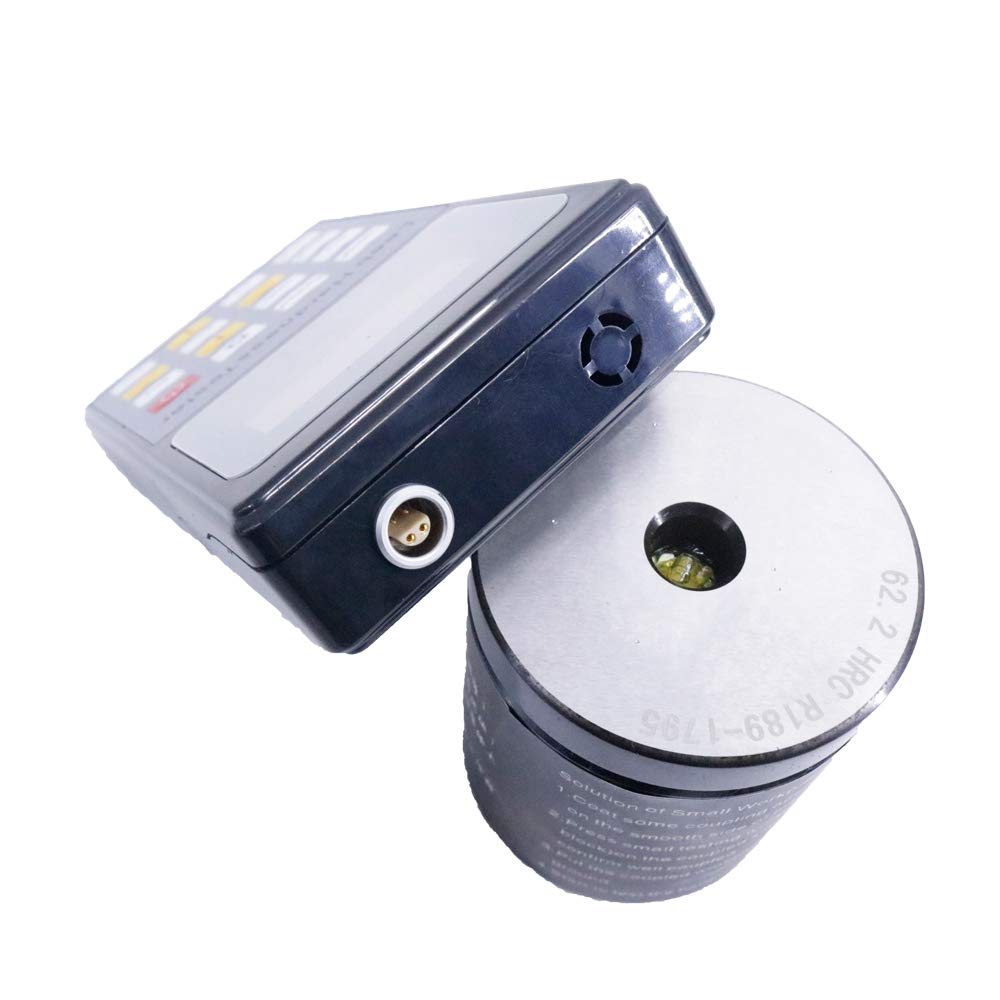

*Standard: Main unit,Impact Device type D,Operation manual,Small supporting ring,Cleaning brush,High block and Certificate,Test block with calibration certificate

EAN: 0761272050123
