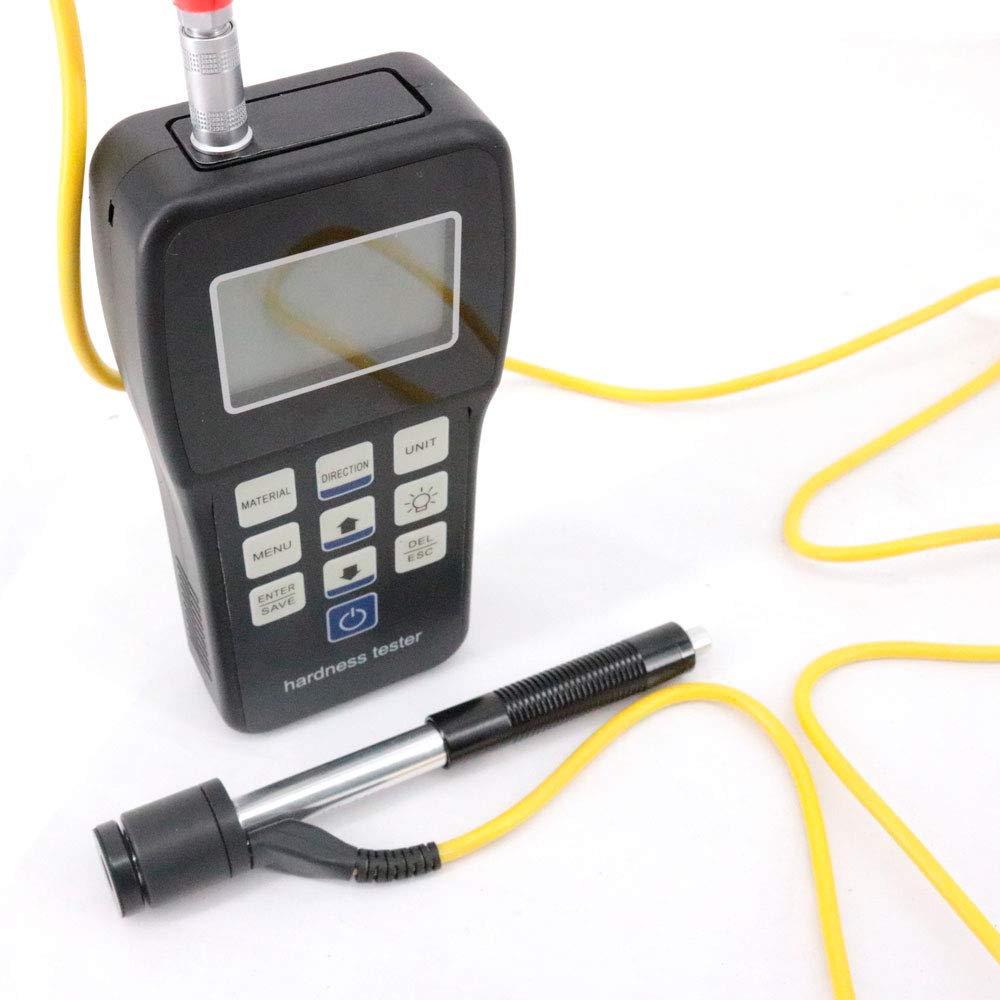

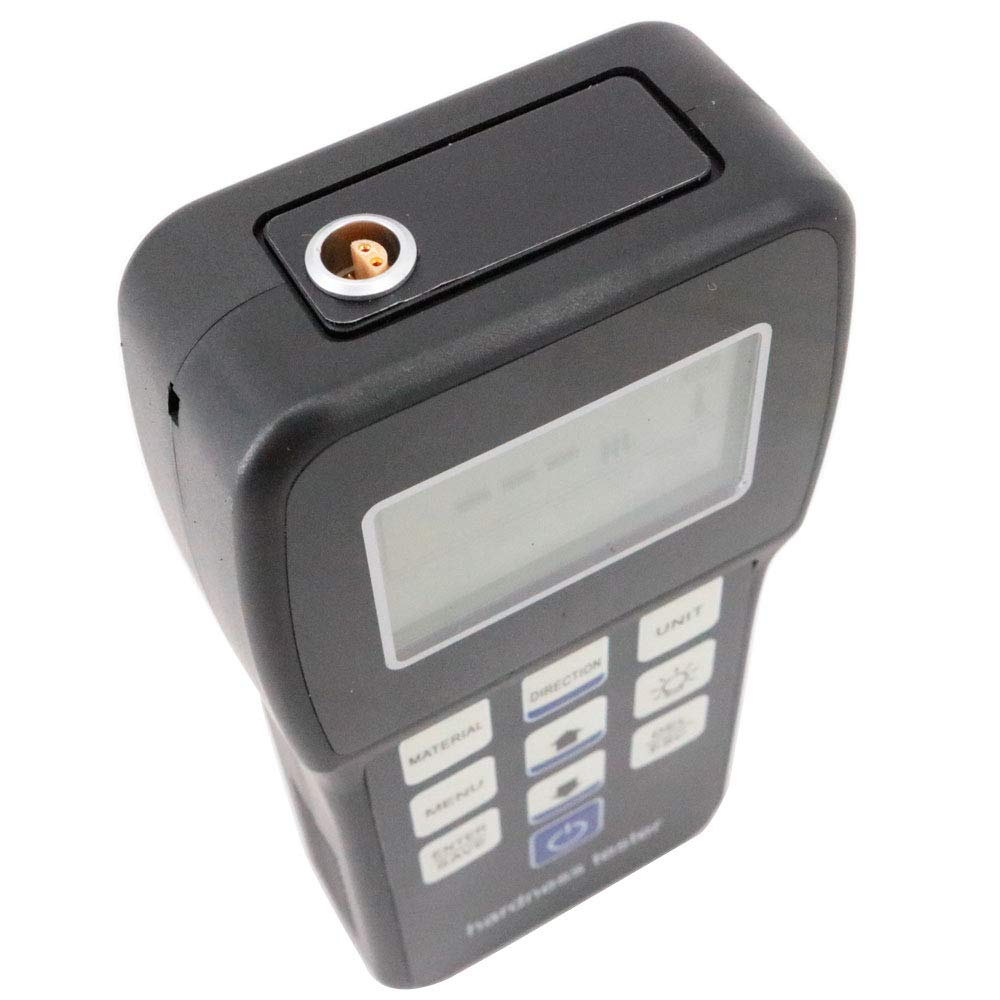

Graigar Portable Leeb Hardness Tester SHL-140 Measuring Range HLD (170~960) HLD Continuous Working Time of About 40 Hours

Brand: Graigar

Color: Black

Features:

• SHL-140 portable Leeb hardness tester can directly measure Rockwell (HRC, HRB), Richter (HL), Brinell (HB), Vickers (HV), Shore (HS) hardness value.
• In line with international standards and the Ministry of Machinery Industry promulgated the "Leeb hardness tester technical conditions ZBN7l 010-90", the State Quality and Technical Supervision issued the "metal Leeb hardness test method GB / T 17394-1998", Leeb hardness standards JB / T9378-2001 and other standards.
• SHL-140 can be equipped with both D-type and DL-type impact body, to achieve the ultimate in portability at the same time achieve a powerful dual-use function, greatly facilitates the user.
• The instrument uses ultra-low-power design, the use of high-performance lithium battery for long work and standby time, more compact and flexible design to improve the use of flexibility.

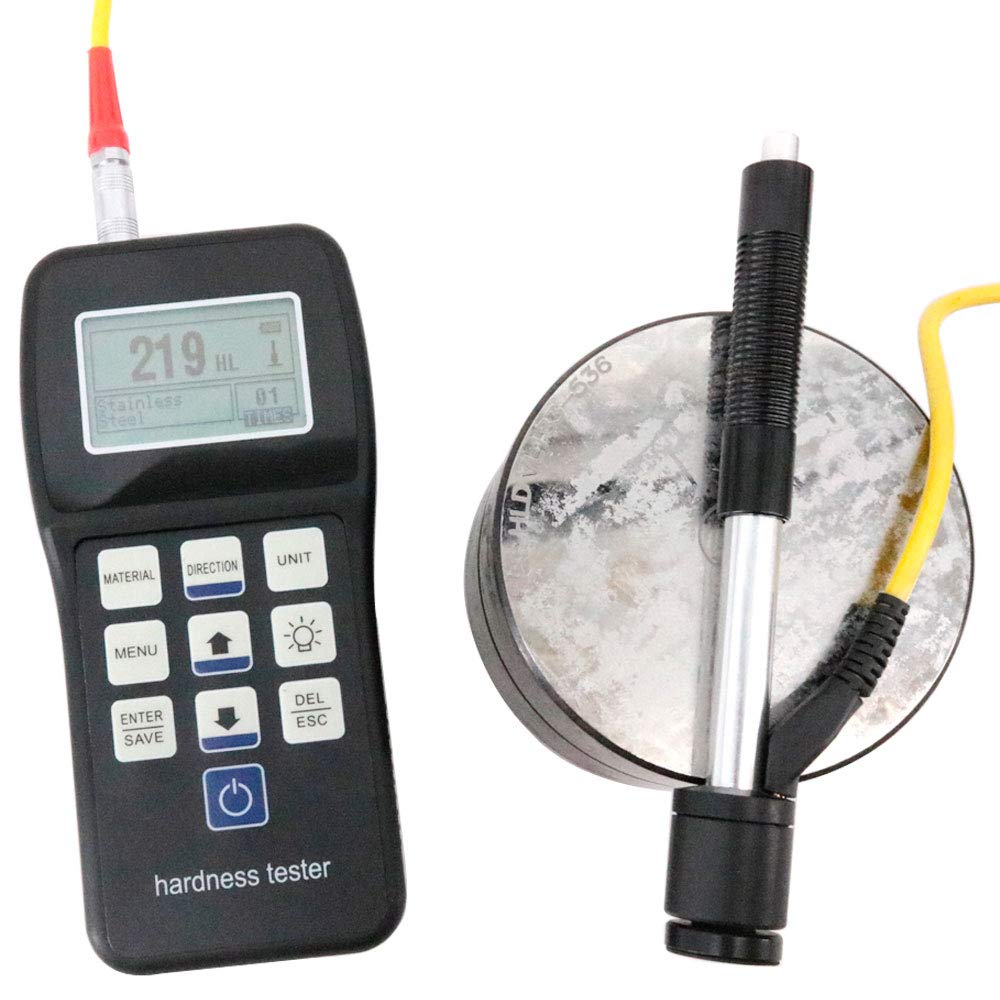

• According to Leeb hardness measurement principle, a variety of metal materials can be high-precision detection. Support "steel" material, when using the D / DC-type impact device test "forged steel" sample, you can directly read the HB value, without manual look-up table. Easy to switch to all the hardness system (HL, HB, HRB, HRC, HRA, HV, HS), parallel conversion of the hardness of the measured value.

model number: SHL-140

Part Number: SHL-140

Details: Features:

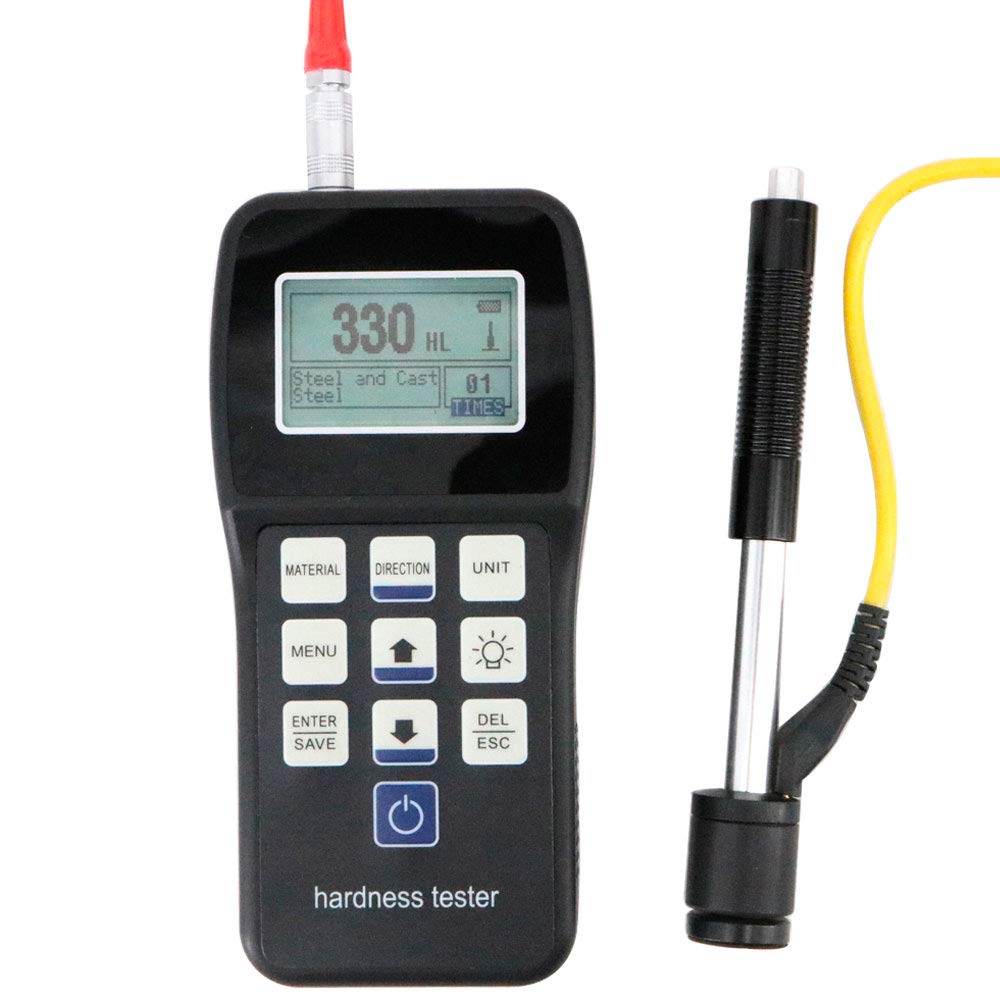

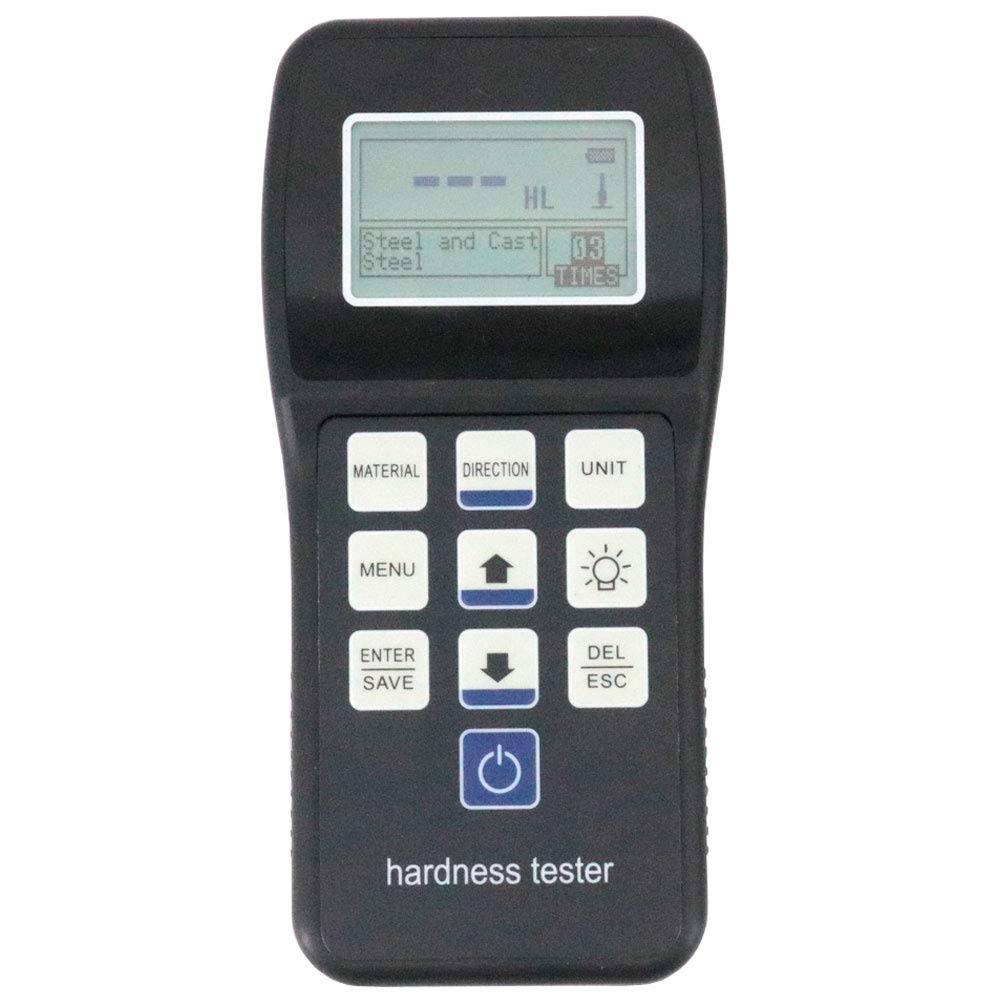

Menu-style operation, easy to operate. OLED liquid crystal display screen, easy to use in any environment.
Measuring function A host can be equipped with 7 different impact device to use, replacement without re-calibration, automatic identification of the impact device type.
The data storage can store 48 ~ 350 groups (impact times 32 ~ 1) single measurement value, average value, date of measurement, direction of impact, number of times, material, hardness and other information.
Alarm output can be pre-set the hardness value of the upper and lower limits, beyond the scope of automatic alarm to facilitate the needs of the user batch testing.
The calibration has the indication software calibration function.

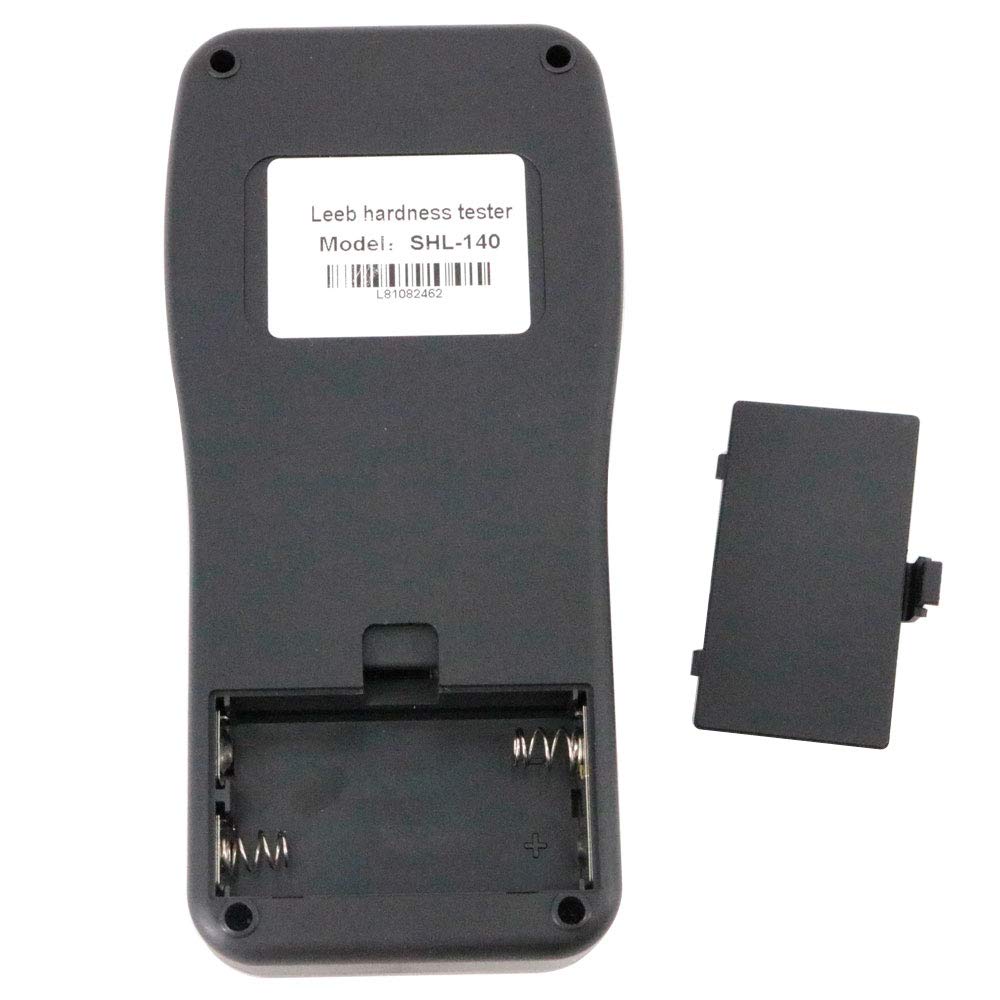

Battery power supply using two AA (AA) alkaline batteries, can work continuously for not less than 100 hours, with automatic sleep, automatic shutdown and other power-saving features.

Measuring range HLD (170 ~ 960) HLD
Measuring direction 360 °
Hardness of the system, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shaw
Display OLED, 128 × 32 graphics dot matrix LCD
Data storage 48 ~ 350 groups (the number of shocks 32 ~ 1)
The upper and lower limit setting range is the same as the measuring range.
Battery 3V, (1200mAh) alkaline batteries
Ambient temperature 0 ~ 40 ℃
Storage temperature -25 ~ 70 ℃
Continuous working time of about 40 hours
Dimensions 148 × 71 × 33mm (host)
Weight Approx. 165 (main unit)

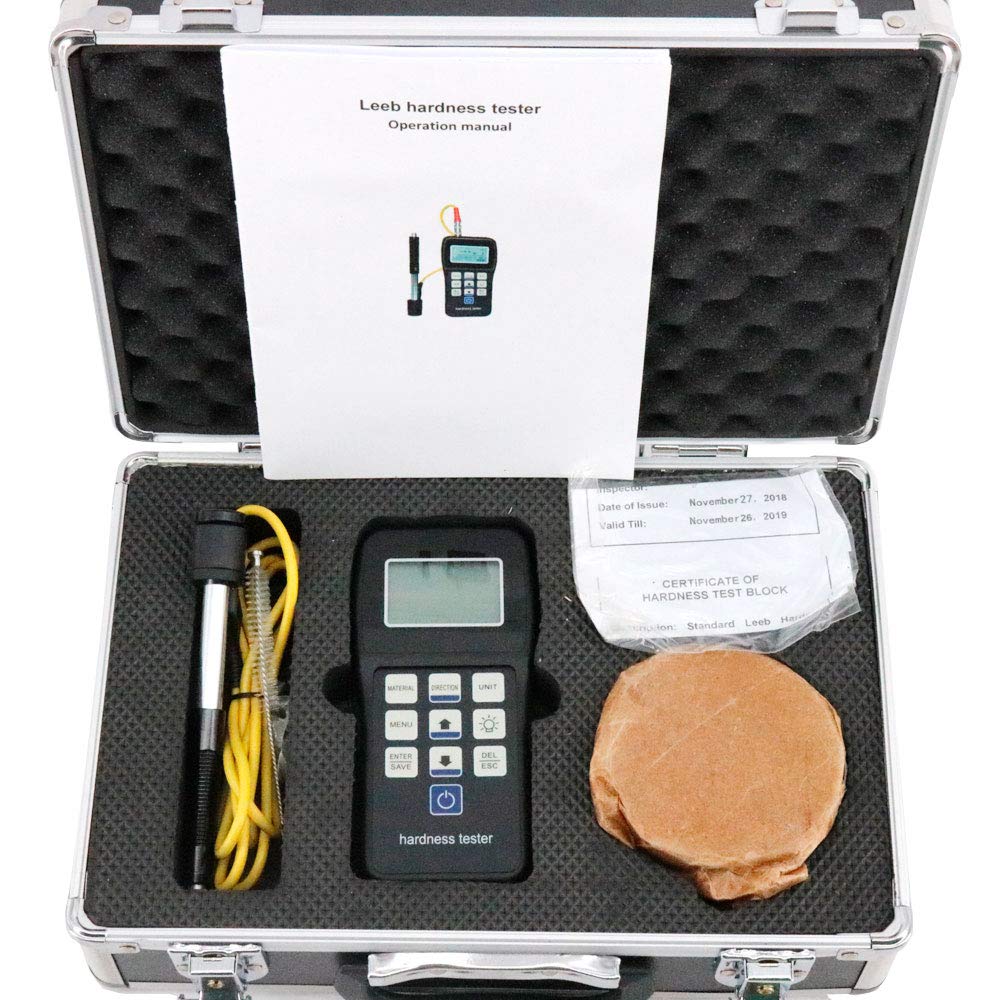

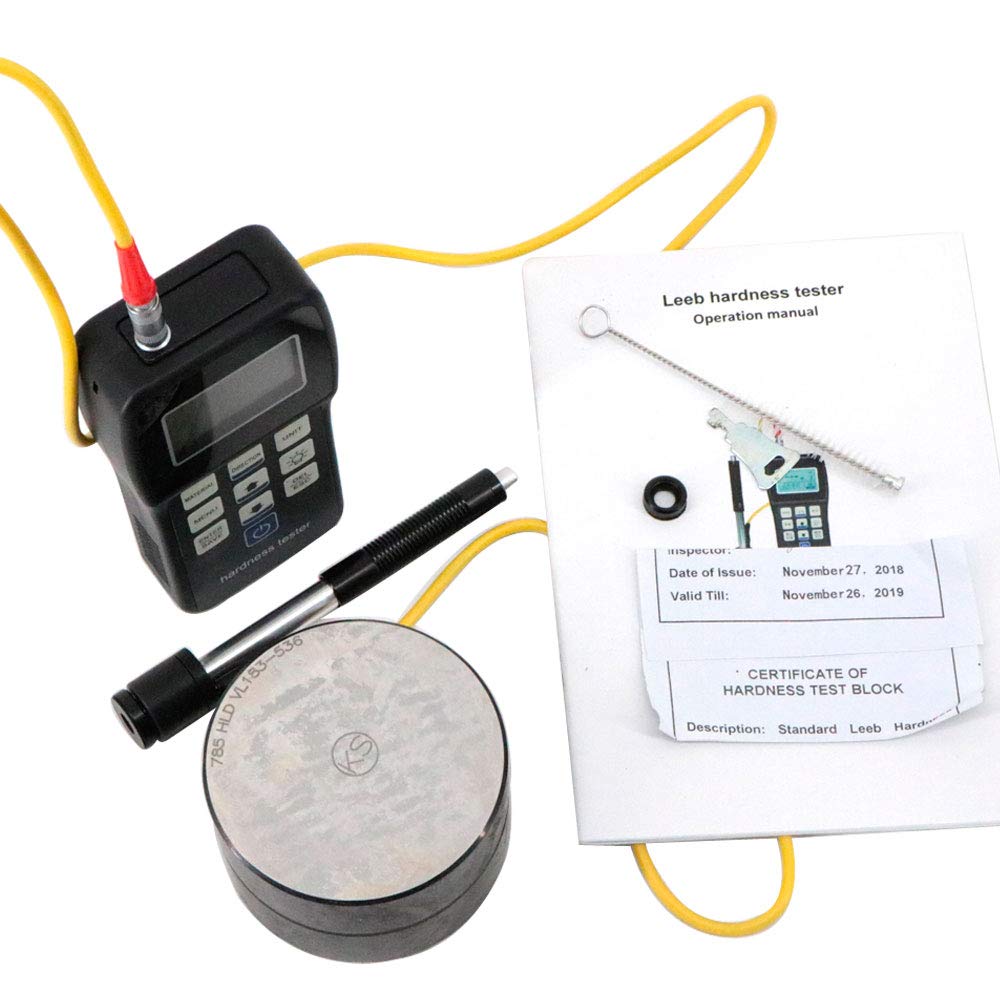

Standard configuration:
Instrument host
D-type impact device
Small supporting ring
Nylon brush
English User Manual

EAN: 0705419446820
