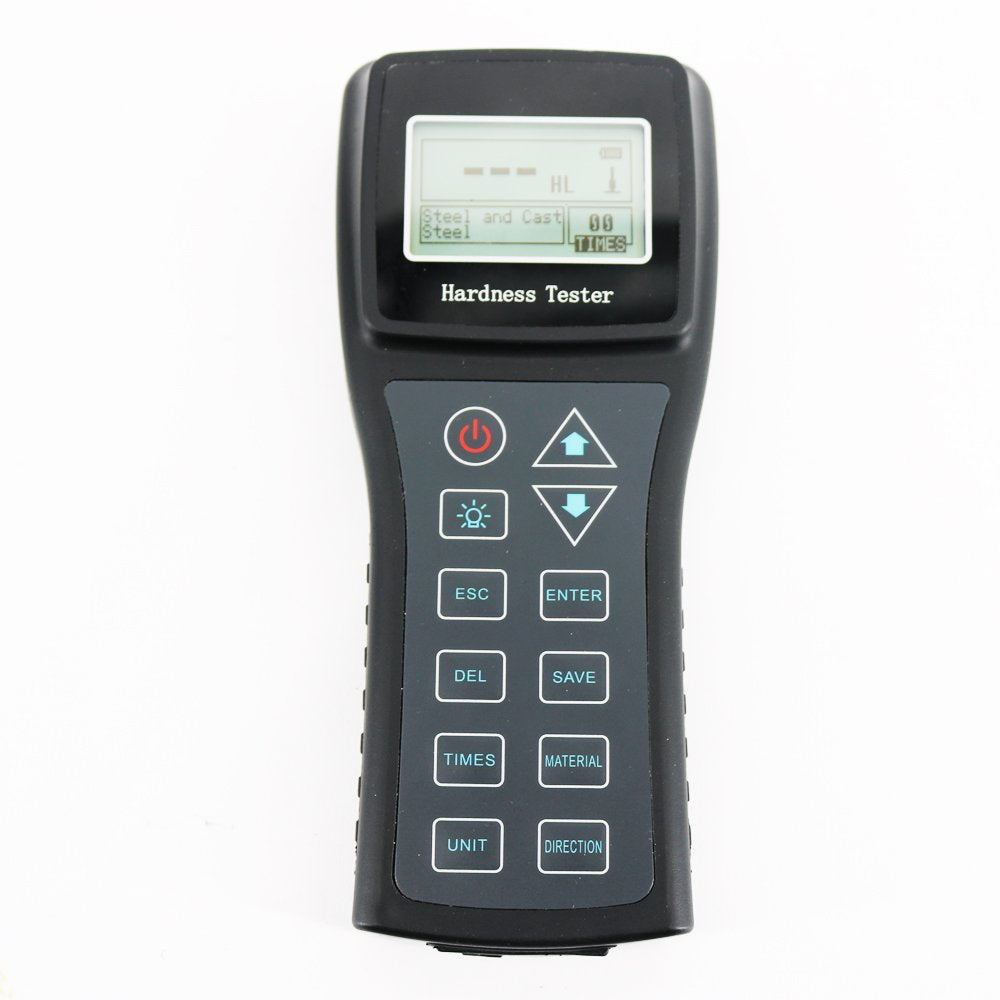

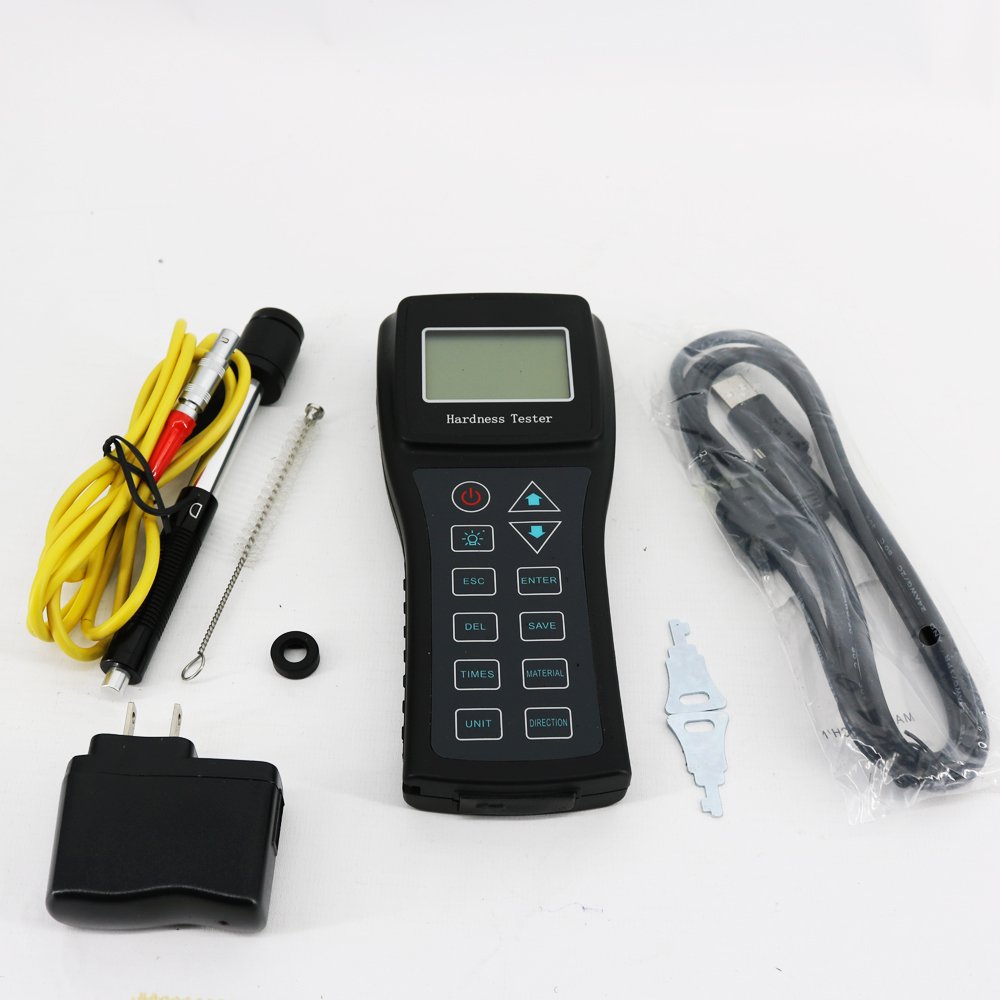

SHL-150 leeb hardness tester based on the principle of measuring the Leeb hardness, it can be measured in a variety of metal materials.
Easily switch to the hardness of all formats (HL、HB、HRB、HRC、HRA、HV、HS), parallel conversion of the measured value of the hardness

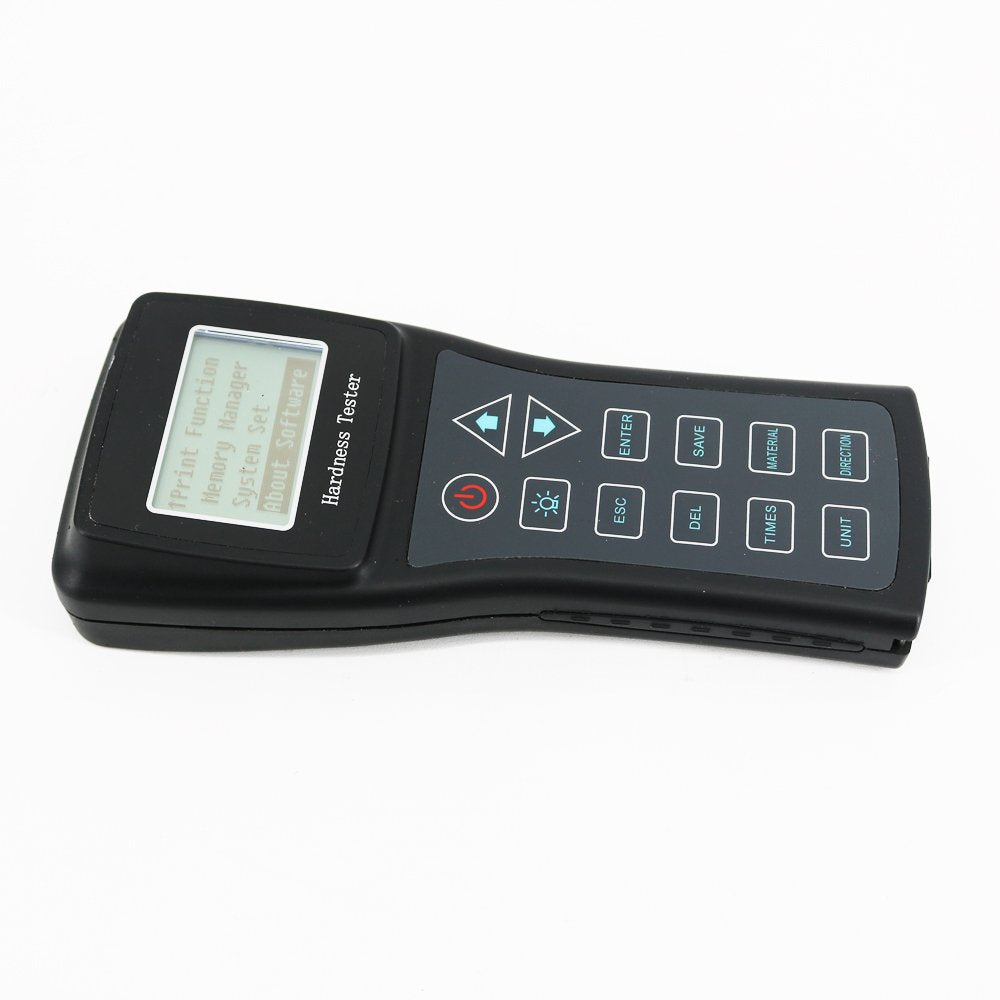

Using the big screen 128 x 64 graphics dot matrix LCD display, information is rich, intuitive.
With bright backlight display, easy to use in the light gray environment.

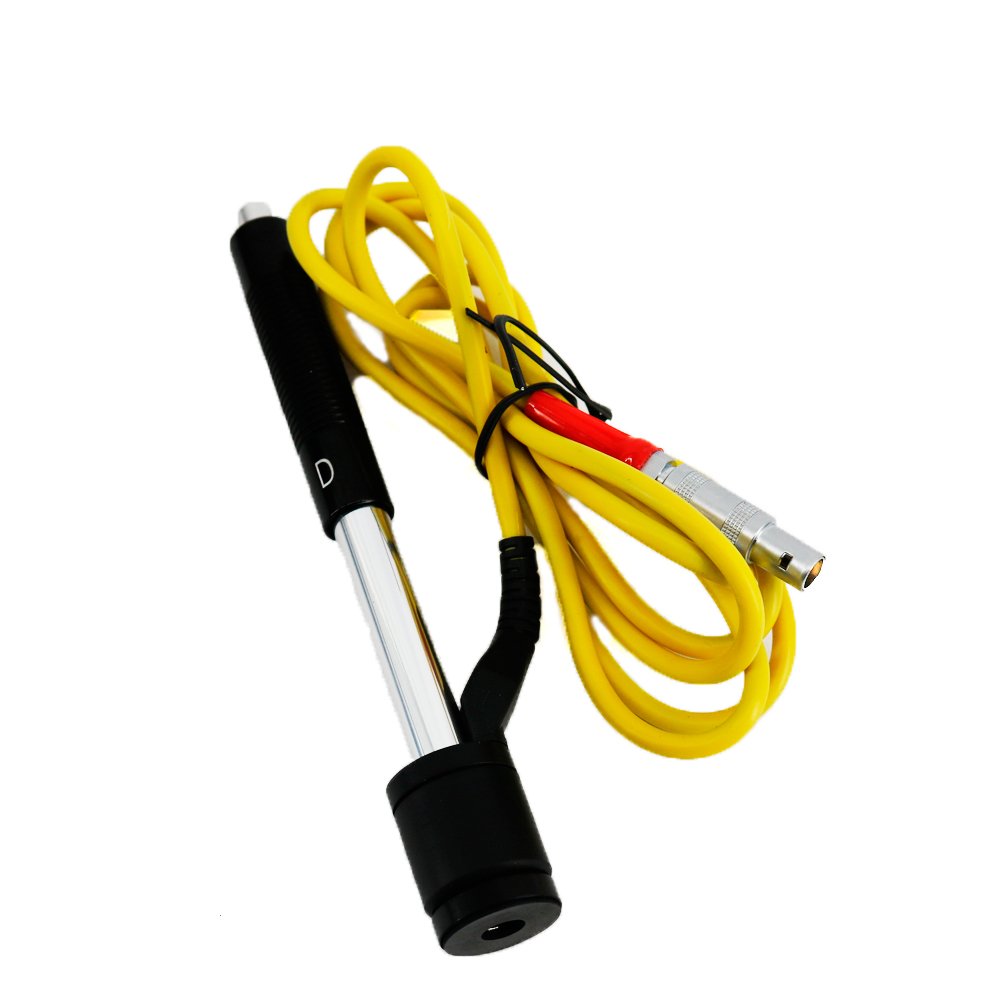

A host can be equipped with 7 kinds of different impact device, automatic identification of impact device type. No need to re calibrate the replacement.
model number: SHL-150
Part Number: SHL-150
Details: Specification
Measuring range: HLD (170 ~ 960) HLD
Measuring direction: 360 °
Hardness system: Richter, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shaw
Display: LCD, 128 × 64 graphics dot matrix LCD
Data storage: 48 ~ 350 groups (the number of shocks 32 to 1)
Upper / lower limit setting range: same as measuring range.
Charging power: 5VDC, 220VAC
Charging time: 2 to 3.5 hours

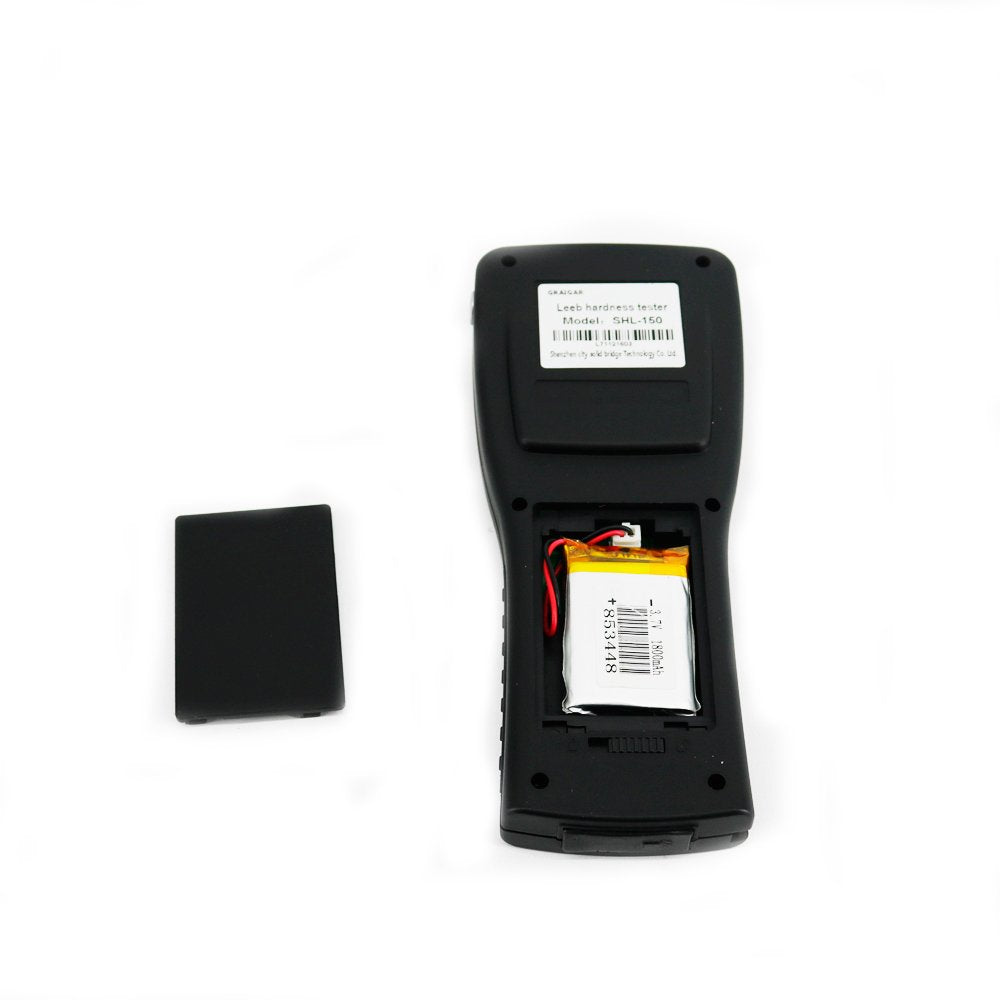

Battery: 3.7V, (1400mAh) lithium battery
Ambient temperature: 0 ~ 40 ℃
Storage temperature: -25 ~ 70 ℃
Continuous working time: about 100 hours (not open backlight)
Communication Interface Standard: USB
Dimensions: 179 × 77 × 35mm (host)
Weight: about 175g (host)
