SM206 solar power meter measure directly without adjustment and Data retention function.
Selectable from two units is W/㎡and Btu.
Steadily measure for a long period and Peak value retention function.
It can also be used to measure glass light intensity to verify glass properties. For example: Measurement of light intensity through vehicle windows.
This meter is a precision instrument for measuring light intensity. It is used in solar radiation measurement, solar research, physical and optical experiments, meteorology, and agriculture
model number: SM206
Part Number: SM206
Details: Specification:
Resolution: 0.1W/m2, 0.1 Btu/(ft2-h)
Error range: +/-10W/m2 [+/-3 Btu/(ft2-h)] or +/-5% of the measured value
Temperature error: +/-0.38W/m2 /C [ +/-0.12 Btu/(ft2-h)/C] deviation at 25C

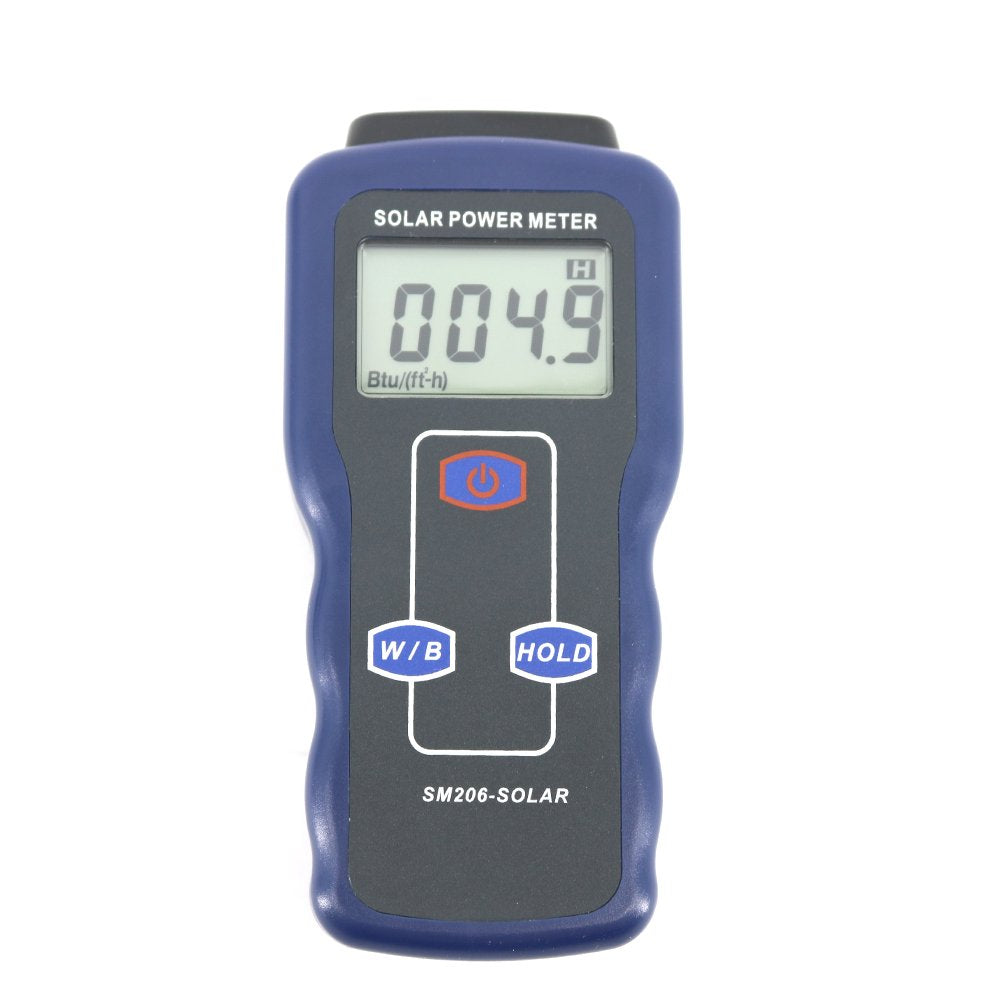

Display: 3-3/4LCD display, maximum displayed numerical value 3999
Shift: less than+/-3% /year
Overload display “OL”
Range: 0.1-399.9 W/m2, 1-3999 W/m2, 0.1-399.9 Btu/(ft2-h), 1-3999 Btu/(ft2-h)
Sampling time: 0.25s/time
Operation temperature and humidity: 0°C to 50°C less than 80%RH
Storage temperature and humidity: -10°C to 60°C less than 70%RH
Dimensions and weight: 132(L) x 60(W) x 38 (H)mm
Weight: approx. 150g

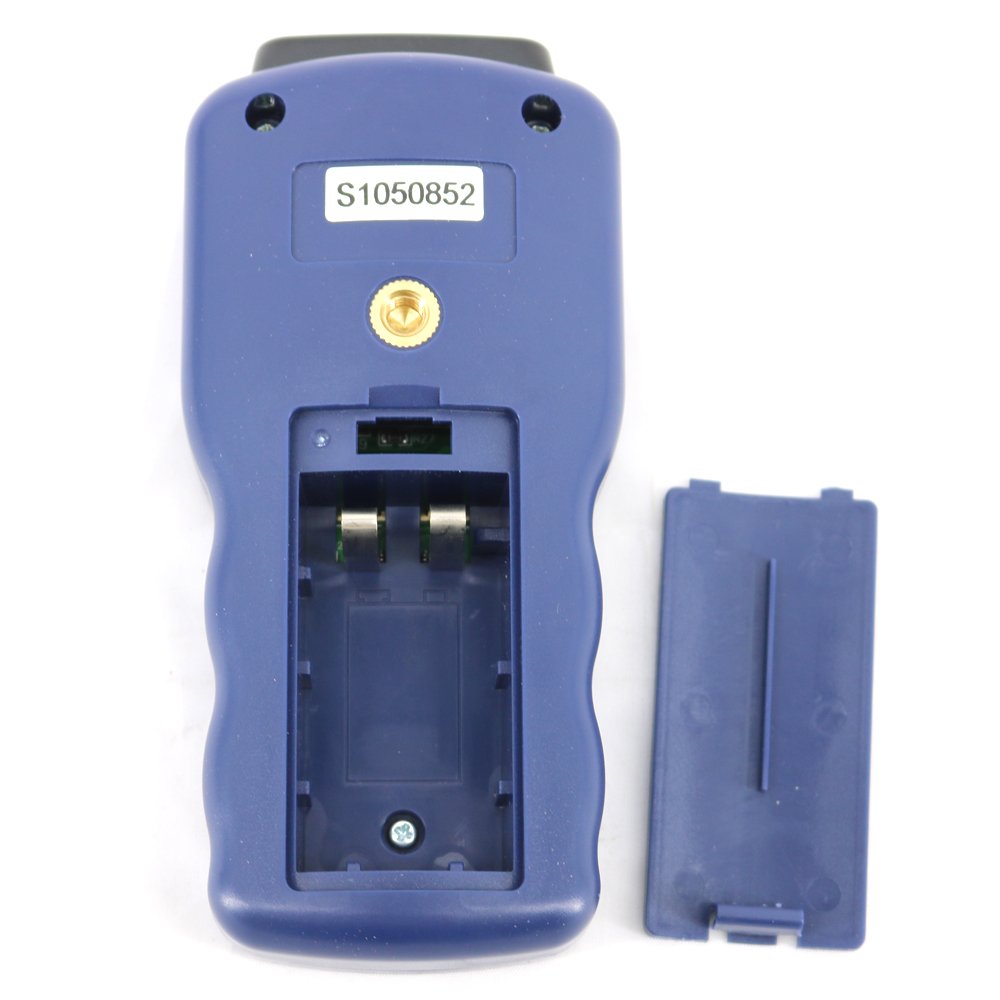

Battery needed: 9V battery
Battery operation life: Approx. 100 hours
