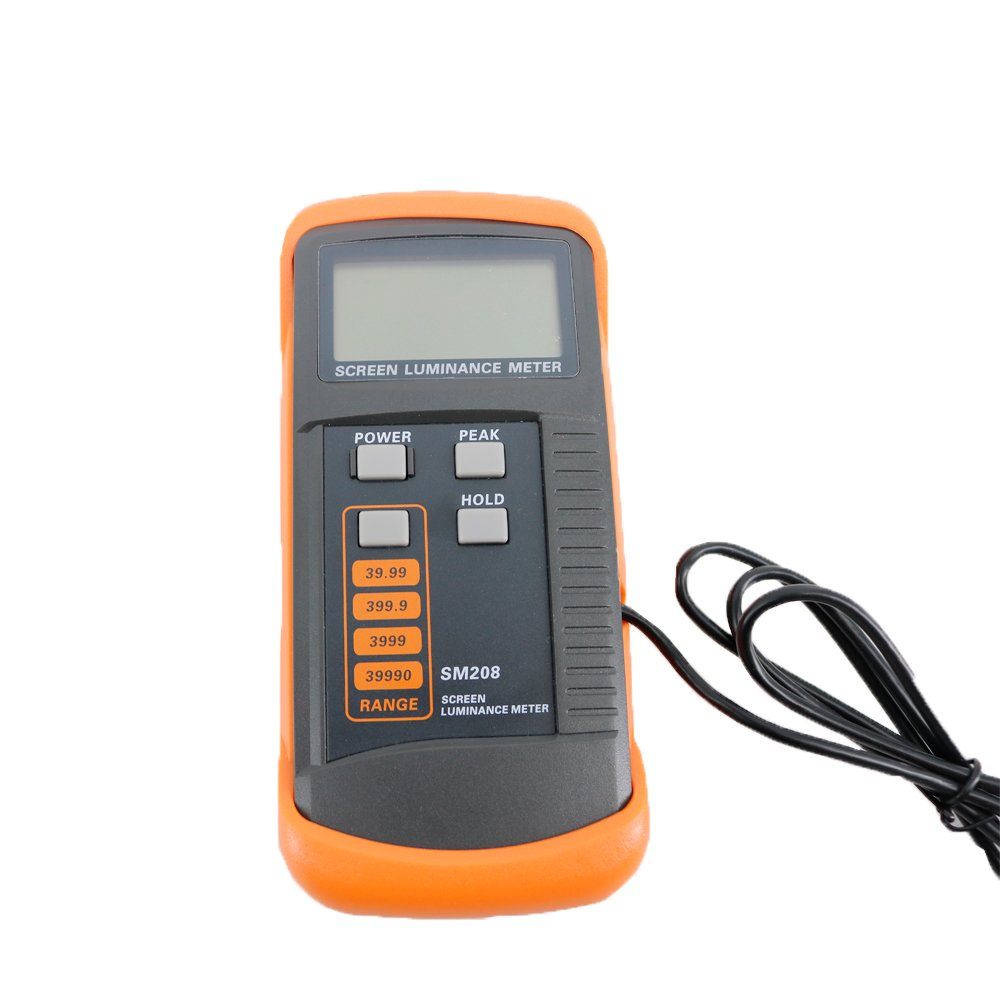

SM208 Screen Brightness Meter adopting a detector powered by a silicone photocell with high stability, photostability, and shock resistance, strict vision correction and accurate photometric measurement can be realized.
With a wide measuring range, it can measure between 0.01-39990cd/m2 without a dimmer.

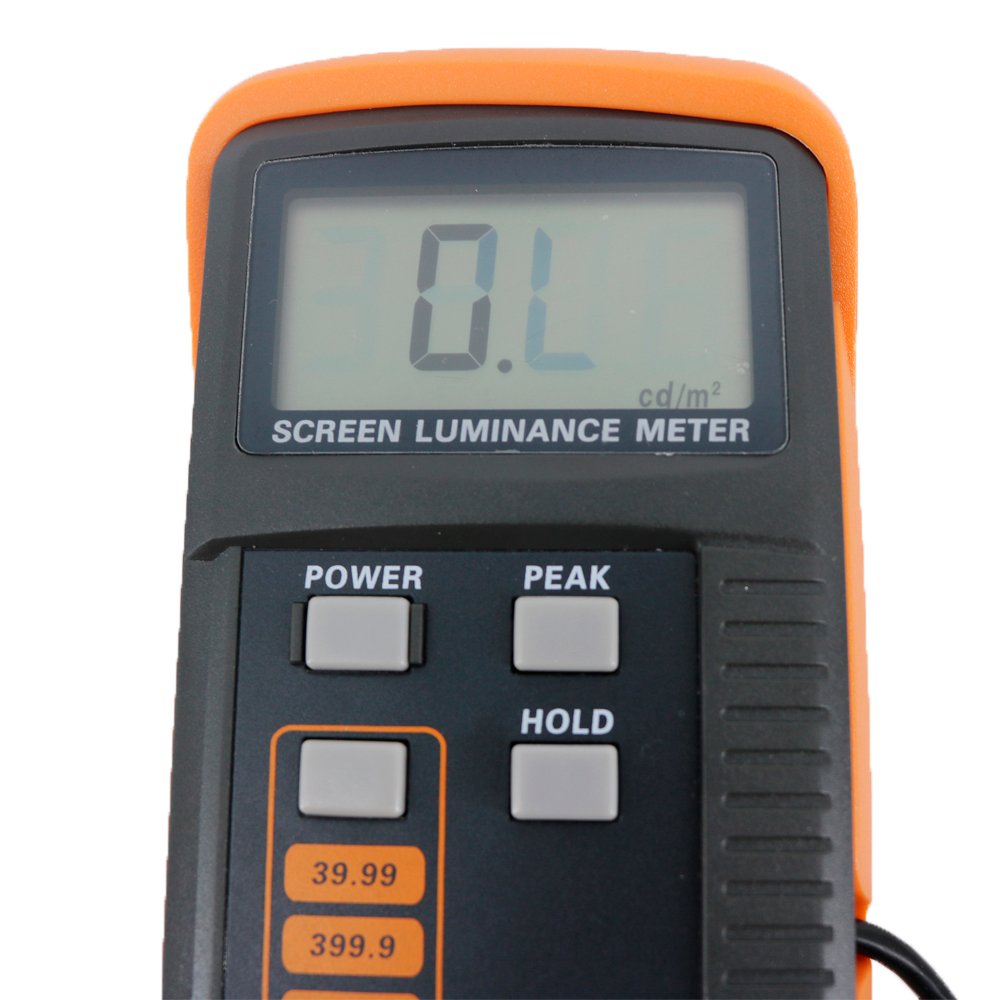

It is a digital display with good indication reproducibility, data latching and peak value latching functions.
With very low power consumption, it can operate continuously for 100 hours on a 9V layer-built battery.

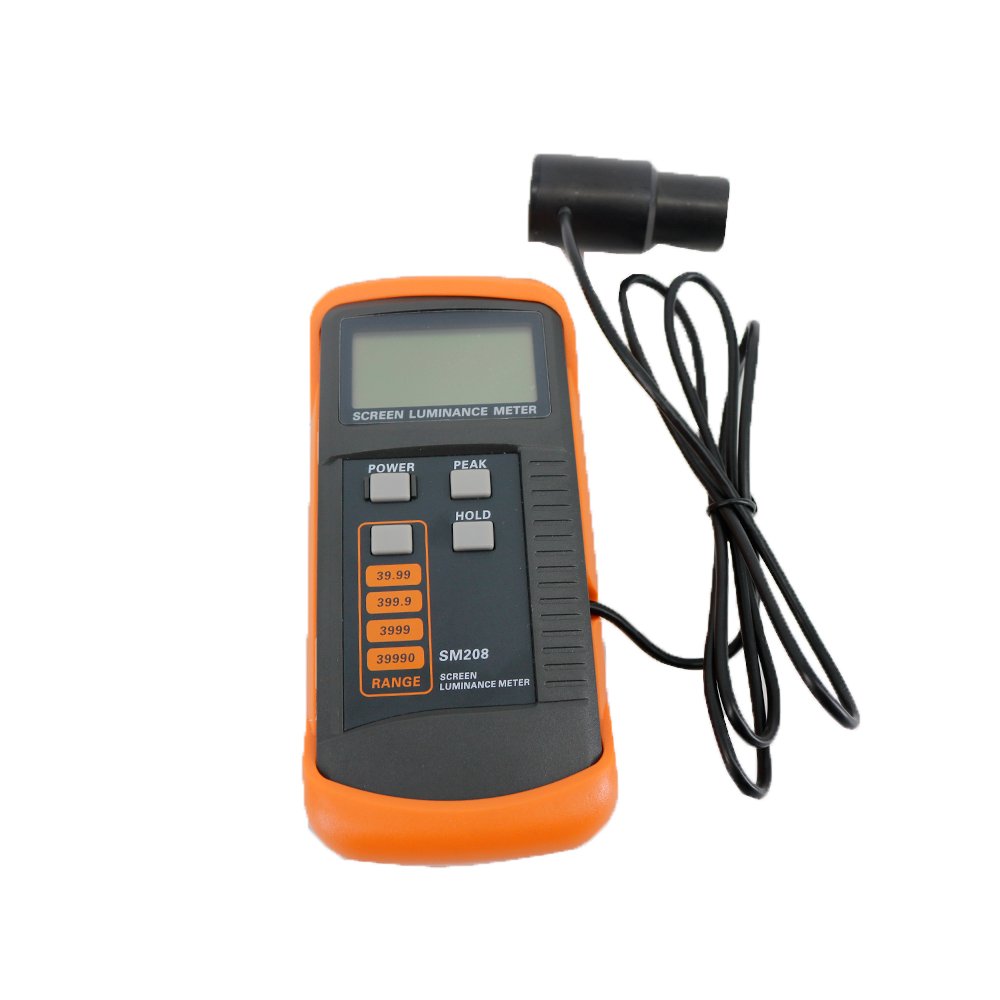

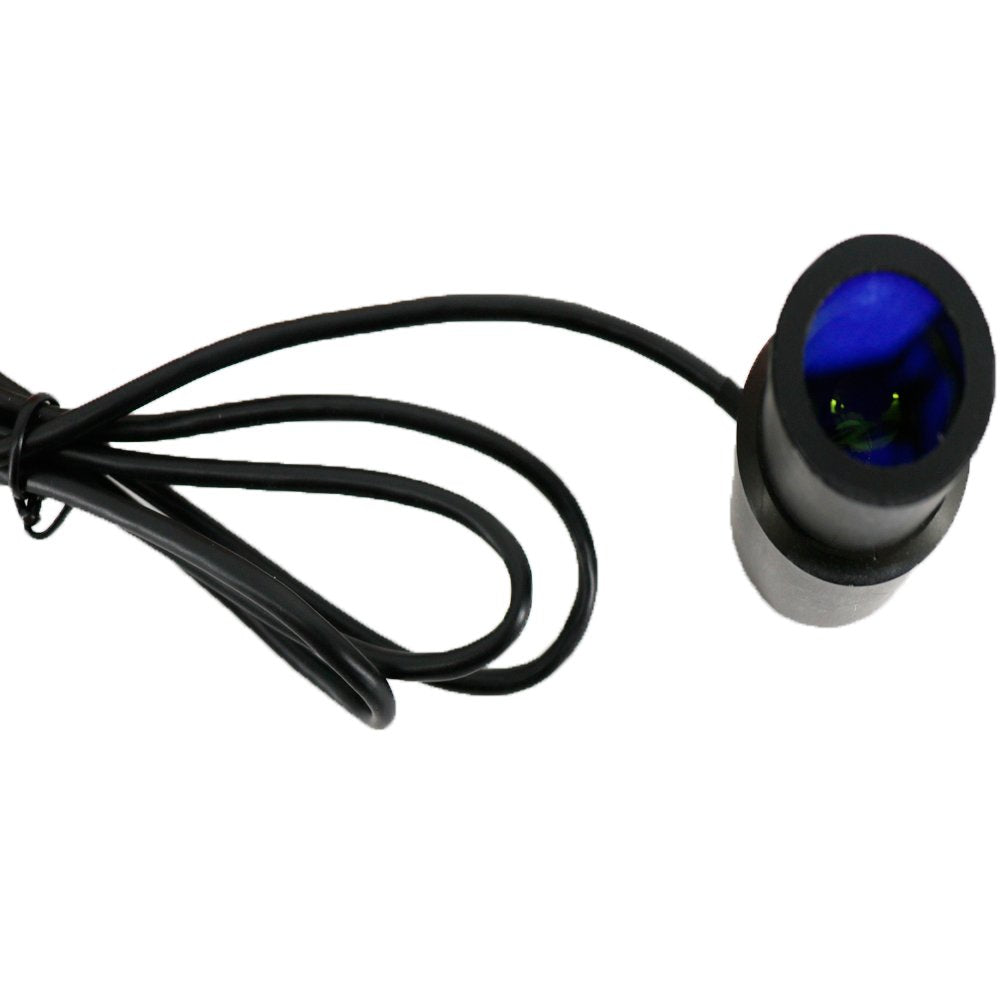

Mini light probe, measuring angle <10.
Part Number: SM208
Details: Specification:Measuring range: 0.01-39990cd/m2Measuring distance: less than or equal to 1mObject size: more than or equal to Dia20, increasing with the increase of measuring distancePrecision: less than or equal to +0.5% of the measured value +1 figureIndication error: less than or equal to +0.5% of the measured value +1 figure (relative to NIM standard)Spectrum response characteristics:In accordance with the standard of national grade I illuminometerLinearity error: less than or equal to +0.2% of the measured value +1 figureTemperature characteristics: less than or equal to +0.1% of the measured value +1 figureOperating environment: Temperature: (0-40) CRelative humidity: less than or equal to 85%Dimensions and weight: 149X71X41mm3Power supply: 9V layer-built battery (model 6F22)
