Graigar Solar Film Transmission Meter LS162A Window Tint Meter Filmed Glass Tester Portable Visible Light Transmission Windshield VL 550nm UV 365nm IR 1400nm
LS162A Solar Film Transmission Meter is suitable for measure film, filmed glass, window tint, side windshield etc. Test for performance demonstrate, production, QA, inspection and many occasions.

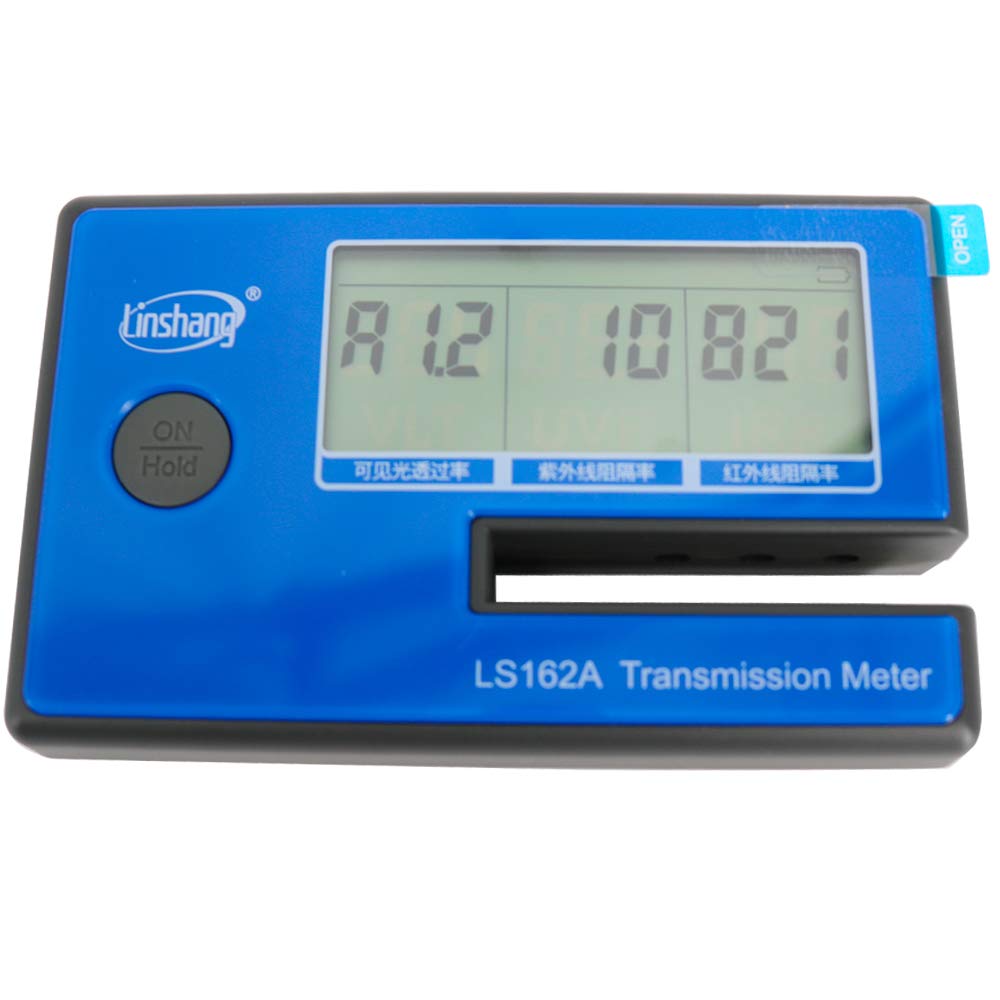

Simple operation, rapid measurement, putting the testing sample in the “OPENING”, UV, VL and IR transmission values of the sample will simultaneously display immediately;
UV rejection meter, IR rejection meter, Visible light Transmittance Meter, Three functions in ONE device;
Compact, portable, battery powered, ultra-low power consumption;

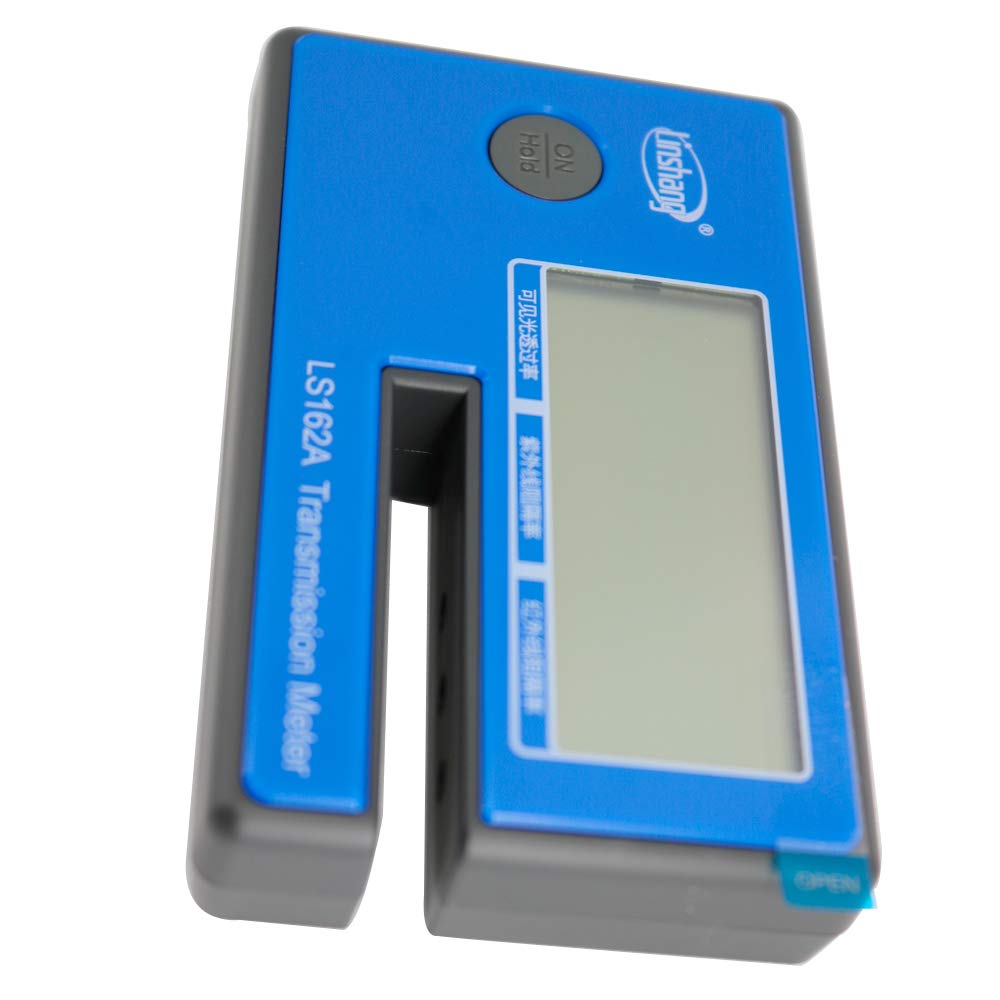

The testing slot is up to 8mm, can test filmed glass directly;
model number: LS162A
Part Number: LS162A
Details: Introduction

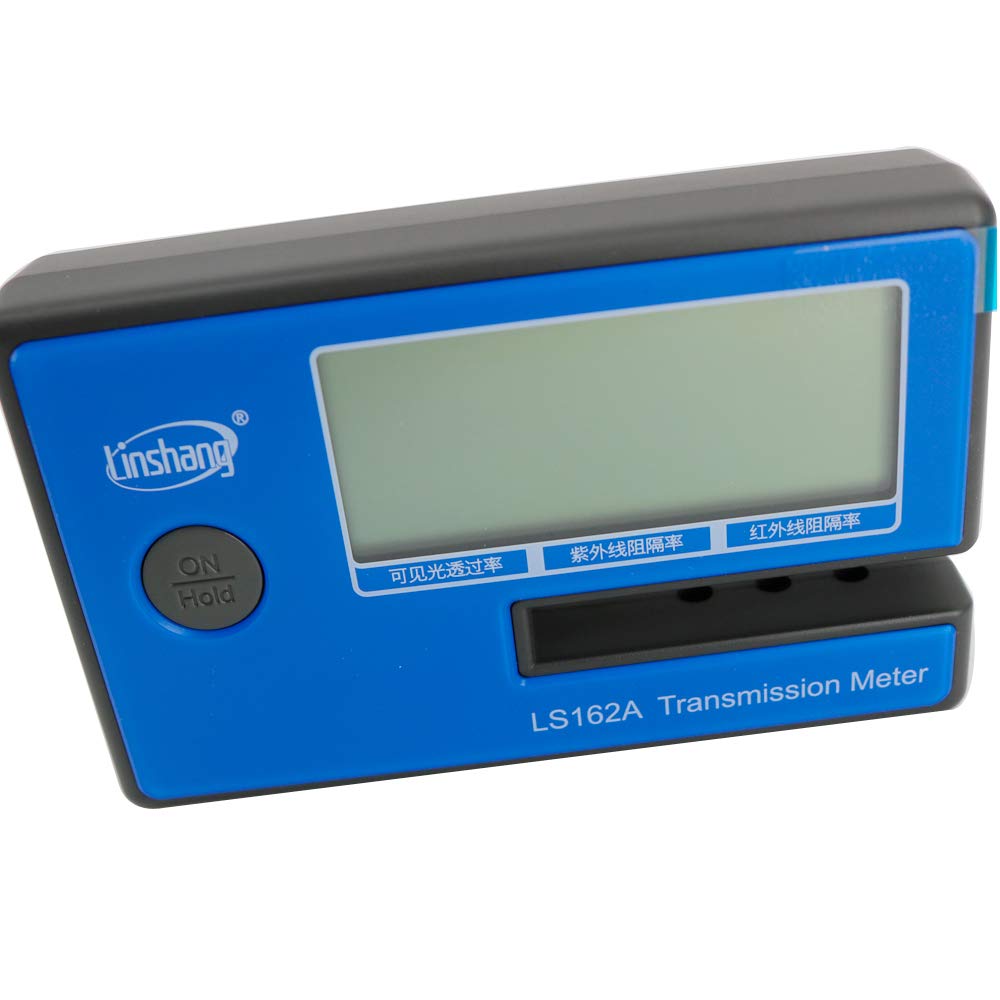

LS162A Transmission Meter is special for film, window tint, filmed glass and side windshield test, it’s a small size, portable product for transmission value measurement.
It’s able to simultaneously measure and display Visible transmission values and UV, Infrared rejection values.
Parameters
Resolution: 0.1%;
Accuracy: better than +/-2% (Colorless and transparent material);
Thickness of testing sample: <8mm;
VL Peak wavelength: 550nm;
UV Peak wavelength: 365nm;
IR Peak wavelength: 1400nm;
Dimension: 120mm x 75mm x 25mm;
Weight: 165g;

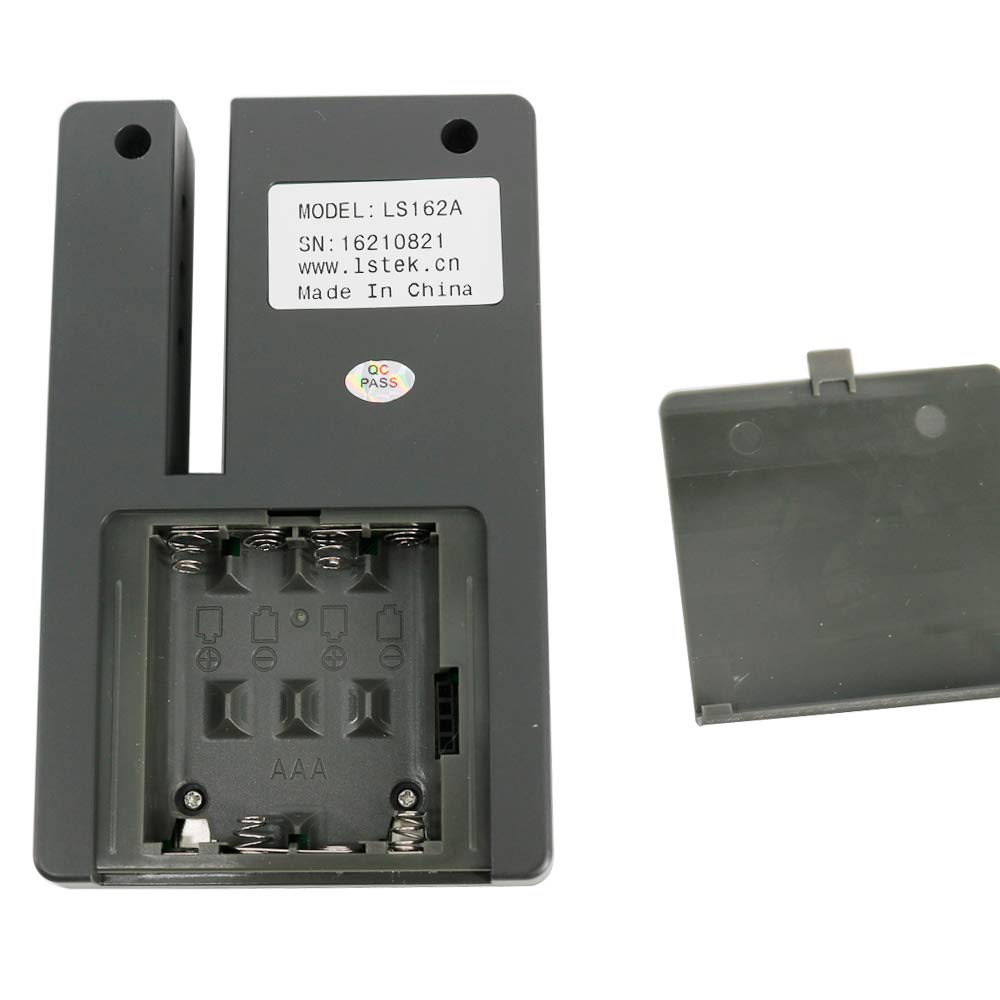

Battery: 4*AAA alkaline battery. （not included)

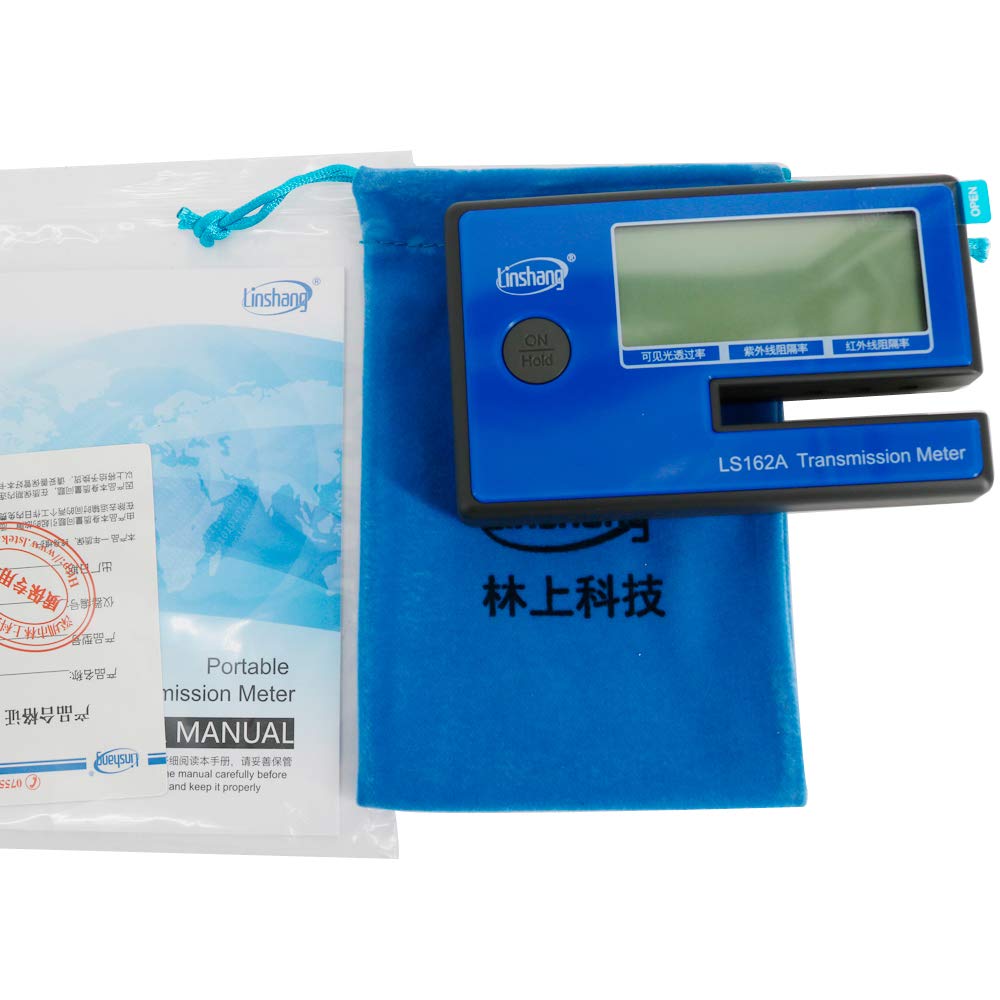

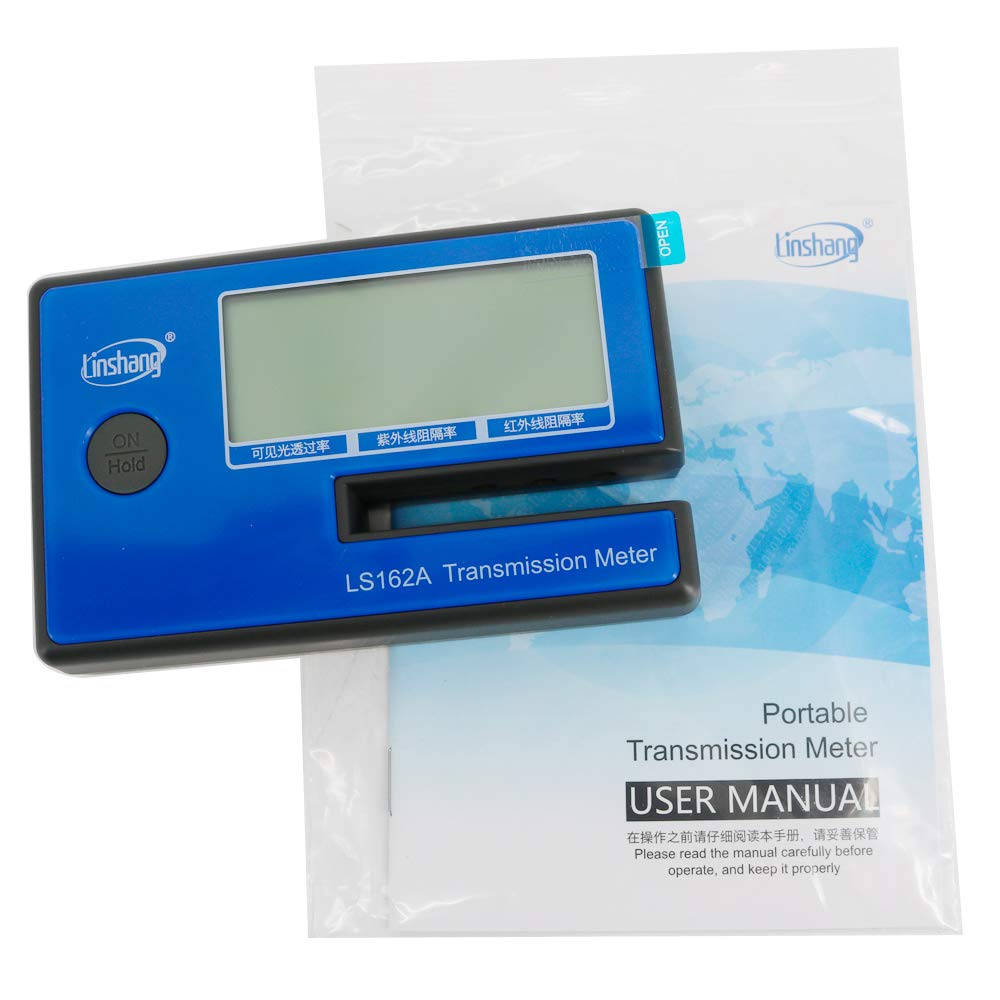

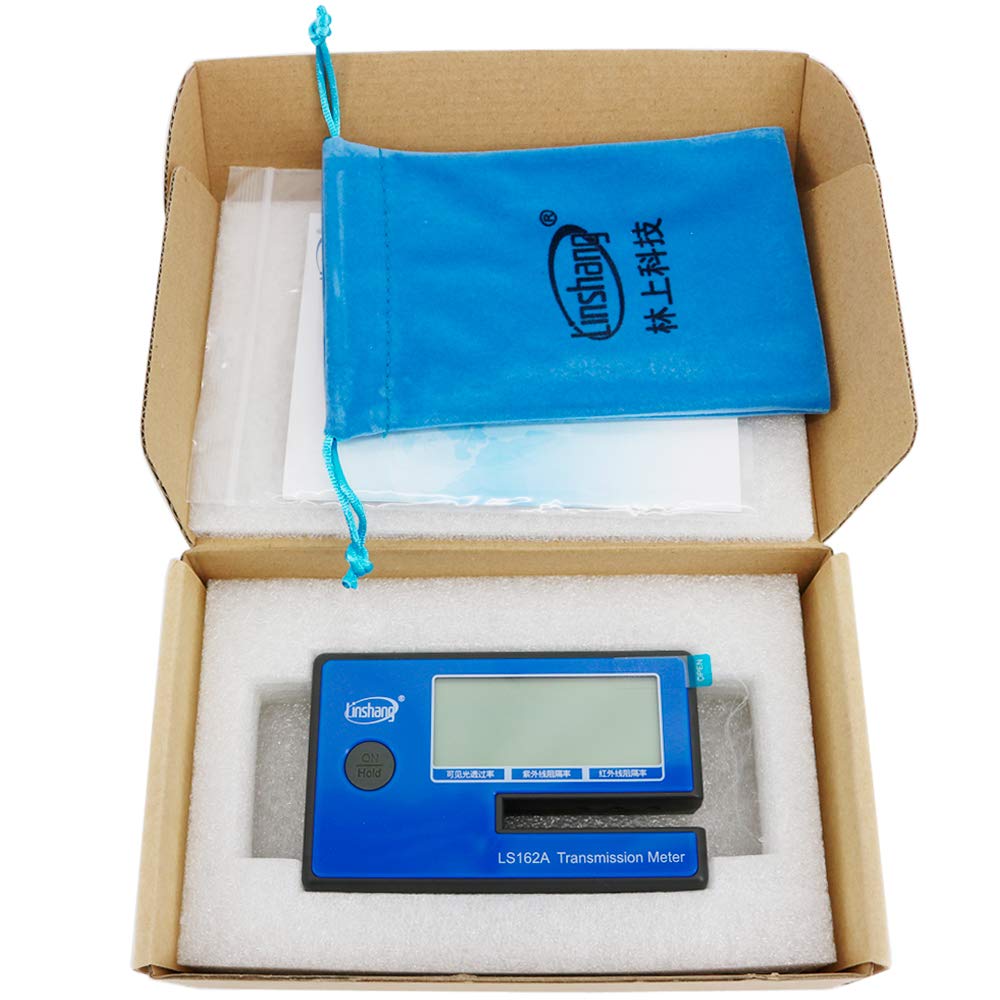

Standard Packing List
LS162A Transmission Meter * 1pcs
AAA battery * 4pcs
User Manual * 1pcs
Certificate / Warranty card * 1pcs
