Graigar Spectrum Transmission Meter LS183 IR 950nm UV 365nm VL 380-760nm for Coatings,Insulating Glass,Foil Glass,PMMA Material,PC Materials Testing

Brand: Graigar

Features:

• LS183 Spectrum Transmission Meter UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in ONE device;

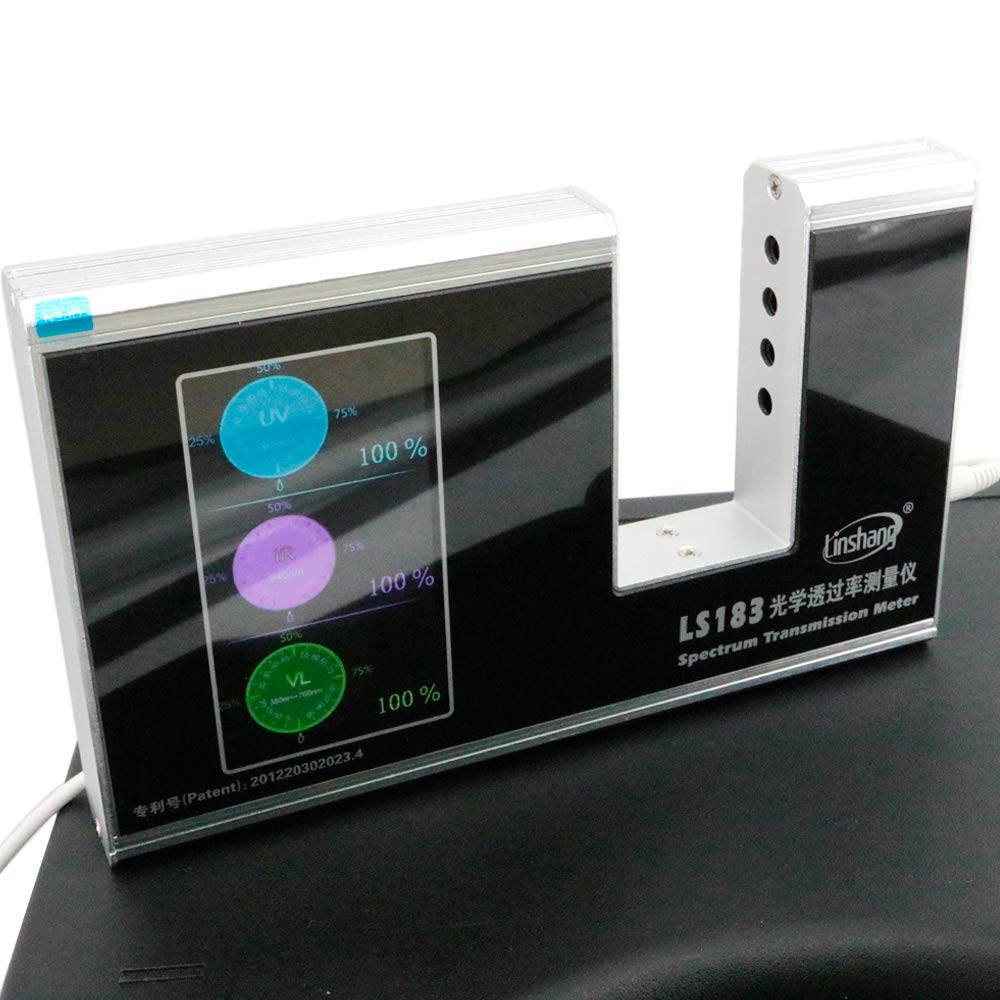

• Simple operation, putting the testing sample in the opening, UV, Visible and Infrared transmission values of the sample will simultaneously display.
• Self-calibration and auto-calibration, NO need any manual adjustments;
• "Display 1,Display 2,Display 3", Dial switch for three different display interface
• "USB" Micro USB socket,mobile power supply to power the instrument

Part Number: LS183

Details: Introduction

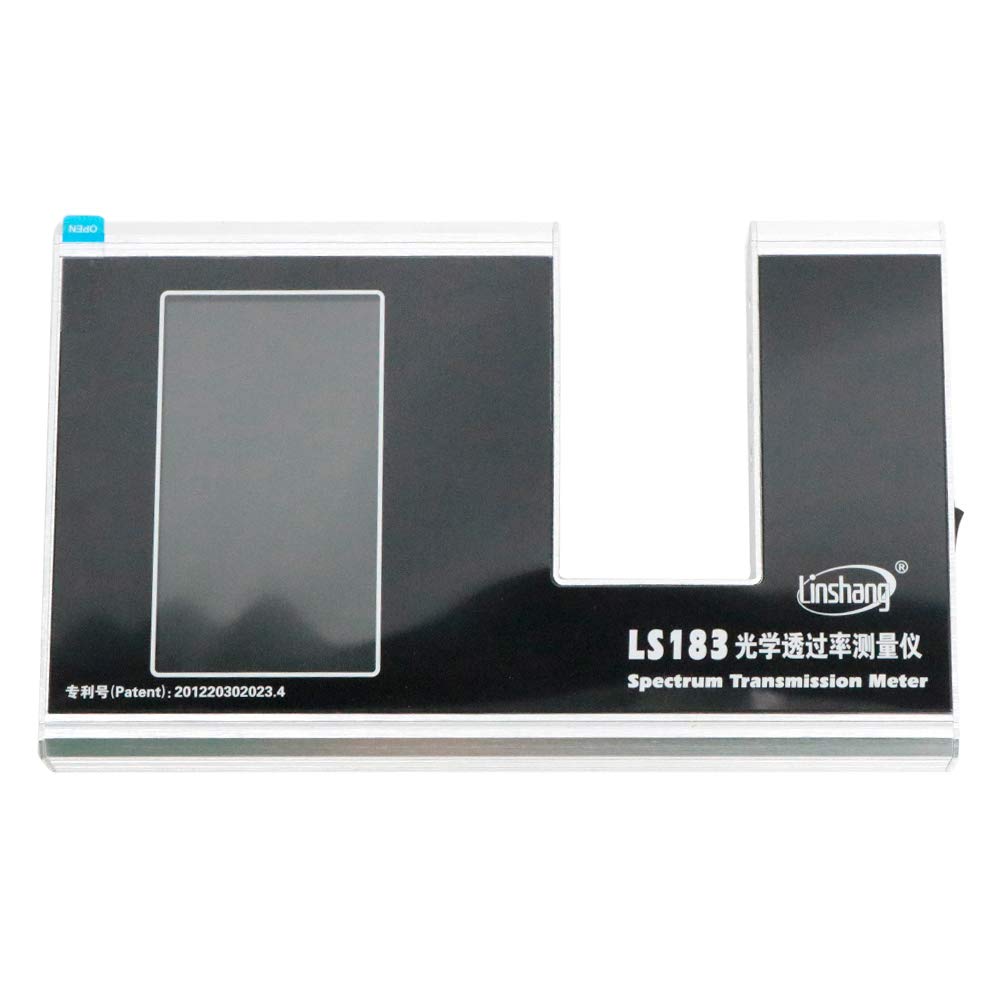

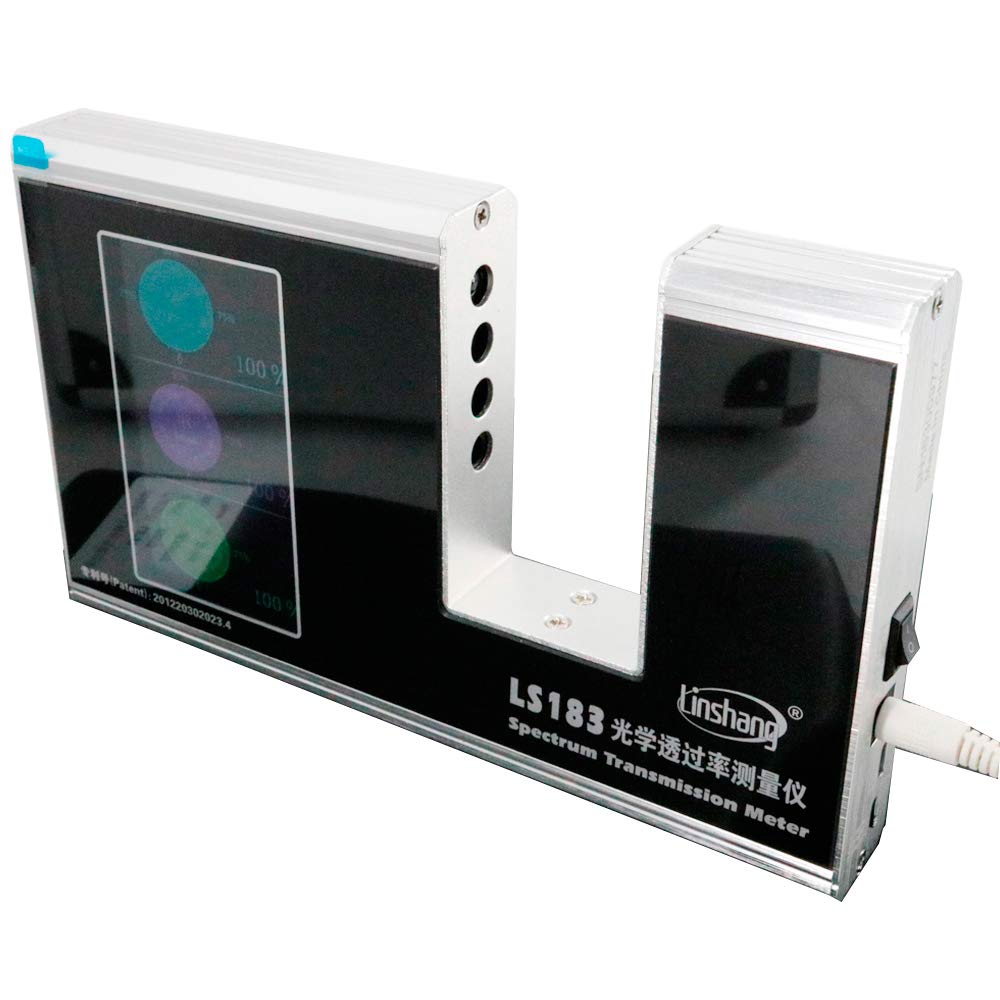

LS183 is able to simultaneously measure and display UV, Visible and Infrared transmission values. This meter is self-contained light sources and self-calibration. No adjustment is needed.
The users only need plug the power supply, turn on the switch and put the sample in the opening. The resulting performance data appear on the display.

Parameters
Testing opening: Wide 47mm * Height 91mm
Sample thickness: <47mm
Resolution: 0.1%
Accuracy: +/-2%(Colorless and transparent material)
UV peak wavelength: 365nm
Visible light wavelength: 380nm-760nm (Full Weighted Spectrum)
IR Peak wavelength: 940nm
Dimensions: 216mm *134mm *29mm (L*H*W)
Weight: 590g
Power supply: 5V AC/DC Adapter

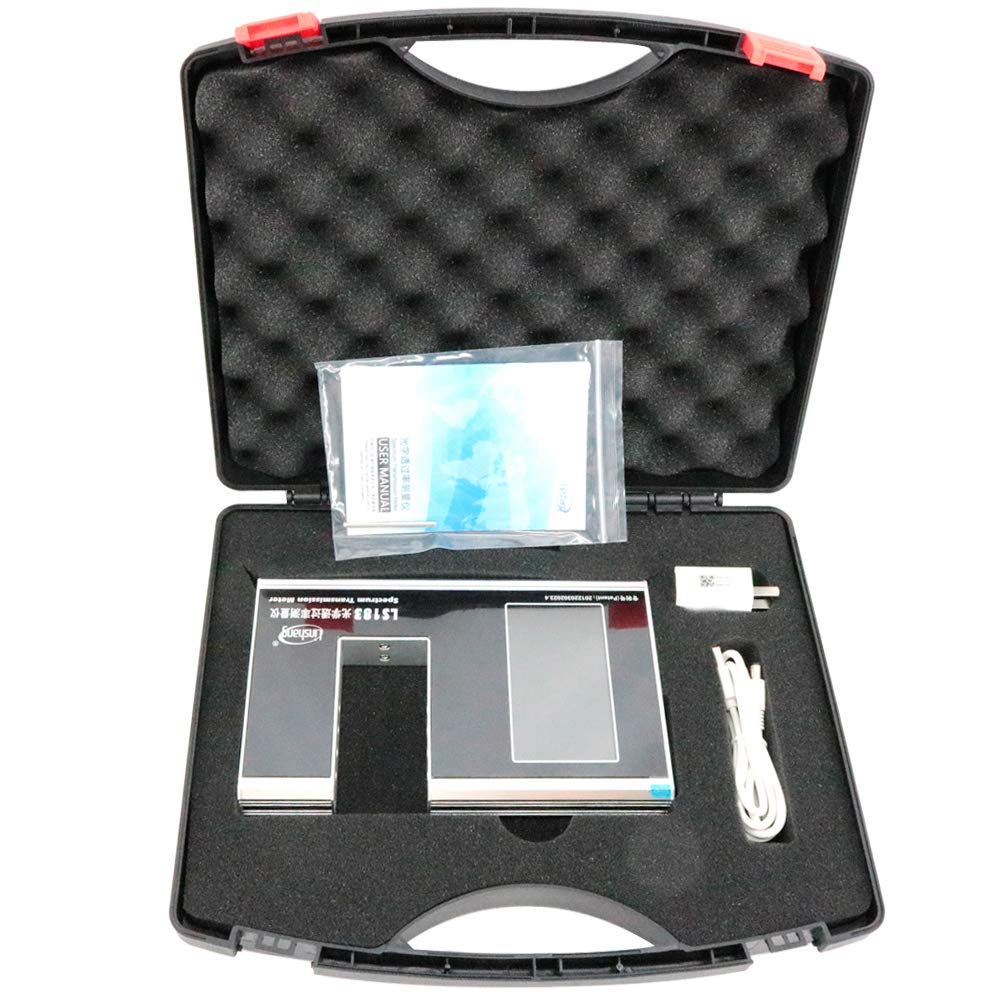

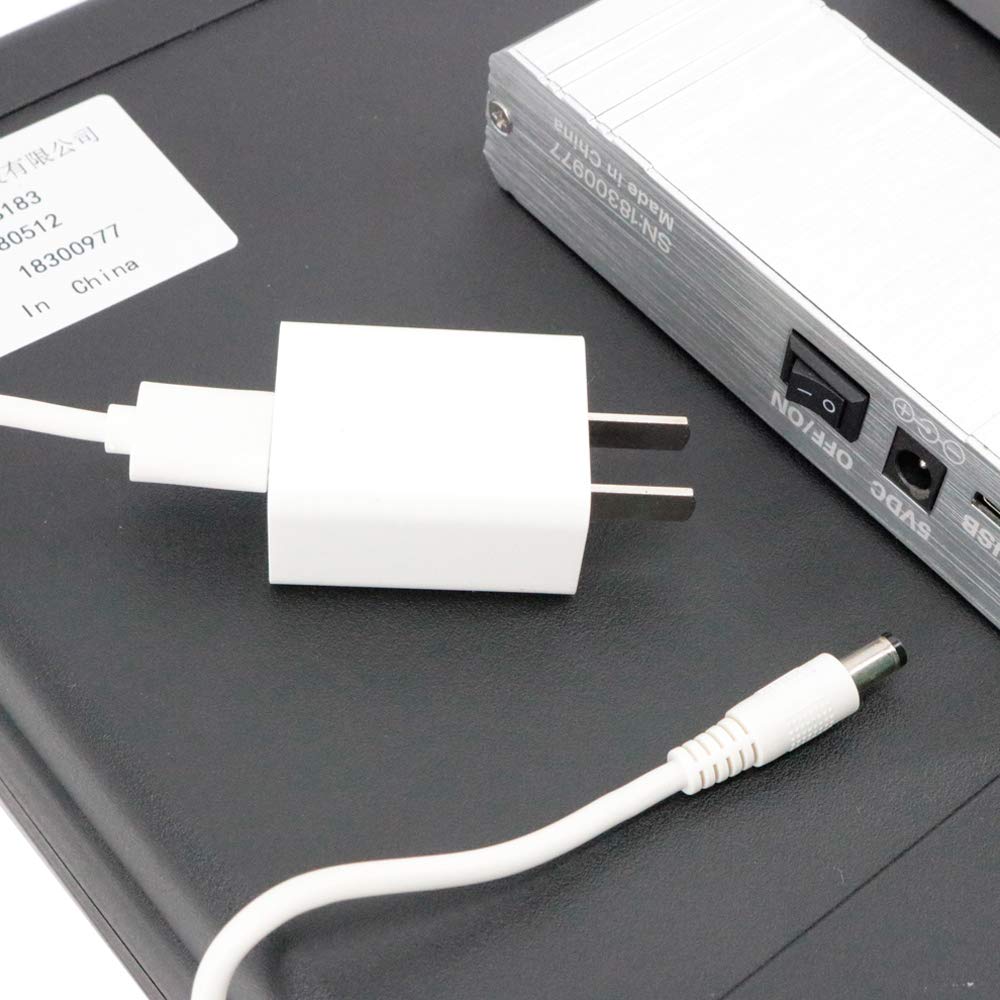

Standard Packing List
LS183 Spectrum Transmission Meter * 1pcs
DC5V Adapter * 1pcs
User Manual * 1pcs
Certificate / Warranty card * 1pcs

EAN: 0799649262114
