Built-in lithium ion rechargeable battery and control circuit with high capacity.
Small in size, light in weight and easy to use.
Manual or automatic shut down.

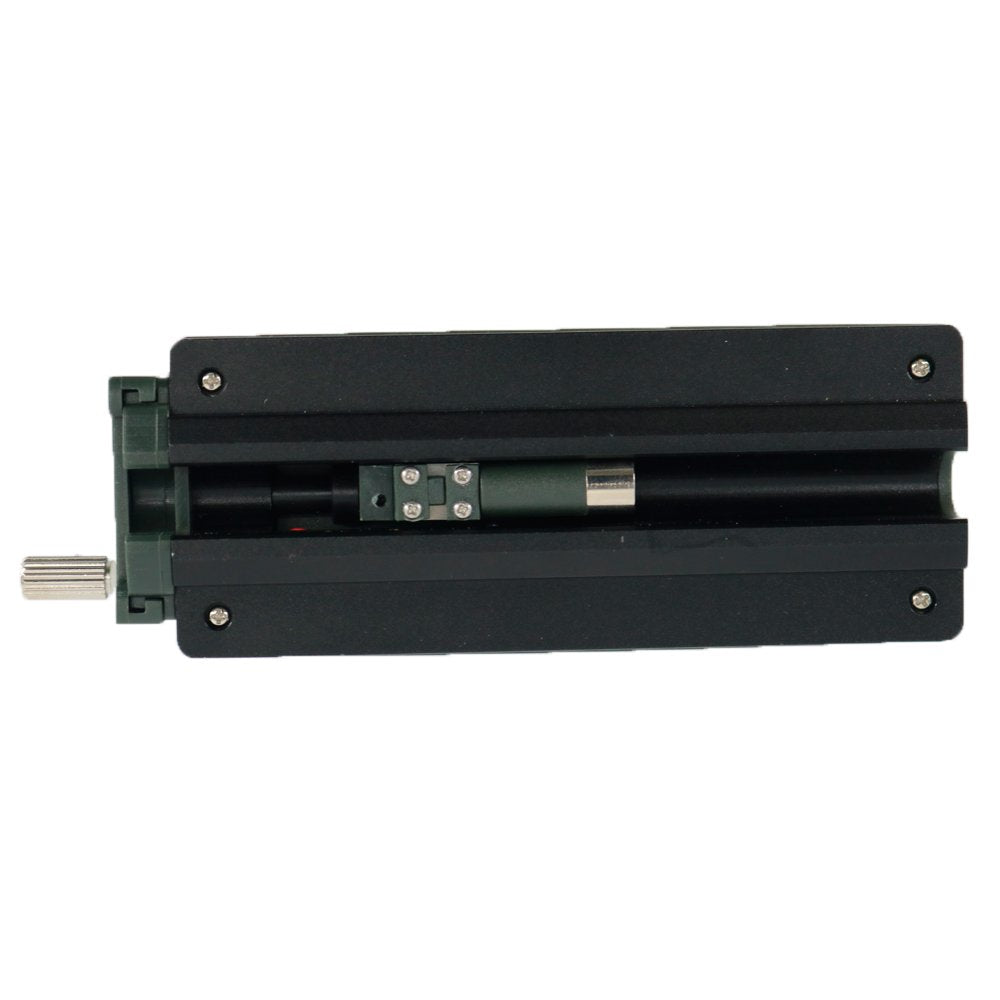

model number: SRT-6200
Part Number: SRT6200
Details: Specifications
-Display Range
+ Ra: 0.05 ~ 10.00μm / 1.000 ~ 400.0μinch
+ Rz: 0.020 ~ 100.0μm / 0.780 ~ 4000 μinch
-Accuracy: Not more than ±10 %
-Fluctuation of display value: Not more than 6 %
-Sensor:
-Test Principle: Inductance Type
-Radius of Probe Pin: 10 μm
-Material of Probe Pin: Diamond
-Measurement Force of Probe: 16 mN (1.6 gf)
-Vertical Radius of Guiding Head: 48 mm
-Maximum driving stroke: 17.5 mm / 0.7 inch
-Cutoff Length: 0.25 mm / 0.8 mm / 2.5 mm optional
-Evaluation Length: 1 ~ 5 cut off optional
-Driving Speed:
-Sampling Length = 0.25 mm Vt = 0.135 mm/s
-Sampling Length = 0.8 mm Vt = 0.5 mm/s
-Sampling Length = 2.5 mm Vt = 1mm/s
-Returning Vt = 1 mm/s

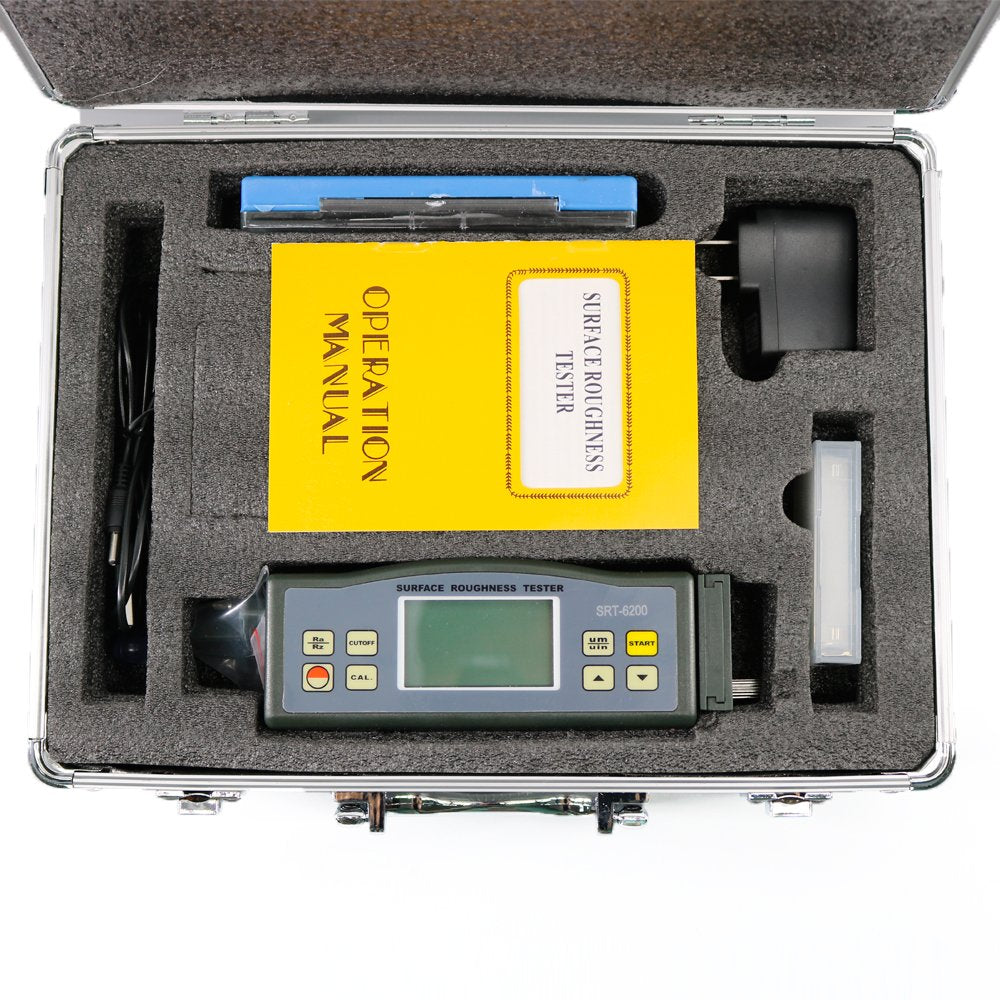

Standard Configuration:

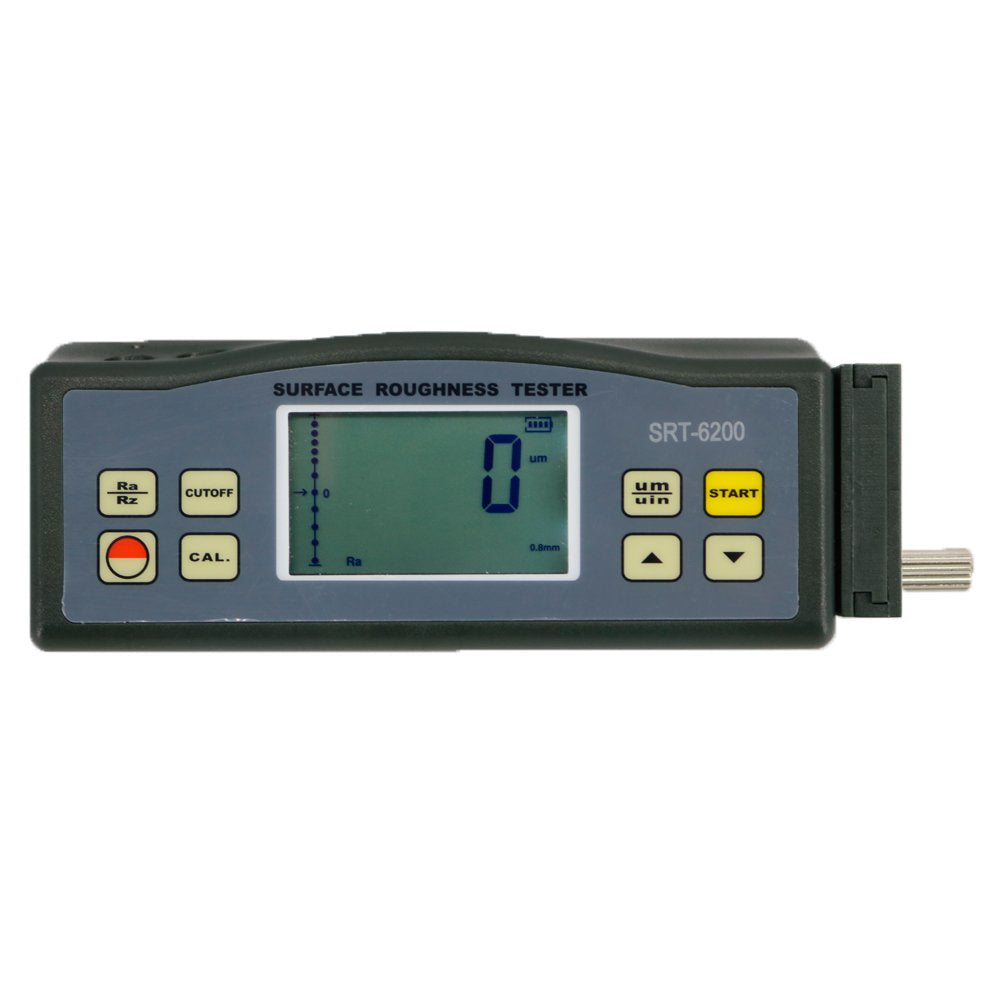

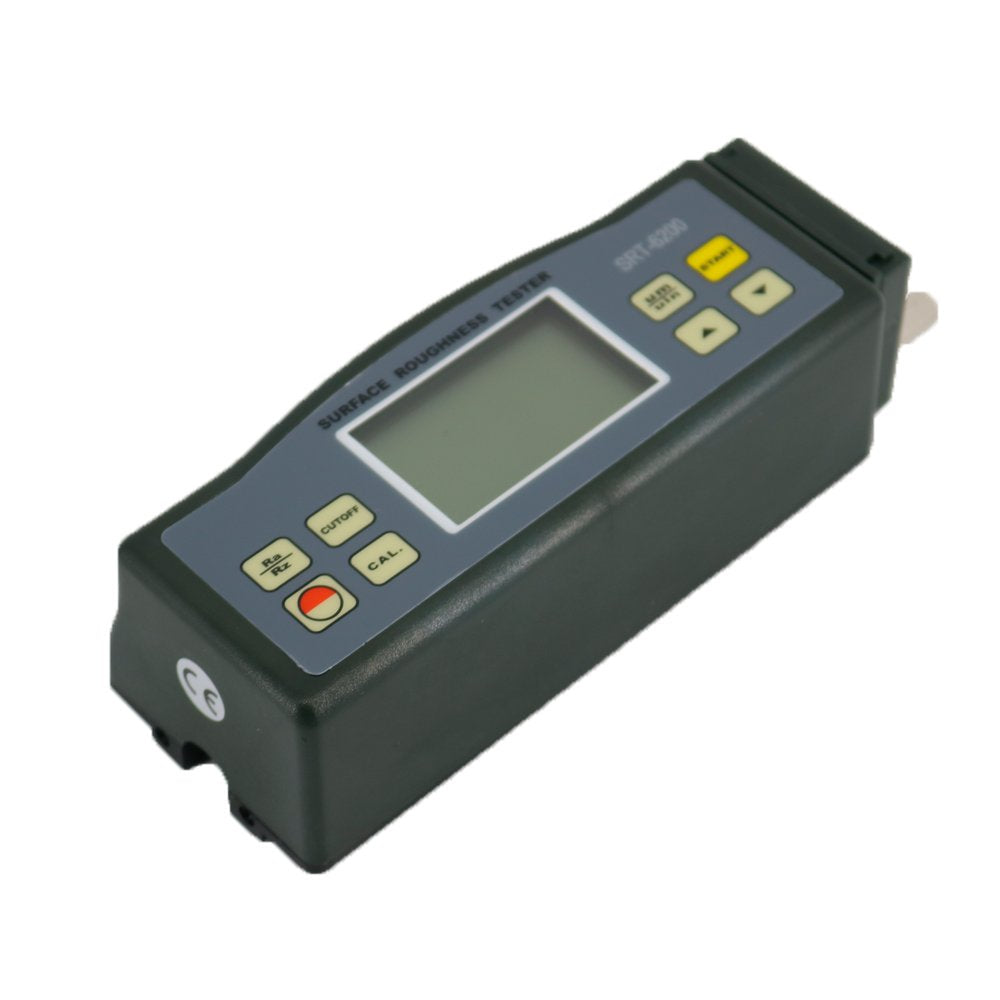

-1 x Surface Roughness Meter

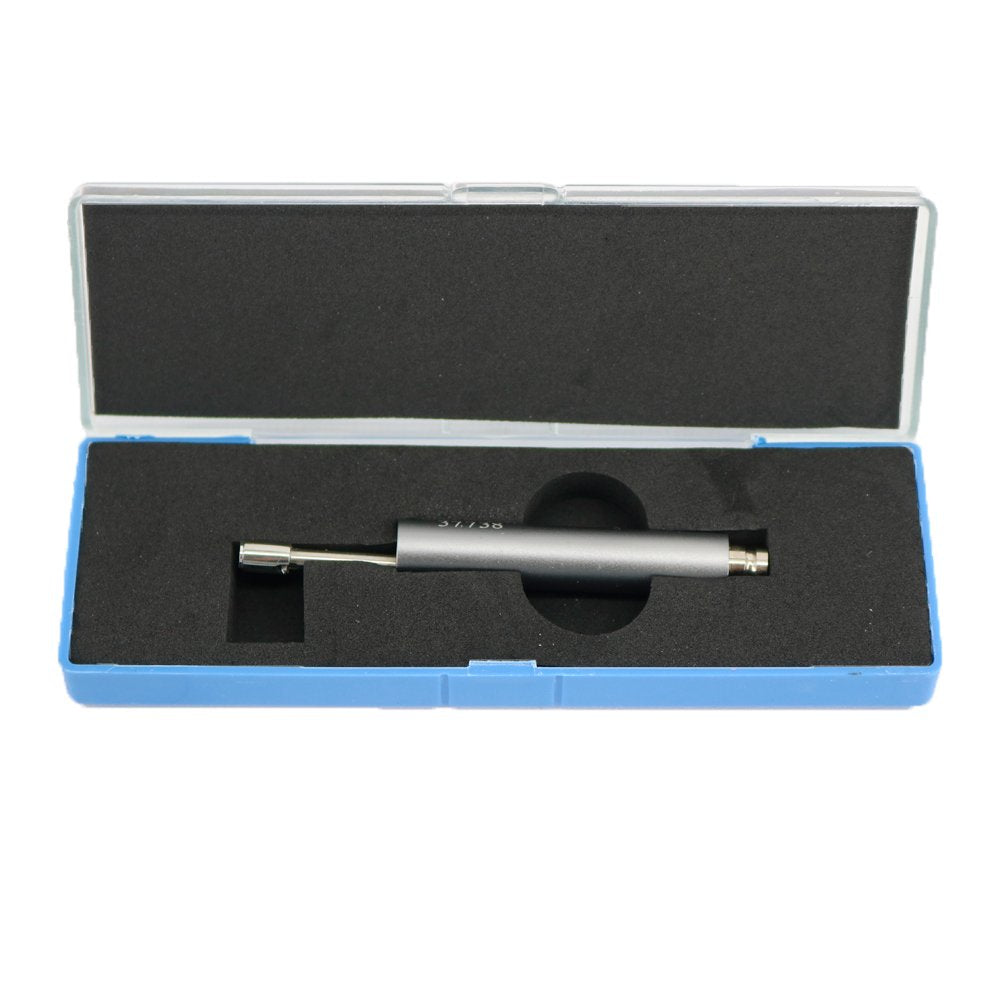

-1 x Standard Sensor
-1 x Standard Sample Plate
-1 x Sheath of Sensor
-1 x Screw Driver
-1 x Power Adapter
-1 x Instruction Manual

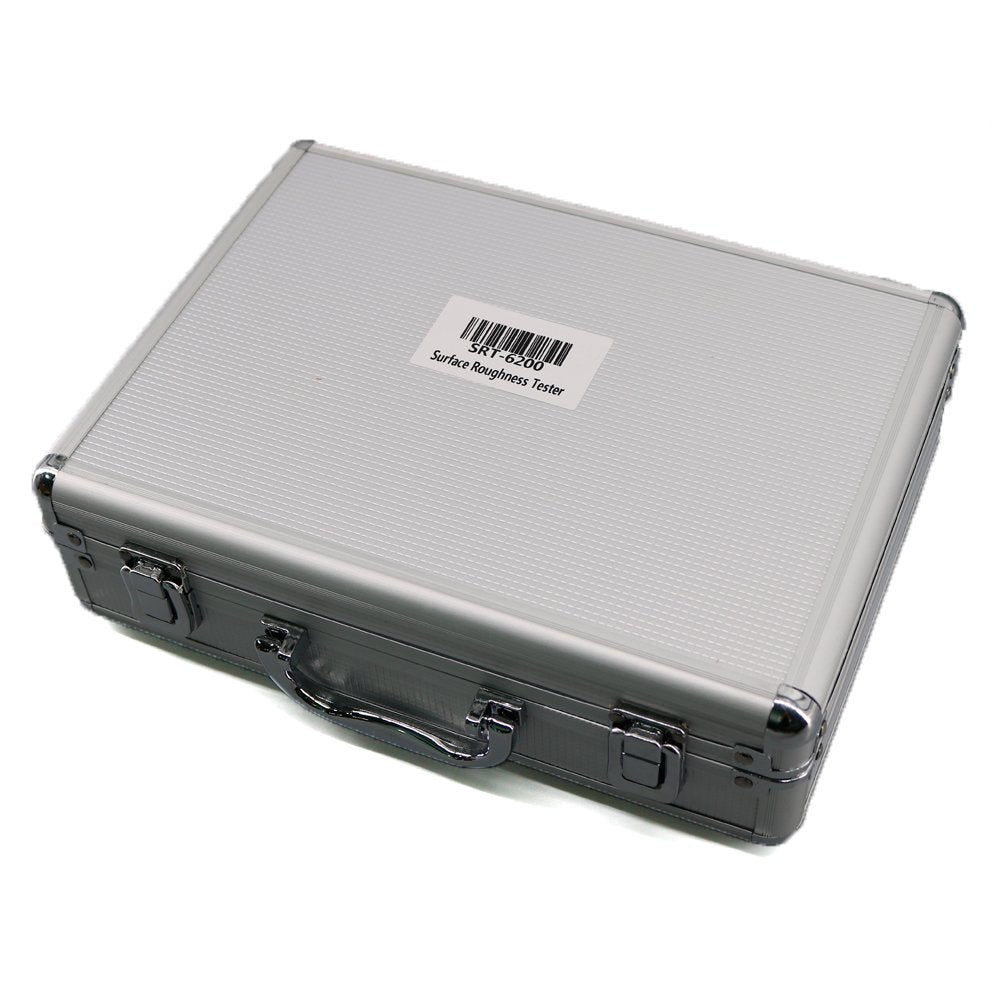

-1 x Metal Carry Case
