SW6 Ultrasonic Thickness Gauge has high measurement accuracy.
SW6 Ultrasonic Thickness Gauge has Velocity Calibration function.
Auto power off detection and customizing power off configuration.
Available for gauging various materials such as metal, glass, plastic, rubber and etc.
Whole range transducer models are available for almost all kinds of application, including coarse grain material gauging and high temperature applications (Max. temperature up to 300°C).

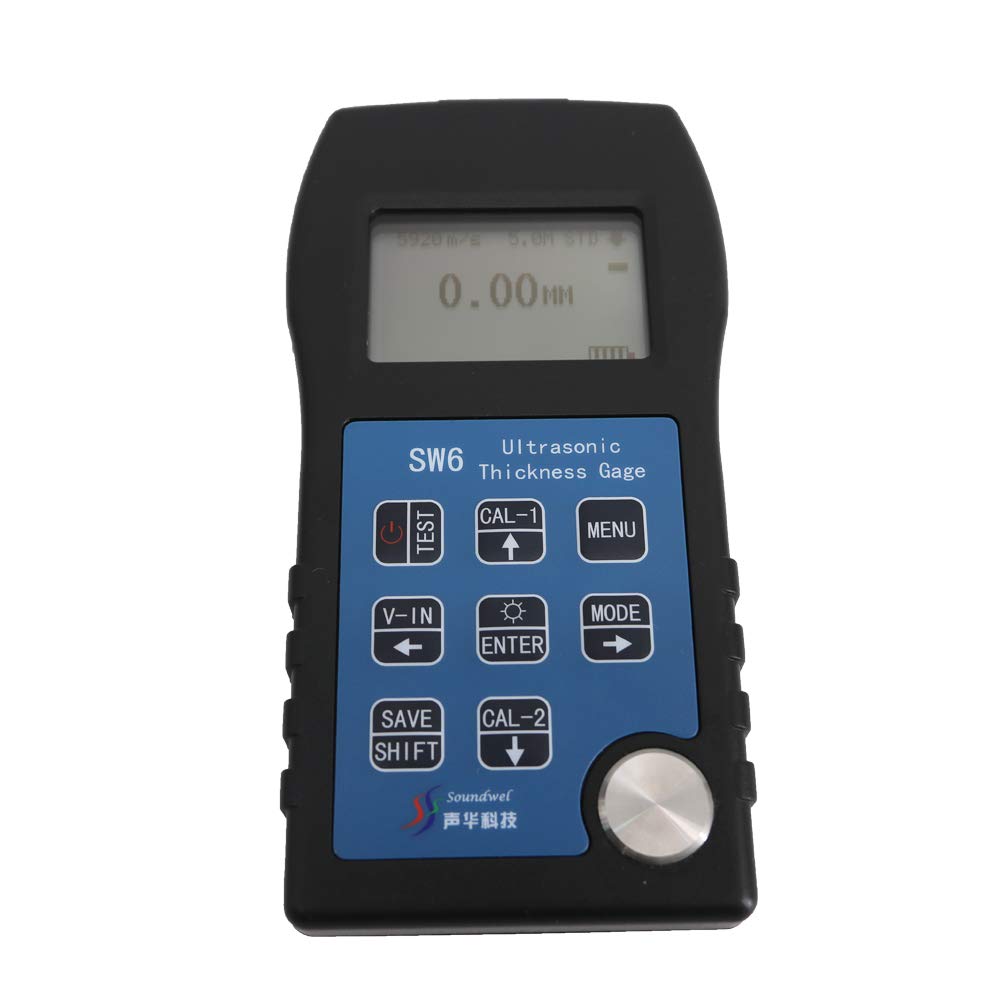

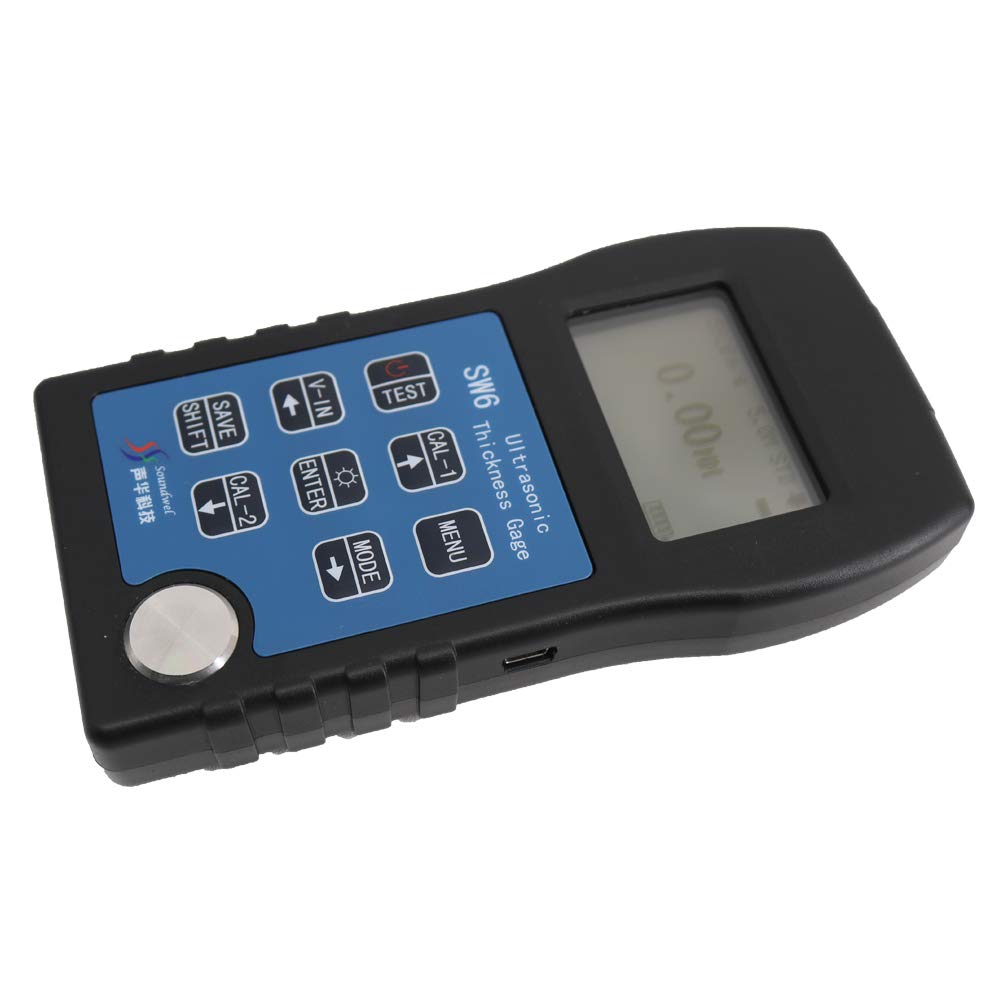

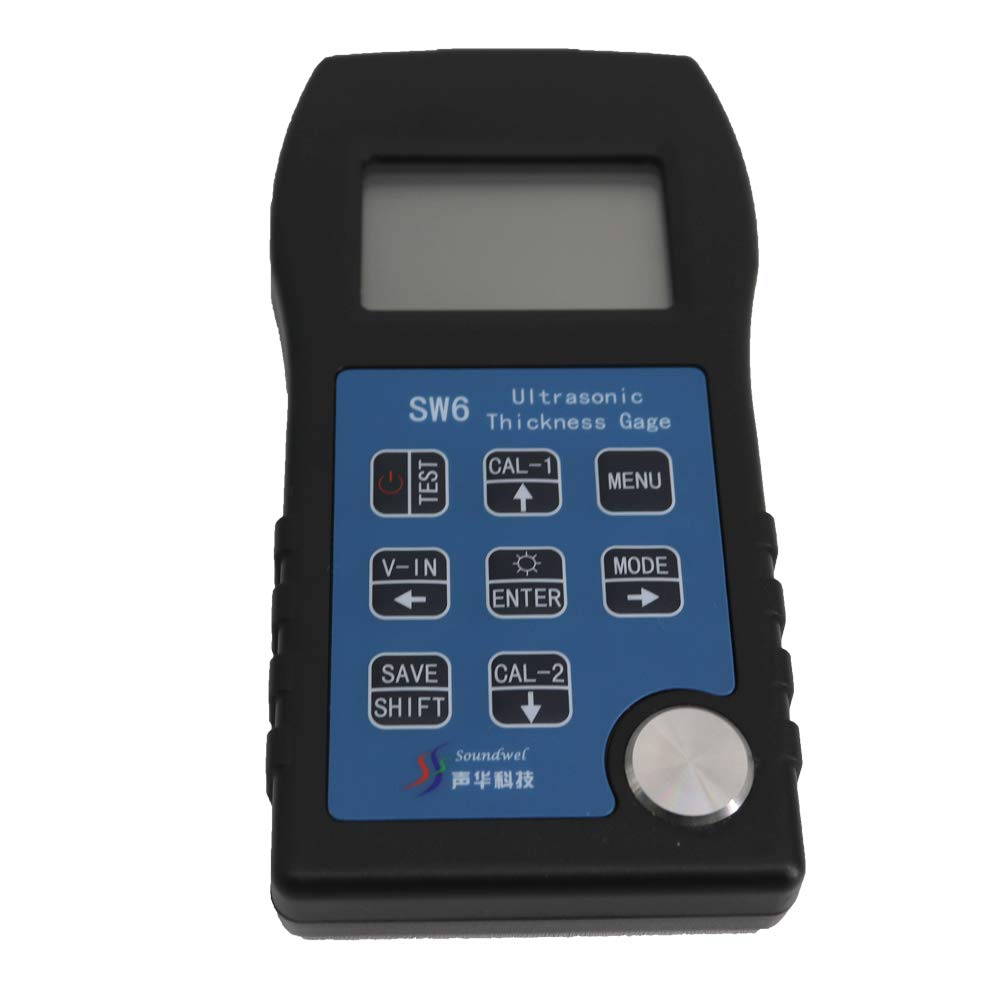

Part Number: SW6
Details: Specifications:
1.High measurement accuracy
2.metal, glass, plastic, rubber
3.Velocity Calibration function
Available for gauging various materials such as metal, glass, plastic, rubber and etc.
High measurement accuracy and wide range gauge applications Suitable for pipe gauging.
Whole range transducer models are available for almost all kinds of application, including coarse grain material gauging and high temperature applications (Max. temperature up to 300°C).
Adaptive probe function built in: Patent technology of automatic probe recognition: Automatically recognizing for probes allowing the gage to match with probes made from various probe manufacturers.
Power on automatic testing function contributing to measurement accuracy increasing.
Auto power off detection and customizing power off configuration
Probe Zero function, Sound Velocity Calibration function.
9 velocities built in and programmable.

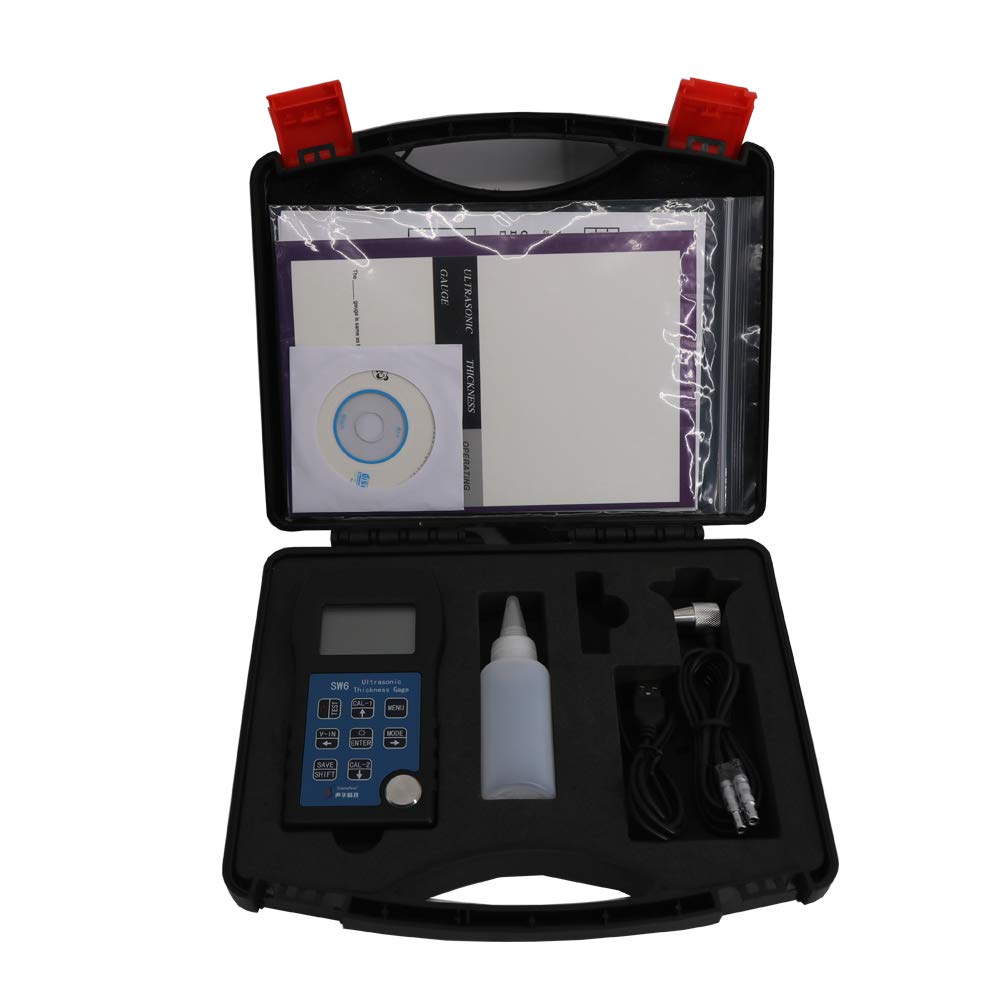

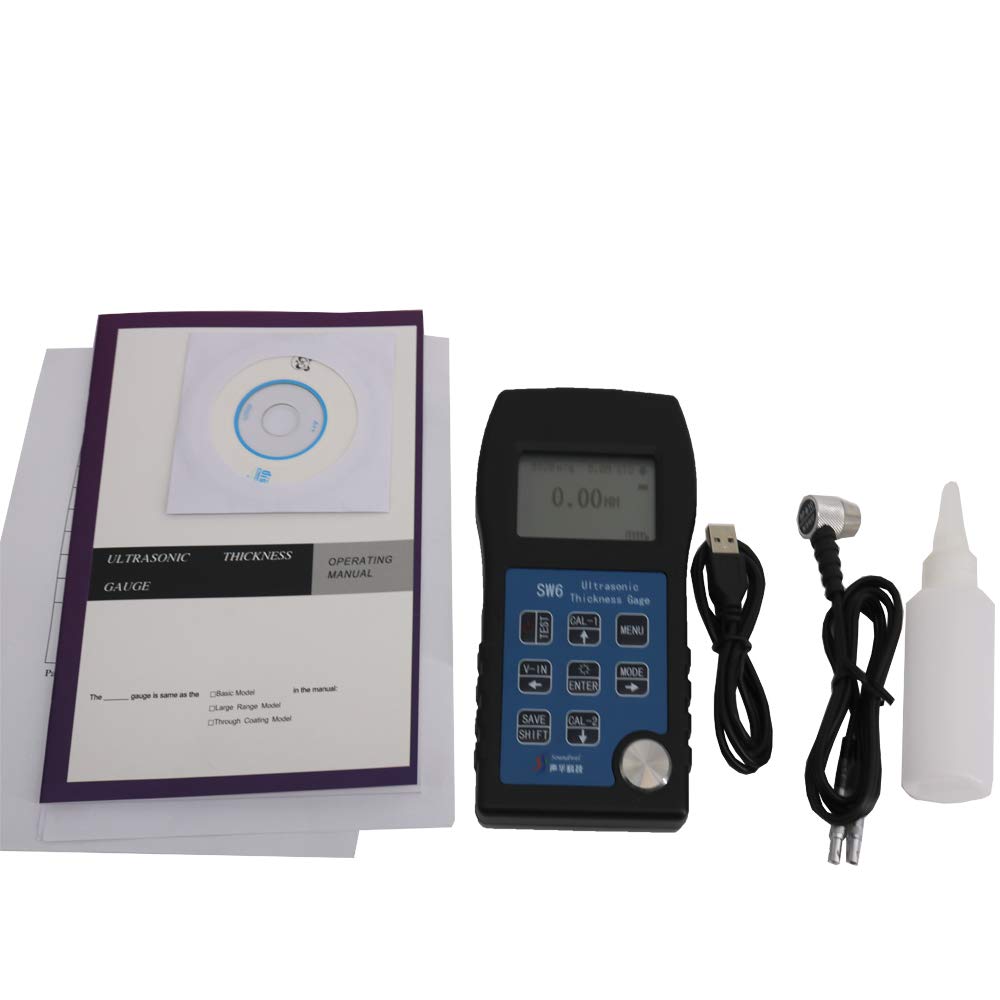

Packing List:
Gauge One Set
Probe One Set(5MHz, Φ10mm)
Couplant One Bottle(30ml, Glycerin)
Guide Manual
Hermetic Plastic Kit (18cm X 15cm X10cm)
USB Cable
Software Disk
