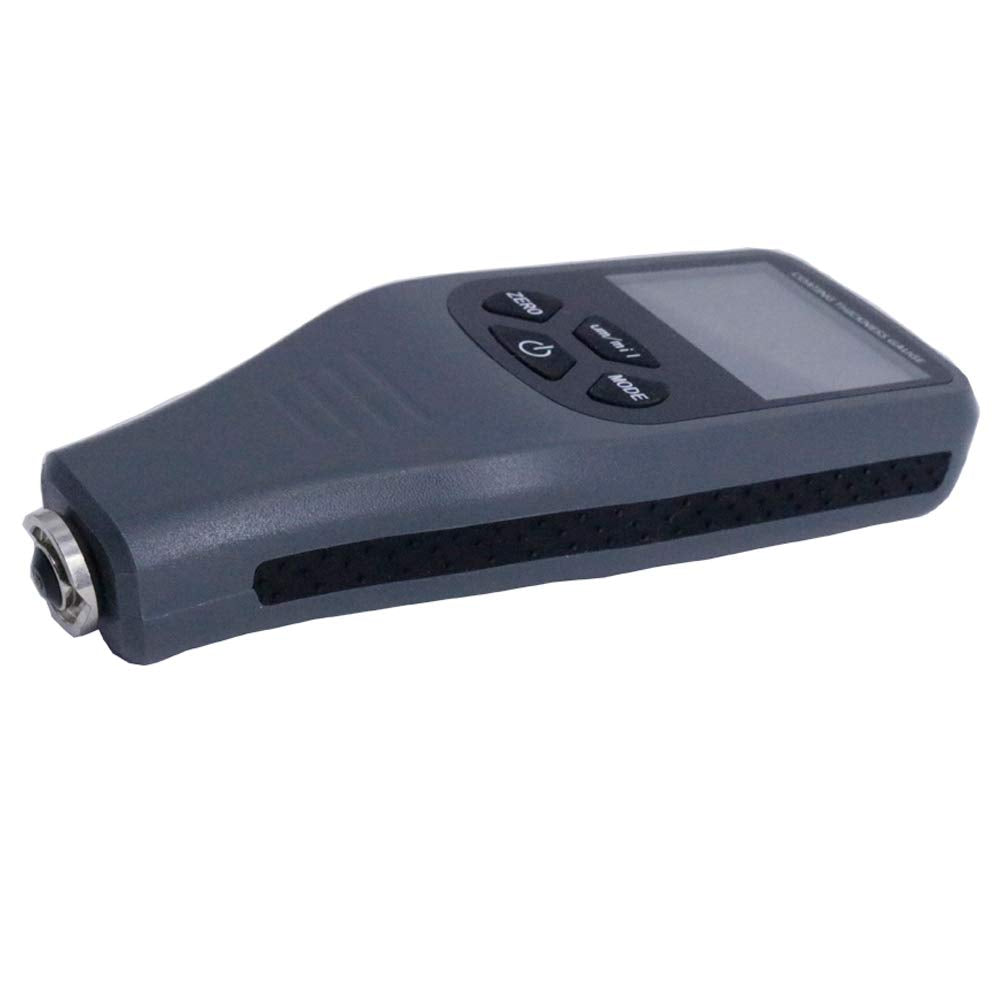

Graigar TC200 Coating Painting Thickness Gauge Meter Tester Measuring Range 0~1300um with Backlight Display

Brand: Graigar

Color: Black

Features:

• TC200 Coating thickness gauge is designed for non-destructively measuring the thickness of coating and painting.

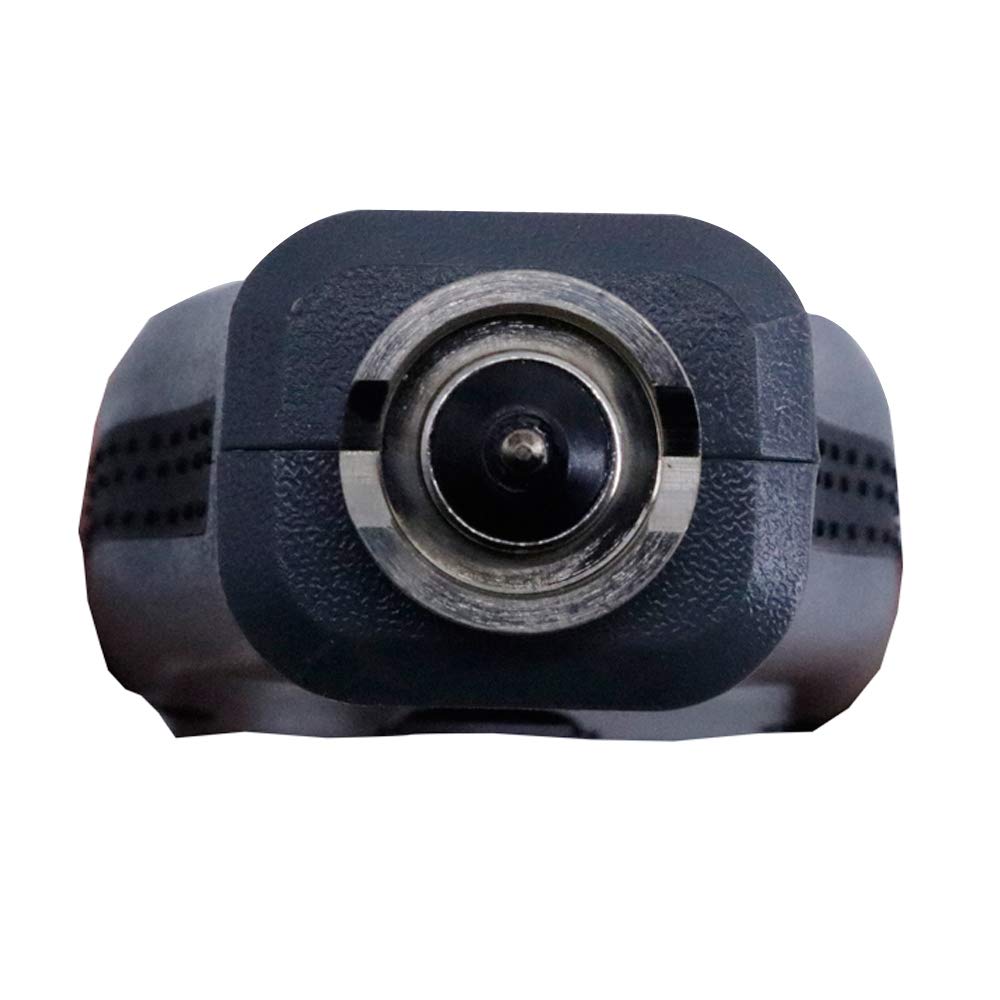

• Integral probe F&NF, auto detecting attribute of substrates.Nice shell design, non-slip and comfortable to hold in hands.
• Essential for material surface treatment and widely used in manufacturing, metal-processing industry.
• Adopts the principle of electromagnetic induction and eddy current effect.

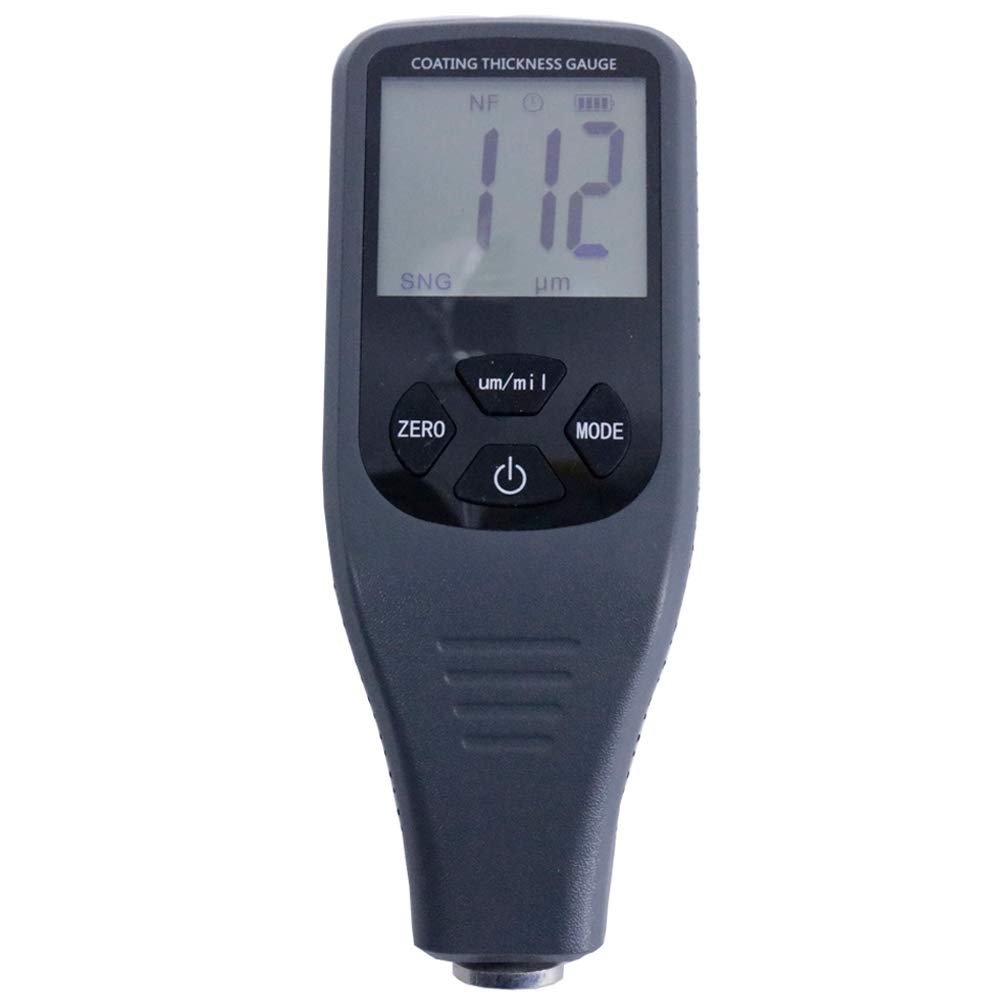

• Backlight display, makes date seen clear even in the dark place.5 minutes auto power off to save power.

Part Number: TC200

Details: The thickness gauge is used to measure the thickness of the plated and coated sheet on metal. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor

Specifications:
Model: TC200
Main material: plastic
Measurement range: 0~1300um / 0~51.2mil
Accuracy: ±(3%+2um/0.08mil)
Resolution: 0.1um / 0.01mil
Calibration point: 0/50/100/250/500/1000um
Power supply: 4 * AAA batteries(Not Included)
Operating temperature: 0 to 40℃
Operating humidity: 20%~90%RH
Item size: 155 * 62 * 35mm / 6.10 * 2.44 * 1.38in
Package size: 255 * 190 * 55mm / 10.04 * 7.48 * 2.17in
Item weight: 125g / 4.41ounces
Package weight: 590g / 20.81ounces

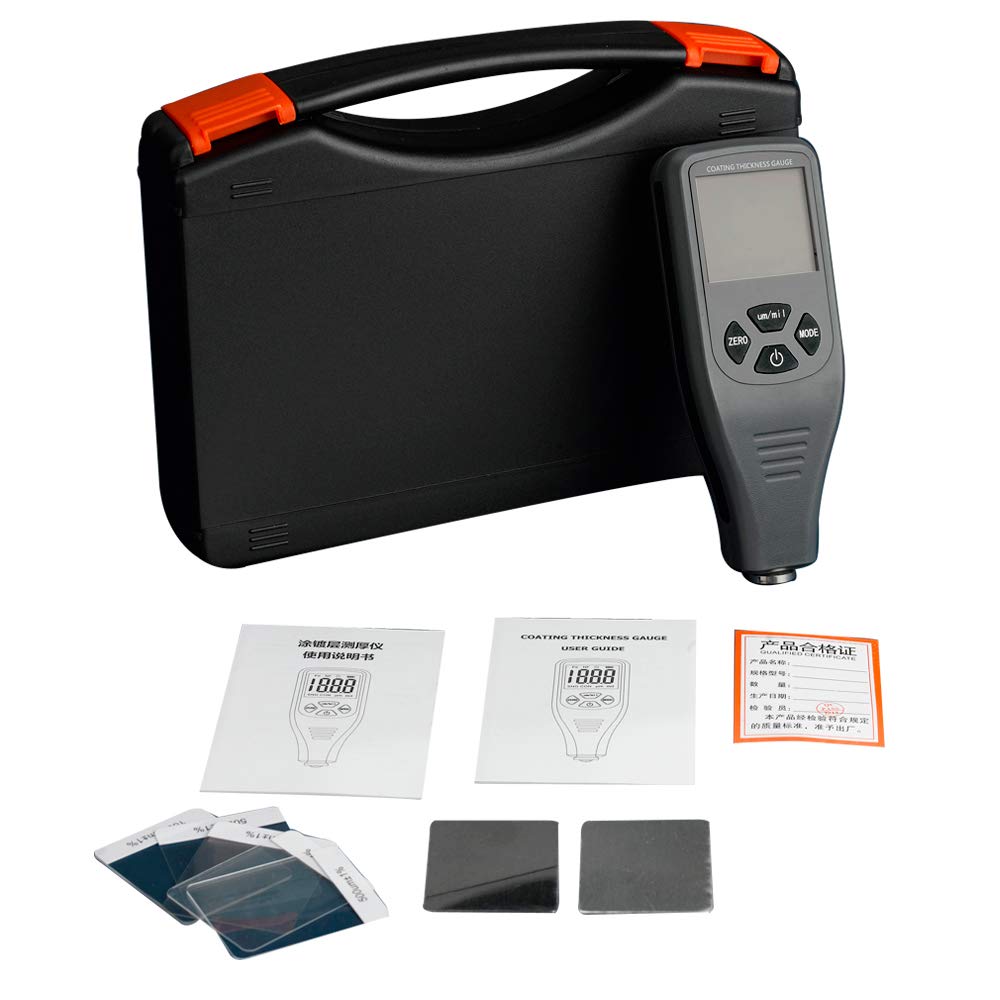

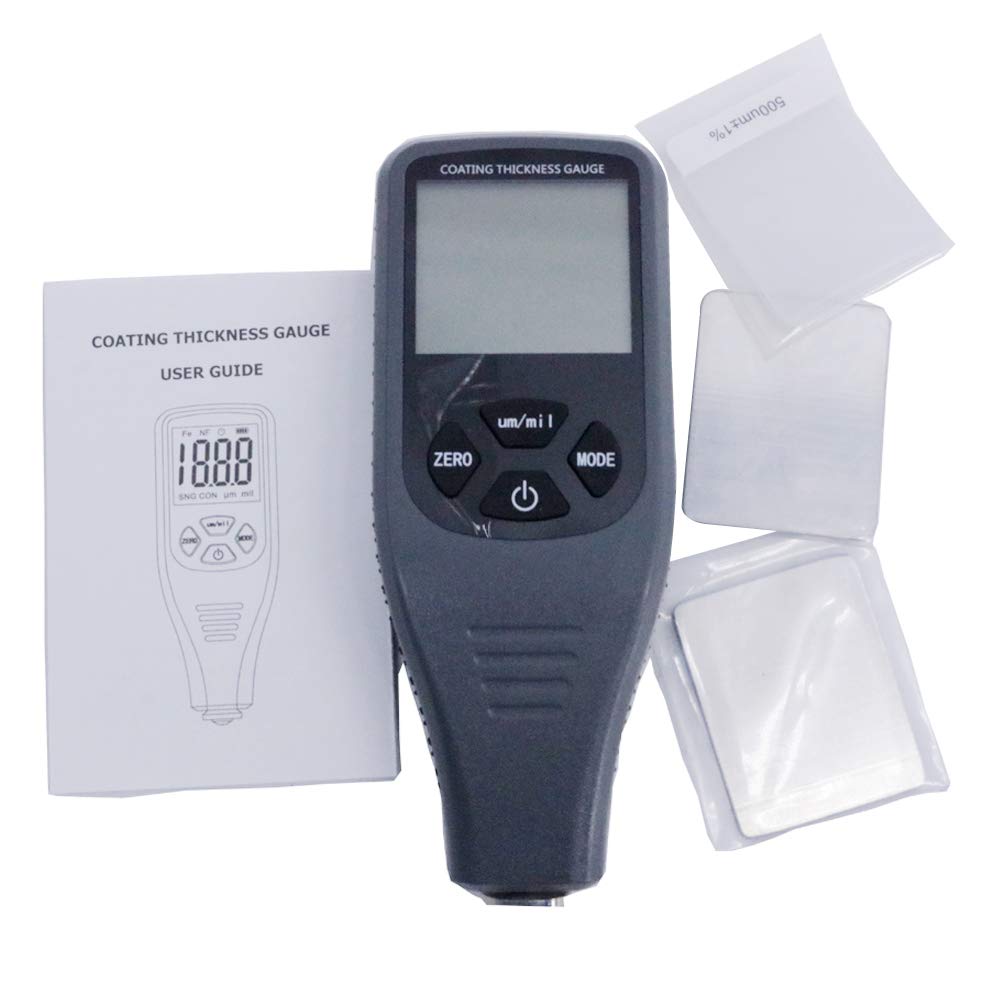

Package List:
1 * TC200 Coating Thickness Gauge
1 * Aluminum Substrate
1 * Lron Substrate
5 * Calibration Coating Films
1 * English Manual

EAN: 0761272056958
