Graigar TDS-100F-M2 Fixed Ultrasonic Flowmeters Wall-Mount Flow Meter DN50-700mm 1.97-27.56in with M2 Transducer

Brand: Graigar

Features:

• TDS-100F Ultrasonic flow meter Low fixed ultrasonic flowmeter with large planning integrated circuits CPLD, table process, accuracy is higher.
• Day, month and year flow accumulation function, can record run 64 days before the operation, the first 64 months, the first five years of accumulated flow operation.
• On low, the power management function, can record, electricity and traffic on 64 times before, can be manually or automatically compensate to reduce flow losses.
• Low effectively overcome the wall of the ultrasonic signal attenuation and rough surface of the pipe to scattering of ultrasonic signal from surface reduce the energy consumption of ultrasonic signal.
• Low overcame a signal to a small amount of sediment, suspended particles and bubbles, the effect of improved flow measurement accuracy, especially suitable for pipe flow measurement.

model number: TDS-100F-M2

Part Number: TDS-100F-M2

Details: Specifications:
Linearity: Better than ±1%.
Accuracy: ±1% of reading at rates >0.6 ft/s (0.2m/s). Assume a fully developed flow profile.
Repeatability: ±0.2%.
Velocity: ±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), bi-directional
Measurement Period: 0.5s

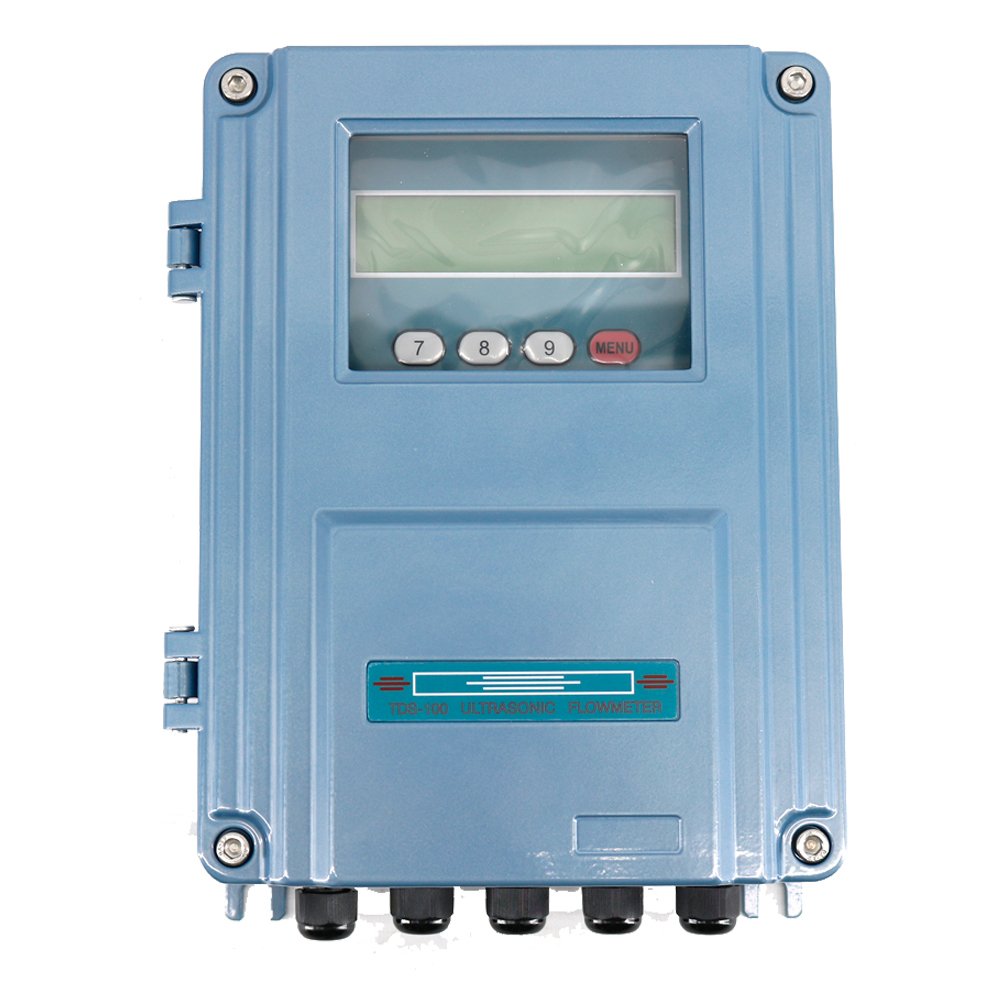

Display: LCD with backlight. 2x20 letters.
Keypad: 4x4-key membrane keypad with tactile feedback
Protection Class: IP65 (NEMA 4X).
Size: 9.88x7.56x3.15 (251x192x80mm3) for standard version
Clamp-on
S2-type: for pipe size (DN15~DN100mm)
M2-type: for pipe size (DN50~DN700mm)
L2-type: for pipe size (DN300~DN6,000mm)
Liquid Types Virtually all commonly used clean liquids.
Liquids with small quantity of tiny particles may also be applicable. Particle size should be less than 75um, particle concentration less than 10,000ppm.
Liquids should contain no or very minor air bubbles.
Examples are chilled/hot water, sea water, waste water, chemical liquids, oil, crude oil, alcohol, beer, etc.
Liquid Temp(0C - 160C) for clamp-on transducer. Higher temperatures can be accommodated. Consult us for assistance.
(0C - 160C) for wetted transducer.
Pipe Size: 1 ~ 240 (DN15mm ~ DN6,000mm).
Pipe Material: All metals, most plastics, fiber glass, etc. Allow pipe liner.
PowerAC: 240V DC: 8VDC~36VDC
Power consumption: <2W
WeightStandard main unit: 6.6lb (3kg)

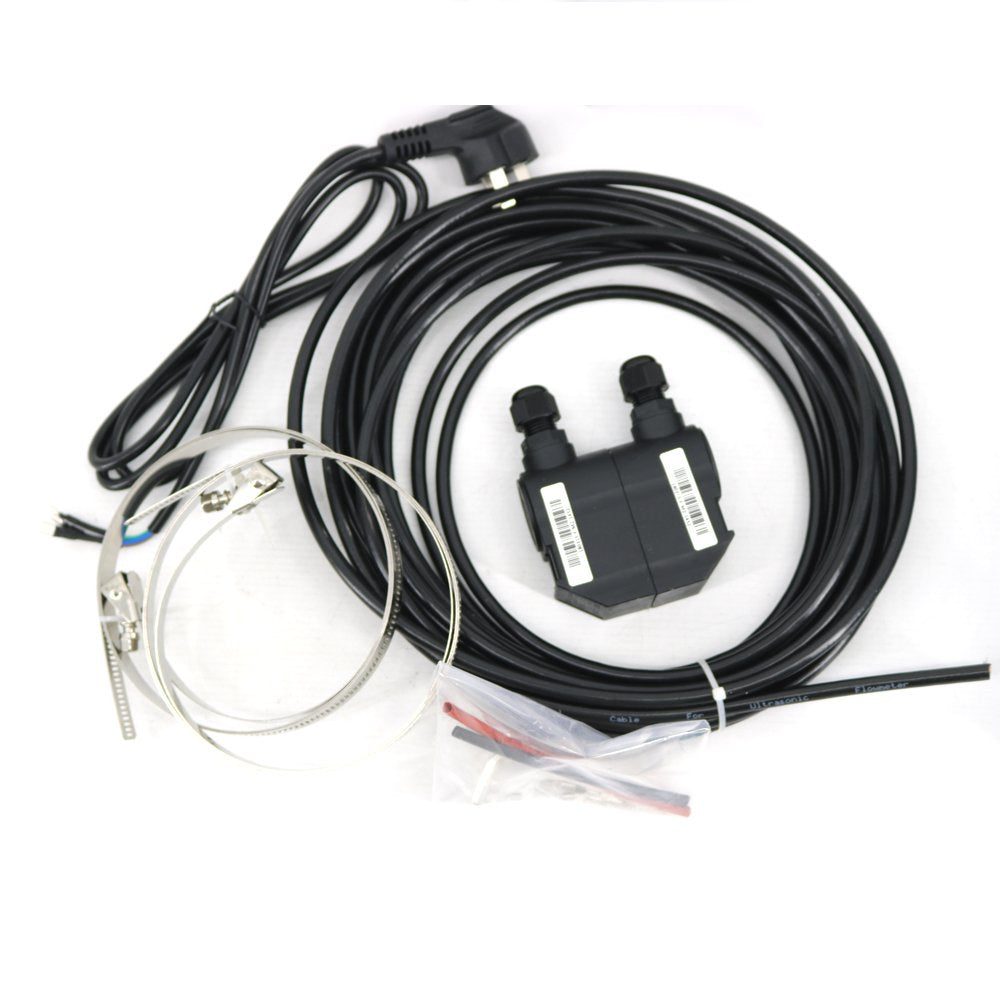

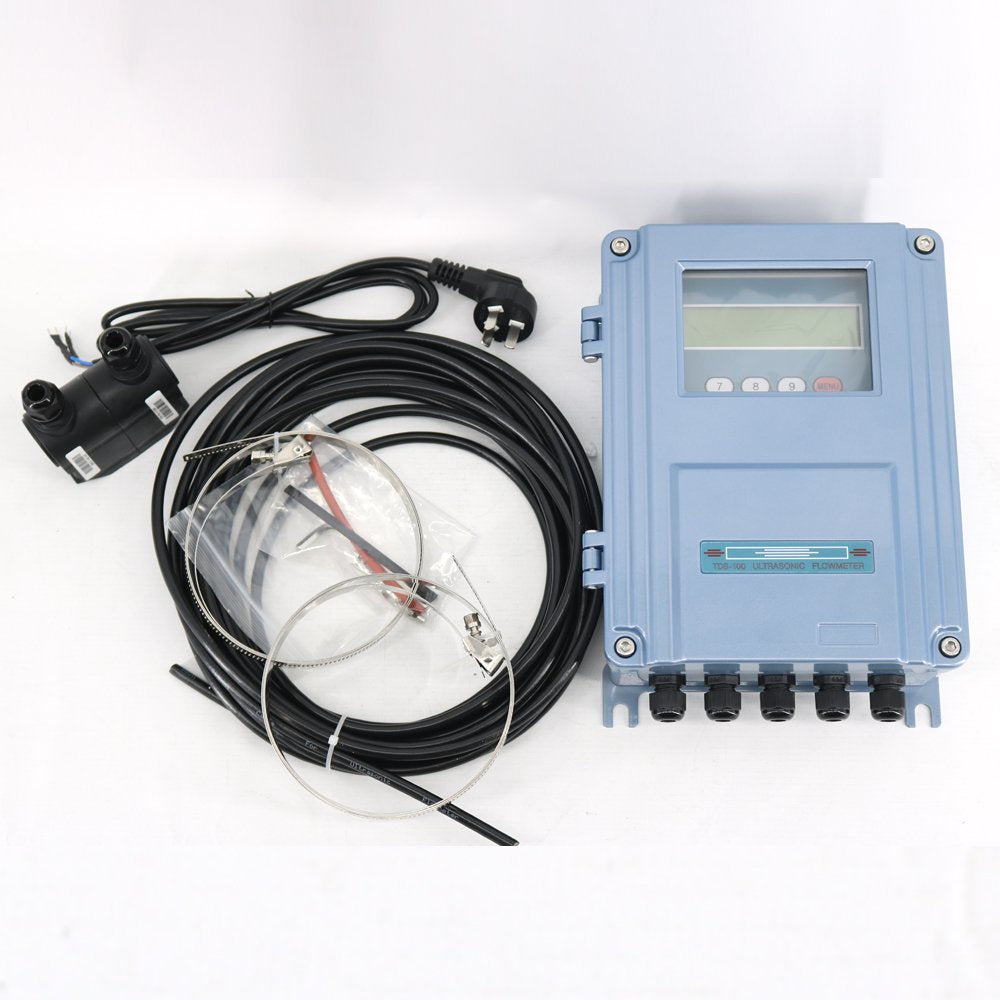

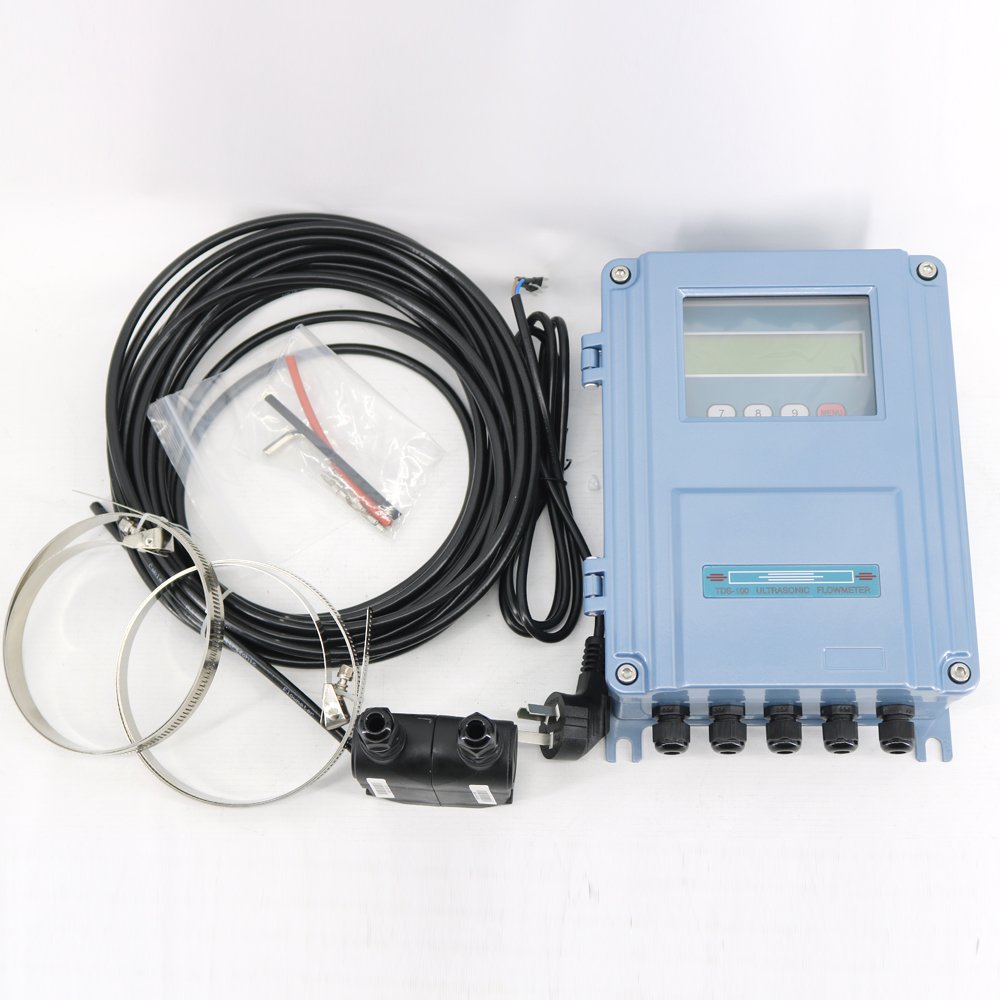

Standard configuration:

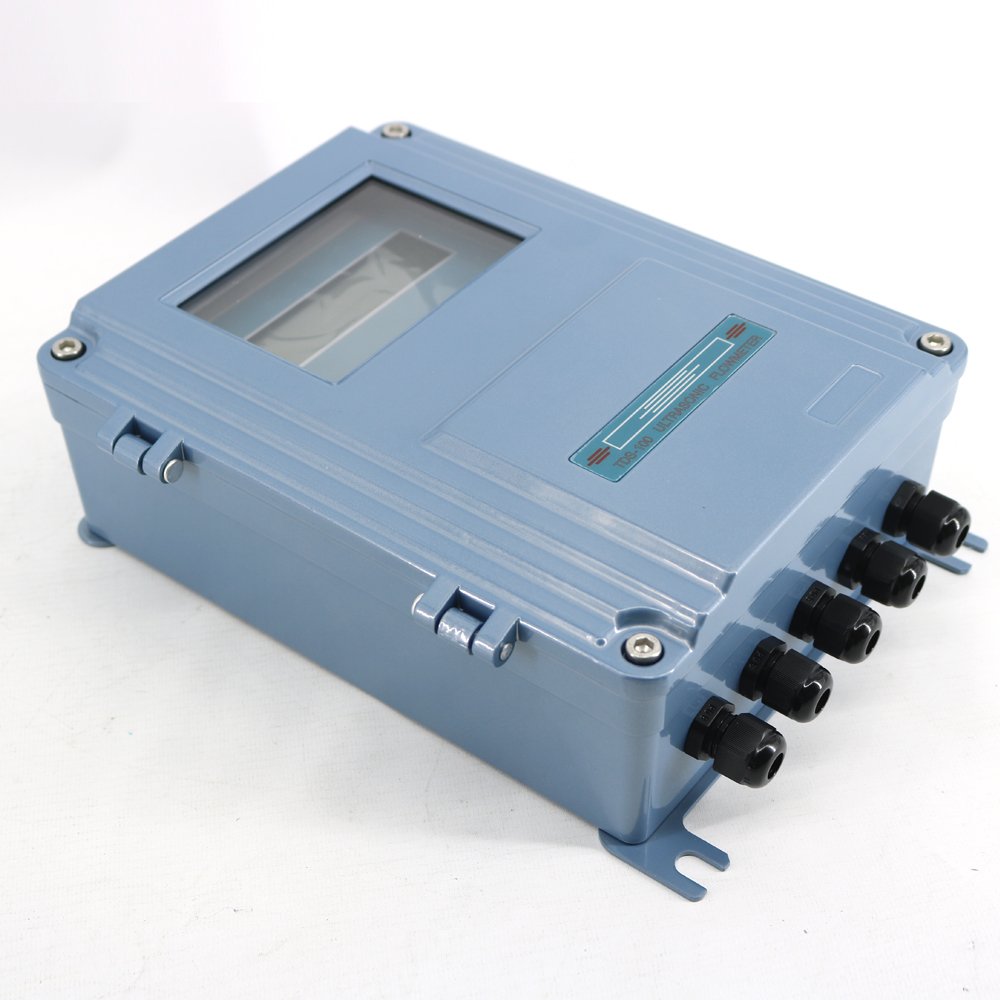

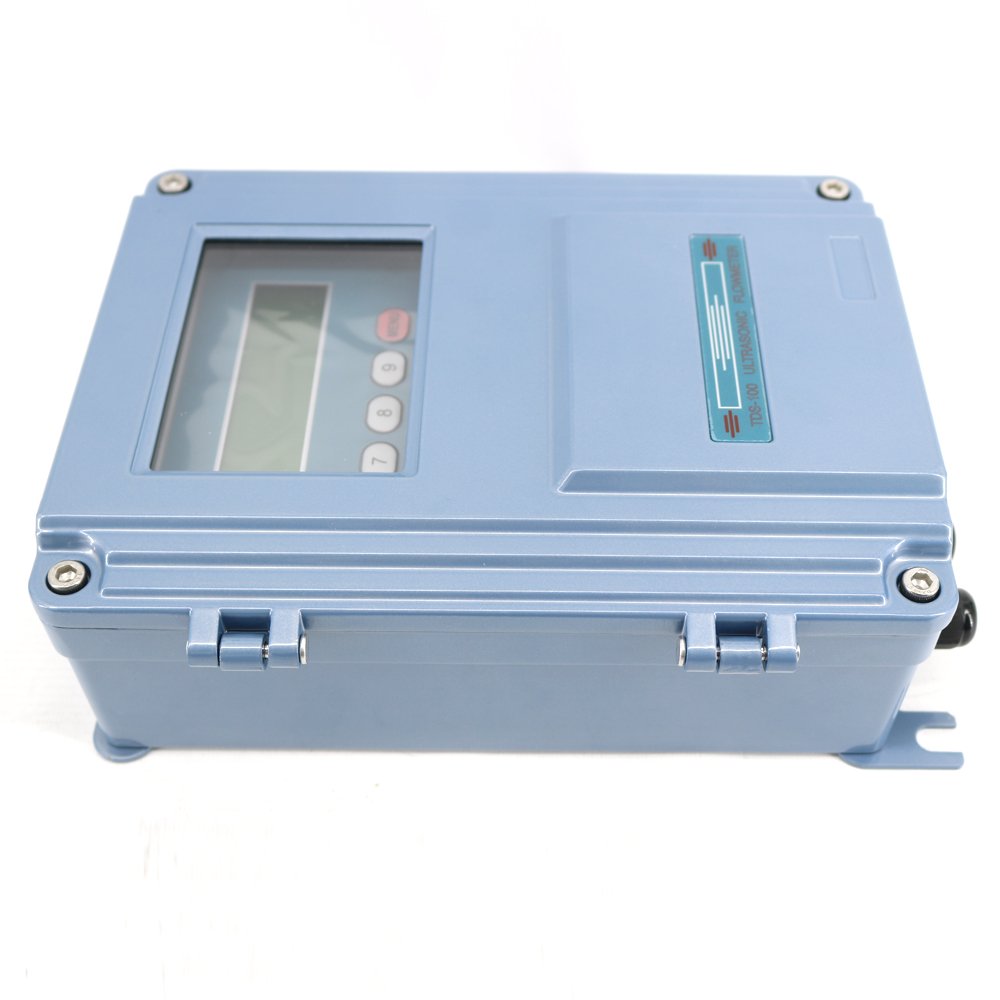

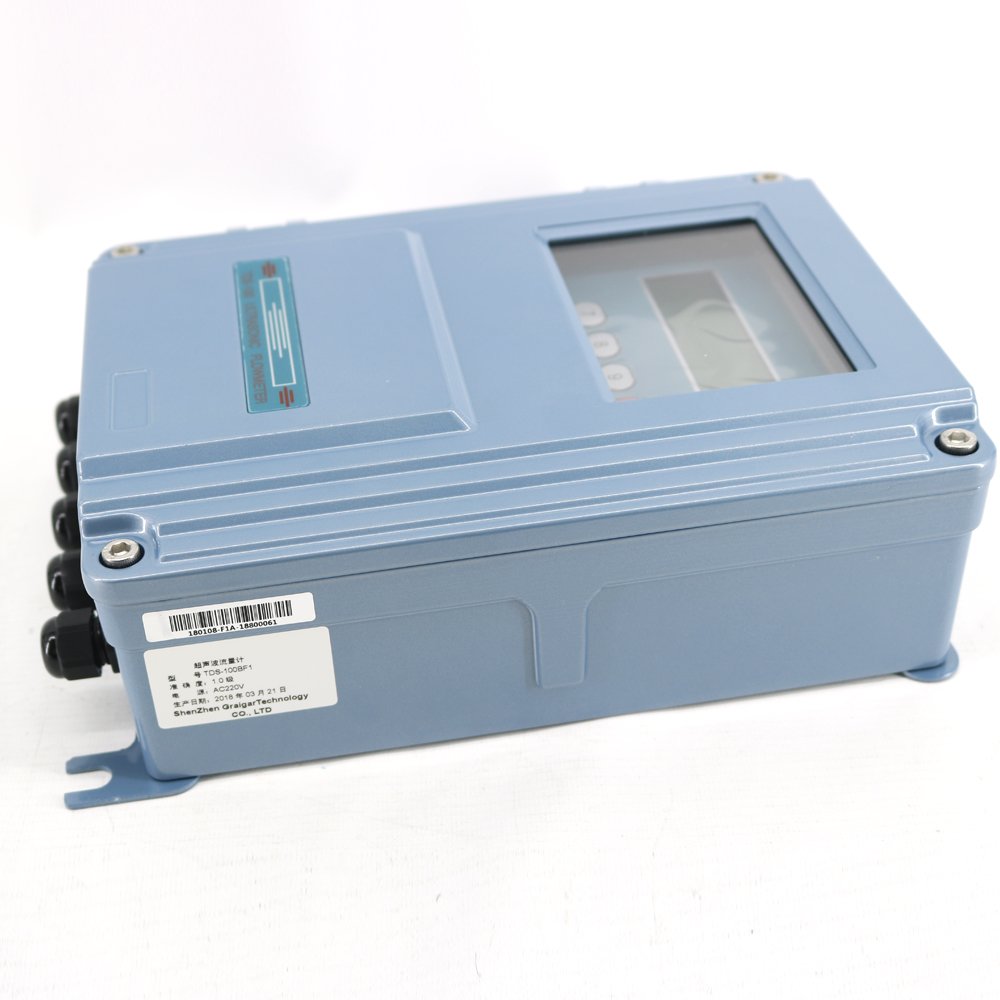

TDS-100F Ultrasonic Flowmeter
Clamp Fixture

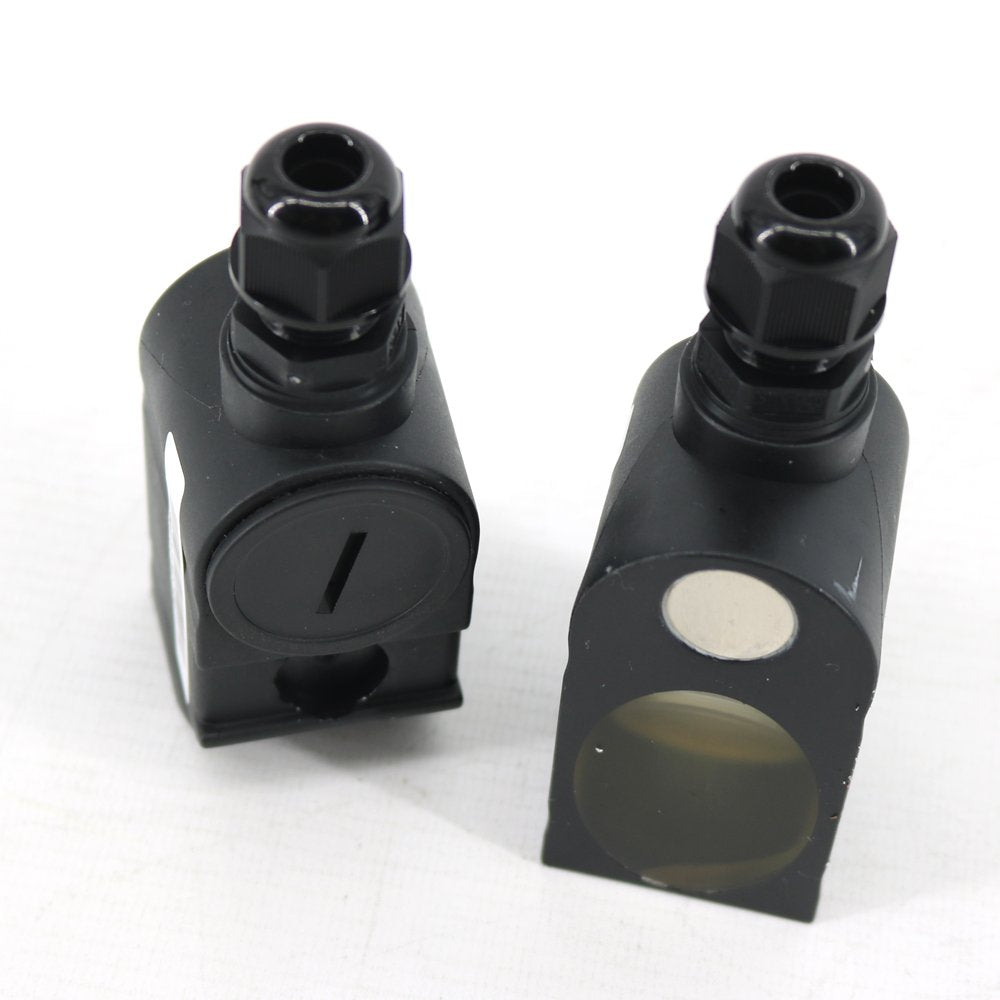

Standard M2 Transducer
2 x 5m Signal Cable

EAN: 0725370414300
