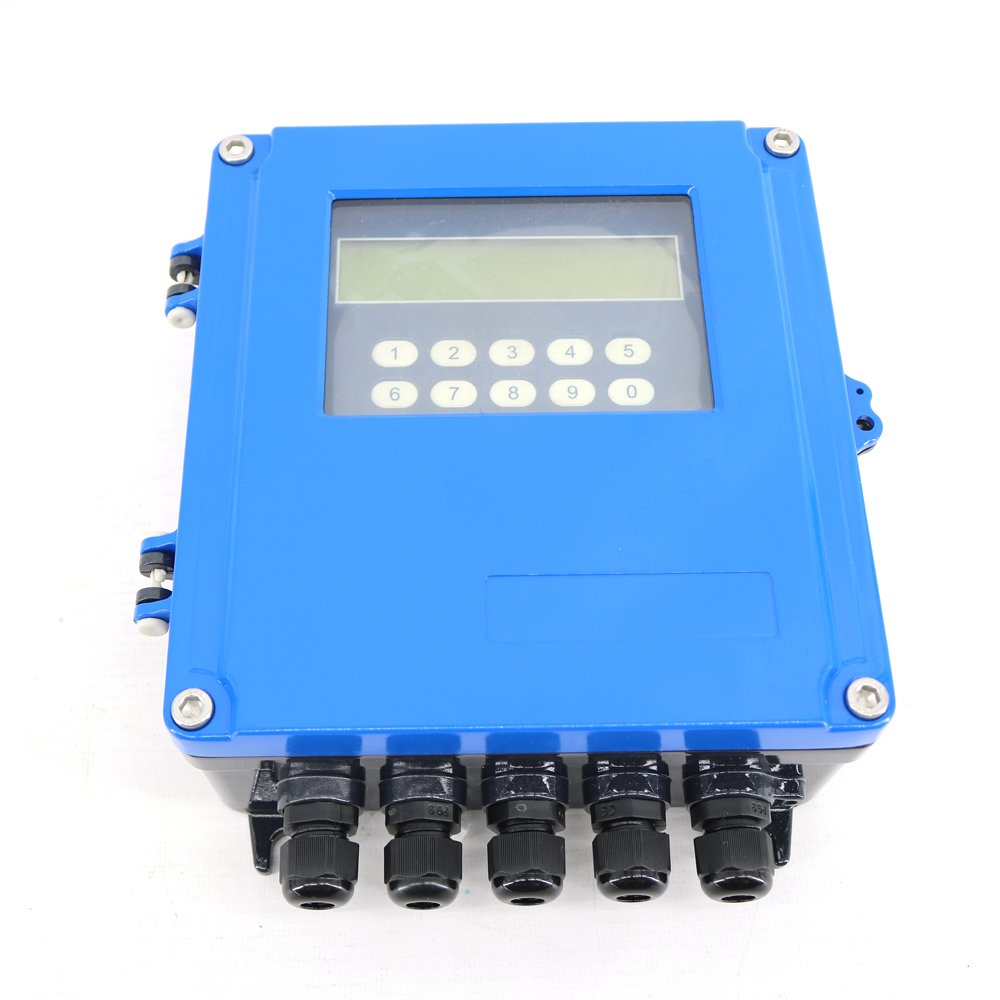

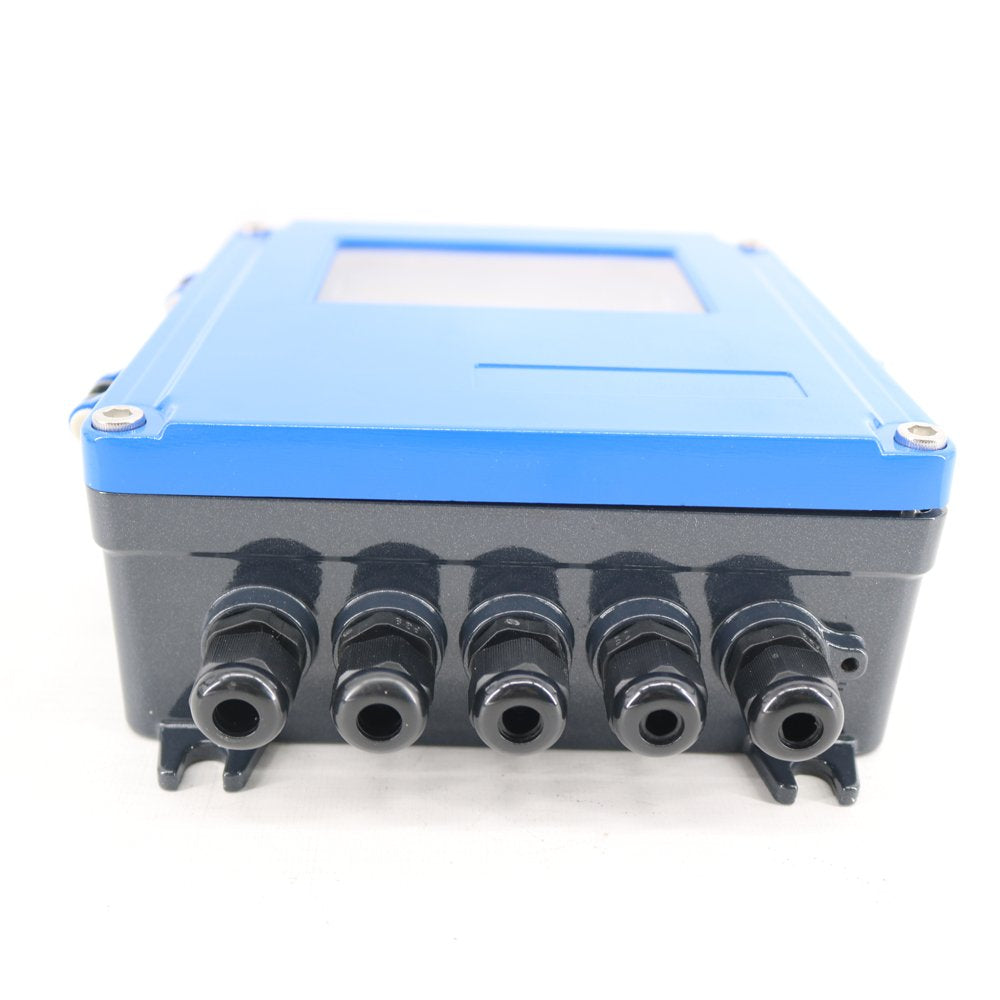

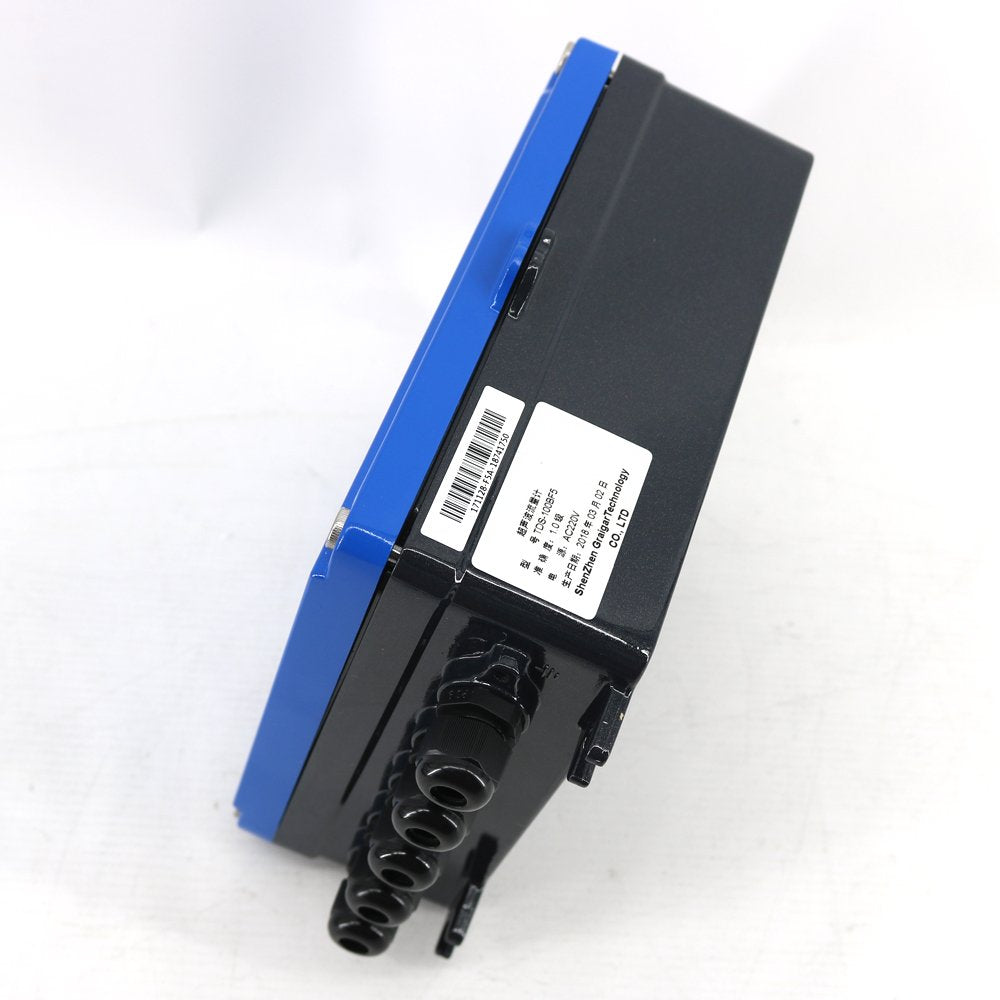

Graigar TDS-100F5-M2 Fixed Wall-Mount Ultrasonic Flow Meters Flowmeter DN50-700mm 1.97-27.56in with M2 Transducer

Graigar TDS-100F5-M2 Fixed Wall-Mount Ultrasonic Flow Meters Flowmeter DN50-700mm 1.97-27.56in with M2 Transducer

$370.00 USD
$370.00 USD
促销 售罄

Features:

  • TDS-100F Ultrasonic flow meter Low fixed ultrasonic flowmeter with large planning integrated circuits CPLD, table process, accuracy is higher.
  • ay, month and year flow accumulation function, can record run 64 days before the operation, the first 64 months, the first five years of accumulated flow operation.
  • On low, the power management function, can record, electricity and traffic on 64 times before, can be manually or automatically compensate to reduce flow losses.
  • Low effectively overcome the wall of the ultrasonic signal attenuation and rough surface of the pipe to scattering of ultrasonic signal from surface reduce the energy consumption of ultrasonic signal.
  • Low overcame a signal to a small amount of sediment, suspended particles and bubbles, the effect of improved flow measurement accuracy, especially suitable for pipe flow measurement.
Accuracy Better than 1%
Measurement
period		 500ms
The maximum
flow rate		 64 m/s
Disply 2*10 LCD display with english totalizers for net accumulation
and positive and negative accumulations
Body material Aluminium alloy
Operation 2*5 membrane keyboards
Input Three 4-20mA Current input,accuracy 0.1%,can collect temperature,
pressure,level signals etc.
Two way three wired PT100
Data storage Built-in SD sard can store time ,instant flow,totle flow,signal statusand so on ,
via special Software send the data to computer ,and easy to
Statistics and Management
Communication Interface RS-232C,baud-rate :from 75 to 57600.Protocol made by the manufacturer
and compatible with that of the FUJI ultrasonic flow meter.
Other function Automatic memory the negative and positive and net flow 512 days ago and
128 month ago and ten years ago .
Can automatic memory outage and flow data before thirty times ,can also
achieve the flow automatically and manually refill,
all flow can be read by MODBUS
Can programme ration or batch controller,Self diagnosis failure function
Can via email to transmit the code to update the software



Technical parameters

S2-type

M2-type

L2-type

Pipe size (mm)

DN15~100

DN50~700

DN300~6000

Pipe size (inch)

( 1/2~4" )

(2~28" )

( 12~240" )

Temperature

32F~320F ( 0°C~160°C )

Dimension (mm)

45×30×30

71×37×40

91×52×44

Weight (g)

75

259

535

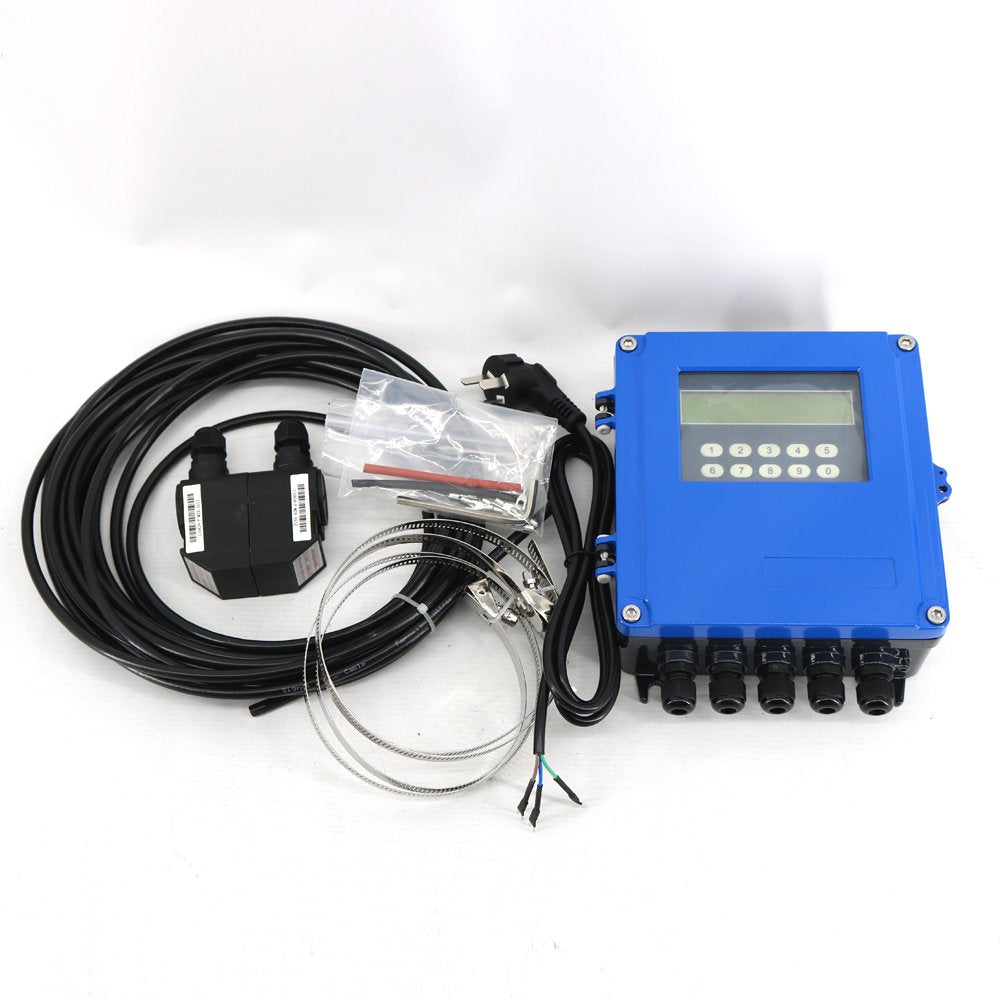

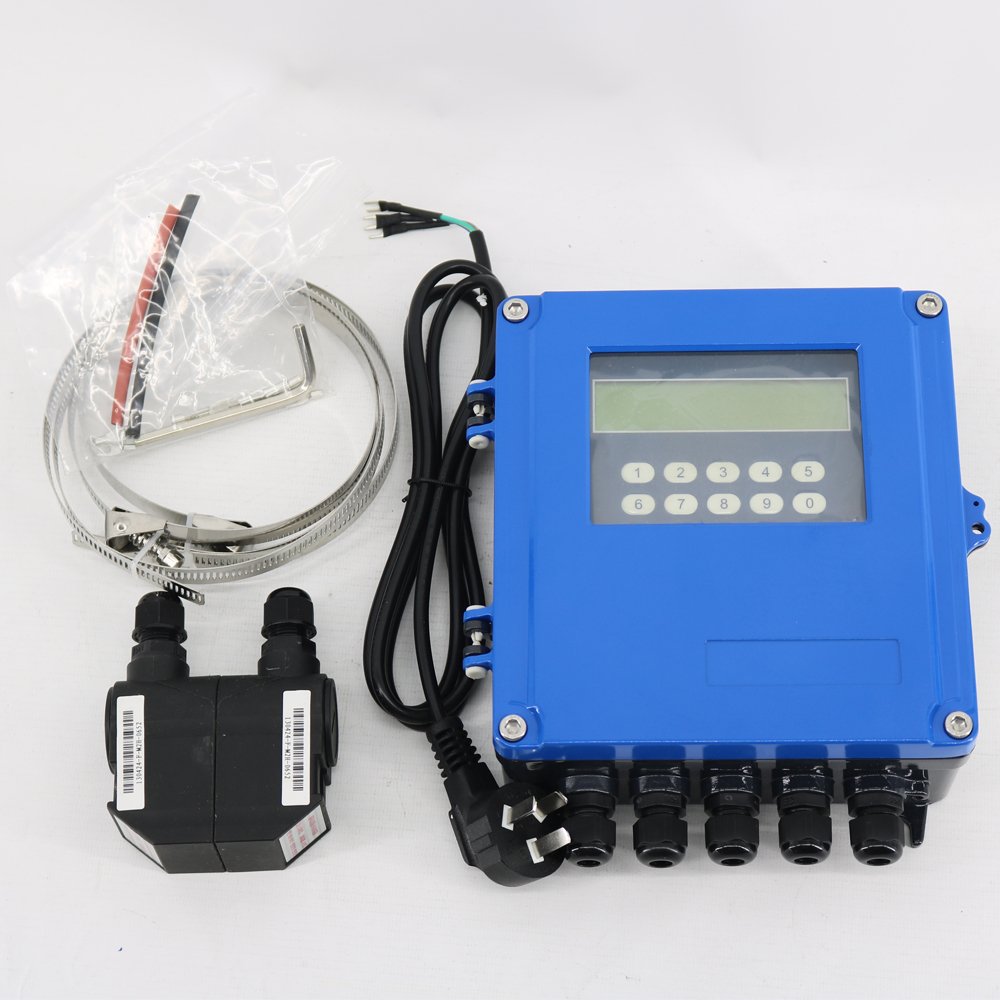

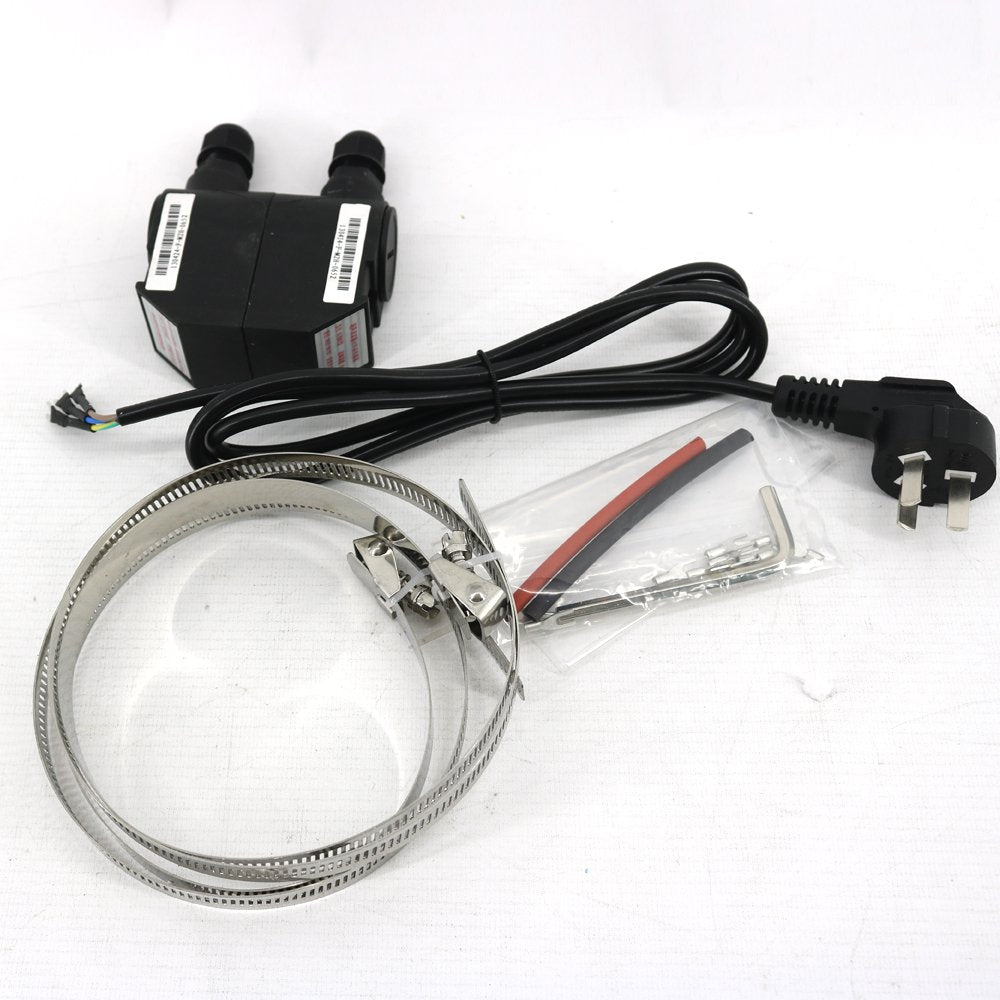

Standard configuration:
TDS-100F5 Ultrasonic Flowmeter
Clamp Fixture

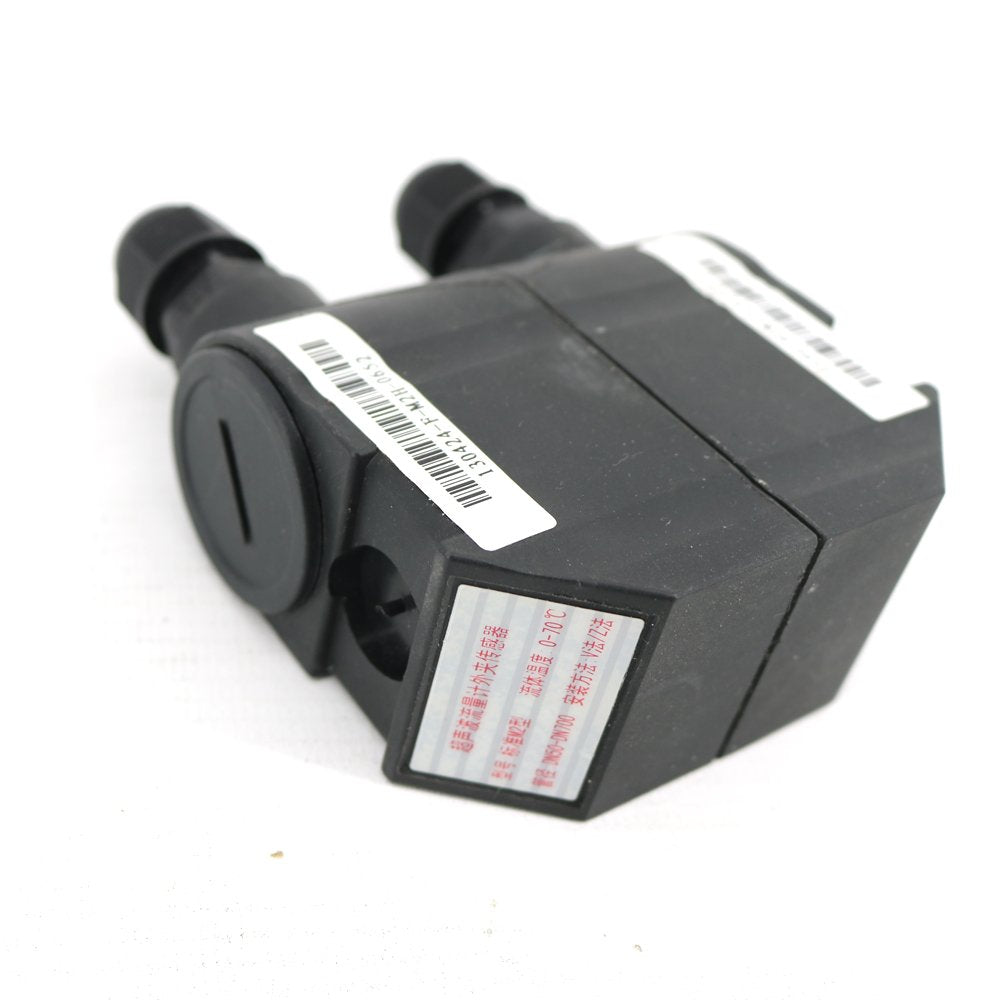

Standard M2 Transducer
2 x 5m Signal Cable
