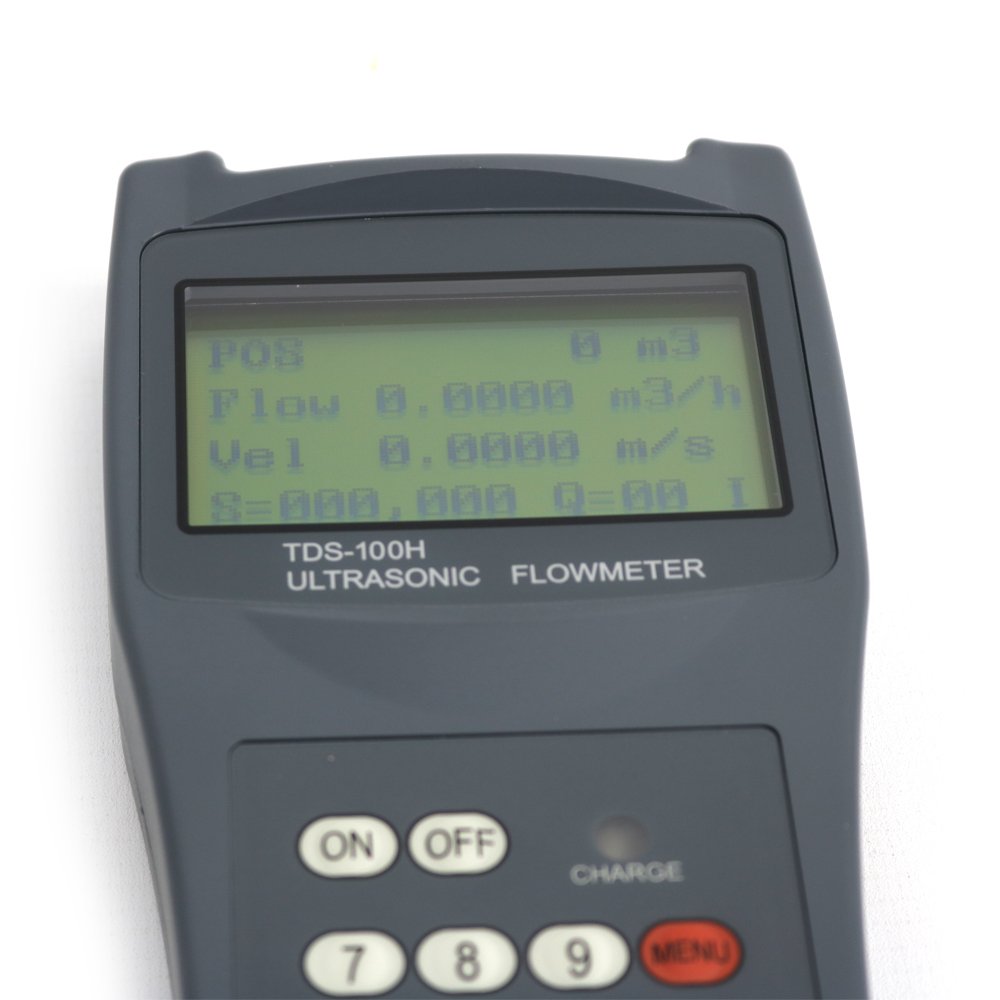

Graigar TDS-100H-M2 Digital Liquid Ultrasonic Flow Meter Flowmeters with M2 Transducer DN50-700mm 1.97-27.56in

Brand: Graigar

Features:

• Liquid Types:water,sea water,waste water,chemical liquids,oil,crude oil,alcohol,beer,etc.Pipe Material: All metels, most plastics,fiber glass,etc.
• Ni-MH Battery life for up to 12 hours continuous operation.
• Positive/negative/net floe totaliser.
• Better than 1% accuracy.0.2% of repeatability.

model number: TDS-100H-M2

Part Number: TDS-100H-M2

Details: Specification:

Linearity:0.5%

Repeatability:0.2%

Accuracy:±1% of reading at rates>0.6 ft/s. ±0.5% with on-site calibration

Response Time:0-999 seconds, user-configurable

Velocity:±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), bi-directional

Pipe Size:(15 ~ 6,000mm)(0.59 ~ 236in)

Rate Units:Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.

Totaliser:7-digit totals for net, positive and negative flow

Liquid Types:Virtually all liquids

Security:Setup lockout. Access code needed for unlocking

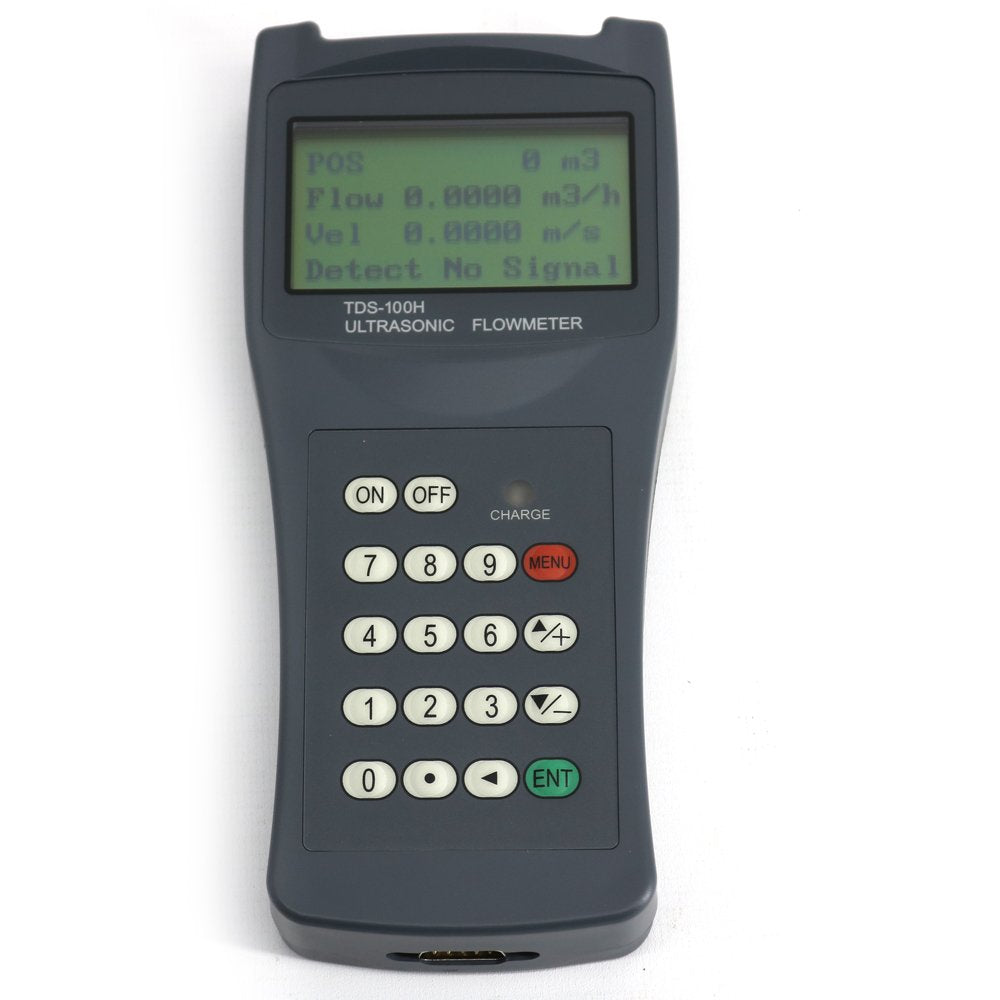

Display:4x16 English letters

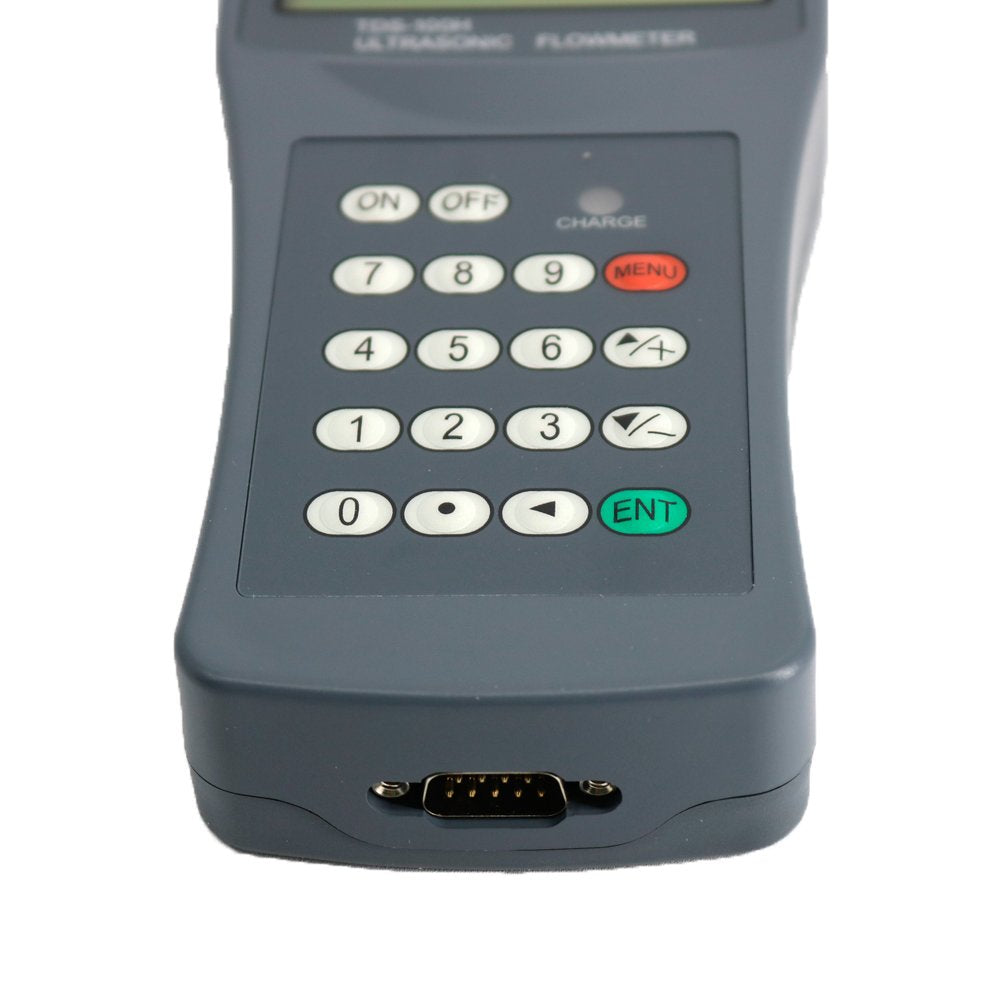

Communication Interface:RS-232C, baud-rate: from 75 to 115,200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry.

Transducers:Model M1 for standard, other 3 models for optional

Transducer Cable:Standard 2x30? (10m), optional 2x1,500? (500m)

Power Supply:3 AAA Ni-H built-in batteries. When fully charged it will last over 10 hours of operation. 90-230VAC for the charger

Data Logger:Built-in data logger can store over 2,000 lines of data

Manual Totalizer:7-digit press-key-to-go totalizer for calibration

Housing Material:ABS. Aluminum alloy protective case

Case Size:3.9"x2.6"x0.8" (100x66x20mm)

Handset Weight:1.2 lbs (514g) with batteries

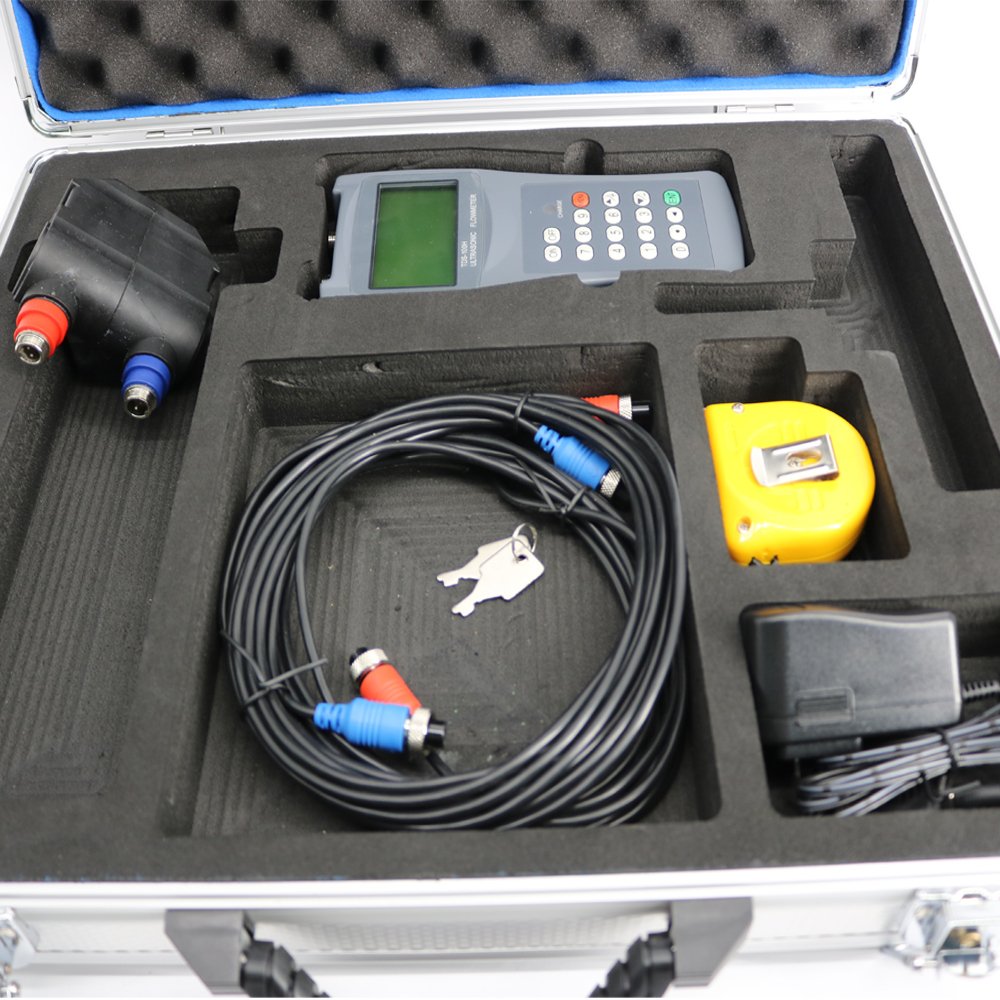

Package include the below accessories:

1 x Ultrasonic Flowmeter

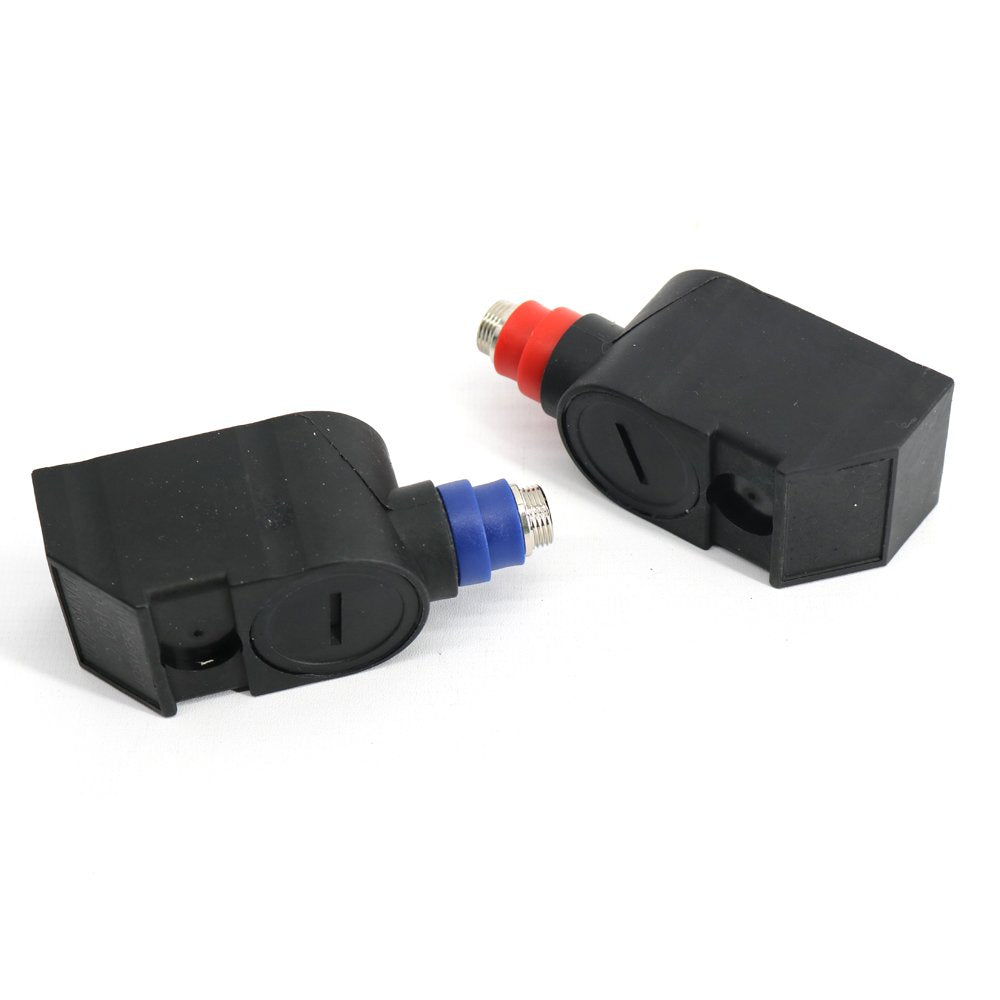

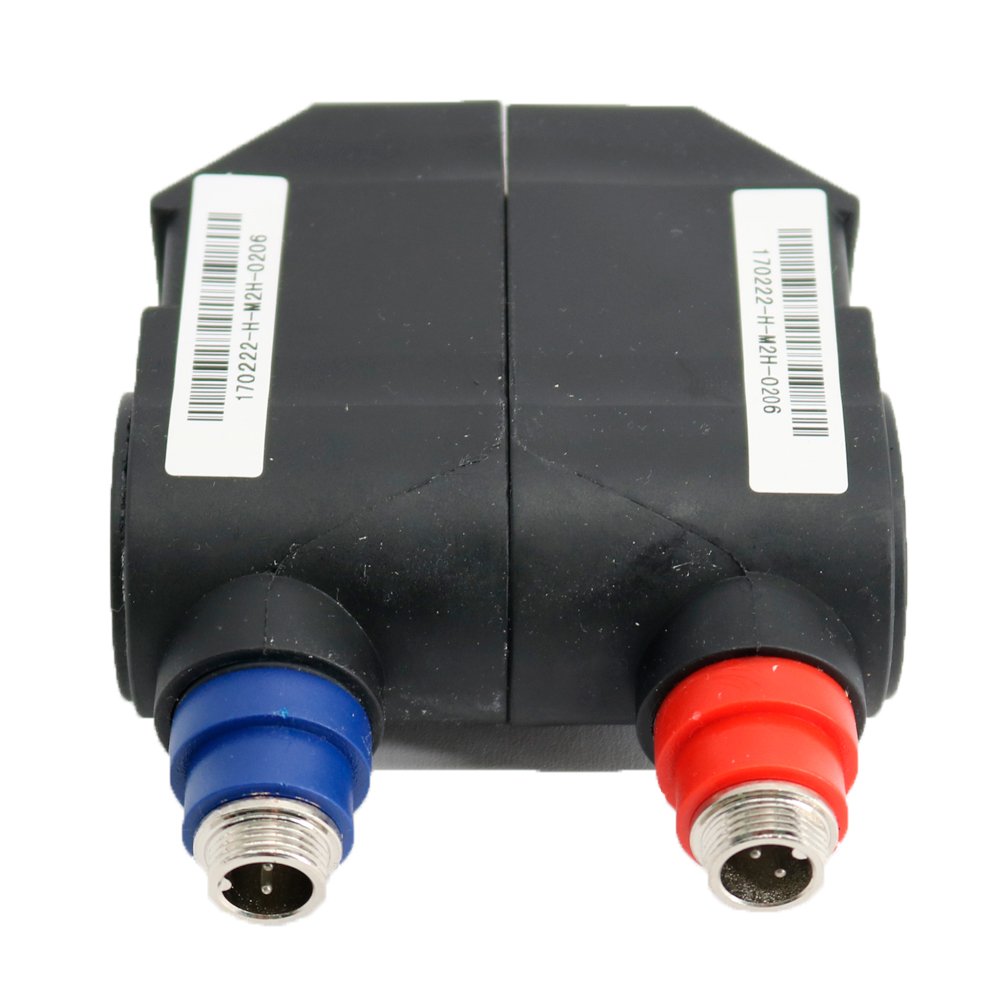

1 x Electro-acoustic Transducer Type M2 or S1

2 x 5M Connection Cable

2 x Fastening Chains

3 x AAA Batteries Ni-H

1 x Charger

1 x Conversion plug

1 x 5M Ruler

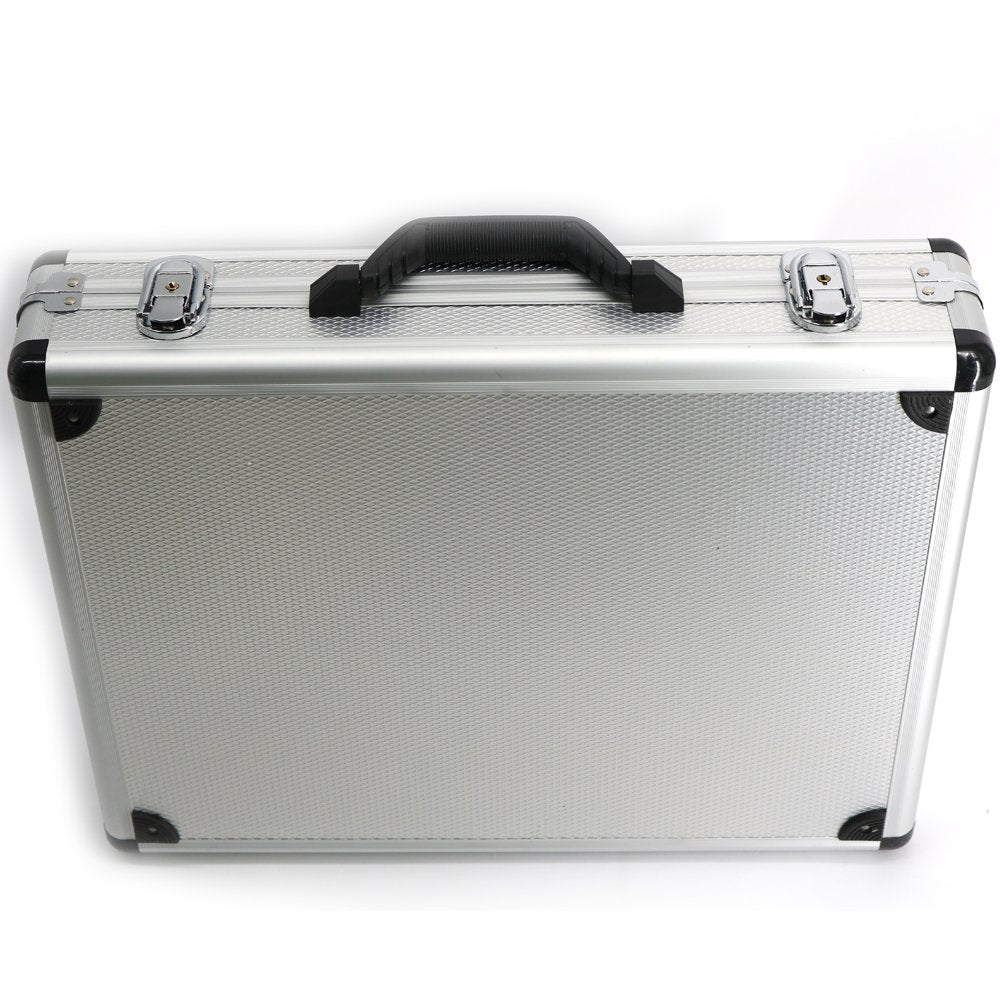

1 x Carring Case

1 x Empty plastic bottle (for loading gel)

1 x Instruction Manual (Chinese and English)

EAN: 0725370407791

Package Dimensions: 21.7 x 19.7 x 7.9 inches
