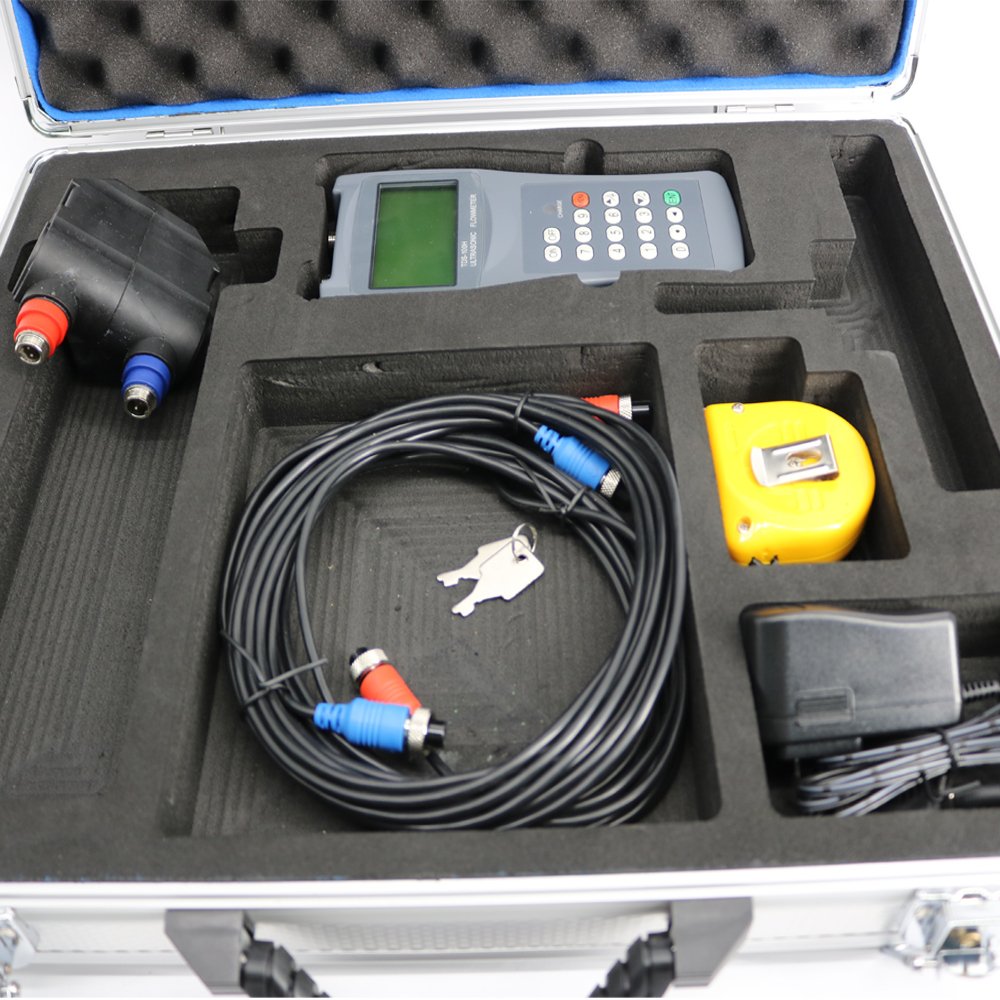

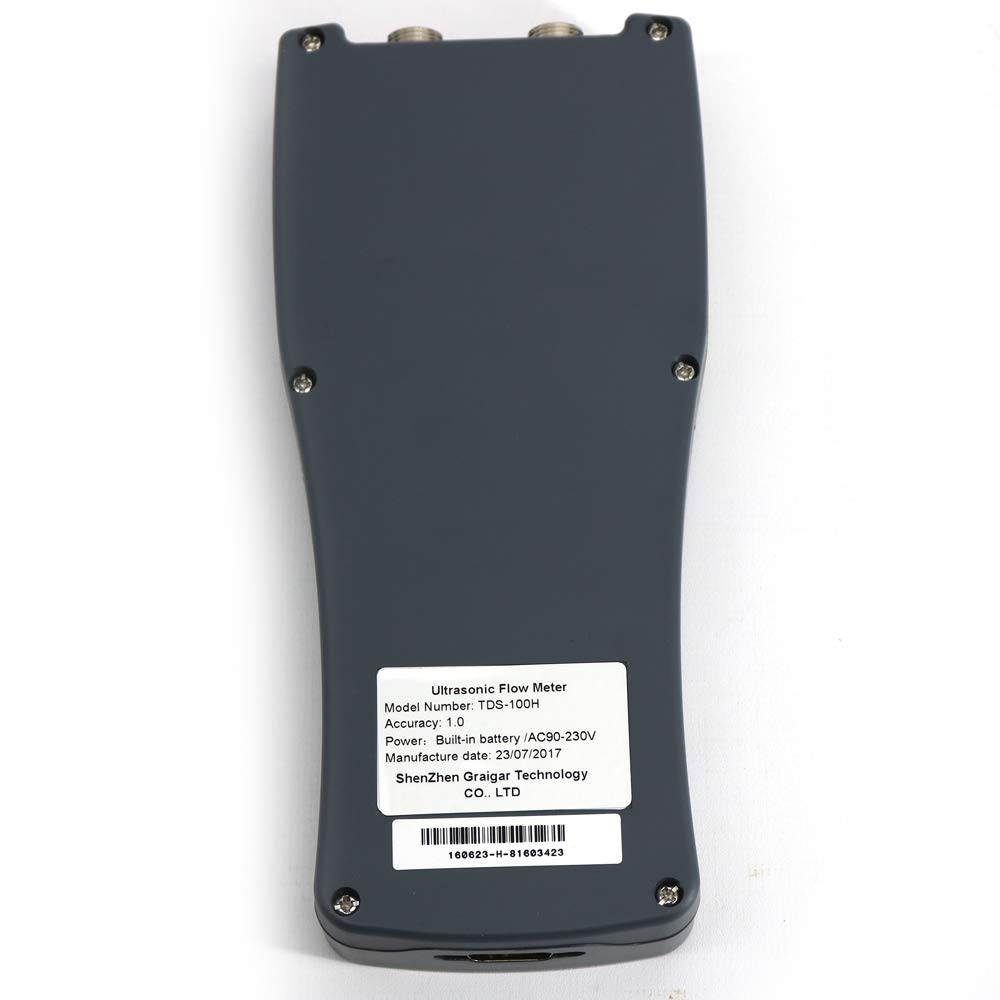

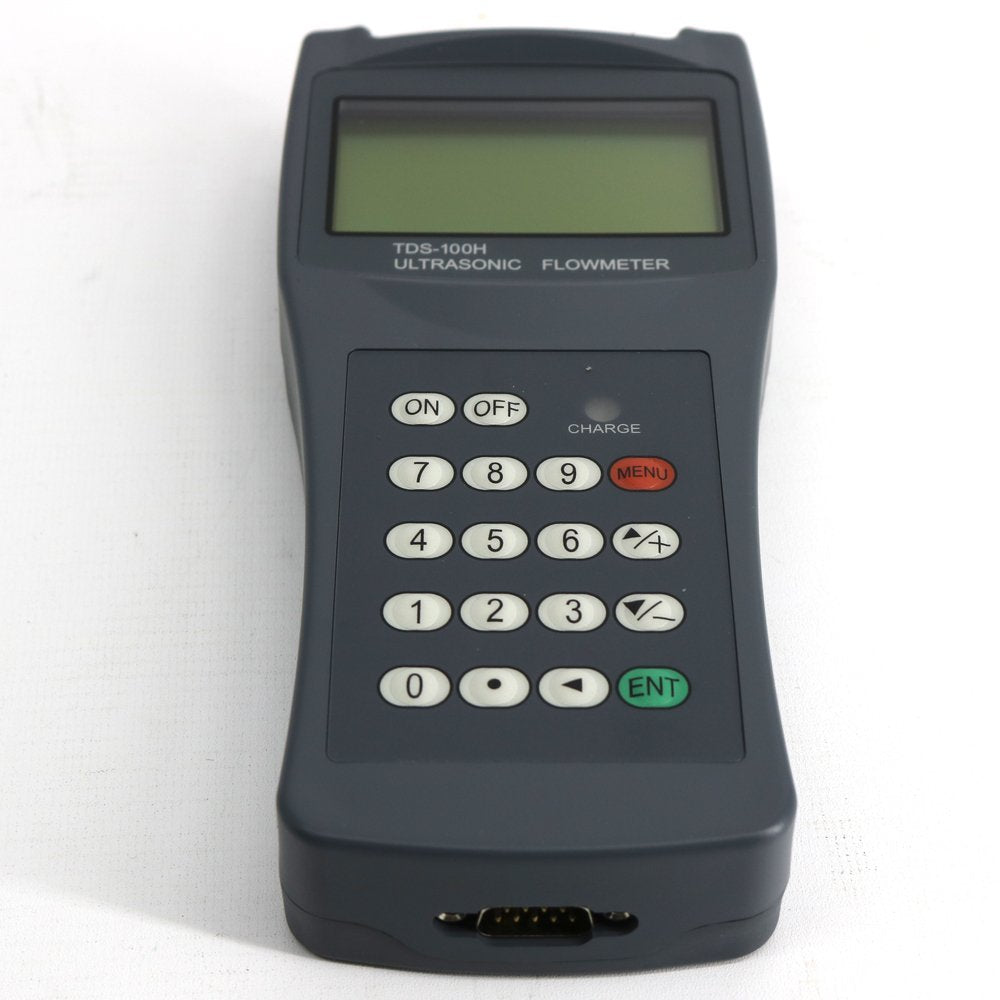

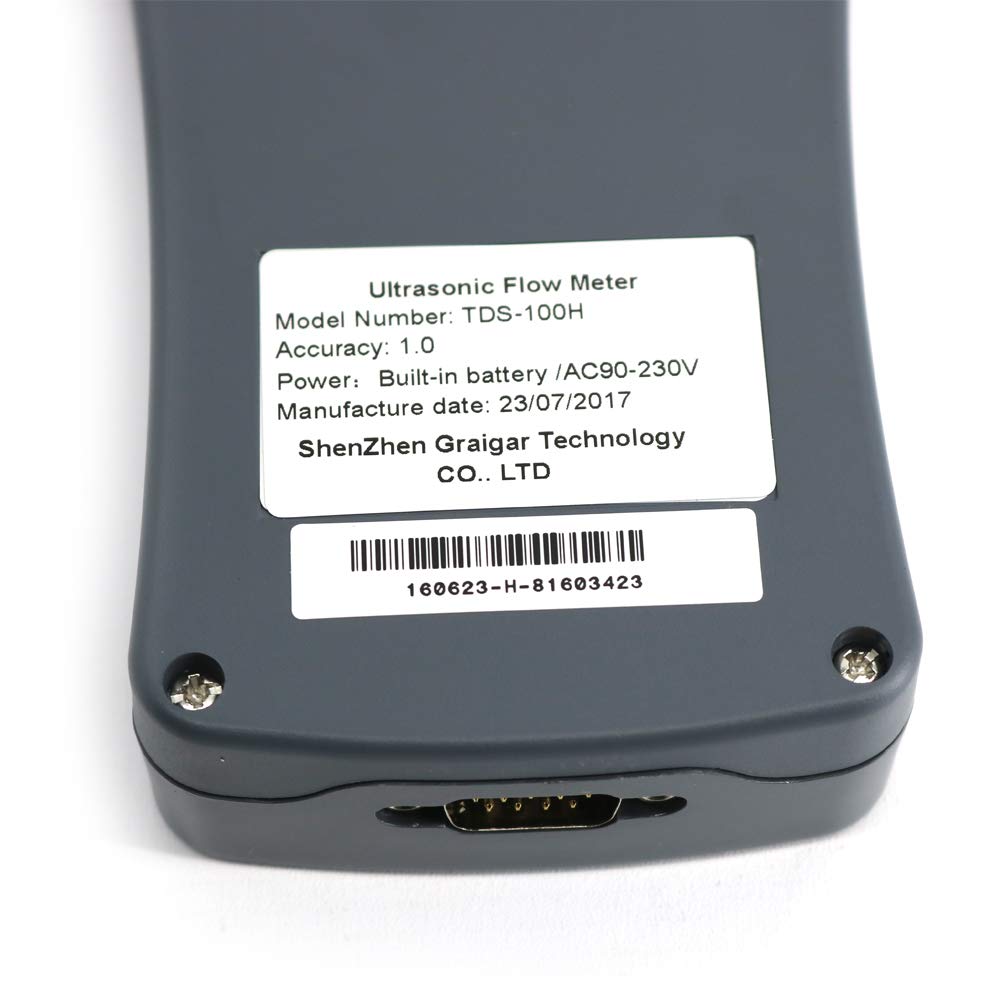

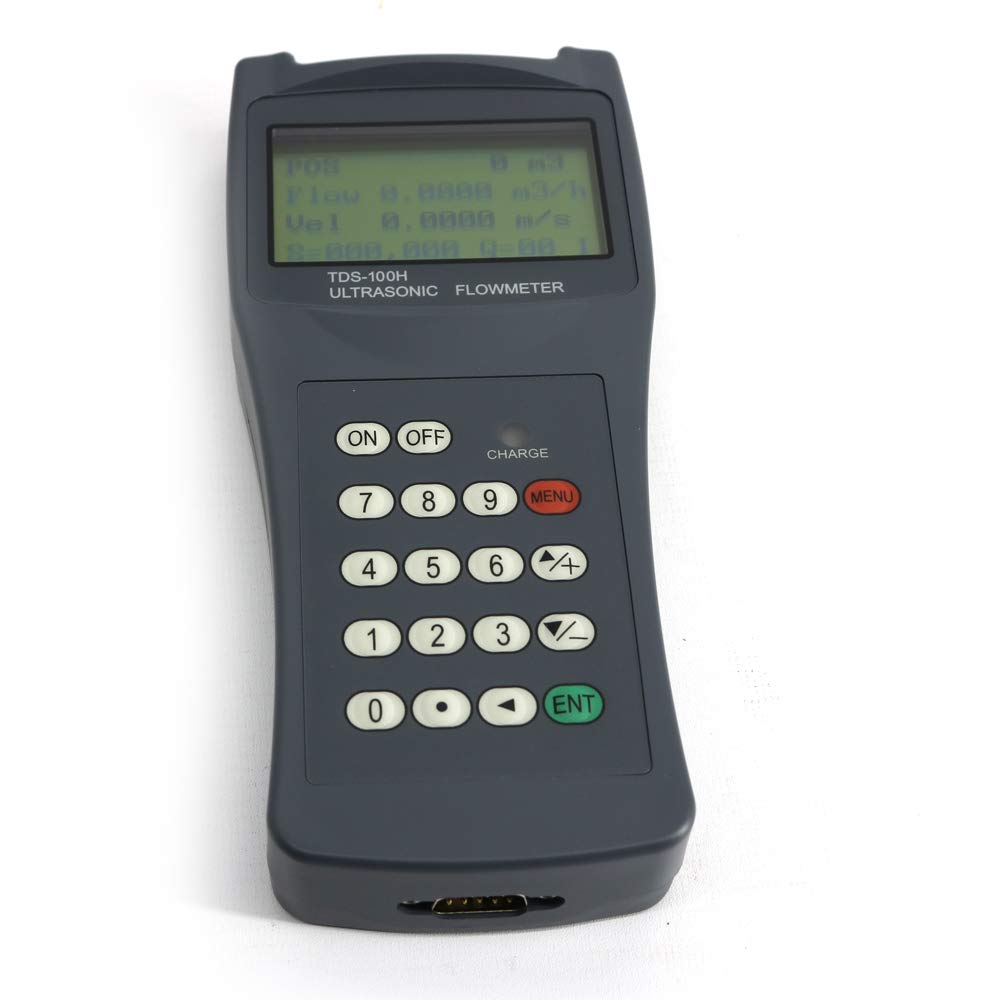

Graigar TDS-100H-S2 Digital Liquid Ultrasonic Flowmeter Flow Meter with S2 Transducer DN15-100mm 0.59-3.93in

Linearity

0.5%

Repeatability

0.2%

Accuracy

±1% of reading at rates>0.6 ft/s. ±0.5% with on-site calibration

Response Time

0-999 seconds, user-configurable

Velocity

±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), bi-directional

Pipe Size

(15 ~ 6,000mm)

Rate Units

Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.

Totaliser

7-digit totals for net, positive and negative flow

Liquid Types

Virtually all liquids

Security

Setup lockout. Access code needed for unlocking

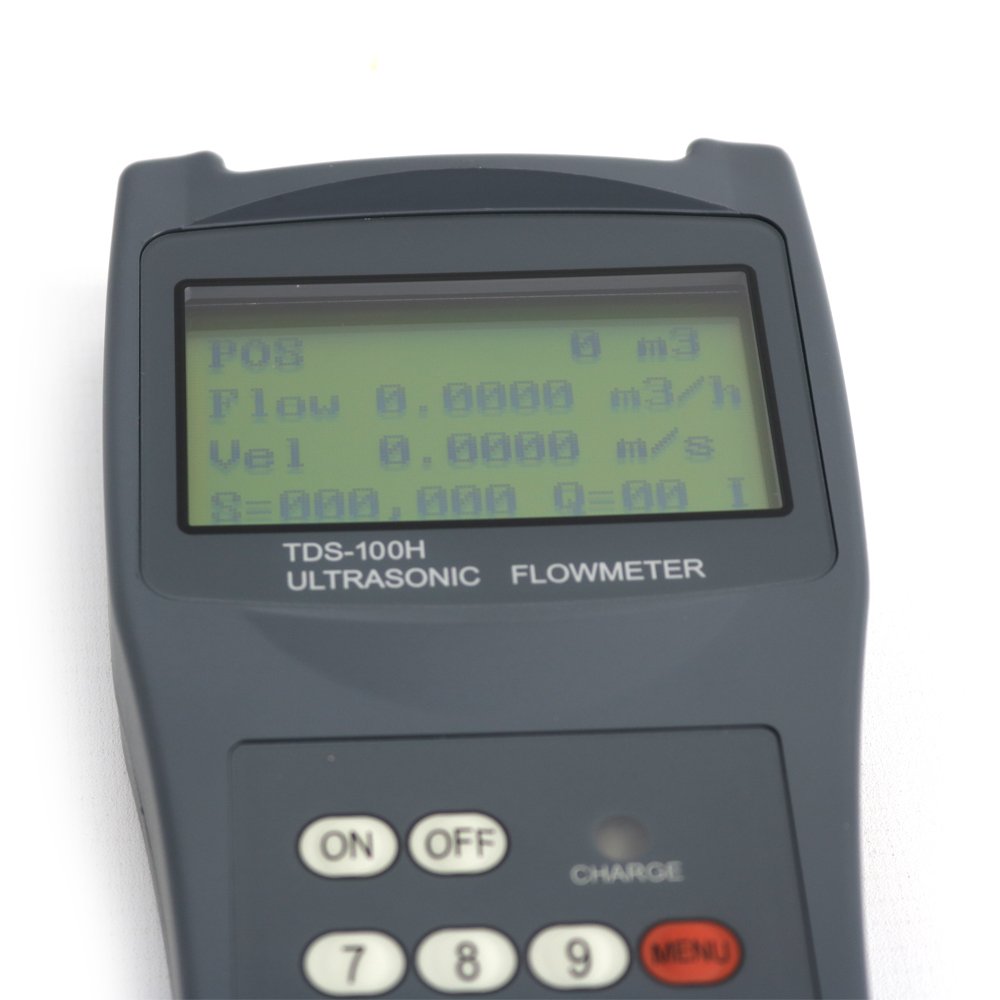

Display

4x16 English letters

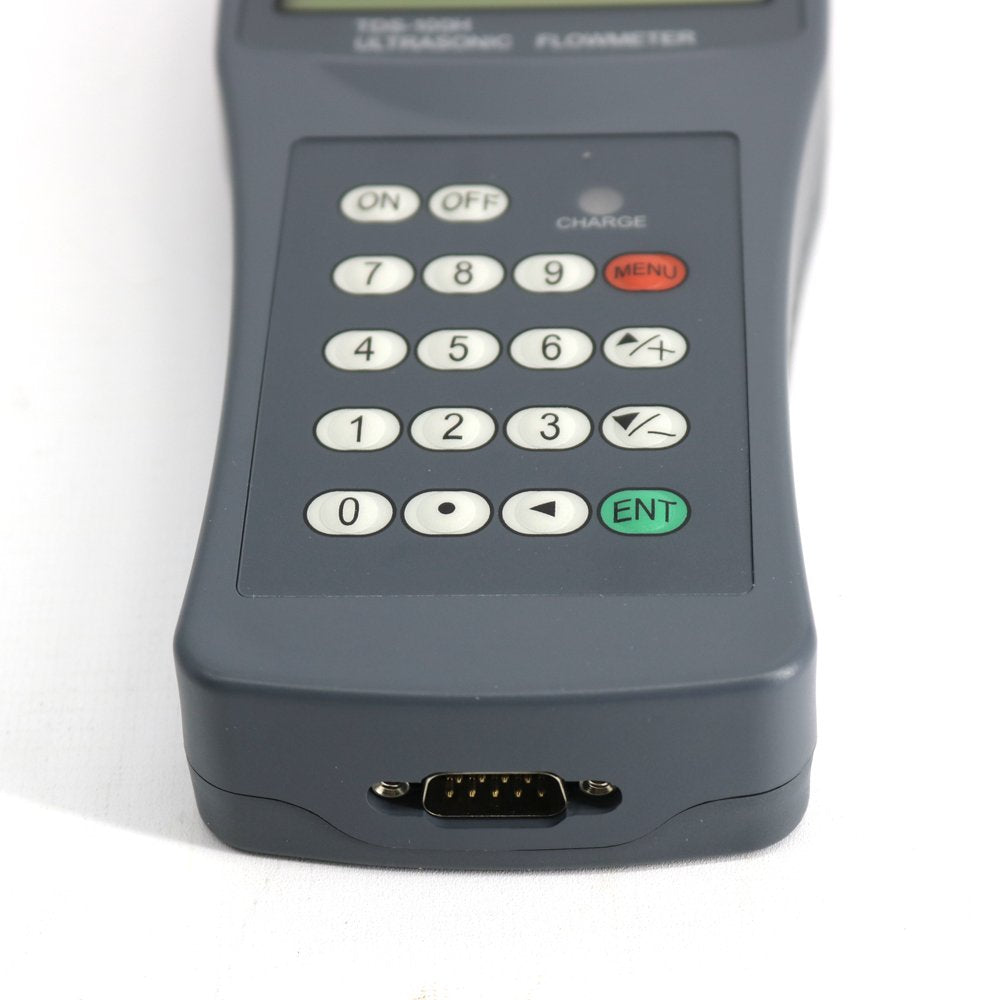

Communication Interface

RS-232C, baud-rate: from 75 to 115,200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry.

Transducers

Model M1 for standard, other 3 models for optional

Transducer Cable

Standard 2x30? (10m), optional 2x1,500? (500m)

Power Supply

3 AAA Ni-H built-in batteries. When fully charged it will last over 10 hours of operation.

90-230VAC for the charger

Data Logger

Built-in data logger can store over 2,000 lines of data

Manual Totalizer

7-digit press-key-to-go totalizer for calibration

Housing Material

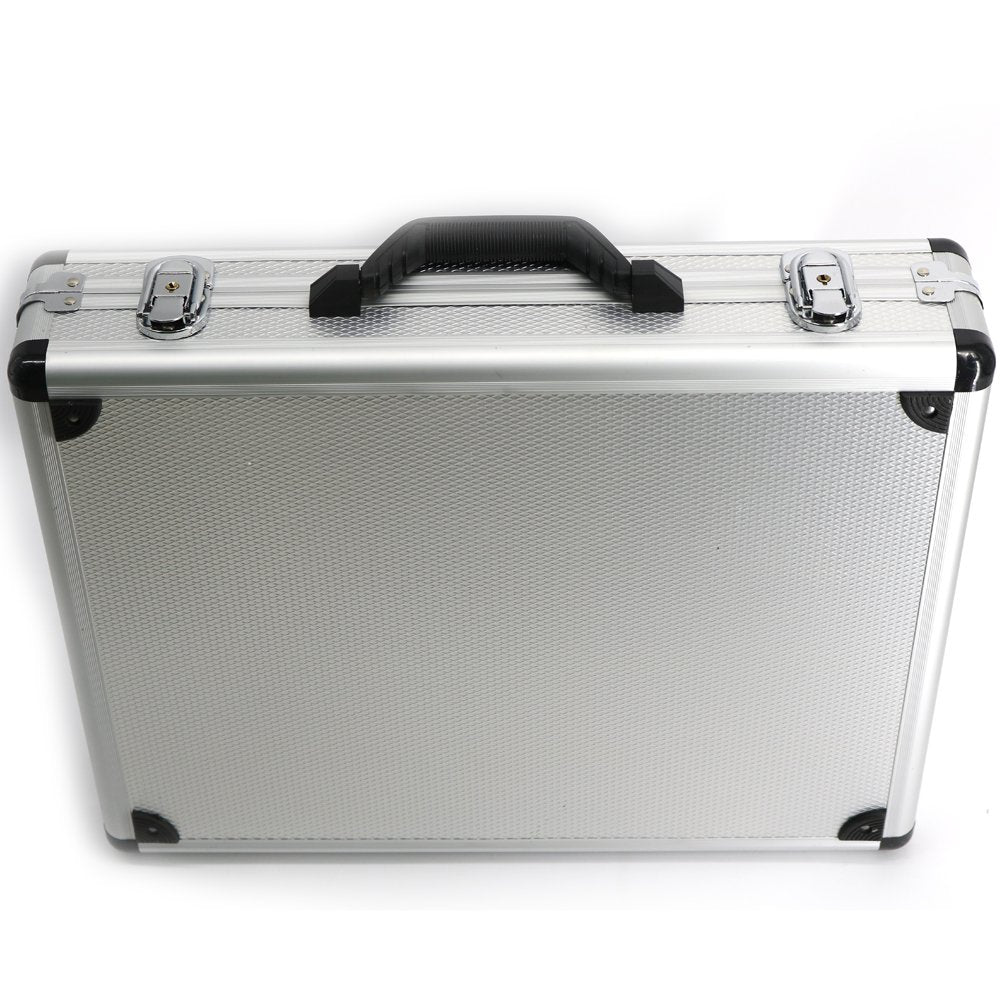

ABS. Aluminum alloy protective case

Case Size

3.9"x2.6"x0.8" (100x66x20mm)

Handset Weight

1.2 lbs (514g) with batteries

Transducer

Standard S1 type

Standard M2 type

Standard L1 type

Suitable pipe diameter

DN15-DN100

DN50-DN700

DN300-DN6000

Fluid temperature

0°c-70°c

0°c-70°c

0°c-70°c

Outer size

45×30×30mm

60×45×45

80×70×55

Quality

75g

250g

528g
