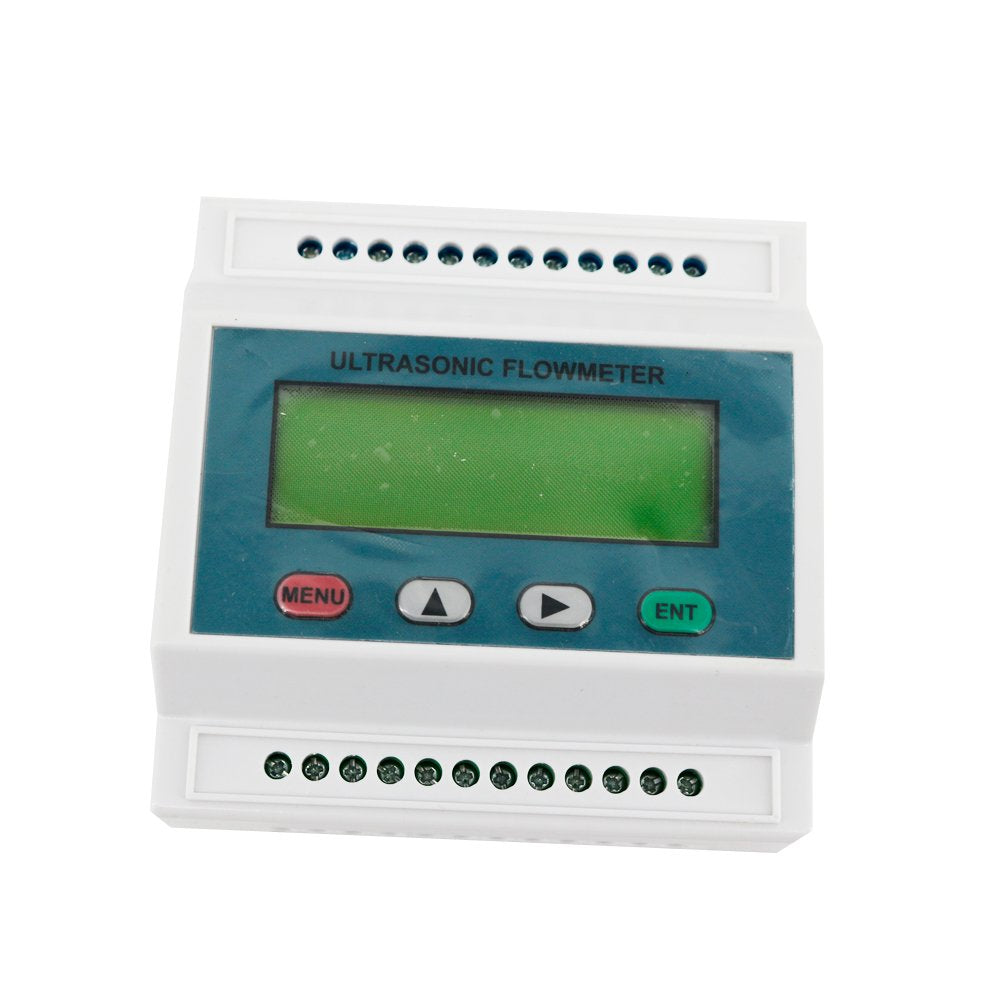

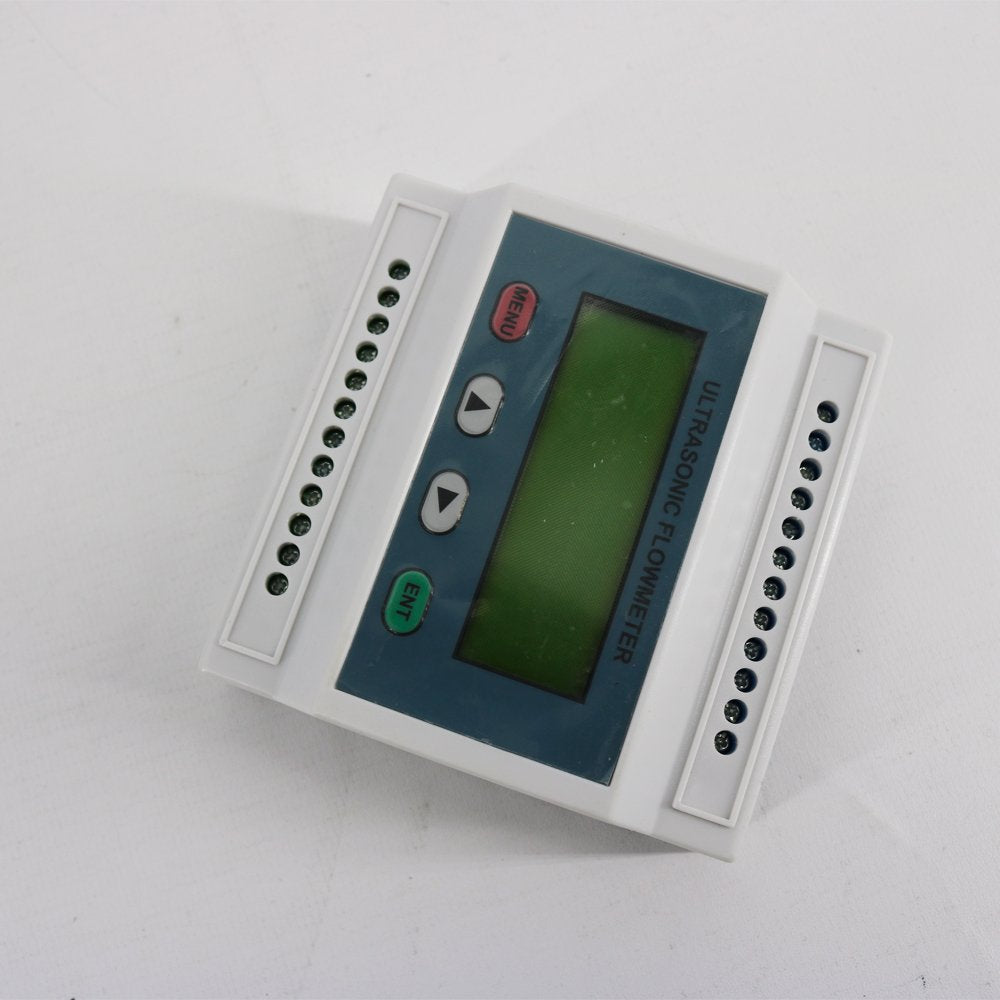

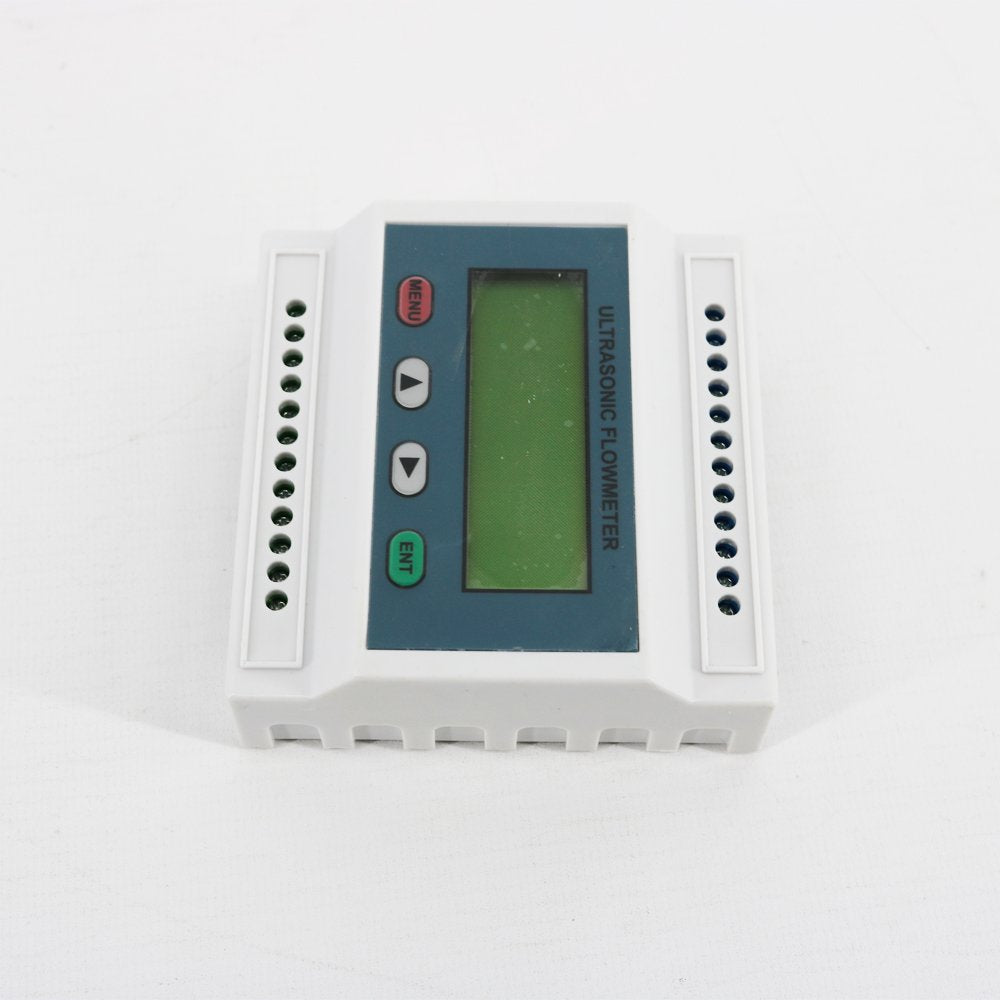

Graigar TDS-100M-S2 Ultrasonic Flow Meter DN15-100mm 0.59-3.93in Clamp-On Transducers Flowmeter

Brand: Graigar

Color: White & Green

Features:

• Automatic memory the time of power turning on and off and flow rate of the last 30 times, realize to compensate by hand or automatically read the datas through Modbus communication protocol.
• protection level IP57
• TDS-100M low cost ultrasonic flow meter can work alone without a LCD and Keypad module, the module can be used alone as a flow meter.
• Users can even integrate a number of the modules into a multi-channel flow meter that can measures up to several dozen of different pipes or a flow meter that has higher accuracy by measures the same pipe with all the channels.
• automatic memory the positive,negative,net totaliser or flow rate and heat quantity of the last 512 days,128 months,10years

model number: TDS-100M-S2

Part Number: TDS-100M-S2

Details: Overview
TDS-100M low cost ultrasonic flow meter can work alone without a LCD and Keypad module, the module can be used alone as a flow meter. Users can even integrate a number of the modules into a multi-channel flow meter that can measures up to several dozen of different pipes or a flow meter that has higher accuracy by measures the same pipe with all the channels.

Parameter
Operating power: isolation 8-36VDC
Current: 50mA
Display: 2*10 backlight LCD
Transducer: Standard S2 type
Suitable pipe diameter: DN15-DN100
Fluid temperature: 0°c-160°c
Outer size: 45×30×30mm
Quality: 75g

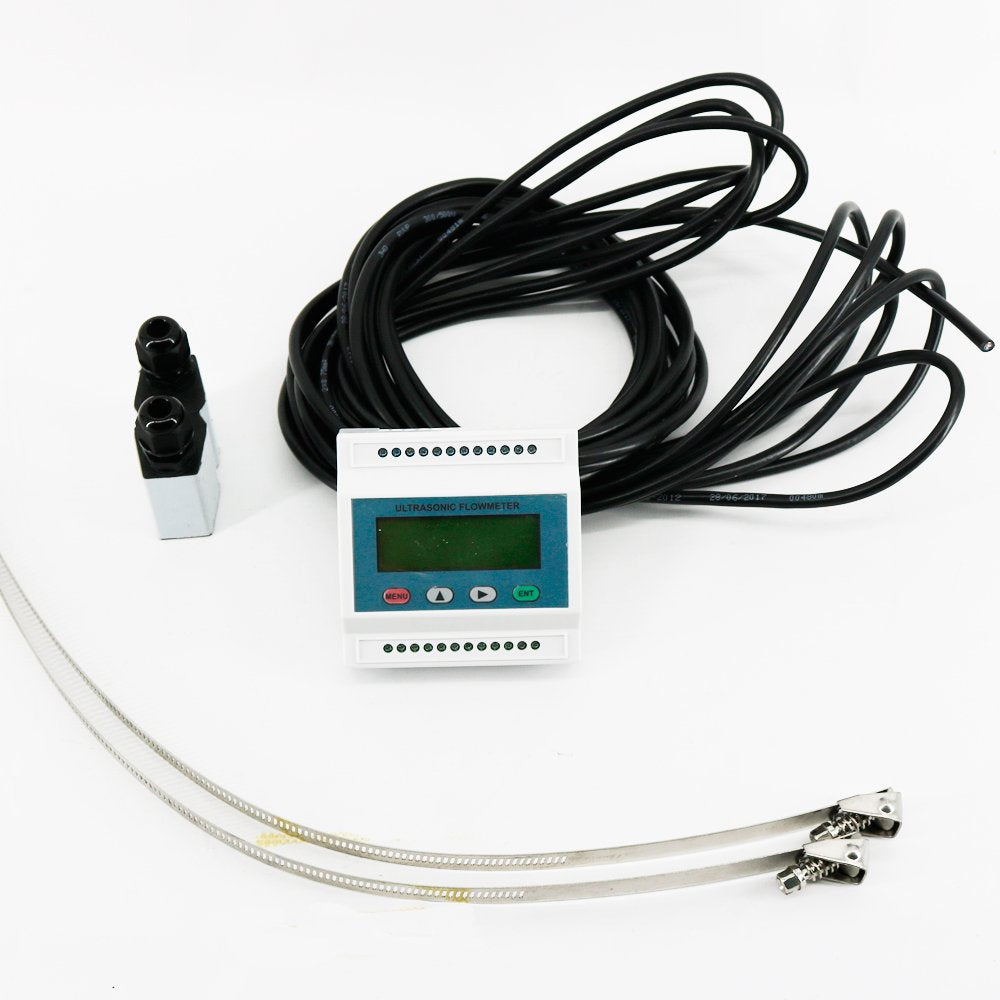

Standard Configurations:
1 x TDS-100M Ultrasonic Flow meter
1 x S2 transducer
2 x 5M Connection Cable

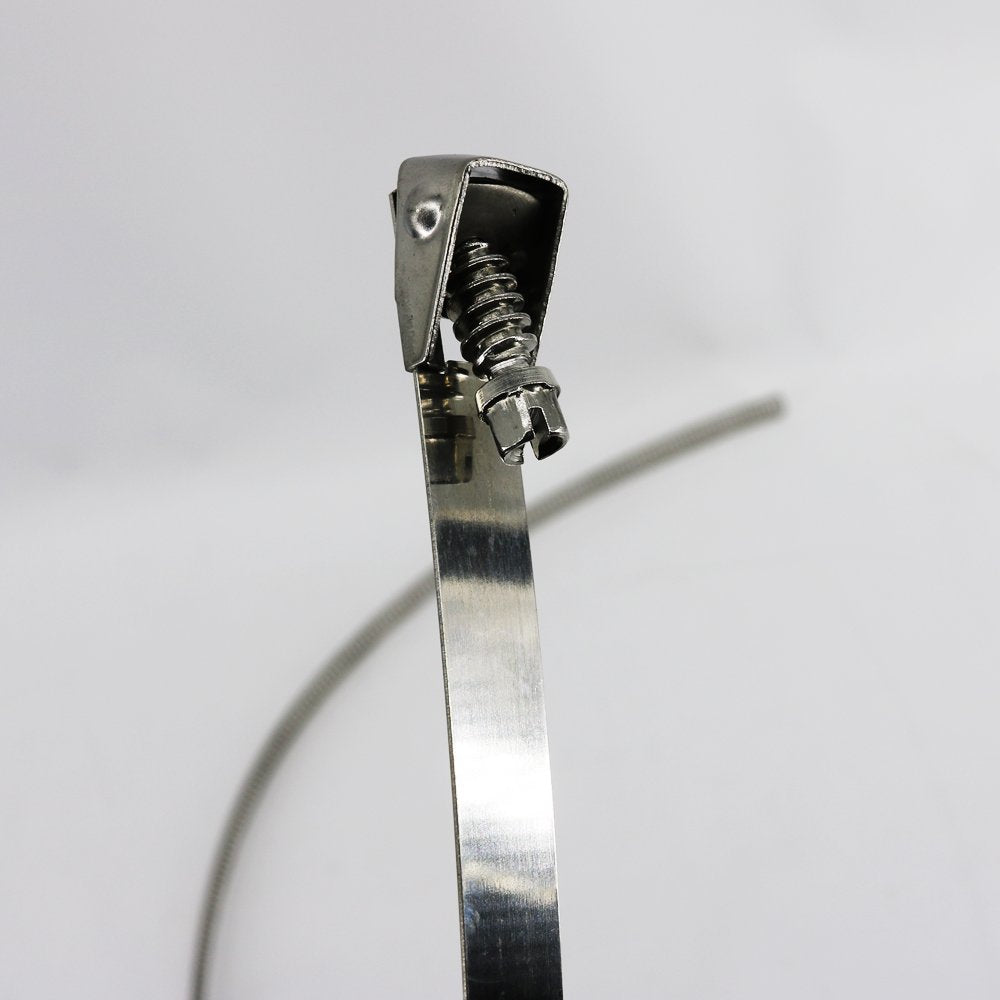

2 x Clamp Fixture

EAN: 0725370412979
