TES-1333R Digital Datalogging Solar Power Meter is automatic transmission measurements.
Select either power or transmission.
Excellent long term stability.
Wide spectral range.
Cosine corrected.
Part Number: TES-1333R

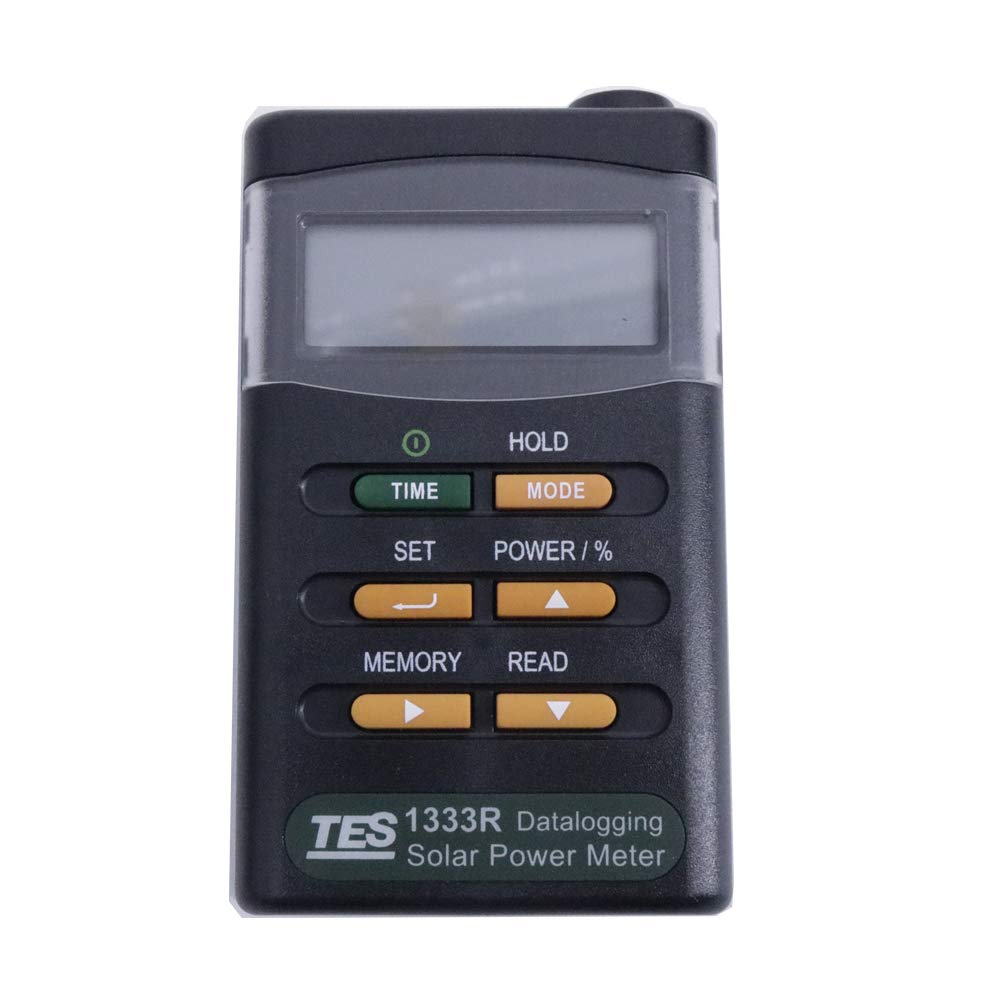

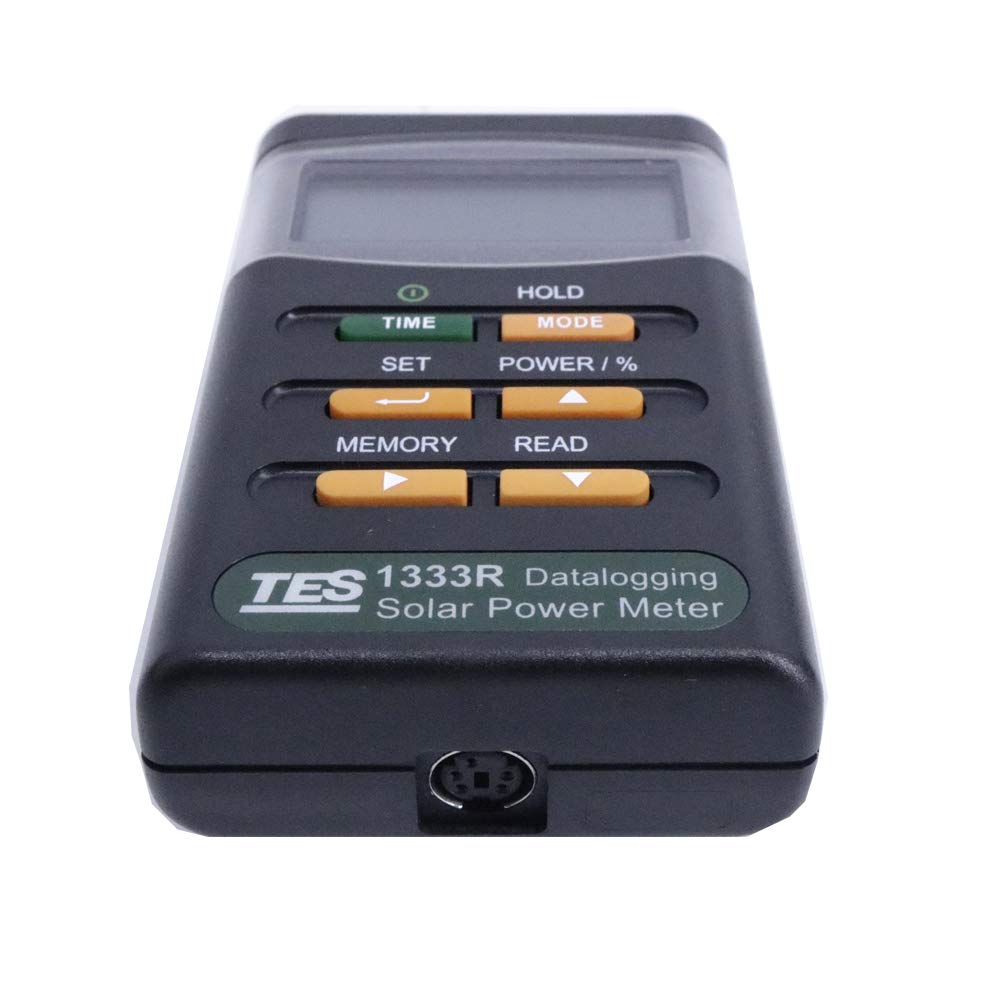

Details: TES 1333R Solar Power Meter is a precision instrument used to measure solar radiation in the field.
It is fully cosine corrected for the angular incidence of solar.
The solar power meter is compact, rugged and easy to operate.

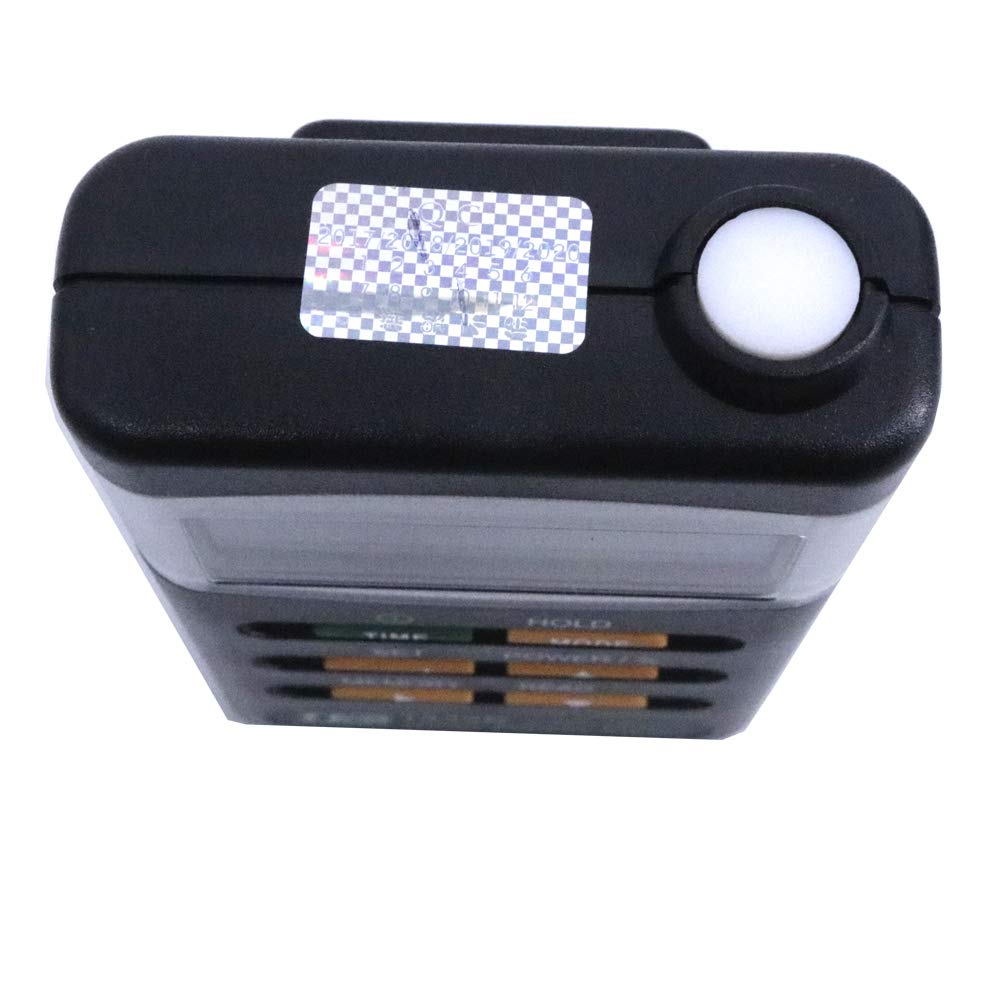

The solar sensitive component used in the meter is a very stable, long-life silicon photovoltaic detector.
Specifications
●Range :
- 2000 W/m2
- 634 Btu / (ft2 x h)
●Resolution :
- 0.1 W/m2
- 0.1 Btu / (ft2 x h)
●Accuracy
Typically within ±10 W/m2 [±3 Btu / (ft2 x h)] or ±5%, whichever is greater in sunlight
Additional temperature induced error ±0.38 W/m2/℃ [±0.12 Btu / (ft2 x h)/℃] from 25℃
●Display : LCD display, 4 digit LCD reading
●Auto Data Memory : 43000 sets (TES-1333R)

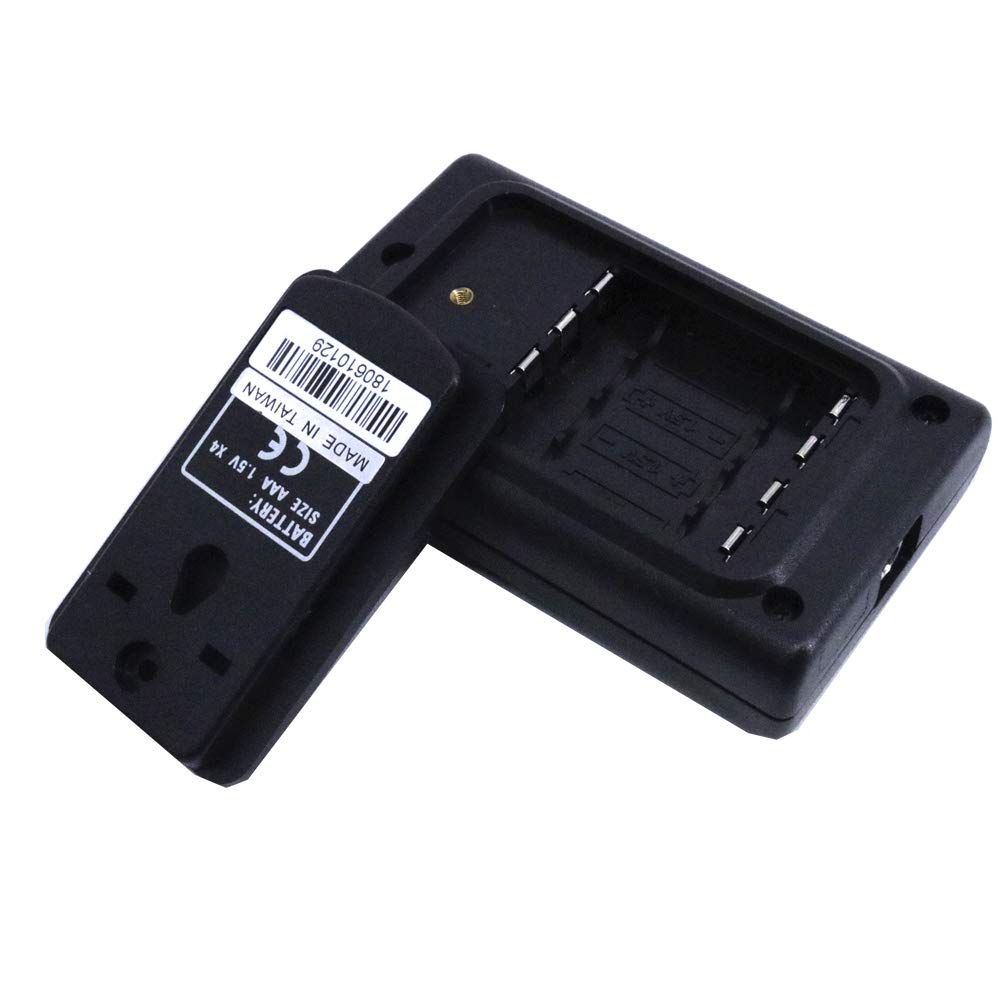

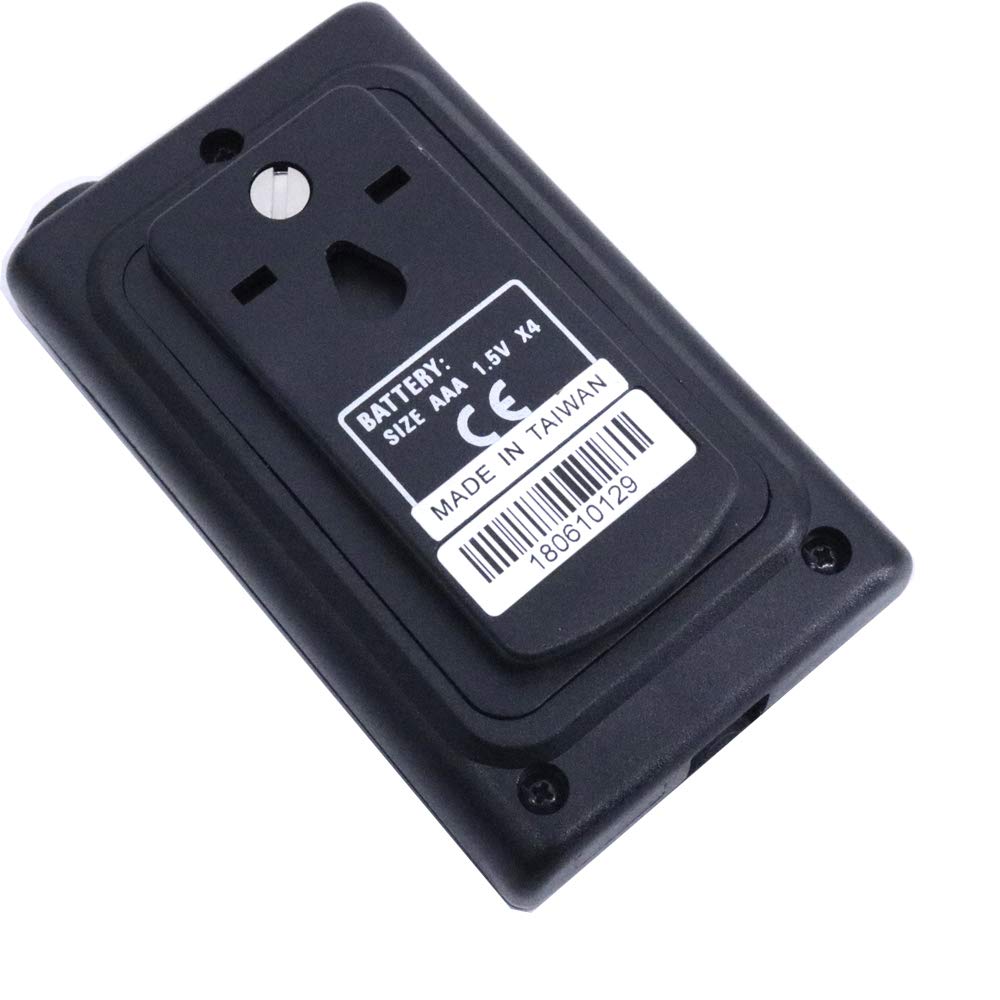

●Battery : 4 pcs size AAA
●Battery Life : Approx. 100 hours

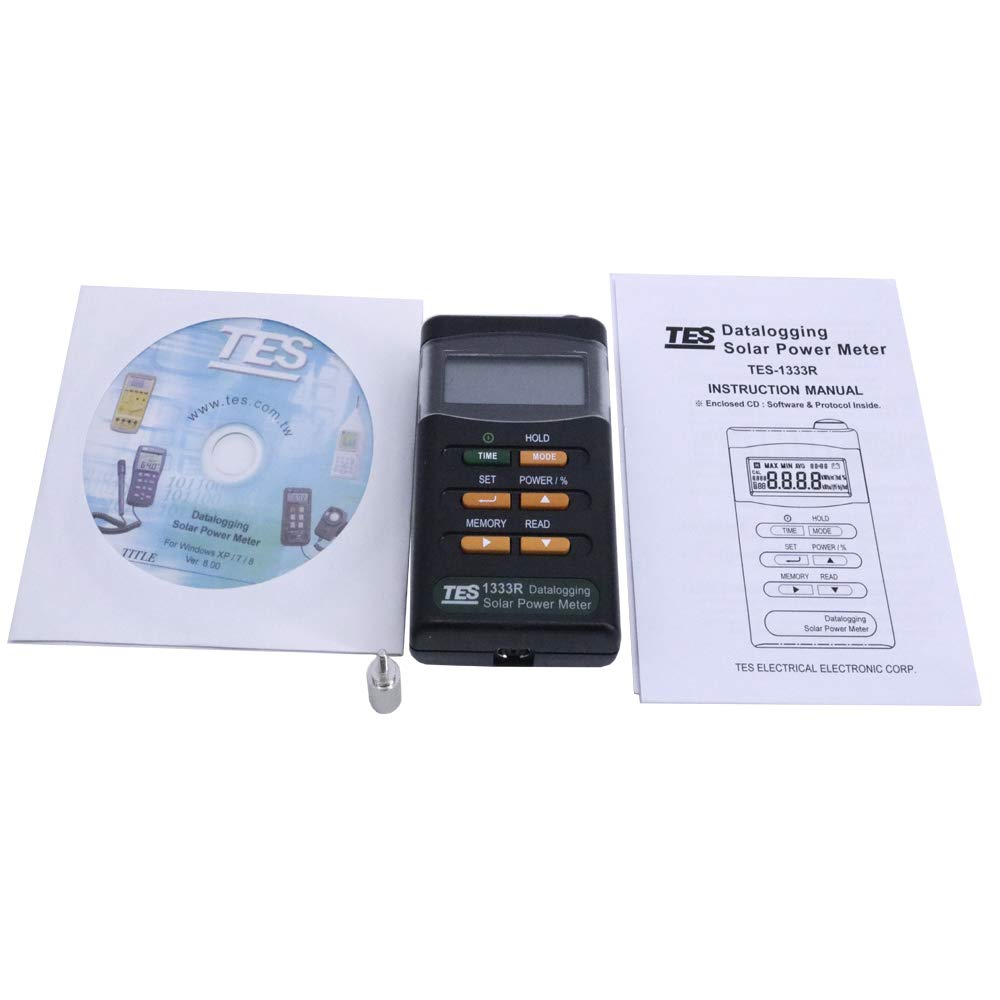

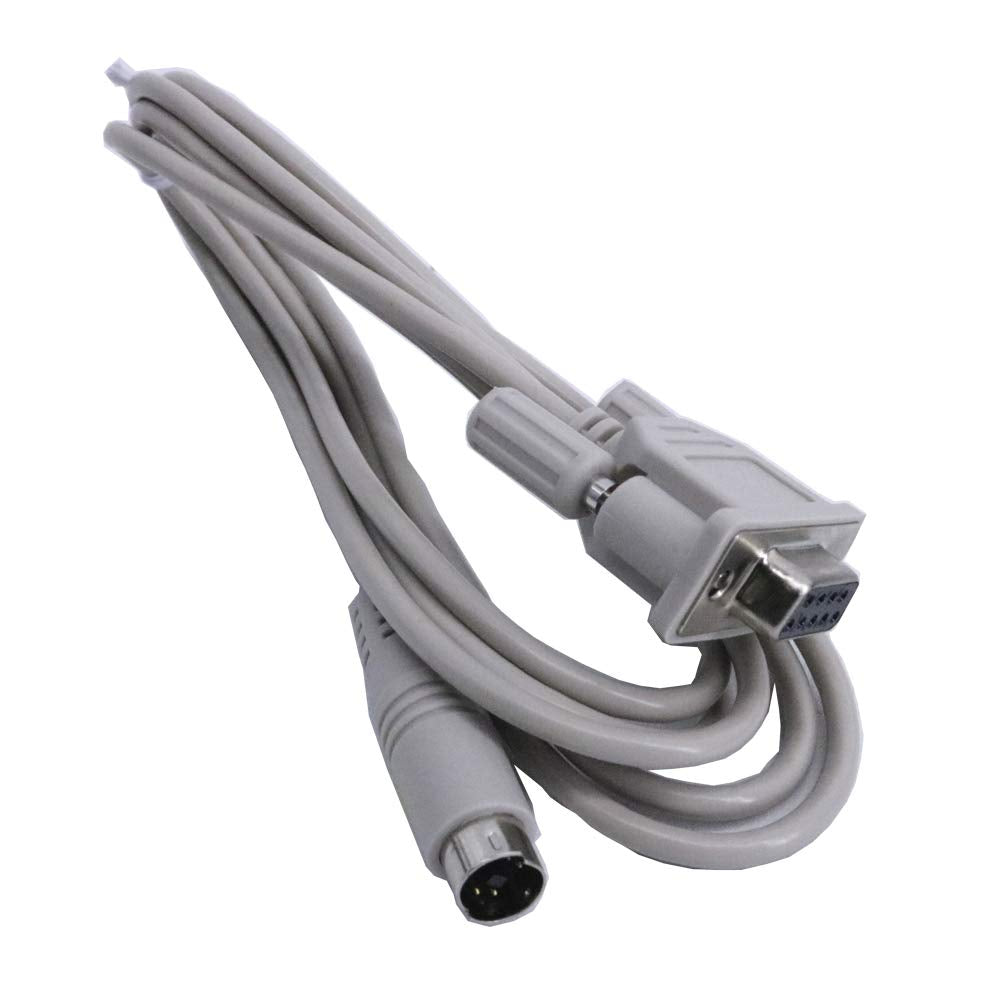

●size : 110(L) × 64 (W) × 34(H) mm & 158g ●Accessories Included : Manual, 4 pcs size AAA, RS232 Cable, CD software
