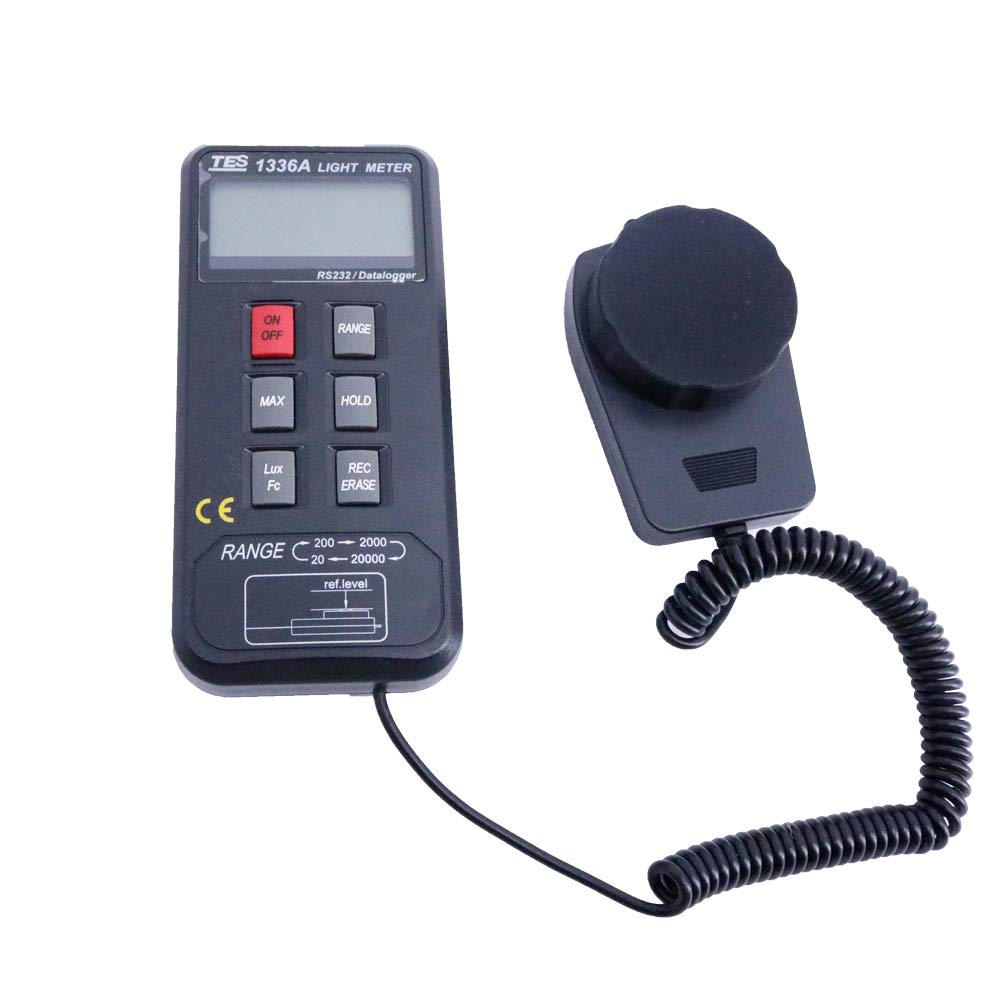

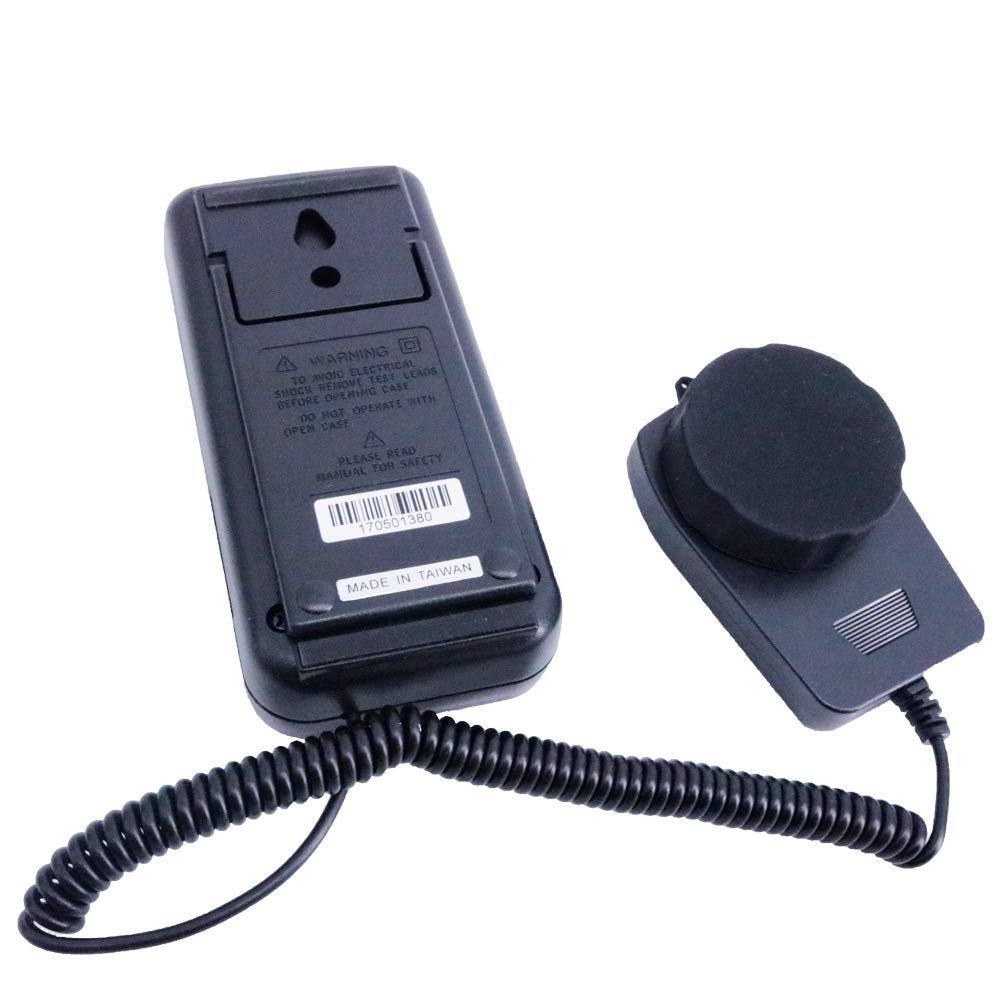

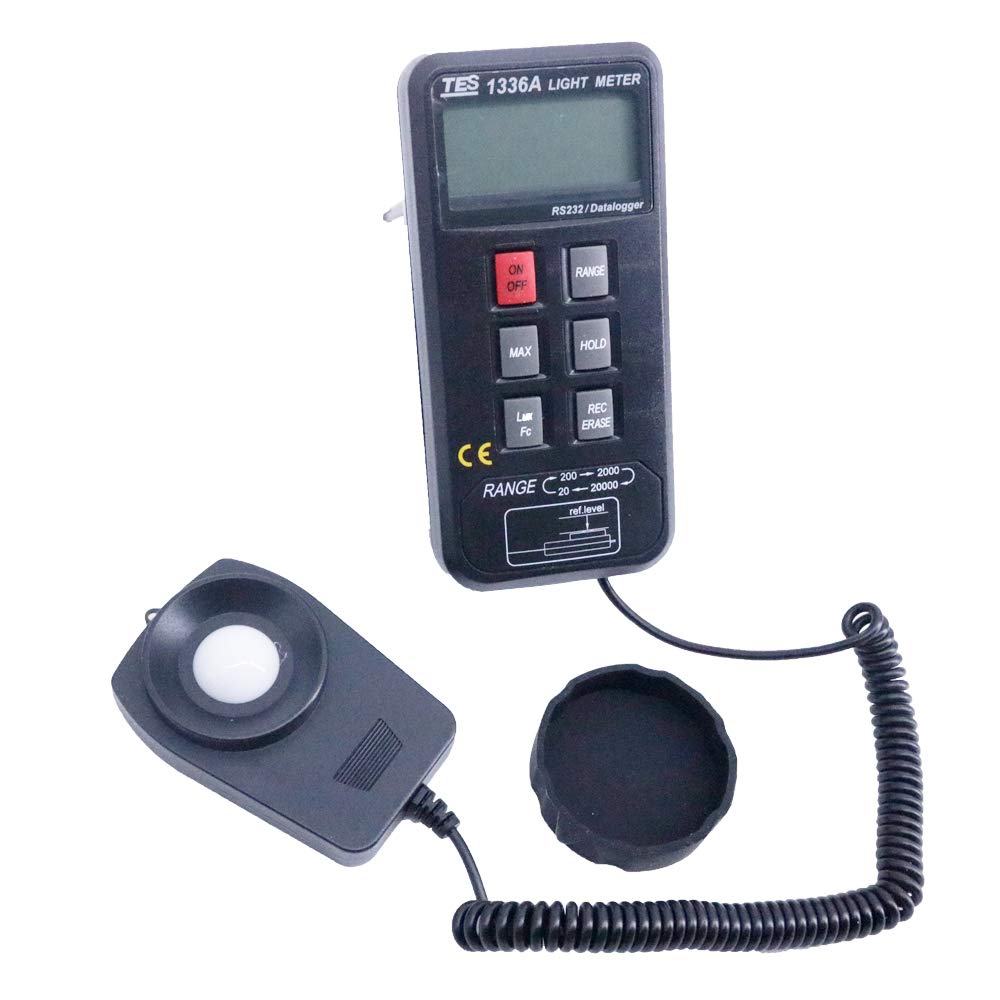

TES-1336A Portable Digital Light Meter pectrum of photo sensor meets C.I.E. photopic curve V( l ).
TES1336A Digital LUX Meter has 16000 Records Data logging capacity.
USB interface (software included).
Measurement of luminous intensity (PC Software).
Data-Hold function.
Part Number: TES-1336A
Details: Product Features
Spectrum of photo sensor meets C.I.E.
photopic curve V(λ)
16000 Records Data logging capacity
Lux/Fc selection
Data-Hold function
MAX hold function
USB interface (software included)
Applicable standardsJIS C1609-1993,CNS 5119-1998 AA
Measuring range 20/200/2000/20000 Lux , 20/200/2000/20000 Fc
Luminous intensity (cd) Intensity= illuminance×(length)2
Length: feet (Fc)
meter (Lux)
Resolution 0.01 Lux
Accuracy ±3% rdg ±0.5% f.s (calibrated to standard incandescent lamp, 2856 K)
CIE photopic f ’1<6%
Overrang display OL
Record (Data logging) 16000 Point Data logger
Sensor Silicon photo diode
Sensor lead length 150cm (approx)
Sensor probe 87.5(L) x 60(W) x 29(H) mm
Main instrument Dimensions and weight146(L) x 70(W) x 39(H) mm/300g (approx)
Power source One 9V battery
Battery life 50hrs (approx)
OperatingStorage Condition0℃ ~ 40℃ (32℉~104℉) below 80% RH-10℃ ~ 60℃ (14℉~140℉) below 70% RH

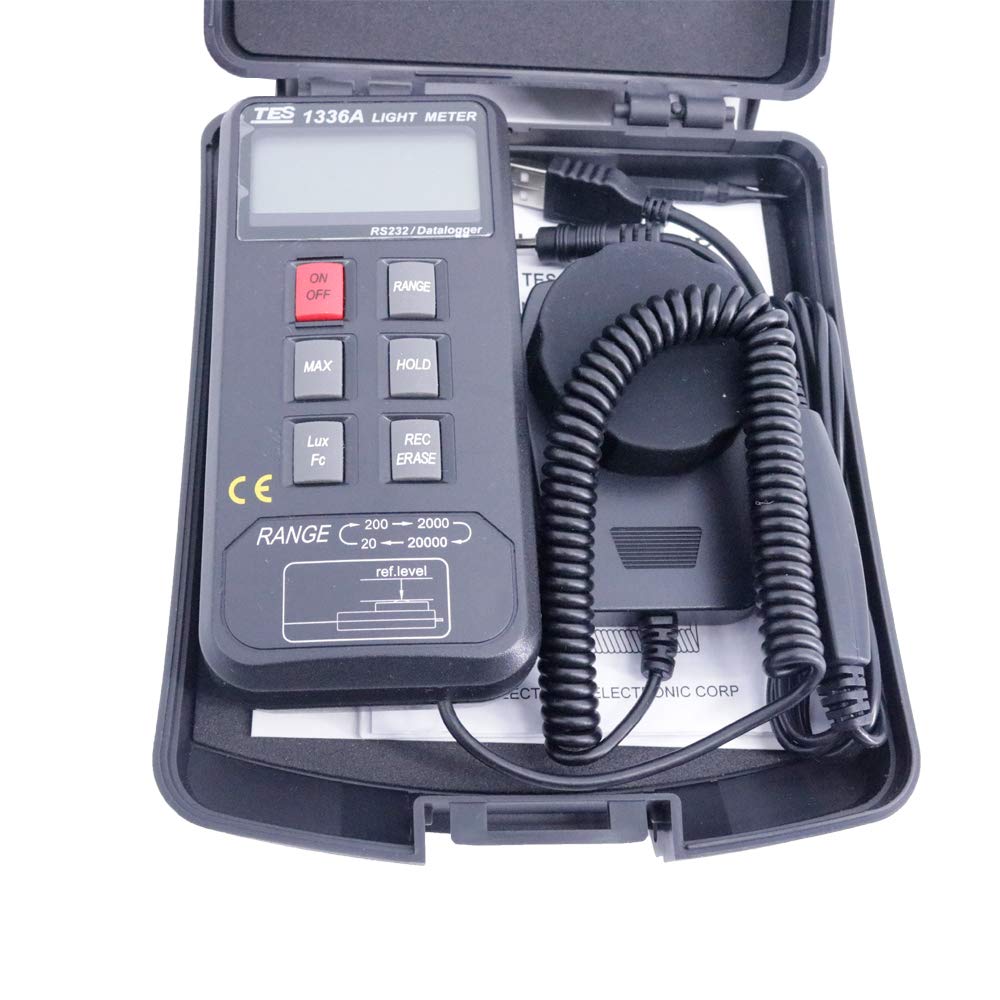

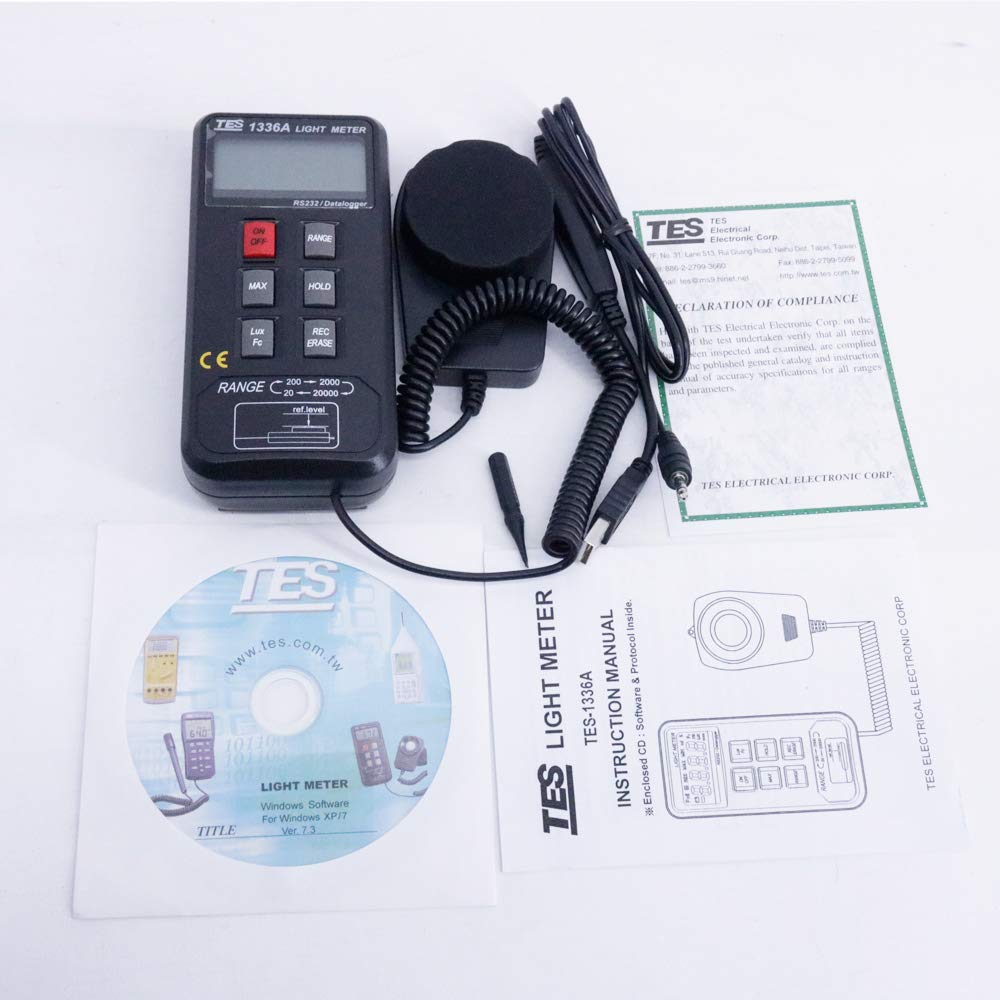

Accessories

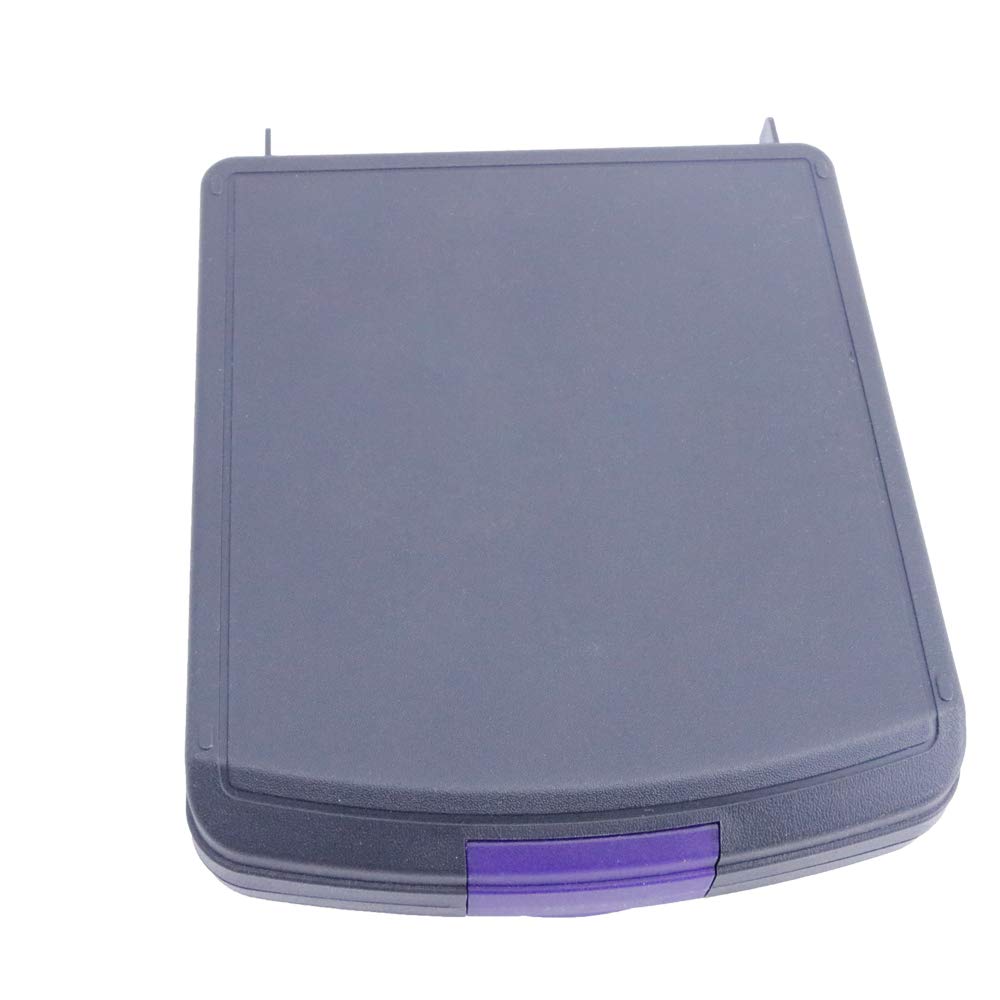

Carry case, instruction manual, battery, RS-232 to USB cable, software for windows, screwdriver.
